USER MANUAL AVG 16 HOTPOINT

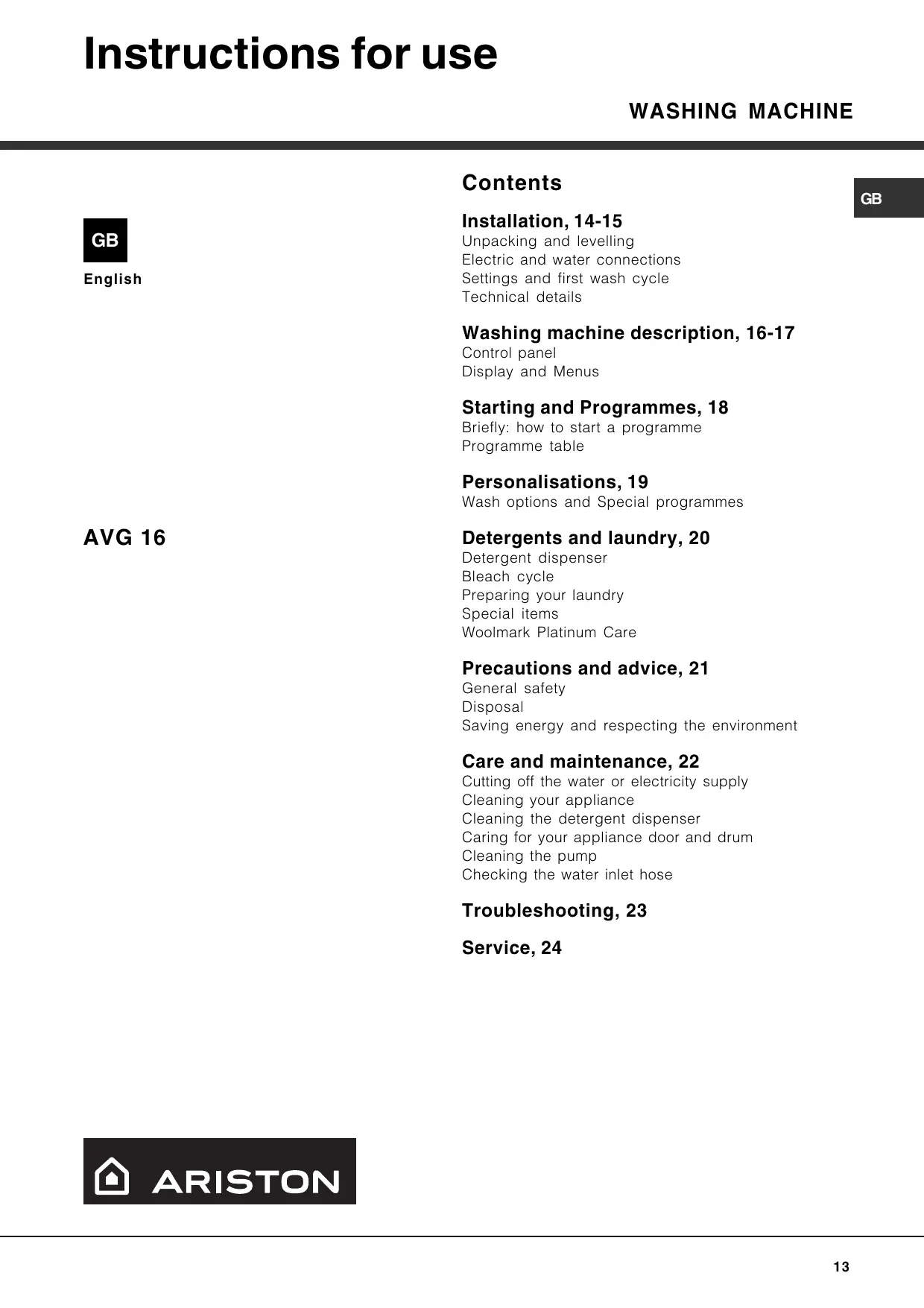

Instructions for use WASHING MACHINE Contents English

Installation, 14-15 Unpacking and levelling Electric and water connections Settings and first wash cycle Technical details Washing machine description, 16-17 Control panel Display and Menus Starting and Programmes, 18 Briefly: how to start a programme Programme table Personalisations, 19 Wash options and Special programmes AVG 16 Detergents and laundry, 20 Detergent dispenser Bleach cycle Preparing your laundry Special items Woolmark Platinum Care Precautions and advice, 21 General safety Disposal Saving energy and respecting the environment Care and maintenance, 22 Cutting off the water or electricity supply Cleaning your appliance Cleaning the detergent dispenser Caring for your appliance door and drum Cleaning the pump Checking the water inlet hose Troubleshooting, 23 Service, 24

Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features. Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine. Read these instructions carefully: they contain vital information on installation, use and safety. Electric and water connections Unpacking and levelling Connecting the water inlet hose Unpacking

1. Unpack the washing machine.

2. Check whether the washing machine has been

damaged during transport. If this is the case, do not install it and contact your retailer.

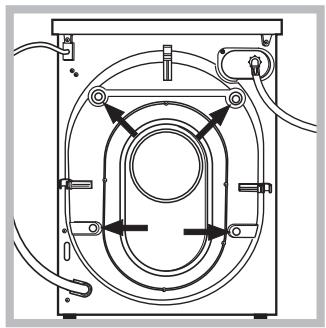

protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

4. Seal the gaps using the plastic plugs provided.

5. Keep all the parts: you will need them again if

the washing machine needs to be moved to another location.

1. Insert seal A into the

end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

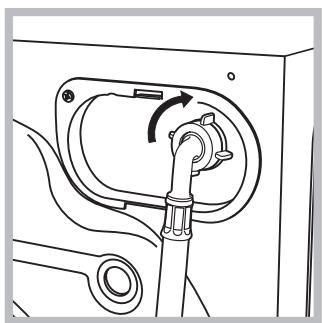

2. Connect the other end

of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure). Packaging materials are not children's toys.

3. Make sure there are no kinks or bends in the

hose. Levelling The water pressure at the tap must be within the

1. Install the washing machine on a flat sturdy

floor, without resting it up against walls, furniture cabinets or other.

2. If the floor is not

perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2°.

values indicated in the Technical details table (on the next page). If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman. Do not use extensions or multiple sockets. Connecting the drain hose The power supply cable must never be bent or dangerously compressed. Installation

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

The power supply cable must only be replaced by an authorised serviceman (see Service). The company denies all liability if and when these norms are not respected. Description Settings and First wash cycle Technical details

Capacity from 1 to 5 kg • the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right); Electric connections voltage 220/230 Volts 50 Hz maximum absorbed power 1850 W Water connections maximum pressure 1 MPa (10 bar) minimum pressure 0.05 MPa (0.5 bar) drum capacity 46 litres • the supply voltage is included within the values i ndicated on the Technical details table (on the right); Spin speed up to 1600 rpm Control programmes according to IEC456 directive "Cottons" programme; temperature 60°C (Cycle duration 119/137 min.); run with a load of 5 kg. • the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug. When the washing machine is installed, the mains socket must be within easy reach. This appliance is compliant with the following European Community Directives: - 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments - 89/336/CEE of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments - 2002/96/CE Service The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms. Troubleshooting Dimensions Care AVG 16 Precautions Model Electric connection Before plugging the appliance into the mains socket, make sure that: • the socket is earthed and in compliance with the applicable law; Detergents We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length. The first time you turn the washing machine on, you will have to set the Language, Date and Time (see also the Settings Menu) and make sure that the appliance has been installed correctly. Press OK to proceed. After the appliance has been installed, and before using it, run a wash cycle with detergent and without any washing, setting the "Cotton programme" at 90°C with no pre-wash cycle. Programmes alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

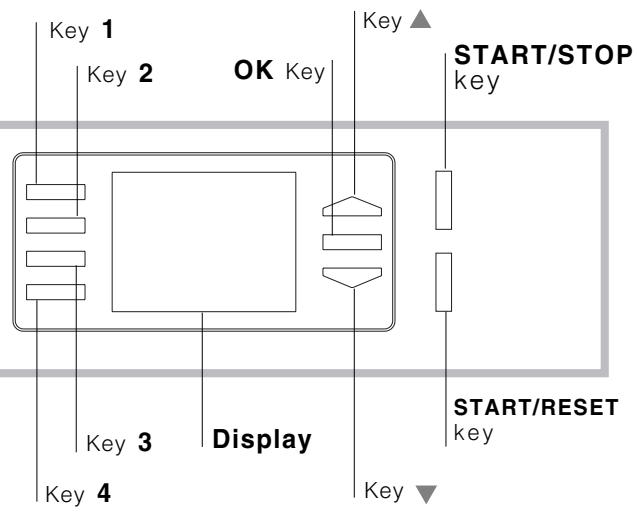

and OK keys to scroll through, select and confirm the entries suggested by the Menus. Keys 1, 2, 3, 4 to enter the Menus (opposite the keys to the left of the display) and to quit the Menus (Back). START/STOP key to turn the washing machine on and off. START/RESET key to start the programmes or cancel incorrect settings. Display to programme the washing machine to the various Menus (see Display and Menus, below). Display and Menus All the appliance Menus are described below. To programme the washing machine, see Start and Programmes. The appliance is fitted with an automatic Help function: if none of the keys are touched for 15 seconds, a Help screen is displayed; to disable it, see the Settings Menu. Info Water hardness Help Understanding labels Cottons Back Colours Synthetics Settings Press Settings Main Menu

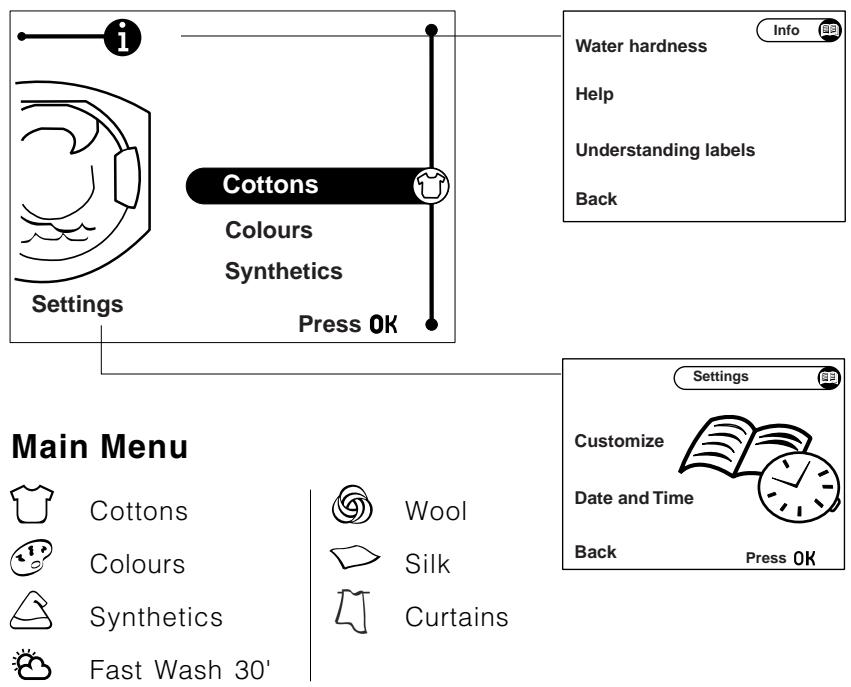

Customize Cottons Wool Date and Time Colours Silk Back Synthetics Curtains Fast Wash 30' Info Menu Water Hardness: to view the degree of hardness of the water. The value indicated is only valid after the first wash cycle has been performed. Help: for information on the interactive help function. Understanding Labels: for information on the washing instruction labels. Press Settings Menu Customize: to select the Language, cancel the programmes stored; enable or disable the automatic Help. Select, press OK, scroll through using the and keys and press OK again to confirm. Date and Time: to set the correct date and time: increase or decrease the and keys, press values using the OK to confirm. Summary Menu Cottons 60˚C (from the Main Menu, OK key)

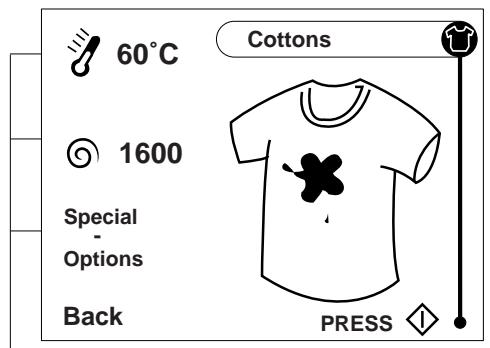

Programme selected Installation Temperature set by the programme. To modify it, see below.

Special Options Spin cycle (Silk and Curtains set by the programme. To modify it, see below. Back PRESS

Options 60˚C Spin Cycle Modification Menu and keys to increase or decrease Press the the spin speed: the speed increases until the maximum value allowed by the programme (see Programmes Table) and always drops down to (no spin cycle). Press OK to confirm. Detergents Back Temperature Modification Menu and keys to increase or decrease Press the the temperature: the degrees rise until the maximum temperature allowed by the programme (see Programmes Table) and always drop down to (cold water). Press OK to confirm. Programmes Back Description 60˚C PRESS Choose Options BLEACHING EASY IRON Choose Options - Choose Special Menu To select any wash Options and Special programmes, see Personalisations. Cycle Start Menu (from the Summary Menu, START key) SUPER WASH

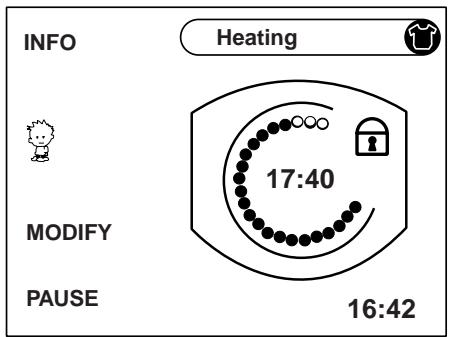

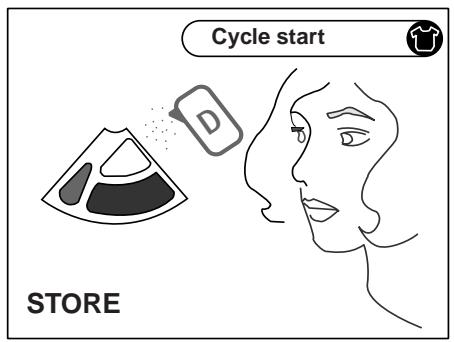

Care Cycle in progress Menu STORE (automatic) MODIFY Door Locked: Symbol on indicates that the washing machine door is locked to prevent it from being opened accidentally. 17:40: time at which the programme will end. 16:42: correct time. Service 16:42 Troubleshooting This Menu scrolls through the following phases: Heating, Wash, Spin cycle, Rinse, Draining and End of Wash Cycle. Info: for information on the cycle under way. : press at length to enable/disable the keyboard lock (Child safety feature). Modify: to modify the programme; the Summary Menu opens. Pause: to suspend the cycle momentarily. Heating 17:40 PAUSE Detergent and fabric softeners: see Detergents. Store: to store a wash cycle, press key 4; enter the and OK keys and key 3; to save name using the , it: press key 1 and OK. The stored cycles appear in the Main Menu. You can store up to a maximum of 3 cycles; should you wish to store a fourth one, you will be asked to cancel one of the cycles stored previously. To cancel it, see the Settings Menu. Cycle start INFO PRESS Precautions Back

Starting and Programmes

Starting a programme

1. Turn the washing machine on at the START/

STOP key. The Ariston screen is displayed, followed by the Main Menu.

2. Load your laundry into the appliance and shut

the door. and keys to

3. In the Main Menu, use the

select the type of fabric to wash (see table below); press OK to confirm.

4. The Summary Menu summarises the information

of the chosen programme; go Back to change it (key 4). The temperature and spin speed are set automatically according to the programme (to modify them, see Display and Menus).

5. Select any wash Options or Special

programmes (see Personalisations).

6. Pour in the detergent and any fabric softeners

7. Start the programme by pressing the START/

RESET key: the programme will start up after a few seconds. To cancel the cycle set, press the START/ RESET key for two seconds. To store the cycle, see Display and Menus. Press: - INFO for information; press at length to enable/disable the Child safety feature; - MODIFY to modify the programme; - PAUSE to suspend the cycle momentarily (press it again to restart it).

8. At the end of the programme, the words “End of

Wash Cycle”. are displayed. Take out your laundry and leave the appliance door ajar to make sure the drum dries completely.

9. Turn the washing machine off at the START/STOP

key. Programmes Table Max. temp. allowed Max. spin speed allowed (in rpm) Cottons 90°C Colours Programmes and Fabrics Detergent Fabric softener Bleaching option/ Bleach Cycle duration in Description of wash minutes (with/without cycle pre-wash) prewash wash

Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, intermediate and final spin cycles Wash cycle, rinse cycles, anti-crease or delicate spin cycle Wash cycle, rinse cycles and delicate spin cycle Wash cycle, rinse cycles and delicate spin cycle Wash cycle, rinse cycles, anti-crease or draining Wash cycle, rinse cycles, anti-crease or draining The Fast Wash 30' programme was designed to wash slightly soiled garments quickly: it lasts just 30 minutes and saves both energy and time. You can wash different types of fabrics together (except for wool and silk), with a maximum load of 3 kg. We recommend the use of liquid detergent.

RAPID PRE-WASH Back This option is incompatible with the RAPID option. Rapid This option cuts the duration of the wash cycle by 30%. This option is incompatible with the SUPER WASH option. Pre-wash This option runs a prewash cycle. The temperature and spin speed depend on the wash Programme carried out. This option is incompatible with the BLEACHING option. Time Delay This timer delays the start of the wash by up to 24 hours: Press the and keys to increase or decrease the hours of delay. The current time and the expected time of the wash cycle end are indicated. Effect Notes for use Rinse only This programme carries out a rinse cycle. Options available: BLEACHING and TIME DELAY. Spin cycle only This programme carries out a spin cycle. Options available: TIME DELAY. Draining This programme carries out a drain cycle. Options available: TIME DELAY. Special Service Super Wash This option makes for an impeccable wash, visibly whiter than a standard Class A cycle. Troubleshooting Easy iron This option reduces the amount of creasing in fabrics, making them easier to iron. If you set this option, the "Synthetics", "Silk" and "Curtains" programmes are suspended, leaving the garments to soak (Anticrease): - to complete the cycle, press the START/RESET key; - to drain the water only, set the spin cycle to OFF, then press the START/RESET key. This option is incompatible with the BLEACHING option. Care Remember to pour in the bleach in the extra compartment for bleach 4 (see Detergents). This option is not compatible with EASY IRON and PRE-WASH. Precautions Bleaching cycle designed to remove the toughest stains. Bleaching Detergents Notes for use Programmes Effect Description Options PRESS

Installation SUPER WASH Choose Options - Choose Special Menu and keys to scroll through the Press the various wash options and Special programmes: Options: press OK to enable (ON) or disable (OFF) an option; press OK again. The symbol corresponding to the option enabled stays on, e.g.: Once you have selected the fabric type, only the options compatible with that particular fabric will appear. If two options are incompatible with one another (see table below), a message appears. To go back to the Summary Menu, press Back. Press START/RESET to start the programme. Special: press OK to enable a Special programme. The spin speed is set automatically (see Display and Menus to modify it). Press key 3 to select any Options. Press START/RESET to starts the Special programme; press Back to cancel it.

Detergents and laundry

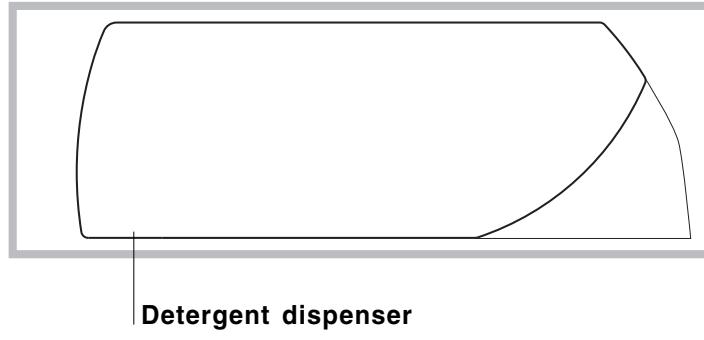

Detergent dispenser Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment. MAX Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

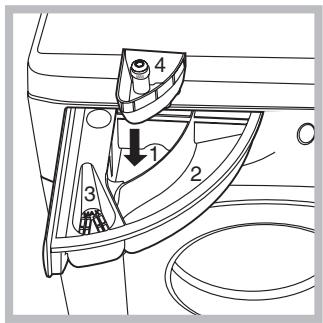

compartment 1: Detergent for pre-wash (powder) Before pouring in the detergent, make sure that extra compartment 4 has been removed. compartment 2: Detergent for the wash cycle (powder or liquid) Liquid detergent should only be poured in immediately prior to the wash cycle start. compartment 3: Additives (fabric softeners, etc.) The fabric softener should not overflow from the grid. extra compartment 4: Bleach Do not use hand wash detergent because it may form too much foam. Bleach cycle Traditional bleach should be used on sturdy white fabrics, and delicate bleach for coloured fabrics, synthetics and for wool. MAX MAX Place extra compartment 4, provided, into compartment 1. When pouring in the bleach, be careful not to exceed the "max" level indicated on the central pivot (see figure). To run the bleach cycle only, pour the bleach into the extra compartment for bleach 4 and set the Special Rinse Only Programme. To bleach during a wash cycle, pour in the detergent and any fabric softener, set the desired programme and enable the Bleaching option (see Personalisations).

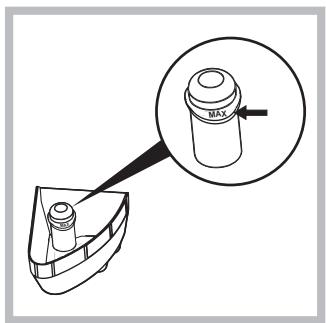

The use of extra compartment 4 excludes the prewash. In addition, the bleach cycle cannot be run with the Silk, Curtains and Fast Wash 30' programmes (see Programmes Table). Preparing your laundry • Divide your laundry according to: - the type of fabric/the symbol on the label. - the colours: separate coloured garments from whites. • Empty all pockets and check for loose buttons. • Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 5 kg Synthetic fabrics: max 2.5 kg Delicate fabrics: max 2 kg Wool: max 1 kg Special items Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use “Curtains” programme which excludes the spin cycle automatically. Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle. Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites. Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg. Woolmark Platinum Care As gentle as a hand wash. Ariston sets a new standard of superior performance that has been endorsed by The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303): Set “Wool” programme for all "Hand wash" garments, using the appropriate detergent. Precautions and advice General safety • This appliance has been designed for nonprofessional, household use and its functions must not be changed. • Never touch the washing machine when barefoot or with wet or damp hands or feet. • Do not open the detergent dispenser while the appliance is in operation. • Do not touch the drain water as it could reach very high temperatures. • Always keep children well away from the appliance while in operation. • The appliance door tends to get quite hot during the wash cycle. • Before loading your laundry into the washing machine, make sure the drum is empty. • Disposing of the packaging material: observe local regulations, so the packaging can be re-used. • The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy. • Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy. • Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible. • If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Time Delay option (see Personalisations) helps to organise your wash cycles accordingly. • If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process. Service • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. • To avoid wasting resources, the washing machine should be used with a full load. A full l oad instead of two half loads allows you to save up to 50% on energy. Troubleshooting Disposal Saving on detergent, water, energy and time Care • Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy. Environmentally-friendly technology If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment. Precautions • In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs. Saving energy and respecting the environment Detergents • Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Programmes • Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.

Description • This washing machine should only be used by adults and in accordance with the instructions provided in this manual. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Installation The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

Care and maintenance

Cutting off the water or electricity supply • Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks. • Unplug your appliance when cleaning it and during all maintenance operations. Cleaning your appliance The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives. Cleaning the pump The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same. Make sure the wash cycle has ended and unplug the appliance. To access the pre-chamber:

1. using a screwdriver,

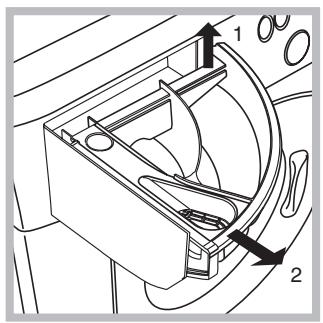

remove the cover panel on the lower front of the washing machine (see figure); Cleaning the detergent dispenser Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum • Always leave the appliance door ajar to prevent unpleasant odours from forming.

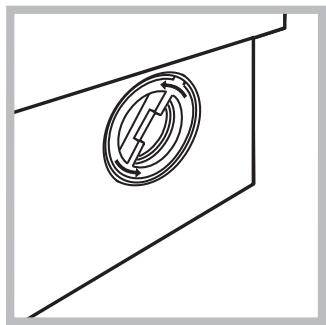

rotating it anticlockwise (see figure): a little water may trickle out. This is perfectly normal;

3. clean the interior thoroughly;

4. screw the lid back on;

5. reposition the panel, making sure the hooks are

securely in place before you push it onto the appliance. Checking the water inlet hose Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open. Never use hoses that have already been used.

Troubleshooting Your washing machine could fail to work. Before calling for Assistance (see Service), make sure the problem can't easily be solved by consulting the following list.

Possible causes/Solution: The washing machine won't start. • The appliance is not plugged into the socket, or not enough to make contact. • There has been a power failure. The wash cycle won't start. • The appliance door is not shut properly (a warning screen is displayed). • The START/STOP button has not been pressed. • The START/RESET button has not been pressed. • The water tap is not turned on. • A delayed start has been set (using the Time Delay, see Personalisations). The washing machine fails to load water (The wording H2O is displayed).

The washing machine continuously loads and unloads water. • The drain hose is not fitted between 65 and 100 cm from the floor (see Installation). • The free end of the hose is underwater (see Installation). • The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops. The washing machine does not drain or spin. • The programme does not foresee the draining: some programmes require enabling the draining manually (see Programmes). • The Easy iron option is enabled: to complete the programme, press the START/RESET button (see Personalisations). • The drain hose is bent (see Installation). • The drain duct is clogged. The washing machine vibrates too much during the spin cycle. • The drum was not unblocked correctly during installation (see Installation). • The washing machine is not level (see Installation). • The washing machine is closed in between furniture cabinets and the wall (see Installation). The washing machine leaks. • The water inlet hose is not screwed on correctly (see Installation). • The detergent dispenser is obstructed (to clean it, see Care and maintenance). • The drain hose is not secured properly (see Installation). There is too much foam. • The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like). • You used too much detergent. Installation Problem Description Programmes The water inlet hose is not connected to the tap. The hose is bent. The water tap is not turned on. There is a water shortage. The water pressure is insufficient. The START/RESET button has not been pressed. Detergents Precautions Care Troubleshooting Service

Service Before calling for Assistance: • Check whether you can solve the problem on your own (see Troubleshooting); • Restart the programme to check whether the problem has been solved; • If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

Always request the assistance of authorised servicemen. Service Notify the operator of: • the type of problem; • the appliance model (Mod.); • the serial number (S/N). This information can be found on the data plate situated on the rear of the washing machine.
