AB 40 - Washing machine HOTPOINT - Free user manual and instructions

Product Type	Washing Machine
Brand	HOTPOINT
Model	AB 40
Dimensions (W x H x D)	59.5 x 85 x 52.5 cm
Wash Capacity	5 kg (cotton), 2.5 kg (synthetics), 2 kg (delicates), 1 kg (wool)
Spin Speed	Up to 400 rpm
Power Supply	220-230 V / 50 Hz, max power 2000 W
Water Pressure	0.05 to 1 MPa (0.5 to 10 bar)
Drum Capacity	40 liters
Number of Programs	15 programs (cotton, synthetics, wool, rinses, spin, drain)
Main Functions	Wash, rinse, spin, pre-wash, stop with water in drum, half load, spin suppression
Temperatures	From 30°C to 90°C, including cold wash
Load Type	Front loading, porthole
Safety	Door locked during operation, child safety (advice), automatic stop in case of problem
Maintenance	Cleaning of detergent drawer, pump inspection, exterior cleaning with damp cloth, periodic descaling
Spare Parts / Repairability	Spare parts available from authorized after-sales service; special power cable
Compliance	EC Directives 73/23/EEC (Low Voltage) and 89/336/EEC (Electromagnetic Compatibility)
Country of Origin	Made in Italy (HOTPOINT brand, likely origin)

Frequently Asked Questions - AB 40 HOTPOINT

How to install the HOTPOINT AB 40 washing machine?

After unpacking the appliance, remove the 3 transport screws at the back as well as the spacer and rubber. Plug the holes with the provided hole caps. Level the machine by adjusting the front feet (max tilt 2°). Connect the cold water inlet hose (3/4 gas thread) with rubber gasket. Connect the drain hose between 60 and 100 cm high. Electrically connect to a grounded socket (220-230V/50Hz).

What wash programs are available?

There are 15 programs numbered 1 to 8 plus rinse, spin, drain programs. The main ones: cotton at 90°C (very dirty white), cotton at 60°C, synthetics at 60°C, wool at 40°C. Each program has specific temperatures and durations (see table page 18).

How to use the detergent drawer?

The drawer is on the left, turn it to the left to open. It has 3 compartments: compartment 1 for pre-wash detergent (powder), compartment 2 for main wash detergent (powder or liquid), compartment 3 for fabric softener. Do not exceed indicated doses. Pour liquid detergent just before starting. Clean the drawer periodically by rinsing under running water.

What to do if the machine does not start?

Check that the plug is properly connected, that there is power (circuit breaker), that the door is well closed, that the On/Off button is pressed (ON position) and that the water tap is open. If the problem persists, refer to the Problems and Solutions section.

How to solve excessive foam?

Use a special washing machine detergent (not hand-wash detergent). Reduce the dose if necessary. Excessive foam can cause deposits. If foam overflows, run an additional rinse cycle.

The machine vibrates a lot during spin, what to do?

Check that the transport screws have been removed. Ensure the machine is level (adjust feet). Avoid pushing it against furniture. Distribute the laundry evenly in the drum.

How to clean the pump filter?

The pump is self-cleaning but can retain small objects. Unplug the machine, close the tap. Remove the bottom panel with a screwdriver, then turn the pre-chamber cover counterclockwise. Clean the inside. Reassemble in reverse order.

What is the maximum load capacity?

For sturdy fabrics: 5 kg; synthetics: 2.5 kg; delicates: 2 kg; pure wool: 1 kg. Do not exceed these weights for optimal washing.

How to do a cold wash?

Turn the temperature knob to the 'cold' position (often symbolized by a snowflake or '_**'). Reduce the amount of detergent as it dissolves less well in cold water. Some programs allow a minimum temperature of 30°C.

Where to find the serial number and model?

They are on the rating plate located on the back panel of the machine. The information includes the model (Mod. AB 40) and serial number (S/N). Keep them for any after-sales service intervention.

USER MANUAL AB 40 HOTPOINT

Instructions for installation and use

Machine à laver

How to get better results

Instructions for installation and use

Margherita 2000 Washing machine safe

and easy to use

Quick guide to Margherita 2000

Here are the 11 topics explained in this manual. Read, learn and have fun: you will discover many secret ways to get a better wash, more easily and making your washing machine last longer.

1. Installation and removal (p. 10)

Installation, after delivery or transport, is the most important operation for the correct functioning of your Margherita 2000 washing machine. Always check:

1. That the electric system conforms to regulations;
2. That the inlet and draining pipes are connected correctly. Never use pipes that have already been used;
3. That the washing machine is levelled properly; something worth checking to aid the performance of your washing machine;
4. That the drum's fixing screws have been removed from the back of the washing machine.

2. What goes in your washing machine and how to start your Margherita 2000 (p. 2)

A correct distribution of your laundry is vital to the successful outcome of the wash and the life of the washing machine. Learn all the tips and secrets to dividing your linen: colour, type of fabric.

3. Guide to understanding labels (p. 5)

The symbols on the labels of your garments are easy to understand and equally important for the success of your wash. The guide includes simple instructions to help you choose the right temperature, wash cycles and ironing methods.

4. Useful tips to avoid mistakes (p. 6)

Years back, our grandmothers were the ones who gave us good advice - and in those days synthetic fibres did not exist: washing was easy. Today, Margherita 2000 offers you helpful advice allowing you to wash wool even better than an expert laundress would by hand.

5. The detergent dispenser (p. 7)

How to use the detergent dispenser.

6. Understanding the control panel (p. 3)

Margherita 2000's control panel is very simple. It has only a few essential buttons to help you choose any type of wash cycle, ranging from the most energetic, capable of cleaning a mechanic's overalls, to the most delicate for wool. Familiarising yourself with it will help you get the best out of your wash while helping your washing machine last longer. It's easy.

7. Guide to Margherita 2000's programmes (p. 4)

Herein is an easy table to help you choose the right programme, temperature, detergents and possible additives. Choose the right programme and you will get better results with your wash while saving time, water and energy, day after day.

8. Care and maintenance (p. 11)

Margherita 2000 is a true friend. With just a bit of care, it will repay you with loyalty and devotion.

With the necessary upkeep, it will wash for years and years to come.

9. Problems and solutions (p. 8 and 9)

Before calling a technician, read these pages: immediate solutions may be found for a number of problems. If the problem persists, call your local Ariston customer services who will be pleased to help. Any failure will be repaired, as soon as possible.

10. Technical characteristics (p. 9)

Herein are the technical features of your washing machine: model type number, electric and water specifications, size, capacity, speed of the spin cycle and compliance with Italian and European regulations.

11. Safety for you and your family (p. 12)

Here you will find the necessary safety guidelines, and it is important for you to read this section carefully.

What goes in your washer?

Before washing, you can do a great deal to ensure better results. Divide your garments according to fabric and colour. Read the labels, follow their guidelines.

Dividing your garments according to fabric and colour, is very important for good results

Before washing.

Divide your washing according to the type of fabric and colour fastness.

Empty all pockets (coins, paper, money and small objects) and ensure all loose buttons are repaired or removed prior to loading.

The labels say it all.

Always look at the labels: they tell you everything about your garment and how to wash it in the best possible way.

The table on page 5 shows all meanings behind these symbols. Their recommendations are important to achieve better wash results.

Starting Margherita 2000

After installing your new washing machine, start a wash cycle by setting programme "1" at 90 degrees.

Starting Margherita 2000 in the right way is important for the quality of your wash, to help prevent future problems and enhance life expectancy of your appliance. Once you have loaded your washing machine and added the detergent together with any fabric conditioner, always check that:

For more delicate garments: protect underwear, tights and stockings and delicate items by placing them in a canvas pouch

1. The door is closed correctly.
2. The plug is secured in the socket.
3. The water supply is turned on.
4. Check that button F is not pressed in (OFF position).

Choose the desired programme The programme is selected according to the type of garments that need to be washed. To choose a programme, refer to the table on page 4. Turn dial A to the programme number you have chosen. Set the temperature on dial B and, if necessary, press function button (D, E); set ON/ OFF button F to position ON.

At the end of the wash cycle... The H lamp to extinguish: it will take about three minutes.

Then turn Margherita 2000 off by pressing on-off button F (OFF position). You can now open the washing machine door safely. After having removed the freshly cleaned washing, leave the door open to allow air circulation inside the drum.

Always disconnect electricity at the socket and turn off the water supply.

Anti-crease

This feature interrupts the wash cycle, letting the laundry soak in the water before the spin cycle.

It is activated only during the wash cycles for synthetic materials and wool. This feature is very useful because it prevents delicate and synthetic clothing from wrinkling (for example, when you are unable to remove the laundry at the end of the wash cycle and it must remain in the machine for several hours). The wash program can be completed with either a spin cycle or by draining the water without wringing. In the first case, simply turn the knob A clockwise one click. In the second, turn the knob A to the drain setting In both cases, the knob A must be turned when the machine is off.

How to eliminate the most common stains

Ink and biro Dab with a wad of cotton soaked in methyl alcohol or alcohol at 90^ .

Tar Dab with fresh butter, rub in turpentine then wash immediately.

Wax Scrape away, then run a hot iron between two sheets of absorbent paper. Then rub in cotton with turpentine or methyl alcohol.

Chewing gum Rub in nail polish remover and wipe with a clean rag.

Mold Cotton and white linen should be placed in a solution of 5 parts water, one bleach and a spoon of vinegar, then washed immediately. For other white fabrics, use hydrogen peroxide at 10 volumes and wash immediately.

Lipstick Dab with ether on wool or cotton. Use tricloroetilene for silk.

Nail polish Place a sheet of absorbent paper on the side of the stain, wet it with nail polish remover, shifting the garment as the sheet gradually changes colour.

Grass Dab with a wad of cotton soaked in methyl alcohol.

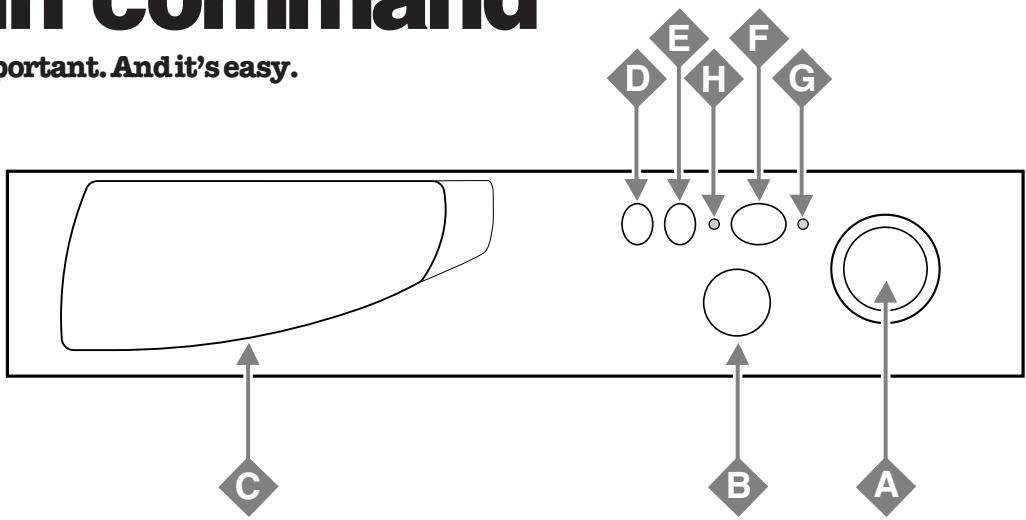

Here I’m in command

Making the right choice is important. And it's easy.

Programme selector knob

Use this dial to select one of the 15 wash programmes available for all your laundry requirements (see programme table on page 4).

Remember that this dial should be turned in a clockwise direction and only when the machine is off.

Temperature control knob

It is used to set the wash temperature indicated in the programme table. It also allows you to reduce the temperature recommended for the selected programme, and even to set a cold wash cycle (长)

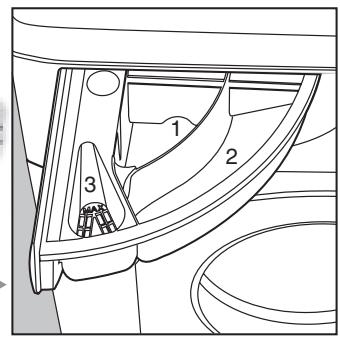

Detergent dispenser

It is divided into three compartments:

1. Detergent for pre-washing;
2. Detergent for the wash cycle;
3. Fabric softeners,

starches, perfumes.

Spin Exclusion

Use this button to exclude the spin cycle. This function should be used for items that are difficult to iron.

Half load

Reduces water consumption during the rinse cycles. We recommend that you use this function only with small laundry loads, dosing the detergent proportionally.

On-off

This button turns your appliance ON/OFF. Press button F to turn on the washer and depress button F to turn off the washer.

The on-off lamp

When this is lit, the machine is on.

The door block lamp

The safety lamp indicates that the washing machine door is blocked to prevent it from being opened accidentally. To avoid any damages, you must wait for the lamp to switch itself off before you open the door. You must wait around three minutes.

The detergent dispenser is here.

A programme for all seasons

Cycle

Knob

Temp.

Knob

Pre-w

Detergent

Wash

Detergent

Softener

Length of

the cycle

(minutes)

Description of Wash Cycle

Type of Fabric & How Dirty

COTTON
Extremely dirty whites sheets, tablecloths, etc.)	1 MAX	◆	◆	◆	150	Warm prewash, wash at 90°C, rinses, intermediate and final spins.
Very dirty whites sheets, tablecloths, etc.)	2 MAX		◆	◆	140	Wash at 90°C, rinses, intermediate and final spins.
Very dirty heavy whites and colours	2 60°C		◆	◆	140	Wash at 60°C, rinses, intermediate and final spins.
Very dirty heavy whites and colours.	2 40°C		◆	◆	140	Wash at 40°C, rinses, intermediate and final spins.
Fairly dirty heavy whites and colours (coloured underwear, house coats, etc.)	3 60°C		◆	◆	115	Wash at 60°C, rinses, intermediate and final spins.
Whites and delicate colours that are not very dirty.	3 40°C		◆	◆	115	Wash at 40°C, rinses, intermediate and final spins.
Whites and delicate colours that are not very dirty (shirts, T-shirts, etc.)	4 40°C		◆	◆	95	Wash at 40°C, rinses, intermediate and final spins.
Rinses				◆		Rinses, intermediate and final spins.
Softener				◆		Rinses with automatic softener dispensing, intermediate and final spins.
Spin						Drain and final spin.
SYNTHETICS
Very dirty heavy synthetic colours (underwear for infants, etc.).	5 60°C		◆	◆	85	Wash at 60°C, rinses, wrinkle-guard or delicate spin.
Very dirty synthetic colours.	5 50°C		◆	◆	85	Wash at 50°C, rinses, wrinkle-guard or delicate spin.
Very dirty, delicate synthetic colours.	5 40°C		◆	◆	85	Wash at 40°C, rinses, wrinkle-guard or delicate spin.
Fairly dirty delicate synthetic colours.	6 50°C		◆	◆	75	Wash at 50°C, rinses, wrinkle-guard or delicate spin
Not very dirty delicate synthetic colours (all types of underwear).	7 40°C		◆	◆	65	Wash at 40°C, rinses, wrinkle-guard or delicate spin.
Rinses				◆		Rinse, wrinkle-guard or delicate spin.
Softener				◆		Rinse with automatic softener dispensing, wrinkle-guard or delicate spin.
Spin						Drain and delicate spin.
WOOL
Wool (machine washable)	8 40°C		◆	◆	55	Wash at 40°C, rinses, wrinkle-guard or delicate spin.
Rinses				◆		Rinse, wrinkle-guard or delicate spin.
Softener				◆		Rinse with automatic softener dispensing, wrinkle-guard or delicate spin.
Spin						Drain and delicate spin.
Drain						Drain without spin.

The data found in the table is purely indicative, and can vary according to the quantity and type of washing, the water system temperature and the room temperature.

Understanding labels

Learn the meaning of these symbols and you will get better results, your garments will last longer resulting in an improved wash.

All over Europe, garment labels contain messages expressed in small yet important symbols. Understanding them is very important if you want to get better results and treat your garments the way they deserve to be treated.

These symbols are divided in five different categories and shapes: washing, bleaching, ironing, drying cleaning and drying.

Useful tips

Turn shirts inside out to get better results and make them last longer.

Always empty pockets of their contents.

Look at the label: it will always give you useful advice.

When loading your washing, try to have a mixture of large to small items.

Make sure you select the right temperature!

Consult and learn the symbols in this table: they will help you obtain a better wash, treat your clothes properly, and get a better performance out of your Ariston Margherita 2000.

Wash Delicat-e action	Bleaching	Ironing	Dry cleaning	Drying
95 Wash at 95°C	95 Bleaching only in cold water	Hot iron at max 200°C	Dry clean with any solvent	Machine dryable
60 Wash at 60°C	60 Do not bleach	Medium hot ironing at max 150°C	Dry clean only with perchloride, benzine av., pure alcohol, R111 and R113	Do not machine dry
40 Wash at 40°C	40	Iron at max 110°C	Dry clean with av. benzine, pure alcohol and R113	Spread to dry
30 Wash at 30°C	30	Not ironable	Do not dry clean	Hang to dry without spin drying
Hand wash	Hand wash			Dry on clothes hanger
Not washable in water

Useful tips

Never use your washing machine to wash...torn,fraying or non-hemmed linen. If it is absolutely neccessary, place it in a bag for protection. Do not wash coloured linen with whites.

Watch the weight!

For best results, do not exceed the weight limits stated below (figures show weight of dry garments):

-Resistant fabrics: 5kg maximum
Synthetic fabrics: 2.5kg maximum
- Delicatefabrics: 2kg maximum
Pure new wool: 1kg maximum

How much does it weigh?

1 sheet 400-500 gr.
1 pillow case 150-200 gr.
1 tablecloth 400-500 gr.
1 bathrobe 900-1,200 gr.
1 towel 150-250 gr.

Coloured T-shirts, printed ones and shirts last longer if turned inside out before washing. Printed T-shirts and sweatshirts should always be ironed inside out.

■Dungaree alert.

Very popular "salopette" type overalls have straps with hooks that can damage the drum of your washing machine or other garments during the wash. To minimise the risk, place hooks in the pocket and fasten with safety pins.

Holidays: unplug the appliance.

It is recommended that you should unplug the machine from the socket and turn off the water supply. Leave the door ajar to allow air circulation to the draw and the door gasket area. This will prevent unpleasant odours.

WOOL CYCLE

For best results, we recommend you use a specific detergent, taking care not to wash more than 1kg of laundry.

How to wash almost anything

Curtains.

Curtains tend to crease a great deal. A useful tip to reduce creasing: fold the curtains and place them in a pillow case or mesh bag. Do not load anything else inside the appliance, this will ensure that the overall weight does not exceed the half load.

■ Quilted coats and anorak.

You can wash quilted coats and wind-cheaters, too, if they are padded with goose or duck down. Do not load more than 2 - 3kg and never load 5kg . Repeat rinse once or twice using the gentle spin.

Trainers.

Once you have removed mud and dirt from trainers, you can even wash them with jeans or any other tough garments. Do not wash trainers with whites.

Useful tips about the detergent dispenser

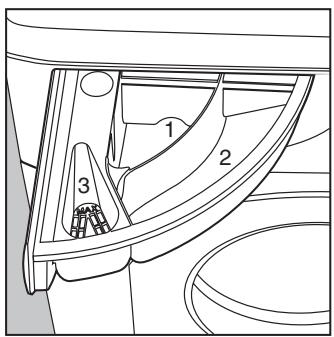

The first secret is the easiest: the detergent dispenser is opened by rotating it outwards.

You must follow the dosage recommendations provided by the manufacturers when adding detergent or fabric conditioner. Doses will vary according to the wash load, the water hardness and how soiled the washing is.

Experience will help you select the right dosage almost automatically: it will become your secret.

Ensure no overfilling when adding fabric conditioner in compartment 3.

The washing machine automatically adds the softener to the wash in each programme.

Liquid detergent is poured into compartment 2 just a few seconds before starting the wash cycle.

Remember that liquid detergent is only designed for wash cycles of up to 60 degrees on non prewash items.

Special containers are sold with liquid or powder detergents for placing inside the washing machine drum, these are positioned according to the instructions found in the detergent box

Never use hand wash detergent, because it may form too much foam, which could damage the washing machine.

Detergents that are specifically formulated for both hand and machine wash are an exception.

One last secret: when washing with cold water, always reduce the amount of detergent you use: it dissolves less easily in cold water than in hot water, so part of it would be wasted.

In compartment 1:

Detergent for pre-washing (powder)

In compartment 2:

Detergent for washing

(powder or liquid)

In compartment 3:

Additives (softeners, perfumes, etc.)

The detergent dispenser can be removed and cleaned: just lift it up and pull it outwards, as indicated in the figure. Then leave it under running water for a few minutes.

Cutting costs efficiently

MAXIMISE THE LOAD SIZE

Achieve the best use of energy, water, detergent and time by using the recommended maximum load size.

SAVE up to 50% energy by washing a full load instead of 2 half loads.

DO YOU NEED TO PRE-WASH?

For heavily soiled laundry only!

SAVE detergent, time, water and between 5 to 15% energy consumption by NOT selecting Prewash for slight to normally soiled laundry.

IS A HOT WASH REQUIRED?

Pretreat stains with stain remover or soak dried in stains in water before washing to reduce the necessity of a hot wash programme.

SAVE up to 50% energy by using a 60^ wash programme.

BEFORE USING A DRYING PROGRAMME ...

SAVE energy and time by selecting a high spin speed to reduce the water content in laundry before using a drying programme.

A guide to environmentally friendly and economic use of your appliance.

Troubleshooting

Before calling, read the following

In most cases, when your washing machine fails to work, the problems arising can be easily solved without having to call for a technician. Before calling for assistance, always check these points.

The washing machine fails to start.

■Is the plug correctly inserted into the socket? It could have been moved whilst cleaning.
■ Is there electricity in the house?

A circuit breaker may have switched off as a result of too many electrical appliances working at the same time. Or maybe due to a general failure in your entire area.

■ Is the washing machine door closed properly?

For safety reasons, the

washing machine cannot work if the door is open or not shut properly.

■Is the On/Off button pressed?
If it is, then a programmed start has been set.
■ Is the programmed start knob, in the correct position for those models concerned?
■ Is the water supply turned on? For safety reasons, if the washing machine does not load water, it cannot start a wash cycle.

RIGHT

WRONG

Turn off the water supply after use. This will eliminate the possibility of leakage.

Always leave the appliance door ajar to avoid bad odours.

Clean the appliance's exteriors gently. To clean the exteriors and the rubber parts of the appliance, always use a soft cloth dipped in warm and soapy water.

Leave the washing machine plugged in while cleaning. Even during maintenance, the appliance should always be unplugged.

Use solvents and aggressive abrasives. Never use solvents or abrasives to clean the external and rubber parts of the washing machine.

Neglect the detergent dispenser. It is removable and can easily be cleaned by leaving it under running water.

Go on holiday without thinking about her. Before leaving, always make sure that the washing machine is unplugged and that the water supply is turned off.

The washing machine fails to fill with water.

■ Is the hose correctly connected to the tap?
■ Is there a water shortage? There could be work in progress in your building or street.
■ Is there sufficient water pressure? The autoclave may be malfunctioning.
Is the tap filter clean? If the water is very calcareous, or if work has recently been carried out on the water piping, the tap filter could be clogged with particles and debris.
■ Is the rubber hose kinked? The tract of the rubber hose bringing water to washing machine must be as straight as possible. Make sure it is not squashed or kinked.

The washing machine continuously fills and drains water.

■ Is the drain hose positioned too low? It must be installed at a height ranging from 60 to 100cm
■ Is the end of the hose immersed in water?

Does the wall drainage system have a breather pipe? If the problem persists even after these checks, turn the water supply off the machine and call for assistance.

If you live on an upper floor of your building, there may be a problem with your drain trap. To solve this problem, a special valve must be installed.

The washing machine does not drain or spin.

Does the selected programme incorporates water draining? Some programmes stop at the end of the wash cycles and draining will have to be selected manually.
■ Is the "Rinse-Hold" function -where provided -enabled? This function requires manual selection for draining.
■ Is the drain pump clogged?

To check it, turn off the water supply, unplug the washing machine and follow the instructions on page 11, or call for technical assistance.

Always get assistance from authorised technicians and always insist on original spare parts.

■ Is the drain hose kinked?

The tract of the drain hose must be as straight as possible. Make sure the drain hose is not squashed or kinked.

■ Is the washing machine's drain duct clogged? Is there an extension of the drain hose? If so, is it positioned incorrectly, blocking the water flow?

Excessive vibration during the spin cycle.

Have all transit screws been removed durind installation? See the following page on installation procedures.
Has the washing machine been levelled correctly? The levelling of the appliance should be checked periodically. Adjust the feet and check them with a level.

■ Is there space between the machine and adjacent units? If it is not a built-in model, the washing machine will oscillate a bit during the spin cycle. A few cm of space should therefore be left around it.

The washing machine leaks.

■ Is the metal ring of the inlet hose properly attached? Tum off the water supply, unplug the appliance and try tightening its attachment without forcing it.
■ Is the detergent dispenser obstructed? Remove and wash it under tap water.
■Is the drain hose well attached? Turn off the water supply, unplug the appliance and try tightening its attachment.

Too much foam.

■ Is the detergent appropriate for machine washing? Check whether the definition on its label reads "for machine wash" or "hand and machine wash", or any other similar wording.
■ Is the correct amount being used? An excessive amount of detergent, besides producing too much foam, does not guarantee a more effective wash, and causes scaling in the internal parts of the appliance.

If, despite all checks, the washing machine fails to function and the problem persists, call your nearest authorised Customer Service Centre, providing the following information:

• the nature of malfunction
• the model type no. (Mod....)
• the serial number (S/N ....)
  This information can be found on the data plate situated at the back of the washing machine.

Technical characteristics

Model	AB 40
Dimensions	width 59,5 cm
	height 85 cm
	depth 52,5 cm
Capacity	from 1 to 5 kg
Electrical connections	voltage 220/230 Volt 50 Hz
	maximum absorbed power 2000 W
Water connections	maximum pressure 1 MPa (10 bar)
	minimum pressure 0,05 MPa (0,5 bar)
	drum capacity 40 litre
Spinning speed	up to 400 rpm
CE	This appliance conforms with the following E.E.C. directives: -73/23/EEC of 19/02/73 (Low Voltage) and subsequent modifications -89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent modifications

Installation and removal When Margherita 2000 arrives

Whether new or just transported to a new house, installation is extremely important for the correct functioning of your washing machine.

After removing the appliance from its packaging, check that it is intact. If in doubt, contact a qualified technician immediately. The inside of the machine is supported, for transportation, by 3 screws on the back panel.

Before using the washing machine, remove the screws, remove the spacers together with the rubber tubes attached to them (keeping all the parts) and use the plastic plugs provided to fill in the holes.

Important: Use the cap (provided) to close the 3 holes which housed the stop pin, situated in the right-hand part of the lower back of the washing machine.

Part A must not be removed.

Levelling

The washing machine must be levelled appropriately in order to guarantee its correct functioning. To level the appliance, the front feet must be adjusted; the angle of inclination, measured according to the worktop, must not exceed 2^ . When placed on carpet, make sure the ventilation is not reduced.

Retain the transit screws, spacers and washers. Should you move house then these should be replaced to support the inside of the machine to prevent damage when transporting the machine.

The front feet are adjustable.

Connection to the water mains

Water pressure must range within the values indicated on the data plate on the rear of your washing machine. If the water pipes are new or left unused, then before connecting the machine run the water until clear to remove debris. Connect the inlet hose to a cold water tap having a 3/4 "BSP thread. Ensure that the rubber sealing washers are fitted at each end of the inlet hose, with the fitter washer at the tap end.

The rubber gasket.

Connect the inlet hose to the threaded connector on the machine rear.

Water pipe inlet at the top right.

Connecting the drain hose

There are two hooks (right or left) on the rear of your washing machine to which the drain hose is to be fixed. Insert the other end in a stand pipe or place it on the edge of a sink or tub avoiding excessive kinks and bending. It should be placed at a height

ranging from 60 to 100cm .If it is necessary to fix the end of the hose at a height below 60~cm from the ground, it must be fixed in the appropriate hook placed on the upper part of the back panel.

The hook to be used in case the drain hose ends at a height below 60~cm

If the drains hose empties into a tub or sink then fit the plastic guide and secure it to the tap.

The guide for draining into tubs and sinks.

The end of the drain hose must be positioned so that it cannot become submerged.

Extensions are unadvisable. In case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150~cm . In case of wall draining pipes, their efficiency must be checked by a qualified technician. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously.

In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

Electric connection

Before connecting the appliance to the electric socket, be sure that:

1) the electric socket is able to sustain the appliance's maximum power load indicated on the data plate and in compliance with the law;
2) the supply voltage is included within the values indicated on the data plate;
3) the socket is compatible with the appliance's plug. If not, do not use adapters, but replace either the socket or the plug;
4) electric household appliances must be equipped with an "earthing" system.

Warning! The company denies all liability if and when these norms are not respected.

Plastic bags, expanded styrofoam, nails and other packaging parts are not children's toys, and are potentially dangerous.

Treat your machine well and it will provide many years of trouble free service

Your washing machine is a reliable companion in life and on the job. It is just as important for you to keep it in shape.

Margherita 2000 is a washing machine designed to provide reliable service over many years. A few simple steps will help to prolong its life and avoid problems. It is advisable, to turn off water taps when the machine is not to be used, this protects the hoses, etc.

If the water in your area is too hard, use a deliming product (water is hard if it often leaves whitish stains around taps or drains, especially of bath tubs.

Formore accurate information as to the type of water in your system, call the local water works or a local plumber).

Pockets must always be emptied removing even pins, badges and any other hard object.

The washing machine exterior should be cleaned with a rag dipped in lukewarm water and soap.

It is important to wash the detergent dispenser regularly. To prevent dried washing powder from accumulating, place the dispenser under running water for a few minutes.

Never exaggerate with doses.

Normal detergents already contain deliming agents. Only if the water is particularly hard, that is, rich in lime content, do we recommend the use of a specific product at every wash.

A periodical wash cycle with a dose of a deliming product, without detergents or washing, may prove useful.

Never use too much detergent or additives because this could cause an excess amount of foam, scaling and possible damage to the component parts of your washing machine.

Do not forget to empty all pockets: small objects can cause damage to your friend Margherita 2000.

When in need, check the pump and the rubber hose.

Margherita 2000 comes equipped with a self-cleaning pump that does not require any cleaning or maintenance. Small objects may accidentally fall into the pump: coins, hair clips, loose buttons and other small items. To avoid possible damage, they are withheld in an accessible pre-chamber, situated at the lower end of the pump.

Attention: Before attempting to examine this pre-chamber, first ensure that the machine has finished its programme and is empty. Unplug the machine, as with any maintenance.

To gain access gently ease down the top of the plinth panel situated at the base of the machine, with a screwdriver etc, to release it. Then ease the top edge forward to allow it to be lifted clear (Fig. 1). Place a shallow dish or tray below the cover of the pre-chamber to catch the small amount of water present. Release the cover by turning anti-clockwise (Fig. 2). Ensure that the cover is securely replaced.

Re-fit the plinth cover by inserting the hooks on its lower edge into the slots and ease the top edge back into position.

The water inlet hose

Check the rubber hose at least once a year. If you see any cracks, replace it immediately. When you use your washing machine, water pressure is very strong and a cracked tube could easily split open.

Important for the safe use of your Margherita 2000

Your safety and that of

your family

Margherita 2000 has been built in compliance with the strictest international safety regulations. To protect you and all your family.

Read these instructions and all the information in this manual carefully: they are an important source, not only of numerous useful tips, but also of vital information on safety, use and maintenance.

1. Margherita 2000 should not be installed in an outdoor environment, not even when a roof shelters the area, because it may be very dangerous to leave it exposed to rain and thunderstorms.
2. It must only be used by adults and exclusively for washing clothes following the instructions provided in this manual.
3. Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.

4. Before loading the washing machine, make sure the drum is empty.

5. Never touch the washing machine when barefoot or with wet or damp hands or feet.

6. Never use extensions or multiple plugs, which are particularly dangerous in humid environments. The power supply cable must never be bent or dangerously compressed.

7. Never open the detergent dispenser while the appliance is functioning; do not use hand wash detergent because the abundance of foam could damage its internal parts.

1. Never pull on the supply cable or the washing machine to disconnect it from the wall socket: it is extremely dangerous.
2. While the appliance is functioning, do not touch the drain water as it could reach very high temperatures. The appliance door, during wash cycles, tends to become hot; ensure that children do no touch it. Never force the washing machine door because this could damage the safety lock which prevents accidental opening when the machine is working. Allow a few minutes at the end of the program for the lock to release.
3. In case of malfunctioning, first close the water tap and unplug the appliance from the wall socket; do not under any circumstances touch internal parts in order to attempt repairs.

How to change the power supply cable

The Margherita 2000 power supply cable is special and can be purchased exclusively from authorised Technical Service Centres.

To replace the cable: 1. Make sure that Margherita 2000 is switched off and unplugged.

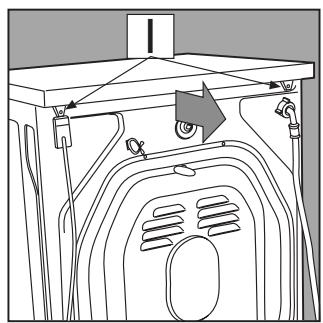

1. Remove the covering lid by unscrewing the two screws 1, and then pull it towards you [fig. 3].

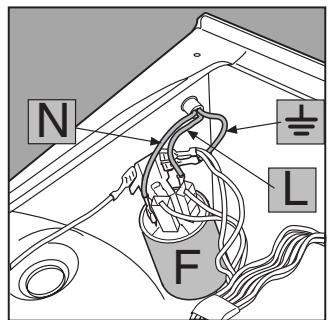

2. Disconnect the wires from the radio interference suppressor F [fig. 4] noting as to their position (Blue=N wire; Brown=L wire) leaving the earth wire until last

M.B.: letters L, N and the symbol are indicated on the radio interference suppressor.

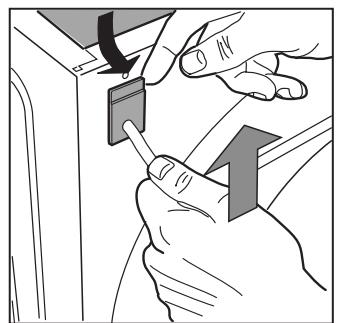

4. Remove the upper part of the cable slightly from the back panel of the appliance, pull the power supply cable upwards and take it out [fig. 5].

To connect the new power supply cable, reverse the procedure.

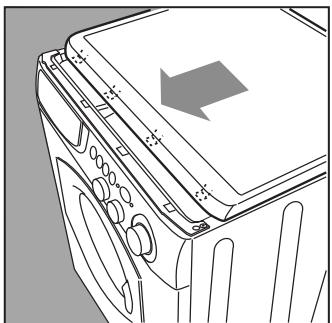

To put the covering lid back on, rest it on the washing machine [fig. 6] and let itslide forwards until the hooks situated on the front slide into the special slots formed into the control panel and tighten the screws back on.

Fig. 3

Fig. 4

Fig. 5

Fig. 6

MARGHERITA 2000 AB4

AB 40

Additives (assouplissants, perfumes, etc.)

Characteristicas techniques

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

.

(6) 12x - 1 > 3 - x 或 12x + 1 > 3

J 2000 1

(7) 12 ②

Jannnnnnaa

(3）.6

2000 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

y_( 1) = 98x - 1

? dlll l 1

1

J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1
J 1

2000

S_ OBC = 12 · CO · BC = 12 × CD × 5

90 1

J 3
F 4

J 1 J 2 J 3 J 4 J 5 J 6 J 7 J 8 J 9 J 10 J 11 J 12 J 13 J 14 J 15 J 16 J 17 J 18 J 19 J 20 J 21 J 22 J 23 J 24 J 25 J 26 J 27 J 28 J 29 J 30 J 31 J 32 J 33 J 34 J 35 J 36 J 37 J 38 J 39 J 40 J 41 J 42 J 43 J 44 J 45 J 46 J 47 J 48 J 49 J 50 J 51 J 52 J

a3 = 2,b3 = 4

500-400 1

200-150 1

500-400 1

1200-900 1

250-150 1

1 2

j（）

1.5 2.5 3.5 4.5 5.5 6.5 7.5 8.5

5 5

1

jglg jglg lglgl 2.

1. 2018年全国卷,9,26,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60

1.50 7.50

S OBC = S BOC + S BOC - S BOC

25

j 10000000000000000000000000000000000000000000

15 15 15

S_ OBC = 12 · CD · BC = 12 × 5 × 5 =

23 23

a a a a a a a a a a a a a a a a a a a

so sioa siab! Jai! (biia)

S = S_ AOB = 12 × OB × AB = 12 × 3

12

e e

.

j

1. f( x) ≤ 1x - 1x + 1 < 1x ,即 11 < 1x < 1 时, f( x) > 0 ；

（）

y

( x - 2x) ( y - 2y) = 0

100 100

：

a

j 1

aaiia

S OBC = S BOC + S BOC - S BOC

Jie Jia 1

ydsdysdysds

m : x = 1 或 3x + 4y + 1 = 0

( 2) Sn = na1 + ( n - 1) a2 + ·s + a1^2

jannnnn

15 12

山

. yinns Jinyi xi jiyu shi xi xi

3 2

i

100,60

3 y 2020 wannn nn nnnn

[\text{令}b = 1]

a 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 121 12

.124.

= = 35

J 1

9.111

Sole la ndeed, at Sua y a sol.

= = 35

13.14,15,16,17,18,19,20

ai = 12( ai + a_i)

（）

jssu 2019.4.24

S OBC = S COD + S_ BOC

Jus

中

S OBC = S COD + S BOC - S BOC

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

J 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

| x^2 - 1| = | x| .

(....Mod)

(……)

a a a a 1000 1000000000000000

□

sla siai iiaa

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

J2j 150
S 0000000000000000000000000000000000000000000000000000000000000000000000000000

J 1

0 2 a a a a a a a a a a a a a a a a a a a a a a a a a

aai 1 15 jai y

aannnnn 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

sllg jglj g 1
i I i sii iis iia aie aie
aia aia iia iia aia aia gai
aia aia iia iia aia iia gai
aia aia iia iia aia iia gai
aia aia iia iia aia iia gai
aia aia iia iia aia iia gai
aia aia iia iia aia iia gai
aia aia iia iia aia iia gai
aia aia iia iia aia iia gai
aia aia i ia iia aia iia gai
aia aia i ia iia aia iia gai
aia aia i ia i ia iia iia gai
aia aia i ia i ia iia iia gai

golal y 2013

a 12
a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa

e e e

1 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

j

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1. ( x,y) = ( ab + c) ( a - b) y = ( ab + c) ( x - y) ^2

a1 = 1 b1 = 2

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

gog

S OBC = S COD + S BOC - S BOC

S ACD = S COD + S CDA - S BOC

A

1 1
2000 1y

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

0jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaliy

Sue 120

1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
