Product Type	Surveillance Camera
Brand	KONIG
Model	SAS-TRANS60U
Maximum Resolution	1920 x 1080 pixels (Full HD)
Viewing Angle	90° (wide angle)
Night Vision	Yes, up to 10 meters with IR LED
Power Supply	12V DC, 1A (power adapter included)
Dimensions (Diameter x Height)	100 mm x 80 mm
Weight	400 g
Protection Rating	IP66 (weather resistant)
Connectivity	BNC (coaxial cable), RJ45 (Ethernet) optional
Motion Detection	Yes, built-in
Maintenance and Cleaning	Clean the lens with a soft, dry cloth. Avoid solvents.
Safety	Install in a dry place and protect from shocks. Do not expose to extreme temperatures.
Spare Parts and Repairability	Power adapter, mounting bracket available. Repair by professional recommended.
General Information	Wired surveillance camera for indoor/outdoor use. Detailed manual available for download.

Frequently Asked Questions - SAS-TRANS60U KONIG

How to install the SAS-TRANS60U camera?

Fix the bracket to the wall using the provided wall plugs, screw the camera, connect the BNC cable and power supply. Refer to the manual for more details.

What is the image resolution of this camera?

The camera offers Full HD 1080p resolution (1920 x 1080 pixels).

Does the camera work at night?

Yes, it has infrared LEDs for night vision up to 10 meters.

What type of cable is needed?

The camera uses a BNC coaxial cable for video and a 12V power cable.

Can I use this camera outdoors?

Yes, thanks to its IP66 protection rating, it is resistant to rain and dust.

How to clean the lens?

Use a soft, dry cloth. Do not use chemical or abrasive products.

What to do if the image is blurry?

Check that the lens is clean, adjust the manual focus if available, or check the connections.

Does the camera detect motion?

Yes, it includes motion detection that can be configured on your recorder.

What is the power consumption?

The consumption is approximately 12W (12V, 1A).

Where to find the full manual?

The manual is available for free download in PDF format on notice-facile.com.

USER MANUAL SAS-TRANS60U KONIG

MANUAL DE USO (p. 66)

KASUTUSJUHEND (Ik. 219)

MANUAL (p. 79)

NÁVOD (s. 232)

HASZNÁLATI ÚTMUTATÓ (o. 92)

ROKASGRÃMATA (Ipp. 245)

KÄYTTÖOHJE (s. 105)

NAUDOJIMO VADOVAS (258 p.)

Wireless Camera System

Introduction:

Watch over your properties with this new 2.4 GHz digital wireless security camera system. The 7" LCD monitor can support up to 4 cameras and has an integrated digital video recorder. The camera offers a very sharp and stable image with night vision and the technology used improves the image quality even further. The system uses digital wireless technology and is equipped with advanced frequency signal encryption capabilities, which reduce interference caused by other applications using the 2.4 GHz frequency band. This digital technology ensures your privacy and allows you to use it over an extra long distance. THE BEST THAT WIRELESS HAS TO OFFER.

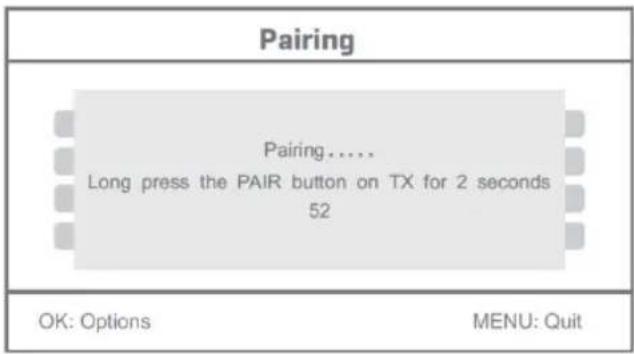

The monitor and camera are paired by factory default already. When adding the additional camera SAS-TRCAM40/U (4 cameras max.) to the system, please refer to the section PAIRING for adding cameras.

• We recommend that you read this manual before installing/using the camera system.
- Keep this manual in a safe place for future reference.

Packaging content:

1x camera with bracket
1x 7" monitor
2x antenna
1x AV output cable
2x AC/DC power supply

Technical specifications:

Camera:

Transmitting frequency: 2.4-2.4835 GHz Digital

Modulation: 16QAM, QPSK, BPSK

Range: Indoor ±50 m, open area ±150 m (depending on local conditions)

Image chip: 1/4" CMOS

Lens: 2.0mm

View angle: 73°

Infrared illumination (LED): 5 M

Protection: IP54

Microphone: mono

Working temperature: -10°C \~ 50°C

Voltage: 5 V DC/400 mA

Dimensions: 132x64x57mm (without bracket)

Weight: 287 g (included cable)

LCD monitor:

Receiving frequency: 2.4-2.4835 GHz Digital

Channels: 4

KÖNIG

ENGLISH

Size: 7" TFT/LCD

Max. resolution: 800 RGB (H)* 480 (V) pixels

SD card: up to 32 GB (not included)

Video frame rate: 25 fps (max.) 10 fps (4x cameras)

Recording frame rate: 25 fps per channel

Video resolution: CIF/VGA

Video format: AVI

USB: 2.0

Menu language: English, German, French and Dutch

Video output level: 1 Vp-p/75 Ohm

Audio output level: 2Vrms@600ohm mono

Audio/video output

connector: 2.5mm jack (2.5mm cable to 3 x RCA included)

Range: Indoor ±50 m, open area ±150 m

(depending on local conditions)

Operating temperature: 0°C to +40°C

Voltage: 5 V DC/650 mA

Dimensions: 214x157x26 mm

Weight: 488 g

Safety precautions:

• Do not open the camera or monitor in the event of a malfunction. These products should only be opened by a qualified engineer.
  • Do not submerge the camera in liquid.
  • Do not expose the monitor to water or humidity.
  • Do not expose the monitor or camera to high temperatures (see technical specifications).
• Do not install the system close to strong magnetic fields, such as a speaker. This may affect the quality.

KÖNIG

Product description:

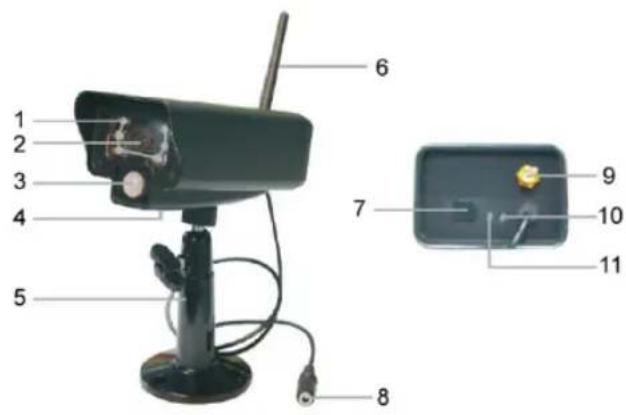

Camera:

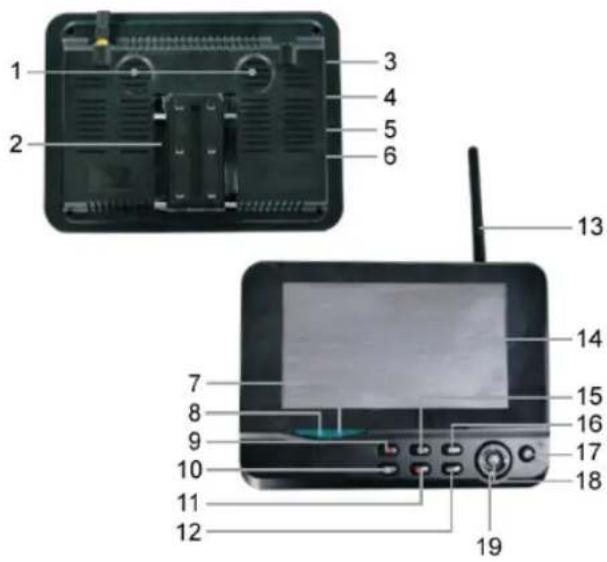

Monitor:

ENGLISH

1. Infrared LEDs
2. Lens
3. PIR infrared sensor
4. Microphone
5. Bracket
6. Antenna
7. Pair Button
8. Power Input
9. Antenna Socket
10. Link Indicator

11. Power Indicator

12. Speaker

13. Bracket
14. USB Port
15. SD Card Slot
16. AV Output
17. Power Port
18. Link Indicator
19. Power Indicator
20. Record/stop Video
21. Quarter Display Button
22. Delete file/LCD, TV Switch
23. Menu
24. Antenna
25. 7" TFT-LCD
26. Display Mode
27. Playback Video
28. Power on/off
29. OK Button
30. Navigate Button

KÖNIG

ENGLISH

Installation instructions:

Camera:

The camera can be mounted in different ways. For ceiling mounting use the screw thread on top of the camera. After mounting the camera connect the AC/DC power supply to the camera and a wall outlet.

Monitor:

The monitor can be placed on a flat surface or mounted to the wall. After placing the monitor connect the AC/DC power supply to the monitor and a wall outlet. The camera is powered on automatically after connecting the AC/DC power supply. Optional: the monitor can be connected to a monitor with the video output of the monitor.

Video Cable

KÖNIG

ENGLISH

User instructions:

1. Insert an SD card in the SD card slot of the monitor. Or connect an external hard disk drive to the USB port of the monitor.

1. Press the power on/off button for about 2 seconds to power on the monitor. The power indicator should light up and the picture appear.
2. For systems settings press the menu button to open the main menu. The following screen should appear. Use the navigate, OK and menu buttons to navigate through the menu.

System

1. Press OK to enter the system settings. The system offers the following options:

Date/Time Set the time and date.

Language Set the language.

Record Mode Set to stop recording or overwrite the first video record when the storage medium is full.

Format SD/USB Set to format the storage medium.

Storage for Recording Set the storage medium.

Display Items Set to display RSSI, Time, SD/USB status and camera on the screen and the recorded video.

KÖNIG

ENGLISH

TV System Select a TV system (PAL for Europe).

System Information Shows the system information.

Scan Mode Period Set the cyclic display interval of the monitoring picture on the camera.

Mute Turns on/off the speaker on the monitor.

Load Default Reset the factory default settings.

Record Date/Time Set to display the current recording time and date on the recorded video.

Brightness Adjust brightness of the picture.

Volume Adjust the volume.

1. Select date/time with the navigate button and press OK to enter the date/time setting.

2. Press the left or right arrow button to select.

3. Press the up or down arrow button to adjust.
4. Press the OK button to confirm.

5. Press the MENU button to exit.

6. Select language with the navigate button and press OK to enter the language setting.

- Press the down or up arrow button to select language.

• Press the OK button to confirm and exit.

- Press the down or up arrow button to select language. - Press the OK button to confirm and exit.

1. Select record mode with the navigate button and press OK to enter the record mode setting.

- Press the up or down arrow button to select "Normal" or "Overwrite".

• Press the OK button to confirm and exit.

- Press the up or down arrow button to select "Normal" or "Overwrite". - Press the OK button to confirm and exit.

Remarks:

Normal: When the SD card or the mobile hard disk is full, the system stops recording automatically.

Overwrite: When the SD card or the mobile hard disk is full, the system automatically deletes the first video and reserves sufficient storage space to guarantee latest recording.

1. Select format SD/USB with the navigate button and press OK to enter the format SD/USB setting.

- Press the up or down arrow button to select "Cancel", "SD Card" or "USB Device".

- Cancel: cancels formatting.

- SD Card: formats the SD card.

- USB Device: formats the external hard disk drive (if connected).

- Press the OK button to format.

- After formatting, the system shows "Format Successfully", indicating that formatting succeeds.

- Press the OK button to confirm and exit.

- Press the up or down arrow button to select "Cancel", "SD Card" or "USB Device". - Cancel: cancels formatting. - SD Card: formats the SD card. - USB Device: formats the external hard disk drive (if connected). - Press the OK button to format. - After formatting, the system shows "Format Successfully", indicating that formatting succeeds. - Press the OK button to confirm and exit.

1. Select storage for recording with the navigate button and press OK to enter the storage for recording setting.

- Press the up or down button to select "SD Card" or "USB Device".

- Press the OK button to confirm and exit.

- Press the up or down button to select "SD Card" or "USB Device". - Press the OK button to confirm and exit.

1. Select display items with the navigate button and press OK to enter the display items setting.

KÖNIG

ENGLISH

• Press the up or down arrow button to select.
• Click the OK button to confirm the display items in the picture.
• RSSI: Signal intensity icon
• SD USB status: Whether the SD card or mobile hard disk is inserted

• Camera: Camera name icons
  • After setting, press the MENU button to confirm and exit.

• Select TV system with the navigate button and press OK to enter the TV system setting.

• Press the up or down button to select NTSC or PAL (PAL for Europe).
  • Press OK button to confirm and exit.

• Select system information with the navigate button and press OK to enter the system information setting.

• Press OK to see the information about the system.

- Press the menu button to exit.

1. Select system upgrade with the navigate button and press OK to enter the system upgrade setting.

- Press the up or down arrow button to select.

- Press OK.

- Press the record/stop video button to confirm.

1. Select scan mode period with the navigate button and press OK to enter the scan mode period setting.

- Press the up or down arrow button to select the period for scanning the connected cameras.

- Press the OK button again to confirm and exit.

1. Select mute with the navigate button and press OK to enter the mute setting.

- Press the up or down arrow button to select "On" or "Off".

- Press the OK button again to confirm and exit.

1. Select load default with the navigate button and press OK to enter the load default setting.

- Press the up or down button to select "Cancel" or "OK".

- Cancel: Cancels option default settings.

- OK: Resets default settings.

- Press the OK button to confirm and exit.

1. Select brightness with the navigate button and press OK to enter the brightness setting.

- Press the left or right arrow button to adjust the brightness.

- Press the OK button to confirm and exit.

1. Select volume with the navigate button and press OK to enter the volume setting.

- Press the left or right arrow button to adjust the volume.

• Press the OK button to confirm and exit.

Note: The volume can also be adjusted with the up or down arrow in live view monitoring.

1. Press menu to return to the main menu.

Record

Press the right arrow button in the main menu to select the record settings and press OK.

Timer Recording:

Set the recording start/stop time through the "Timer Recording" menu. The device automatically records according the set start/stop time.

1. Select timer recording with the navigate button and press OK to enter a new schedule setting.

- Press OK to enter the timer recording menu.

• Press the up or down arrow button to select.
• Press the left or right button to adjust.

• Press the OK button to confirm and exit.

• After setting, the device automatically records according to the set start/stop time.

• If you press the record/stop video button on the device during the recording process, set by timer recording, the recording stops.

Manual Recording:

1. In live view monitoring, press the left and right arrow buttons to select the camera for video recording.
2. Press the record/stop video button on the device. The recording icon is displayed on the screen, indicating that recording is starting.
3. Press the button on the device again to stop recording.

PIR Recording:

PIR Recording: If there is human motion detected by any accessed camera, recording can be triggered.

1. Select PIR recording with the navigate button and press OK to enter the PIR recording setting.

2. Press the up or down button to select the camera.

3. Press the left or right arrow button to select "On".
   • Press the OK button to confirm and exit.

Note: when "Off" is set, the motion detection function is turned off. The infrared sensing distance of PIR is 5m. If the distance exceeds 5m, sensing may fail.

Playback

Press the right arrow button in the main menu to select the playback settings and press OK.

Note: for playback functions it's necessary that an SD card is inserted or an external hard disk drive is connected.

The playback function can also be accessed in live view monitoring by pressing the playback video button.

1. Press the up or down arrow button to select the folder.
2. Press the OK button to confirm and enter.

KÖNIG

ENGLISH

1. Press the up or down arrow button to select the video file.
2. Press the OK button for playback.

1. Press the left or right arrow button to go backward/forward in fastforward.
2. Press the OK button again to pause.
3. Press the MENU button to quit the playback.

Delete video

In video playback mode, press the up or down arrow button to select the video or video folder to be deleted.

- Press the delete file/LCD button on the monitor to delete it.

Note: only an empty folder can be deleted as folder.

Camera

When adding the additional camera SAS-TRCAM40/U (max. 4) the camera needs to be paired to the system for the system to recognize the camera.

Press the right arrow button in the main menu to select the camera settings and press OK.

Pairing:

1. Press OK to enter the pairing menu.
2. Select the camera with the up and down arrow buttons.
3. Press OK, and the following screen will appear.

KÖNIG

ENGLISH

1. Press the pair button within 60 seconds for 2 seconds on the backside of the camera.
2. After the successful pairing of the camera and the monitor, the monitor shows PAIRING OK.
3. Press the menu button to return to the camera menu.

Note: if pairing fails, retry the above steps and be sure that the monitor and camera are not further away than 2 metres for pairing procedure.

Active:

1. Select active with the down arrow button and press OK.
2. Press the up or down arrow button to select the camera.
3. Press the left or right arrow button to select "On" or "Off".
4. Press the OK button to confirm and exit.

Note: only paired cameras can be set to active or not active. When a camera is set to off, it cannot be seen in live view, recorded, etc.

PIP setting:

Set the picture resolution size and recording quality.

1. Select PIP setting with the up and down arrow buttons and press OK.
2. Select the camera with the up and down arrow buttons and press OK. The following screen appears.

1. Press the left or right arrow button to select "Resolution Size" or "Quality".
2. Press the up or down arrow button to select "Top", "High", "Medium" or "Low".
3. Press the OK button to adjust.
4. Press the MENU button to confirm and exit.

Note: the high resolution size is VGA and low is CIF.

KÖNIG

ENGLISH

Alarm

When PIR detection is set to on, the system will give an alarm when motion is detected.

1. Select alarm in the main menu and press OK.
2. The screen shows PIR detection, press OK.
3. Press "On" or "Off" with the up and down arrow button.
4. Press OK to confirm and exit.

Live view:

Press the quarter display button to select the type of view.

Picture in picture view

Quad view Full screen view

Note: use the left and right arrow button to select a camera.

Press the display mode button to enter cyclic mode view. Five cyclic intervals are available:

5s, 10s, 15s, 20s, and 30s and can be set under System > Scan Mode Period in the main menu.

KÖNIG

ENGLISH

				Mobile hard disk inserted successfully
				SD card inserted successfully
				Camera name
[snws]				Current camera
				Recording status
				Signal intensity

Maintenance:

Clean the product only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point.
Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales. Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

KÖNIG

DEUTSCH

Einführung:

Monitor:

Tension: 5 V CC/400 mA

Dimensions : 132x64x57 mm (sans support)

Ecran :

Câble vidéo

KÖNIG

FRANÇAIS

Mode d'emploi :

Beeldscherm:

Monitor:

Monitor:

Cable de vídeo

KÖNIG

ESPAÑOL

Monitor:

Cabo de Vídeo

KÖNIG

PORTUGUÊS

Note: for playback functions it's necessary that an SD card is inserted or an external hard disk drive is connected.

Monitor:

Videokábel

KÖNIG

MAGYAR

System (Rendszer)

Monitori:

Videojohto

KÖNIG

SUOMI

Käyttöohjeet:

Järjestelmä

Monitor:

Videokabel

KÖNIG

SVENSKA

Monitor:

Video kabel

KÖNIG

ČESKY

Pokyny k použití:

Monitor:

KÖNIG

ROMÂNĂ

Οθόνη:

ΕΛΛΗΝΙΚΑ

Οθόνη:

Skærm:

Video Cable

KÖNIG

DANSK

Brugervejledninger:

Spenning: 5 V DC/650 mA

Videokabel

KÖNIG

NORSK

Brukerveiledning:

1. Sett inn et SD-kort i monitorens spor for SD-kort. Eventuelt kan du koble en ekstern harddisk til monitorens USB-port-

Монитор:

Timer Recording
Camera	All Cameras 3.5
Date	11/6/2012 Tue
Start Time	00 : 00
End Time	00 : 00

Monitör:

Görüntü Kablosu

Monitor:

Videokaabel

KÖNIG

EESTI

Kasutusjuhised:

Monitor:

Video kábel

KÖNIG

SLOVENSKY

Monitors:

Video kabelis

KÖNIG

LATVIEŠU

Storage for Recording

1. Lai izvēlētos „Resolution Size“ vai „Quality“, nospiediet pa kreisi vai pa labi vērsto bultinu.
2. Nospiediet augšup vai lejup věrsto bultinu, lai izvēlētos „Top“, „High“, „Medium“ vai „Low“.
3. Lai pielāgotu, nospiediet pogu OK.
4. Lai apstiprinātu un izietu, nospiediet IZVĒLNES pogu.

Vaizdo kabelis

KÖNIG

LIETUVIŠKAI

Monitor:

Monitor možete postaviti na ravnu površinu ili ugraditi na zid. Nakon postavljanja monitora povežite AC/DC mrežno napajanje na monitor i zidnu utičnicu. Kamera se uključuje automatski nakon povezivanja AC/DC mrežnog napajanja. Neobavezno: monitor možete povezati s monitorom s video izlazom monitora.

Video kabel

KÖNIG

HRVATSKI

Korisničke upute:

1. Umetnite SD karticu u utor za SD karticu monitora. Ili povežite vanjski pogon tvrdog diska na USB priključnicu monitora.

1. Pritisnite gumb za uključivanje/isključivanja na 2 sekunde da uključite monitor. Uključuje se indikator napajanja i pojavljuje se slika.
2. Za postavke sustava pritisnite gumb izbornika da otvorite glavni izbornik. Pojavljuje se ovaj zaslon. Za navigaciju kroz izbornik koristite gumbe za navigaciju, U redu i izbornik.

Sustav

1. Pritisnite gumb U redu za ulazak u postavke sustava. Sustav nudi ove opcije:

Date/Time Namjestite datum i vrijeme.

Монитор:

Monitor:

Przewód wideo

KÖNIG

POLSKI

Storage for Recording
