Product type	Electric auxiliary heater
Brand	Bimar
Model	S109.EU
Power supply	220-240 V ~ 50/60 Hz
Maximum power	2000 W
Minimum power	1000 W
Heating type	Convection or fan (depending on mode)
Number of modes	2 (eco, comfort) + ventilation only
Thermostat	Integrated, adjustable
Dimensions (W x H x D)	45 x 30 x 20 cm
Weight	2.5 kg
Material	ABS plastic and steel
Color	White / Gray
Power cord	1.5 m
Main functions	Heating, ventilation without heat, anti-freeze protection
Safety	Automatic shut-off in case of overheating, tipping, anti-freeze protection
Indicator light	On/Standby
Care and cleaning	Unplug before cleaning; wipe with a soft, dry cloth
Spare parts and repairability	Parts available on request from Bimar after-sales service
General information	User manual in PDF format downloadable from notice-facile.com

Frequently Asked Questions - S109.EU Bimar

How to turn the device on and off?

Plug in the device, turn the selection knob to the desired position (heating or ventilation). To turn off, set the knob to 'Off' and unplug if necessary.

What are the different operating modes?

The device generally offers two heating levels (for example 1000W and 2000W) and a ventilation-only option. Some models also include an 'anti-freeze' mode.

How to set the desired temperature?

Use the rotary thermostat knob. Turn it towards the + mark to increase the temperature, towards - to decrease. The device automatically stops when the ambient temperature reaches the set point.

Can the device be used in a bathroom?

This heater is not designed for use in a wet room like a bathroom, unless otherwise indicated on the label. Ensure safety distances from water.

How to clean the device properly?

Before any cleaning, unplug the device. Use a slightly damp soft cloth to wipe the outer surface. Do not use abrasive cleaners or solvents. Avoid water entering the interior.

What to do if the device does not heat?

Check that the device is plugged into a working outlet and that the thermostat is set to a temperature higher than the ambient temperature. If the problem persists, contact after-sales service.

Is there a risk of burns?

Yes, the surface can become hot during operation. Do not touch the heater while in use and wait for it to cool down before moving or storing. Keep an eye on children and pets.

The device makes noise, is it normal?

A slight ventilation noise is normal in fan mode. If abnormal noise or rattling occurs, turn off the device and check that no object blocks the grid. Contact after-sales service if necessary.

Can I use an extension cord?

It is not recommended to use an extension cord. If necessary, use an extension cord of sufficient cross-section (3 wires, 2.5 mm²) and fully unwound. Always plug directly into a wall outlet preferably.

How to get the complete user manual?

Free download the PDF user manual in PDF format from notice-facile.com by searching for model Bimar S109.EU. You can also request a translation via the contact form.

USER MANUAL S109.EU Bimar

Oil-filled radiators

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, when necessary.

KEEP BOOKLET HANDY FOR FURTHER USE.

If when reading this instructions manual certain parts should remain difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol show: WARNING: In order to avoid overheating, do not cover the heater.

This symbol indicates the high-low position: Always bear this in mind when adjusting the wheels for use in the correct position.

GENERAL ADVICE

- This appliance is destined only to the heating of domestic or similar environments and in compliance with these instructions. It can be considered only a supplementary source of heating and not as a central heating element.

This appliance is intended to be used in household and similar applications such as:

• staff kitchen in shops, offices and other working environments;
• farm houses
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• The appliance must not be used in dusty environments or in the presence of extremely volatile materials which could obstruct grids or heat exchanger, nor in very damp environments, in the presence of inflammable products, or out of doors in the open. Any other use is to be considered inappropriate and therefore dangerous. The manufacturer cannot be held responsible for eventual damage caused by inappropriate, improper or irresponsible use and/or for repairs made to the product by unauthorised personnel.

• The appliance reaches quite a high temperature when working; Contact must be limited to the handle and plastic knobs. Avoid contact with the heating element.
• Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Attention: when using electric appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and physical injury.
• Do not touch the heater with wet hands or feet.
• Do not expose the heater to the external weather conditions (sun, rain, etc.).
• That the user must not leave the appliance unattended while it is connected to the supply.
• Do not move the appliance when it is in function.
• If the appliance should fall over or shows signs of faulty operation, disconnect the electrical cable immediately. Check that no part is damaged and switch it on after the appliance has been thoroughly checked: in case of doubt, contact qualified professional personnel.
• Do not pull on the power cord or the appliance to unplug the appliance from the wall socket. Never move the appliance by pulling the cord.
  • Unplug the appliance when not in use.
• That the user must not leave the appliance unattended while it is connected to the supply.
• Do not move the appliance when it is in function.
• In order to avoid any risk of electrical shock, never immerse the plug, the mains cable and the appliance in water or in any other liquid.
• If the electric cord is damaged, it has to be replaced by the supplier or an authorized service center or a professionally qualified, to avoid any risks.
• Never use the radiator to dry damp garments.

INSTALLATION

• After removing the packing materials, check that the appliance is in perfect condition; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene foam, nails, etc.) must be kept out the reach of children because they are potential sources of danger; they must be disposed of in accordance with current law.
• Before connecting the appliance, check that the voltage shown on the data plate (220-240V\~50Hz) matches that of your local power supply and that the electric plug is grounded. In the event of incompatibility between the electric outlet and the appliance plug, have the outlet replaced with another more suitable type by professionally qualified personnel, who will make sure that the outlet wiring section is appropriate for the absorbed power of the appliance. In general, the use of adapters or extension cords is not recommended; if their use cannot be avoided, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum appliance capacity.
• The appliance must be positioned at a safe distance from heating sources, inflammable materials (curtains, cloth, etc.), inflammable gas or explosive materials and from materials that may be deformed by high temperatures. Make sure that a space of at least 1 metre is left free in front of the appliance, and 50 cm of free space at each side. Never use the appliance near a bath, a washbasin, or a shower to prevent any danger of electrical shock, or in any positions where it can be pushed and/or damaged. Never use the appliance in spaces of less than 4 m ^2 or where inflammable liquids or products are stored.
• Stand the appliance on a horizontal, flat surface or table; Never place the appliance on a sloping surface as this can cause it to fall over. Never lay the electric cord under rugs or carpets.

• Make sure that the cable is positioned correctly, that it is not in contact with hot elements or sharp edges, is not wound around the appliance, is not twisted, or in a position which can cause the appliance to fall over. Check that the cable cannot cause tripping in order to prevent accidental falls or injury to persons.

• The appliance must not be positioned immediately under a socket.

• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• Do not use the appliance with a timer or a programmer or with a system that can switch on the appliance automatically, to avoid risk of fire, since a fire risk exists if the heater is covered or positioned incorrectly.
• In the case of a breakdown or fault, switch off the appliance and have it checked by a professionally qualified technician; repairs made by unqualified persons can be dangerous and render void the warranty.
• All repairs should be made by a competent qualified electrician. Any faulty appliances should be returned to this service.

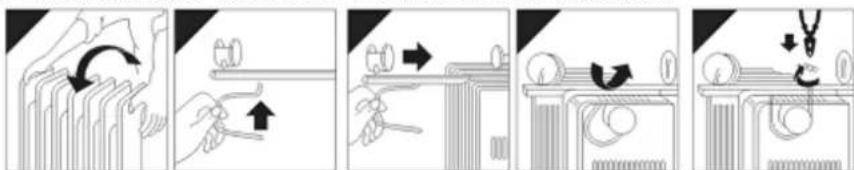

ASSEMBLY

The wheel mounting brackets must be fixed to the underside (see up-down arrow on the label placed on the appliance) and at the ends of the appliance to ensure stability; the wheels must be pointing downwards and must be perfectly level. To assemble follow these instructions (refer to the figures alongside):

1) Turn the radiator over and place it on the ground with the underside facing upwards. Insert the brackets with the mounted wheels on the underside of the radiator by sliding them between the elements at each end of the radiator (that is: between the first and second elements, and between the last and second-to-last elements); block the crossbar using the "U" hooks provided.

2) Use the bolts provided to ensure that the crossbars are attached securely.

3) Check that the wheels are perfectly level.

Attention: the radiator must never be used without the wheels mounted.

Thanks to the wheels, the radiator does not heat the surface on which it rests, and air can circulate naturally. The radiator can be moved easily on its wheels, using the folding handle at the top.

Attention: for the first use, leave it operating at maximum power for at least two hours. During this operation, ventilate the room well to eliminate the "new" smell emanating from the appliance.

USE

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

Radiators with electro-mechanical controls: mod. S107.EU, mod. S109.EU, mod. S111.EU, and mod. S109T.EU turbo.

The radiator can be adjusted as follows:

-Selector. Turn the relative knob (C) clockwise to select functions: 0= off, I= minimum, II= medium, III= maximum (for values, see chart below).

- Room thermostat. Set (using relative knob B) the room temperature and start the radiator in continuous mode until the set temperature is reached: if this drops, the radiator restarts for the time necessary to re-establish the set value. If the knob is turned completely anti-clockwise, the radiator remains off, if it is turned completely clockwise the maximum temperature is set; for intermediate values the temperature increases as the knob is turned towards the Maximum position and vice versa.

The lamp is on when the heater is running, if it reaches the set temperature, the light goes out and comes back as soon as it decreases.

The radiator has an anti-tipping switch inside which allows it to function only when the appliance is vertical, and switches it off if it tilts.

Selector/Model	S107.EU	S109.EU	S109T.EU turbo	S111.EU
0	0W	0W	0W	0W
I	600W	1000W	650W	950W
II	900W	1000W	950W	1250W
III	1500W	2000W	1600W	2200W
I/O turbo switch	----	----	350W	----

Follow these steps to use the radiator correctly:

1) Insert the plug into the power socket.
2) Turn the thermostat dial (B) to the position of the required temperature.
3) Use the specific switches (C) to turn on the appliance and to select the required power:
4) Turn the switches to "0" position to turn off the appliance, and remove the plug from the power socket.
5) The S109T model has a turbo heating fan which is started by pressing the switch (F): the turbo directs the heat to the front of the radiator and can be used separately or together with the radiator.
6) To switch off the appliance, turn the thermostat knob to minimum, the selector to "0" and remove the plug from the power socket.

Never leave the appliance connected to the socket if it is not in use, especially for long periods.

Electronic radiator with turbo and timer, mod. S100TT

The radiator has an on-off switch, electronic and remote controls, and an anti-tipping switch. The control panel and remote control have keys for selecting and adjusting the various functions; the control panel also displays the set functions.

In more detail:

- 0/I switch (H). Placed on the side, used to switch the radiator on and off.

- On/off key (1). For access to the functions on the control panel. When “on” is selected, the display shows the surrounding temperature, and remains dark when “off” is selected because the functions cannot be activated.

- "Mode" key (2). Used to select the functions described in sequence and shown on the display as follows:

- symbol “°C” blinks and signals the “room temp.” Function which can be set between 15 and 35°C.

- symbol “ ^12 ” blinks and signals the timer function.

Timer: this function allows setting the operating time and the fan will automatically stop at the end. To set the operating time, repeatedly press the "MODE" key on the remote control or the control panel: every time the key is pressed, the time set is changed: the maximum time is 24 hours.

- To start the heat fan, press the “+” key, or to stop, the “−” key.

- "Power" key (3). Used to select the heating power. The radiator should be started on minimum

power - 650W: the display shows “ symbol and the arc lines are yellow and red; then press the

“power” key to set the maximum power of 1650W: the display will show “ 🔊 🔔 ” symbol and the arc lines are yellow and red.

- “+” (4) and “-” (5) keys. Respectively they increase or reduce the time and temperature values during the setting phase, or they activate (+) or exclude (-) the turbo.

- The radiator also has an anti-tipping switch which allows it to function only when positioned vertically, and switches it off if it tilts.

Follow these steps when using the radiator:

1) Insert the plug in the power socket.

2) Turn the 0/I switch to position 1.

3) Press the on/off switch to "on" position.

4) Press the Mode key to set the following functions:

- room temperature: “°C” flashes on the display and, to set the required temperature, press the + or - key to raise or lower the value. After 10 minutes, the display returns to indicating the surrounding temperature.

- functioning time: “---” blinks and the + or - keys can be used to increase or reduce the functioning time.

- turbo function: “” blinks on the display and the + key can be used to activate the heating fan or the - key to exclude the fan. The turbo directs the heat to the front of the radiator.

5) Press the on/off to "on": the "💡" symbol on the display to indicate that minimum power is being used. For maximum power, press the power key so the "💡💡" symbol on the display.

Temperature and timing can be adjusted while the radiator is in function.

6) To switch off the appliance, press the on-off key to the off position, the 0/I to position 0, then remove the plug from the power socket.

Never leave the appliance connected to the socket if it is not in use, especially for long periods.

CLEANING AND MAINTENANCE

Attention: before cleaning, switch off the appliance, unplug and wait until it has cooled down completely.

- To clean the casing use a soft damp cloth; do not use abrasive products.

- When the radiator is not in use it must be covered and stored in a dry place. We recommend using the original packing to preserve it from dust and humidity.

- When you decide that the appliance is no longer required, we recommend making it inoperative by cutting the power cord (after ensuring that the cable plug has been disconnected from the socket) and ensure that any dangerous parts are rendered harmless if children are allowed to play with them.

- This radiator is filled with a precise quantity of special oil. Repairs requiring the radiator to be opened must be made only by the Manufacturer or by its Assistance Service. Should there be any oil leak, the Manufacturer or its Assistance Service must be contacted immediately.

- When scrapping the appliance, respect legislation on the disposal of oil.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
