USER MANUAL FB 51 A.1 HOTPOINT

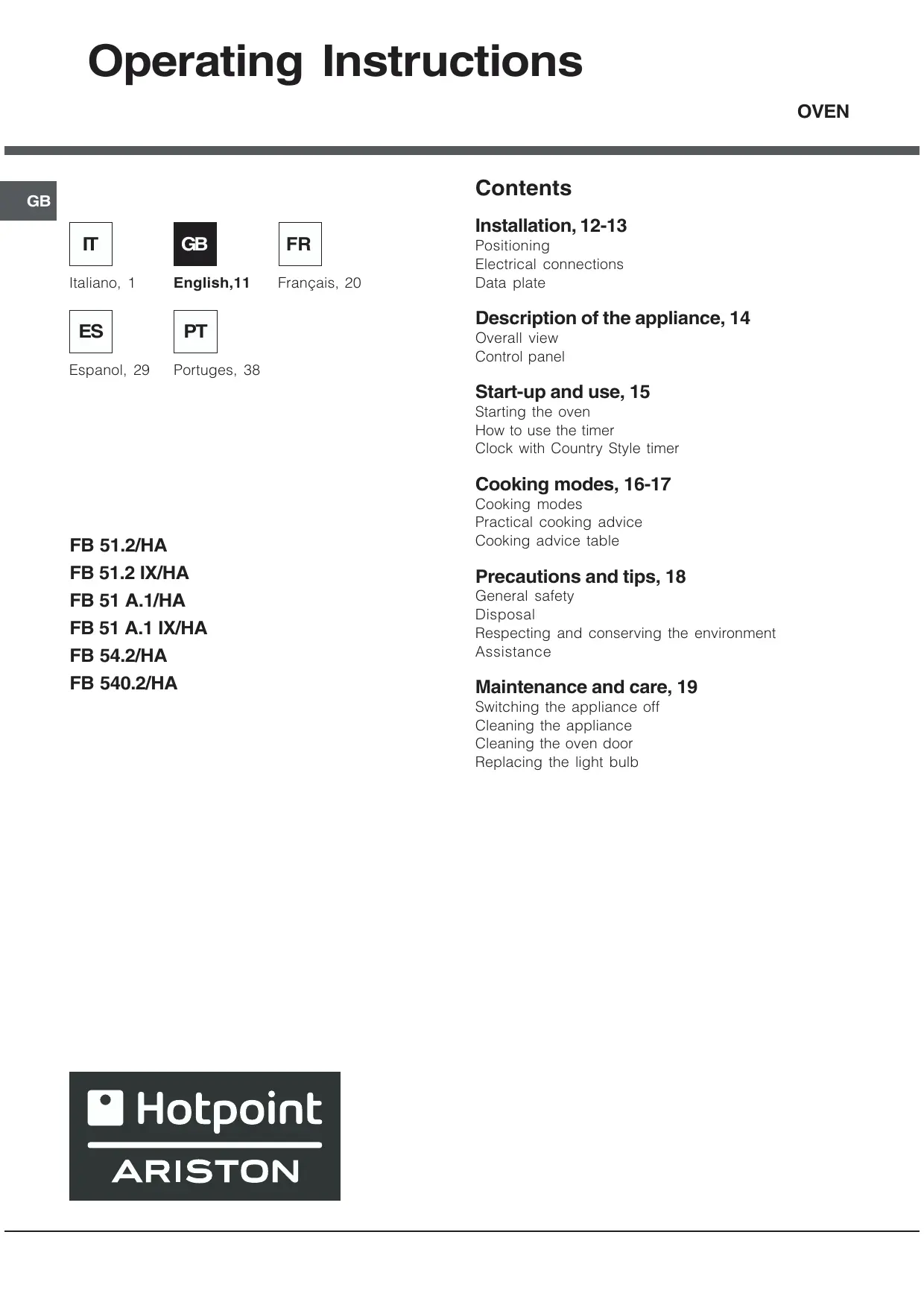

Operating Instructions

Installation, 12-13 Positioning Electrical connections Data plate

Description of the appliance, 14 Overall view Control panel

Start-up and use, 15

Starting the oven How to use the timer Clock with Country Style timer

Cooking modes, 16-17

FB 51.2/HA FB 51.2 IX/HA FB 51 A.1/HA FB 51 A.1 IX/HA FB 54.2/HA FB 540.2/HA Cooking modes Practical cooking advice Cooking advice table

Precautions and tips, 18

General safety Disposal Respecting and conserving the environment Assistance

Maintenance and care, 19 Switching the appliance off Cleaning the appliance Cleaning the oven door Replacing the light bulb

Installation Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Ventilation To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Keep packaging material out of the reach of children.It can become a choking or suffocation hazard. (see Precautions and tips). The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly. • The panels adjacent to the oven must be made of heat-resistant material.

Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab (see diagram)

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

thickness of 18 mm: use the first groove, which has already been set in the factory (see diagram)

thickness of 16 mm: use the second groove (see diagram)

• to install the oven under the counter (see diagram) and in a kitchen unit, the cabinet must have the following dimensions:

The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation.

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

Electrical connections ! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below). Fitting the power supply cable 1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram). 2. Loosen the cable clamp screw and remove it, using a screwdriver as a lever (see figure). 3. Remove the wire contact screws L-N, then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde ( ).

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate (see below). • The voltage must be in the range between the values indicated on the data plate (see below). • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

DATA PLATE Dimensions

Electrical connections

voltage: 230V ~ 50/60Hz o 50Hz (see data plate) maximum power absorbed 2250W Directive 2002/40/EC on the label of electric ovens Norm EN 50304

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate (see side). The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that: • The appliance is earthed and the plug is compliant with the law.

ENERGY LABEL Models with cooling ventilation: Energy consumption for Natural convection heating mode: = Convection Declared energy consumption for Forced convection Class heating mode: > Fan assisted Models without cooling ventilation: Energy consumption for Forced convection heating mode: > Fan assisted Declared energy consumption for Natural convection Class heating mode: = Convection This appliance conforms to the following European Economic Community directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03/05/89 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC of 22/07/93 and subsequent amendments. - 2002/96/EC

GB Description of the appliance

GUIDES for the sliding racks

* Only on certain models

COUNTRY STYLE TIMER knob *

Start-up and use ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may produce a slightly unpleasant odour caused by the burning away of protective substances used during the manufacturing process.

How to use the timer *

! The timer does not turn the oven on or off.

1. Select the desired cooking mode by turning the SELECTOR knob. 2. Select the desired temperature with the THERMOSTAT knob. See the Cooking advice table for cooking modes and the suggested cooking temperatures (see Cooking Modes). 3. When preheating is finished, the THERMOSTAT indicator light will stay on: place the food in the oven. 4. You may do the following during cooking: - change the cooking mode by turning the SELECTOR knob. - change the temperature by turning the THERMOSTAT knob. - stop cooking by turning the SELECTOR knob to the “0” position. ! Never put objects directly on the oven bottom to avoid damaging the enamel coating. ! Always place cookware on the rack(s) provided. Cooling ventilation In order to cool down the external temperature of the oven, some models are fitted with a cooling fan that blows out air between the control panel and the oven door. ! Once the cooking has been completed, the cooling fan remains on until the oven has cooled down sufficiently.

1. To set the buzzer, turn the TIMER knob clockwise almost one complete revolution. 2. Turn the knob anticlockwise to set the desired time: align the minutes shown on the knob with the indicator on the control panel. 3. The timer operates in minutes: when the selected time has elapsed, a buzzer will sound.

Clock with Country Style timer * How to reset the correct time The oven must be plugged in. Pull the knob and turn it anticlockwise until you set the correct time. ! The programmer is electrically powered, therefore in the event of a power shortage, it will stop working for the entire duration of the same. Following this power failure, the correct time will have to be reset. Timer Feature The timer feature allows you to enter a given amount of time from which the timer begins to count down. This feature does not turn the oven on or off; it merely sounds when the time has elapsed. How to set the timer Turn the knob anticlockwise until the marker lines up with the desired time (internal scale), which can be seen in the “window”. The time countdown will begin immediately. To interrupt the timer buzzer, or to use only the clock feature, set the marker to the symbol.

Oven light It goes on when selecting & with the SELECTOR knob. It stays on when a cooking mode is selected.

* Only on certain models

Practical cooking advice

! A temperature value can be set for all cooking modes between 60°C and Max, except for

! Do not place racks in position 1 and 5 during fanassisted cooking. Excessive direct heat can burn temperature sensitive foods.

• GRILL (recommended: set only to MAX power level); • GRATIN (recommended: do not exceed 200°C).

! In the GRILL and GRATIN cooking modes, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

= TRADITIONAL OVEN mode

MULTI-COOKING Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only; if more than one rack is used, the heat will be distributed unevenly.

• Use position 2 and 4, placing the food that requires more heat on 2.

> MULTI-COOKING mode All the heating elements (top and bottom), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time.

? TOP OVEN mode The top heating element comes on. This mode can be used to brown food at the end of cooking.

@ GRILL mode The top heating element comes on. The extremely high and direct temperature of the grill makes it possible to brown the surface of meats and roasts while locking in the juices to keep them tender. The grill is also highly recommended for dishes that require a high temperature on the surface: such as beef steaks, veal, rib steak, filets, hamburgers etc... Some grilling examples are included in the “Practical Cooking Advice” paragraph. Always cook in this mode with the oven door closed.

A GRATIN mode The top heating element, as well as the fan, will come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed.

• Place the dripping pan on the bottom and the rack on top. GRILL • Insert the rack in position 3 or 4. Place the food in the centre of the rack. • We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on. PIZZA • For best results when cooking pizza, use the MULTI-COOKING mode. • Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time). • If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

Foods Duck Roast veal or beef Pork roast Biscuits (short pastry) Tarts Pizza (on 2 racks) Lasagne Lamb Roast chicken + potatoes Mackerel Plum cake Cream puffs (on 2 racks) Biscuits (on 2 racks) Sponge cake (on 1 rack) Sponge cake (on 2 racks) Savoury pies Browning food to perfect cooking Soles and cuttlefish Squid and prawn kebabs Cod filet Grilled vegetables Veal steak Cutlets Hamburgers Mackerels Toasts Grilled chicken Cuttlefish

Precautions and tips GB

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • When handling the appliance, always use the handles provided on the sides of the oven. • Do not touch the appliance with bare feet or with wet or moist hands and feet.

• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains. • In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance). • Do not rest heavy objects on the open oven door.

Disposal • Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.

• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

• The openings used for ventilation and dispersion of heat must never be covered.

Respecting and conserving the environment

• Always grip the oven door handle in the centre: the ends may be hot.

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.

• The appliance must be used to cook food by adults only and according to the instructions in this manual. • When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.

• Always use oven gloves to place cookware in the oven or when removing it. • Do not use aluminium foil to line the bottom of the oven. • Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire. • Always make sure the knobs are in the “l”/“¡” position when the appliance is not in use. • When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Always keep the oven door closed when using the GRILL and GRATIN mode to attain best results and to save energy (approximately 10%). • Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse.

Assistance Communicating: • appliance model (Mod.) • serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.

Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance • The stainless-steel or enamel-coated external parts as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap. If these stains are difficult to remove, use only specialised products. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances. • Ideally, the inside of the oven should be cleaned after each use, when it is still lukewarm. Use hot water and detergent, rinse and dry with a soft cloth. Do not use abrasive products. • All accessories - with the exception of the sliding racks - can be washed like everyday crockery.

Inspecting the seals Check the door seals around the oven periodically. If the seals are damaged, please contact your nearest After-sales Service Centre (see Assistance). We recommend not using the oven until the seals have been replaced.

Replacing the light bulb

To replace the oven light bulb: 1. Remove the glass cover of the lamp-holder. 2. Remove the light bulb and replace it with a similar one: Wattage 25 W, cap E 14. 3. Replace the glass cover (see diagram).

Never use steam cleaners or pressure cleaners on the appliance.

Cleaning the oven door Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. To clean more thoroughly, you can remove the oven door. 1. Open the oven door fully (see diagram). 2. Lift up and turn the small levers located on the two hinges (see diagram).

3. Grip the door on the two external sides and close it approximately half way. Pull the door towards you lifting it out of its seat (see diagram). To replace the door, reverse this sequence.
