USER MANUAL SBLH 202A V HOTPOINT

Positioning and connection

Description of the appliance, 15-16

Start-up and use, 17-18

Starting the appliance

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 19-20

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the appliance

Replacing the light bulb

Precautions and tips, 21

Respecting and conserving the environment

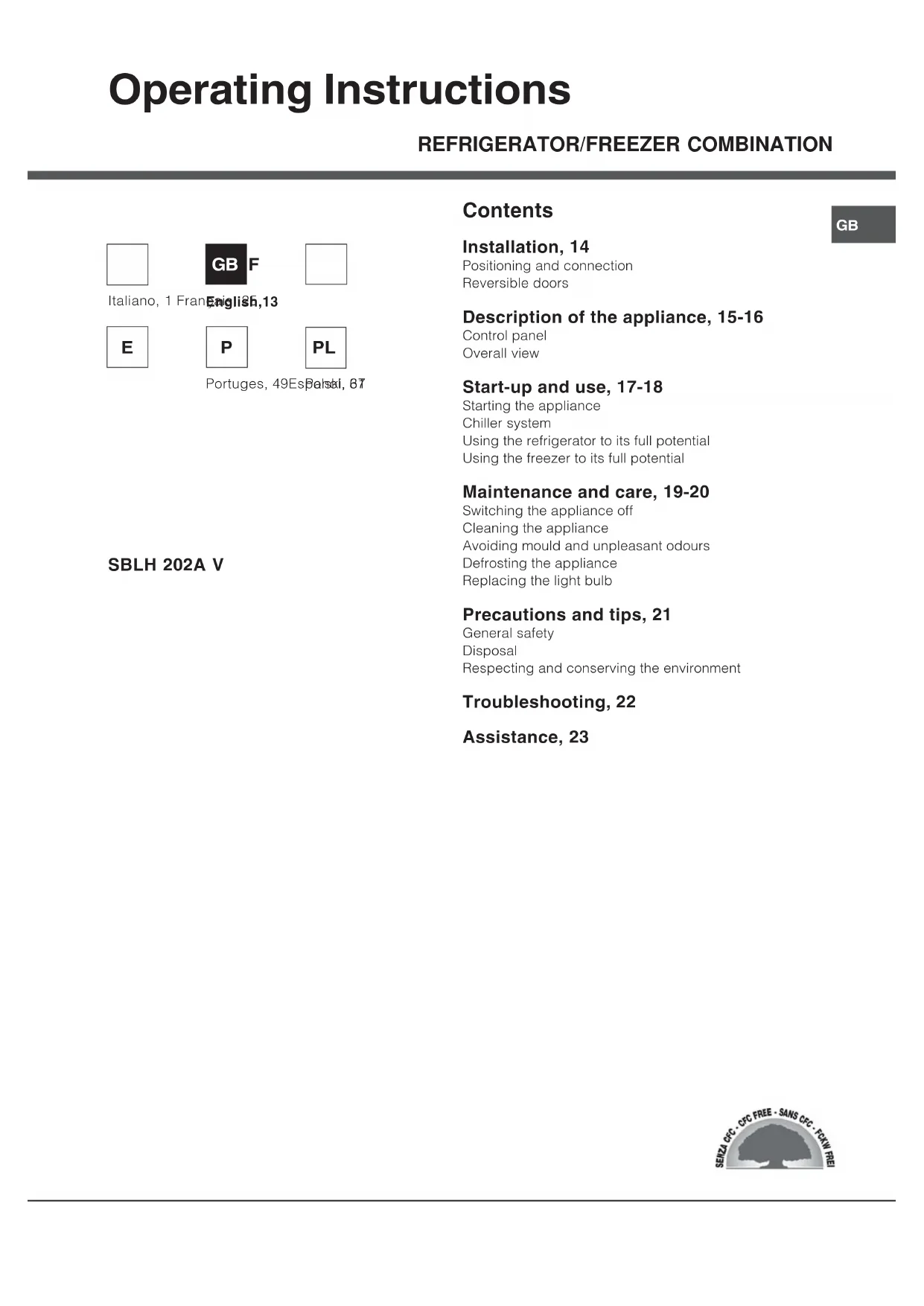

Operating Instructions

GB Installation ! Before placing your new appliance into operationplease read these operating instructions carefully. Theycontain important information for safe use, for installationand for care of the appliance.! Please keep these operating instructions for futurereference. Pass them on to possible new owners of theappliance. Positioning and connection

Positioning 1. Place the appliance in a well-ventilated humidity-freeroom.2. Do not obstruct the rear fan grills. The compressor andcondenser give off heat and require good ventilationto operate correctly and save energy.3. Leave a space of at least 10 cm between the top partof the appliance and any furniture above it, and atleast 5 cm between the sides and any furniture/sidewalls.4. Ensure the appliance is away from any sources of heat(direct sunlight, electric stove, etc.).5. In order to maintain the correct distance between theappliance and the wall behind it, fit the spacerssupplied in the installation kit, following theinstructions provided. Levelling 1. Install the appliance on a level and rigid floor.2. If the floor is not perfectly horizontal, adjust therefrigerator by tightening or loosening the front feet. Electrical connections After the appliance has been transported, carefully placeit vertically and wait at least 3 hours before connecting itto the electricity mains. Before inserting the plug into theelectrical socket ensure the following:• The appliance is earthed and the plug is compliantwith the law.• The socket can withstand the maximum power of theappliance, which is indicated on the data plate locatedon the bottom left side of the fridge (e.g. 150 W).• The voltage must be in the range between the valuesindicated on the data plate located on the bottom leftside (e.g. 220-240V).• The socket is compatible with the plug of theappliance. If the socket is incompatible with the plug,ask an authorised technician to replace it ( see

Assistance ). Do not use extension cords or multiplesockets.! Once the appliance has been installed, the powersupply cable and the electrical socket must be easilyaccessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replaced byauthorised technicians only (see Assistance).! The manufacturer declines any liability should thesesafety measures not be observed. 1

to regulate the temperature of the refrigerator

is the optimal temperature for energy saving

is the holiday function (

OFF switches the refrigerator off.

(quick cool) to lower the temperature

of the refrigerator compartment rapidly. When it is

pressed, the SUPER COOL indicator light illuminates

see Start-up and use

• SUPER COOL Yellow indicator light (rapid cooling)

illuminates when the SUPER COOL button is pressed.

• POWER Indicator light illuminates when the

appliance is connected to the electricity network.

• SUPER FREEZE button (rapid freezing) to freeze fresh

food. When it is pressed, the SUPER FREEZE indica-

tor light illuminates (see Start-up and use).

• SUPER FREEZE Yellow indicator light (rapid

to regulate the temperature of the freezer

is the optimal temperature for energy saving

switches the appliance off, including the

! The indicator lights are also used to indicate an

unusual temperature increase in the freezer

GB Description of the

Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may notdirectly represent the appliance purchased. For more complex features, consult the following pages. • Varies by number and/or position.

Starting the appliance ! Before starting the appliance, follow theinstallation instructions ( see Installation

). ! Before connecting the appliance, clean thecompartments and accessories well with lukewarmwater and bicarbonate.! The appliance comes with a motor protection controlsystem which makes the compressor startapproximately 8 minutes after being switched on. Thecompressor also starts each time the power supply iscut off whether voluntarily or involuntarily (blackout).1. Set the FREEZER OPERATION knob on . 2. Insert the plug into the socket and ensure that thegreen POWER indicator light illuminates.3. Turn the REFRIGERATOR OPERATION knob to anaverage value. After a few hours you will be able toput food in the refrigerator.4. Turn the FREEZER OPERATION knob to an averagevalue and press the SUPER FREEZE button (rapidfreezing): the SUPER FREEZE indicator light willilluminate. Once the refrigerator has reached theoptimal temperature, the indicator light goes out andyou can begin food storage. Chiller system PURE WIND/PURE WIND PLUS*It is recognizable due to the presence of themechanism on the top part of the refrigeratorcompartment ( see diagram

A B B B A Pure Wind / PURE WIND PLUSmaximises aircirculation, improving the efficiency of theevaporator and helping to achieve the optimaltemperature inside the refrigerator as quickly aspossible each time it has been opened. The blownair (A) is cooled when it comes into contact with thecold wall, whereas the hotter air (B) is sucked up (

). The back wall may be covered in frost or droplets ofwater, depending on whether the compressor is inoperation or whether it is paused.If the TEMPERATURE ADJUSTMENT knob has beenset on high values with large quantities of food andwith a high ambient temperature, the appliance canoperate continuously, resulting in excessive frostformation and excessive energy consumption:compensate for this by shifting the knob towardslower values (defrosting will occur automatically). Using the refrigerator to its full

potential • Use the REFRIGERATOR OPERATION knob toadjust the temperature ( see Description

). • Press the SUPER COOL button (rapid cooling) tolower the temperature quickly. For example, whenyou place a large number of new food items insidea fridge the internal temperature will rise slightly.The function quickly cools the groceries bytemporarily reducing the temperature until itreaches the ideal level.• Place only cold or lukewarm foods in thecompartment, not hot foods ( see Precautions and

). • Remember that cooked foods do not last longerthan raw foods.• Do not store liquids in open containers. They willincrease humidity in the refrigerator and causecondensation to form.SHELVES: with or without grill.Due to the special guides theshelves are removable andthe height is adjustable ( see

diagram ), allowing easystorage of large containersand food. Height can beadjusted without completeremoval of the shelf.

GB Using the freezer to its full potential

• Do not re-freeze food that is defrosting or that has

already been defrosted. These foods must be cooked

and eaten (within 24 hours).

• Fresh food that needs to be frozen must not come into

contact with food that has already been defrosted. Fresh

food must be stored in the top FREEZER and STORAGE

compartment where the temperature drops below -18°C

and guarantees rapid freezing.

• Do not place glass bottles which contain liquids, and

which are corked or hermetically sealed in the freezer

because they could break.

• The maximum quantity of food that may be frozen daily is

indicated on the plate containing the technical properties

located on the bottom left side of the refrigerator

compartment (for example: Kg/24h: 4).

• To freeze (if the freezer is already operating):

- for small quantities which are less than those indicated on

the data plate, press the rapid freezing SUPER FREEZE

button (corresponding yellow indicator light illuminates),

insert the food and close the door. The function is disabled

automatically after 24 hours or when optimal temperatures

have been reached (indicator light goes out);

- for large quantities which are greater than the maximum

load indicated on the data plate, hold down the rapid

freezing SUPER FREEZE button until the corresponding

indicator light begins to flash. After 24 hours the indicator

light stops flashing and remains on constantly. Place the

food inside the freezer and close the door. After another 24

hours, the function will be disabled automatically (indicator

In order to obtain a greater amount of space in the

freezer compartment, you may remove the bins

(except the lowest bin and the special COOL CARE ZONE bin, which has an adjustable temperature)

and place the food directly onto the evaporator

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the

freezer door. This will help maintain the temperature

inside the freezer, ensuring that foods are conserved for

at least 9 -14 hours.GB

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to

disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on

2. pull the plug out of the socket

! If this procedure is not followed, the alarm may

sound. This alarm does not indicate a malfunction. To

restore normal operation, it is sufficient to set the

FREEZER OPERATION knob on the desired value. To

disconnect the appliance, follow point 1 and 2.

Cleaning the appliance

• The external and internal parts, as well as the

rubber seals may be cleaned using a sponge that

has been soaked in lukewarm water and

bicarbonate of soda or neutral soap. Do not use

solvents, abrasive products, bleach or ammonia.

• The removable accessories may be soaked in

warm water and soap or dishwashing liquid. Rinse

and dry them carefully.

• The back of the appliance may collect dust which

can be removed by delicately using the hose of a

vacuum cleaner set on medium power. The

appliance must be switched off and the plug must

be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic

materials which are odour free. In order to maintain

an odour free refrigerator and to prevent the

formation of stains, food must always be covered or

• If you want to switch the appliance off for an

extended period of time, clean the inside and leave

To minimise energy usage when on holiday, it is not

necessary to switch the appliance off. The appliance

has a function which allows it to maintain the

temperature of the refrigerator compartment at

approximately 15°C (which can also be used to

conserve make-up and beauty products). The freezer

temperature must be set to the minimum value in order

to preserve the food.

To enable the function: set the REFRIGERATOR OPERATION knob on

A double acoustic signal informs you when it has

been enabled. A single acoustic signal informs you

when it has been disabled.

Defrosting the appliance

! Follow the instructions below.

Do not use objects with sharp or pointed edges to

defrost the appliance as these may damage the

refrigeration circuit beyond repair.

Defrosting the refrigerator compartment

The refrigerator has an

automatic defrosting

ducted to the back of

heat produced by the

compressor causes it to

necessary to clean the

discharge hole regularly

so that the water can flow out easily.20

Defrosting the freezer compartment

If the frost layer is greater than 5 mm, it is necessary

to defrost manually:

1. The day before defrosting, press the SUPER FREEZE button (the yellow SUPER FREEZE indicator

light illuminates) to further cool the food.

2. The function is automatically disabled after 24

hours, or it may be disabled at any moment by

pressing the SUPER FREEZE button again. At this

point, set the FREEZER OPERATION knob on

which will switch the refrigerator off.

3. Wrap frozen foods in newspaper and place them in

another freezer or in a cool place.

4. Leave the door open until the frost has melted

completely. This can be made easier by placing

containers with lukewarm water in the freezer

5. Certain appliances

are fitted with the DRAIN SYSTEM to lead the

water outside: let the

6. Clean and dry the freezer compartment carefully

before switching the appliance on again.

7. Wait for approximately 2 hours, i.e. until the ideal

storage conditions have been restored, before

placing food in the freezer compartment.

Replacing the light bulb

To replace the light bulb in the refrigerator

compartment, pull out the plug from the electrical

socket. Follow the instructions below.

Access the light bulb by removing the cover as

indicated in the diagram.

Replace it with a similar light bulb within the power

range indicated on the cover (15W or 25W).GB

Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons and

must be read carefully.

This appliance complies with the following

Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and

subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic

Compatibility) and subsequent amendments;

• The appliance was designed for domestic use inside

the home and is not intended for commercial or

• The appliance must be used to store and freeze food

products by adults only and according to the

instructions in this manual.

• The appliance must not be installed outdoors, even

in covered areas. It is extremely dangerous to leave

the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet

or moist hands and feet.

• Do not touch the internal cooling elements: this could

cause skin abrasions or frost/freezer burns.

• When unplugging the appliance always pull the plug

from the mains socket, do not pull on the cable.

• Before cleaning and maintenance, always switch off

the appliance and disconnect it from the electrical

supply. It is not sufficient to set the temperature

eliminate all electrical contact.

• In the case of a malfunction, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may

cause injury or further malfunctioning of the appliance.

• Do not use any sharp or pointed utensils or electrical

equipment - other than the type recommended by

the manufacturer - inside the frozen food storage

• Do not put ice cubes taken directly from the freezer

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

lack of experience and knowledge unless they have

been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do

not play with the appliance.

• Keep packaging material out of the reach of children! It

can become a choking or suffocation hazard.

• Observe local environmental standards when

disposing packaging material for recycling

• The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE),

requires that old household electrical appliances

must not be disposed of in the normal unsorted

municipal waste stream. Old appliances must be

collected separately in order to optimise the

recovery and recycling of the materials they contain

and reduce the impact on human health and the

environment. The crossed out “wheeled bin”

symbol on the product reminds you of your

obligation, that when you dispose of the appliance

it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct disposal

of their old appliance.

Respecting and conserving the

• Install the appliance in a fresh and well-ventilated

room. Ensure that it is protected from direct sunlight

and do not place it near heat sources.

• Try to avoid keeping the door open for long periods

or opening the door too frequently in order to

• Do not fill the appliance with too much food:

cold air must circulate freely for food to be

preserved properly. If circulation is impeded, the

compressor will work continuously.

• Do not place hot food directly into the refrigerator.

The internal temperature will increase and force the

compressor to work harder and will consume more

• Defrost the appliance if ice forms (

). A thick layer of ice makes cold

transference to food products more difficult and

results in increased energy consumption.

• Regularly check the door seals and wipe clean to

ensure they are free of debris and to prevent cold

Malfunctions: The green POWER indicator light doesnot illuminate.The motor does not start.The indicator lights are on but the light is dim. a) The alarm sounds.b) The alarm sounds and the two yellowindicator lights flash.c) The alarm sounds and the two yellowindicator lights as well as the green oneflash.The green POWER indicator light flashes.The refrigerator and the freezer do notcool well.The food inside the refrigerator isbeginning to freeze.The motor runs continuously. The PURE WIND fan does not rotate The appliance makes a lot of noise.The back wall of the refrigerator unit iscovered in frost or droplets of waterThere is water at the bottom of therefrigerator. Possible causes / Solutions: • The plug has not been inserted into the electrical socket, or not far enoughto make contact, or there is no power in the house.• The appliance comes with a motor protection control ( see Start-up and use

). • Pull out and reverse the plug before putting it back in the socket.a) The refrigerator door has remained open for more than two minutes (thebuzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed ( see Maintenance

b) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.c) The temperature in the freezer has reached a dangerous level. The foodmust be disposed immediately. b/c)

In both these cases the freezer will maintain a temperature of about 0°Cso that the food does not re-freeze.To turn off the acoustic signal open and close the refrigerator door. Torestore normal operation bring the FREEZER OPERATION knob setting to (off) and turn the appliance on again.• The appliance is not operating correctly. Contact the Technical AssistanceCentre.• The doors do not close properly or the seals are damaged.• The doors are opened too frequently.• The OPERATION knobs are not on the correct setting ( see Description

). • The refrigerator or the freezer have been over-filled.• The REFRIGERATOR OPERATION knob is not on the correct setting ( see

). • The food is in contact with the back inside wall of the refrigerator.• The SUPER FREEZE button has been pressed (rapid freezing): the yellowSUPER FREEZE light is on or flashing ( see Description

). • The door is not closed properly or is continuously opened.• The outside ambient temperature is very high.• The thickness of the frost exceeds 2-3 mm ( see Maintenance

). • The PURE WIND system is only activated automatically when it becomesnecessary to restore perfect operational conditions inside the refrigeratorcompartment.• The appliance has not been installed on a level surface ( see Installation

. • The appliance has been installed between cabinets that vibrate and makenoise.• The internal refrigerant makes a slight noise even when the compressor isoff. This is not a defect, it is normal.• This shows the appliance is operating normally.• The water discharge hole is blocked ( see Maintenance

Before calling for Assistance:

Check if the malfunction can be solved on your own (

• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service

• appliance model (Mod.)

• serial number (S/N)

This information can be found on the data

plate located on the bottom left side of the

refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

• As partes externas, as partes internas e as
