USER MANUAL SU3000RTXR3U Tripp Lite

Rack/Tower Mount On-Line UPS

Systems

Not suitable for mobile applications.

Models:

SU750RTXL2U (Series Number: AGPS5542)

SU1000RTXL2UA (Series Number: AGPS5180)

SU1500RTXL2UA (Series Number: AGPS5194)

SU2200RTXL2UA (Series Number: AGPS5183)

SU3000RTXL2U, SU3000RTXR3U (Series Number: AGPS5204)

SU3000RTXR3UHW (Series Number: AGPS7039)

Important Safety Instructions 2

Installation 4

Basic Operation 9

Troubleshooting 13

Battery Replacement 14

Storage and Service 15

Product Registration 16

Regulatory Compliance 16

Español 17

Français 33

PROTECT YOUR INVESTMENT!

Register your product for quicker service and ultimate peace of mind. You could also win an ISOBAR6ULTRA surge protector—a \$100 value!

www.tripplite.com/warranty

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Copyright © 2017 Tripp Lite. All rights reserved.

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these warnings may affect your warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust or direct sunlight.
- For best performance, keep the indoor temperature between 32°F and 104°F (0°C and 40°C).
- Leave adequate space around all sides of the UPS for proper ventilation.
- Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner will seriously inhibit the unit's internal cooling, eventually causing product damage not covered under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS into itself; this will damage the UPS.
• Do not modify the UPS plug, and do not use an adapter that would eliminate the UPS ground connection.
• Do not use extension cords to connect the UPS to an AC outlet.
• If the UPS receives power from a motor-powered AC generator, the generator must provide clean, filtered, computer-grade output.

CAUTION: Install in accordance with National Electrical Code standards ANSI/NFPA 70 and Canadian Electrical Code, Part I, C22.1. Be sure to use the proper overcurrent branch protection for the installation, in accordance with the plug/equipment rating.

⚠️ CAUTION: Short Circuit backup protection and overcurrent protection is provided by the building installation for permanently connected models.

CAUTION: To reduce the risk of fire, connect only to a circuit-provided branch circuit overcurrent protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code, Part I, C22.1. Use 30A maximum overcurrent protection for models SU3000RTXL2U and SU3000RTXR3U (series AGPS5204), and SU3000RTXR3UHW (series AGPS7039).

• Your UPS may be equipped with a terminal block for permanent connection to AC Mains. Installation is by qualified service personnel only. When connecting to permanently connected units use only copper conductors 10AWG with a minimum temperature rating 165°F (75°C).
• Be sure to provide a local disconnect device on any models that are permanently installed without a plug that is easily accessible.

Important Safety Instructions

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
• Do not connect surge protectors or extension cords to the UPS output. This may damage the UPS and affect the surge protector and UPS warranties.

Battery Warnings

- Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or batteries. Do not short or bridge the battery terminals with any object. Unplug and turn off the UPS before performing battery replacement. Use tools with insulated handles. There are no user-serviceable parts inside the UPS. Battery replacement should be performed only by authorized service personnel using the same number and type of batteries (Sealed Lead-Acid). The batteries are recyclable. Refer to your local codes for disposal requirements or visit http://www.tripplite.com/support/recycling-program for recycling information. Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at http://www.tripplite.com/products/battery-finder/ to locate the specific replacement battery for your UPS.

Installation

Rack Mounting

Mount your equipment in either a 4-post or 2-post rack or rack enclosure (see next page for 2-post mounting). The user must determine the fitness of hardware and procedures before mounting. If hardware and procedures are not suitable for your application, contact the manufacturer of your rack or rack enclosure. The procedures described in this manual are for common rack and rack enclosure types and may not be appropriate for all applications.

4-Post Mounting

All UPS models include hardware required to mount in a 4-post rack. Select models include an adjustable rackmount shelf kit to provide additional support. If your UPS model does not include an adjustable rackmount shelf kit, skip steps 1 and 2.

1 Connect the two segments of each shelf A using the included screws and nuts B. Leave the screws slightly loose so that the shelves can be adjusted in the next step.

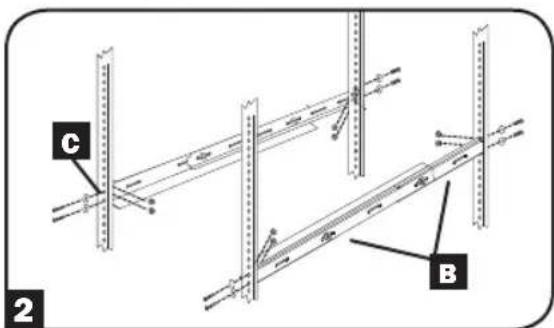

2 Adjust each shelf to fit your rack, then mount them in the lowest available space of your rack with the screws, nuts and washers provided C. The support ledges should face inward. Tighten the screws that connect the shelf segments B.

3 Attach mounting ears D to the front mounting holes of your equipment E using the provided screws F. The ears should face forward.

4 Using an assistant (if necessary), lift your equipment and slide it onto the mounting shelves. Attach your equipment to the rack by using the appropriate hardware through its mounting ears and into the rack rails.

Installation

2-Post (Telecom) Mounting

If you mount 2U UPS models in 2-post racks, they require the addition of a Tripp Lite 2-Post Rackmount Installation Kit (model: 2POSTKITRMWM, sold separately). See Installation Kit owner's manual for installation procedure for 2U UPS models.

Mounting (Tower)

Your UPS can be mounted in an upright tower position with optional base stands sold separately by Tripp Lite (Model #2-9USTAND). When mounting the UPS on adjustable base stands, make sure that the control panel is toward the top. The control panel may be rotated to make it easier to read. Insert a small screwdriver or similar tool in the slots on either side of the panel, pop it out, rotate it, and pop it back into place as shown.

WARNING!

All UPS systems are extremely heavy. Use caution when lifting and mounting. User must properly stabilize the UPS when lifting and mounting.

Connection and Start-Up

1 Plug your UPS line cord into an electrical outlet.

Your UPS must be connected to a dedicated circuit of sufficient amperage. However, the select models may be fitted with different plug types. Refer to the "OP Rating/Plug Rating" chart printed on the top of your UPS.

Once your UPS is plugged in, the fan and all Indicator Lights will turn ON. The "LINE" and "LOAD ACTIVE METER" LEDs will illuminate and the UPS will beep to indicate normal operation. However, power is not supplied to your UPS AC outlets until the UPS is turned on.

2 Plug your equipment into your UPS.

Your UPS is designed to support computer equipment only. You will overload your UPS if you connect household appliances or laser printers to the UPS outlets.

Installation

3 Turn your UPS ON:

• Press the "ON/TEST" Button
• Hold it for several seconds until you hear a beep
• Release it

Your UPS will begin providing AC power to its outlets. The "ON LINE" LED will illuminate.

Note: UPS system will function properly upon initial startup; however, maximum runtime for the unit's battery will only be accessible after it has been charged for 24 hours.

Optional Connections

Your UPS will function properly without these connections.

1 Phone Line or Phone/Network Line Surge Suppression

Your UPS has jacks which protect against surges on a phone line. Select models feature jacks which also protect against surges on a network line.* Using appropriate telephone or network cords connect your wall jack to the UPS jack marked "IN." Connect your equipment to the UPS jack marked "OUT." Make sure the equipment you connect to the UPS jacks is also protected against surges on the AC line.

* Not compatible with PoE (Power Over Ethernet) applications.

2 USB and RS-232 Serial Communications

Use the included USB cable 2a and/or DB9 serial cable 2b to connect the communication port of your computer to the communication port of your UPS. Install on your computer the Tripp Lite PowerAlert® Software appropriate to your computer's operating system. Your UPS may feature additional communications ports; these ports may be connected to additional computers that have PowerAlert Software installed. Consult your PowerAlert manual for more information.

Installation

3 EPO Port Connection

This optional feature is only for those applications requiring connection to a facility's Emergency Power Off (EPO) circuit. When the UPS is connected to this circuit, it enables emergency shutdown of the UPS inverter and inhibits transfer to internal bypass. Using the provided cable, connect the UPS EPO port 3a to a user-supplied, normally-closed or normally-open switch according to the circuit diagram 3b.

Note:

1. If using a cable other than what is supplied, the cable should not exceed 350 feet or have a resistance of greater than 10 ohms.
2. If a non-latching EPO switch is used, the EPO must be held for a minimum of 1 second. This does not apply to a latching EPO switch.

CAUTION: The EPO port is not a phone line surge suppressor; do not connect a phone line to this port.

UPS Unit State when asserting EPO with AC line present:

LEDs Output Fans Serial	SNMP USB
OFF OFF ON ON ON ON

To restart the UPS unit after asserting EPO with AC line present:

Option 1:

1. Verify that the EPO assertion has been removed or cleared.
2. Press OFF button until you hear a click (approx. 1 second).
3. Press ON button and UPS output will turn back on.

Option 2:

1. Verify that the EPO assertion has been removed or cleared.
2. Remove AC line power to the UPS unit.
3. Reapply AC line power. Now the UPS will start back up in normal operation mode.

UPS Unit State when asserting EPO without AC line power:

LEDs Output Fans Serial	SNMP USB
OFF OFF OFF OFF OFF OFF

To restart the UPS unit after asserting EPO without AC line power:

1. Verify that the EPO assertion has been removed or cleared.
2. Reapply AC line power to the UPS unit. Now the UPS will start back up in normal operation mode.

Installation

4 External Battery Pack Connector (configuration varies by model):

Use to connect optional Tripp Lite Battery Packs for additional runtime. Use only Tripp Lite external battery packs with overcurrent protection. Adding external batteries will increase recharge time as well as runtime. Installation should be performed by qualified service personnel only. Refer to the battery pack owner's manual for complete installation instructions. Make sure cables are firmly inserted into their connectors. Small sparks may result during battery connection; this is normal. Do not connect or disconnect battery packs when the UPS is operating on battery power. The following battery packs are available in the table below. Contact Tripp Lite Customer Support at 773.869.1234 for assistance in determining the appropriate Tripp Lite battery pack to connect.

24V Battery Packs 48V		Battery Packs 72V Battery Packs
Model	Amp-Hour Rating Model		Amp-Hour Rating Model		Amp-Hour Rating
BP24V15RT2U	14 Ah BP48V2	24-2U 18 Ah BP72	V15-2U 15 Ah
BP24V28-2U 28	Ah BP48V27	-2US 27 Ah BP72	V18-2US 18 Ah
BP24V36-2US	36 Ah BP48V6	0RT-3U 42 Ah BP	72V28RT-3U	28 Ah
BP24V70-3U 70	Ah

When connecting to two-conductor external battery packs, be sure to use the ground strap included with the external battery packs to bond the battery packs to the metal enclosure of the UPS in accordance with your external battery pack Owner's Manual.

Note: Three-conductor battery packs are equipped with a ground bond plug. Refer to the battery pack instructions for complete connection information and safety warnings.

Basic Operation

Front Panel Switches

"ON/TEST" Button: This switch controls four separate UPS functions:

UPS Power ON

To turn the UPS on, press this button, hold for several seconds until you hear a beep, then release. The "ON LINE" LED will illuminate.

UPS Self-Test

During normal on-line operation, press this button and hold it until you hear a beep. This initiates a 10-second battery self-test. The UPS will shift to battery power (all LEDs will illuminate) for ten seconds.

Alarm Silence

To silence the UPS "on-battery" alarm, press this button and hold it until you hear a beep.

UPS Cold Start

To use your UPS as a standalone power source when AC power is unavailable (i.e. during a blackout), press this button and hold it until you hear a beep. The UPS will then provide battery power to its outlets.*

* The "ON BATT" Indicator Light will be illuminated since your UPS will be operating from battery power.

"OFF" Button: This button turns power OFF at the UPS receptacles. Press this switch, hold until you hear a beep, then release. The UPS will continue charging and the fan will continue to cool internal components even after you turn the UPS receptacles off. To turn the UPS OFF completely, including the charger, disconnect the UPS's power cord after pressing the "OFF" switch.

Front Panel Indicator Lights

"ON LINE" LED: This green light will illuminate constantly to indicate the UPS is performing normal on-line operation (filtering and resynthesizing incoming AC line voltage to provide pure sine wave output). When this light is illuminated, you can monitor the load level of your UPS on the "LOAD ACTIVE METER" LEDs.

"LINE" LED: This green light will illuminate constantly to indicate the utility supplied AC line voltage at your wall outlet is nominal. It will flash if the line voltage is outside the nominal range (either too low or two high). No action is required on your part when the LED flashes; the UPS continuously and automatically filters AC line power to provide your equipment with pure sine wave AC power, regardless of brownout or overvoltage conditions. If this light is off, then AC line voltage is not present (blackout) or is at an extremely high voltage, and the UPS will provide connected equipment with power from battery.

Basic Operation

"BYPASS" LED: This yellow light will flash to indicate that the UPS DC/AC inverter is deactivated and the UPS is in the "Bypass" mode. During normal operation this LED will light briefly when the unit is plugged in, but if an internal fault or overload occurs, this light will flash constantly and the fault LED will illuminate to show that connected equipment will receive filtered AC mains power, but will not receive battery power during a blackout. In this case, contact Tripp Lite for service. If the UPS has been placed into Economy Mode (available on select UPS systems), it configures an online UPS to function as a switching UPS. When the UPS system is in Economy Mode, it operates at increased efficiency while AC utility power is available (within +/- 10% nominal) and switches to battery power if AC utility power is interrupted. The yellow "BYPASS" LED will remain on when the UPS system is in Economy Mode. (For more information on how to access the Economy Mode, please refer to the PowerAlert software User's Manual)

"FAULT" LED (select models only): This red light will flash when your UPS detects an internal fault (overheating, overvoltages, etc.) or when it detects a wiring fault in your wall outlet (reversed phases, missing ground, etc.) The UPS will only detect wiring faults when it is plugged into a utility outlet but not turned ON. If the light persists after restarting the UPS, contact an electrician to check the AC line. Your UPS will identify the presence of most (but not all) wiring faults.

"LOAD ACTIVE METER" LED: This green light will illuminate when your UPS is receiving AC power to indicate that the set of four dual-function LEDs is displaying the load level of your UPS.

"BATT ACTIVE METER" LED: This green light will illuminate when your UPS is operating from battery power to indicate that the set of four dual-function LEDs is displaying the battery charge level of your UPS.

Note: The "ON BATT" LED will also be illuminated.

"OVERLOAD" LED: This red light will illuminate constantly to indicate that your UPS capacity has been exceeded while it is in on-line operation. The UPS alarm will beep continuously. Immediately remove overload until light and alarm goes off. If you do not immediately remove the overload, the UPS will transfer from on-line to bypass operation.

"BATT LOW" LED: This yellow light will illuminate when your UPS battery charge level is low. The UPS alarm will beep until either the battery charge is depleted or the batteries are adequately recharged.

"ON BATT" LED: This green light will illuminate constantly to indicate that AC line voltage is not present and your UPS is providing your equipment with battery power. The UPS will also beep every two seconds, unless silenced by the "ON/TEST" Button. When this light is illuminated, you can monitor the battery charge level of your UPS on the "BATT ACTIVE METER" LEDs.

Basic Operation

"REPLACE BATT" LED: This red light will illuminate constantly and the UPS alarm will beep every 2 seconds if UPS microprocessor detects a battery fault or if your UPS fails the automatic self-test (after you turn your UPS ON) and the UPS battery is less than fully charged. Let the UPS system charge for at least 12 hours and perform a self test using the "ON/TEST Button" as described on page 7. If the light continues to stay on, contact Tripp Lite for service.

Rear Panel

Accessory Slot: Remove the small cover panel from this slot to use optional accessories to remotely monitor and control your UPS. Visit www.tripplite.com for compatible SNMP, network management and connectivity products.

External Battery Pack Connector (Varies by Model): Use to connect optional Tripp Lite Battery Packs for additional runtime. Visit www.tripplite.com/products/battery-finder/ to find a compatible battery pack. Refer to your external battery pack Owner's Manual for complete connection information and safety warnings.

Fan: The fan cools the UPS internal components. It is always on when line power is present.

Input Circuit Breaker Switch: This resettable breaker prevents high input current from damaging the UPS or the attached load. If this breaker trips, make sure your UPS is connected to AC power of the proper voltage before resetting the circuit breaker by pushing the breaker switch in.

Ground Screw: Use this to connect any equipment that requires a chassis ground.

Output Circuit Breakers Switches (Select Models Only): These resettable circuit breakers protect your UPS from output overload. If one or both breakers trip, remove some of the load on the circuit(s) and allow the UPS to cool before pressing the breaker switch(es) in to reset.

Input Cord: This permanently attached power cord connects your UPS to a power outlet.

Basic Operation

NEMA 5-15R

AC Receptacles (Varies by Model): These 15-, 20- or 30-amp receptacles provide your connected equipment with pure sine-wave AC output from the AC line during normal operation and from battery power during blackouts and severe brownouts. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. The receptacles are divided into numbered load banks, as labelled on the unit. Using PowerAlert software and cabling, load banks one and two may be individually turned off and on from a remote location, allowing users to reset or reboot connected equipment.

NEMA 5-15/20R

Other outlet types not shown

Telephone or Telephone/Network Protection Jacks: These jacks protect your equipment against surges over a telephone line or telephone/network data line, depending on model. Connecting your equipment to these jacks is optional. Your UPS will work properly without this connection. Not compatible with PoE (Power Over Ethernet) applications.

Communications

Communications Ports (USB or RS-232): These ports connect your UPS to any workstation or server. Use with Tripp Lite's PowerAlert Software and included cables to enable your computer to automatically save open files and shut down equipment during a blackout. Also use PowerAlert Software to monitor a wide variety of AC line power and UPS operating conditions. Consult your PowerAlert Software manual or contact Tripp Lite Customer Support for more information. See “USB and RS-232 Serial Communications” in the “Optional Connections” section for installation instructions.

Dry contact communications are simple, but some knowledge of electronics is necessary for configuration. The DB9 port's pin assignments are shown in the diagram. If the UPS battery is low, the UPS sends a signal by bridging pins 1 and 5. If utility power fails, the UPS sends a signal by bridging pins 8 and 5. To remotely shut down the UPS, short pin 3\~pin 9 for at least 3.8 seconds.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may be used to connect the UPS to a contact closure switch to enable emergency inverter shutdown. See Optional Installation for more information.

Troubleshooting

The UPS control panel lights will turn on in the sequences below to signal that the UPS is having operational difficulties.

Lights (On/Flashing) and Condition Solution

On: REPLACE BATTCondition: Replace Battery	Let the UPS system charge for at least 12 hours and perform a self test using the "ON/Test Switch" as described in the Basic Operation section. If the light continues to stay on, contact Tripp Lite for service.
On: BATT LOW, ON BATTCondition: Battery Low	Prepare for imminent UPS shutdown.
On: BYPASS, LINE, LOAD, OVERLOADCondition: On Bypass due to Overload	Reduce the load the UPS supports.
Flashing: OVERLOADCondition: Short Circuit	Remove the cause of the short circuit from the UPS output.
On: FAULTCondition: Wiring Fault	Check the utility line for wiring problems, such as reversed line and neutral or a missing ground.
On: FAULT, 100%Condition: Battery Voltage too High	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: FAULT, BYPASS, LINE, 50%Condition: On Bypass due to High Output Voltage	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: FAULT, BYPASS, LINEFlashing: 50%Condition: On Bypass due to Low Output Voltage	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: FAULT, BYPASS, LINE, 25%Condition: On Bypass due to High Bus Voltage	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: FAULT, BYPASS, LINEFlashing: 25%Condition: On Bypass due to Low Bus Voltage	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: BYPASS, LINEFlashing: FAULTCondition: On Bypass due to High Internal Temperature	Check the UPS to be sure that there is adequate space for air to circulate near the vents and that the fan is working properly. Restart the UPS.
Flashing: LINECondition: Input Abnormal	This indicates that utility power is too high or low for the UPS to operate in BYPASS mode, so if an inverter failure occurs, the UPS will deliver no output.
On: FAULT, 50%Flashing: LINECondition: No Output due to High Output Voltage and Abnormal Input	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.

Troubleshooting

Lights (On/Flashing) and Condition Solution

On: FAULTFlashing: LINE, 50%Condition: No Output due to Low Output Voltage and Abnormal Input	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: FAULT, 25%Flashing: LINECondition: No Output due to High Bus Voltage and Abnormal Input	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
On: FAULTFlashing: LINE, 25%Condition: No Output due to Low Bus Voltage and Abnormal Input	Restart the UPS. If the problem persists, contact Tripp Lite for repairs.
Flashing: LINE, FAULTCondition: No Output due to High Internal Temperature and Abnormal Input	Check the UPS to be sure that there is adequate space for air to circulate near the vents and that the fan is working properly. Restart the UPS. If the problem persists, contact Tripp Lite for repairs.

Battery Replacement

Battery Replacement Door: Under normal conditions, the original UPS battery will last several years. Battery replacement should be performed only by qualified service personnel. Refer to "Battery Warnings" in the Safety section. Should your UPS require battery replacement, visit www.tripplite.com/products/battery-finder/ to locate the specific replacement battery for your UPS.

Procedure

1 Remove Front Panel
2 Disconnect Batteries
3 Remove/Dispose of Batteries
4 AddBatteries
5 ConnectBatteries
Attach connectors: black-to-black and red-to-red.
6 Replace Front Panel

Storage and Service

Storage

First turn your UPS OFF: press the “OFF” switch to turn power off at the UPS outlets, then disconnect the power cord from the wall outlet. Next, disconnect all equipment to avoid battery drain. If you plan on storing your UPS for an extended period of time, fully recharge the UPS batteries once every three months by plugging the UPS into a live AC outlet and letting the UPS charge for 4-6 hours. If you leave your UPS batteries discharged for an extended period of time, they may suffer permanent loss of capacity.

Service

A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For more information on service, visit www.tripplite.com/support. Before returning your product for service, follow these steps:

1. Review the installation and operation procedures in this manual to insure that the service problem does not originate from a misreading of the instructions.
2. If the problem continues, do not contact or return the product to the dealer. Instead, visit www.tripplite.com/support.
3. If the problem requires service, visit www.triplite.com/support and click the Product Returns link. From here you can request a Returned Material Authorization (RMA) number, which is required for service. This simple on-line form will ask for your unit's model and serial numbers, along with other general purchaser information. The RMA number, along with shipping instructions will be emailed to you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment to Tripp Lite or an authorized Tripp Lite service center is not covered under warranty. Products shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to the address given to you when you request the RMA.

Product Registration

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Regulatory Compliance

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product nameplate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be confused with the marking name or model number of the product.

FCC Notice, Class A

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The user must use shielded cables and connectors with this equipment. Any changes or modifications to this equipment not expressly approved by Tripp Lite could void the user's authority to operate this equipment.

FCC Part 68 Notice (United States Only)

If your Modem/Fax Protection causes harm to the telephone network, the telephone company may temporarily discontinue your service. If possible, they will notify you in advance. If advance notice isn't practical, you will be notified as soon as possible. You will be advised of your right to file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper operation of your equipment. If it does, you will be given advance notice to give you an opportunity to maintain uninterrupted service. If you experience trouble with this equipment's Modem/Fax Protection, please visit www.triplite.com/support for repair/warranty information. The telephone company may ask you to disconnect this equipment from the network until the problem has been corrected or you are sure the equipment is not malfunctioning. There are no repairs that can be made by the customer to the Modem/Fax Protection. This equipment may not be used on coin service provided by the telephone company. Connection to party lines is subject to state tariffs. (Contact your state public utility commission or corporation commission for information.)

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Manual del usuario

SmartOnline®

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

NEMA 5-15R

NEMA 5-15/20R

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Manufacturing Excellence.

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
