Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

Technical line drawing of a front-mounted device with internal components and wiring (no text or symbols)

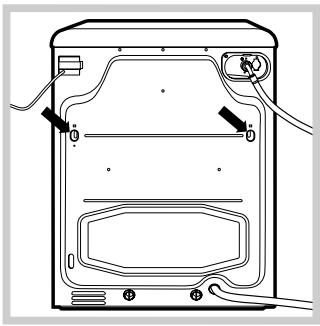

1. Remove the 2 protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

2. Seal the gaps using the plastic plugs provided.

3. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

!Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

Line drawing of a car door corner with a mounted sensor or fixture and a curved arrow indicating rotation (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

Connecting the water inlet hose

A

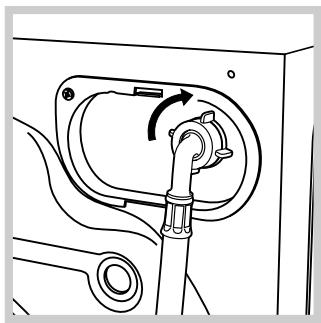

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

Technical line drawing of a mechanical component with a valve and adjustment knob (no text or symbols)

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

! The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).

! If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Connecting the drain hose

65 - 100 cm

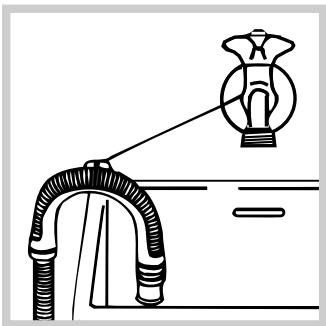

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

Diagram of a pipe connection with a magnified inset showing a connector or component (no text or symbols present)

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

• the socket is earthed and in compliance with the applicable law;
• the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);
• the supply voltage is included within the values indicated on the Technical details table (on the right);
• the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

! The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.
! The power supply cable must never be bent or dangerously compressed.
! The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ C programme without a pre-wash cycle.

Technical details
Model	EXT 1400
Dimensions	68,6 cm wide100 cm high72,5 cm deep
Capacity	from 1 to 11,5 kg
Electric connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 87 litres
Spin speed	up to 1400 rpm
Control programmes according to EN 60456 directive	programme 2; temperature 60°C;run with a load of 11,5 kg.
	This appliance is compliant with the following European Community Directives:- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) and subsequent amendments- 2002/96/CE

Washing machine description

Control panel

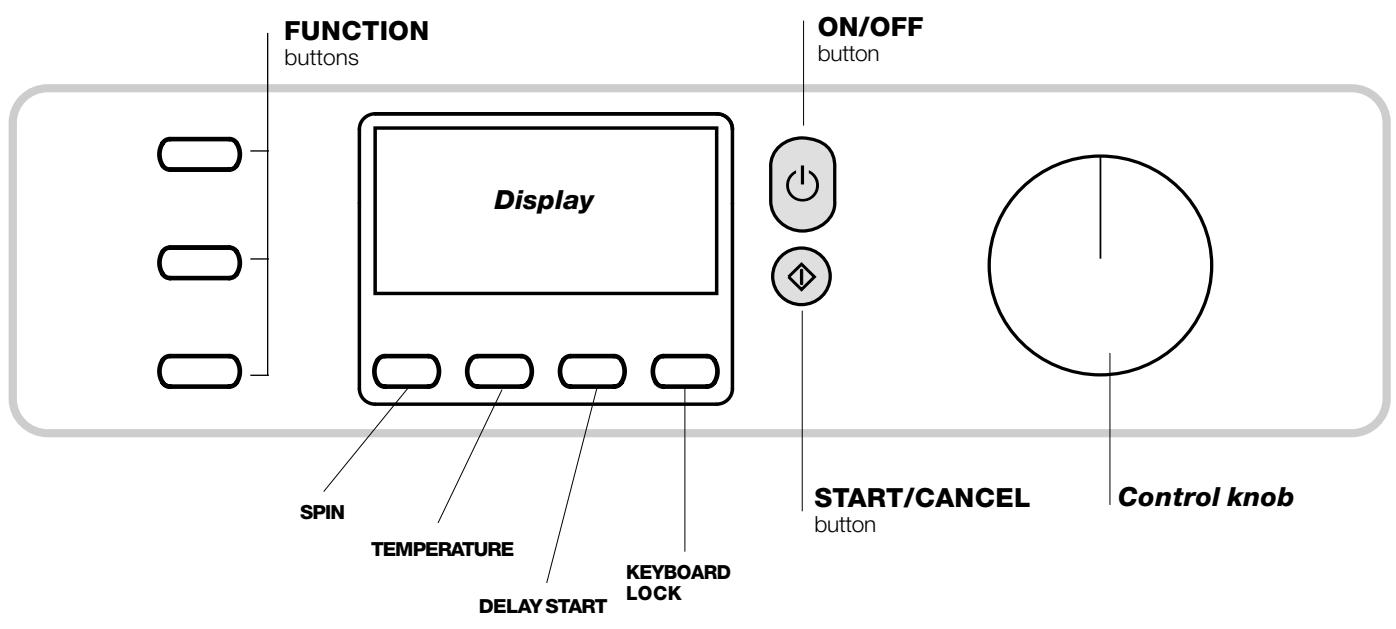

FUNCTION buttons Display ON/OFF button SPIN TEMPERATURE DELAY START KEYBOARD LOCK START/CANCEL button Control knob

Line drawing of a washing machine control panel with an upward arrow indicating direction (no text or symbols)

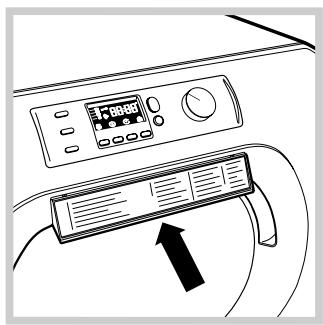

Programme key: to consult a straightforward chart of the different programmes available turn the lower part outwards to open it.

FUNCTION buttons to select the functions available. The button corresponding to the function selected will remain on.

SPIN button to adjust the spin speed or exclude it altogether (see page 7).

TEMPERATURE button to adjust the wash temperature (see page 7).

DELAY START button to delay the start of the set programme for a maximum period of 24 hours (see page 7).

KEYBOARD LOCK key. To lock all the keys on the washing machine during operation or during Stand-by mode.

Display to programme the washing machine and follow the wash cycle progress (see opposite page).

ON/OFFbutton to turn the washing machine on and off (see page 6).

START/CANCEL button to start the programmes or cancel any incorrect settings (see page 6).

N.B.: For safety reasons (eg. to avoid children climbing into the drum), if there is no electricity for more than two minutes the washing machine will not restart unless the START/CANCEL button is pressed.

Control knob to select the wash programmes. The knob stays still during the cycle.

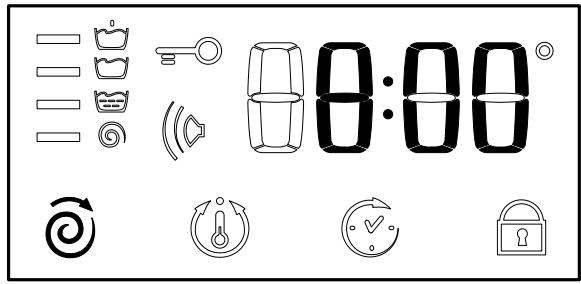

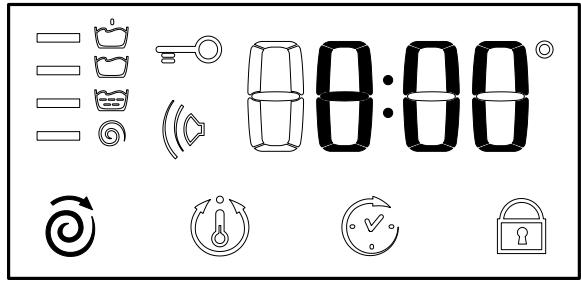

Display

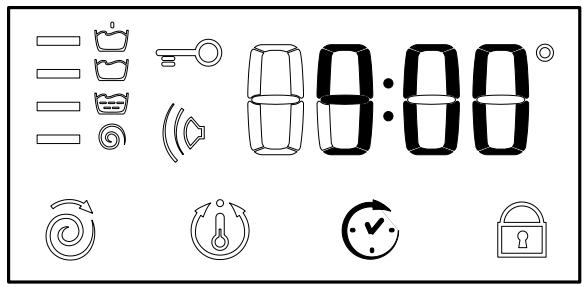

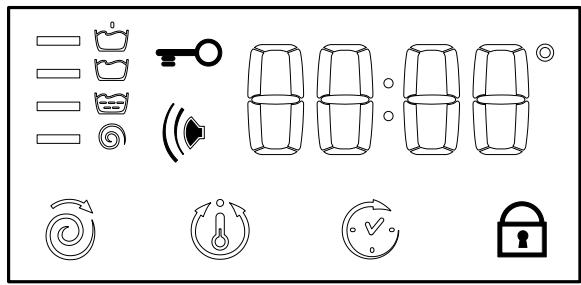

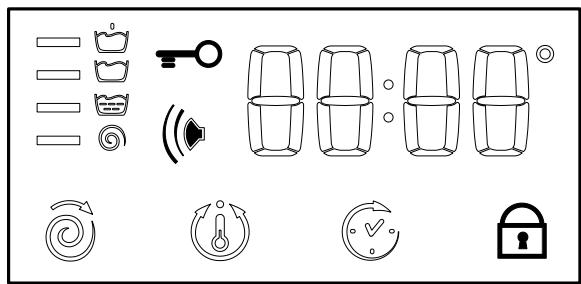

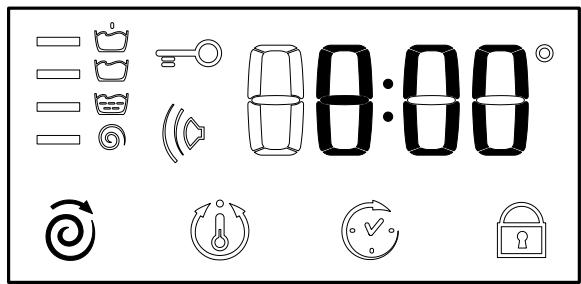

In addition to being a practical tool to programme your appliance (see page 7), the display provides useful information concerning the wash cycle and status.

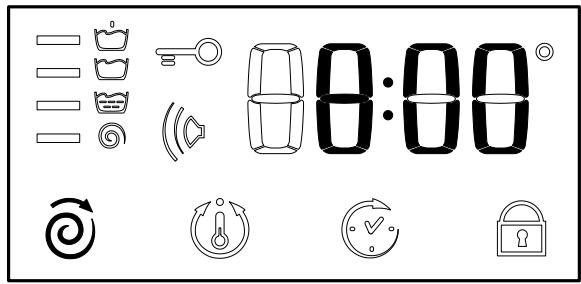

Diagram showing various car-related icons including battery, key, car, clock, refresh, and lock symbols with time display at 8:00.

Diagram showing various car-related icons including battery, lock, refresh, and lock lock symbols with corresponding icons.

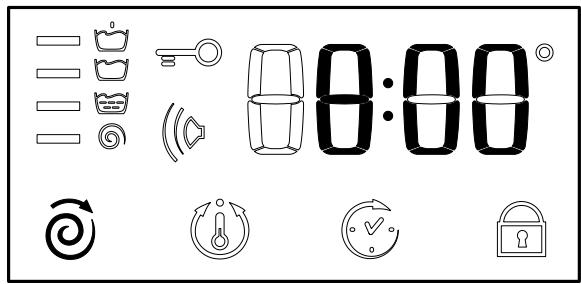

Diagram showing various icons representing car, battery, and timer with clock and refresh symbols

Diagram showing various icons representing car-related functions such as key, lock, refresh, and lock lock.

Once you have pressed the START/CANCEL button to start the programme, the display will indicate the amount of time left until the end of the wash cycle. If a delayed start has been set (using the Delay Start, see page 7), the delay time will be indicated on the display.

The following information is displayed during the wash cycle:

Cycle phase under way:

Pre-wash

Wash cycle

Rinse

Spin cycle

Customised functions and options:

To select functions and options, see below and on page 7.

Buzzer:

Your washing machine comes with a buzzer, which will inform you of the various functions being carried out, or of any malfunctions: incompatibility, option/programme keys, start, end of cycle, reset.

Keyboard lock:

For your safety and that of your children, you can block all the keys during the machine's operation or during waiting position (delayed start - Stand-by) by pressing the function key for 2 seconds.

To disable this function, hold the same button down for 4 seconds.

Door lock:

If the symbol is on, the washing machine door is locked to prevent it from being opened accidentally. To avoid any damages, wait for the symbol to switch itself off before you open the appliance door.

This model is equipped with a device that enables the door to be opened during the course of the wash cycle (however, this is only an option in phases where the safety conditions are guaranteed). To carry out this task, switch off the machine (by pressing the ON/OFF button), open the door, load the necessary clothes or detergent, close it again, switch the machine back on by pressing the ON/OFF button and press the START/CANCEL button. The machine will restart the wash cycle from the point at which it was interrupted.

At the end of the programme, the word END is displayed.

! In the event of an anomaly, an error code will appear, such as: F-01 (see page 11).

Starting and Programmes

Briefly: starting a programme

1. Turn the washing machine on by pressing button ⏻. All the icons will light up for a few seconds and then go off.
2. Add the detergent and any fabric softener (see page 8).
3. Load your laundry into the washing machine (see page 8) and shut the appliance door.

4. Set the knob to the desired programme. The estimated duration of the selected programme is displayed. The temperature and spin speed are automatically set according to the programme (to change them, see page 7).

5. Select any function (see page 7).

6. Start he programme by pressing the START/CANCEL button.

To cancel it, keep the START/CANCEL button pressed for at least 2 seconds.

1. When the programme has ended, the word END is displayed. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly.

If you wish to start a new wash cycle, the door must be opened and shut for safety reasons before the START/CANCEL button is pressed again.

1. Turn the washing machine off by pressing button

Programme table

Type of fabric and degree of soil	Progr.	Wash temp.	Detergent		Fabric softener	Max. Load (Kg.)	Cycle length (minutes)	Description of wash cycle
			Pre-wash	Wash

Cottons

Extremely soiled whites (sheets, tablecloths, etc.)	1	90°C	•	•	•	11,5	175	Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Extremely soiled whites (sheets, tablecloths, etc.)	2	60°C-90°C		•	•	11,5	145/155	Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	3	40°C		•	•	11,5	100	Wash cycle, rinse cycles, intermediate and final spin cycles
Bleach cycleExtremely soiled whites (sheets, tablecloths, etc.)	4	40°C-90°C		•	•	5	120/155	Wash cycle, rinse cycles, intermediate and final spin cycles

Synthetics

Heavily soiled fast colours (baby linen, etc.)	5	60°C		•	•	5	95	Wash cycle, rinse cycles and delicate spin cycle
Fast colours (all types of slightly soiled garments)	6	40°C		•	•	5	80	Wash cycle, rinse cycles and delicate spin cycle
Delicate colours (all types of slightly soiled garments)	7	30°C		•	•	4	30	Wash cycle, rinse cycles and delicate spin cycle

Delicates

Wool	8	40°C		•	•	3	60	Wash cycle, rinse cycles and delicate spin cycle
Very delicate fabrics (curtains, silk, viscose, etc.)	9	30°C		•	•	4	80	Wash cycle, rinse cycles, anti-crease

Large loads

Bed & Bath	10	60°C		•	•	7	90	Wash cycle, rinse cycles, intermediate and final spin cycles
Feather duvets	11	30°C		•	•	4	75	Wash cycle, rinse cycles, anti-crease intermediate and final spin cycles
Synthetic quilts	12	30°C		•	•	4	65	Wash cycle, rinse cycles, anti-crease intermediate and final spin cycles
Woollen blankets	13	40°C		•	•	4	70	Wash cycle, rinse cycles, intermediate and final spin cycles

PARTIAL PROGRAMMES

Rinse					•			Rinse cycles and spin cycle
Spin								Draining and spin cycle
Drain								Draining

Notes

• To ensure the machine operates correctly and is able to achieve the best possible washing performance, we recommend that the maximum load indicated is not exceeded.
• For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily 30' (programme 7 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (7 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 4 kg (see page 8). We recommend the use of liquid detergent.

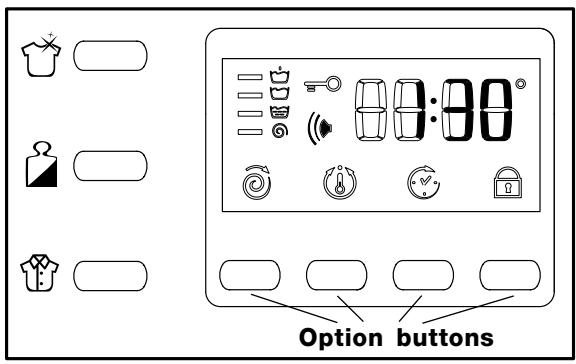

Option buttons

Setting the spin cycle

If, when the appliance is switched on, the KNOB is positioned on a programme with a spin cycle, a fixed 📋 appears. Press button 🔒 and the maximum spin speed allowed for the programme set will be displayed, and the 🔔 icon flashes.

Press it again and the values lower until they reach OFF, which indicates that the spin cycle has been excluded (press it again to go back to the maximum value); stop on the desired speed, after approximately 2 seconds the setting is accepted: the symbol ⏻ remains fixed. The spin cycle setting is enabled with all the programmes except for 9 and the Draining cycle.

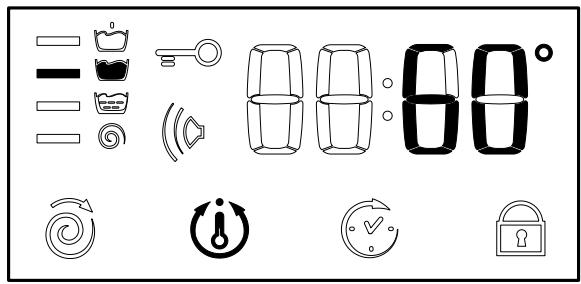

Setting the temperature

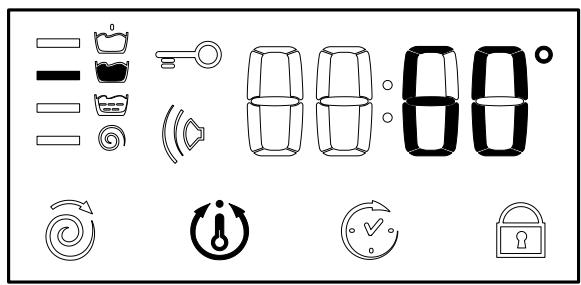

If, when the appliance is switched on, the KNOB is positioned on a programme for which the temperature needs to be regulated, a fixed 🔒 appears. Press button 🔒 and the maximum temperature allowed for the programme set will be displayed and the 🔒 icon flashes. Press it again and the temperature lowers until it reaches OFF, which indicates a cold wash cycle (press it again to go back to the maximum value); stop on the desired value, after approximately 2 seconds the setting is accepted: the symbol 🔒 remains fixed.

The temperature adjustment is enabled with all wash programmes.

N.B.: When selecting programmes 2 and 4 the max. temperature will not be displayed; the recommended temperature will be displayed instead (60°C and 40°C respectively). To select the max. temperature, press the button again until 90°C appears on the display.

Setting the Delay Start

Press the button ⬇ and you will see the word OFF on the display, while the relative symbol flashes.

Press the button again and "1h" appears, that is, a delay of one hour (this can reach up to 24h); stop on the "desired" delay; after approximately 2 seconds the setting is accepted, following which, the time for the set programme appears on the display and the symbol ⚪ remains on.

If you now press the START/CANCEL button, the set "delay" appears; this decreases every hour until the start of the cycle. In this phase, the "delay" can only be modified by decreasing it.

The Delay Start regulation is enabled with all programmes.

For safety reasons (for example: preventing children from climbing into the drum and locking themselves in), if the door is opened or closed before the effective start of the cycle, it will be necessary to press the START/CANCEL button again.

Keyboard Lock (see page 5).

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set. If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

Function	Effect	Comments	Enabled with programmes:
Super Wash	Allows for an impeccable wash, visibly whiter than a standard Class A wash.		1, 2, 3, 5, 6, 10
Mini Load	Use this function when the laundry that needs to be washed is equal to or less than half the recommended max. load (see Programme table).	Reduce the amount of detergent accordingly.	1, 2, 3, 4, 5, 6, 8, 10, 11, 12, Rinse cycle.
Easy Iron	This option reduces the amount of creasing on fabrics, making them easier to iron.	If you set this option, programmes 5, 6, 9, 11, 12 will be suspended, leaving the laundry to soak (Anti-crease) and EASY IRON button will flash:- to conclude the cycle, press the START/CANCEL button or the EASY IRON button;- to run the draining cycle alone, set the knob to the relative symbol and press the START/CANCEL button.	2 (if the temperature is equal to or less than 60°C), 3, 5, 6, 9, 10, 11, 12, Rinse cycle.

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

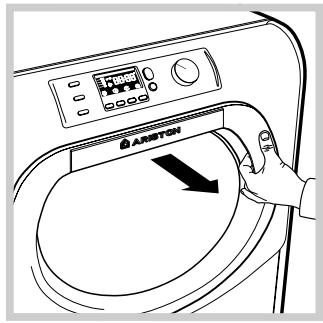

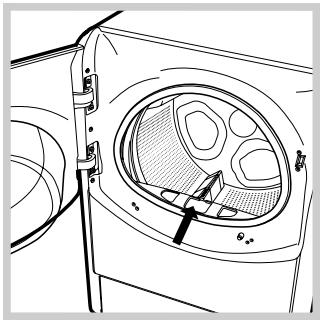

The detergent dispenser is located inside the tub; to access it the door must be opened.

ARISTON

Technical line drawing of a washing machine interior showing vent and handle mechanism (no text or symbols)

Diagram showing car interior cleaning with numbered components and a magnified inset highlighting a component detail.

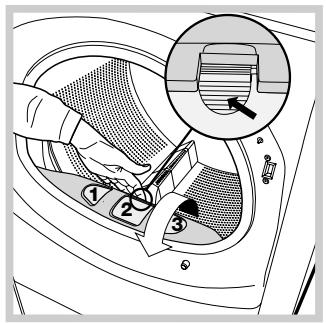

Open up the detergent dispenser (see figure) and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (or bleach if carrying out the bleach cycle) compartment 2: Detergent for the wash cycle compartment 3: Additives (fabric softeners, etc.)

! When closing the door, the detergent dispenser closes automatically.
! Do not use hand wash detergent because it may form too much foam.

Bleach cycle

Pour the bleach in compartment 1; the detergent and softener in the respective compartments, then set programme 4.

This option is recommended only for very soiled cotton garments.

We recommend that you use traditional bleach.

Preparing your laundry

! Unfold all garments completely before placing them inside the washing machine.

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
  Empty all pockets and check for loose buttons.

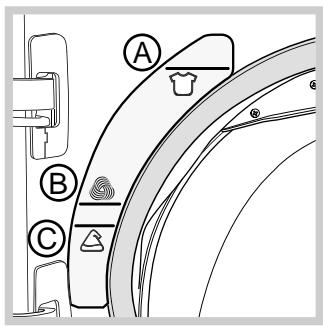

- Do not exceed the weight limits stated below, which refer to the weight when dry: Sturdy fabrics: max 11,5 kg Synthetic fabrics: max 5 kg Delicate fabrics: max 4 kg Wool (Clothing): max 3 kg Wool (Blankets): max 4 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

A B C

! Do not exceed the maximum load level of your laundry for each type of fabric, as indicated on the label in the internal part of the door (see figure):

A = Cottons
B = Wool
C = Synthetics

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 9 which excludes the spin cycle automatically.

Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites.

Woolmark Platinum Care

WOOLMARK PLATINUM CARE

As gentle as a hand wash.

Hotpoint/Ariston is the only washing machine to have obtained the prestigious Woolmark Platinum

Care Plus mark of recognition (M.0505) from The Woolmark Company, the organisation that certifies the machine washing of all woollen garments.

Programme no. 8 - Wool - can even be used to wash garments whose labels specify "hand wash only" 🎨, and guarantees optimum performance levels while providing complete fabric care.

Programme no. 13 - Woollen blankets - can be used to wash large items made using pure virgin wool (not pile), for example blankets, quilts, etc. The programme also enables products of this type whose labels specify "dry clean only" ☑ to be washed, and offers the best performance levels while guaranteeing complete fabric care. You should, however, check that the description "machine washable" is present on the label of any items made using pile before washing them in the machine.

! The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
• Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.
• Before starting the cycle, make sure the level of maximum load of your laundry is respected.

Disposal

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the

product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Hotpoint/Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60^ C instead of 90^ C or one at 40^ C instead of 60^ C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Start option (see page 7) helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Caring for your appliance door and drum

- Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins and buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure that the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a container with two downward arrows indicating flow or movement (no text or symbols)

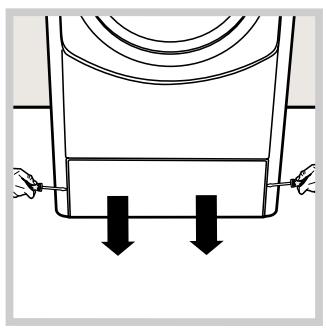

1. remove the cover panel (in the lower front of the washing machine), prizing it on both sides with a screwdriver. Do not force it.

Technical line drawing of a mechanical assembly with no visible text or symbols

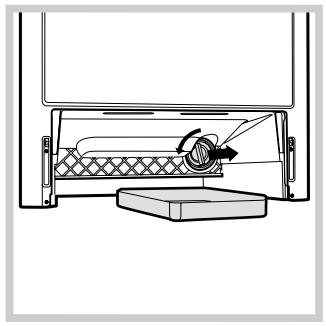

1. unscrew the lid rotating it in anti-clockwise. A little water may trickle out (about 1 liter). Put a little container under the hole.

2. clean the interior thoroughly.

3. screw the lid back on.
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water (The wording H2O is displayed).

The washing machine continuously loads and unloads water.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

In the event of an anomaly, an error code will appear, such as: F-01.

There is too much foam.

Possible causes/Solution:

- The appliance is not plugged into the socket, or not enough to make contact.

- There has been a power failure.

- The appliance door is not shut properly (the word DOOR is displayed).

- The ⏻ button has not been pressed.

- The START/CANCEL button has not been pressed.

- The water tap is not turned on.

- A delayed start has been set (using the Delay Start, see page 7).

- The water inlet hose is not connected to the tap.

- The hose is bent.

- The water tap is not turned on.

- There is a water shortage.

- The water pressure is insufficient.

- The START/CANCEL button has not been pressed.

- The drain hose is not fitted between 65 and 100 cm from the floor (see page 3).

- The free end of the hose is underwater (see page 3).

- The wall drainage system doesn't have a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

- The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6).

- The Easy iron option is enabled: to complete the programme, press the START/CANCEL button (see page 7).

- The drain hose is bent (see page 3).

- The drain duct is clogged.

- The drum was not unblocked correctly during installation (see page 2).

- The washing machine is not level (see page 2).

- The washing machine is closed in between furniture cabinets and the wall (see page 2).

- The water inlet hose is not screwed on correctly (see page 2).

- The detergent dispenser is obstructed.

- The drain hose is not secured properly (see page 3).

- Switch off the machine and unplug the appliance; wait for approximately 1 minute then switch it on again. If the problem persists, contact Assistance.

- The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).

- You used too much detergent.

Before calling for Assistance:

• Check whether you can solve the problem on your own (see page 11);
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

! Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;
• the appliance model (Mod.);
• the serial number (S/N).
This information can be found on the data plate situated on the rear of the washing machine.

Français

EXT 1400

Sommaire

Installation, 14-15

Technical line drawing of a front-mounted device with internal components and wiring (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow indicating rotation (no text or symbols)

Line drawing of a mechanical component with a valve and handle, no text or symbols present

Diagram of a pipe connection with a magnified inset showing a connector or component (no text or symbols present)

Line drawing of a refrigerator front panel with a digital display and a hanging control panel (no text or symbols)

Légende

Weather and security icons including alarm clock, lock, refresh, and timer display

Diagram showing various car-related icons including battery, lock, refresh, and lock switch symbols

Diagram showing various car-related icons including battery, lock, and timer with clock and refresh symbols

Diagram showing various cleaning and security icons including lock, refresh, speed limit, clock, and lock padlock

Technical line drawing of a mechanical component with circular opening and internal structure (no text or symbols)

Diagram showing car interior with numbered parts and a magnified inset highlighting a specific component.

Simple line drawing of a container with two downward arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical device with a rotating component and base, showing no text or symbols

Causes / Solutions possibles:

Technical line drawing of a device casing with internal components and wiring (no text or symbols)

Line drawing of a car door corner with a circular sensor mounted on the side panel (no text or symbols)

Line drawing of a mechanical valve mechanism with rotation arrow (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector or component (no text or symbols present)

Line drawing of a washing machine front panel with control buttons and a hanging indicator (no text or symbols)

Weather and vehicle status icons including lights, keys, car, clock, and lock symbols with time display

Diagram showing various car-related icons including battery, lock, refresh, and lock lock symbols

8:00

Diagram showing various icons representing cleaning and security symbols, including key, lock, refresh, clock, and lock.

Tasten OPTIONEN

Technical line drawing of a washing machine door with circular vent and internal mesh pattern (no text or symbols)

Diagram showing car interior with numbered parts and a magnified inset highlighting a specific component.

Diagram of a container with two downward arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical device with a rotating component and base, showing no text or symbols

Diagram of a device casing with internal components and wiring, no text or symbols present

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with a valve and handle (no text or symbols)

Diagram of a pipe connection with a magnified view of a connector (no text or symbols)

Line drawing of a washing machine front panel with control buttons and a directional arrow (no text or symbols)

Diagram showing various icons representing car, battery, lock, and timer with time display

Diagram showing various car-related icons including battery, lock, refresh, and lock lock symbols

Diagram showing various car-related icons including battery, lock, and timer with clock and refresh symbols

Diagram showing various car-related icons including lock, refresh, and lock switch symbols

Technical line drawing of a mechanical component with circular opening and internal features (no text or symbols)

Diagram showing car interior cleaning with numbered parts and a magnified inset highlighting a component detail.

Simple line drawing of a container with two downward arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical device with a rotating component and base, showing no text or symbols

Technical line drawing of a front-mounted device with internal components and wiring (no text or symbols)

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with a valve and adjustment knob (no text or symbols)

Diagram of a pipe connection with a magnified inset showing a connector (no text or symbols)

Line drawing of a washing machine control panel with an arrow pointing to the bottom section (no text or symbols visible)

Diagram showing various car-related icons including battery, lock, clock, and refresh symbols with a digital timer reading '8:00'.

Diagram showing various car-related icons including battery, lock, refresh, and lock lock symbols with corresponding visual representations.

Diagram showing various icons representing car, battery, lock, and refresh controls with time display

Diagram showing various cleaning and security icons including buckets, keys, sensors, lock, refresh, timer, and lock padlock.

Technical line drawing of a mechanical component with circular opening and internal mesh structure (no text or symbols)

Diagram showing car interior cleaning with numbered parts and a magnified inset highlighting a component detail.

Simple line drawing of a container with two downward arrows indicating flow or movement (no text or symbols)

Diagram of a mechanical device with a rotating component and base, showing no text or symbols.

Regular o delay timer, 67

Funções, 67

Detergentes e roupa, 68

Gaveta dos detergentes, 68

Ciclo para branquear, 68

Preparar a roupa, 68

Technical line drawing of a device casing with internal components and wiring (no text or symbols)

Line drawing of a car door corner with a circular vent or sensor mounted on the side (no text or symbols)

Line drawing of a mechanical valve mechanism with no text or symbols

Diagram of a pipe connection with a magnified inset showing a connector or component (no text or symbols present)

Line drawing of a kitchen appliance with a digital display and control panel, no text or symbols present

Four-panel diagram showing a digital timer display with icons for cleaning, lock, refresh, and refresh controls.

Regular o delay timer

Technical line drawing of a mechanical component with circular opening and internal blades (no text or symbols)

Diagram showing a hand using a tool to clean or adjust a car interior, with numbered parts and an inset highlighting the component.

Simple line drawing of a container with two downward arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with a rotating component (no text or symbols)
