USER MANUAL BFS 121 I/HA HOTPOINT

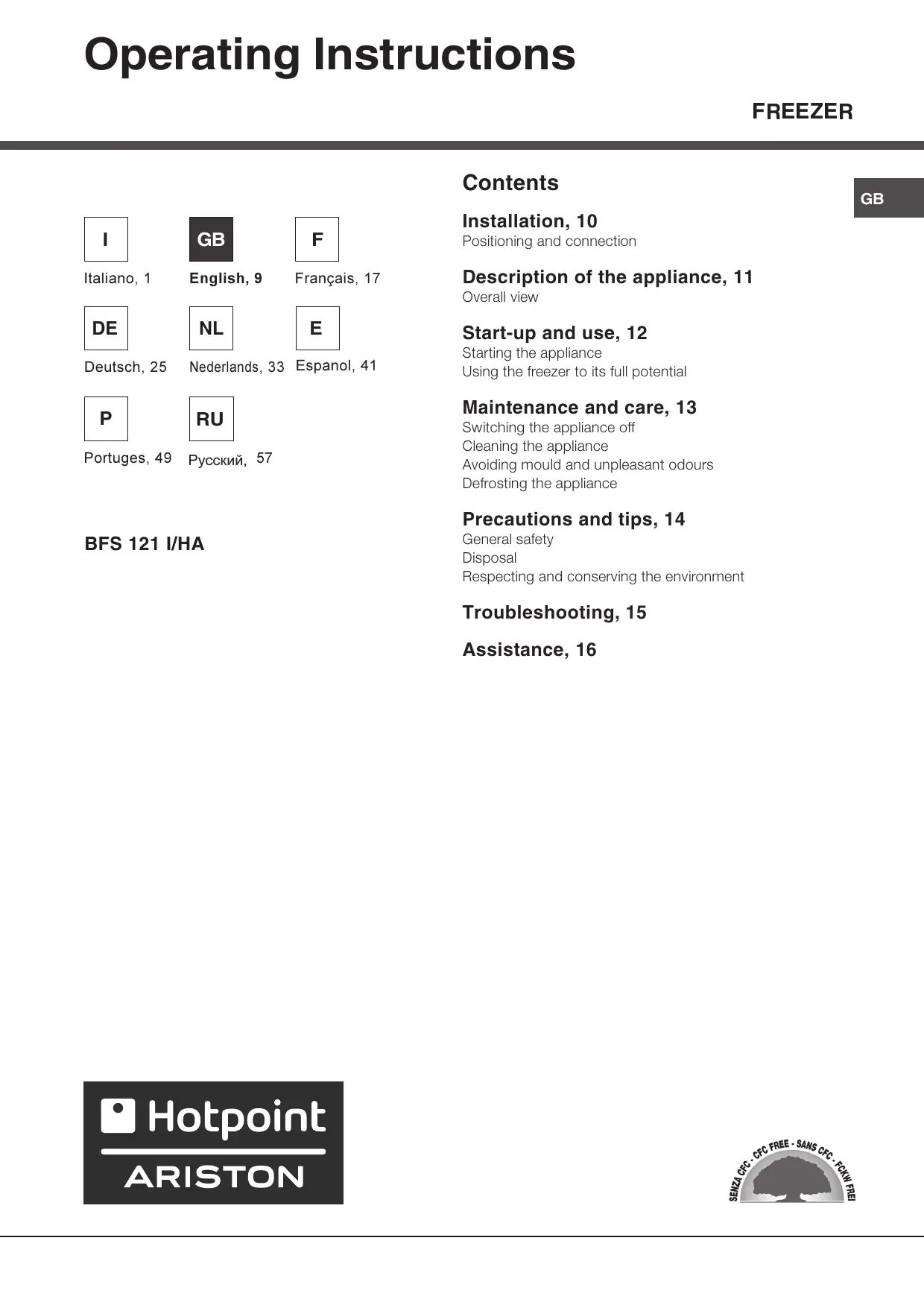

Ðóññêèé, 57 Installation, 10 Positioning and connection Description of the appliance, 11 Overall view Start-up and use, 12 Starting the appliance Using the freezer to its full potential Maintenance and care, 13 Switching the appliance off Cleaning the appliance Avoiding mould and unpleasant odours Defrosting the appliance Precautions and tips, 14

General safety Disposal Respecting and conserving the environment Troubleshooting, 15 Assistance, 16

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning and connection Positioning

1. Place the appliance in a well-ventilated humidity-free

2. Do not obstruct the rear fan grills. The compressor and

condenser give off heat and require good ventilation to operate correctly and save energy.

3. Ensure the appliance is away from any sources of heat

(direct sunlight, electric stove, etc.). Electrical connections After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following: • The appliance is earthed and the plug is compliant with the law. • The socket can withstand the maximum power of the appliance, which is indicated on the data plate located inside the freezer (e.g. 150 W). • The voltage is in the range of values indicated on the data plate located inside the freezer (e.g. 220-240V). • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

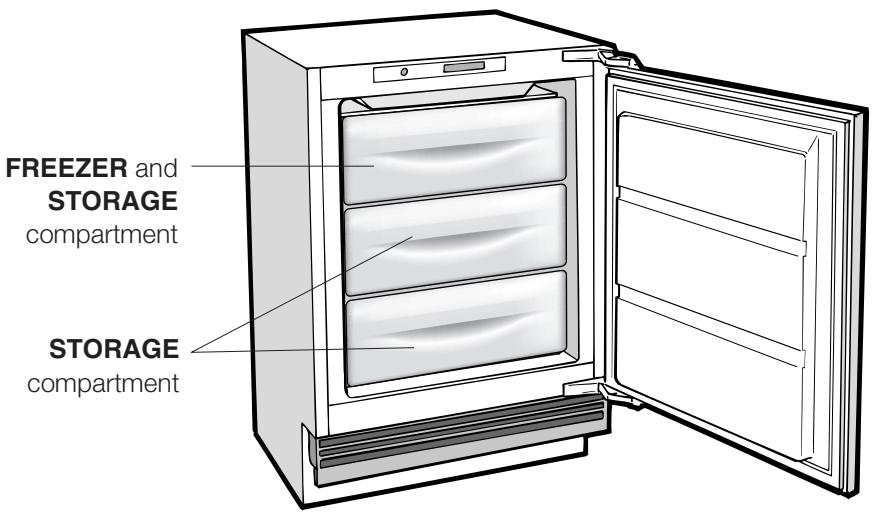

Description of the appliance Overall view

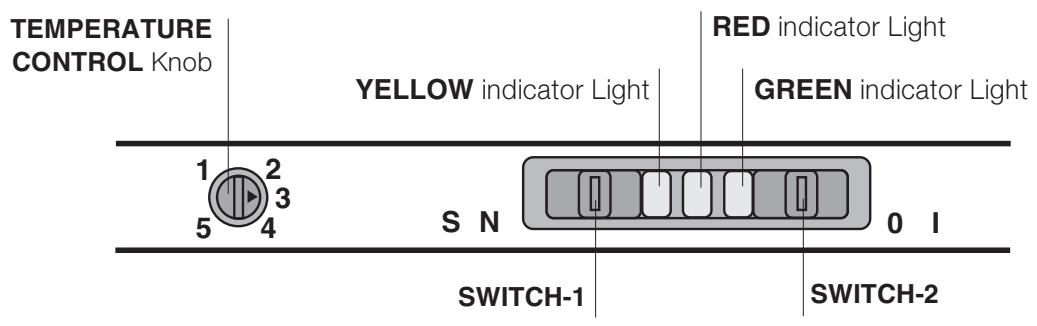

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. RED indicator Light TEMPERATURE CONTROL Knob

S N 0 I SWITCH-1 TEMPERATURE CONTROL Knob This regulates the temperature inside the appliance automatically. Turn the knob from setting 1 to 5 for increasingly colder temperatures. To adjust the thermostat, use a coin to turn the knob. YELLOW Light When this light is on (move the switch-1 to the left), the compressor will operate continuously to reach the lower temperatures necessary for freezing fresh foods quickly. By moving the switch-1 to the right (yellow light covered) the freezer is operated by the thermostat. GREEN indicator Light SWITCH-2 RED Light This light goes on when the temperature inside the appliance is not sufficient to preserve foodstuffs. GREEN Light When the light is on (move the switch-2 to the right) this indicates that the appliance is connected to the mains. When the switch-2 is moved to the left (green light covered), the appliance is disconnected from the mains. FREEZER and STORAGE compartment STORAGE compartment

Starting the appliance ! Before starting the appliance, follow the installation instructions (see Installation). ! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.

1. Insert the plug into the socket and ensure that the

GREEN and RED indicator light is on (move the switch-2 to the right).

2. Turn on the YELLOW indicator light (move the switch1 to the left).

3. When the RED indicator light is off, turn off the

YELLOW indicator light (move the switch-1 to the right). The freezer is now ready to be used. Using the freezer to its full potential • Use the TEMPERATURE CONTROL knob to adjust the temperature. 1 = warmest 5 = coldest We recommend, however, a medium position. • Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours). • Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment. • Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break. • The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located within the freezer (for example: Kg/24h: 4). • In order to freeze fresh foods, the switch must be turned to the left (the YELLOW idicator light will come on). Then introduce the food to be frozen into the top compartment, placing them - to the furthest extent possible - in direct contact with the cooling plate and away from any frozen food being stored. After 24 hours have passed and the food has been frozen, turn the freezer switch back to the normal setting (the YELLOW light will turn off). ! Remember to carry out this last step in order. • Placing large amounts of fresh food in the freezer may temporarily increase the temperature inside the appliance (this is indicated when the RED indicator light illuminates). This situation, as it is only temporary, does not adversely affect the storage conditions of food that is already frozen.

• To preserve frozen and deep-frozen foods well, never set the thermostat below 1, no matter what the room temperature is. For room temperatures from 25°C to 27°C the knob should be set between 1 and 2 while for room temperatures of up to 32°C, set between 2 and 3. ! Do not open the door during freezing. ! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours. ! RED Indicator Light. When this red light comes on for a prolonged period of time, it means that the freezer is not functioning properly and the temperature is rising too much. (Call your Service Centre) This warning light might come on for a brief period when: a) the door is left open for an extended period of time (when the freezer is being loaded or unloaded). b) turn on the YELLOW indicator light. In these two cases, the fact that the warning light comes on does not indicate that the freezer is malfunctioning or there is a defect. Maintenance and care Switching the appliance off Defrosting the appliance During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply: ! Follow the instructions below. Do not use objects with sharp or pointed edges to defrost the appliance as these may damage the refrigeration circuit beyond repair.

1. turn off the GREEN indicator light (move the switch-2

2. pull the plug out of the socket.

Cleaning the appliance • The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use solvents, abrasive products, bleach or ammonia. • The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully. Avoiding mould and unpleasant odours • The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly. • If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

If the frost layer is greater than 5 mm, it is necessary to defrost manually:

1. The day before defrosting, turn on the YELLOW

indicator light (move the switch-1 to the left) to further cool the food.

2. Switching the appliance off.

3. Wrap frozen foods in newspaper and place them in

another freezer or in a cool place.

4. Leave the door open until the frost has melted

completely. This can be made easier by placing containers with lukewarm water in the freezer compartment..

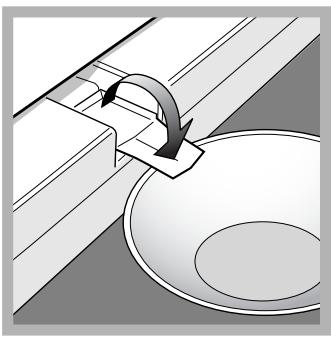

5. Certain appliances are

fitted with the DEFROST WATER DRAIN system. Let the water flow into a container (see diagram).

6. Clean and dry the freezer compartment carefully before

switching the appliance on again.

7. Wait for approximately 2 hours, i.e. until the ideal

storage conditions have been restored, before placing food in the freezer compartment.

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. This appliance complies with the following Community Directives: - 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments; -89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments; - 2002/96/CE.. General safety • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • Do not touch the appliance with bare feet or with wet or moist hands and feet. • WARNING: do not damage the refrigerant circuit. • Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns. • When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable. • Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to turn off the GREEN indicator light (appliance off) to eliminate all electrical contact. • In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. • Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments. • Do not put ice cubes taken directly from the freezer into your mouth. • Do not allow children to tamper with the controls or play with the appliance. Under no circumstance should they be allowed to sit on the bins or to hang from the door. • Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal • Observe local environmental standards when disposing packaging material for recycling purposes. • The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment • Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources. • Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy. • Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously. • Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy. • Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption. • Regularly check the door seals and wipe clean to ensure they are free of debris and to prevent cold air from escaping (see Maintenance). Troubleshooting If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

Malfunctions: Possible causes / Solutions: The green GREEN indicator light does not illuminate. • The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house. The RED indicator light remains illuminated constantly. • The door is not closed properly or has been open continuously. • The TEMPERATURE ADJUSTMENT knob is not in the correct position. The motor runs continuously.

The appliance makes a lot of noise. • The appliance has not been installed on a level surface (see Installation). • The appliance has been installed between cabinets that vibrate and make noise. • The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal. The YELLOW indicator light is on (see Description). The door is not closed properly or is continuously opened. The outside ambient temperature is very high. The thickness of the frost exceeds 2-3 mm (see Maintenance).

12/2007 - Xerox Business Services Before calling for Assistance: • Check if the malfunction can be solved on your own (see Troubleshooting). • If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

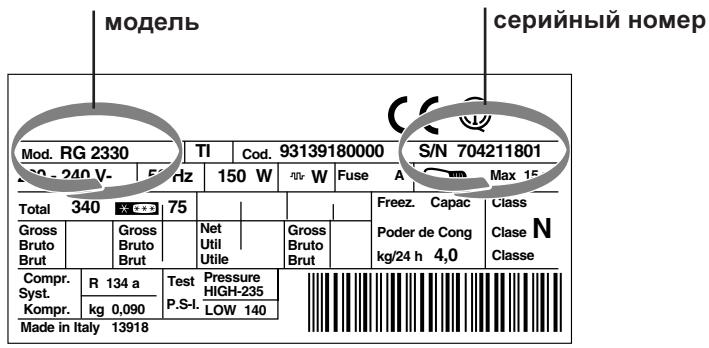

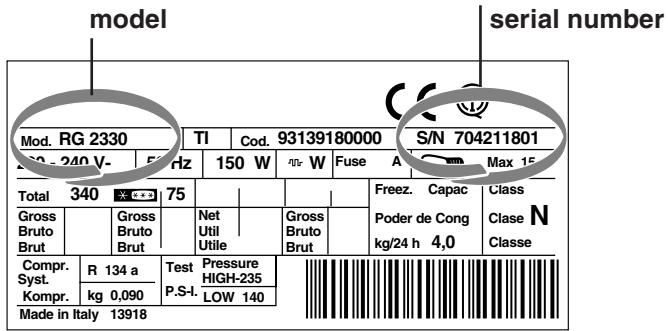

model Communicating: • type of malfunction • appliance model (Model) • serial number (S/N) Information can be found on the rating plate located inside the appliance. Mod. RG 2330

Classe Never call on unauthorized technicians and always refuse spare parts which are not originals.
