Product Type	Dash Cam
Brand	Gembird
Model	DCAM-002
Dimensions (approx.)	70 x 50 x 30 mm
Weight (approx.)	60 g
Power Supply	5V DC via USB car charger
Display	2.0-inch LCD screen
Camera Resolution	Full HD 1080p
Lens Angle	170° wide angle
Loop Recording	Yes (automatic overwrite)
G-Sensor	Emergency lock on impact
Motion Detection	Yes (parking mode)
Night Vision	Yes (IR LEDs)
Storage	MicroSD card (up to 32GB, not included)
Recording Format	MOV / AVI
Mounting	Suction cup mount
Battery	Built-in rechargeable battery (approx. 200 mAh)
Microphone	Built-in (audio recording)
Maintenance	Clean lens with a soft, dry cloth; avoid solvents
Safety Precautions	Use only the supplied charger; do not expose to extreme temperatures
Spare Parts / Repairs	Contact seller for replacement mount, cable, or battery

Frequently Asked Questions - DCAM-002 Gembird

What memory card does the DCAM-002 support?

The Gembird DCAM-002 supports MicroSD cards up to 32GB (Class 10 or higher recommended).

How do I enable parking mode?

Parking mode activates automatically when motion is detected while the vehicle is off. Ensure the camera is connected to a constant power source (e.g., hardwire kit).

Can I use the dash cam while charging?

Yes, the device can operate while plugged into the car charger. The built-in battery provides backup power during short stops.

How do I set the date and time?

Go to Settings > Date/Time in the menu. Use the navigation buttons to adjust. The date stamp will be embedded in the video file.

What does the G-Sensor do?

The G-Sensor detects sudden impact or collision and automatically locks the current recording to prevent overwriting. Sensitivity can be adjusted in settings.

How do I view recorded videos?

Remove the MicroSD card and insert it into a computer, or connect the camera via USB (mass storage mode). Use compatible media player to watch MOV/AVI files.

Is night vision effective?

The DCAM-002 uses IR LEDs for night vision. In low-light conditions, the image becomes black and white but remains clear up to 3-5 meters.

Why does my video have no audio?

Check if the microphone is enabled in settings. Go to Audio Recording and set to On. Also ensure the built-in mic is not obstructed.

How do I mount the dash cam?

Clean the windshield surface, attach the suction cup mount, press firmly, and rotate the lock lever. Adjust the camera angle via the ball joint.

What should I do if the camera freezes?

Press and hold the Reset button (small hole) with a paperclip for 5 seconds. If persistent, format the MicroSD card using the camera menu.

USER MANUAL DCAM-002 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

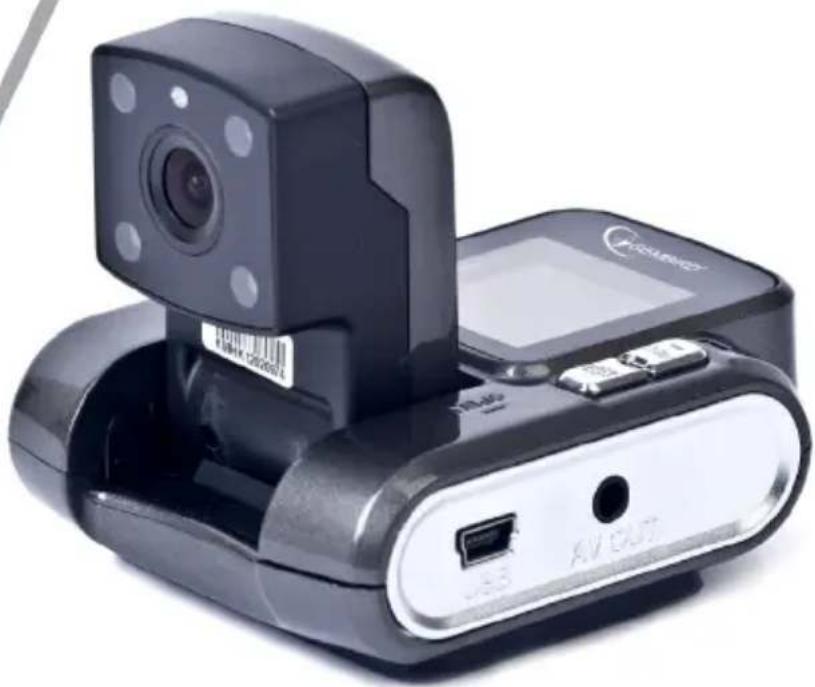

Black and silver photo of a digital camera with visible lens, ports, and USB label (no readable text or symbols beyond branding)

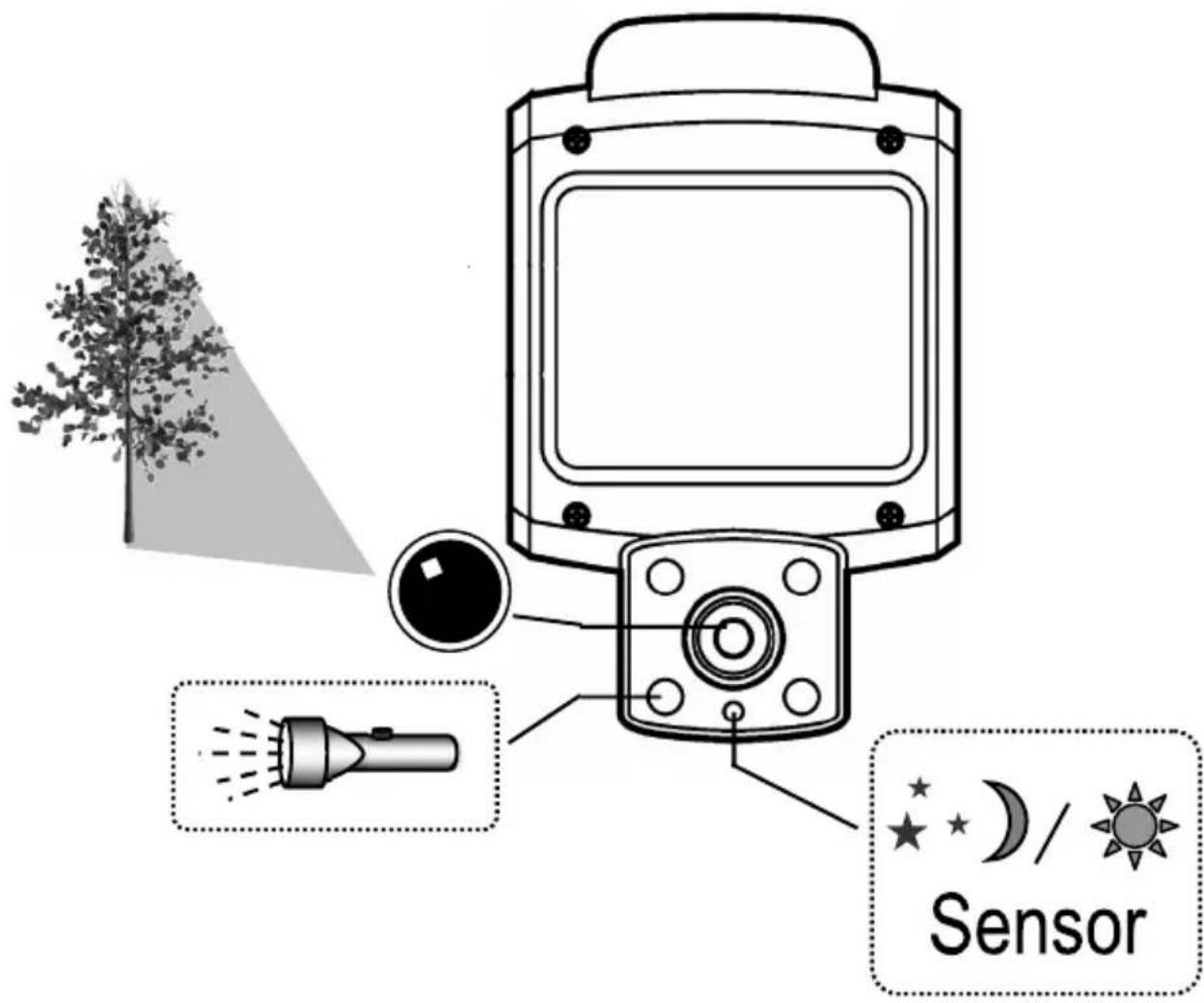

• In-car HD camera with built-in microphone, night vision and motion detection sensor
• Real 720p resolution without interpolation
• 120 degrees wide angle lens
• Automatically starts recording when motion is detected or when the car is started
• Stores hours of video material on removable Micro SD card (not included)
• Built-in 1.5" color LCD screen
• Practical MIC and REC buttons with indicator lights
- Adhesive pad for easy 'hidden' dashboard fixation

Specifications

• Interface: USB 2.0 and AV-out
• Image sensor: color CMOS WXGA HD Sensor
• Video resolution: 1280 x 720 pixels (30 fps)
• Video file format: AVI (MJPG)
• Video file size: 1.8 MB/s
• Memory: supports Micro SD/SDHC (TF) cards (Max. 32 GB)
• Battery: internal rechargeable battery, 180 mAh
• Power input: 5 VDC
• Power consumption: up to 130 mA
• Dimensions: 100 x 62 x 23 mm (L x W x H)
• Length of USB cable: 50 cm
• Length of AV cable: 145 cm
• Length of car charging cable: 345 cm
- Net weight: 80 g

①

③

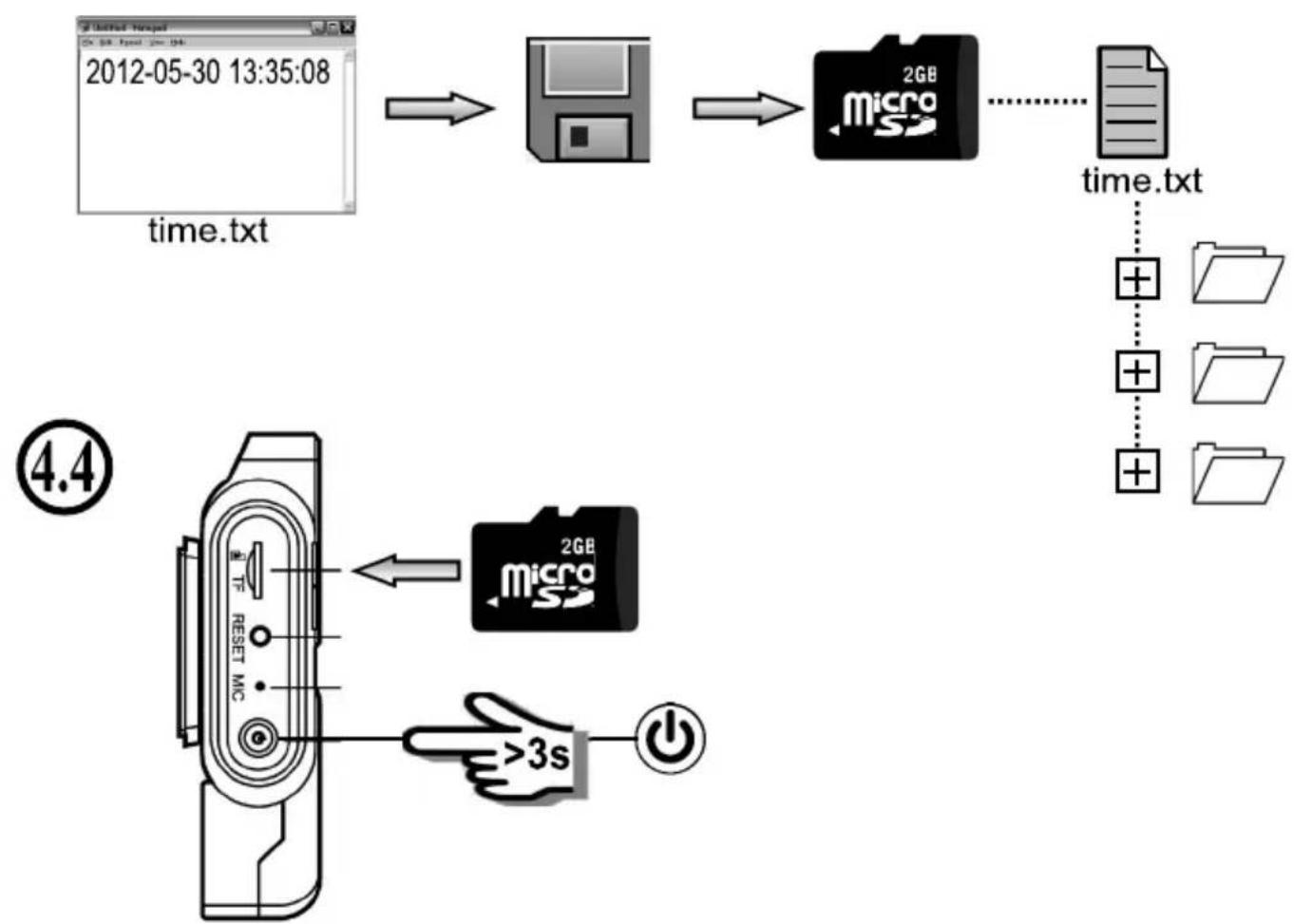


4.3

⑤

⑥

⑥.1

⑥.2

Diagram showing a remote control device interacting with a camera module, illustrating the process of frame rotation (no text or symbols present)

Close-up of a black handheld electronic device with a camera module and display screen (no visible text or symbols)

⑦

Close-up of a circular mechanical knob with a black handle and arrow indicator (no readable text or symbols)

Black and white photo of a digital camera with a display screen and USB port (no visible text or symbols)

REC

Black circular icon with a white exclamation mark in the center (no text or symbols)

Simple line drawing of a hand washing hands with water droplets falling (no text or symbols)

Simple line drawing of a hand using a screwdriver to cut a screw and ring (no text or symbols)

Simple line drawing of a bottle with a crosshair and abstract shapes, no text or symbols present.

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56,

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

DCAM-002

Product description :

DCAM-002 Dash cam with night vision

European standards:

EN55022:2006; EN55024:1998+A1:2001+A2:2003; EN61000-3-2:2000+

A2:2005; EN61000-3-3:1995+A1:2001+A2:2005;

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Director

Authorized signature

Waste disposal:

EN

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

The warranty period is 24 months and begins with the sale to the end user. The receipt must clearly list the date of purchase and the part number, addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer's expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products
