Product Type	Dash Cam
Brand	Gembird
Model	DCAM-005
Dimensions (W x H x D)	60 x 50 x 30 mm
Weight	60 g
Power Supply	5V DC via USB cable
Power Consumption	~1.5 W
Battery	Built-in rechargeable Li-ion, 200 mAh
Recording Resolution	1920 x 1080 Full HD
Field of View	170 degrees wide angle
Recording Modes	Loop recording, G-sensor, motion detection
Storage	MicroSD card up to 32 GB (Class 10)
Display	2.0 inch LCD screen
Mount	Suction cup mount for windshield
Connection	USB 2.0 for data and power
Additional Features	Night vision, parking monitor, WDR
Package Contents	Dash cam, USB cable, suction mount, manual
Maintenance	Clean lens with soft dry cloth; keep vents clear
Safety Warnings	Do not disassemble; keep away from children
Spare Parts / Repairability	USB cable and mount available separately; non-user-serviceable internals
General Information	Gembird DCAM-005 dash cam for vehicle recording

Frequently Asked Questions - DCAM-005 Gembird

How do I install the Gembird DCAM-005 dash cam?

Clean the windshield area, attach the suction mount, insert a MicroSD card (Class 10, up to 32 GB), connect the USB power cable to the car charger, and press the power button.

What memory card is required?

Use a MicroSD card with Class 10 speed rating, capacity up to 32 GB. Format the card in FAT32 before first use.

How do I enable loop recording?

Loop recording is enabled by default. In the settings menu, you can select video clip duration: 1, 3, or 5 minutes. The camera will overwrite the oldest files when the card is full.

Does it have built-in battery and how long does it last?

Yes, the DCAM-005 includes a 200 mAh Li-ion battery for temporary backup. It lasts approximately 10-15 minutes in parking mode.

Can I use the dash cam while charging?

Yes, the camera can be used continuously when connected to a 12V car charger via the included USB cable.

How do I view recorded videos?

Remove the MicroSD card and insert it into a computer, or connect the dash cam to a PC via USB cable. Videos are saved in MOV format with date/time stamps.

What is G-sensor and how does it work?

The G-sensor detects sudden impact or vibration. When triggered, it automatically locks the current video file to prevent overwriting. Sensitivity can be adjusted in settings.

How to clean the dash cam?

Use a soft, dry cloth to clean the lens and body. Avoid liquids or abrasive materials. Keep the ventilation slots free of dust.

Is the dash cam waterproof?

No, the DCAM-005 is not waterproof. It is designed for indoor vehicle use only. Protect it from moisture and extreme temperatures.

What warranty does Gembird offer?

Gembird provides a 1-year limited warranty against manufacturing defects. Retain your purchase receipt for support.

USER MANUAL DCAM-005 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

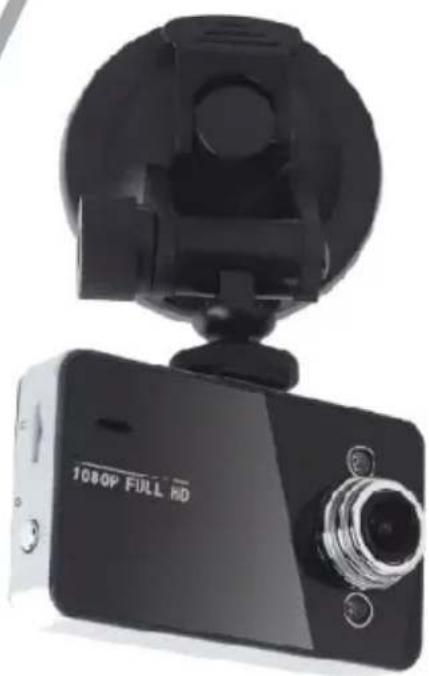

Black and white photo of a 1080P FULL HD digital camera with a spherical head and lens (no visible text or symbols on the device body)

• Compact in-car HD camera with built-in microphone and night vision
  • Real 720p resolution without interpolation, interpolated 1080p HD resolution
  • 140 degrees ultra wide angle lens with 4X digital zoom
  • Automatically starts recording when the car is started
  • Stores hours of video material on removable Micro SD card (not included)
• G-sensor – automatically saves and locks video in case of accidents
  • Built-in 2.7" color LCD screen
  • Uninterrupted seamless cycle recording
• Adjustable record section time

Specifications

• Interface: USB 2.0 and HDMI-out
• Image sensor: color 5 MP HD Sensor
• Video Resolution: max. 1920 x 1080 pixels (30 fps),
• Video file format: AVI
• Video file size: 2.5 MB/s (1920 x 1080)
• Memory: Supports TF/Micro SD Cards (Speed class 10, max. 32 GB)
- Battery: internal rechargeable battery, 600 mAh
• Power input: 5 V DC / 800 mA
• Dimensions: 90 x 53 x 16/25 mm (L x W x H)
• Length of USB cable: 80 cm
• Length of car charging cable: 380 cm
• Net weight: 120 g

①


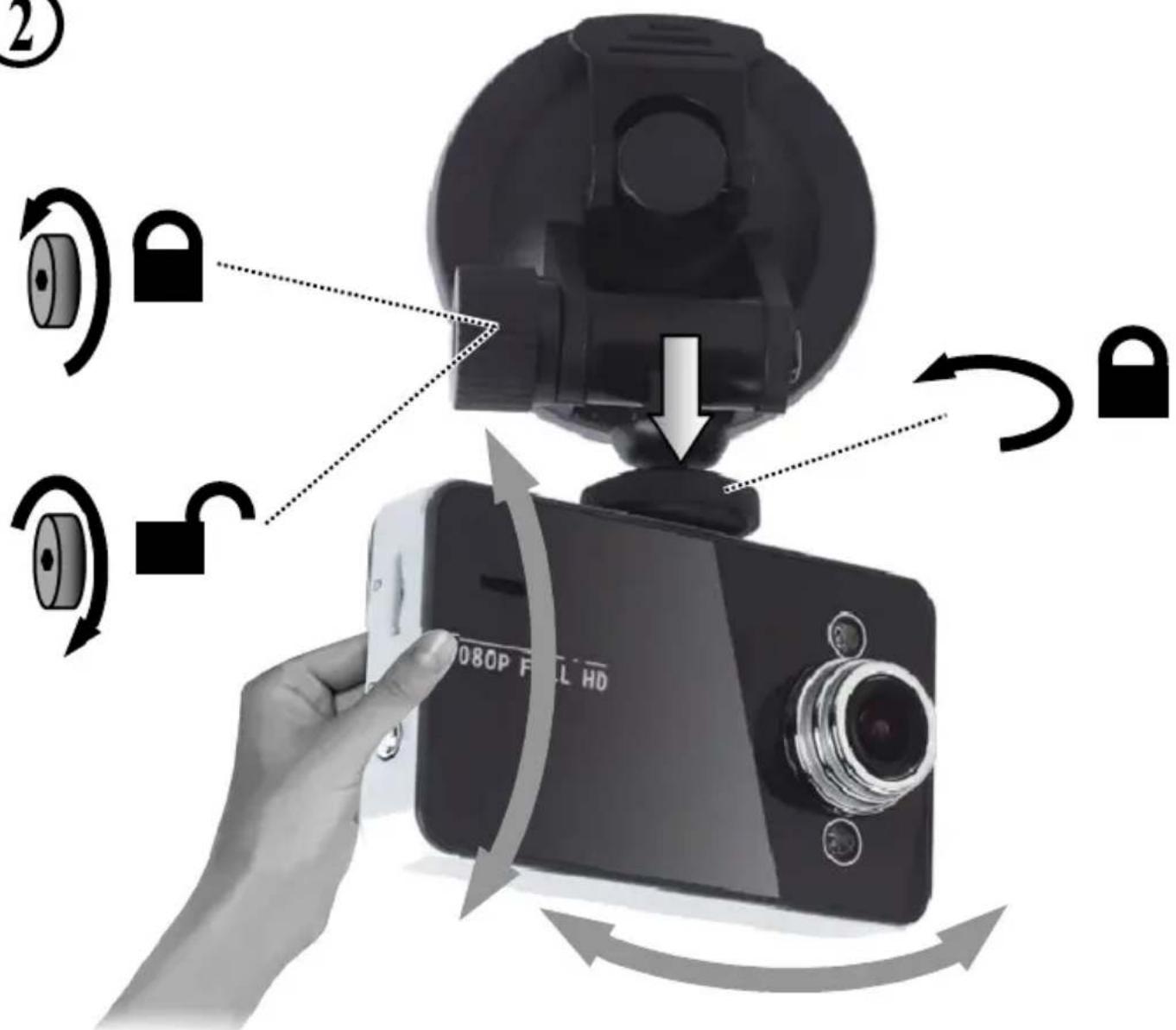

②

③

Mechanical clamp device with directional arrow and finger icon, no text or symbols present

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Simple line drawing of a hand using a tool to cut a screwdriver into a screw (no text or symbols)

Simple line drawing of a hand holding a bag with a diagonal line crossing through it, no text or symbols present.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
