Product Type	Dash Cam
Brand	Gembird
Model	DCAM-007
Dimensions (approx.)	7.0 x 5.0 x 3.0 cm
Weight (approx.)	60 g
Power Supply	12-24V DC car adapter; built-in rechargeable battery
Video Resolution	1080p Full HD (1920x1080) at 30fps
Lens Angle	120° wide angle
Display	2.0-inch LCD screen
Storage	MicroSD card up to 32 GB (Class 10 recommended)
Loop Recording	Supported (user-selectable loop duration)
Motion Detection	Yes (sensitivity adjustable)
G-Sensor	Yes (automatic emergency lock of footage)
Night Vision	Yes (IR LED support for low light)
Audio Recording	Built-in microphone (user-selectable on/off)
Mounting	Suction cup mount for windshield
Interface	Micro USB (power); Mini HDMI (TV output)
Maintenance	Clean lens with soft cloth; format SD card regularly
Safety	Do not obstruct driver's view; use only approved car charger
Spare Parts	Replacement suction mount, car charger cable

Frequently Asked Questions - DCAM-007 Gembird

How do I install the Gembird DCAM-007 dash cam?

Clean your windshield and attach the suction mount. Plug the car charger into your vehicle's 12V socket and connect the Micro USB cable to the camera. Adjust the angle and turn on the camera. For detailed steps, refer to the user manual.

What video resolution does the DCAM-007 support?

It supports 1080p Full HD (1920x1080) at 30 frames per second for crisp and clear footage.

Does the DCAM-007 support loop recording?

Yes, it supports loop recording. You can select the loop duration (e.g., 1, 3, or 5 minutes) in the settings. When the memory card is full, the oldest files are overwritten with new recordings.

How long does the battery last?

The built-in rechargeable battery provides approximately 10-20 minutes of operation when not connected to power. For continuous use, keep it plugged into the car charger.

Can the DCAM-007 record at night?

Yes, it has infrared LED lights for night vision, allowing decent recording in low-light conditions. However, quality depends on ambient lighting.

What memory card should I use?

Use a MicroSD card (Class 10 or higher) up to 32 GB capacity. Format the card in the camera before first use for optimal performance.

What is the viewing angle of the lens?

The lens has a 120-degree wide angle, which captures a broad view of the road ahead.

How can I view the recorded footage?

You can play back footage on the camera's 2-inch LCD screen, or remove the MicroSD card and use a computer. Alternatively, connect the camera to a TV via the Mini HDMI output.

Is there a warranty for the DCAM-007?

Gembird typically offers a 1-year warranty. Keep your purchase receipt and contact the retailer or Gembird support for claims.

How do I reset the dash cam if it freezes?

Locate the small reset hole on the camera (usually on the side or bottom). Use a paperclip to press the reset button. Alternatively, remove and reinsert the battery or power source.

USER MANUAL DCAM-007 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

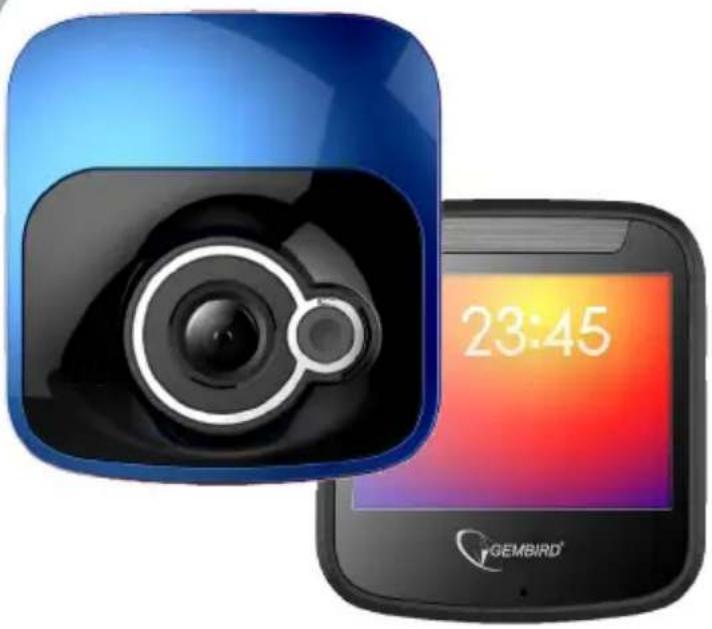

Two digital devices: a blue camera icon and a black GEMBIRD tablet displaying 23:45 (no text or symbols on devices)

FULL HD DASHCAM

• Compact in-car FHD camera with built-in microphone and LED light
  • Real 1080p resolution without interpolation (1080P/30fps, 720P/60fps, VGA/120fps)
  • Supports WDR - provides high quality video in fast changing light conditions
  • 120 degrees wide angle lens with 4X digital zoom
  • Automatically starts recording when the car is started
  • Stores hours of video material on removable Micro SD card (not included)
• G-sensor – automatically saves and locks video in case of accidents
  • Built-in 2.0" color LCD screen
  • Uninterrupted seamless cycle recording
• Adjustable record section time

Specifications

• Interface: USB 2.0 (Micro USB)
• Image sensor: CMOS HD sensor
- Lens type: Fixed focus
- Aperture: F3.1
• Effective Focal Length: f = 2.9 mm
• Video Resolutio:1920X1080 (30fps), 1280X720 (60fps), 640X480 (120fps)
• Video File Format: MOV
• Video output: 1X Mini HDMI
• Memory: Supports TF/Micro SD Cards (Speed class 10, max. 32 GB)
- Battery: internal rechargeable battery, 110 mAh
• Power input: 5 V DC/ 800 mA
• Dimensions: 100.7 x 46.2 x 22.4 mm (L x W x H)
• Length of USB cable: 75 cm
• Length of car charging cable: 350 cm
- Net weight: 70 g

①

③

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Simple line drawing of a hand using a tool to cut a screwdriver into a screwdriver (no text or symbols)

Simple line drawing of a hand holding a bag with a diagonal line crossing through it, no text or symbols present.

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
