Product Type	Docking Station
Brand	AEG
Model	MC 4447
Dimensions (approx.)	200 x 150 x 50 mm
Weight (approx.)	0.5 kg
Power Supply	USB 5V or AC adapter 5V/2A
Compatible Devices	Smartphones, tablets (check device size)
Charging Function	Charges connected device via USB
Data Sync	Supports USB data transfer
Audio Output	3.5mm audio jack (if applicable)
LED Indicator	Power/charging status LED
Material	Plastic, non-slip base
Color	Black (typical)
Cleaning	Wipe with dry, soft cloth
Safety	Keep away from water and heat sources
Spare Parts	USB cable or AC adapter (order separately)
Repairability	Not user-serviceable; contact support
Warranty	2 years (standard)
Package Contents	Docking station, USB cable, user manual
Operating Temperature	0°C to 40°C

Frequently Asked Questions - MC 4447 AEG

How do I connect my device to the AEG MC 4447 docking station?

Plug the docking station into a power source via USB or AC adapter. Then gently insert your device into the dock, ensuring the connector aligns with your device's charging port.

Is the MC 4447 compatible with all smartphones?

It is designed for most smartphones, but please check the device dimensions (max width ~85mm) and connector type (USB-C, Micro-USB, Lightning - adapter might be needed).

Can I use the docking station to sync data?

Yes, when connected to a computer via USB, the docking station allows data synchronization between your device and computer.

Why is the LED not lighting up?

Check if the power source is working and the cable is securely connected. Try a different USB port or AC adapter. If still off, the unit may be faulty.

How do I clean the docking station?

Unplug the device and wipe the surfaces with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners.

Will the docking station charge my device quickly?

The charging speed depends on your device and power source. With a 2A adapter, it can deliver standard charging speeds; fast charging may not be supported.

My device is not recognized when docked. What should I do?

Ensure the connector is fully inserted and clean. Try restarting your device. If using a case, remove it as it may block the connection.

Can I leave my device on the dock overnight?

Yes, the docking station has overcharge protection. However, it is best to unplug once fully charged to preserve battery health.

What should I do if the docking station gets wet?

Unplug it immediately and let it dry completely for 24-48 hours before using again. Do not use heat sources. If damage occurs, replace the unit.

Where can I find a replacement USB cable?

You can order a standard USB cable (compatible with your device) from electronics retailers or contact AEG support for a genuine part.

USER MANUAL MC 4447 AEG

Location of Controls ...... page 3

User manual ...... page 26

Technical Specifications ...... page 31

Removal of the batteries/

battery disposal ...... page 31

3

Location of Controls

Abb. 1 / Fig. 1

Abb. 2 / Fig. 2

Close-up of a gray electronic device with control buttons and a central circular port (no visible text or symbols)

Close-up of a mechanical electronic component with labeled parts A and B, showing circuitry and wiring (no readable text or symbols beyond labels)

Close-up of a gray industrial control panel with buttons and a central circular component (no visible text or symbols)

18

ESPAÑOL

Close-up of a mechanical electronic component with labeled parts A and B, showing circuit board and wiring (no readable text or symbols beyond labels)

Top-down view of a gray industrial control panel with buttons and a central circular component (no visible text or symbols)

General Safety Guidelines

Before using this device, carefully read this user manual and keep it together with the Warranty Certificate, cashier receipt and if possible, the original package inclusive its interior packing. If you hand on the device to any third person, include the user manual as well.

• To avoid the risk of fire or electric shock, you should not expose the device to rain or humidity. Do not use the device near water (e.g. bathroom, swimming pool, humid cellars).
• The unit is designed solely for private use and its intended purpose. This unit is not designed for commercial use.
• Plug the device only into a properly installed socket. Be sure the device voltage corresponds to the grid voltage.
• When using external grid adaptors, pay attention to the correct polarity and voltage. Insert batteries correctly.
• Avoid covering the device's vent openings.
• Never open the device's case. Improper repairs can cause severe danger to the user. If the device or particularly the power cord is damaged, don't use the device any further and have it repaired by a qualified specialist. Check the power cord regularly for damages.
• To avoid any danger, a damaged power cord must be replaced only by the producer, its customer service or a similarly qualified person with an equal cord.
• If the device won't be used over an extended period of time, disconnect the power cord and remove the batteries.

These symbols may be found on the device and shall indicate the following:

The lightning symbol warns the user of dangerously high voltages inside the case.

The exclamation mark symbol points to important instruction or maintenance remarks in the accompanying guidelines.

Children and disabled persons

- For the safety of your children, keep any packing parts (plastic bags, cartilage, Styrofoam etc.) out of their reach.

WARNING!

Don't let small children play with foils for danger of suffocation!

- This device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and/or knowledge unless they have been given supervision or instructions concerning the use of the device by a person responsible for their safety.

- Supervise children to ensure they do not play with the device.

Symbols in this user manual

Important notes for your safety are marked distinctively. Pay absolute attention to them to avoid accidents and damage to the device:

WARNING:

Warns of dangers for your health and indicates potential risks of injury.

CAUTION:

Indicates potential dangers for the device or other objects.

NOTE:

Highlights tips and information for you.

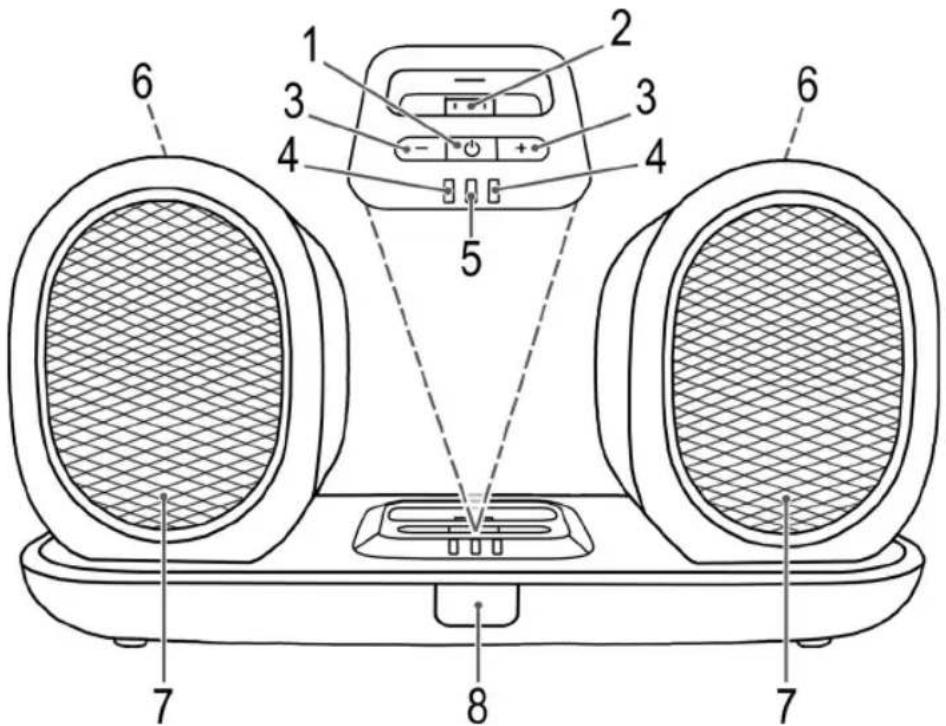

Location of Controls

Fig. 1

1 Button (On/Off switch base station)
2 Dock
3 +/- (Volume) buttons
4 Charge indication (speaker)
5 Power indication (base station)
6 +/- (Volume) buttons
7 Power indication (speaker)
8 Remote control sensor

Back Side (Fig. 2)

9 R/L (right/left) selector
10 ON/OFF Speakers
11 C connection button (speaker)
12 DC 7,5V input
13 AUX IN jack
14 Audio transmitter
15 Connection Button (transmitter)
16 Operation indication (transmitter)

Remote Control (Fig. 3)

1 /ENTER button (On/Off / Confirmation)
2 / buttons (iPod/iPhone music selection)
/ buttons (Skip/Search forward/reverse)
3 +/- (Volume) buttons
4 /M(Play/Pause / iPod/iPhone menu) button

First Use of the Device/Introduction

• Select a proper place for the device such as a dry, and even non slip area where you can easily operate the device.
• Make sure the device is vented sufficiently!
• If still in place, remove the protection foil from the display.

- Before you use the speakers for the first time, they must be charged for approximately 6 hours. Refer to the section "Charging the built-in batteries of the speakers".

Power supply

• Insert the grid plug into a properly installed three prong socket with 230 V, 50 Hz. Connect the device with the plug connector by inserting its plug into the DC 7,5V jack of the device.
• Make sure the grid voltage corresponds to the figures on the rating plate.

CAUTION:

• Only use the supplied power adaptor for this device. Do not use for other devices.
• Only use power adaptor with 7.5 V (⊖-C-⊕), other adaptors may cause damage to the device.

i NOTE:

Disconnect from mains power supply during longer periods of non-use.

Insert/Replace Battery in Remote Control

i NOTE:

Where necessary, the lithium cell in the battery compartment of the remote has been fitted with a protective foil for transport. This extends the lifetime of the battery. Before initial use please remove this foil to prepare the remote for use.

The battery in the remote is a long-life lithium cell. Should the range of the remote shorten during use, follow the steps below:

• Open the battery compartment on the underside of the remote.
• Replace the cell with a battery of the same type (CR 2025). Make sure the polarity is correct.
• Close the battery compartment.

If the remote is not in use for a lengthy period of time, please remove the battery to prevent the battery acid from "leaking".

WARNING:

• Do not expose batteries to intense heat or direct sunlight. Never throw batteries onto a fire. Danger of explosion!
• Keep batteries out of the reach of children. They are not toys.
• Do not force batteries open.
• Avoid contact with metallic objects. (Rings, nails, screws etc.) Danger of short circuits!
• Short circuits may overheat or even ignite batteries. This may lead to combustion.

WARNING:

• When transporting the batteries, cover the terminals for your safety with an adhesive strip.
• If a battery leaks, do not rub the fluid into the eyes or the skin. If acid comes into contact with the eyes, rinse with purified water and seek medical advice if symptoms persist.

CAUTION:

Do not dispose of batteries with household waste. Please take used batteries to an authorised collection point or to a dealer.

Explanation of the LED Indications

• Power indication base station (5):

• Unit switched on = LED lights blue
• Unit in standby = LED lights red

- Speaker charge indication (4):

• Not charging = LED not lit
• Charging = LED flashes blue
• Charging completed = LED lights blue

• Power indication speakers (7):

• Speakers switched off (OFF) = LED not lit
• Not connected = LED slowly flashing blue
• Connection being established = LED quickly flashing blue
• Connected = LED lights blue
• Battery weak = LED lights red

• Operation indication transmitter (16):

• Connection being established = LED quickly flashing red
• Connected = LED slowly flashing red
• Transmitting = LED lights red

iPod/iPhone Compatibility

Due to the large variety of iPod and iPhone models and generations on the market, full compatibility cannot be guaranteed. Before connecting your iPod/iPhone, ensure that it has a compatible interface.

Full compatibility of the remote functions also cannot be guaranteed. Operate your iPod/iPhone as normal, while it sits in the docking station.

i NOTE:

Depending on the software version of your iPhone the following error message may be displayed:

"This accessory was not developed for iPhone use. It is possible that noise occurs and signal strength is reduced."

In this case press "OK".

General Operation

i NOTE:

Some buttons you can find as well on the device as on the remote control. Identical buttons effect the same function.

Switch Base Station On/Off (1/1)

There are two methods:

• Press the ⏻ button on the unit to switch the base station on or off.
• Press /ENTER on the remote control for 3 seconds to switch the base station on or off.

The power indication (5) indicates the function.

Switch Speakers On/Off

The speakers are switched off when the switch (10) is set to OFF. Slide this switch to the position ON to switch on the speakers. The power indication (7) indicates the function.

Volume

The volume of the base station can be controlled with the +/- buttons (3/3).

i NOTE:

• When the volume has been reduced with the +/- buttons (6) on the speakers, the volume of the base station can be increased only up to this value.
• The speakers always are started with the max. volume when they are switched on.
• When the speakers are operated on the base station, the volume automatically is reduced to approximately 80% to enable charging.

Infrared Remote Control

For wireless control within a distance of 8 m. If the distance decreases you should change the batteries. For proper operation mind a clear view between the remote control and the sensor on the device.

Connection of Audio Transmitter and Speakers

Before you can use the unit, you must connect the audio transmitter with the speakers. Proceed as follows:

1. Insert the audio transmitter (14) into the slot on the rear of the unit (see Fig. 2).
2. Switch on the unit with the ⏻ button (1). The power indication (5) lights blue.
3. Set the R/L selector on the speakers to "R" or "L"

respectively. In this way you specify which of the speakers is to play the right or the left audio channel.

1. Switch on one of the speakers. Do this by sliding the speaker ON/OFF switch (10) to "ON".
2. Press the connection button "C" (11) for approximately 3 seconds. A beep can be heard for approximately 15 seconds. The power indicator of the speaker (7) rapidly flashes blue.
3. Now press the connection button "5) on the audio transmitter (14) for approximately 3 seconds. A steady tone can be heard for a short time. The operation indication (16) of the audio transmitter rapidly flashes red. The connection process has been initiated.

i NOTE:

After successful completion of the connection process,

• the power indication on the speaker lights blue.

• the operation indication on the audio transmitter is slowly flashing red.

• To connect the second speaker with the audio transmitter, proceed as described in steps 4 to 6.

Music Playback from iPod/iPhone

(iPod/iPhone not supplied)

1. Insert your iPod or iPhone into the dock (2).

CAUTION:

Make sure that your iPod/iPhone is plugged upright into the port. Do not bend or tilt the iPod/iPhone whilst it is plugged into the port. This may cause damage to the dock or the iPod/iPhone.

1. Depending on the iPod/iPhone Model, firstly release the button lock and start playing music if necessary with the ▶ II button (4 on RC).
2. Follow your iPod/iPhone manual for further use of the controls.

i NOTE:

If you have an incoming call when playing back music with the iPhone docked, then playback stops and you can hear the ring tone.

Description of iPod/iPhone Controls

▶ II/M (4)

• You can pause and continue music playback. Press again to continue playback.
• Keep this button pressed for 3 seconds to call the iPod/iPhone menu or to return to the previous menu.

i NOTE:

The music application must have been started already for this.

◀ (2)

Press 1 x = Restart of the song from the beginning.

Press 2 x = Skip to the previous song.

Press 3 x = Skip to the song before the previous song, etc. Press and hold during playback to search in reverse through the song.

▶▶| (2)

Press to skip to the next song and the following songs.

Press and hold during playback to search forward through the song.

/ENTER (1)

Press this button to activate a function or to display the next menu.

▲/▼(2)

Press these buttons, to scroll up/down the iPod/iPhone Menu.

iPod/iPhone Charging

Your iPod/iPhone battery is charged as soon as the iPod/iPhone is docked. To do this, the unit must be connected to the mains.

i NOTE:

• Not all iPod/iPhone generations support the charge mode.
• The duration of the charging process depends on the iPod/iPhone which is used and its operating condition.

Play Music from the PC

i NOTE:

The description may differ depending on the operation system and its settings.

1. Insert the audio transmitter (14) into a free USB port of your Windows PC.
2. The first time you do this, the monitor will display "Found new hardware". Wait until your PC has found and installed the required device drivers.
3. After the device drivers have been installed, click on "Sound and Audio Devices" in "Control Panel". In the tab "Sound" select the option "SYNIC Wireless Audio" as "Standard device" for "Sound reproduction".
4. Switch on (ON) the speakers with the speaker ON/OFF switch (10).

i NOTE:

If the speakers have not yet been connected with the audio transmitter, proceed as described in the section "Connection of audio transmitter and speakers".

1. Now the speakers can be used as PC speakers. Play your music files on the PC in the usual way (for example with the Windows Media Player).

i NOTE: Important!

Set a low volume with your music playback program. Slowly increase the volume only after the speakers have been switched on. Set a pleasant volume.

1. Adjust the volume with the +/- buttons (6) on the speakers.

i NOTE:

• The speakers always are started with the max. volume when they are switched on.
• This operation does not require the base station to be switched on.

AUX IN Jack (13)

Connect analogue playback device here. Connect playback devices such as MP3 player, CD player, etc. to listen to the music via the speakers.

1. Connect the external device via 3.5 mm stereo jack to the AUX IN socket.
2. The unit automatically switches to AUX operation.
3. You will find further instructions in the manual of your external sound source.
4. Listen to music playback from external playback devices via the speakers. Press the +/- buttons (3/6/3) to set the volume level.

i NOTE:

Set the volume of the external device to a reasonable level.

Charging the Built-in Batteries of the Speakers

The speakers are operated via built-in rechargeable lithium batteries.

When the power indication (7) of the speaker lights red, the charge of the lithium battery is exhausted and the battery must be recharged.

Proceed as follows to charge the speaker batteries:

1. Set the speakers onto the recessed charging areas of the base station. The speaker charge indication (4) flashes blue.
2. Once the speaker charge indication lights with steady blue, the lithium battery has been charged.

i NOTE:

• The duration of the charging process depends on the operation status and the remaining charge of the battery. We recommend that you switch off the speakers while charging.
• When the speakers are operated on the base station, the volume automatically is reduced to approximately 80% to enable charging.

Cleaning

• Before cleaning disconnect from mains power supply.
• Clean the device with a soft damp cloth without detergents.
• Do not submerge the device in water.

Trouble shooting

Problem Cause Solution
The unit cannot be operated	The unit is blocked and "hangs"	Pull the mains plug for approximately 5 seconds. Then connect the unit again
The power indication (base station) does not light	No power supply	Check if the AC adapter is connected correctly to the wall outlet and the DC 7,5V jack (12)
		Check the wall outlet with a different device for functionality
No sound A 3.5 mm	jack plug has been inserted into the AUX IN jack (13)	Remove the jack plug from the AUX IN jack
	In case of iPod/ iPhone playback: The iPod/iPhone is not connected correctly to the dock	Check for correct connection of the iPod/iPhone to the dock
	In case of PC music playback: "SYNIC Wireless Audio" was not selected as the standard playback device in the Control Panel of the PC	Select "SYNIC Wireless Audio" as the standard play-back device in the Control Panel→"Play music from the PC"
	The speakers are switched off	Switch on the speakers

Problem Cause Solution
No sound The speakers are not connected with the transmitter		Connect the speakers to the audio transmitter "Connection of audio transmitter and speakers"
The remote control does not function	Distance too large	Make sure that the remote control is within 8 m from the unit
	Battery discharged	Replace the battery of the remote control "Insert/Replace Battery in Remote Control"
	In case of iPod/iPhone playback: The iPod/iPhone is not connected correctly to the dock	Check for correct connection of the iPod/iPhone to the dock
Distorted sound Too high volume Reduce the volume

Technical Specifications

Model: MC 4447 iP

Net weight: 1.98 kg

Power Consumption: 12 W

External power adaptor

Input: AC 100-240 V, 50/60 Hz

Output: DC 7.5 V/2.4 A

Polarity:

Protection Class:______

Wireless speakers

Power supply: ...... Built-in DC 3.7 V recharge-

able lithium battery

Charging time: Ca. 4 to 5 h

Function duration: Ca. 8 h

Transmitter

HF carrier frequency range: 2.406 to 2.472 GHz

Range: Ca. 50 m (depending on

the environment)

Technical modifications reserved!

This device complies with all current CE directives, such as electromagnetic compatibility and low voltage directive and is manufactured according to the latest safety regulations.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulators standards.

Removal of the batteries/battery disposal

The speakers are operated via built-in rechargeable lithium batteries.

Remove these batteries/accumulators before disposal of the unit.

As a consumer, you are legally bound to return used batteries/accumulators.

WARNING:

Switch off (OFF) the speakers with the speaker ON/OFF switch (10).

- Remove the 4 screw covers on the rear of the speaker. Use a Phillips screwdriver to remove the screws.

• After the screws have been removed, you can remove the front of the speaker.

Close-up of a gray electronic device casing with control buttons and a central circular port (no visible text or symbols)

ENGLISH

- Now remove the screws (A) on the battery cover with a Phillips screwdriver.

- Pull the cable from the socket (B) and remove the battery.

Close-up of an electronic circuit board with labeled points A and B, showing wiring and components (no readable text or symbols beyond labels)

You can deposit it at a collection station for used batteries or hazardous waste. Obtain information from your community.

Meaning of the "Wheelie Bin" Symbol

Take care of our environment, do not dispose of electrical appliances via the household waste.

Dispose of obsolete or defective electrical appliances via municipal collection points.

Please help to avoid potential environmental and health impacts through improper waste disposal.

You contribute to recycling and other forms of utilization of old electric and electronic appliances.

Your municipality provides you with information about collecting points.

GARANTIE-KARTE
