AHD T8 Pro - Camcorder AIPTEK - Free user manual and instructions

Product Type	Digital Camcorder
Brand	Aiptek
Model	AHD T8 Pro
Maximum Video Resolution	Full HD 1080p (1920 x 1080)
Image Sensor	CMOS, approx. 5 megapixels
Optical Zoom	Digital Zoom 4x (typical)
Screen	Built-in adjustable LCD
Storage	SD/SDHC card (up to 32 GB)
Power Supply	Rechargeable lithium-ion battery
Approximate Battery Life	About 60 minutes continuous
Dimensions	Approx. 120 x 60 x 55 mm
Weight	Approx. 200 g (with battery)
Connectivity	USB 2.0, HDMI output, microphone input
Key Features	Video recording, photo, motion detection, time-lapse
Maintenance and Cleaning	Clean the lens with a soft cloth; avoid humidity
Safety	Do not expose to extreme temperatures; use only supplied accessories
Spare Parts and Repairability	Battery and charger available; repairs by approved center
General Information	Downloadable PDF manual; French manual included

Frequently Asked Questions - AHD T8 Pro AIPTEK

How to turn on and off the Aiptek AHD T8 Pro camcorder?

To turn on, press and hold the power button for 2 seconds. To turn off, do the same. The LCD screen will show the battery status.

How to insert an SD card into the AHD T8 Pro?

Open the compartment on the side of the device. Insert the SD card (gold contacts facing forward) until it clicks. To remove, push gently to unlock.

What is the battery life and how to charge it?

Battery life is about 1 hour of continuous recording. Recharge via the supplied USB cable on a 5V charger or computer. The red indicator turns off when charging is complete (about 2 hours).

How to transfer videos to a computer?

Connect the camcorder to the computer via USB cable. The device will appear as a removable drive. Copy video files (AVI or MOV format) directly from the SD card.

Can I use the camcorder as a webcam?

No, the AHD T8 Pro is not designed to be used as a webcam. It is only used for standalone recording.

How to adjust video resolution?

In the main menu, select 'Video Settings' then 'Resolution'. You can choose between 1080p, 720p, or VGA. Confirm with the OK button.

What to do if the screen shows 'Card Full'?

The SD card is full. Replace it with a blank card or delete files via computer. The camcorder will format the card automatically if necessary.

How to enable motion detection?

In the menu, go to 'Recording Mode' and select 'Motion Detection'. The device will only start recording when motion is detected.

Can the camcorder be used outdoors in the rain?

No, the device is not waterproof. Protect it from moisture and avoid water splashes. Use an optional waterproof housing if necessary.

How to reset the camcorder to factory settings?

In the main menu, choose 'Settings' then 'Reset'. Confirm with 'Yes'. This will erase all custom settings but not the files on the card.

USER MANUAL AHD T8 Pro AIPTEK

Dear user, thank you for purchasing this product.

Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service.

FCC Compliance Statement:

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.
-Move the equipment away from the receiver.
-Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/television technician for additional suggestions.

You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void Your authority to operate such equipment.

Safety Notice:

1. Do not drop, puncture or disassemble the camcorder; otherwise the warranty will be voided.
2. Avoid all contact with water, and dry hands before using.
3. Do not expose the camcorder to high temperature or leave it in direct sunlight. Doing so may damage the camcorder.
4. Use the camcorder with care. Avoid pressing hard on the camcorder body.
5. For your own safety, avoid using the camcorder when there is a storm or lightning.
6. Do not use batteries of different specifications. Doing so may lead to the potential for serious damage.
7. Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the camcorder.
8. Remove the battery if it shows signs of leaking or distortion.
9. Use only the accessories supplied by the manufacturer.
10. Keep the camcorder out of the reach of infants.
11. Risk of explosion if battery is replaced by an incorrect type.
12. Dispose of used batteries according to the instructions.

CE

If the time arises to throw away your product, please recycle all the components possible.

Batteries and rechargeable batteries are not to be disposed in your domestic waste! Please recycle them at your local recycling point.

Together we can help to protect the environment.

Preparing the Camcorder

Product overview

三

Getting Started

N

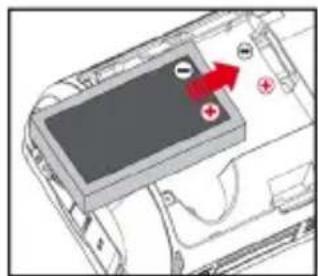

Loading the battery

1 Detach the USB connector as indicated, and then unfasten the battery cover to remove the cover.

2 Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment.

3 Replace the cover.

When using for the first time, please fully charge the battery for at least 8 hours.

Diagram of a device interior with a highlighted screen and directional arrow (no text or symbols)

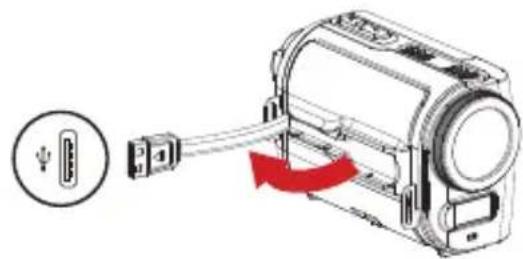

Charging the battery

1 Detach the USB connector and plug it into a USB port on a powered PC. Make sure the camcorder is powered off.

2 The charging LED turns red and the charge starts.

3 When the charging is interrupted or the battery pack is fully charged, the charging LED will turn off.

When using a PC to charge the battery: 1) Do not power on the camcorder or the charge will stop. 2) If necessary, use a USB extension cable to extend the connection.

Diagram of a device with a USB cable and red directional arrow indicating rotation (no text or symbols)

Inserting the SD card

1 Lift the memory card cover to open it as indicated.
2 Insert the card as the direction of indication until it reaches the end of the slot.
3 When the card is inserted successfully, the icon (☐) will appear on screen. To remove the card, push the card to release it and then pull it out gently.
4 Put the cover back.

Technical diagram of a mechanical component with a red arrow indicating a specific feature (no text or symbols present)

N

Diagram of a device interior with a red arrow pointing to a component, no visible text or symbols

Turning the power on/off

To turn on the camcorder, either open the LCD panel or press the Power button. To turn off the camcorder, either close the LCD panel or press the Power button.

Diagram of a digital camera with an arrow indicating rotation (no text or symbols present)

If the power is not turned on after you have completed the above procedures, please check the following have been done correctly: 1) The battery is correctly loaded; 2) The loaded battery has enough power.
i Please choose your local language before starting using the camcorder.

Realizing the battery life indicator

Icon Description
	Full battery life
	Moderate battery life
	Low battery life* The flash strobe will be disabled.
	Empty battery life
Note: To avoid sudden outage of power supply, you are recommended to replace the battery when the icon indicates low battery life.

Recording a video clip

Z

1 Set the focus to an appropriate setting. Normally, you may set the focus to ( ) for most filming conditions. Select ( ) only for close-ups.
2 Press the Record button ( ) to start recording.
3 Use the Zoom buttons (T) to zoom in or zoom out the screen.
4 Use the Joystick Enter to pause, and Enter again to resume.
5 Press the Record button ( ) again to stop recording.

To choose the video resolution among various options, push the DOWN button of the 5-way joystick to switch to the favorable video resolution:

1) Full HD (1920x1080): allows you to record video in crystal-clear details and playback it later on the HD TV. Digital zoom is not available.
2) HD 1080p(1440x1080): for recording 1080p HD videos with 2X digital zoom.
3) WVGA 60fps (484x480): for recording high speed motion at 60 frames per second rate but in a lower resolution to keep file size small.
4) QVGA 30fps (320x240): for recording iPod and iPhone compatible videos.

Due to high resource constrain, digital zoom is disabled in Full HD (1920 x 1080) mode. To use digital zoom function for still pictures, please choose a lower video resolution (this will not affect the picture resolution).

Taking a still picture

1 Set the focus to an appropriate setting. Normally, you may set the focus to ( ) for most filming conditions. Select ( ) only for close-ups.
2 Use the Zoom buttons (T) to zoom in or zoom out the screen.
3 Press the Shutter button ( Ⓞ) to take a still picture.
If you want to playback the recorded videos/pictures, press the Playback (button.

Focus settings

Focus settings

Exporting to a standard TV and HDTV

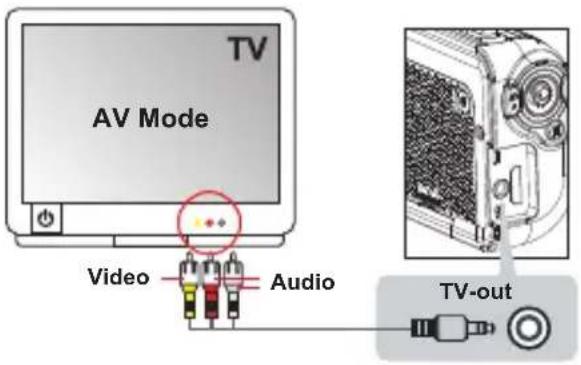

TV : Traditional CRT TV

The TV system is different across areas. If you need to adjust the TV-out setting, please refer to the “Advanced settings” section for more information. (Taiwan: NTSC; America: NTSC; Europe: PAL; China: PAL)

1 Turn on your TV and switch the TV to AV mode.
2 Connect the audio and video ends of the AV cable to the TV.
3 Turn on the camcorder.
4 Connect the other end of the AV cable to your camcorder.

The AV cable is an optional item. Please purchase the cable at your local retailer:

TV : HDTV with HDMI input port

1 Turn on your HDTV.
2 Connect the HDMI-in connector (the larger end) of the HDMI cable to the HDTV.
3 Turn on the camcorder.
4 Connect the other end of the HDMI cable to your camcorder.
5 Switch the HDTV to the "HDMI input" mode.

Camcorder and Camera functions are not available in AV/HDMI-out mode.
The HD TV will display your video clips in 1080i (60 fields) resolution mode although it is recorded in 1080P (30 frames) setting.

Advanced settings

Z

Key tips

Item Option	Description
Flash Strobe(Joystick Left)	On ( [IMAGE]	The flash is forced to fire in every shot.
	Auto ( [IMAGE]	The flash automatically fires when the lighting is insufficient.
	Off ( [IMAGE]	The flash is disabled.
Video Resolution(Joystick Down)	Please refer to the package printing for resolution specification.
Icon(Joystick Up)	On/Off Enable/Disable OSD icons to display on the screen.

Setting menu ( Options)

Press the Joystick Right ( ) to enter.

Item Option Description
Video Resolution	Please refer to the package printing for resolution specification.
Picture Resolution	Please refer to the package printing for resolution specification.
Slideshow	On	Start picture slideshow. / Repeat playing all video clips.
Date Stamp	On ( [0304]	Enable this feature to print a date mark on each picture and video.*For select model only. Please refer to the package printing for detailed specification.
Clock - Set date and time.
Language - Let you select the language used for OSD.

Setting menu ( ☐options (continued)

Item Option Description
Beep	Off | [ZZY2]	Disable beep sound.
	On |	Enable beep sound.
	Shutter On | [HW60]	Disable beep sound, but keep Shutter sound.
TV System	NTSC	Set TV system compatibility to NTSC. This option is suitable for America, Taiwan, Japan, and Korea areas.
	PAL |	Set TV system compatibility to PAL. This option is suitable for Germany, England, Italy, Netherlands, China, Japan, and Hong Kong.
Flicker	50Hz ( [CZZZ]	Set flicker frequency to 50Hz.
	60Hz ( [4BW5]	Set flicker frequency to 60Hz.
NightShot	Auto ( Off (	Enabling this setting allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs and videos at a dark place, we recommend using a tripod to eliminate blurring from hand shake.Warning: Noise increases when NightShot is enabled.
Format	Yes	Format the storage medium. Note that all files stored in the medium will be gone.
	No	Cancel action.

* Flicker settings reference:

Region	England	Germany	France	Italy	Spain		Netherlands	Russia
Setting	50Hz		50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
Region	Portugal		America	Taiwan	China	Japan	Korea	Thailand
Setting	50Hz		60Hz	60Hz	50Hz	50/60Hz	60Hz	50Hz

Note: The flicker setting is based on the frequency standard of your local power supply.

An electronic version of USERS GUIDE in PDF format can be found in the camcorder's built-in memory. You may refer to the electronic manual if this handbook is unavailable.

Diagram of a device interior with a highlighted screen and red directional arrows indicating movement (no text or symbols)

Aufladen des Akkus

Diagram of a mechanical component with a red arrow indicating rotation or force (no text or symbols present)

Diagram of a device interior with a red arrow pointing to a component (no text or symbols present)

Diagram of a digital camera with a red arrow indicating rotation (no text or symbols)

Diagram of a device interior with a central screen and directional arrows indicating movement (no text or symbols)

Charger la batterie

Illustration of a digital camera with a red arrow indicating rotation (no text or symbols)

Diagram of a device interior with a central screen and directional arrows indicating movement (no text or symbols)

Illustration of a digital camera with a red arrow indicating rotation (no text or symbols)

Diagram of a device interior with a highlighted panel and red directional arrows indicating movement (no text or symbols)

Cargar la batería

Mechanical component diagram showing a meshed structure with a red arrow indicating a directional movement (no text or symbols present)

Diagram of a device interior with a red arrow pointing to a component, no visible text or symbols

Illustration of a digital camera with a red arrow indicating rotation (no text or symbols)

Diagram of a device interior with a central screen and directional arrows indicating movement (no text or symbols)

NL

De batterij opladen

Diagram showing a device interior with a red arrow indicating a change, no text or symbols present

Diagram of a digital camera with a red arrow indicating rotation (no text or symbols present)

Diagram of a device interior with a monitor and labeled ports (no readable text or symbols)

P

Inserir o cartão SD

Close-up of a computer monitor with a red arrow pointing to a component (no visible text or symbols)

Diagram of a computer monitor with a red indicator light on the screen (no text or symbols present)

Ligar e desligar a energia

Diagram of a digital camera with an arrow indicating rotation (no text or symbols present)

Note: Specifications are subject to change without notification.
