Thank you for purchase of the Electrical Mower GMS 650 E and for your reliance you have in assortment of our goods.

!!! Please read carefully this Operating Manual before putting the device in operation!!!

Additional copies, even if only extracts, are subject to approval. Technical changes are reserved.

Illustration clipart

GB	Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions?We will quickly help you and without needles bureaucracy at our web pages atwww.guede.comin the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:Serial No.Product No.:Year of production
	Tel.: [phone] / 700-360	Fax: [phone]	E-Mail:[e-mail]

Signs on Unit:

Product safety, Bans:

Product compliance with respective EU standards

Bans:

No pushing/taking by the cable Protect from moisture!

Warning:

Warning against hazardous electric voltage

Warning/Caution

Commands:

Read operating manual Wear protection glasses!

Environment protection:

Wastes to be disposed of in a professional manner not to harm the environment.			Cardboard packaging to be collected for recycling.
Faulty and/or disposed of electrical/electronic appliances to be collected by authorised salvage places.			Green Dot –Duals System Deutschland AG

Packaging:

Protect from moisture Keep Up

Unit

Electrical Mower GMS 650 E

A high-powered electrical mower to mow medium-height grass areas...

Owing to the system of soft shoulder strap and soft surface of ant vibration handles, the electrical mower offers a maximum comfort t.

Double wire reel with knocking automatic prevents an accidental extension of the wire.

The structure of electrical mower makes a simple exchange of the double wire rebel possible.

Thanks to the ergonomic structure, the electrical mower is suitable for both the left-hand and the right-handed persons.

Equipment (series):

Antivibratron handle, double wire reel, a system of shoulder straps. A spare reel may be obtained under ordering number: 94053

Scope of Delivery

Electrical mower GMS 650 E

Additional handle

Shoulder straps

Protection cover

Socket scanner size 4

Socket spanner size 5

Wire reel wrench

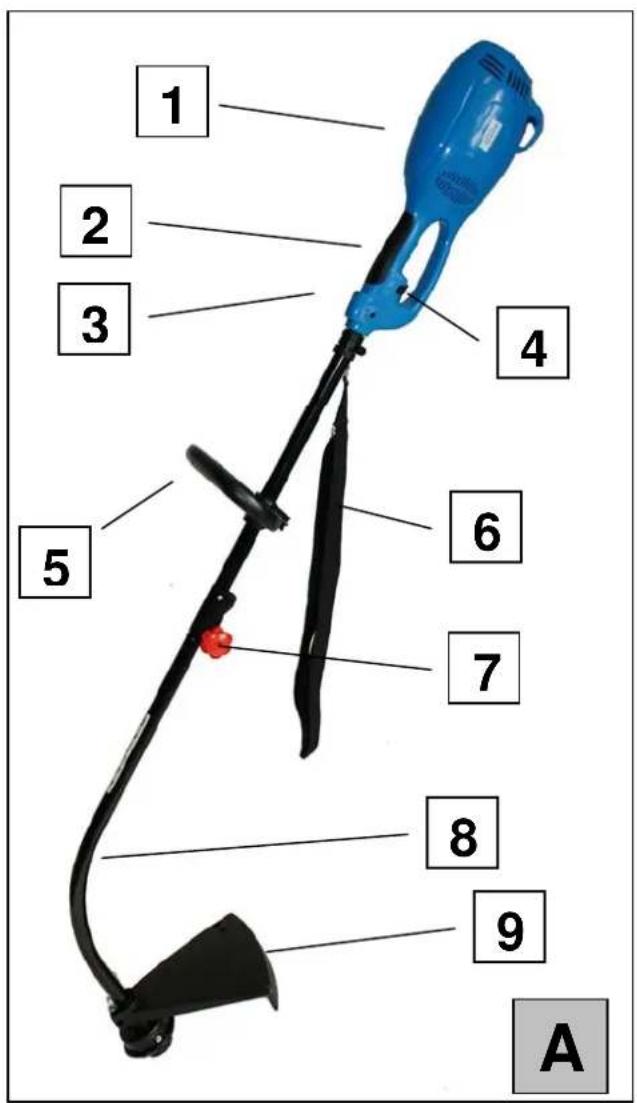

Description of Unit (Fig. A)

1. Motor body
2. Handle
3. Switching lock
4. On/Off Switch
5. Additional handle
6. Shoulder straps
7. Clamping screw
8. Column
9. Protection cover

Declaration of Conformity EU

Declare that the design and structure of the types of tools show below distributed by this company correspond to the essential requirements of the EC standards of safety and hygiene.

This declaration become ineffective if the change of the unit was not consulted with us

Marking of the units: Electrical mower GMS 650 E

Data of signatory Mr Arnold, executive officer

Applicable EU Directives :

Directive 98/37/EG on machines

Directive EU in low voltage 73/23/EWG_93/68/EEC

EMC 89/336/EWG 93/68/EEC

Directive 2000/14 EG

Used harmonised standards :

EN 60335-1; EN 60335-2-91; EN 50366; EN 55014-1; EN 55014-2:

EN 61000-3-2; EN 61000-3-3; EN 55014-2; EN 61000-3-2;

EN 61000-3-3

Place of Certification: TÜV Rheinland Product Safety GmbH,

Warranty claims as per the warranty certificate attached.

Safety Instructions

Before getting down to the work with the unit, the safety regulations and the instructions below should be read carefully. If you pass the unit over to other persons, pass over the instruction manual as well. Always keep the instruction manual at a safe place.

Packaging: Your unit is protected with packaging at transport. The packagings are raw materials and therefore, they may be reused or recycled.

Read the instructions for use carefully and observe them. Following the instructions, familiarise yourself with is, get acquainted with the correct use and safety instructions. Instructions should be kept safely for a later reference.

Caution! For safety reasons, the unit must not be used by children and the juveniles under 16 years of age and the persons not familiar with this manual.

- Check the unit visually before every use. Do not use the unit if the protection devices are damaged or worn. Never put the safety devices out of operation.

- Use the unit entirely for the purpose shown in this instruction manual.

- You are responsible for the safety on the site.

- Before getting down to work, check the area you will mow. Remove any strange articles. Beware of the strange articles in the course of work. Nonetheless, if you hit at an obstruction at mowing, switch off the unit and remove the obstruction.

• Work only at sufficient light.

- Always mind safe and stable posture at work. Mind receding, there is always a risk of stumbling !

- Never leave the unit unattended on the site. If it is necessary to interrupt your work, put the unit on a safe place.

- If it is necessary to interrupt your work to go to another site, switch the unit off the time to get there.

- Never use the unit in rain or wet or moist environment.

- Protect the unit from moisture and rain.

- Before switching the unit on, make sure that the nylon string does not touch any stone or other articles.

- Always work the appropriate protection aids to avoid any injury of the head, hands and legs. Also, work always a helmet, protection glasses (or a screen), high boots (or strong shoes and long trousers of fir cloth) and work gloves.

- If the unit is in operation, hold it unconditionally from your body!

• Do not put the unit on if it is turned over or not in the working position.
• Switch the motor off and unplug if the unit is not operated, left unattended, you need to check the power cable for damages, to remove or replace the reel, to transfer the unit from one place to another.
• Hold the unit outside the reach of other persons, particularly children and also the animals. Stones and other articles may be in the mown grass.
• Observe a minimum distance of 5 m from other persons and animals.
• Do not mow against any hard articles. In this way, you will prevent injuries and damages of the unit.
• Use the edge of the protection system to observe a distance from walls, various surfaces and fragile articles.
• Never use the unit without the protection.

CAUTION! The protection is vital for

your safety and the safety of the others and for the correct work of the machine. Nonobservance of this regulation results in potent ional source of safety, to the extinction of the guarantee.

• Never attempt to catch the nylon string with your hands. Always wait for the string to stop by itself.
• Do not use another string but the original nylon one. Never assemble the metal mowing elements.
• Be careful not to get injured by the string shortening facility. After pulling out the new string, hold the unit in a normal working position before putting it on.
• Be careful to see that there is no dirt in the ventilating holes.
• After the use, unplug and check to see that the unit is not damaged.
• Never attempt to mowing the grass that is not growing on the ground, for example, do not attempt mowing the grass growing on the walls or stones etc.
• Within the work area of the mower, the user shall be liable to the third persons for damages caused by the use of the unit.
• Do not cross the roads and gravel roads with the switched unit.
• If the unit is out of use keep it in a dry place without access of children.
• Use the unit in a way described in this manual and hold it vertically to the ground, any other position is dangerous.
• Check the screw regularly to see that they are fastened correctly.
• The mains voltage should be the voltage shown on the plate.
• The power cable shall be inspected regularly for damages or ageing. The unit shall not be used if the supply cable condition is not perfect. The used supply cables should not be lighter than the light rubber hose cables HO7RN-F according to DIN 57282/VDE 0282 and their minimum diameter is 1,5mm^2 . Plugs shall have protection contacts and the connection shall be protected against splashing water.
• If the cable gets damaged in the course of use, unplug it immediately. Do not touch the cable before it is disconnected from the mains.
• If the supply cable is damaged, it should be replaced by the manufacturer or a customer servicing representative to prevent any threat.

• The unit shall be supplied only via stray current protection (RCD) with the switching current of 30 mA as a maximum

• No cables and other articles may be on the mown surface.

• If the unit is to be lifted for transport, switch the motor off and wait for the unit to stop. Before leaving the unit, switch the motor off and unplug.
• Before plugging in make sure that no rotating element is damaged and that the reel is put in and fastened correctly.
• In the course of operation, you should not mow against hard articles to prevent any injuries of the operator and damages of the unit.
• Use only genuine spare parts for repairs.
• Only an electrician is allowed to do repairs
• Before putting the unit in operation after any hit, check it for any traces of wear and damage and have any required repairs done.
• Hold your hands and legs at a sufficient distance from the string particularly when switching the motor on.
• After pulling out a new string, always hold the unit in a normal working position, switch it on only then.
• Never use spare parts and accessories that are not approved or recommended by the manufacturer.
• Unplug before check, cleaning or works on the unit and if the unit is out of use.
• Use the machine in daylight only or at sufficient artificial lighting

Caution: After switching off, the nylon string will own for a few seconds!

For parts and accessories, the same regulations apply.

Residual Hazard and Protective Action

Electrical Residual Hazards :

Hazard Description Protective		Action
Direct electrical contact	Electrical shock	Stray current protection switch FI
Indirect electrical contact	Electrical shock by means of medium	Stray current protection switch FI

Mechanical Residual Hazards:

Hazard Description Protective		Action
Cutting, cutting off	The string and cutting disc may cause serious incisions.	Mind that no persons and animals are to sty in the area of work.
Catching, winding	Wires and cords may be caught by cutting disc or string reel and may damage the machine and cause injuries.	The area to be mown should be checked beforehand and any strange article should be removed
Blow Working	stronger growth the cutting disc may cause strong backlashes	Avoid using the unit on stronger growth

Noise Hazard:

Hazard Description Protective		Action
Hearing injuries	Longer use of the mower without any protection may cause hearing damage.	Always wear ear protectors.

Other Hazards :

Hazard Description Protective		Action
Thrown away articles or spraying liquids	Thrown away stones and pieces of wood may injure persons and animals.	Make sure that no persons and animals stay in the dangerous area and wear appropriate protection clothing and ear and face protectors.
Stumbling, slipping or fall pf persons	On a difficult ground you may get injured in result of stumbling	Mind always a safe posture and antiskid shoewear

Disposal

Disposal instructions are given by picturegraphs placed on the unit and packaging. Description of individual meaning is to be found in the chapter "Symbols on Unit".

Operator Requirements

Before the use of the unit, the operators are required to read the instructions of use carefully.

Qualification

No special qualification is required for use of the unit except for detailed direction by a professional.

Minimum Age

Only persons above 16 years of age are allowed to work with the unit.

Exempted from the provision is the use of the juvenile trainees if they work in the course of their professional training with an aim to obtain the skill under trainer supervision.

Training

Use of the unit requires adequate lesson by a professional or the use of the manual only. Special training is not required.

Technical Data

Voltage/Frequency 230 V / 50 Hz
Maximum Output: 650 W/P1
Maximum width of engage	380 mm
Speed: 7500 min	^-1
Weight: 5,2 kg
Length of String: ca 7m
String adjustment : Knocking automatics
Mowing system: Double string technology
Noise L	_WA 96 dB

Transportation and Storage

At transportation, the unit has to be secured against r swooping

At storage, it is necessary that the unit is stored at a dry place inaccessible to children and unauthorised persons Before a long shut down, clean the unit thoroughly.

Assembly

Protection Cover Assembly (Fig. B+C)

Pull the protection cover on the column (Fig. B). in the direction of the string head (Fig. C). Secure the cover by tightening the screw and the nut. Use a socket spanner included.

Handle Assembly (Fig. D+E)

Put the handle on the column (Fig. D). Fasten with a screw and a clamping knob (Fig. E).

Shoulder Strap Suspension (Fig. F)

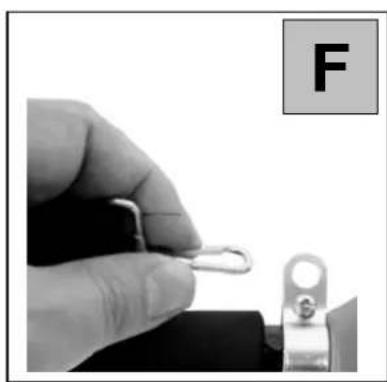

Suspend the shoulder strap from the buckle (Fig. F).

Appropriate Use

The unit has been designed for mowing lawns and small grass areas around a house and private gardens. The units for private gardens are the units not presumed for use in large facilities, parks, sports grounds, streets and in agriculture and forestry. Observation of the manufacturer's instructions for use is the premise of appropriate use of the unit.

Caution! In view of personal and material damage, it should not be used for pulverising for posting.

Putting in Operation (Fig. G+I+J)

The unit is designed for mowing. There is a semiautomatic system of the string extension. Any time the semiautomatic system of string extension is used, the string will get extended automatically so that you are mowing with an optimum width of mesh. Knock the unit slightly against the ground. Account for the wear of the string extension getting increased owing to the frequent use of the automatic system.

Notice: At first putting in operation the excessive end of the string will be shortened with the protection cover sharp edge. If the string is too short, push the button on the reel and pull the string out strongly. At the first start up, the string will shorten to an optimum length.

To keep the maximum output of your unit, the following instructions should be observed: Do not use the unit without protection facility. Do not mow, of the grass is wet. The best results shall be reached on dry grass. Connect the power cable to the extension one and hang it on the handle. To switch the unit on, shift the switch lock forward first and then switch the on/off switch. To switch the unit off, let it go again. Now, put the unit close to the grass if the switch is pushed. i.e. if it is in operation. To mow correctly. Lean the unit to the side and proceed forward. Hold the unit leaned ca 30° (see Fig. J). On long grass, the grass should be shortened by steps from the top (see Fig. I). Use the edge guide and the protection cover to avoid excessive wear of the string. Prevent the contact of the unit with hard articles to prevent an excessive wear of the string.

Notice ! After pushing the on/off switch , it will take some 1-2 seconds to reach the maximum speed. In the course of the work, the motor speed may vary . That is because the speed will adjust to the load.

String Reel Replacement (Fig. H)

Caution! Before replacing the string reel (Fig.), it is very to unplug! Release the fastening screw clockwise. Remove the reel. Pull the ends of a new reel in the loop and put the reel in. . Fasten the fastening clockwise. Caution! The strung end of the nylon may cause injury.

Maintenance and Care

Before putting the unit aside and cleaning it, switch the unit off and unplug. Remove the sediment on the protection cover with a brush. Clean the plastic body and parts with usual detergent and soft cloth. Do not use any aggressive cleaners or solvents for cleaning. Never spray water on the unit. Prevent any water intrusion in the unit.

Faults

The unit will not run: Check the supply cable if it is connected properly and check the fuses. If the unit does not work despite the voltage being correct, send it kindly to the customer servicing at the shown address.

Directive 2000/14 EG

Compatibilitate electromagnetică 89/336/EWG_93/68/CEE

Directiva 2000/14 EG

Norme armonizate utilizeate::

EN 60335-1; EN 60335-2-91; EN 50366; EN 55014-1; EN 55014-2;

EN 61000-3-2; EN 61000-3-3; EN 55014-2; EN 61000-3-2;

EN 61000-3-3

Loc certificare:
