Product type	Orbital sander
Dimensions (L x W x H)	30 x 20 x 15 cm
Weight	2.5 kg
Power supply	Electric, 230 V ~ 50 Hz
Power consumption	300 W
No-load speed	6000 - 12000 rpm
Sanding pad diameter	125 mm
Orbital stroke	2 mm
Dust extraction connection	Yes (35 mm diameter)
Variable speed	Yes
Hook-and-loop pad	Yes
Sanding type	Dry
Guaranteed sound power level	80 dB(A)
Vibration level	5.0 m/s²
Maintenance and cleaning	Clean the body with a damp cloth; empty the dust container regularly
Safety	Emergency stop, trigger lock, double insulation
Spare parts and repairability	Sanding pad, carbon brushes, switch, dust bag available
General information	Use for DIY and renovation; ideal for fine sanding of flat surfaces

Frequently Asked Questions - BGM1003 Ferm

How to change the sanding pad of the Ferm BGM1003?

Unplug the tool. Remove the worn pad by unscrewing it (counterclockwise). Attach the new pad by screwing it firmly. Make sure it is properly centered.

What type of sandpaper to use for the BGM1003?

Use self-adhesive abrasive discs of 125 mm diameter. Choose the grit according to the work: coarse grit (40-60) for roughing, fine grit (120-240) for finishing.

How to adjust the speed of the sander?

Turn the speed adjustment knob located on top of the tool. Position 1 for low speed (6000 rpm), position 6 for maximum speed (12000 rpm). Adapt the speed to the material.

The dust container does not close properly, what to do?

Check that the container is properly aligned and push firmly until you hear a click. If the problem persists, clean the container and the dust extraction channel to remove residues.

Can I use the sander without dust extraction?

Yes, but it is recommended to use a vacuum cleaner to reduce dust. The sander comes with an adapter for connection.

How to replace the carbon brushes?

Unplug the tool. Unscrew the brush caps on each side of the motor. Remove the worn brushes and insert new ones in the correct orientation. Screw the caps back on.

Does the sander heat up normally?

Some heat is normal during prolonged use. If it becomes too hot to touch, stop the tool and let it cool down. Clean the ventilation slots.

What is the warranty for the Ferm BGM1003?

The warranty is 2 years from the date of purchase. Keep the receipt. The warranty covers manufacturing defects, not normal wear.

How to clean the sander after use?

Unplug the tool. Use a slightly damp cloth to wipe the housing. Never immerse the tool in water. Empty the dust container.

The pad vibrates abnormally, what to do?

Check that the pad is properly attached and not damaged. Replace it if necessary. Also ensure that the sandpaper is well centered.

USER MANUAL BGM1003 Ferm

Industrial machine with blue and red components, no visible text or symbols

BGM1003

EN Original instructions 05
DE Übersetzung der Originalbetriebsanleitung 09
NL Vertaling van de oorspronkelijke gebruiksaanwijzing
FR Traduction de la notice originale 18
ES Traducción del manual original 23
PT Tradução do manual original 28
IT Traduzione delle istruzioni originali 32
SV Översättning av bruksanvisning i original 37
FI Alkuperäisten ohjeiden käännös 41
NO Oversatt fra orginal veiledning 45
DA Oversættelse af den originale brugsanvisning 49

HU Eredeti használati utasítás fordítása 53
CS Překlad původního návodu k používání 57
SL Preklad pôvodného návodu na použitie 61
PL Tłumaczenie instrukcji oryginalnej 65
RU Перевод исходных инструкций 70
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 75
MK Превод на оригиналниот инструкции. 80

Close-up of a hand using a tool to adjust or install a mechanical component, labeled 'Fig. 2' (no other text or symbols visible)

Fig. 3

Close-up of a hand adjusting a mechanical component with a tool (no visible text or symbols)

Fig. 4

Mechanical device with mechanical components and directional arrows indicating motion or assembly (no visible text or symbols)

Fig. 5

Close-up of a mechanical device with articulated arms and a circular base (no visible text or symbols)

Fig. 6

Close-up of hands holding a black electronic device with a small component, no visible text or symbols

Fig. 7

Close-up of a black mechanical device with directional arrows indicating rotation or motion (no text or symbols present)

Fig. 8

Mechanical device with directional arrows indicating motion or flow, no visible text or symbols on the device itself.

BENCH SANDER 375W

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europeis leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the drawing on page 2-4

Read the operating instructions carefully before using this device. Familiarize yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Description

This machine combines all the advantages of a horizontal and a vertical belt sander with those of a disc sander. Its sturdy construction in cast iron and steel makes the machine suitable for every sanding job.

Contents:

1. Technical specification
2. Safety instructions
3. Before putting the machine into operation
4. Putting the machine into operation
5. Maintenance

1. Technical specification

Machinedata

Voltage 230 V, 50 Hz

Power input 375 W

$$ \mathrm{S} _ {2} = 3 0 \min ^ {*} $$

No load speed sander belt 276 m/min

No load speed sander disc 1450 /min

Sanding belt size 915 X 100 mm

Sanding disc size ∅ 150 mm

Weight 16.5 kg

Lpa (Sound pressure level) 79+3 dB(A)

Lwa (Sound power level) 92+3 dB(A)

^* S _2 = Maximum period of operation with a capacity of 375 W

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

List of parts

Fig.1 + 6

1. Machine frame
2. Motor
3. Clamping handle
4. Transport roller
5. Sanding belt
   7 On/off switch
6. Fence
7. Drive roller
8. Aluminium disc
9. Sanding disc
10. Work plate
11. Mitre scale

12. Supporting arm

13. Roller stop and parallel stop

2. Safety instructions

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

Wear ear and eye protection

wear a dustmask

Keep bystanders away

The product is in accordance with the applicable safety standards in the European directives.

Special safety instructions

• The following points need to be checked:

• Do the connecting voltage of the machine correspond with the mains voltage.
• Are the mains lead and the mains plug in a good condition; strong, without ravels or damages.

- For functional reasons the turning parts of this machine are not covered. Therefore it is of utmost importance to be careful. Hold the workpiece firmly, to prevent it from slipping from your hands. Never touch the sanding surfaces of a working machine with your hands.

- Avoid the use of long extension cables.

Before you operate the machine:

• Always keep the mains cable away from moving parts of the machine.
• Use safety goggles.
- Use a dust mask.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS1363/13A fused plug and that the following wiring instructions are followed. The wires in the mains cable are coloured in accordance with the following code:

• blue neutral
• brown live

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm ^2 . When using a cable reel always unwind the reel completely.

Immediately switch off the machine when:

• Excessive sparking of the carbon brushes and verticiliosis in the collector.
• Interruption of the mains plug, mains lead or mains lead damage.
• Defect switch
  • Smoke or stench of scorched isolation

3. Before putting the machine into operation

Installation

Avoid the use of long extension cables. Do not forget to leave enough space around the machine for the workpieces to be sanded.

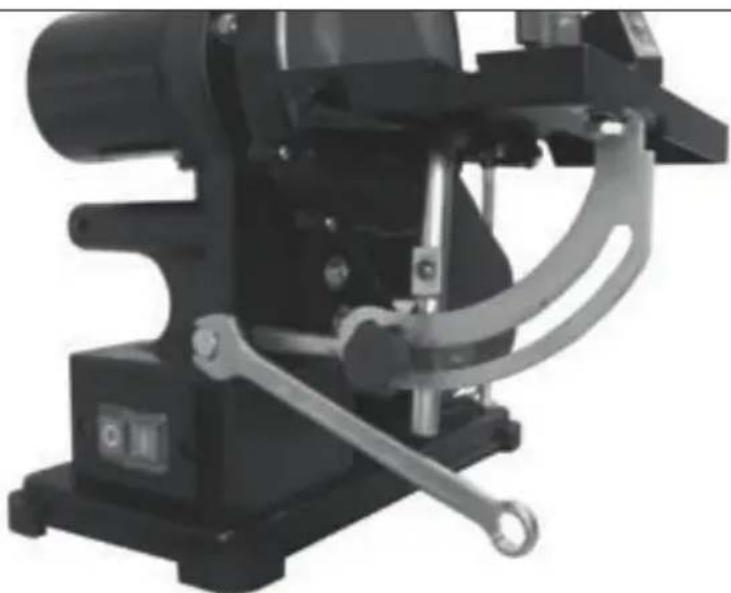

Assembly

• Put the machine frame on its head and press the four rubber stops into the foot of the frame.
  • Machine frame, aluminium disc (10) and work plate (12) are supplied in separate packaging.
• Push the aluminium disc on the shaft and fasten the disc with the socket bolt in the side

of the disc (Fig.2 - 4).

• Place the work plate (12) with the shaft in the machine frame and secure the work plate with the bolt in the side of the machine frame. Check with a 90° sash angle on the work plate and against the sanding disc if the angle is exactly 90° (Fig.5).
• If necessary, adjust this angle with the calibration indicator.
• The mitre scale (13), which is also supplied separately, can be placed on the work plate (12). With the use of this mitre scale the angle of grinding can be determined precisely.
• The fence (8) for the belt sander can be placed behind the uppermost bolt of the V-belt guard. In this way the workpiece can be held firmly against the belt, without great hazards.

To prevent the workpiece or your fingers from getting caught between the work plate (12) and the sanding disc (11), the space between work plate (12) and sanding disc (11) must not exceed 1.6 mm.

The choice of sanding paper

With coarse sanding paper (P 60) generally most of the material can be removed, and fine sanding paper (P 150) is then used for finishing. An uneven surface is first treated with coarse sanding paper and sanded until it is even. Subsequently medium-coarse sanding paper (P 100) is used to remove the scratches caused by the first type of paper used. Fine sanding paper (P 150) is used for finishing. The sanding needs to be continued until the surface is smooth.

The placing of the sanding paper

Fig. 6 - 9

When the sanding machine is held with the sanding disc turned towards you, the sanding belt moves from right to left along the upper part of the machine. Because of this turning direction the workpiece will be pressed against the right side of the fence. An arrow on the inside indicates the right direction of running of the sanding belt (see drawing). If no direction is indicated, the sanding belt must be placed in such a way that the elevated part of the seam is placed into the turning direction of the belt. So it is very important that the sanding belt is placed in the correct way. The machine uses standard 100 x 915 mm sanding belts (nr 7):

• Remove the plug from the mains socket.
• Push the clamping handle completely to the right to take away the tension of the transport rollers (Fig.1: 14).
• Push the sanding belt along both of the transport rollers, starting from the back of the machine.
• Push the clamping handle completely to the left. Now the sanding belt should be completely tight.
• Turn the transport roller exactly in a right angle to the direction of the sanding belts with the use of the winged nut at the right roller. The direction of running of the belt is adjusted correctly if the sides of the sanding belt are running parallel to the bearing plate.

The sanding disc

Paper or "velcro" plates are used for the sanding disc. The standard diameter is 150 mm. The plates are self adhesive.

Vertical placing of the sanding belt

For more flexibility of the sanding belt its bottom side can be used, because there is no bearing plate. For an easy reach of this bottom side the sanding belt can be placed in vertical position.

• Loosen the two nuts at the front of the sanding machine, around the left transport roller shaft, with the use of an open-end spanner.
• Push the sanding belt up in the position desired.
• Fasten the two nuts again.
• The workpiece can now rest on the worktop instead of on the sanding belt;
• The work plate which is used for the sanding disc can now be pushed with the shaft into the hole of the machine frame, at the left side of the sanding machine.
• Fasten the bolt at the back of the machine.
• The work plate can now be used as support for the sanding of the work piece against the sanding belt.

4. Putting the machine into operation

Always stand facing the machine so that you always have a good overview (Fig 1, A1+A2).

Switching On/Off

- Press the switch into position '1' to put your sanding machine into operation.

• To switch off the machine the same switch needs to be pressed to position '0'.
• Always keep the mains cable away from moving parts.
• There is no need to apply any pressure with the workpiece, because this only slows down the speed of the sanding disc.

Sanding

The sanding belt and disc supplied with this sanding machine are suitable for the sanding of metal, wood or synthetic surfaces. The workpiece should always be held firmly during sanding. No extra pressure is needed. Guide the work piece up and down over the sanding belt, in order to prevent the sanding belt and plate from wearing through in one place. Round objects can be sanded at the ends of the sanding belt. Work pieces which are longer than the sanding machine can be sanded by removing the fence.

NB: To prevent splintering, wood always needs to be sanded in the longitudinal direction of the grain.

To treat a very soft surface, there is a very handy method to ‘bring the particles to the surface’. This is done as follows: wet the already sanded surface with a cloth or sponge and let it dry well. Some wood fibres will swell up more than others, which leads to a rougher surface than before. Now the higher particles are treated with fine sanding paper, the result is a remarkably smooth surface. This method should not be applied with varnished wood, however, because the varnish may come loose because of the moisture.

5. Maintenance

Make sure that the machine is not live when carrying out maintenance work on the motor.

The Ferm machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Malfunction

Below we have listed a number of possible causes and corresponding solutions in case the machine does not function as it should:

The electromotor gets hot

• The cool ventilation slots in the motor are stopped up with dirt.
• Clean the cool ventilation slots.
  • The motor is defective.
• Have your sanding machine repaired / checked at your local Ferm dealer.

The connected machine does not work.

- Interruption in the mains connection.

- Check mains connection for fracture. Have your sanding machine repaired / checked at your local Ferm dealer.

Periodic maintenance of the belt sander will prevent unnecessary problems!

Cleaning

Never use water or other agressive liquids to clean the machine. Clean the machine by brushing it with a brush. Keep the ventilation slots of the machine clean to prevent overheating of the motor.

Lubrication

There is no need to lubricate the transport rollers of the machine.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must

be collected separately and disposed of in an environmentally friendly way.

Warranty

For the warranty conditions read the warranty card at the back of these instructions for use.

The product and the user manual are subject to change. Specifications can be changed without further notice.

- De motor is defect.

1. Specifications techniques

DECLARATION OF CONFORMITY BGM1003 BELT AND DISC SANDER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päiväytyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünkteljes tudatában kijelentljük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směmici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v sůlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamentų in Tarybos direktvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje įrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padome2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem stand artiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Đd punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейское парпамента и совета от 8 июня 2011 г. по ограничению использования определенныхопасных веществ электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявпяємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обження використаннядеяки хнеб езпечнихречовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμοφώνεταμε την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της δης Ιουνίου 2011 για τον πειροισμό της χρήσης ορισμένων επικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξαλισμό
(MK) Изјавувме со наша целосна одговорност дека производот е во сопасност со Смерницата 2011/65/EU на Европскиот парламент и е во согласност според Советот од 9 јни за ограничуване на користење на одредени опасни супстанции во електричитана и електронската опрема според следните стандарции регулативи:

EN61029-1, EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

2006/42/EC, 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU

Zwolle, 01-02-2016

H.G.F. Rosberg

CEO Ferm B.V.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

Spare parts list

No.	Description Position
402832	Aluminium disc 5
800210	V-belt 12
402833	Motor pulley 13
402834	Driven pulley 14
402835	Rubber foot 28
402836	Switch 31
806201	Bearing 6201 zz 43
402800	Idle roller complete 42(2x),43(2x),44,47
402838	Adjustment bolt 48,49
402839	Driver roller 54,56
402840	Mitre gauge 64,65,68

Exploded view
