Product type	Wireless VDSL/ADSL Router
Brand	TP-Link
Model	Archer VR400
Dimensions (W x D x H)	260 x 170 x 45 mm
Weight	0.5 kg
Power supply	12 V DC, 1 A
Power consumption	12 W max
Wi-Fi standards	IEEE 802.11a/b/g/n/ac, dual band 2.4 GHz and 5 GHz
Max Wi-Fi speed	300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
LAN ports	4 Gigabit Ethernet ports (10/100/1000)
WAN port	1 RJ11 port for telephone line (VDSL2/ADSL2+)
USB port	1 USB 2.0 port for file or printer sharing
DSL standards	VDSL2, ADSL2+, ADSL2, ADSL
Antennas	2 fixed external antennas
Key functions	DSL modem, router, Wi-Fi access point, firewall, VPN server, parental control
Wireless security	WPA/WPA2-PSK, WPA3-PSK, MAC filtering, WPS
Care and cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive products.
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% (non-condensing)
Spare parts and repairability	Power adapter available. Repair by a qualified technician recommended.
General information	TP-Link Archer VR400 router, ideal for DSL connections. User manual available online.

Frequently Asked Questions - Archer VR400 TP-LINK

How do I set up my Archer VR400 router for the first time?

Plug the router into the telephone socket and power supply. Connect to the default Wi-Fi network (SSID and password are on the label). Open a browser and go to http://tplinkmodem.net. Follow the quick setup wizard.

How do I change the Wi-Fi password on my Archer VR400?

Log in to the administration interface (http://tplinkmodem.net). Go to Advanced > Wireless > Security Settings. Modify the WPA pre-shared key and save.

What if I forgot the router's admin password?

Press and hold the Reset button for about 10 seconds until the lights flash. The router will reset to factory settings (username: admin, password: admin).

How do I connect my Archer VR400 to an ADSL line?

Use the provided telephone cable to connect the DSL port of the router to the ADSL wall socket. Plug in the power. The DSL LED should become solid green once synchronization is established.

My Wi-Fi is slow, what can I do?

Make sure the router is placed in an open area away from obstacles. Try changing the frequency band (2.4 GHz vs 5 GHz) in the wireless settings. Ensure the channel is not congested by using the Channel Analysis option.

Can I use the Archer VR400 with an ISP other than Free or Orange?

Yes, the router is compatible with most ISPs offering ADSL/VDSL connections. You need to configure the connection parameters (VPI/VCI, encapsulation type) provided by your operator in the Network > Internet section.

How do I update the router's firmware?

Download the latest firmware from the TP-Link website. Go to Advanced > Administration > Firmware Update, select the file, and click 'Update'. Do not turn off the power during the process.

What does a flashing 'Internet' LED mean?

An orange or flashing Internet LED indicates that the DSL connection is active but internet access is not established (no IP address or configuration issue). Check connection settings with your ISP.

How do I enable parental control on the Archer VR400?

Log in to the interface, go to Advanced > Security > Parental Control. Enable the function, create a profile, and add access schedules or sites to block.

Can I use a USB printer with this router?

Yes, connect the printer to the USB port. Go to Advanced > USB > Printer Sharing and enable the print server. Install the TP-Link USB Printer Controller software on your computer.

USER MANUAL Archer VR400 TP-LINK

Wireless DSL Modem Router

For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support.

© 2024 TP-Link 7106511773 REV1.5.3

CONTENTS

1 / Deutsch
6 / English
11 / Español
16 / Ελληνικά
22 / Français
27 / Italiano
32 / Português
37 / Suomi
42 / Svenska
47 / Nederlands
52 / Norsk
57 / Dansk

Hardwareinstallation

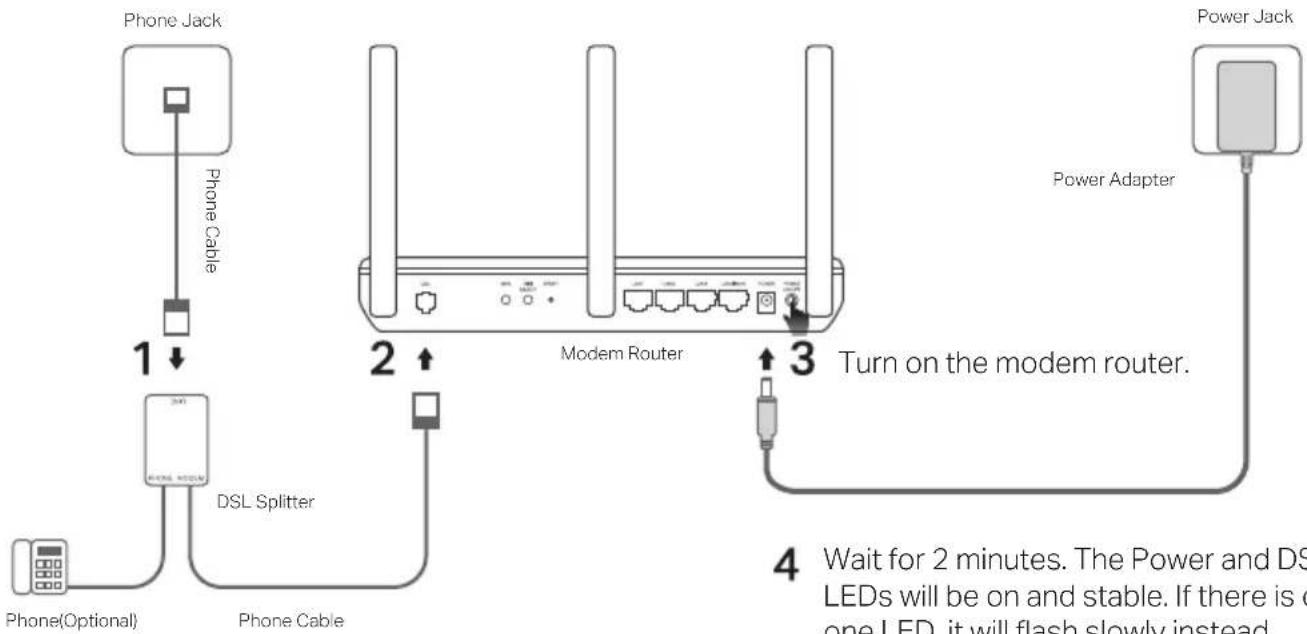

Connect the Hardware

If you don't need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

* Image may differ from actual product.

4 Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will flash slowly instead.

Note: If the LED status is different, please refer to FAQ > Q2.

Configure via Web Browser

1 Connecting your computer to the modem router via a wired or wireless connection

Wired

Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable.

Wireless

Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router.

2 Configuring the modem router via a web browser

A Launch a web browser and type in

http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ > Q1.

B Create a password for future login attempts, or use admin for both username and password for some routers.

C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration.

Now you can enjoy your internet.

Already Have a Modem?

If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up.

1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection.

Note: The SSIDs (network names) and wireless password are printed on the product label.

2 Configuring the modem router via a web browser

A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.

Note: If the login page does not appear, please refer to FAQ > Q1.

http://tplinkmodem.net ↻→

B Create a password for future login attempts, or use admin for both username and password for some routers.

3 Connect the modem to the router's WAN port via an Ethernet cable.

4 Go to WAN > WAN Configuration to change WAN PHYSICAL TYPE and finish the setup.

Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link's official website at www.tp-link.com.

Tether App

The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, configure your wireless settings and more.

Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play.

Note: Tether is not supported by some routers. Please check the app description before downloading.

FAQ (Frequently Asked Questions)

Q1. What can I do if the login page does not appear?

A1. If the computer is set to a static or fixed IP address, change the settings to obtain an IP address automatically from the modem router.

A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter.

A3. Use another web browser and try again.

A4. Reboot your modem router and try again.

A5. Disable and enable the active network adapter.

Q2. What can I do if the LED status is not correct?

A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter.

A2. Restore your modem router to its factory default settings.

A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then reconfigure the modem router by following the instructions in this Quick Installation Guide.

A4. Contact your ISP to verify if the DSL line is in good status.

A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

English

Q3. What can I do if I cannot access the internet?

A1. Make sure the telephone and Ethernet cables are plugged in correctly.
A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router.
A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again.
A4. Restore the modem router to its factory default settings and reconfigure the modem router by following the instructions in this Quick Installation Guide.
A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support.

Q4. What can I do if I forget my password?

- Web management page password:

A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

- Wireless network password:

A1. The default Wireless Password/PIN is printed on the product label of the modem router.
A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password.

Q5. How do I restore the modem router to its factory default settings?

A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button.
A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.

Por Wi-Fi

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be installed near the equipment and shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

For TP-Link Branded Products Only.

For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Español

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives (EU)2015/863, 2014/53/EU, 2009/125/EC and 2011/65/EU.
