USER MANUAL DVM860BL VELLEMAN

DVM860BL - DIGITAL MULTIMETER

1. Introduction

CE

velleman components

At the end of its life cycle, dispose of this product in accordance with local and national disposal regulations. Read the manual thoroughly before bringing this device into service

Thank you for buying the DVM860BL! Use this device to measure and test: AC & DC voltage & current (also with optional clamp AC97), resistance, temperature, batteries, diodes, continuity and transistors.

2. Safety

The DVM860BL is developed in accordance with IEC1010-1 concerning safety requirements for electrical measuring instruments with an overvoltage category (CAT III) 600V and pollution 2. Respect these safety prescriptions:

• Protect yourself against electroshocks.
• Do not use this device for any other application than those described in this manual.
• Make sure the device was not damaged in transit.
• Make sure the insulation of the test leads is not damaged and/or the wire itself is not exposed.
• Full compliance with safety standards can only be guaranteed if the device is used with the supplied test leads. If necessary, they should be replaced with identical leads or leads with identical electric ratings. All test leads should be in good working order.
• Select the right input jack, function and range before use.

- Never exceed the specified limit values for the various measurement ranges.

- Do not touch unused terminals when the meter is connected to a circuit.

- Place the range selector in the highest position if the value to be measured is unknown beforehand.

- Do not measure voltages > 600V above earth ground.

- Exercise extreme caution when working with voltages in excess of 60Vdc or 30Vrms AC. Keep your fingers behind the probe barriers while using the device.

- Do not connect the leads to a voltage source while the function switch is in one of the following modes: current, resistance, temperature, battery, diode, transistor or continuity.

- Disconnect all test leads from the circuit to be tested prior to selecting a different function or range.

- Do not use the meter in dusty environments or in the presence of flammable gases and steam.

- Have the device checked by a qualified technician in case of malfunction.

- Never use the meter if the back panel is not in place and firmly fixed.

- Do not use or store the device in areas exposed to direct sunlight, high temperatures or high humidity.

3. Device Description

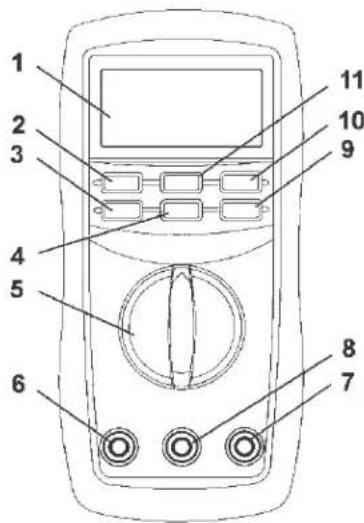

a. Front Panel

1. LCD display : allows readout of the measured values
2. ON/OFF button: used to activate / deactivate the device
3. RANGE button : used to select auto or manual range
4. FUNC. button : select AC or DC measurement, select °C or °F
5. Selector : used to select the desired function and range
6. 10A jack : input terminal for max. 10A current
7. INPUT jack : input terminal (exception: 10A)
8. COM jack
9. Backlight button (●: to illuminates the LCD for a few seconds
10. DATA HOLD button : Displayed data are held
11. MAX HOLD button : Max. measured value is held

b. Display Symbols

Safety issue, consult the manual

AC or DC

conforms to EU directives

MAX.H

Max. value is being held

AC

Alternating current

Fuse

Diode

DATA-H

Displayed data are held

DC

Direct current

Earth ground

Continuity buzzer

AUTO

Automatic range selection

Double insulation

(Protection class II)

Battery / Battery low

Measurement with (optional) clamp

CATIII

Overvoltage category III, pollution degree 2 (IEC1010-1)

4. Maintenance

• Do not remove the back cover while a voltage is being applied. Only a qualified technician should handle repairs.
• Always disconnect the test leads from all current sources before opening the meter.
• Replace the batteries when the symbol is displayed.
• Replace blown fuses with an identical one or a fuse with identical voltage and current ratings: F 200mA/250V (quick-acting).
• Use a damp cloth and a mild detergent to clean the device. Never apply abrasives or solvents to the meter
• Place the power switch in the OFF position when the device is not being used
• Remove the batteries to keep them from leaking if the device is to be stored for a long time.

5. Specifications

Max. accuracy is achieved during a one-year period after calibration. Ideal circumstances require a temperature of 18 to 28°C (64 to 82°F) and a max. relative humidity of 75%.

5.1 General Specifications

Sampling Time ±0.4sec.

Display LCD 16mm

Max. Display 1999 points (3 ½ digits)

Polarity Indication "-" indicates negative polarity

Overrange Indication "OL"

Displayed Measuring Unit Unit of electrical capacity

Battery-Low Indication

Maximum Altitude

Max. voltage between terminals and earth

Fuse Protection

Automatic Power Off

Power Supply

Operating Temperature

Storage Temperature

Dimensions

Weight

" Symbol is displayed

7000ft (2000m)

600V DC or AC

F 200mA/250V (quick-acting)

15 minutes

3 x 1.5V AAA-battery

0^ to +40^ (+32 to +104^)

-10°C to +50°C (+10 to +122°F)

158 x 74 x 32mm

±250g (batteries included)

5.2 Electrical Specifications

5.2.1. DC Voltage

Range Resolution Accuracy
200mV 0.1mV		±0.7% of rdg + 2 digits
2V 0.001mV
20V 0.01mV
200V 0.1mV
600V 1V

Input Impedance : 10MΩ

Overload Protection : 250V DC or rms AC for the 200mV-range, 600V DC or V rms AC for the ranges 2V to 600V Max. Input Voltage : 600V DC

5.2.2. AC Voltage

Range Resolution Accuracy
200mV 0.1mV		±0.8% of rdg + 3 digits
2V 0.001mV
20V 0.01mV
200V 0.1mV
600V 1V ±1.0% of rdg + 3 digits

Input Impedance : 10MΩ

Overload Protection : 250V DC or rms AC for the 200mV-range, 600V DC or AC rms for the ranges 2V to 600V

Frequency Range : 40 to 400Hz

Response : average response, calibration in rms of a sine wave.

Max. Input Voltage : 600V rms AC

5.2.3. DC Current

Range Resolution Accuracy
200μA	0.1μA	±1.2% of rdg + 3 digits
2000μA	1μA
20.00mA	0.01mA
200.00mA	0.1mA
2.000A	0.001A	±2.0% of rdg + 10 digits
10.00A	0.01A

Overload Protection : F 200mA/250V fuse (quick-acting) for the μA, mA ranges. The 2A and 10A range are unfused.

Max. Input Current : INPUT jack: 200mA, 10A jack: 10A.

Voltage Drop : 200μV, 20mA, 2A: 20mV, 2000μA, 200mA, 10A-range: 200mV.

5.2.4. AC Current

Range Resolution Accuracy
200μA	0.1μA	±1.5% of rdg + 5 digits
2000μA	1μA
20.00mA	0.01mA
200.00mA	0.1mA
2.000A	0.001A	±3.0% of rdg + 10 digits
10.00A	0.01A

Overload Protection : F 200mA/250V fuse (quick-acting) for the μA, mA ranges. The 2A and 10A range are unfused.

Max. Input Current : INPUT jack: 200mA, 10A jack: 10A.

Voltage Drop : 200μV, 20mA, 2A: 20mV, 2000μA, 200mA, 10A-range: 200mV.

Frequency Range : 40 to 400HZ

Response : average response, calibration in rms of a sine wave.

5.2.5. DC Current (with optional clamp AC97)

Range Resolution Accuracy
meter	200A	0.1mV/0.1A ±1.2% of rdg + 3 digits
DC clamp	0 to 200A	0.1A/0.1mV typical ±2.0%
meter	2000A	1mV/1A ±1.2% of rdg + 3 digits
DC clamp	0 to 2000A	1A/1mV typical ±2.0%

Overload Protection : 250V DC or AC rms

Max. Input Voltage : 200mV

5.2.6. AC Current (with optional clamp AC97)

Range Resolution Accuracy
meter	200A	0.1mV/0.1A ±1.5% of rdg + 5 digits
AC clamp	0 to 200A	0.1A/0.1mV typical ±3.0%
meter	2000A	1mV/1A ±1.5% of rdg + 5 digits
AC clamp	0 to 2000A	1A/1mV typical ±3.0%

Overload Protection : 250V DC or AC rms

Max. Input Voltage : 200mV

Frequency Range : 40 to 400HZ

Response : average response, calibration in rms of a sine wave.

5.2.7. Resistance

Range	Resolution	Accuracy
200Ω	0.1Ω	±1.0% of rdg ± 3 digits
2kΩ	0.001kΩ	±1.0% of rdg ± 1 digit
20kΩ	0.01kΩ
200kΩ	0.1kΩ
2MΩ	0.001MΩ
20MΩ	0.01MΩ	±1.0% of rdg ± 5 digits

Open-Circuit Voltage : ±0.25V

Overload Protection : 250V DC or AC rms

5.2.8. Temperature

Range	-20°C to 1000°C		0°F to 1800°F
Resolution	1°C		1°F
Accuracy	-20°C to 0°C	±5.0% of rdg + 4 digits	0°F to 50°F	±5.0% of rdg + 4 digits
	0°C to 400°C	±1.0% of rdg ± 3 digits	50°F to 750°F	±1.0% of rdg ± 3 digits
	400°C to 1000°C	±2.0% of rdg ± 3 digits	750°F to 1800°F	±2.0% of rdg ± 3 digits

Overload Protection : 250V DC or AC rms

5.2.9. Battery Test

Range Resolution Function
1.5V	0.01V	displaying the approximate battery voltage
3V
9V

Overload Protection: F 200mA/250V fuse (quick-acting) for the 1.5V & 3V range, 250V DC or AC rms for the 9V range. Test Current: ±50mA (1.5V range), ±30mA (3V range), ±12mA (9V range)

5.2.10. Diode

Range Resolution Function
	0.001V Read the	diode's approximate forward voltage value from the display

Forward DC Current : 1mA

Reversed DC Voltage : ±1.5V

Overload Protection : 250V DC or AC rms

5.2.11. Continuity

Range Function
	Built-in buzzer sounds if resistance < 50Ω

Open-Circuit Voltage : ±0.5V

Overload Protection : 250V DC or AC rms

5.2.12. Transistor hFE

Range Function
hFE	Read the approximate hFE value (0-1000) of the transistor under test (ALL TYPES) from the display

Base Current : ±2μA, Vce: ±1V

Overload Protection : F 200mA/250V fuse (quick-acting)

6. Operating Instructions

6.1. Data-Hold Button

Press the DATA-H button if you want the device to hold the measured value. Press this button again to disengage the data hold button.

6.2. Maximum Value Hold Button

Press the MAX.H button during your measurements to display the highest value measured so far. Press the button again to remove the value from the display.

6.3. Func. Button

Press this button during current and voltage measurements to alternate between DC and AC.

Press the button during temperature measurements to alternate between ^ C and ^ F.

Press the button while testing diodes or continuity to alternate between these two.

6.4. Range Selection

The auto range setting is used when measuring current, voltage and resistance. Press the RANGE button to select the manual range setting. The next level up is selected each time you press the button. Press the button when the highest range is selected in order to select the lowest range.

Hold the button for more than 2 seconds to return to the auto range setting.

6.5. Backlight

Press the button when it's getting too dark to read the LCD.

The backlight extinguishes automatically after 15 seconds. Hold the button for 2 seconds to extinguish the backlight. Remember that using the backlight often will shorten the life of your batteries.

The symbol is displayed when the battery voltage is less than 4V. Note, however, that this symbol may be displayed because you are using the backlight (which uses a lot of power), even though the actual battery charge >4V. In other words, you should only replace the batteries if the symbol is displayed when the backlight is not being used.

6.6. Auto Power Off

The device will deactivate automatically if no button is pressed for 15 minutes. The auto power off function is announced by five short beeps and one long one. Touch an arbitrary button or the selector to restore the device to normal working condition. Press the DATA HOLD button while the device is powering on if you want to disable the auto power off function.

6.7. Preparation for Measurement

1. Press the ON/OFF button. The symbol is displayed when the battery voltage < 3.8V , indicating that the batteries need to be replaced.
2. The Next to the INPUT jack means that the input voltage or current should not exceed the specified limit values in order to prevent damage to the meter.
3. Select a function and a range with the selector. Place the range selector in the highest position if the range is unknown beforehand.
4. First connect the black test lead (mass) and then the red one (+) to avoid electroshocks.

6.8. Measuring DC Voltage

WARNING

Do not exceed the max. input voltage of 600V DC!! Be very careful and avoid electroshocks when working with high voltages.

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack.
2. Put the range switch in the desired V-range position.
3. Press the FUNC. button to select DC measurement. Select manual or auto range selection with the RANGE button.
4. Connect the test leads with the source or load under measurement.
5. Read the measured value from the LCD. The polarity of the red lead connection is also indicated.

REMARKS

• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• Place the range selector in the highest position if the value to be measured is unknown beforehand.
• When measuring low voltage values, the display will show fluctuating values as the test leads approach the circuit to be tested. Simply ignore these readings as this interference will disappear as soon as the test leads are physically touching the circuit you want to test.

6.9. Measuring AC Voltage

WARNING

The input voltage should not exceed 600Vrms AC. Be very careful and avoid electroshocks when working with high voltages.

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack.
2. Put the range switch in the desired V-range position.
3. Press the FUNC. button to select AC measurement. Select manual or auto range selection with the RANGE button.
4. Connect the test leads with the source or load under measurement.
5. Read the measured value from the LCD.

REMARKS

• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• Place the range selector in the highest position if the value to be measured is unknown beforehand.
• When measuring low voltage values, the display will show fluctuating values as the test leads approach the circuit to be tested. Simply ignore these readings as this interference will disappear as soon as the test leads are physically touching the circuit you want to test.

6.10. Measuring DC Current

WARNING

Deactivate the circuit to be tested before connecting it to the meter.

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack for current measurements up to 200mA. Move the red lead to the 10A jack for measurements up to 10A.
2. Select the desired A, mA or A range with the range selector.
3. Press the FUNC. button to select DC measurement. Select manual or auto range selection with the RANGE button.
4. Connect the test leads in series with the load under measurement.
5. The measured value and the polarity of the red connection are displayed.

REMARKS

• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• Place the range selector in the highest position if the value to be measured is unknown beforehand.
• Respect the limit values ⚠: the max. current for the INPUT jack is 200mA. The fuse will blow if the limit value is exceeded. The max. current for the 10A socket is 10A and this range is not fuse-protected.

6.11. Measuring AC Current

WARNING

Deactivate the circuit to be tested before connecting it to the meter.

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack for current measurements up to 200mA. Move the red lead to the 10A jack for measurements up to 10A.
2. Select the desired A, mA or A range with the range selector.
3. Press the FUNC. button to select AC measurement. Select manual or auto range selection with the RANGE button.
4. Connect the test leads in series with the load under measurement.
5. Read the measured value from the LCD.

REMARKS

• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• Place the range selector in the highest position if the value to be measured is unknown beforehand.
• Respect the limit values ⚠: the max. current for the INPUT jack is 200mA. The fuse will blow if the limit value is exceeded. The max. current for the 10A socket is 10A and this range is not fuse-protected.

6.12. Measuring DC Current (with optional clamp AC97)

1. Connect the clamp's black test lead with the COM jack and the red lead with the INPUT jack.
2. Put the range selector in the position.
3. Press the FUNC. button to select DC measurement. Select manual or auto range selection with the RANGE button.
4. Connect the clamp with the circuit to be tested.
5. The measured value and the polarity of the red test lead are displayed.

REMARKS

• Use a DC clamp to measure DC currents
• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• Place the range selector in the highest position if the value to be measured is unknown beforehand.
• Install the same range on the DVM860BL and the DC clamp. If the ranges do not match exactly, be careful not to exceed the limit values on the DVM860BL and the DC clamp of your choice:

a. the sensitivity of the 200A range is 200mV, that of the 2000A range is 2V. The sensitivity of the matching clamp should be 0.1A/0.1mV in order to make sure that the value you read out is also the measured value.
b. If your clamp has a low sensitivity (0.1A/0.01mV), the indicated value will be 10 times lower than the measured value e.g. the measured current is 100A, then the indicated value will be 10.0A
c. If your clamp has a high sensitivity (0.1A/1mV), the indicated value will be 10 times higher than the measured value e.g. the measured current is 10A, then the indicated value will be 100.0A

6.13. Measuring AC Current (with optional clamp AC97)

1. Connect the clamp's black test lead with the COM jack and the red lead with the INPUT jack.
2. Put the range selector in the position.
3. Press the FUNC. button to select AC measurement. Select manual or auto range selection with the RANGE button.
4. Connect the clamp with the circuit to be tested.
5. Read the measured value from the LCD.

REMARKS

• Use an AC clamp (e.g. AC97) to measure AC currents
• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• Place the range selector in the highest position if the value to be measured is unknown beforehand.
• Install the same range on the DVM860BL and the AC clamp. If the ranges do not match exactly, be careful not to exceed the limit values on the DVM860BL and the AC clamp of your choice:

a. the sensitivity of the 200A range is 200mV, that of the 2000A range is 2V. The sensitivity of the matching clamp should be 0.1A/0.1mV in order to make sure that the value you read out is also the measured value.

b. If your clamp has a low sensitivity (0.1A/0.01mV), the indicated value will be 10 times lower than the measured value e.g. the measured current is 100A, then the indicated value will be 10.0A

c. If your clamp has a high sensitivity (0.1A/1mV), the indicated value will be 10 times higher than the measured value e.g. the measured current is 10A, then the indicated value will be 100.0A

6.14. Measuring Resistance

WARNING

Disconnect the circuit to be tested and make sure that all capacitors are fully discharged before measuring the in-circuit resistance.

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack.
2. Select the desired range with the range switch. Auto or manual range selection can be installed with the RANGE button.
3. Connect the test leads with the resistance being measured.
4. Read the value from the LCD.

REMARKS

• The LCD displays the overrange indication "OL" if the measured value is too high for the range you are using. Select a higher range.
• The meter may need a few seconds to display a stable reading when measuring resistances > 1MΩ.
• The overrange indication "OL" is displayed when the input is not connected e.g. in case of an open circuit.

6.15. Measuring Temperature

WARNING

Do not connect the thermocouples with electrical circuits in order to avoid electroshocks.

1. Put the range switch in the TEMP position.
2. Select °C or °F with the FUNC. button.
3. The LCD displays the current environmental temperature.
4. Use a "K"-type thermocouple: Insert the black plug in the COM jack and the red one in the INPUT jack. Touch the test surface or test object with the thermocouple.
5. Read the value from the LCD.

6.16. Testing Batteries

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack.
2. Place the range switch in the correct position depending on the voltage of the tested battery (1.5V, 3V, 9V).
3. Connect the test leads with the battery in question.
4. Read the measured value from the LCD. The polarity of the red lead connection is also indicated.

6.17. Diode Test

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack (the polarity of the red test lead is "+").
2. Place the range switch in the range position.
3. Press the FUNC. button to select the function "diode test"
4. Connect the red lead with the anode and the black lead with the cathode of the diode to be tested.
5. Read the value from the LCD.

REMARKS

• The LCD will display the possible forward voltage drop of the diode.
• The overrange indication "OL" will be displayed if the leads have not been connected properly.
• The overrange indication "OL" is displayed when the input is not connected e.g. in case of an open circuit.

6.18. Continuity Test

Deactivate the circuit to be tested and make sure all capacitors have been fully discharged prior to measuring the circuit's continuity.

1. Connect the black test lead with the COM jack and the red test lead with the INPUT jack.
2. Place the range switch in the desired range position.
3. Press the FUNC. button to select the function "continuity measurements"
4. Connect the test leads with two points of the circuit to be tested.
5. The built-in buzzer will sound if continuity exists.

REMARKS

- The overrange indication "OL" is displayed when the measured resistance >200 or when the input is not connected e.g. in case of an open circuit.

6.19. Transistor Test

1. Put the rotary switch in the hFE-position.
2. Plug the multifunction socket into the COM jack and the INPUT jack.
3. Identify whether the transistor is NPN or PNP type and locate the emitter, the base and the collector. Insert the transistor leads in the proper holes of the multifunctional socket.
4. Read the value from the LCD.

7. Spare Parts

a) Batteries

WARNING

Disconnect the test leads before opening the battery compartment in order to avoid electroshocks.

The symbol is displayed if the batteries need to be replaced:

1. Disconnect the test leads from all live sources, switch off the device and remove the test leads from the input terminals.
2. Unscrew the cover of the battery compartment and remove it.
3. Remove the batteries and replace them.
4. Replace the cover and tighten the screws.

Remark: Respect all applicable laws when disposing of your old batteries.

b) Fuse

Disconnect all test leads before replacing the fuse in order to avoid electroshocks. In order to avoid unnecessary fire risks, you should only use fuses with the following ratings: F 200mA/250mV (quick-acting).

1. Fuses only rarely need to be replaced and a blown fuse is usually the result of human error.
2. Unscrew the battery cover, remove the old fuse and insert a new one with identical specifications.
3. Replace the cover.

c) Test Leads

Only when you use the supplied test leads can we guarantee that you are complying fully with the safety standards. Replace them if necessary with test leads of the same model or with the same ratings. Electric ratings of the test leads: 600V 10A.

8. Accessories

• set of test leads: max. 600V / 10A
- 3 x 1.5V AAA-battery
- user manual
- holster
• thermocouple ("K"-type)
• multifunction test socket

The information in this manual is subject to change without prior notice.

DVM860BL - DIGITALE MULTIMETER

1. Inleiding

Bemonsteringsfrequentie ±0.4sec.

Display LCD 16mm

F 200mA/250V (quick-acting)
