USER MANUAL 4600 AD SKIL

Technical illustration of a SKIL robotic device with labeled parts (no text or symbols beyond branding)

GB ORIGINAL INSTRUCTIONS 7
F NOTICE ORIGINALE 10
D ORIGINALBETRIEBSANLEITUNG 13
NL ORIGINELE GEBRUIKSAANWIJZING 17
S BRUKSANVISNING I ORIGINAL 20
DK ORIGINAL BRUGSANVISNING 23
N ORIGINAL BRUKSANVISNING 26
FIN ALKUPERÄISET OHJEET 29
E MANUAL ORIGINAL 33
P MANUAL ORIGINAL 36
I ISTRUZIONI ORIGINALI 40
H EREDETI HASZNÁLATI UTASÍTÁS 43
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ 47
TR ORİJINAL İŞLETME TALİMATI 50
PL INSTRUKCJA ORYGINALNA 53
UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 56

GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ 60
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE 64
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 67
SK PÔVODNÝ NÁVOD NA POUŽITIE 71
HR ORIGINALNE UPUTE ZA RAD 75
SRB ORIGINALNO UPUTSTVO ZA RAD 78
SLO IZVIRNA NAVODILA 81
EST ALGUPÄRANE KASUTUSJUHEND 84
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA 87
LT ORIGINALI INSTRUKCIJA 90
МК ИЗВОРНО УПАТСТВО ЗА РАБОТА 94
AL UDHËZIMET ORIGJINALE 97
AR دليل الاستعمال 106
④ RAHENMAI AUSLI 104

www.skil.com

① 4600

②

Icon of a person reading a document inside a circle, with number 3 in the top-left corner (no text or symbols on the icon itself)

Simple geometric diagram with two concentric squares, one circled in black (no text or symbols)

Pure technical line drawing of three mechanical components without any text or symbols

GB

Reciprocating / jig saw 4600

INTRODUCTION

• This tool is intended for cutting of wood, plastic, and metal as well as for pruning and tree trimming; it is suitable for straight and curved cuts
  • This tool is not intended for professional use
• Read and save this instruction manual ③

TECHNICAL DATA①

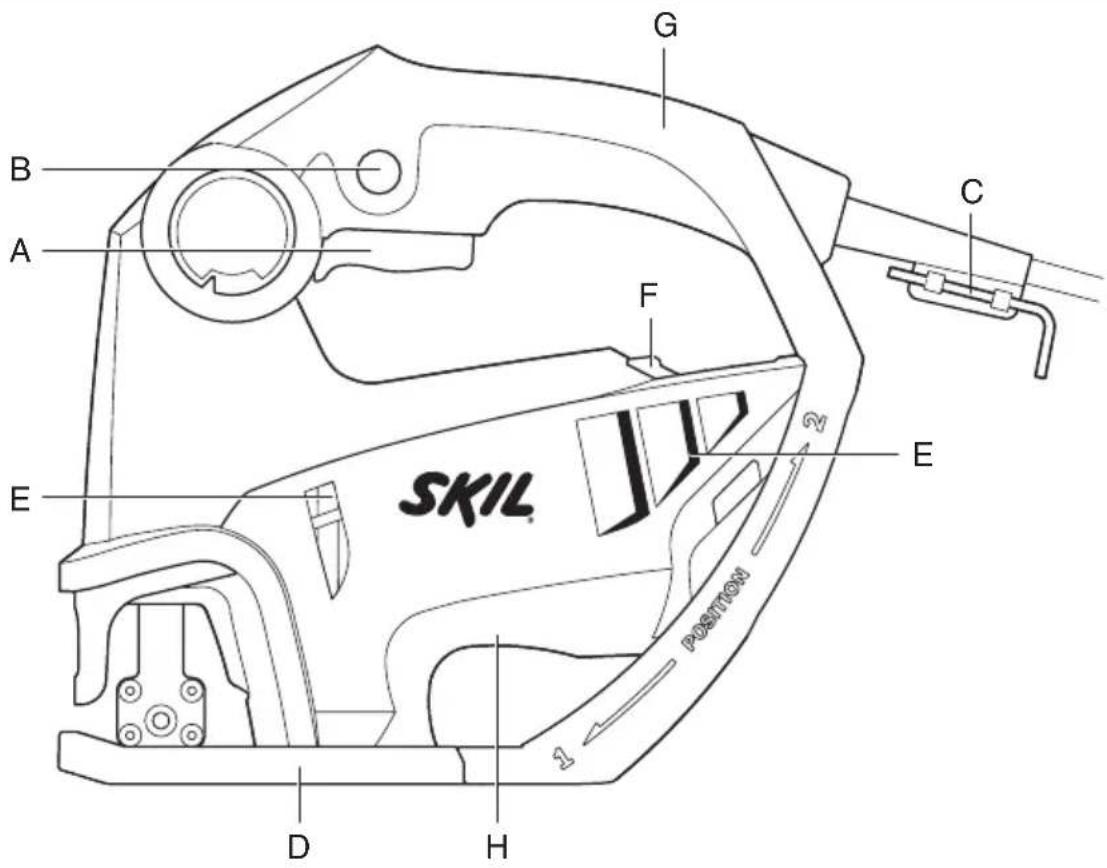

TOOL ELEMENTS ②

A Switch for on/off

B Button for switch locking

C Storage for hex key

D Foot plate

E Ventilation slots

F Knob for adjusting handle

G Handle

H Barrel grip

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY INSTRUCTIONS

GENERAL

• Never use the tool when cord is damaged; have it replaced by a qualified person
• Use completely unrolled and safe extension cords with a capacity of 16 Amps (U.K. 13 Amps)
• This tool should not be used by people under the age of 16 years
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
  • Always disconnect plug from power source before making any adjustment or changing any accessory ACCESSORIES
• SKIL can assure flawless functioning of the tool only when original accessories are used
• Do not use a dull or damaged blade (bent blades can break easily or cause kickback)

BEFORE USE

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool
• Check the functioning of the tool before each use and, in case of a defect, have it repaired immediately by a qualified person; never open the tool yourself
• Remove all obstacles on top of as well as underneath the cutting path before you start cutting

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working

• Use clamps or other equipment to secure and support the workpiece (holding the workpiece in your hand or against your body may lead to loss of control)

• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

DURING USE

• The noise level when working can exceed 85 dB(A); wear ear protection
• Wear protective goggles when working with materials which produce chips
• Always keep the cord away from moving parts of the tool; direct the cord to the rear, away from the tool
• If the cord is damaged or cut through while working, do not touch the cord, but immediately disconnect the plug
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord (a cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

- Keep hands away from cutting area and the blade; keep your second hand at the front ⑪a / on barrel grip H ⑪b (if both hands are holding the saw, they can not be cut by the blade)

• Never hold piece being cut in your hands or across your leg (it is important to support the work properly to minimise body exposure, blade binding, or loss of control)
• Do not reach underneath the workpiece (the proximity of the blade to your hand is hidden from your sight)
• In case of electrical or mechanical malfunction, immediately switch off the tool and disconnect the plug

OUTDOOR USE

- When used outdoors, connect the tool via a fault current (FI) circuit breaker with a triggering current of 30 mA maximum, and only use an extension cord which is intended for outdoor use and equipped with a splashproof coupling-socket

AFTER USE

• Use protective gloves when removing the blade from the tool (the saw blade may be hot after prolonged use)
• When you put away the tool, switch off the motor and ensure that all moving parts have come to a complete standstill

EXPLANATION OF SYMBOLS ON TOOL

③ Read the instruction manual before use
④ Double insulation (no earth wire required)

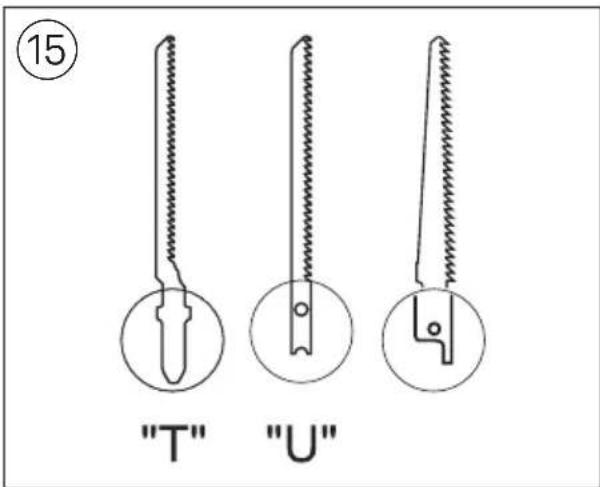

⑤ Tool accepts most commonly available T- and U-shank jig saw blades as well as standard reciprocating saw blades
⑥ Do not dispose of the tool together with household waste material

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this tool, it must be disposed of safely and not left unattended

USE

- On/off ⑦

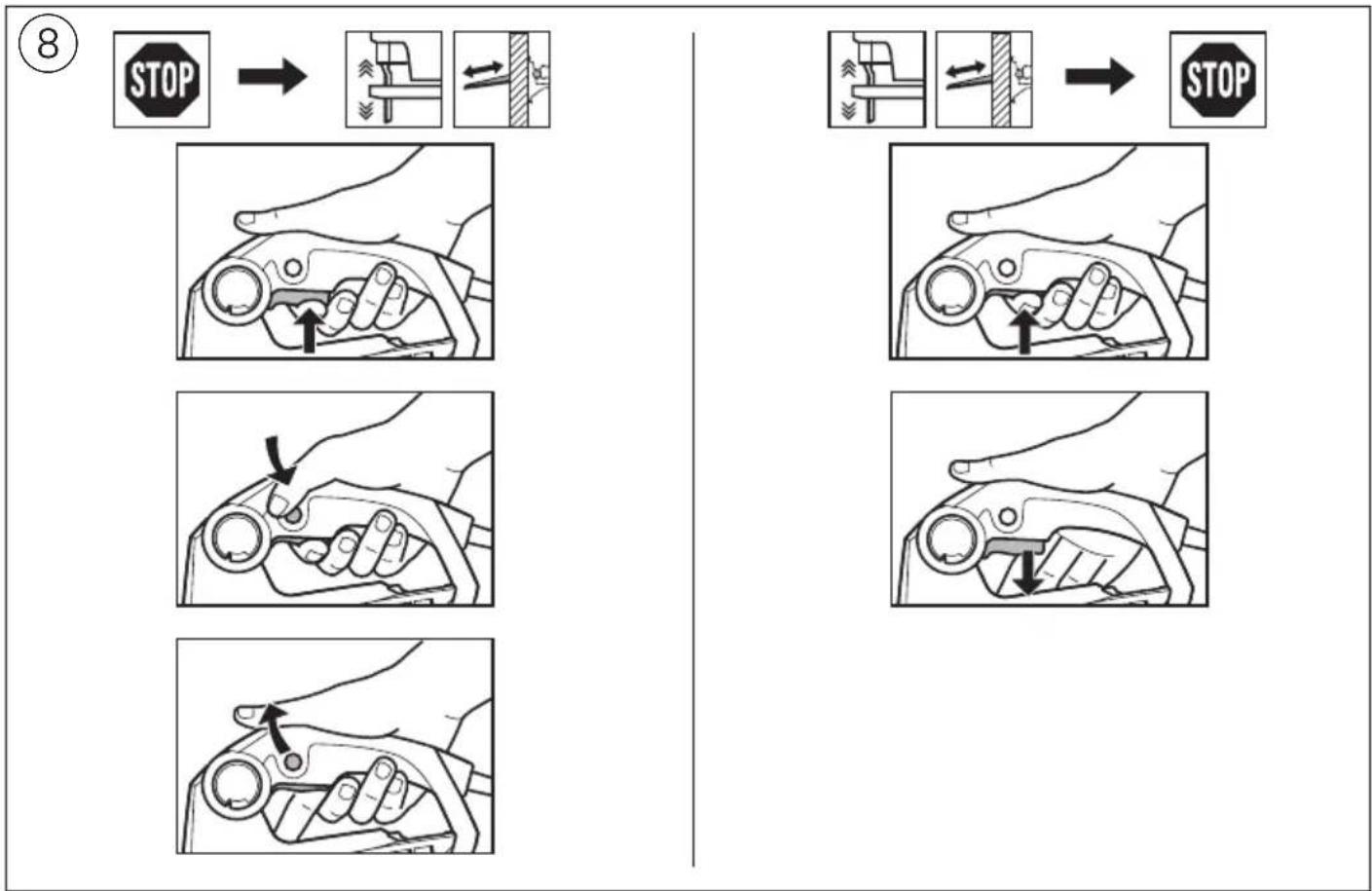

- Switch locking for continuous use ⑧

- Changing saw blades ⑨

!disconnect the plug

- Operating the tool

!securely clamp the workpiece

-hold tool firmly with both hands, so you will have full control of the tool at all times

-before switching on the tool, ensure that front end of footplate rests flat on the workpiece

-switch on the tool

!the tool should run at full speed before the blade enters the workpiece

-keep footplate D② firmly against the workpiece to minimize counter-force and vibration

!ensure that the blade has come to a complete standstill, before you lift the tool from the workpiece

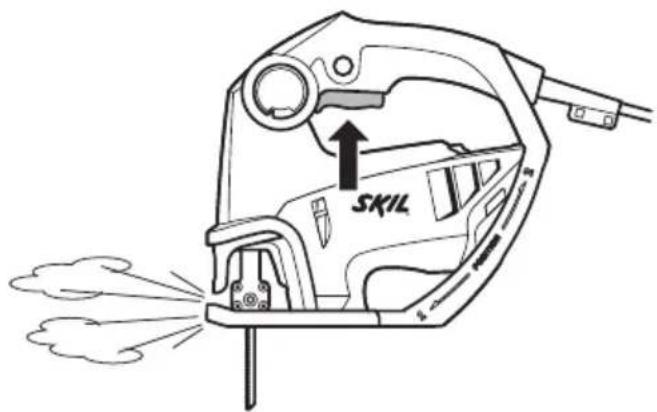

- Dust blowing ⑩

- Holding and guiding the tool

!while working, always hold the tool at the grey-coloured grip area(s) ⑪

-keep ventilation slots E ② uncovered

-do not apply too much pressure on the tool; let the tool do the work for you

• USE OF TOOL AS RECIPROCATING SAW ⑫

-slide knob F forward to unlock handle G

- pull handle G upwards until it snaplocks

- insert blade to full depth with teeth facing backwards

-ensure that the saw blade extends beyond the work throughout the stroke

-do not make plunge cuts

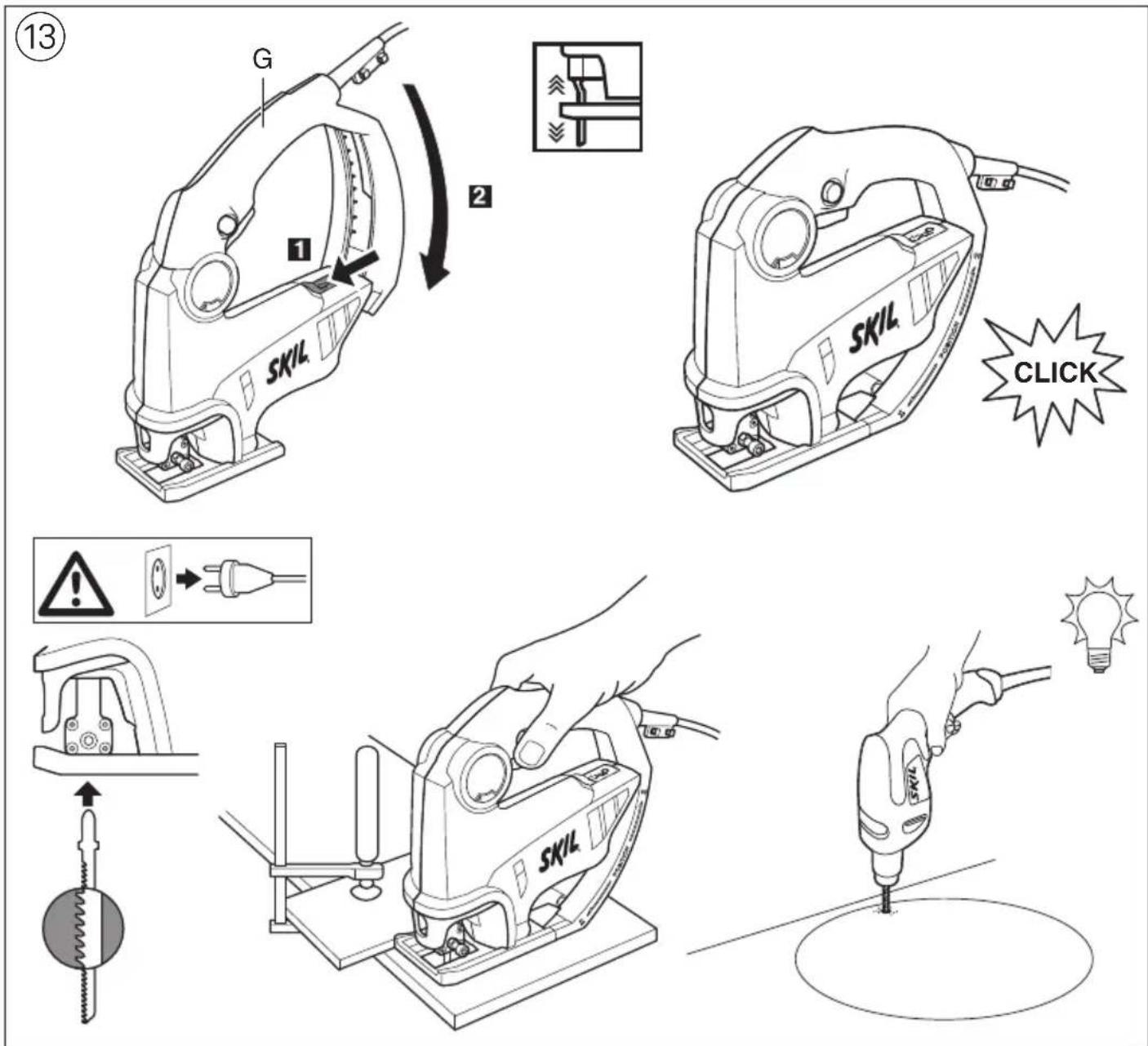

• USE OF TOOL AS JIG SAW ⑬

-slide knob F forward to unlock handle G

- push handle G downwards until it snaplocks

- insert blade to full depth with teeth facing forward -for an accurate straight cut, guide tool with footplate along the edge of a straight piece of wood

-pre-drill a hole before making cut-outs

APPLICATION ADVICE

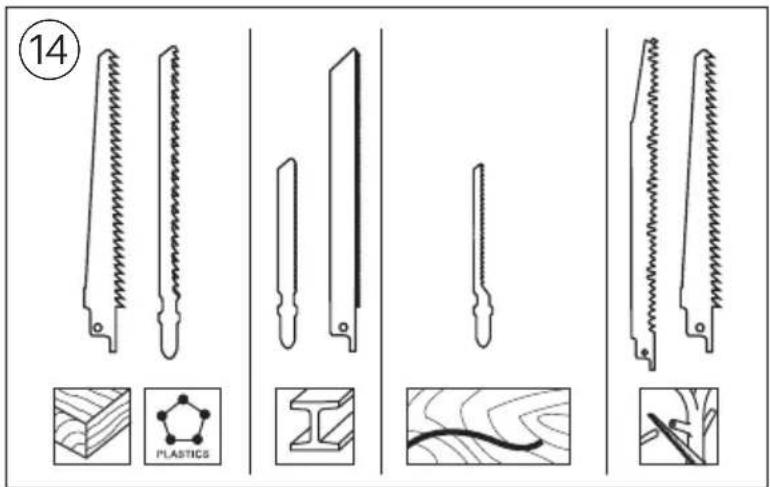

- Use the appropriate saw blades ⑭

!tool accepts most commonly available T- and U-shank jig saw blades as well as standard reciprocating saw blades ⑮

- When cutting metals, lubricate saw blade regularly with oil

- Splinter-free cutting

-cover cutting-line with several layers of wide tape before cutting

-always face the good side of the workpiece down

- For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use

- Always keep tool and cord clean (especially ventilation slots E ②)

!disconnect the plug before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility

-symbol ⑥ will remind you of this when the need for disposing occurs

CE DECLARATION OF CONFORMITY

Reciprocating / jig saw 4600

Technical data ①

- We declare under our sole responsibility that the product described under "Technical data" is in conformity with the following standards or standardization documents: EN 60745, EN 61000, EN 55014, in accordance with the provisions of the directives 2004/108/EC (until 19.04.2016), 2014/30/EU (from 20.04.2016), 2006/42/EC, 2011/65/EU

• Technical file at: SKIL Europe BV (PT-SEU/ENG1), 4825 BD Breda, NL

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

NOISE/VIBRATION

- Measured in accordance with EN 60745 the sound pressure level of this tool is 88 dB(A) and the sound power level 99 dB(A) (standard deviation: 3 dB), and the vibration * (triax vector sum; uncertainty K = 1.5 m/s^2 )

* when cutting chipboard 17.7 m/s ^2

* when cutting wooden beams 12.3 m/s ^2

* when cutting metal 18.8 m/s²

- The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level

-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

!protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

BRUIT/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 29.04.2015

GERÄUSCH/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

GELUID/VIBRATIE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

LJUD/VIBRATION

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 29.04.2015

ST∅J/VIBRATION

1) SIKKERHET PÅ ARBEIDSPLASSEN

a) Hold arbeidsområdet rent og ryddig. Rotete arbeidsområder eller arbeidsområder uten lys kan føre til ulykker.

VEDLIKEHOLD / SERVICE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

ST∅Y/VIBRASJON

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

MELU/TÄRINÄ

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

HLUČNOSTI/VIBRACÍ

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

GÜRÜLTÜ/TİTREŞIM

Operations & Engineering

Olat Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

ZGOMOT/VIBRATII

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

ШУМ/ВИБРАЦИИ

ĎALŠIE BEZPEČNOSTNÉ POKYNY

VŠEOBECNE

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

BUCI/VIBRACIJAMA

• Mjereno prema EN 60745 prag zvučnog tlaka ovog električnog alata iznosi 88 dB(A) a jakost zvuka 99 dB(A) (standardna devijacija: 3 dB), a vibracija * m/s² (vektorski zbroj u tri smjera; nesigurnost K = 1,5 m/s²) * kod rezanja ploča od iverice 17,7 m/s² * kod rezanja drvenih greda 12,3 m/s² * kod rezanja metala 18,8 m/s²
• Razina emitiranja vibracija izmjerena je sukladno normiranom testu danom u EN 60745; ona se može koristiti za usporedbu jedne alatke s drugom, te preliminarnu procjenu izloženosti vibracijama pri uporabi alatke za navedene namjene -uporaba ove alatke za druge namjene ili s drugim ili slabo održavanim nastavcima, može u značajnoj mjeri uvećati razinu izloženosti -vrijeme tokom kojega je alatka isključena, ili je uključena ali se njome ne radi, može značajno umanjiti razinu izloženosti !zaštitite se od posljedica vibracija održavanjem alatke i njezinih nastavaka, održavanjem Vaših ruku toplima, te organiziranjem Vaših obrazaca rada

SRB

Povratna / ubodna testera 4600 UPUTSTVO

• Ovaj alat je namenjen za sečenje drveta, plastike, i metala kao i za rezanje i potkresivanje drveta; pogodan je za pravolinijsko i krivolinijsko sečenje
• Ovaj alat nije namenjen za profesionalnu upotrebu
• Pažljivo pročitajte i sačuvajte ova uputstva za rukovanje ③

TEHNIČKI PODACI ①

ELEMENTI ALATA②

A On/off prekidač
B Dugme za učvršćivanje prekidača
C Skladište za heksagonalni ključ
D Podnožni oslonac
E Prorezi za hlađenje
F Dugme za podešavanje ručice
G Ručica
H Držač

SIGURNOST

OPŠTA UPUTSTVA O SIGURNOSTI

PAŽNJA! Čitajte sva upozorenja i uputstva. Propusti kod pridržavanja upozorenja i uputstava mogu imati za posledicu električni udar, požar i/ili teške povrede. Čuvajte sva upozorenja i uputstva za budućnost. Pojam upotrebljen u upozorenjima "električni alat" odnosi se na električne alate sa radom na mreži (sa mrežnim kablom) i na električne alate sa radom na akumulator (bez mrežnog kabla).

1) SIGURNOST NA RADNOM MESTU
a) Držite Vaše područje rada čisto i pospremljeno. Nered ili neosvetljena radna područja mogu voditi nesrećama.
b) Ne radite sa aparatom u okolini ugroženoj od eksplozija u kojoj se nalaze zapaljive tečnosti, gasovi ili prašine. Električni alati proizvode varnice, koje mogu zapaliti prašinu ili isparenja.
c) Za vreme korišćenja električnog alata držite podalje decu i druge osobe. Kod skretanja možete izgubiti kontrolu nad aparatom.

2) ELEKTRIČNA SIGURNOST

a) Utikač za priključak aparata mora odgovarati utičnoj kutijici. Utikač se nesme nikako menjati. Ne upotrebljavajte adaptere utikača zajedno sa aparatima sa uzemljenom zaštitom. Ne promenjeni utikači i odgovarajuće utičnice smanjuju rizik od električnog udara.

b) Izbegavajte telesni kontakt sa uzemljenim gornjim površinama, kao što su cevi, grejanja, šporeti i rashladni ormani. Postoji povećani rizik od električnog udara, ako je Vaše telo uzemljeno.

DODATNA UPUTSTVA O SIGURNOSTI

OPŠTA

• Nikada nemojte da koristite alat ako je kabl oštećen; zamenu kabla mora da obavi stručno lice
• Produžni kabl koji koristite mora da bude sasvim odmotan i siguran, sa kapacitetom od 16 A
• Ovaj alat ne treba da koriste osobe ispod 16 godina
• Ne obradjujte nikakav materijal koji sadrži azbest (azbest važi kao izazivać raka)
• Prašina od materijala, kao što su boja koja sadrži olovo, neke vrste drveta, minerali i metal, može biti opasna (dodir ili udisanje prašine može prouzrokovati alergijske reakcije i/ili respiratorna oboljenja rukovaoca i lica u blizini); nosite masku protiv prašine i radite uz uključeni uređaj za ekstrakciju prašine kada radite na mestima gde ju je moguće priključiti
• Određene vrste prašine su klasifikovane kao kancerogene (kao što su prašina hrastovine i bukovine), posebno u sadejstvu sa aditivima za pripremu drveta; nosite masku protiv prašine i radite uz uključeni uređaj za ekstrakciju prašine kada radite na mestima gde ju je moguće priključiti
• Prati nacionalne propise vezane za prašinu koja se proizvodi prilikom rada na obrađivanim materijalima
• Obavezno iskopčajte alat iz električne utičnice pre nego što izvršite bilo kakva podešavanja ili zamenu pribora

PRIBOR

• UPORABA ÓROĐJA KOT VBODNO ŽAGO ⑬

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 29.04.2015

HRUP/VIBRACIJA

ÜLDISED OHUTUSJUHISED

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

PRIETAISO ELEMENTAI②

A ljungimo ir išjungimo jungiklis
B Jungiklio fiksatorius
C Déklas veržliarakčiui
D Atrama
E Ventiliacinés angos
F Rankenai reguliatoriaus rankena
G Rankena
H Veleno griebtukas

SAUGA

BENDROSIOS DARBO SAUGOS INSTRUKCIJOS

Operations & Engineering

Olat Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL

29.04.2015

БУЧАВА/ВИБРАЦИИ

Operations & Engineering

Olaf Dijkgraaf

Approvals Manager

SKIL Europe BV, 4825 BD Breda, NL 29.04.2015

ZHURMA/VIBRIMI

Simple line drawing of a pencil (no text or symbols)

WWW.SKIL.COM

اللمحقات

1.

4600

Icon showing a person reading a document inside a circle with a musical note symbol (no text or symbols present)

Simple geometric diagram with two concentric squares and a circled symbol (no text or labels)

Pure technical line drawings of three mechanical components without any text or symbols

ترددي / منشار قطع

4600

SKIL®

Technical illustration of a SKIL electric shock absorber device (no text or symbols on the device itself)

دليل الاستعمال

AR

راهنماي اصلی

FA
