NESPRESSO M150 - Coffee machine MAGIMIX - Free user manual and instructions

Brand	MAGIMIX
Model	NESPRESSO M150
Product type	Nespresso coffee machine
Power supply	220-240 V ~ 50 Hz
Water tank capacity	1.2 L
Extraction system	High pressure (Nespresso type)
Coffee type	Nespresso capsules
Main functions	Espresso, hot water, steam for cappuccino
Cup warming plate	Yes
Steam/hot water nozzle	Swiveling with integrated frothing aid accessory
Indicator lights	Function (red) and temperature (yellow)
Safety	Earthing required, do not immerse, do not use if damaged
Routine maintenance	Cleaning of drip tray, grid, capsule holder
Deep cleaning	Disassembly and cleaning of capsule cage (hex key included)
Descaling	Recommended regularly, use specific Nespresso product
Included accessories	Hex key, cleaning tool, 2 Nespresso cups, 4 coffee varieties (40 capsules)
Intended use	Preparation of Nespresso coffee, cappuccino, hot water for tea or broth
Maximum capacity of steam nozzle	0.5 L (container) for milk froth

Frequently Asked Questions - NESPRESSO M150 MAGIMIX

How to prepare a Nespresso coffee with the M150 machine?

Fill the water tank with fresh water, place a capsule in the capsule holder, tighten the ring, place a cup under the outlet, then turn the function selector to the coffee position (right position). Stop by returning the selector to 0.

How to get hot water?

Make sure the function selector is at 0, turn on the machine, set the steam/hot water selector to steam position, then turn the function selector to the left (hot water position). Once the desired volume is reached, return the selector to 0.

How to froth milk for a cappuccino?

Pour about 1 dl of cold whole milk into a tall container. First prepare a coffee in a large cup. Use the steam nozzle: set the steam/hot water selector to steam position, immerse the nozzle in the milk and turn the function selector to the left. Keep the nozzle under the surface until foam is obtained.

Why is the coffee not flowing?

Check that the capsule holder is properly in place and tightened. Make sure the water tank is filled and correctly inserted. If the problem persists, clean the capsule cage (see manual) or perform descaling.

How to clean the capsule cage?

Unplug the machine, remove the tank, drip tray and capsule holder. Turn the machine over, use the hex key to unscrew the capsule cage. Rinse it under running water, clean the openings with the provided cleaning tool, then blow into the cage. Reassemble and tighten with the key.

How to descale the machine?

Use a specific Nespresso descaling product. Never use vinegar. Follow the product instructions. Descaling is recommended regularly depending on water hardness.

Why is the pump making a loud noise?

Check that the water tank contains enough water and is properly engaged. An abnormal noise may indicate a lack of water or incorrect positioning of the tank.

How to preheat cups?

Place the cups on the cup warming plate located on top of the machine. You can also use the hot water function to rinse them with very hot water before use.

What to do if the milk is not frothy enough?

Clean the steam nozzle and the frothing aid accessory. Use exclusively cold whole milk. Make sure the nozzle is well immersed during operation.

What accessories are included with the machine?

The machine comes with a hex key for disassembling the capsule cage, a cleaning tool, 2 Nespresso cups and 4 coffee varieties (40 capsules).

USER MANUAL NESPRESSO M150 MAGIMIX

a : Removable water tank
b: Cup heating plate
c : Function knob
d:On/Off switch
e : Function control light (red)
f : Steam / hot water switch
g : Temperature control light (yellow)
h : Pivotal steam / hot water nozzle with integrated frothing attachment

i : Capsule holder
i : Spout ring
k : Grill
I : Drip tray
m : Hexagonal key (for removal of the capsule cage)
n : Cleaning tool

NL

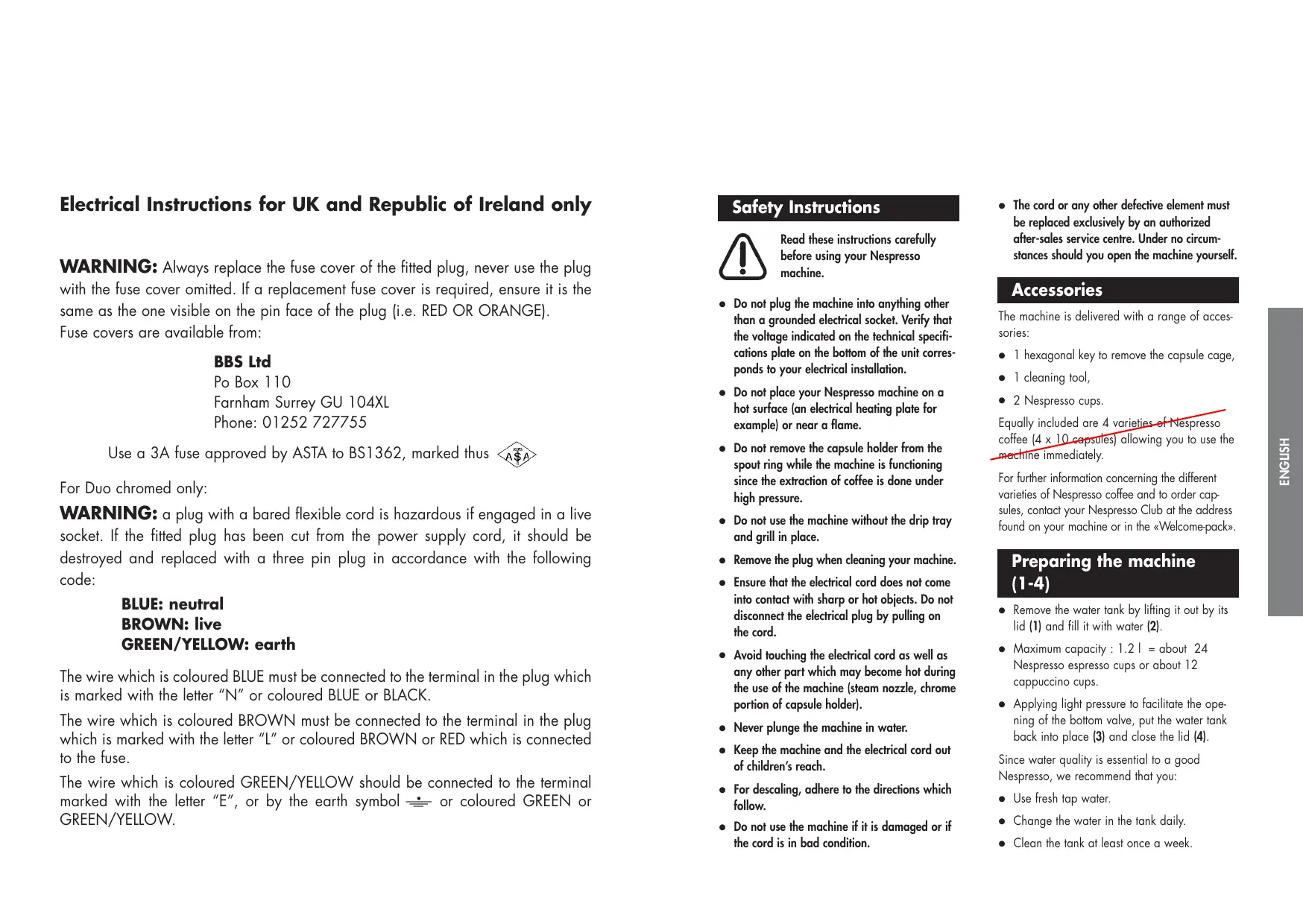

Electrical Instructions for UK and Republic of Ireland only

WARNING: Always replace the fuse cover of the fitted plug, never use the plug with the fuse cover omitted. If a replacement fuse cover is required, ensure it is the same as the one visible on the pin face of the plug (i.e. RED OR ORANGE). Fuse covers are available from:

BBS Ltd

Po Box 110

Farnham Surrey GU 104XL

Phone: [phone]

Use a 3A fuse approved by ASTA to BS1362, marked thus

For Duo chromed only:

WARNING: a plug with a bared flexible cord is hazardous if engaged in a live socket. If the fitted plug has been cut from the power supply cord, it should be destroyed and replaced with a three pin plug in accordance with the following code:

BLUE: neutral

BROWN: live

GREEN/YELLOW: earth

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter "N" or coloured BLUE or BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter "L" or coloured BROWN or RED which is connected to the fuse.

The wire which is coloured GREEN/YELLOW should be connected to the terminal marked with the letter "E", or by the earth symbol or coloured GREEN or GREEN/YELLOW.

Safety Instructions

Read these instructions carefully before using your Nespresso machine.

• Do not plug the machine into anything other than a grounded electrical socket. Verify that the voltage indicated on the technical specifications plate on the bottom of the unit corresponds to your electrical installation.
• Do not place your Nespresso machine on a hot surface (an electrical heating plate for example) or near a flame.
• Do not remove the capsule holder from the spout ring while the machine is functioning since the extraction of coffee is done under high pressure.
• Do not use the machine without the drip tray and grill in place.
• Remove the plug when cleaning your machine.
• Ensure that the electrical cord does not come into contact with sharp or hot objects. Do not disconnect the electrical plug by pulling on the cord.
• Avoid touching the electrical cord as well as any other part which may become hot during the use of the machine (steam nozzle, chrome portion of capsule holder).
• Never plunge the machine in water.
• Keep the machine and the electrical cord out of children's reach.
• For descending, adhere to the directions which follow.

• Do not use the machine if it is damaged or if the cord is in bad condition.

• The cord or any other defective element must be replaced exclusively by an authorized after-sales service centre. Under no circumstances should you open the machine yourself.

Accessories

The machine is delivered with a range of accessories:

• 1 hexagonal key to remove the capsule cage,
• 1 cleaning tool,
• 2 Nespresso cups.

Equally included are 4 varieties of Nespresso coffee (4 x 10 capsules) allowing you to use the machine immediately.

For further information concerning the different varieties of Nespresso coffee and to order capsules, contact your Nespresso Club at the address found on your machine or in the «Welcome-pack».

Preparing the machine (1-4)

• Remove the water tank by lifting it out by its lid (1) and fill it with water (2).
  Maximum capacity: 1.2l = about 24 Nespresso espresso cups or about 12 cappuccino cups.
• Applying light pressure to facilitate the opening of the bottom valve, put the water tank back into place (3) and close the lid (4).

Since water quality is essential to a good Nespresso, we recommend that you:

Use fresh tap water.
- Change the water in the tank daily.
- Clean the tank at least once a week.

We advise you not to use distilled or mineral water.

Start Up (5-9)

When starting up your machine for the first time, it is advisable to first rinse the water circuit :

• Plug in the machine.
• Fill the water tank (1-4).
• Insert the empty capsule holder in the spout ring by turning it from left to right. It is not necessary to tighten with great force to obtain a perfect seal (5).
• Place a sufficiently large container under the capsule holder and a second one under the steam / hot water nozzle (6). The function knob should be on the «O» position.
• Turn on your machine by pressing the On/Off Switch to 7. The steam / hot water switch should be on the position. Both the red function control light and the yellow temperature control light will go on 7.
• Once the yellow temperature control light goes off, your machine is warmed up and ready for use.
• Turn the function knob to the position on the right and let approximately half of the water in the tank run through (8). Return the function knob to the «O» position.
• Turn the function knob to the position on the left and let the rest of the water in the tank run through to rinse the steam / hot water circuit (9). Return the function knob to the «O» position.

Preparing a Nespresso (10-14)

To obtain optimal coffee quality, preheat the machine daily with the empty capsule holder and rinse the system before making the first and after the last Nespresso of the day. Do this by turning the function knob to the position on the right for about 5 seconds.

• Fill the water tank with fresh water (1-4).
• Insert the capsule holder in the spout ring in order to preheat it (5).
• Verify that the function knob is on the «O» position (10).
• Turn on your machine by pressing the On/Off Switch to 1 (10). Both the red light and the yellow control light will go on.
• Once the yellow temperature control light goes off, your machine is warmed up and ready for use.
• Remove the capsule holder from the spout ring and insert a capsule with the largest part towards the base (11). 1 capsule = 1 cup of Nespresso.
• Reinsert the capsule holder in the spout ring by turning it from left to right without tightening with great force (12).
• Place a preheated cup under the capsule holder (see the section on "Preheating Cups").
• Turn the function knob to the position on the right (13).

• Once your Nespresso is prepared, return the function knob to the «O» position. Remove the capsule holder from the spout ring and discard the used capsule (14).

• To ensure that your next Nespresso will be prepared at optimal temperature, reinsert the capsule holder in the spout ring and turn it from left to right.

Preparing Hot Water (15)

This machine equally allows you to prepare hot water for tea or soup.

• Fill the water tank with fresh water (1-4).
• Verify that the function knob is on the «O» position (10).
• Turn on your machine by pressing the On/Off Switch to 1 (7).
• Once the yellow temperature control light goes off, your machine is warmed up and ready for use.
• Press the steam / hot water switch to the position (7).
• Plunge the steam nozzle into a receptacle and turn the function knob to the position on the left (15).
• Once the desired quantity of water is obtained, return the function knob to the «O» position.
• Remove the receptacle and pivot the steam / hot water nozzle over the drip tray.

Warning! The steam / hot water nozzle can become burning hot.

Using the steam nozzle

The steam nozzle is useful in making frothed milk for a cappuccino, or for heating a liquid. The water pump then works in an intermittent cycle.

Important! Before making steam, verify that the capsule holder inserted in the spout ring is empty in order to avoid that coffee becomes encrusted and blocks the coffee spout opening.

Making milk froth for a cappuccino (16-17)

Your machine is equipped with an integrated frothing attachment specially designed to froth milk with optimal results when making a cappuccino. To do this:

• Pour approximately 1 dl of cold whole milk into a sufficiently high pot (of not more than 0.5 l maximum capacity) that can be inserted under the steam / hot water nozzle.
• First prepare a Nespresso in a cappuccino cup filling it only one-third full.
• Remove the capsule holder from the spout ring, discard the used capsule and reinsert the empty capsule holder in the spout ring.
• Press the steam / hot water switch to the position (16). Once the yellow temperature control light goes off, the machine is ready for use.
• Plunge the steam nozzle into the receptacle and turn the function knob to the position on the left (17). The yellow temperature control light will go on.
• Maintain the end of the nozzle under the surface of the milk during the entire procedure ensuring that it does not touch the base of the receptacle.
• Stop the steam by turning the function knob to the «O» position. The yellow temperature control light will go off.

• Remove the receptacle and pivot the steam nozzle over the drip tray.

• Turn the function knob again to the position on the left for just a second in order to eliminate any residual milk that otherwise can block the steam nozzle.

• Wipe the integrated frothing attachment with a clean damp cloth.

Important: To extract a Nespresso after having used the steam, let the machine cool down. To do this, insert the empty capsule holder into the spout ring, place a receptacle under the coffee spout and run the equivalent of one or two large cups of water by turning the function knob to the position on the right. Return the function knob to the «0» position. Once the yellow temperature control light goes off, the machine is ready for use.

Heating liquids (18)

You can also heat liquids thanks to the steam / hot water nozzle on this machine.

• Verify that the function knob is on the «O» position.
• Turn on your machine by pressing the On/Off Switch to I.
• Press the steam / hot water switch to the position. Once the yellow temperature control light goes off, the machine is ready for use.
• Slide the tube of the frothing attachment up 3 - 5mm
• Plunge the steam nozzle into the receptacle containing the liquid to be heated and turn the function knob to the position on the left (18). The yellow temperature control light will go on.

• Maintain the end of the nozzle under the surface of the liquid during the entire procedure ensuring that it does not touch the base of the receptacle.

• Stop the steam by turning the function knob to the «O» position. The yellow temperature control light will go off.

• Remove the receptacle and pivot the steam nozzle over the drip tray.
• Wipe the steam / hot water nozzle with a clean damp cloth immediately after its use.

Important: To extract a Nespresso after having used the steam, let the machine cool down. To do this, insert the empty capsule holder in the spout ring, place a receptacle under the coffee spout and run the equivalent of one or two large cups of water by turning the function knob to the position on the right.. Return the function knob to the «0» position. Once the yellow temperature control light goes off, the machine is ready for use.

Preheating Cups

It is highly recommended that you preheat the cups with very hot water before making the first Nespresso of the day. Subsequent cups can be preheated by stocking them on the cup heating plate.

• To preheat cups with the steam / hot water nozzle, follow the instructions given under the section on: "Preparing Hot Water".

Cleaning (19-21)

• After the extraction of each Nespresso or the use of the steam / hot water nozzle, residual water in the thermoblock is discharged into the drip tray provoking a light hissing noise. It is therefore necessary to remove the grill and empty the drip tray (19) after about 20 coffees and, at same time, to clean them with a non-abrasive, dish washing liquid.

• Before reinserting the drip tray and grill, ensure that the back cover of the drip tray is properly in place (20).

• The capsule holder must be rinsed frequently. Either run hot tap water through it or simply insert the empty capsule holder in the spout ring and let water run through it while slightly loosening and re-tightening the capsuleholder to vary the pressure flow. Cleaning the capsule holder in the dishwasher is not recommended.
• For optimal cleaning of your capsule holder, a specially conceived cleaning product is also available from your Nespresso Club.
• Clean the steam / hot water nozzle with a clean, damp cloth after each use. If the nozzle is blocked, unscrew it with the aid of a coin and remove the residue causing the blockage with a needle. Take this occasion to remove the integrated frothing attachment from the bottom part of the steam nozzle by unscrewing it with the help of a coin if necessary. Rinse all of the parts in hot water.
• When reconnecting the nozzle, ensure that the O-ring joints are put back properly into place (21)!

Cleaning the Capsule Cage (22-30)

The capsule cage is screwed into the bottom part of the thermoblock inside the spout ring. In order to clean it, follow the instructions below.

• Turn off the machine and remove the water tank, the drip tray and the capsule holder (22).
• Let the machine cool down.

• Turn the machine upside down (23).

• Put the hexagonal key on the capsule holder (24) and unscrew the capsule cage by turning the handle counterclockwise (25).

• Finish unscrewing the capsule cage by hand (26).
• Rinse the capsule cage under running water. With the cleaning tool delivered with the machine, clean the two holes on either side of the water spout (27) as well as the water entry point of the capsule cage using the spiral end of the cleaning tool (27).

Warning! Use the cleaning tool with care since improper handling can cause injury.

• Blow through the capsule cage in the direction of the arrow (28) in order to remove any deposits.
• Clean the two holes of the water spout with the cleaning tool a second time and blow through the capsule cage once again.
• Coat the threads of the capsule cage with lubricant and ensure that the O-ring joint is put back properly into place (29).
• Manually screw the capsule cage back into the spout ring with the help of the hexagonal key (30). No not use the capsule holder to handle this procedure!

Dscaling

• For the perfect functioning of your machine and to maintain the optimum quality of your Nespresso, we recommend that you descale your machine regularly depending on the water hardness of your region.

• For further information, contact your Nespresso Club who has products specially conceived for this purpose available to you.

• The machine is delivered with a hexagonal key and cleaning tool that will be useful to you in descending your machine.

Warning! Never use vinegar which can damage the joints of the machine.

Solutions to Occasional Problems

Problem:

Your Nespresso is not hot enough.

Solution :

See the section on "Preheating Cups".
- Preheat the capsule holder by inserting it empty into the spout ring and running hot water through it (8).

Problem:

The pump makes a loud noise.

Solution :

• Ensure that there is water in the water tank.
• Verify that the water tank is properly in place.

Problem:

The milk for a cappuccino is not frothy enough.

Solution :

• Clean the steam nozzle and the integrated frothing attachment.
• Only use cold, whole milk.

Problem:

Coffee does not flow out.

Solution :

• Ensure that the capsule holder is properly in place in the spout ring (12).

• Ensure that the water tank is properly in place and filled (4).

• Verify that the capsule cage is not blocked. To do this, remove the capsule holder from the spout ring, place a receptacle under the coffee spout and turn the function knob to the position on the right. If water does not flow freely (with two clearly visible water jets), clean and unblock the capsule cage (see the section on "Cleaning the Capsule Cage").

• Descale your machine (see the section on "Dscaling").

Problem:

Coffee runs down the sides of the capsule holder.

Solution :

• Ensure that the capsule holder is properly in place in the spout ring (12).
• Clean the capsule holder preferably with the product specially conceived for this purpose (see the section on "Cleaning").

For more detailed information, contact your Nespresso Club.

Environment

Our packaging is made exclusively of recyclable materials. Check with your local authorities on how best to dispose of old machines.
