| Product Type | Portable Pico Projector |
| Model | Philips PicoPix PPX4835 |
| Display Technology | DLP |
| Light Source | LED (up to 20,000 hours lifetime) |
| Native Resolution | WVGA (854 x 480 pixels) |
| Brightness | 200 ANSI lumens (typical) |
| Contrast Ratio | 1000:1 (typical) |
| Image Size | 10 to 100 inches diagonal |
| Projection Distance | 0.3 to 3 meters |
| Aspect Ratio | 16:9 |
| Focus Type | Manual |
| Keystone Correction | Automatic (vertical) |
| Inputs | HDMI (MHL), USB (media playback), MicroSD slot |
| Audio Output | Built-in mono speaker (1W) |
| Power Source | Internal rechargeable battery (Li-ion, 5000 mAh) |
| Battery Life | Up to 2 hours (on battery) |
| Power Consumption | 28W (typical), <1W standby |
| Dimensions (W x D x H) | 114 x 114 x 30 mm (4.5 x 4.5 x 1.2 in) |
| Weight | 0.25 kg (0.55 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 50°C (14°F to 122°F) |
| Maintenance | Clean the lens with a soft, dry cloth; do not use solvents |
| Safety | Do not look directly into the lens; avoid water ingress |
| Spare Parts & Reparability | Contact Philips authorized service centers; battery not user-replaceable |
| Package Contents | Projector, remote control, power adapter, USB cable, quick start guide |
Frequently Asked Questions - PicoPix PPX4835 PHILIPS
User questions about PicoPix PPX4835 PHILIPS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Projector in PDF format for free! Find your manual PicoPix PPX4835 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PicoPix PPX4835 by PHILIPS.
USER MANUAL PicoPix PPX4835 PHILIPS
User Manual
Table of Contents
Dear Customer 3
About This User Manual 3
What's in the Box 3
1 General Safety Information...... 4
Setting Up the Device 4
Power Supply 4
Repairs 5
2 Overview......6
Top of the Device 6
Side View 6
Bottom of the Device 7
Overview of the Menu Functions 7
3 Initial Operation 8
Setting up the device 8
Connect power supply / charge battery ..... 8
Navigation for settings menu 8
Initial installation 8
4 Connecting other devices.... 10
Connecting to devices with HDMI output (HDMI function) 10
Connecting to devices via USB cable (Power bank function) 10
Connecting the headphones 10
5 Functions 11
Flashlight 11
SOS light 11
Warning light 11
6 Maintenance 12
Battery maintenance 12
Cleaning 12
Device overheated 12
Firmware update with USB stick 13
Troubleshooting 14
7 Appendix.... 16
Technical data 16
Accessories 16
Dear customer
Thank you for purchasing our Pico Projector.
We hope you enjoy your device and its many functions!
About this user manual
With the installation guide on the following pages, you can start using your device quickly and easily.
Read the entire user manual carefully. Follow all safety instructions in order to ensure proper operation of your device. The manufacturer accepts no liability if these instructions are not followed.
What's in the box
① - PicoPix Projector ② – Power supply with plug ③ - HDMI cable 4 – Quick Start Guide ⑤ - Carrying Pouch
1
2
3
4
5
1 General safety information
Do not make any changes or settings that are not described in this user manual. Physical injury or damage to the device or loss of data can result from improper handling. Take note of all warning and safety notes indicated.
Setting up the device
The device is exclusively for indoor use. The device should be placed securely on a stable, flat surface. Position all cables in such a way that no one will stumble on them, thus avoiding possible injuries to persons or damage to the device itself.
Do not plug in the device in moist rooms. Never touch the cable of the main connection with wet hands. The device must have sufficient ventilation and may not be covered. Do not put your device in closed cabinets or boxes.
Do not place the machine on soft surfaces such as tablecloths or carpets and do not cover the ventilation slits as otherwise the device could overheat or catch fire.
Protect the device against direct sunlight, heat, large temperature fluctuations and moisture. Do not place the device in the vicinity of heaters or air conditioners. Observe the information on temperature and humidity in the technical data.
When the device is running for a long period of time, a warning symbol will appear on the projection to warn before overheating. The device switches automatically to stand-by mode when it gets too hot. After the device has cooled down, you can continue playback by pressing any key.
Do not allow liquids to enter into the device. Switch off the device and disconnect it from the mains supply if liquids or foreign substances end up inside the device. Have the unit inspected by a technical service department.
Always handle the unit with care. Avoid touching the lens. Never place heavy or sharp objects on the projector or the power cable.
If the projector gets too hot or emits smoke, shut it down immediately and unplug the power cable. Have your device examined by trained professionals at a technical service location. To prevent the spread of fire, open flames should be kept away from the device.
Under the following conditions, a layer of moisture can appear inside the device which can lead to malfunctions:
- if the device is moved from a cold to a warm area; • after a cold room is heated;
- when this device is placed in a damp room.
Proceed as follows to avoid any moisture build-up:
1 Seal this device in a plastic bag before moving it to another room, in order for it to adapt to room conditions. 2 Wait one to two hours before you take the device out of the plastic bag.
The device should not be used in a very dusty environment. Dust particles and other foreign objects may damage the unit.
Do not expose the device to extreme vibrations. It may damage the internal components.
Do not allow children to handle the device without supervision. The packing materials should be kept out of the hands of children.
Power supply
Use only the enclosed power adapter (see chapter Appendix / Technical Data). Check whether the mains voltage of the power supply matches the mains voltage available at the setup location. This equipment complies with the voltage type specified on the unit.
The capacity of the battery diminishes with time. If the device functions only with the power supply, the battery is defective. Contact an authorised service centre to replace the battery.
Do not try to replace the battery yourself. Incorrect handling of the battery or using the wrong type of battery can cause damage to the device or cause injury.
Switch the device off using the power switch before removing the power supply from the socket.
DANGER!
Risk of explosion with incorrect type of batteries!
Do not try to replace the battery yourself.
There is a risk of explosion if the incorrect battery type is used.
Turn off the device and remove it from the power supply before cleaning the surface. Use a soft, lint-free cloth. Never use liquid, gaseous or easily flammable cleansers (sprays, abrasives, polishes, alcohol). Do not allow any moisture to reach the interior of the device.
DANGER!
High Power LED!
This device is equipped with a high power LED (Light Emitting Diode), which emits very bright light. Do not look directly into the projector lens. This could cause eye irritation or damage.
DANGER!
Danger of hearing damage!
Do not use the device over a longer time at high volume – especially when using headphones. This could lead to the risks of hearing damage.
Repairs
Do not repair the device yourself. Improper maintenance can result in injuries or damage to the device. Your device must be repaired by an authorised service centre.
Do not remove the type label from your device; this would void the warranty.
2 Overview
Top of the device
① - Key
- Go one level back in menu and one level back in directory, cancel a function.
② - OK key
OK - Confirm entry / start.
③ – Navigation keys
▲/▼ – Navigate in menu/call up quick setting bar.
◀/▶ – Navigate in menu / Decrease and increase.
Side view
① – Focus wheel to adjust image sharpness
CAUTION!
The distance to the projection surface must be a minimum of 0.5 meters and a maximum of 5 meters. If the Pocket Projector is located outside of this range, it will not be possible to focus the image. Turn the focus wheel carefully to avoid any damage.
② - DC IN for power supply
③ - HDMI input
4 – USB output for power bank function and firmware update
⑤ - Ⓞ - Audio output
6 - ⏻ - Power button

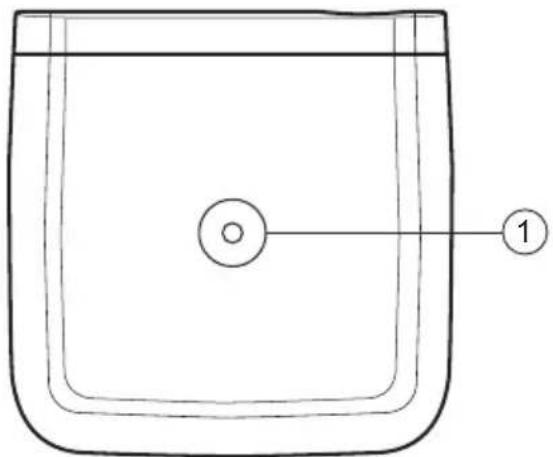

Bottom of the device
① - Tripod socket
Overview of the menu functions
1 After switching on your projector, press the Ⓞ button to enter settings menu. 2 Select the desired option using the navigation keys ▲/▼. 3 Confirm with Ⓞ button to enter the corresponding submenu. 4 Press the button to go one level back.
3 Initial operation
Setting up the device
Place the projector on a flat surface in front of the projection surface. In case you need to tilt the device slightly upwards (e.g.: when using a tripod) you can correct the distortion by using the built-in keystone correction.
Connect power supply / charge battery
Power is supplied through the power supply (included), one end is connected to the power jack on the rear side of the device, the other end to the AC100~240V wall outlet.
Navigation for settings menu
Navigation can be done by navigation keys
(▲/▼/◄/►/ok and ↻).
Navigation keys:
▲/▼ – Scroll through the settings menu.
OK - Go one level down.
In the final level, OK accepts a setting and automatically returns to the last submenu.
- Go one level up.
The ⬇ key aborts a setting and automatically returns to the last submenu (or exits the menu depending on the menu-level).
Initial installation
1. Push the POWER ⏻ button for 3 seconds until the power indicator turns green to turn the device on. 2. Turn the device towards a suitable projection surface or wall. Note that the distance to the projection surface must be a minimum of 0.5 meters and a maximum of 5 meters. Make sure the projector is in a secure position. 3. Use the focus wheel on the right side to adjust the image sharpness. 4. The first time you turn on the device, you should finish the main settings.
Setup language
In order to change the menu language, proceed as follows:
1. When the device is turned on, press the OK button to enter the menu Settings.
2. Select Language with ▲/▼ buttons. 3. Confirm with OK. 4. Select your desired language with ▲/▼ buttons. 5. Confirm with OK. 6. Press to return to the menu one level up.
Image settings
Keystone
Use ◀/▶ buttons to correct a distorted image.
Projection mode
Front: Normal projection; the device is located in front of the projection surface/screen.
Rear: Rear projection; the device is located behind the projection surface, the image is horizontally mirrored.
Ceiling: The device is hanging from the ceiling in an upside down position; the image is rotated by 180 degrees.
Rear ceiling: The device is hanging from the ceiling in an upside down position behind the projection surface, the image is rotated by 180 degrees and horizontally mirrored.
Wall colour correction
Colour correction of the projected image to adjust to coloured projection surfaces.
Smart settings
Select predefined settings for brightness / contrast / saturation / sharpness.
Brightness: Adjust brightness
Contrast: Adjust contrast
Saturation: Adjust saturation
Sharpness: Adjust sharpness
Sound settings
Volume: Adjust the volume
Bass: Adjust bass level (low frequencies)
Treble: Adjust treble level (high frequencies)
Brightness mode
Adjust brightness levels to save power and increase battery play time.
Presentation mode: Provides full brightness also in battery mode.
Notice!
Battery playback time will be reduced.
Optimal mode: This is the perfect balance between good brightness and playback time in battery mode.
Eco mode: Increases the operating time for the built-in battery.
Notice!
The brightness will be reduced to save power!
Flashlight
Use your projector as a flashlight.
SOS light
Use your projector as SOS light.
Warning light
Use your projector as warning light.
Maintenance
Reset settings: Reset settings to factory defaults.
Firmware update: Allows you to update the firmware to the latest version which can be downloaded from the Web at www.philips.com
Information: Display the information on the device (firmware version / device name / model).
4 Connecting other devices
Only use the supplied cable or cables that are available as accessories to connect the projector.
Connecting to devices with HDMI output (HDMI function)
Use the HDMI to mini HDMI cable to connect the projector to a computer or laptop.
1 Connect the HDMI cable to the projector's HDMI socket. 2 Connect the cable to the mini-HDMI socket of the playback device.
Connecting to devices via USB cable (Power bank function)
1 Connect one end of the USB to micro USB cable to the projector's USB socket. 2 Connect the other end of the cable to the micro USB socket of the mobile phone or other devices.
3 The mobile phone or other devices will be charged.
Notice!
Only when the projector is switched on (or in power bank mode), your mobile phone or other devices can be charged.
Make sure the projector has enough power to charge other devices.
Notice!
Power bank mode – when unit is switched off, press the power button for one second to activate this mode. The LED at the power button will show a blue light to indicate this operation mode.
Connecting the headphones
1 Before connecting the headphones, turn down the volume on the device. 2 Connect the headphones to the projector's headphone slot. The device speakers deactivate automatically when the headphones are connected.
3 After connecting the headphones, increase the volume to a comfortable level.
DANGER!
Danger of hearing damage!
Do not use the device over a longer time at high volume – especially when using headphones. This could lead to the risks of hearing damage. Before connecting the headphones, turn down the volume on the device. After connecting the headphones, increase the volume to a comfortable level.
5 Functions
Your projector can also be used as: pocket flashlight, SOS light or warning light.
CAUTION!
These functions exhaust a lot of energy, make sure the battery is full charged before using. The device and its SOS light cannot be used as emergency beacon.
Flashlight
Use PicoPix as a flashlight.
1 Switch the device on using the on/off on the side. 2 After entering the initial screen, press OK. 3 Use the navigation keys to select Flashlight. 4 Press OK to confirm. 5 The flashlight is activated. 6 Press to exit.
Quick access to flashlight function when PicoPix is already switched on:
1 Press and hold the key for 2 seconds to activate the flashlight. 2 If the key is released, the flashlight will be switched off and the unit returns to normal operation mode.
SOS light
Your Pocket Projector is equipped with an SOS light function, using the official Morse code for SOS: 3x short flashes, 3x long flashes, 3x short flashes.
1 Switch the device on using the on/off on the side. 2 After entering the initial screen, press OK. 3 Use the navigation keys to select SOS light. 4 Press OK to confirm. 5 The SOS Light is activated. 6 Press to exit.
Warning light
Your Pocket Projector can emit a white flash. This flash can be seen more than 50 meters.
1 Switch the device on using the on/off on the side. 2 After entering the initial screen, press OK. 3 Use the navigation keys to select Warning light. 4 Press OK to confirm. 5 The Warning Light is activated. 6 Press to exit.
6 Maintenance
Battery maintenance
The capacity of the battery diminishes with time. To prolong the life of the battery, please observe the following instructions:
- Without a power supply, the device operates itself through the built-in battery. When the battery does not have sufficient capacity, the device will turn off.
- When the device is in low battery, the battery icon in the status bar turns red.
- When the device overheats after running for a long period of time, a warning icon will appear on the projection. After the device has cooled down, you can continue playback.
- Use the device at least once a week.
- Charge the battery regularly. Don't store the device with a completely discharged battery.
- Keep the device and the battery away from heat sources.
DANGER!
Do not replace the battery yourself!
Do not try to replace the battery yourself. Incorrect handling of the battery or using the wrong type of battery can cause damage to the device or cause injury.
Cleaning
DANGER!
Instructions for cleaning!
Use a soft, lint-free cloth. Never use liquid or easily flammable cleansers (sprays, abrasives, polishes, alcohol, etc.). Do not allow any moisture to reach the interior of the device. Do not spray the device with any cleaning fluids.
Wipe over the surfaces gently. Be careful that you do not scratch the surfaces.
Cleaning the lens
Use a brush or lens cleaning paper for cleaning the lens of the projector.
DANGER!
Do not use any liquid cleaning agents!
Do not use any liquid cleaning agents for cleaning the lens, to avoid damaging the coating film on the lens.
Device overheated
A overheat icon appears if the device is getting too hot. The device behaves as follows:
1 The speed of the fan reaches the highest level. 2 When the brightness is set to a maximum level, an overheat icon will appear in the status bar, then the brightness will be automatically set to a lower level. 3 When the brightness is set to a minimal level, an overheat icon will be shown for three seconds in the middle of the screen. Then the device will turn off automatically.
After the device has cooled down, it can be switched on and used again.
Firmware update with USB stick
Notice!
Connect the power adapter when applying a firmware update.
1 Format a USB stick as FAT16 or FAT32 file system. 2 Copy the file of latest firmware to the root directory of the USB stick. 3 Insert the USB stick to the USB socket on the device. 4 Enter Settings menu by pressing Ⓞ. 5 Select Maintenance – Firmware update and select YES. 6 After around 3 minutes, the firmware update will be completed and the device will restart.
DANGER!
USB stick!
Never pull out the USB stick while the device is accessing it. This could cause data to be damaged or lost.
Power!
Do not unplug the power adapter during the firmware update.
Notice!
If an error occurs during the firmware update process, please try again or contact our customer service or your retailer.
Troubleshooting
Power cycling
If a problem occurs that cannot be corrected with the instructions in this user manual (see also the help below), follow the steps given here.
1 Switch the device off using the on/off switch on the side. 2 Wait at least ten seconds. 3 Switch the device on using the on/off switch on the side. 4 If the problem cannot be solved, please contact our customer service or your retailer.
| Problems Solutions | |
| Device turns off. • When the device is running for | a long period of time, it may get hot and a warning symbol appears on the screen. The device automatically turns off when it gets too hot. After the device has cooled down, it can be switched on and used again. • When the battery does not have sufficient capacity, the device turns off. Connect the device to the power supply. |
| Device changes from maximum level of brightness to a lower level of brightness during play-back. | • When the environment temperature is too high, the device turns automatically from maximum level of brightness to a lower level of brightness in order to protect the high power LEDs. |
| Bad image or colour quality with HDMI connection. | • Use the supplied HDMI cable (PPA1290). Third-party cables may cause signal distortions. |
| The Pocket Projector cannot be switched on. • Connect the supplied power supply to recharge the internal battery for at least 10 minutes. | |
| No sound | • Check the sound level in the menu Settings / Sound settings / Volume, adjust the volume with the 🔒/▶ keys. |
| No sound from the external connected device. • Check the cables to the external device. • Set the volume on the external device. • Only the original cables from the device manufacturer may work properly. | |
| Bad sound quality with a computer connection. | • Check if the audio cable is connected to the computer line-out socket. • The volume set t not be too high. |
| Only the initial screen appears and not the image from the external device. | ·Check if the cables are connected to the right sockets.·Please check that the external device is switched on. |
| Only the initial screen appears and not the image from the connected computer. | ·Check that the HDMI cable is correctly connect to the computer's HDMI interface.·Check if the resolution of the computer is set to 1280 x 720.·Check if the correct presentation mode is selected on your computer. Try other modes (e.g.: projector, only). |
7 Appendix
Technical data
Dimensions (L×H×W) 115 × 115 × 32 mm
Weight 342 g
Recommended Ambient 5–35 °C
Relative Humidity..... 20–80 % (non-condensing)
Video connection ...... Mini-HDMI/MHL-port
Headphone connection......
Stereo - jack plug: 3,5 mm
MHL output ......DC 5V -1A max
USB output.....DC 5V -1A max
Technology / optical
Display technology: 720p DLP
Light source: RGB LED
Resolution: 1280 x 720 pixels
Brightness: up to 350 lumens
Contrast ratio: 1000:1
Projected image size: 12–150 inches
Screen distance: 0.5 m up to 5 m
Power supply
Model No.: HKA04519024-XA
Manufacturer
Shenzhen Huntkey Electric Co., Ltd
Built-in rechargeable battery
Battery type: Lithium Polymer
Capacity: 5200 mAh 3.7V
Playing time in battery mode: up to 3 h
Accessories
The following accessories are available for your device:
Picopix MHL cable ...... PPA1340 / 253641800
Mini DisplayPort cable .... PPA1270 / 253520069
PicoPix mini HDMI to micro HDMI cable
PPA1330 / 253664643
All data are provided for reference purposes only. X-GEM SAS reserves the right to make any changes without prior notice.
CE
Hereby, X-GEM SAS declares that the equipment is in compliance with Directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.philips.com
Preservation of the environment as part of a sustainable development plan is an essential concern of X-GEM SAS. The desire of X-GEM SAS is to operate systems observing the environment. Consequently, it has decided to integrate environmental performances in the life cycle of this product, from manufacturing to commissioning, use, and elimination.
FC
Federal Communications Commission (FCC)
Statement: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Canada Regulatory Compliance: This device complies with Industry Canada CAN ICES-3 (B)/NMB-3(B).
Packaging: The presence of the logo (green dot) means that a contribution is paid to an approved national organization to improve package recovery and recycling infrastructures. Please respect the sorting rules set up locally for this kind of waste.
Batteries: If your product contains batteries, they must be disposed of at an appropriate collection point.
Product: The crossed-out waste bin stuck on the product means that the product belongs to the family of electrical and electronic equipment. In this respect, the European regulations ask you to dispose of it selectively;
- At sales points in the event of the purchase of similar equipment.
- At the collection points made available to you locally (drop-off center, selective collection, etc.).
In this way you can participate in the re-use and upgrading of Electrical and Electronic Equipment Waste, which can have an effect on the environment and human health.
The paper and cardboard packaging used can be disposed of as recyclable paper. Have the plastic wrapping recycled or dispose of it in the non-recyclable waste, depending on the requirements in your country.
Trademarks: The mentioned references in this manual are trademarks of the respective companies. The lack of the trademarks ® and ™ does not justify the assumption that these dedicated terminologies are free trademarks. Other product names used herein are for identification purposes only and may be trademarks of their respective owners. X-GEM SAS disclaims any and all rights in those marks.
Neither X-GEM SAS nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or failure to strictly comply with X-GEM SAS operating and maintenance instructions.
X-GEM SAS shall not be liable for any damages or problems arising from the use of any options or any consumable materials other than those designated as original X-GEM SAS / PHILIPS products or X-GEM SAS / PHILIPS approved products.
X-GEM SAS shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as X-GEM SAS / PHILIPS products.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of X-GEM SAS. The information contained herein is designed only for use with this product. X-GEM SAS is not responsible for any use of this information as applied to other devices.
This user manual is a document that does not represent a contract.
Errors, printing errors and changes are reserved.
Copyright © 2016 X-GEM SAS
PHILIPS and the PHILIPS' Shield Emblem are registered trademarks of Koninklijke Philips N.V. used under license.
This product was brought to the market by X-GEM SAS, further referred to in this document as X-GEM SAS, and is the manufacturer of the product.
2016 © X-GEM SAS.
All rights reserved.
Headquarters:
X-GEM SAS
- USER MANUAL
- TABLE OF CONTENTS
- GENERAL SAFETY INFORMATION
- OVERVIEW
- INITIAL OPERATION
- CONNECTING OTHER DEVICES
- FUNCTIONS
- MAINTENANCE
- APPENDIX
- DEAR CUSTOMER
- ABOUT THIS USER MANUAL
- WHAT'S IN THE BOX
- SETTING UP THE DEVICE
- POWER SUPPLY
- DANGER
- RISK OF EXPLOSION WITH INCORRECT TYPE OF BATTERIES
- HIGH POWER LED
- DANGER OF HEARING DAMAGE
- REPAIRS
- TOP OF THE DEVICE
- SIDE VIEW
- CAUTION
- BOTTOM OF THE DEVICE
- OVERVIEW OF THE MENU FUNCTIONS
- CONNECT POWER SUPPLY / CHARGE BATTERY
- NAVIGATION FOR SETTINGS MENU
- NAVIGATION KEYS
- INITIAL INSTALLATION
- SETUP LANGUAGE
- IMAGE SETTINGS
- KEYSTONE
- PROJECTION MODE
- WALL COLOUR CORRECTION
- SMART SETTINGS
- SOUND SETTINGS
- BRIGHTNESS MODE
- NOTICE
- FLASHLIGHT
- SOS LIGHT
- WARNING LIGHT
- CONNECTING TO DEVICES WITH HDMI OUTPUT (HDMI FUNCTION)
- CONNECTING TO DEVICES VIA USB CABLE (POWER BANK FUNCTION)
- CONNECTING THE HEADPHONES
- BATTERY MAINTENANCE
- DO NOT REPLACE THE BATTERY YOURSELF
- CLEANING
- INSTRUCTIONS FOR CLEANING
- CLEANING THE LENS
- DO NOT USE ANY LIQUID CLEANING AGENTS
- DEVICE OVERHEATED
- FIRMWARE UPDATE WITH USB STICK
- USB STICK
- POWER
- TROUBLESHOOTING
- POWER CYCLING
- TECHNICAL DATA
- TECHNOLOGY / OPTICAL
- BUILT-IN RECHARGEABLE BATTERY
- ACCESSORIES
- CE
- FC
- FEDERAL COMMUNICATIONS COMMISSION (FCC)
- HEADQUARTERS
Brand : PHILIPS
Model : PicoPix PPX4835
Category : Projector
