Product type	Food processor
Brand	Bosch
Model	MUM4427
Power	700 W
Bowl capacity	3.9 L
Number of speeds	7 speeds + pulse
Dimensions (W x D x H)	28 x 25 x 30 cm
Weight	5.2 kg
Power supply	220-240 V, 50/60 Hz
Main functions	Mixing, kneading, whisking, chopping, grating, slicing, blending (with accessory)
Included accessories	Whisk, dough hook, beater, bowl, lid, pusher, reversible grating/slicing disc
Safety	Safety lock, automatic shut-off in case of overload, non-slip feet
Maintenance and cleaning	Bowl, lid and accessories dishwasher safe (except motor unit)
Spare parts and repairability	Parts available via Bosch after-sales service, repairability index 8.2/10
General information	Color white, retractable power cord 1.2 m, accessory storage in the bowl

Frequently Asked Questions - MUM4427 BOSCH

How to use the Bosch MUM4427 food processor?

Place the bowl on the base, lock it, add ingredients, choose the appropriate accessory, select the speed and operate the control. Refer to the user manual for precise settings.

What accessories are included with the MUM4427?

The food processor comes with a whisk, dough hook, beater, 3.9 L bowl, lid, pusher and a reversible grating/slicing disc.

How to clean the parts of the food processor?

The accessories, bowl and lid are dishwasher safe. The motor unit is wiped with a damp cloth. Never immerse the base.

The food processor makes noise or vibrates abnormally

Check that the bowl is properly locked and that ingredients do not exceed the maximum capacity. If the problem persists, contact customer service.

Can I blend hot ingredients?

No, let the ingredients cool to room temperature before blending. The bowl is not designed for hot liquids.

How to change speed while in use?

Turn the control gradually to the desired speed. Avoid sudden changes to prevent food from splattering.

The food processor stops suddenly

This may be due to overload. Reduce the amount of ingredients or select a lower speed. The appliance restarts after cooling.

Can I crush ice with this food processor?

Yes, with the bowl and suitable blade (if included). Use the pulse function with short presses. Do not fill the bowl more than one third.

How to store the accessories?

The accessories store inside the bowl to save space. The power cord is retractable under the appliance.

Where to find spare parts for the MUM4427?

Contact Bosch after-sales service or check the official website. Parts such as the bowl, whisks and seals are available.

USER MANUAL MUM4427 BOSCH

Illustration of a vacuum cleaner and a blender with cleaning tools (no text or symbols)

MUM44..

MUM46..

MUM48..

BOSCH

1 Päckchen Backpulver

^1/_8 I Milch

Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern high-quality domestic appliance. You can find further information about or products on our web page.

Contents

For your safety 11

Overview 13

Operation 14

Cleaning and servicing 15

Troubleshooting 16

Application examples 16

Standard/optional accessories ..... 17

Disposal 18

Warranty conditions 18

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal quantities of food for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

This appliance is suitable for mixing, kneading and beating food. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used.

Use the appliance with original accessories only. When using the accessories, follow the enclosed operating instructions.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

en

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock!

Do not insert mains plug until all preparations for working with the appliance are complete. Never immerse the base unit in liquid or hold under running water. Do not use a steam cleaner.

Do not adjust the swivel arm while the appliance is switched on.

Wait until the drive has come to a standstill.

Do not change tool/accessory until the drive is at a standstill – when the appliance is switched off, the drive continues running briefly.

Use only the rotary switch to switch the appliance on or off.

When the appliance is not in use, pull out the mains plug.

Before eliminating a fault, pull out the mains plug.

The appliance restarts following a power interruption.

Risk of injury from the rotating tools!

Keep hands clear of rotating parts. While the appliance is operating, keep fingers clear of the mixing bowl.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly.

The appliance may only be operated when the unused drives have been safeguarded with the drive covers (4, 7).

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender!

Never assemble blender on the base unit. Do not remove/attach the blender until the drive is at a standstill!

Operate the assembled blender only and with the lid attached.

Do not touch blender blades with bare hands.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.5 litres of hot or frothing liquid.

Important!

Use only one tool or accessory at any one time.

The operating instructions describe several models, see also overview of models (Fig. Ⅱ). The appliance requires no maintenance.

Overview

Please fold out the illustrated pages.

Fig.

Base unit

1 Release button
2 Swivel arm (see "Operating positions")
3 Rotary switch

$$ 0 / \text { off } = \text { Stop } $$

$$ ⓟ / \mathbf {P} = \text { Parking circuit } $$

Hold rotary switch until the drive stops; tool is in the swivel position. If the drive does not move, the swivel position has already been reached.

$$ \text { Settings } 1 - 4 = \text { Operating speed } $$

$$ \text { Setting } 1 = \text { Minimum speed - slow } $$

$$ \text { Setting } 4 = \text { Maximum speed - fast } $$

If the power is interrupted, the appliance remains switched on and restarts when the power is restored.

4 Drive cover

To remove the drive cover, rotate until the locking feature has been released.

5 Drive for

• continuous-feed shredder *
• citrus press *
• grain mill *

When not in use, attach the drive cover.

6 Drive for

• tools (stirrer, whisk, kneading hook)
• stirring tool of the ice-cream maker *
  – folded down or up for mincer *

7 Blender drive cover

8 Drive for

• blender
• multi-blender

When not in use, attach the blender drive cover.

9 Cord store (Fig. B)

MUM 44..: Stow the cord

MUM 46../48..: Stow the cord in the cord store

Bowl with accessories

10 Mixing bowl
11 Lid

Tools

12 Stirrer
13 Whisk
14 Kneading hook with dough deflector

Blender

15 Base
A
16 Blade insert
17 Sealing ring
18 Blender jug
19 Lid
20 Funnel

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions

At t ent i on!

Before operating the appliance, attach the too accessory to the correct drive and in the correct position and place in the operating position according to this table.

The swivel arm must be engaged in every operating position.

Setting the operating position Fig. ©

• Press the Release button and move the swivel arm.
• Move the swivel arm until it engages in the required position.

Position
1	[OK2X]	[OX8Y]
2
3
4
5
6	[X230]	Insert/remove whisk, stirrer or kneading hook
7	[HHDB]	Add large quantities of ingredients

Operation

Risk of injury!

Do not insert mains plug until all preparati for working with the appliance are complete.

At t ent i on!

Do not operate the appliance without an accessory/tool in the operating position. Do not operate the appliance empty. Do not expose appliance or accessories to sources. Parts are not microwave-safe.

- Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.

Preparation

• Place the base unit on a smooth, clean surface.
• Unwind/pull out the cord (Fig. B).
• Insert the mains plug.

Stirrer, whisk and kneading hook Fig. D

Stirrer (a)

for stirring dough, e.g. cake mixture

Whisk (b)

for whisking egg whites, cream and light dough, e.g. sponge mixture

for kneading heavy dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips)

Risk of injury from the rotating tools!

While the appliance is operating, keep finger clear of the mixing bowl.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly.

The appliance may only be operated when the unused drives have been safeguarded with the drive covers.

- Set rotary switch to P and hold in place until the drive stops.

Note:

If the drive does not move, the swivel position has already been reached.

• Press the Release button and move the swivel arm to position 6.

• Insert the bowl. The base of the mixing bowl must be inserted into the recess of the base unit.
  975 Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position. If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position.

• Put the ingredients to be processed into the bowl.

• Press the Release button and move the swivel arm to position 1.
• Attach the cover.
• Set the rotary switch to the desired setting.

Adding more ingredients

• Switch off the appliance with the rotary switch.
• Set rotary switch to P and hold in place until the drive stops.
• Remove lid.
• Press the Release button and move the swivel arm to position 7.
• Add ingredients

or

- add more ingredients through the feed tube in the cover.

After using the appliance

• Switch off the appliance with the rotary switch.
• Set rotary switch to P and hold in place until the drive stops.
• Remove mains plug.
• Remove lid.
• Press the Release button and move the swivel arm to position 6.

● Take the tool out of the drive.

Remove the bowl.

- Clean all parts, see "Cleaning and servicing".

Blender

Fig.

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender

Do not remove/attach the blender until the drive is at a standstill!

Operate the assembled blender only and with the lid attached.

Risk of scal di ng!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.5 litres of hot or frothing in

Warning!

Bl ender may be damaged.

Do not process deep-frozen ingredients (except ice cubes).

Warning!

Processing liquids in the glass blender: maximum setting 3. Add a max. 0.5 litres of or frothing liquid.

- Press the Release

the swivel arm to position 3.

- Remove the blender drive cover.

- Attach the blender jug (mark on the base of the blender jug on the mark on the base unit) and rotate as far as possible in an anti-clockwise direction (Fig. 1-4/5).

- Add ingredients.

Maximum capacity of liquid for plastic blender = 1 litre, for glass blender = 0.75 litres, frothing or hot liquid maximum 0.5 litres Optimal processing capacity – solids = 50–100 g.

- Attach lid and press firmly.

While working, always hold the lid firmly with one hand. However, do not place hand over the refill opening!

- Set the rotary switch to the desired setting.

Adding more ingredients Fig. 1-6

- Switch off the appliance with the rotary switch.

- Remove the cover and add ingredients

or

- remove the funnel and gradually add solid ingredients through the feed tube

or

- pour liquid through the funnel.

After using the appliFence

Switch off the appliance with the rotary switch.
- Remove mains plug.
- Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

At t ent i on!

Do NOT use abrasi ve cleaning agents.

Surfaces may be damaged.

Cleaning the base unit

Risk of electric shock!

Never immerse the base unit in water or place under not unpiengt watben empty.

• Remove mains plug.
  ● wipe the base unit with a damp cloth.
• If required, use a little detergent.

- Then dry the base unit. button and move

Cleaning the bowl and accessories

All parts are dishwasher-safe. Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender

Risk of injury from sharp blades!

Do not touch blender blades with bare hands. The blender can be disassembled for cleaning.

Warning!

Do NOT use abrasive cleaning agents.

The blade insert is not dishwasher-safe. Clean the blade insert under running water only

Tip: After processing liquids, it is often sufficient to clean the blender without disassembling it. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (if the appliance features quick-action operation, select setting M).

Pour out the water and rinse out the blender with clear water.

Taking the blender apart Fig. F

• Rotate the base of the blender jug in a clockwise direction and remove.
• Upon the flanks, rotate the blade insert in an anti-clockwise direction. The blade insert is released.
• Take blade insert out and remove sealing ring.

Putting the blender together Fig. G

Risk of injury!

Never assemble blender on the base unit.

• Apply sealing ring on blade insert.
• Insert blade insert from below into blender jug.
  ● Tighten the blade insert with the aid of the blender jug base.
  ● Tighten the base of the blender jug in an anti-clockwise direction.

Troubleshooting

If the appliance malfunctions, please consult our customer service.

Application examples

Whipped cream

100 g–600 g
- Whip cream with the whisk for 1½ to 4 minutes at setting 4 (depending on the quantity and properties of the cream).

Egg white

1 to 8 egg whites
- Beat egg white with the whisk for 4 to 6 minutes at setting 4.

Sponge mixture

Basic recipe

2 eggs

2–3 tbs. hot water

100 g sugar

1 packet of vanilla sugar

70 g flour

70 g cornflour baking powder (if required)

- Beat the ingredients (except flour and cornflour) with the whisk for approx. 4–6 minutes at setting 4 until frothy.

- Rotate switch to setting 2 and spoon in the sifted flour and cornflour within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

3–4 eggs

200–250 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from 12 lemon

200–250 g butter (room temperature)

500 g flour

1 packet of baking powder

^1/_8 I milk

- Mix all ingredients with the stirrer for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 3.

Maximum quantity: 1.5–2 x basic recipe

Short pastry

Basic recipe

125 g butter (room temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Process all ingredients for approx. 12 minute at setting 1, then for approx. 2–3 minutes with the stirrer (setting 3) or kneading hook (setting 2).

Maximum quantity: 2 x basic recipe

Yeast dough

Basic recipe

500 g flour

1 egg

80 g fat (room temperature)

80 g sugar

200–250 ml lukewarm milk

25 g fresh yeast or 1 packet of dried yeast

Peel of 12 lemon

1 pinch of salt

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–6 minutes at setting 2.

Maximum quantity: 1.5 x basic recipe

Mayonnaise

2 eggs

2 tsp. mustard

14 | oil

2 tbs. lemon juice or vinegar

1 pinch of salt

1 pinch of sugar

Ingredients must be at the same temperature.

• Process the ingredients (except the oil) in the blender for several seconds at setting 2.
• Switch the blender to setting 4 and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies.

Standard/optional accessories

Other accessories enclosed with the packaging (see enclosed overview of models, Fig. Ⅱ) are described in the separate operating instructions. Enclosed accessories/optional accessories can also be purchased separately. The accessories for the MUM 45.. appliance are also suitable for the MUM 44../46../48.. appliances.

Fig. H

Plastic mixing bowl (MUZ4KR3)

Up to 1 kg of flour plus ingredients can be processed in the bowl.

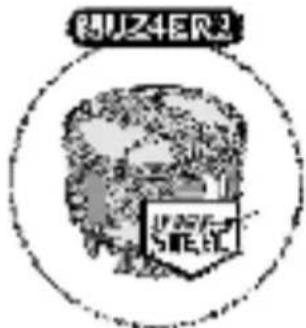

Stainless steel stirring bowl (MUZ4ER2)

Up to 1 kg of flour plus ingredients can be processed in the bowl.

Plastic blender attachment (MUZ4MX2)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Glass blender attachment (MUZ4MX3)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Mini processor (MUZ4MM3)

For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

Continuous-feed shredder (MUZ4DS3)

For slicing cucumbers, cabbage, kohlrabi, radish; for shredding carrots, apples and celery, red cabbage, cheese and nuts; for grating hard cheese, chocolate and nuts.

Chipper disc (MUZ45PS1)

For the continuous-feed shredder MUZ4DS3. For slicing raw potatoes for chips.

Asiatic vegetables disc (MUZ45AG1)

For the continuous-feed shredder MUZ4DS3. Slices fruit and vegetables into fine strips for Asian vegetable dishes.

Grating disc coarse (MUZ45RS1)

For the continuous-feed shredder MUZ4DS3. For grating raw potatoes, e.g. for potato pancakes or dumplings.

Potato fritter disc (MUZ45KP1)

For the continuous-feed shredder MUZ4DS3. For grating raw potatoes for rosts and potato fritters, for cutting fruit and vegetables into thick slices.

Citrus press (MUZ4ZP1)

For squeezing oranges, lemons and grapefruits.

Mincer (MUZ4FW3)

For cutting fresh meat for steak tartare or meat loaf.

Perforated disc set (MUZ45LS1)

For the mincer MUZ4FW3. Fine disc (3 mm) for pasties and spreads, coarse disc (6 mm) for sausages and bacon.

Viennese whirl attachment (MUZ45SV1)

For the mincer MUZ4FW3. With metal template for 4 different pastry moulds.

Grater attachment (MUZ45RV1)

For the mincer MUZ4FW3. For grating nuts, almonds, chocolate and dried bread rolls.

Juicer attachment (MUZ45FV1)

For the mincer MUZ4FW3. For pressing soft fruit, (except raspberries), tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.

Accessories holder (MUZ4ZT1)

For the storage of accessories such as kneading hook, whisk, stirrer, slicing, shredding and grating disc.

Mill with conical grinder made of steel (MUZ4GM3)

For all grain types except maize, also oil seeds, dried mushrooms and herbs.

Ice-cream maker (MUZ4EB1)

For the preparation of up to 550 g of ice cream per cycle and container.

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EG on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Tarcza do frytek (MUZ45PS1)

Dl a rozdrabni acza MUZ4DS3.

szilárd = 50-100 gramm.

mai l to: spare [e-mail]

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mai l to: ser vi ce- uae@bshg. com

www.bosch-home.com/ae

AL Republi ka e Shqi per i se, Al bani a

AERTECH SH. P. K.

Rr. Sami Frasher i

Pal i at i i Avi aci oni t te vj et ar

Shkalla 1, Hyrja 2

Ti r ana

Tel.: [phone]

Fax: [phone]

mai l to: vol i na@ovi . com

mai l to: vi e- st oer ungsannahme@

bshg.com

HEATHERTON, Victoria 3202

Tel.: [phone]

mai l t o: [e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovi na, Bosni a- Herzegovi na

"HI GH" d. o. o.

Gr adačačka 29b

71000 Sar aj ewo

Info-Li ne: 061 100 905

Fax: [phone]

mai l to: del i cnanda@hot mai l . com

BE Bel gi que, Bel gi ë, Bel gi

BSH Home Appliances S. A.

mai l to: br u- [e-mail]

www.bosch-home.be

BG Bul garia

BSH Domaki nski Uredi

Bul garia EOOD

115K Tsari gradsko Chausse Bl vd

European Trade Center Building

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mai l to: i nf or maci a. ser vi s- bg@

bshg.com

www.bosch.home.bg

BH Bahr ai n, ني رح ب

Khal ai f at Est.

P. O. BOX 5111

Manama

Tel.: [phone]

mai l to: service@khal ai f at . com

BY Bel ar us, Беларусь

mai l to: ch- repar at ur @bshg. com

mai l to: bsh. ser vi ce. cypr us@

cyt anet . com. cy

mai l to: BSH- Service. dk@

BSHG. com

www.bosch-home.dk

EE Eesti, Estoni a

SI MSON OÜ

Raua 55

10152 Tal I i nn

Tel.: [phone]

Fax: [phone]

mai l to: teeni ndus@simson. ee

ES España, Spai n

mai l to: [e-mail]

www.bosch-home.es

FI Suomi, Fi nl and
BSH Kodi nkoneet 0y
I t äl ahdenkat u 18 A, PL 123
00201 Hel si nki
Tel.: [phone]
Fax: [phone]
www.bosch-home.fi
Lankapuhel i mest a 8,28 snt / puhel u
+ 7 snt / min (al v 23%)
Mat kapuhel i mesta 8,28 snt / puhel u
+ 17 snt / min (al v 23%)
BSH Electroménager S. A. S.
50 rue Ardoi n - BP 47
93401 SAI NT-OUEN cedex
Servi ce i nt er vent i ons à domi ci
01 40 10 11 00
Service Consommateurs:
0 892 698 010 (0,34 € TTC/mn)
mail to: [e-mail]
Servi ce Pi èces Dét achées et
Accessoires:
0 892 698 009 (0,34 € TTC/mn)
www.bosch-home.fr
BSH Home Appliances Ltd.
Grand Uni on House
Old Wol vert on Road
Wol vert on
Milton Keynes MK12 5PT
To arrange an engineer visit,
order spare parts and accessor
or for product advice please v
www.bosch-home.co.uk
or call
Tel.: [phone]*
* Calls from a BT landline will be char
up to 3 pence per minute. A call set - u
of up to 6 pence may apply.
BSH I ki akes Si skeves A. B. E.
Central Branch Service
17 km E. O. At hi non- Lami as &
Pot amou 20
14564 Ki f i si a
Πανελλήνιο τηλέφωνο: 181 82
(αστική χρέωση)
www.bosch-home.gr
BSH Home Appliances Limited
Unit 1 & 2, 3rd Floor
North Block, Skyway House
3 Sham Mong Road
Tai Kok Tsui, Kowl oon
Hong Kong
Tel.: [phone]
Fax: [phone]
mai l to: bshhkg. ser vi [e-mail]
www.bosch-home.cn

mail to: Bosch- Servi ce- Fl @bshg. comai l to: i nf or maci j e. ser vi s- hr @

FR France

GB Great Britain

GR Greece, Ελλάς

HK Hong Kong,香港

HR Hrvatska, Croatia

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Wal ki nst own

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

IL Israel,

C/ S/ B Home Appliance Ltd.

ged at Bui I di ng

2, f amel acha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mai l to: csb- [e-mail].i l

www.bosch-home.co.il

IN India, Bhārat,

BSH Customer Service Front Offi

Shop No. 4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri

Mumbai 400093

I S Iceland

Smith & Norland hf.

Noat uni 4

105 Reykj avi k

Tel.: [phone]

Fax: [phone]

www. smi nor . i s

IT Italia, Italy

BSH El ettrodomestici S. p. A.

mai l to: mi l - [e-mail]

www.bosch-home.com/it

IP ''Bat kayev ll dus A. ''

B. Momysh-ul y Str. 7

Chymkent 160018

Tel. / Fax: [phone]

mail to: evrika [e-mail]

LB Lebanon, نانبل

Teheni, Hana & Co.

Boul evard Dor a 4043 Beyr out h

P. 0. Box 90449

Jdei deh 1202 2040

Tel.: [phone]

email I to: Info@Teheni - Hana. com

LT Li et uva, Li t huani a

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg g

BSH él ect roménagers S. A.

13-15 ZI Breedeweues

1259 Senni nger ber g

Tel.: [phone]

Fax: [phone]

mai l to: lux-service. electromenager@

bshg.com

www.bosch-home.Iu

mail to: bt@ol impeks. l v

El kor Servi ss

Br i vi bas gat ve 201

1039 Ri ga

Tel.: [phone]; -36

Fax: [phone]

mai l to: domoservi ce@el kor. l v

www.servisacentrò.l

MD Mol dova

S. R. L. "Ri al t o- St udi o"

ул. Щусева 98

2012 Кишинев

тел. / факс: [phone]

mai l to: bosch-md@mai l.ru

ME Cr na Gor a, Mont enegr o

mail to: gor [e-mail]

MT Malta

Oxford House Ltd.

Not abi l e Road

Mr i ehel BKR 14

Tel.: [phone]

Fax: [phone]

www. oxf or dhouse. com. mt

MV Raaj j eyge Jumhoor i yyaa, Mal edi ves

Li nt el Investment s

mai I to: Bosch- Servi ce- NO@

bshg.com

www.bosch-home.no

NZ New Zeal and

BSH Home Appliances Ltd.

Unit F 2, 4 Orbit Drive

Mai rangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mai l to: [e-mail]

www.bosch-home.co.nz

PL Pol ska, Pol and

mail to: service. romani [e-mail] to: [e-mail]

www.bosch-home.ro

RU Russia, Россия

mai l to: mok- kdhl @bshg. com

www.bosch-home.com

SA Saudi Arabi a,

BSH Home Appliances

Saudi Arabi a L. L. C.

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mai l to: service. [e-mail]

www.bosch-home.com/sa

SE Sverige, Sweden

BSH Hushål I sappar at er AB

Landsvägen 32

169 29 Sol na

Tel.: [phone]

mai l to: Bosch- Service- SE@

bshg.com

www.bosch-home.se

SG Singapore 新加坡

BSH Home Appliances Pte. Ltd.

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mai l to: bshsgp. ser vi [e-mail]

www.bosch-home.com.sg

SI SI oveni j a,

BSH Hi šni apar at i d. o. o.

Li tostrojska 48

1000 Lj ubl j ana

Tel.: [phone]

Fax: [phone]

mai l to: i nf or maci j e. ser vi s@

bshg.com

www.bosch-home.com/si

SK SI ovensko, SI ovaki a

@ I to: opr [e-mail]

www.bosch-home.com/sk

TR Türki ye, Tur key

BSH Ev Al et I eri Sanayi

ve Ti car et A. S.

mail to: car el i ne. t ur [e-mail]

www.bosch-home.com/tr

TW Tai wan,台湾

Achel is Tai wan Co. Ltd.

4th floor, No. 112 Sec 1

Chung Hsi ao E Road

Tai pei ROC 100

Tel.: [phone]

mai l to: Bosch@achel i s. com. t w

15th Road Randj espark

Private Bag X36, Randj espark

1685 Mi dr and – Johannesburg g

Tel.: [phone]

Fax: [phone]

mai l to: appl i anceser vi ceza@

bshg.com

www.bosch-home.com/za

[e-mail]

3D architectural model of a building complex with curved structural elements and an arrow indicating rotation (no text or symbols)

H

Isometric view of a mechanical component or bracket (no text or symbols visible)

Pixelated illustration of a cylindrical object with floral patterns, enclosed in a circular frame (no text or symbols)

Illustration of a stylized helmet with a small object beside it, enclosed in a circular frame (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Pixelated illustration of a mechanical component inside a circular frame (no readable text or symbols)

R2018-4996	√	√		√	√	√	√
R2018-4992	√	√		√	√	√	√
R2018-4987	√	√		√	√	√		√
R2018-4985	√	√		√	√	√		√
R2018-4978	√	√		√	√	√	√
R2018-4972	√	√		√	√	√	√
R2018-4967	√	√		√	√	√	√
R2018-4963	√	√		√	√	√	√
R2018-4959	√	√		√	√	√		√
R2018-4955	√		√	√	√	√	√
R2018-4951	√		√	√	√	√	√
R2018-4947	√		√	√	√	√		√
R2018-4943	√		√	√	√	√	√	√
R2018-4938	√		√	√	√	√	√
R2018-4935	√		√	√	√	√	√
R2018-4930	√		√	√	√	√	√
R2018-4922	√		√	√	√	√	√
R2018-4918	√		√	√	√	√	√
R2018-4915	√		√	√	√	√	√
R2018-4912	√		√	√	√	√	√
R2018-4910	√		√	√	√	√	√
R2018-4907	√		√	√	√	√		√
R2018-4903	√		√	√	√	√		√
R2018-4901	√		√	√	√	√		√
R2018-4901	√		√	√	√	√		√
R2018-4907	√		√	√	√	√		√
R2018-4907	√		√	√	√	√		√
R2018-4907	√		√	√	√	√		√
RJ104405
RJ104406
RJ104407
RJ104408
RJ104409			[DB3G]
RJ104410
RJ104411				[DS46]
RJ104412
RJ104413
RJ104414						[DSY5]
RJ104415	√
RJ104416B	√		√			[BKGX]		√
RJ104417
RJ104418	√		[2TDS]			[D3ZY]
RJ104419			√					√
RJ104420			[ABC5]			[6SZ3]
RJ104421	√						√
RJ104422E		√	√			[ABX3]	√	√
RJ104423E	√						√
RJ104424	√		[DS3W]				√	√
RJ104425			√			[KX4Z]
RJ104426E			[3XWS]
RJ104427E
RJ104428E	√		[440Z]	√		[T8ZA]
RJ104429E	√
