Product type	2-way floorstanding speaker
Brand	Klipsch
Model	Reference R-26F
Dimensions (H x W x D)	110.5 x 20.1 x 39.1 cm
Weight	20.9 kg (each)
Nominal impedance	8 ohms
Sensitivity	96 dB (at 2.83 V/1 m)
Frequency response	38 Hz - 24 kHz (±3 dB)
Power handling (continuous/peak)	100 W / 400 W
Driver type	2 x 6.5" (16.5 cm) copper-spun woofers, 1 x 1" (2.54 cm) aluminum dome tweeter
Bass-reflex port	Yes, rear
Connectivity	Dual binding posts (bi-wiring capable)
Power	Passive (no external power required)
Maintenance and cleaning	Dust with a soft, dry cloth; avoid chemicals
Safety	Do not expose to moisture or shocks; place on a stable surface
Spare parts and repairability	Contact Klipsch customer service for parts and repairs
General information	Designed for home theater or stereo hi-fi use

Frequently Asked Questions - Reference R-26F KLIPSCH

What is the recommended amplifier power for the Klipsch R-26F?

An amplifier delivering between 15 and 200 W per channel is recommended. Thanks to its high sensitivity (96 dB), it works even with low-power amps.

Can I use the R-26F with a home theater receiver?

Yes, it is an ideal floorstanding speaker for a home theater system as main left/right or surround channel.

Do the speakers require break-in?

A break-in period of about 20 to 40 hours at moderate volume is recommended to allow the speaker suspensions to reach optimal flexibility.

How to clean the Klipsch R-26F speaker?

Use a soft, dry cloth to dust the grille and cabinet. Avoid any chemical or liquid cleaners.

Can I bi-wire or bi-amp the R-26F?

Yes, the rear terminals are designed for bi-wiring. Remove the metal bridges to separate the high and low frequency sections.

What is the recommended placement distance from the wall?

Place the speaker at least 30 cm from the rear wall to avoid excessive bass due to the rear bass-reflex port.

Is the aluminum tweeter fragile?

It is robust but should not be touched. Protect it with the included grille to avoid damage.

What speaker cables should I use?

Use cables with a minimum cross-section of 2.5 mm² for distances up to 5 m. Quality cables ensure better transmission.

Can I use the R-26F as a center speaker?

No, it is designed as a side floorstanding speaker. For a center, use the Klipsch R-25C or R-30C model.

What to do in case of crackling or distortion?

Check cable connections and total impedance. Reduce volume if the amplifier is clipping. If the problem persists, contact customer service.

USER MANUAL Reference R-26F KLIPSCH

USER MANUAL

Klipsch®

REFERENCE

REFERENCE (n):

1) the standard, the benchmark, the point used for comparison
2) the embodiment of the legendary Klipsch sound

LOUD AND PROUD SINCE 1946

In 1946, Paul W. Klipsch revolutionized the audio industry by creating our proprietary horn technology and the acoustic principles that are the driving force behind our highly acclaimed signature sound.

Today, we remain true to PWK's vision and pack the better part of a century's worth of sweat and genius into every product we make. These speakers are the result of our obsession with that aural perfection.

Experience the power, detail and emotion of Klipsch Reference. We are the Keepers of the Sound®.

ENGLISH

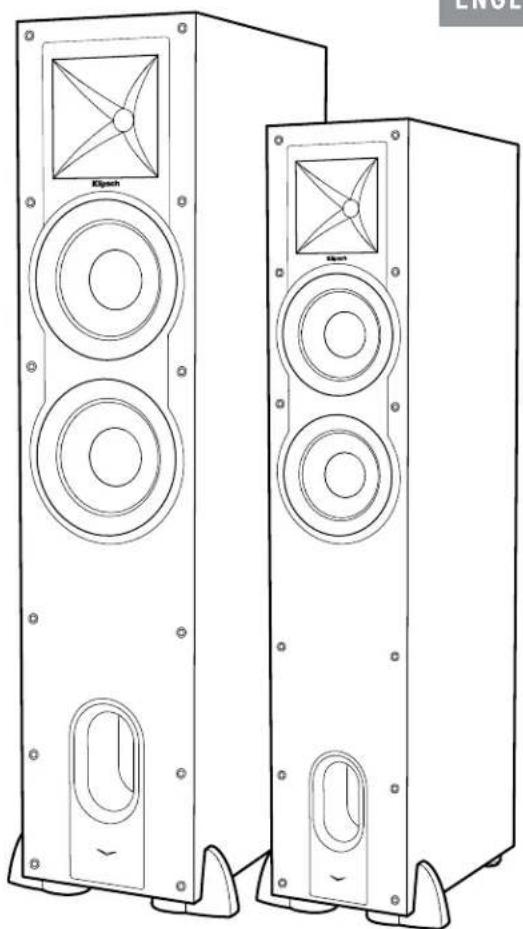

REFERENCE SPEAKERS

R-14SR-26FR-24FR-28F

BEFORE YOU START

Some Klipsch ^® speakers have feet and other accessories that may need to be installed prior to use. Please refer to Diagrams 1, 2 and 3 for installation.

ROOM PLACEMENT CONNECTION

Left and Right Main Channel Speakers – For optimum performance, Klipsch Group, Inc. (KGI) suggests placing your speakers 6 to 15 feet (1.8 to 4.6m) apart. They may also be toed-in slightly for better stereo imaging. The listening position should be about 1 to 1.5 times the distance separating the speakers. Refer to Figures 1 and 3 for connection and placement.

Center Channel Speakers – Center channel speakers are designed to place dialogue and primary sounds so that they appear to come from the video screen. The speakers should therefore be placed as close to the screen as possible, preferably directly on top of or below the screen. Refer to Figures 1, 2 and 3 for connection and placement.

Rear Surround Channel Speakers – Klipsch WDST surround speakers should be placed approximately 2 feet above the listening position. Typically this will be about 5-7 feet above the floor. The surrounds should be placed on the walls directly adjacent to the listening position. Another option would be on the wall behind the listening position. The final surround speaker placement depends on your room's characteristics. They are designed to recreate the sense of space and ambience that many of today's surround sound technologies provide. Refer to Figures 1, 3 and 4 for connection and placement.

Please note that surround grilles are fixed and cannot be removed.

Conventional Connection – Using 16-12 gauge speaker wire, connect the RED "positive" (+) terminal of the LEFT speaker to the RED "positive" (+) terminal of your amplifier's LEFT channel. Connect the BLACK "negative" (-) terminal of the LEFT speaker to the BLACK "negative" (-) terminal of your amplifier's LEFT channel. Repeat this procedure for connecting all remaining speakers to the appropriate amplifier channels. Refer to Figure 3. Make sure that no bare wires from any of the connections touch any other terminals as this could cause a short and damage your equipment.

Some Klipsch Reference speakers come with dual binding posts that are connected by a metal strip. Do not remove this strip or your speakers will not function correctly. Keep this strip in place and connect your speaker wire to the top set of the binding posts. It is possible to "Bi-wire" a speaker that has two sets of binding posts. Please see your receiver's manual for further instructions.

Amplifier Requirements – Klipsch speakers are highly efficient and will operate easily on a wide variety of amplifiers. All Klipsch speakers are 8-ohm compatible and can be driven to very high levels with low distortion. Due to the high output levels Klipsch speakers are capable of reproducing, exercise caution with the volume control. Excessive volume over long periods can permanently damage your hearing. Overdriving your amplifier could also damage your speakers. Check with your dealer or amplifier manual to make sure your particular amplifier is best suited to your application. We want you listening for a lifetime.

FIGURE 1 SPEAKER PLACEMENT IN LISTENING AREA

FIGURE 2 CENTER CHANNEL

CARE AND CLEANING

The only thing you should ever need to do to your speakers is dust them occasionally. Never apply any abrasive or solvent-based cleaner or any harsh detergent. You can clean the grilles with the brush attachment of a vacuum cleaner.

PRODUCT REGISTRATION

Register your product online at www.klipsch.com/register

• Keep up-to-date on new products and promotions.
• Your personal information will never be resold.
• This registration information is not used for warranty purposes. Please retain your receipt for warranty claims.

REFERENCE

FRENCH

ENCEINTES REFERENCE

R-14SR-26FR-24FR-28F

AVANT DE COMMENCER

GERMAN

REFERENCE-LAUTSPRECHER

R-14SR-26FR-24FR-28F

ERSTE SCHRITTE

SPANISH

ALTAVOCES REFERENCE

R-14SR-26FR-24FR-28F

ANTES DE EMPEZAR

DIAGRAMA 2 CANAL CENTRAL

Patas de goma
DIAGRAMA 1 ALTAVOCES MONITOR

FIGURA 2 CANAL CENTRAL

FIGURA 4 MONTAJE DE LOS ALTAVOCES SURROUND EN LA PARED

PORTGUESE

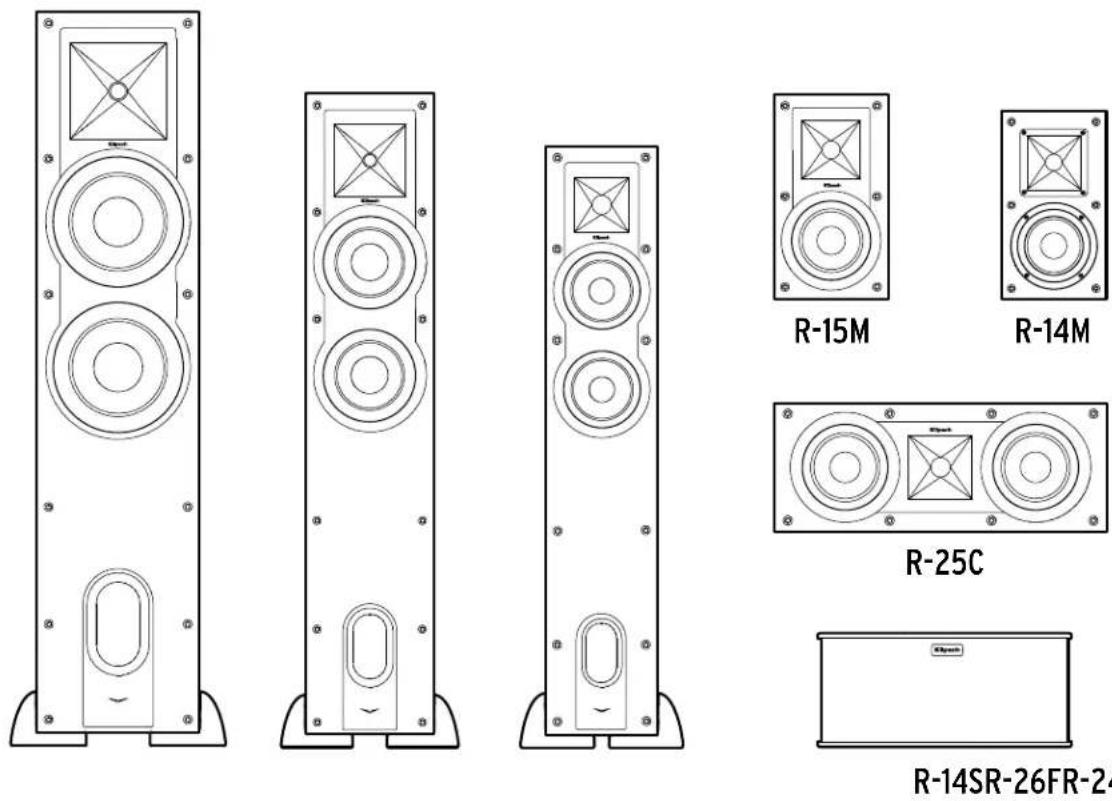

CAIXAS ACÚSTICAS REFERENCE

R-14SR-26FR-24FR-28F

ANTES DE COMEÇAR

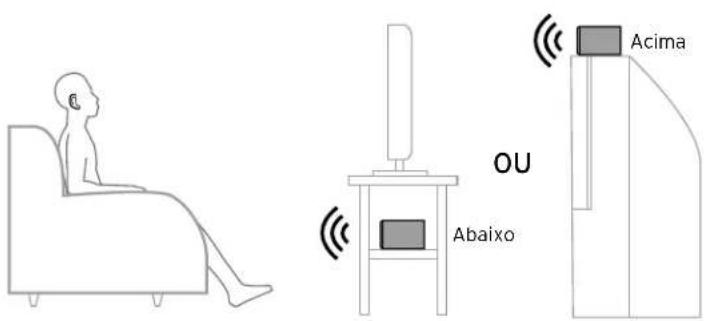

FIGURA 2
CANAL CENTRAL

Parafusos de cabeça chata para madeira no 10 ou 12 de 63 a 76 mm de comprimento Montar na viga de parede ou usar buchas - deixar 64 mm expostos

CUIDADO E LIMPEZA

ITALIAN

ALTOPARLANTI REFERENCE

R-14SR-26FR-24FR-28F

OPERAZIONI PRELIMINARI

CHINESE

参考系列扬声器

R-14SR-26FR-24FR-28F

开始使用之前

图4
墙面安装环绕音箱
