Product type	Saw
Brand	Ferm
Model	MSM1037
Dimensions (L x W x H)	Approximately 50 x 40 x 30 cm
Weight	Approximately 15 kg
Power supply	Mains 230 V ~ 50 Hz
Power consumption	1500 W
No-load speed	4800 rpm
Blade diameter	254 mm (10 inches)
Blade bore	30 mm
Cutting capacity at 90°	320 x 80 mm
Cutting capacity at 45°	220 x 70 mm
Miter range	0° - 45° (right and left)
Bevel range	0° - 45°
Main functions	Miter cut, bevel cut, compound cut
Blade brake	Yes, electric brake
Blade guard	Adjustable transparent guard
Dust extraction	Vacuum cleaner connection (36 mm)
Maintenance and cleaning	Dust regularly; lubricate moving parts; check blade condition
Safety	Trigger switch with lock; blade brake; anti-kickback protection
Spare parts and repairability	Available on Ferm website; standard blade 254x30 mm; replaceable carbon brushes
Warranty	2 years
Recommended use	Interior and exterior carpentry, precision cuts

Frequently Asked Questions - MSM1037 Ferm

How to change the blade of the MSM1037 saw?

Unplug the appliance. Lock the shaft using the lock button. Turn the fixing screw counterclockwise using the provided wrench. Remove the old blade and install the new one respecting the rotation direction. Tighten the screw firmly.

What is the required power supply voltage?

The saw operates on mains 230 V ~ 50 Hz. Check that your outlet matches.

How to adjust the miter angle?

Loosen the miter lock handle located under the table. Turn the table to the desired angle (visible scale). Tighten the handle. Check the angle with a square if necessary.

Can I cut metal with this saw?

No, this saw is designed for wood and wood-derived materials (MDF, panels). Using it on metal could damage the blade and the appliance.

How to use the laser guide?

Some models are equipped with a laser guide. Turn it on using the dedicated switch. Adjust the beam by turning the adjustment screws so that it coincides with the cutting line. The laser improves accuracy.

What to do if the saw does not start?

Check the power supply and cable. Make sure the safety switch is pressed. If the problem persists, the carbon brushes may be worn; replace them.

How to maintain the saw?

Regularly clean the ventilation slots and the cutting area. Lubricate moving parts with light oil. Check the condition and sharpness of the blade. Store the appliance in a dry place.

What is the maximum cutting depth?

At 90°, the cutting capacity is 320 mm width by 80 mm height. At 45° bevel, it is 220 mm by 70 mm.

Does the blade brake always work?

The electric brake stops the blade within a few seconds after releasing the trigger. If the stopping time is too long, have the appliance checked by a professional.

Where to find spare parts?

Spare parts (blade, brushes, guard) are available on the official Ferm website or from authorized dealers. Always use original parts.

USER MANUAL MSM1037 Ferm

Ferm cutter cutting machine with visible branding and tool handle (no readable text or symbols)

MSM1037

EN Original instructions 05
DE Übersetzung der Originalbetriebsanleitung 12
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 20
FR Traduction de la notice originale 28
ES Traducción del manual original 36
IT Traduzione delle istruzioni originali 44
SV Översättning av bruksanvisning i original 52
FI Alkuperäisten ohjeiden käännös 59
HU Eredeti használati utasítás fordítása 68
CS Překlad původního návodu k používání 74

CE

Technical line drawing of a mechanical device with mounting base and clamping mechanism (no text or symbols)

MITRE SAW

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the pictures on page 2 - 4

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Intended use

The electric tool is intended as a stationary machine for making straight lengthways and crossways cuts in wood. Horizontal mitre angles of -45^ to +45^ as well as vertical bevel angles of -45^ are possible.

Contents

1. Machine information
2. Safety
3. Mounting accessories
4. Operation
5. Service & Maintenance

1. MACHINE INFORMATION

Technical specifications

Mains voltage 230-240V,~ 50Hz

Capacity 1300 W

Machine class II (double insulated)

No load speed 4500/min

Saw blade measurement 210x30x2.5mm

Angle for mitring 45° (left and right)

Angle for bevelling 45° (only left)
Mitre saw maximum sawing capacity:
Mitre 0°, Bevel 0° 55x120mm
Mitre 45°, Bevel 45° 32x80mm
Mitre 45°, Bevel 0° 55x80mm
Mitre 0°, Bevel 45° 32x120mm
Weight	6.6 kg
L_pa (sound pressure)	91 dB(A), KpA: 3dB
L_wa (acoustic capacity)	104 dB(A), KwA: 3dB
Vibration level	<2.5 m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 61029-1; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

Package contents

1 TCT Saw blade: 210 x 30mm (T48)
1 Workpiece clamp
1 Dust bag
1 Carbon brush set
1 Rear support
2 Side extensions
1 Hex key
1 Pair of safety glasses
1 Set earplugs

Check the machine, loose parts and accessories for transport damage.

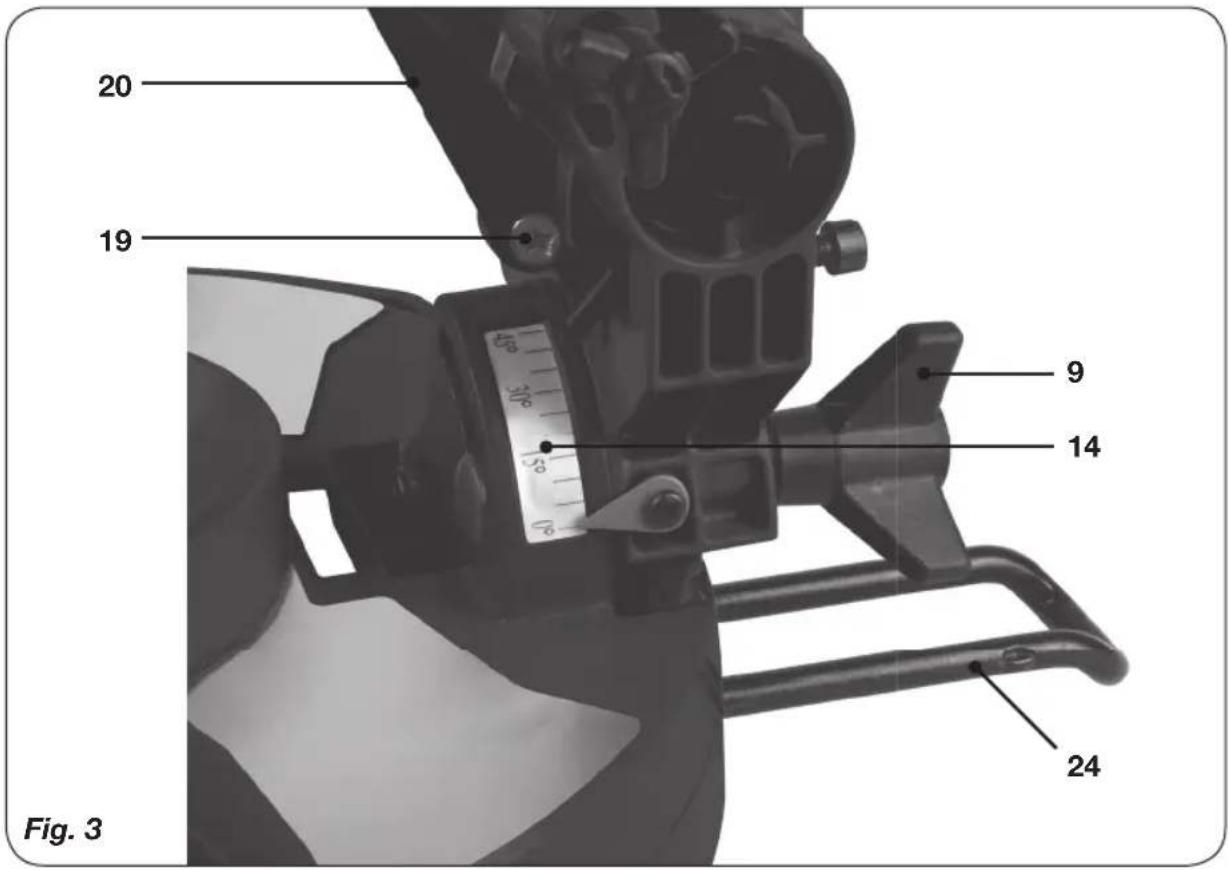

Features

Figs. 1, 2, 3, 4 and 5

1. On/offswitch
2. On/off switch for laser
3. Unlock button (Blade protective cover)
4. Cover carbon brush
   5.Lock-pin
5. Blade protective cover
6. Workpiececlamp
7. Guidance
8. Knob adjusting saw angle
9. Lockingknob
10. Laserbattery
11. Sliding fence knob
12. Connection dust bag
13. Bevelangle
14. Handle
    16.Cover
15. Saw blade bolt
    18.Flange
    19.Screw
16. Retractionarm
17. Extension pieces (left and right)
18. Lock-button saw blade
19. Angleindicator
    24.Supportbracket

2. SAFETY INSTRUCTIONS

By using electric tools basic safety precautions should always be followed to reduce the risk of fire. Electrical shock and personal injury.

Always read the specific product instruction manual and the safety instructions before attempting to operate the power tool and store these instructions.

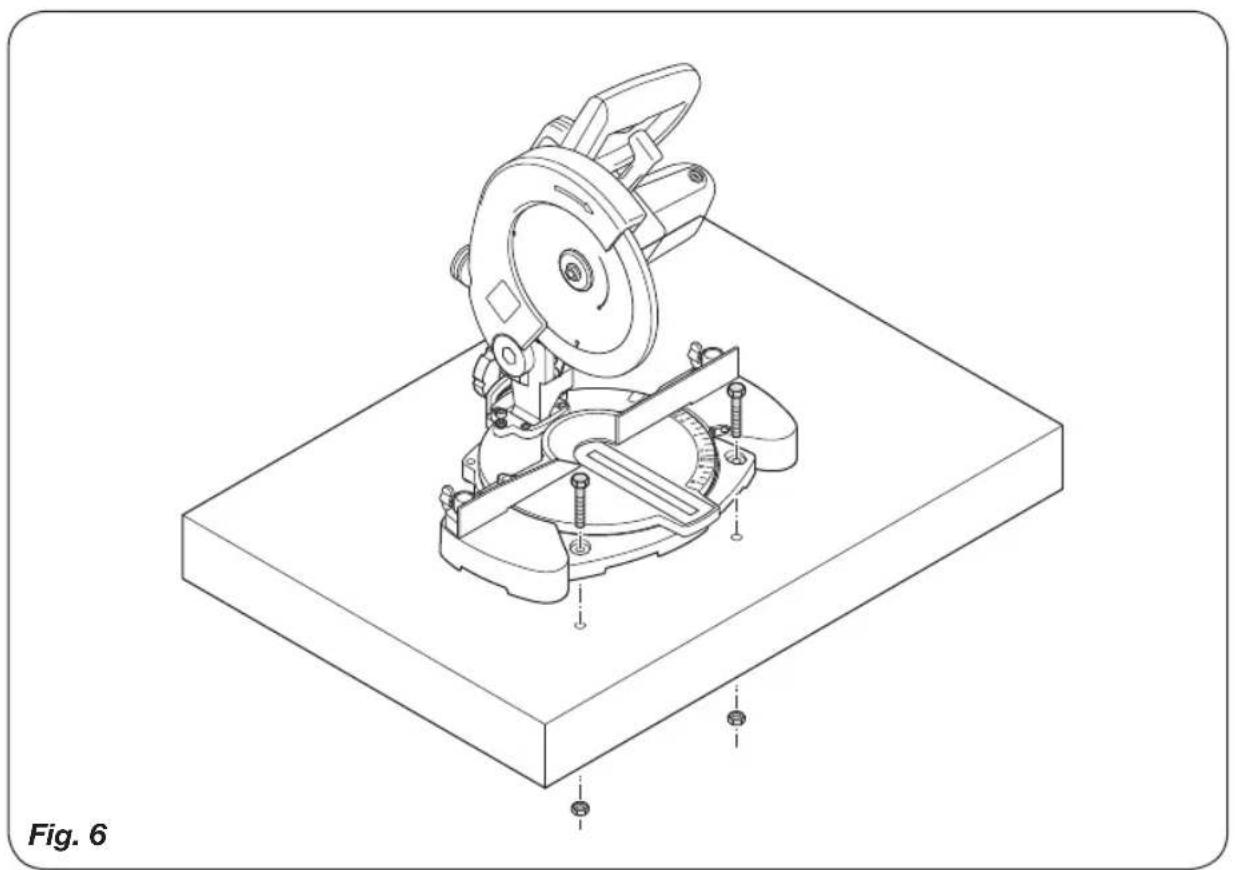

Install of a stationary machine

Fig. 6

This machine is a stationary machine and for safety reasons must always be firmly installed and not used for mobile applications.

You can install the machine in two ways:

a) As a stationary machine on a workbench. In case the machine must be secured to the workbench with 4 bolts.
b) As a stationary machine on a sub frame. In this case the machine must be secured to the sub frame with 4 bolts and the sub frame anchored with 4 bolts to the floor plate with dimensions of at least 1 square meter.

Symbols

The following symbols are important for the operations of your power tool. The correct interpretations of the symbols helps you operate the power tool more save.

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual.

Caution, risk of electric shock.

Keep bystanders away.

Wear eye protection.

Wear ear protectors. Exposure to noise can cause hearing loss.

Wear a dust mask.

Danger Area! Keep hands far away (10cm) from the cutting area while the machine is running. Danger of injury when coming in conatct with the saw blade.

Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself, not even from a distance. This power tool produced laser class 2 laser radiation according to EN 60825-1. This lead can lead to person being blinded.

Disc dimensions. Observe the dimensions of the saw blade. The hole diameter must match the tool spindle without play. *Use only a fill ring which is specified by supplier, filling ring may not have any play.

Tranport the machine only when the machine is in inward transport position.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders far away while operation a power tool. Distractions can cause you to lose control, or material can shut away.
d) Never leave the machine unattended without first disconnecting it from the mains voltage.

2.Personalsafety

a) If you are not familiar with using such machine. You would be better to be informed first by a professional, an instructor or by a technician.
b) Store idle power tools out of the reach of children. Power tools are dangerous in the hands of untrained users.
c) Keep power tools dry, clean and free from oil and grease. Properly maintained power tools are safer and easier to control. Grease oil handles are slippery causing loss of control.
d) Make sure you always have a clean and tidy working environment. You could slip or trip.
e) Stay alert, watch what you are doing and use common sense when operating a power tool.
f) Do not overreach. Keep proper footing and balanced at all the time. This enables better control of the power tool in unexpected situations.
g) Do not work with a machine while you under the influence of alcohol, drugs or medication. Inattention while operating power tools may result in very dangerous injury.
h) Use always protective equipment. Always wear eye protection, dust mask, hearing protectors and safety shoes. By service on machine or raw materials use gloves. Keep your hair back. Reduce changes on personal injury.
i) Be careful when sawing double miter joints. Saw blade, Work piece and your hands must be always visible during sawing.
j) Never saw more than one piece of work at the same time.
k) Make sure that the piece of work not have any nails/ staples or other foreign objects in it.
I) Never process metal or stone with this machine.
m) Do not work with material containing asbestos.

3. Power tool safety

The first time that the machine is used and then every subsequent time that it is used:

Before carrying out any work on the machine, disconnect the mains plug from the power supply.

General: Check the entire saw machine. If any part of the machine is missing, bent, damaged or is dysfunctional in any other way, or if any mechanical and/or electrical faults occur or are visible, or if the machine makes any extremely loud noises, refer to the user manual.

If any defects are detected on the machine, they must all be rectified before the machine is used.

Only original parts should be used! If you have any outstanding concerns which could affect your own safety or the safety of the machine, please consult the machine supplier.

Electrical

a) Always use an Original power plug which matches the outlet, do not use an adapter plug with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electrical shock.
b) Do not use the machine with a damaged power cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electrical shock.
c) Check the cable regularly and have a damaged cable repaired. Replacing cables or plugs. Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet. Use original power cord and plugs, repairing only through an authorized person, this will ensure that the safety of the power tool is maintained!
d) To prevent electrical shocks. When plugging the plug into the socket the metal pins must not be touched in any way whatsoever.
e) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electrical shock.
f) Never use the cord to pull the plug out of the socket. Keep the cord and plug away from oil, heat and sharp objects.

g) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use a cord for outdoor use reduces the risk of electric shock.
h) When machine is equipped with laser. Do not direct the laser beam at persons or animals and do not stare into the laser beam yourself. Not even in distance. Laser must be according to EN 60825-1 Class 2.
i) Repairs of a laser may only be carried out by the laser manufacture or a specialist.
j) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Mechanical

a) Before you start the machine, check if the saw blade is allowed to rotate freely. Check in every different position of the saw machine if the saw blade revolves freely, if the saw blade touches anything the machine must be adjusted or repaired.
b) Do not use the power tool if the switch does not turn on and off. A power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Always use saw blades with the correct size and shape. Use saw blades recommended by the manufacture (EN-847-1). Saw blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control. Only buy saw blades with a suitable number of revolutions of at least 4500 RPM.
d) Never use too small or too big saw blades. This is very dangerous.
e) Never remove marking on saw blade. Technical information must always visible to make the right choices by exchanging the saw blade.
f) Secure the work piece. Always clamp work piece with clamping devices, this is much safer than by hand.
g) Never leave the machine before the complete stopped.
h) Do not use High speed steel saw blades (HSS). Saw blade can easily break.
i) Do never use dull, cracked, bent or damaged saw blades. Before use pull the mains plug and check the saw blade. Damaged or unsharpened saw blades produce narrow kerf, excessive friction, blade binding and kickback.

Exchange damaged saw blades immediately, always use original flenses, nut and/or bolts.
j) Remove any adjusting key or wrench before turning the power tool. A wrench or a key left attached to a rotating part of the power tool may result in a personal injury and very dangerous situation.
k) The arrow marked on the saw blade, which indicates the direction of rotation. Must point in the same direction as the arrow marked on the machine, the saw blade teeth must point downwards on the front of the saw.
I) Do not touch the saw blade after work before it has cooled. The saw blade becomes very hot while working.
m) Protect the saw blade from strikes and shocks. Do not apply side pressure to the saw blade.
n) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate which it was signed.
o) Never stand on the power tool. Serious injury can occur when the power tool tips over. Always use extra support for more stability of the machine.
p) Machine is provided with devices for the connection of dust extraction, ensure these are connected and properly used. Dust collection reduce dust-related hazard's.
q) Maintain the air outlets at the machine. Dust must be removed.
r) Make sure that the guard operates properly and that it can move freely. Never lock the guard in place when opened.
s) Never remove cutting remainders from the sawing area while the machine is running. Always guide the tool arm back to the neutral position first and then switch the machine off.
t) Guide the saw blade against the work piece only when the machine is switched on. Otherwise there is a risk of a kickback, when the saw blade becomes wedged in the work piece.
u) If the saw blade should become jammed. Switch the machine off and hold the work piece until the saw blade comes to a complete stop.
v) To prevent a kick back. The work piece may not be moved until after the machine has complete stopped. Correct the cause for the jamming of the saw blade before restarting the machine.
w) When sawing profile sections, round pieces or other pieces, always press the piece of work

against the stop and can't move, so it cannot till or turn or move while sawing.

x) Never use the machine to saw pieces of work that are to small that they cannot be secured safely. Small pieces of wood or other objects that come in contact with the rotating saw blade can strike the operator or out standers with high speed.
y) When sawing always use the additional supports.
z) For sawing of large piece work that not supported. Use extra supports.
aa) Never make warning signs on the machine unrecognizable. Technical information or machine type information must be always visible on machine.

At the end of the sawing process, keep the saw head downstairs, switch off the machine and wait until the all moving parts has come to a stop before you take your hands off the machine.

3.ASEMBLYAND ACCESSORIES

Installation of the mitre saw

• Place one sidebar (21) on the right-hand side of the machine and the other sidebar on the left-hand side of the machine.
• Place the work piece clamp (7) on the left or right side of the machine.
• Hold the handgrip and move the saw slightly downwards and then pull the pin (5) out slightly so that saw moves upwards.

Note: Never use the mitre saw without the extension pieces supplied. Make sure that they are correctly mounted.

Mounting the anti-tip over support.

• The anti-tip over support (24) is pre mounted.
- Always extend the anti-tip over support when using the machine.

Sliding fence

Fig. 2

For safety reasons, this machine is equipped with a moveable guide fence to used in normal and bevel cutting.

- For normal straight cross-cuts and mitre cuts, always adjust the sliding fence (8)(12) to the

end and fix well to provide safety support for work piece.

- For bevel cuts, adjust the sliding fence (8)(12) to a suitable position as close as to the saw blade surface but avoid interfere the saw blade movement and ensure to fix well.

Changing the saw blades

Fig. 4 and 5

Only use saw blades that are sharp and undamaged. You must immediately replace chipped or bent saw blades.

DANGER: Do not use any blade larger than the stated capacity of the saw. It may come into contact with the blade guard and cause harm.

Do not use a blade too thick to allow the outer blade washer to engage with the flats on the spindle. This will prevent the blade screw from securing the blade on the spindle.

Do not use this saw to cut metal or masonry

• Disconnect the machine from the power supply.
• Remove the screw (19) that holds the retraction arm(20).
• Press the saw blade lock button (22) and hold. Rotate the saw blade carefully by hand until the blade locks.
• Use hex key to remove the saw blade bolt (17) by loosening in a clockwise direction.
• Lift the blade cover (6) upwards using unlock button (3) and hold it.
• Remove the Flange (18) and the saw blade.
• Replace the saw blade making sure that the arrow marked on the saw blade must point in the same direction as the arrow shown marked on the machine. The saw blade teeth must point downwards.
  • Lower the blade cover (6).
• Replace Flange and fix the saw blade bolt (17) use the saw blade lock button (22) to secure tightly.
• Attach the retraction arm (20) back by tightening the screw (19).
• Rotate the saw blade manually and check if the guard operates freely.

Adjusting the cutting angle

Fig. 2

Adjusting Mitre Angles

The mitre angle can be set between 45^ left side and 45^ right side

• Loosen the locking knob (10).
• Turn the saw table left or right until the angle indicator (23) indicates the required angle.
• Tighten the locking knob (10).

Pre-settings (quick settings) on the following degrees: -45^ , -40^ , -35^ , -30^ , -25^ , -20^ , -15^ , -10^ , -5^ , 0^ , 5^ , 10^ , 15^ , 20^ , 25^ , 30^ , 35^ , 40^ , 45^ .

Adjusting Bevel Angles

Fig. 1 and 3

The bevel angle can be set between 0^ and 45^ .

Adjust sliding fence accordingly! See chapter 3, sliding fence.

• Loosen the adjusting knob (9).
• Tilt the saw by using the handle until the angle indicator (14) indicates the required angle.
• Tighten the adjusting knob (9).

Changing the carbon brushes

Fig. 2

• Disconnect the machine from the power supply.
• Unscrew the two covers (4) on the front and backside of the motor housing.
• Replace the carbon brushes with the exact type of brushes.
• Tighten the covers (4) again.
  Note: Always replace both carbon brushes at the same time, never use a mixture of old and new brushes.

Mounting the dust bag

Fig. 1

Press in the clamp of the dust bag (13) and slide it onto the opening on the back of the machine. The dust bag stays in place when you release the clamp.

4. OPERATION

Using the mitre saw

Fig. 1

Before use, always check for faults or defects!

• Set the desired sawing angle of the machine.
• Put the plug into the socket.
• Fix the piece of work in place using the clamp (7): make sure that the material is well clamped in place!
• Hold the material tightly on the left side while making sure that you keep a safe distance from the blade of the saw.
  • Turn on the machine using the switch (1).
• Make sure that the saw blade has reached full speed before allowing it to touch the piece of work to be sawn.
• Use knob (3) to raise the protective cover lock.
• Now bring the saw slowly downwards so that the saw blade saws through the piece of work and passes through the slot in the table. Do not put any pressure on the saw. Give the machine time to saw through the piece of work.
• Bring the machine gently up again and switch it off by letting go of the switch (1).

Using the laser

Fig. 2

• To switch on the laser, press the on/off switch 2.
• To switch off the laser, release the on/off switch 2.

5. SERVICE AND MAINTENANCE

Always make sure that the machine is not connected to the mains electricity when you carry out any maintenance of the mechanism.

Cleaning

Clean the machine housing regularly with a soft cloth, preferably after each time you use the machine. Make sure that the ventilation slots are free of dust and dirt. For stubborn dirt use a soft

cloth dampened with soapy water. Never use solvents such as benzene, alcohol, ammonia, etc. These types of solvents can damage the plastic parts.

Problem solving

1. The motor does not start

• The plug is not in the socket.
• The power cord is broken.
- The switch is defective. Take the machine to your dealer for repair.

2. The saw cut is not even (jagged)

• The saw blade must be sharpened.
• The saw blade is mounted back to front.
- The saw blade is clogged with resin or sawdust.
- The saw blade is not suitable for the piece of work being used.

3. The height and/or mitre lever is obstructed

- Chips and/or dust must be removed.

4. The motor has difficulty in reaching full speed

• The extension cord is too thin and/or too long.
  • The mains voltage is less than 230 V.

5. The machine vibrates excessively

• The saw blade is damaged.

6. The machine becomes excessively hot

- The ventilation slots are blocked. Clean them out with a dry cloth.

7. The electromotor runs unevenly

- The carbon brushes are worn out. Replace the carbon brushes or consult your dealer.

Lubrication

The machine does not need any extra lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

GEHRUNGSSÄGE

CE

DECLARATION OF CONFORMITY MSM1037 - MITRE SAW

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaartlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/85/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilidade de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 2011 päivätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk ulstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak: je v souladu se směrnící 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.

(CS) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SK) Vyhlásujeme na našu výhradnú zodpovednost, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parla mentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad śis gaminys atitinka żemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje jrangoje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņa un atbilst sekojošiem stand-artiem un nolikumiem: ir atblistoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekärtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovorno,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL)Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парпамента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявняємо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιορισμό της χρήσης ορισμένων επικίνδυνων υσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.

EN 60745-1, EN 60745-2-6, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2011/65/EU, 2012/19/EU

Zwolle, 01-01-2015

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
