BFS441ZJ - Screwdriver MAKITA - Free user manual and instructions

Product Type	Cordless Impact Screwdriver
Brand	Makita
Model	BFS441ZJ
Power Source	18 V Li-ion battery (LXT range)
No-load Speed	0 – 2800 rpm
Impact Rate	0 – 3200 ipm
Max Torque	150 Nm
Chuck	Keyless, 13 mm
Clutch	21 torque positions
Motor Brake	Yes
LED Light	Yes, with pre-light function
Handle	Non-slip, ergonomic
Weight (with battery)	Approximately 1.5 kg
Dimensions (L × W × H)	200 × 80 × 250 mm
Sound Level	LpA: 85 dB(A), K=3 dB(A)
Vibration Level	Screwing: 8 m/s², Impact: 12 m/s²
Maintenance	Clean ventilation slots, replace motor brushes if necessary
Safety	Switch lock, protection against accidental restart
Spare Parts	Batteries, charger, brushes, chuck, bits available
Repairability	Repairability index 8/10, accessible modules
Warranty	2 years manufacturer warranty

Frequently Asked Questions - BFS441ZJ MAKITA

Which battery is compatible with the Makita BFS441ZJ screwdriver?

The screwdriver is compatible with all batteries from the Makita LXT 18 V range (e.g., BL1815, BL1830, BL1850).

How to install or remove the battery?

Press the lock button on the battery and slide it forward or backward. Insert the battery until it clicks into place.

How to adjust the tightening torque?

Turn the torque adjustment ring located behind the chuck. The 21 positions allow you to adapt the screwing force to your work.

How to use the impact mode?

Impact mode activates automatically when you apply sufficient pressure on the screw. It is ideal for screwing into concrete or metal.

How to turn on the LED?

The LED turns on automatically when you press the trigger. It illuminates the work area and turns off a few seconds after releasing.

How to clean the screwdriver?

Use a dry, clean cloth to clean the housing. Regularly clean the ventilation slots with a soft brush to prevent overheating.

What to do if the screwdriver does not turn on?

First check that the battery is properly installed and charged. If the problem persists, inspect the battery and screwdriver contacts. Consult a professional if necessary.

How to replace the motor brushes?

The brushes are accessible after unscrewing the side caps. Use genuine Makita replacement brushes. Replacement requires disconnecting the battery.

What is the warranty of the screwdriver?

The Makita BFS441ZJ screwdriver has a manufacturer warranty of 2 years from the date of purchase, subject to normal use.

Where to find spare parts?

Spare parts (batteries, charger, brushes, chuck) are available at authorized Makita dealers and specialized websites. Always use original parts.

USER MANUAL BFS441ZJ MAKITA

GB Cordless Screwdriver Instruction manual

Line drawing of a Makita electric drill with base mount (no text or symbols)

1

2

3

4

5

6

7

8

9

10

Line drawing of a hand using a drill pen to extend a vertical line (no text or symbols)

11

ENGLISH (Original instructions)
Explanation of general view

1. Red indicator	6. Lamp	11. Groove
2. Button	7. Reversing switch lever	12. Hook
3. Battery cartridge	8. Locator	13. Screw
4. Star mark	9. Bit
5. Switch trigger	10. Magnetic bit holder

SPECIFICATIONS

Model BFS441 BFS451
Capacities Drywall screw 4 mm 4 mm
No load speed (min ^-1 ) 0 - 4,000 0 - 4,000
Overall length	With short locator 281 mm 281 mm
	With long locator	296 mm 296 mm
Net weight		1.4 kg	1.5 kg
Rated voltage D.C. 14.4 V		D.C. 18 V

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003

Intended use

ENE033-1

The tool is intended for screw driving in wood, metal and plastic.

General Power Tool Safety Warnings GEA010-1

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

CORDLESS SCREWDRIVER SAFETY WARNINGS

GEB050-2

1. Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
2. Always be sure you have a firm footing. Be sure no one is below when using the tool in high locations.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece immediately after operation; they may be extremely hot and could burn your skin.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

IMPORTANT SAFETY INSTRUCTIONS

ENC007-7

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:
   (1) Do not touch the terminals with any conductive material.
   (2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
   (3) Do not expose battery cartridge to water or rain.
   A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^ C ( 122^ F).

7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10^ C - 40^ C ( 50^ F - 104^ F). Let a hot battery cartridge cool down before charging it.
4. Charge the battery cartridge once in every six months if you do not use it for a long period of time.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

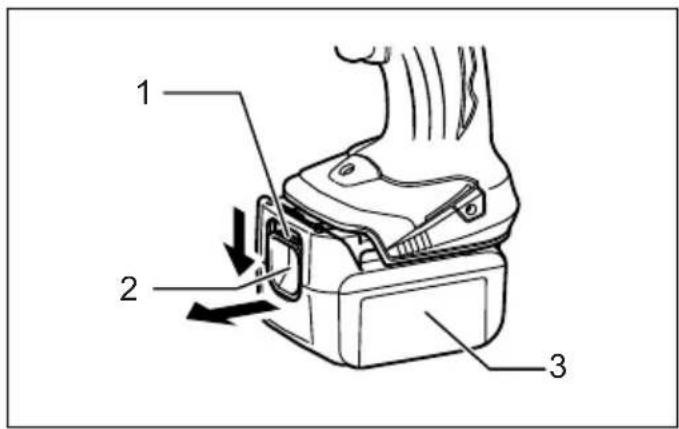

Installing or removing battery cartridge (Fig. 1)

• Always switch off the tool before installing or removing of the battery cartridge.
• To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge.
• To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. Install it fully until the red indicator cannot be seen. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when installing the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

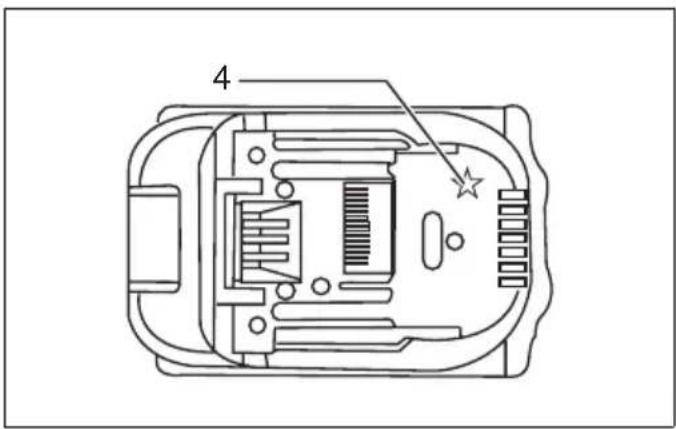

Battery protection system (Battery cartridge with a star mark) (Fig. 2)

The battery cartridge with a star mark is equipped with the protection system, which automatically cuts off the output power for its long service life.

The tool stops during operation when the tool and/or battery are placed under the following situation. This is caused by the activation of protection system and does not show the tool trouble.

- When the tool is overloaded: At this time, release the switch trigger, remove the battery cartridge and remove causes of overload and then pull the switch trigger again to restart.

• When battery cells get hot:
  If any operation of the switch trigger, the motor will remain stopped. At this time, stop use of the tool and cool or charge the battery cartridge after removing it from the tool.
• When the remaining battery capacity gets low: If any operation of the switch trigger, the motor will remain stopped. At this time, remove the battery cartridge from the tool and charge it.

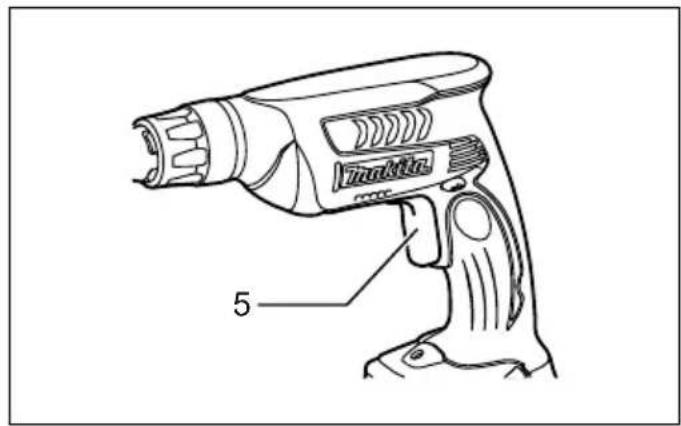

Switch action (Fig. 3)

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

NOTE:

- Even with the switch on and motor running, the bit will not rotate until you fit the point of the bit in the screw head and apply forward pressure to engage the clutch.

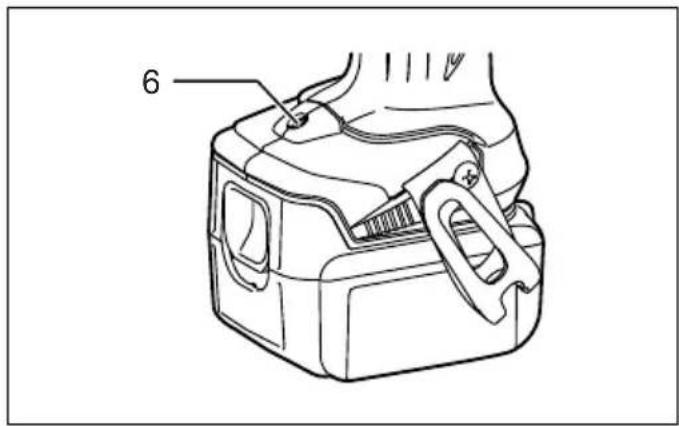

Lighting up the front lamp (Fig. 4)

CAUTION:

- Do not look in the light or see the source of light directly.

Pull the switch trigger to light up the lamp. The lamp keeps on lighting while the switch trigger is being pulled. The lamp goes out 10 - 15 seconds after releasing the trigger.

NOTE:

- Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

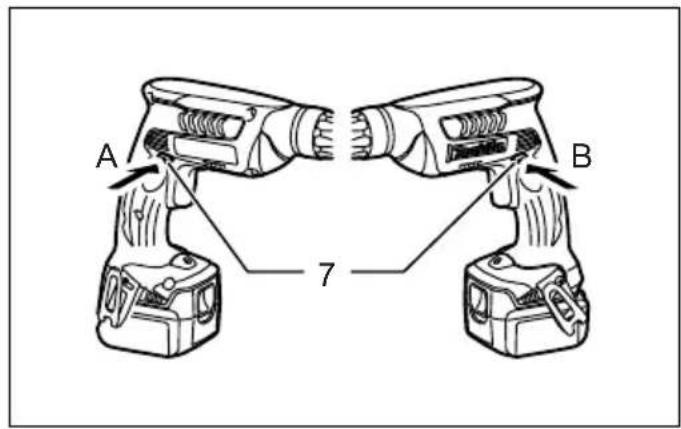

Reversing switch action (Fig. 5)

This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counterclockwise rotation.

When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled.

CAUTION:

• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop. Changing the direction of rotation before the tool stops may damage the tool.

When not operating the tool, always set the reversing switch lever to the neutral position.

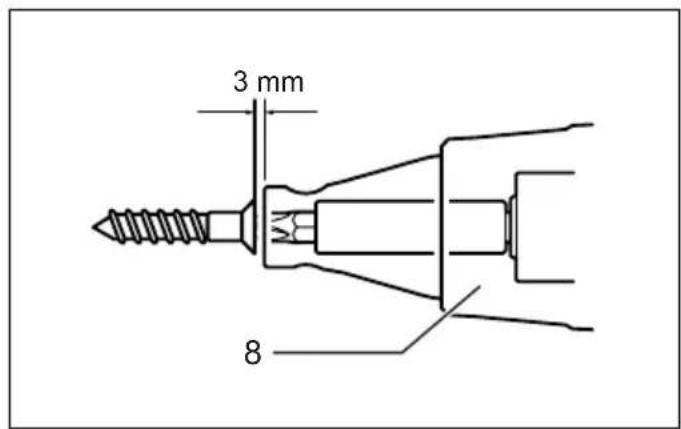

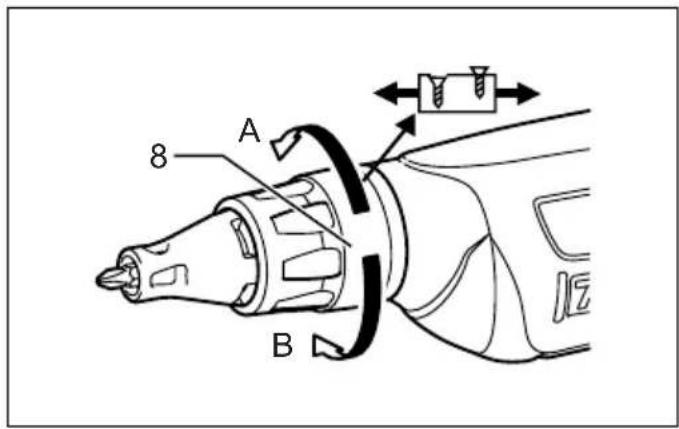

Depth adjustment (Fig. 6)

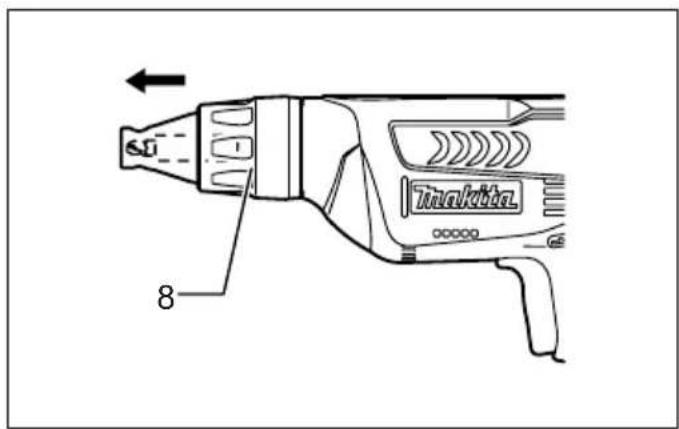

The depth can be adjusted by turning the locator. Turn it in "B" direction for less depth and in "A" direction for more depth. One full turn of the locator equals 2 mm change in depth. (Fig. 7)

Adjust the locator so that the distance between the tip of the locator and the screw head is approximately 3 mm as shown in the figures. Drive a trial screw into your material or a piece of duplicate material. If the depth is still not

suitable for the screw, continue adjusting until you obtain the proper depth setting.

ASSEMBLY

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool.

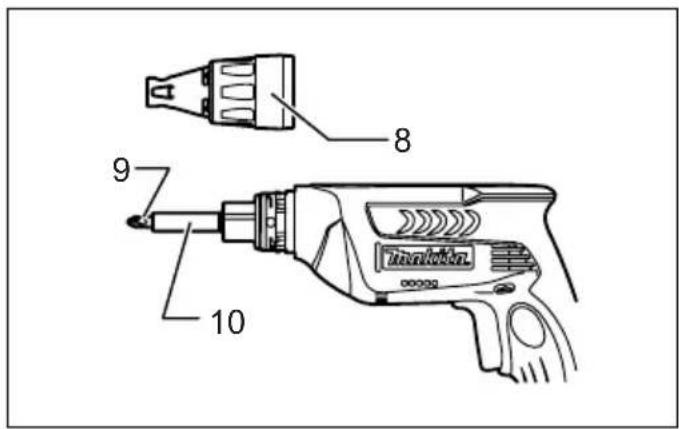

Installing or removing the bit (Fig. 8)

To remove the bit, pull the locator. Then grasp the bit with a pair of pliers and pull the bit out of the magnetic bit holder. Sometimes, it helps to wiggle the bit with the pliers as you pull. (Fig. 9)

To install the bit, push it firmly into the magnetic bit holder. Then install the locator by pushing it firmly back.

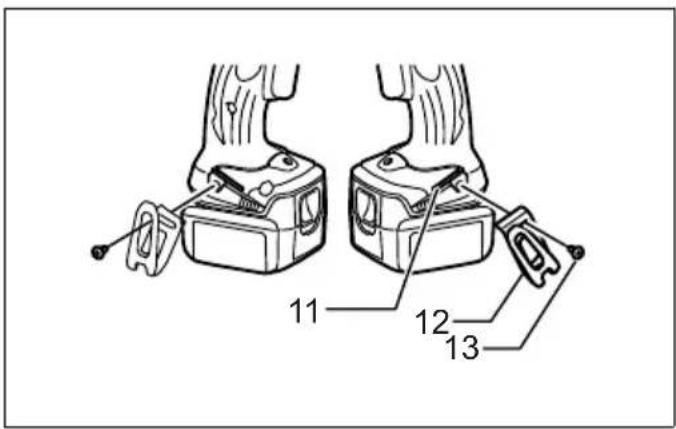

Hook (Fig. 10)

The hook is convenient for temporarily hanging the tool. This can be installed on either side of the tool. To install the hook, insert it into a groove in the tool housing on either side and then secure it with a screw. To remove, loosen the screw and then take it out.

OPERATION

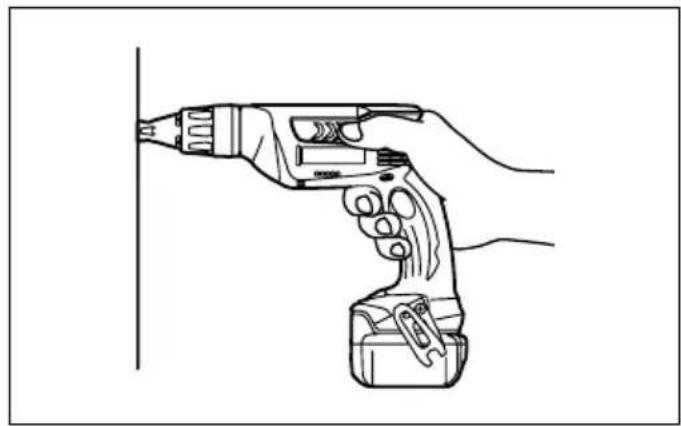

Screwdriving operation (Fig. 11)

Fit the screw on the point of the bit and place the point of the screw on the surface of the workpiece to be fastened. Apply pressure to the tool and start it. Withdraw the tool as soon as the clutch cuts in. Then release the switch trigger.

CAUTION:

• When fitting the screw onto the point of the bit, be careful not to push in on the screw. If the screw is pushed in, the clutch will engage and the screw will rotate suddenly. This could damage a workpiece or cause an injury.
• Make sure that the bit is inserted straight in the screw head, or the screw and/or bit may be damaged.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and replacement, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might

present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Phillips Insert bits
• Magnetic bit holder
• Various type of Makita genuine batteries and chargers
• Plastic carrying case

NOTE:

- Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

Noise

ENG905-1

The typical A-weighted noise level determined according to EN60745:

Model BFS441

Sound pressure level ( L_pA ): 70 dB (A) or less

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Model BFS451

Sound pressure level ( L_pA ): 71 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Wear ear protection.

Vibration

ENG900-1

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode: screwdriving without impact

Vibration emission ( a_h ): 2.5 m/s ^2 or less

Uncertainty (K): 1.5 m/s²

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.

- The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

For European countries only

ENH101-15

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine:

Cordless Screwdriver

Model No./ Type: BFS441, BFS451

are of series production and

Conforms to the following European Directives:

2006/42/EC

And are manufactured in accordance with the following standards or standardised documents: EN60745

The technical documentation is kept by our authorised representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

14.9.2010

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Makita International Europe Ltd. Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, Angleterre
