Jetforce Eco 2791P - Vacuum Cleaner ARIETE - Free user manual and instructions

Product Type	Canister vacuum cleaner with bag
Brand	Ariete
Model	Jetforce Eco 2791P
Maximum power	2400 W
Energy consumption	Class A (according to EU standard)
Bag capacity	3.5 L
Filter type	Washable HEPA filter
Noise level	78 dB(A)
Operating radius	9 meters
Weight	6.5 kg
Dimensions (L x W x H)	40 x 28 x 34 cm
Cable length	7 meters
Brush type	Motorized brush with height adjustment
Included accessories	Crevice tool, dusting brush, upholstery nozzle
Power regulation	Electronic control on handle
Bag emptying system	Push & Clean system for contactless bag emptying
Maintenance	Wash HEPA filter every 3 months
Safety	Automatic shutdown in case of overheating
Spare parts	Available: bags, filters, brushes, belt
Repairability	Repairability score: 7.4/10 (according to manufacturer)

Frequently Asked Questions - Jetforce Eco 2791P ARIETE

How to change the bag of the Ariete Jetforce Eco 2791P vacuum cleaner?

Open the front cover, remove the full bag, insert a new suitable Ariete bag (type S). Close the cover until it clicks.

Can the HEPA filter be washed?

Yes, the HEPA filter is washable with warm water (no detergent). Let it dry completely for 24 hours before reinstalling.

How to adjust the suction power?

Use the electronic slider on the handle: minimum position for fabrics, maximum for hard floors.

What to do if the vacuum cleaner suddenly stops?

Check the bag (full?), the filter (clogged?), and the hoses (blocked?). The device may also stop in case of overheating: unplug, let it cool for 30 min.

How to clean the motorized brush?

Unplug the vacuum. Remove the brush by pressing the side tabs. Cut threads or hair with scissors.

Where to buy replacement bags and filters?

On the official Ariete website or in supermarkets. Bag reference: ARIETE 1000-0271. HEPA filter: ARIETE 1000-0272.

Is the vacuum cleaner suitable for hard floors?

Yes, thanks to the adjustable motorized brush. You can also deactivate the brush for delicate floors (parquet).

What is the noise level of this vacuum cleaner?

The noise level is approximately 78 dB, which is standard for a vacuum of this power.

How to wind the power cord?

Press the pedal at the back of the device to automatically wind the cable. Guide it to avoid knots.

The vacuum cleaner smells like burning, what should I do?

Stop immediately and unplug. Check the filter (dirty?) and hoses (blockage). The smell may come from a full bag or an overheating motor. If it persists, contact customer service.

USER MANUAL Jetforce Eco 2791P ARIETE

Illustration of a vacuum cleaner with attached hose and airbag (no text or symbols)

ECO POWER

-Ariete

De' Langhi Appliances Srl Divisione Commerciale Aniele Via San Quínico, 300

50013 Camci Bierzio F - Italy E-Watt: [e-mail] Internet: www.anete.net

CE 2791/3

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 6

Fig. 8

Fig. 10 Fig. 11

Fig. 5

Fig. 7

Fig. 9

AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DI USARE L'APPARECCHIO:

READ THESE INSTRUCTIONS BEFORE USING THE APPLIANCE:

When using the appliance, it is necessary to follow some basic precautions:

1 Always make sure that the voltage of the mains electricity supply is the same as that indicated on the rating plate of the appliance and that the system is compatible with the appliance power.
2 This appliance conforms to the 2006/95/EC and EMC2004/108/EEC directives.
3 The appliance may only be used for its intended purpose, which is for vacuuming dust from surfaces within the home. Any other use is to be considered improper and therefore, dangerous. The manufacturer may not be held liable for any damages caused by improper, incorrect or unreasonable use.
4 Do not use to vacuum hot ash, large pieces of glass, rubble, sharp or pointed items or liquids.
5 To prevent dangerous overheating, always unwind the power cord fully and unplug the appliance from the mains when the appliance is not in use.
6 Only plug the appliance into an AC socket.
7 Never use the appliance without a bag or motor filter or if the bag or filter are broken or damaged.
8 Never use the appliance on wet surfaces.
9 Never suck up liquids.
10 NEVER PLACE THE APPLIANCE IN WATER OR OTHER LIQUIDS.
11 Do not touch the appliance when hands or feet are wet or moist.
12 Never use the appliance with bare feet.
13 Do not leave the appliance exposed to the elements (rain, sun, etc.).
14 Do not store the appliance in proximity to sources of heat (e.g. radiators).
15 Always unplug the appliance before cleaning it or changing the filters.
16 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
17 Children should be supervised to ensure that they do not play with the appliance.
18 Never unplug the appliance by pulling on the power cord.
19 Make sure that the power cord does not come into contact with sharp or hot surfaces.
20 Never use the appliance if the power cord is damaged.

21 If the cord is damaged, it must be replaced by the Manufacturer, by an Authorised Technical Assistance Centre or in any case, by a similarly qualified person, in order to prevent any risks.
22 Always switch on the appliance with the power regulator set to minimum.
23 Unplug the appliance from the mains electricity after each use.
24 In the event that you decide to dispose of the appliance, we advise you to make it inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.
25 Packaging must never be left within the reach of children since it is potentially dangerous.

DO NOT THROW AWAY THESE INSTRUCTIONS

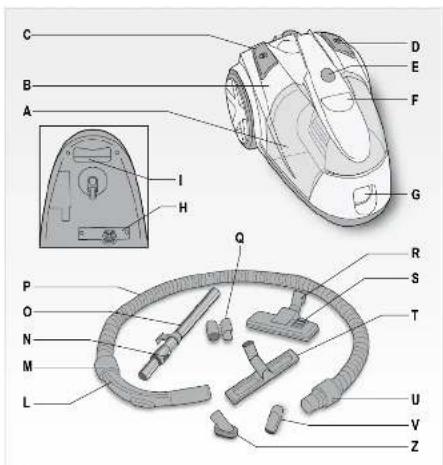

DESCRIPTION OF THE APPLIANCE (Fig. 1)

A Dust container
B Appliance body
C Foot-operated cord rewinder button
D Foot-operated on/off switch
E Dust container lock/release button
F Dust container handle
G Suction device coupling
H Outlet air filter housing
I Top carry handle
L Manual air inlet valve
M Handle
N Slider device
O Telescopic tube
P Suction device coupling
Q Attachment storage compartment
R Floor brush
S Hard floor / carpet selector switch
T Parquet brush
U Release buttons
V Narrow suction nozzle
Z Small suction device with brush

ATTACHMENTS

Telescopic tube (O)

Insert the extension tube onto the handle and then fit the required attachment.

Once the attachment has been fitted, it is possible to extend the telescopic tube using the lever (FIG.

4) to move it to the required length. Release the lever to stop the tube in the required position.

Floor brush (R)

• Ideal for cleaning large areas as well as corners that are difficult to reach.
• We advise against using the brush to clean carpets and resistant floors. The brush has wheels to allow it to glide over all surfaces. Select the required projection for the bristles by pressing the lever at the end of the brush. To retract the bristles, press the lever marked with the carpet symbol.
• For better preservation and protection of smooth flooring such as PVC, parquet or tiles, it is better to use the brush. To lower the bristles, press the lever marked with the smooth flooring symbol.

Parquet brush (T)

This can be used to clean delicate surfaces.

Small suction device with brush (Z)

This can be used to remove dust from books or other delicate items, such as picture frames, etc. It is suitable for cleaning upholstered furniture, mattresses, cushions, curtains, etc...

This attachment can also be fitted directly to the handle (M).

Narrow suction nozzle (V)

This suction device is ideal for cleaning between the folds on fabrics, joints, corners or niches that are impossible to reach using the floor cleaning device. This attachment can also be fitted directly to the handle (M).

VACUMM CLEANER ASSEMBLY

IMPORTANT: Before fitting or removing attachments, always make sure that the vacuum cleaner has been unplugged from the power mains.

• Insert the suction device coupling (P) into the air inlet opening (I) and press until it clicks into place. To remove it, it is necessary to press the two release buttons (U) at the same time and to pull it out (Fig. 2).
• Insert the telescopic tube (O) into the handle (Fig. 3).
• Push the slider device (N) forwards and pull the bottom section of the tube out to the required length (Fig. 4). To shorten the tube, push it back in the opposite direction.
• Fit the required attachment to the telescopic tube.

USING THE APPLIANCE

CAUTION: Before using the vacuum cleaner, remove all large or sharp objects from the floor to avoid any possible damage to the cleaner itself.

First of all, before using this appliance, unwind the power cord completely and plug the appliance into the mains socket.

To switch on, press the foot switch (D) on the appliance. The cleaner is equipped with wheels to move it easily during use.

IMPORTANT: The appliance may "whistle" when switched on; this will stop within a few seconds.

Secondary air valve (L)

The secondary air valve (L) is on the hand grip (M) and it is used to regulate suction power. When the valve is open, the suction power is reduced and vice versa.

- To open the valve, push it upwards and to close it, push downwards.

Adjust the valve according to the type of surface being cleaned:

• Minimum suction power for curtains and delicate materials.
• Medium suction power for cushions, mattresses and carpets.
• Maximum suction power for tiled, wood or other resistant floor surfaces that are heavily soiled.

WARNING: Switch off the vacuum cleaner immediately if the air inlets, brushes or telescopic tube become blocked. Remove the cause of the blockage before switching the vacuum cleaner on again.

After using the cleaner

Switch off the appliance using the foot switch (D).

Then unplug the appliance from the mains power and hold down the foot pedal (C) on the appliance until the power cord is fully rewound.

WARNING: While rewinding the power cord, guide it in the right direction by hand to prevent any risk of injury to yourself.

Put the appliance away, upright, fitting the attachment storage compartment (Q) to the telescopic tube (O) and hooking on the narrow suction nozzle (V) and the small suction device with brush (Z); then hook on the tube (O), with the floor brush (R) fitted in the special compartment in the bottom of the appliance (Fig. 5).

Carrying the vacuum cleaner

Use the special handle (I) on the top of the appliance to carry it.

CLEANING AND MAINTENANCE

WARNING: Before carrying out any cleaning or maintenance operation, switch off the appliance and unplug it from the mains power.

The dirt vacuumed up will enter the dust container (A). The air is cleaned by a permanent washable filter that is located inside the dust container, by a motor protection filter and an air outlet filter located under the appliance.

WARNING: Never use the vacuum cleaner if any filter is missing or damaged. Any dust cleaned up will enter the appliance and damage the motor.

WARNING: Clean the filters regularly or in any case, whenever the suction power seems to be reduced.

Emptying the dust container (A)

The transparent dust container means it is easy to see when it is full and ready to be emptied.

• Press the release button (E) and at the same time, remove the dust container (A) using the relevant handle (F) (Fig. 6).
• Use the two levers at the back to open the relevant hatch (Fig. 7).
• To clean the inside of the container (A), it is possible to remove the washable filter by turning it anticlockwise and pulling it outwards (Fig. 8).
• Empty the dust container (A) (Fig. 9).
• To refit the filter on the dust container (A), insert it and turn it clockwise. Click the hatch shut.
• Refit the dust container (A) onto the body of the appliance (B) so that it clicks into place.

IMPORTANT: When the dust container becomes full, it is advisable to place a plastic bag over the top and empty it inside the bag itself to prevent dust and dirt from leaking out.

Cleaning the motor filter

The motor filter and its special covering need to be cleaned on a regular basis.

• Use the two levers and lower the hatch in the back section of the appliance (Fig. 10).
• Remove the filter and clean it under running water (Fig. 11). Leave it to dry thoroughly.

- Refit the filter and click the hatch shut.

WARNING: Only wash the filter in clean water, without using soap or detergents.

WARNING: This cleaning operation needs to be carried out at least every 6 months or in any case, when suction is visibly reduced.

Cleaning the air outlet filter

This filter cleans the air one last time before it leaves the vacuum cleaner. To clean the filter proceed as follows:

• Upturn the appliance and open the air outlet filter grid (H).
• The air outlet filter can be seen once the grid has been opened.
• Clean the filter in cold water and leave it to dry.
• Refit the clean (or new) air outlet filter into the grid and return this to the appliance, pressing it down until it clicks into place.

WARNING: Only wash the filter in clean water, without using soap or detergents.

Cleaning the vacuum cleaner

The casing, dust container and filter seats can be wiped with a damp cloth if necessary. No liquid must enter the vacuum cleaner in the process. Never use heavy-duty cleaning substances (stain removers, thinners) because they can corrode the plastic surfaces. Only put the plug back into the mains socket when you are sure that all parts are thoroughly dry.

IMPORTANT: Do not lubricate or oil any rotating parts, since this could cause dirt and fluff to stick even further

Cleaning the brushes

While the appliance is switched on, move your hand between the bristles on the brush to free them of any trapped dust, which will then be sucked into the cleaner.

SERVICE AND CUSTOMER ASSISTANCE

In case of damage to the power cord of other parts of the appliance, please contact an ARIETE authorised assistance service.

For assistance and repairs (under or post guarantee), please contact your local authorised ARIETE assistance centre.

IMPORTANT: The serial number of the appliance can be found on its rating plate.
