Product Type	Portable Radio
Brand	Blaupunkt
Model	BT20BK
Dimensions (approx.)	200 x 120 x 70 mm
Weight (approx.)	500 g
Power Supply	3 x AA batteries (not included) or AC adapter (5V, 1A)
Battery Life (approx.)	Up to 20 hours with alkaline batteries
Radio Bands	FM (87.5-108 MHz), AM (520-1710 kHz)
Display	LCD with backlight
Speaker	Built-in mono speaker, 3W output
Headphone Jack	3.5 mm stereo
Antenna	Telescopic for FM, built-in ferrite for AM
Additional Features	Preset stations (10 FM, 10 AM), alarm clock, sleep timer
Controls	Rotary tuning knob, volume dial, push buttons
Material	Plastic casing with metal speaker grille
Care & Cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety Warnings	Keep away from water and heat sources. Do not open the device.
Spare Parts & Repairability	Battery compartment cover and antenna are user-replaceable. For internal repairs, contact authorized service.
General Information	Designed for indoor and outdoor use. Operating temperature: 0-40°C.

Frequently Asked Questions - BT20BK BLAUPUNKT

How do I set the time on the Blaupunkt BT20BK?

Press and hold the Clock button for 2 seconds. Use the tuning knob to adjust hours, press again to set minutes, then press Clock to confirm.

Can I listen to the radio without batteries?

Yes, you can use the optional AC adapter (5V, 1A, center positive) by plugging it into the DC IN jack on the side.

How do I improve FM reception?

Fully extend the telescopic antenna and rotate it for best signal. Avoid placing the radio near metal objects or electronic devices.

Why is the sound distorted?

Check the volume level; if too high, lower it. Also ensure batteries are fresh or the AC adapter is providing stable power. If using headphones, clean the jack.

How do I preset radio stations?

Tune to the desired station, then press and hold one of the Preset buttons (1-10) until a beep sounds. Repeat for other presets.

What type of batteries does the BT20BK require?

It requires 3 AA alkaline batteries (not included). Rechargeable NiMH batteries can also be used but may result in slightly shorter playback time.

The radio turns off automatically after a while. Why?

The Sleep Timer may be active. Press the Sleep button repeatedly to set the desired off time (15, 30, 60, 90 minutes) or turn it off by selecting 'OFF'.

How do I clean the radio?

Use a soft, dry cloth to wipe the exterior. For stubborn dirt, slightly dampen the cloth with water. Do not use alcohol, ammonia, or abrasive cleaners.

Can I use headphones with the radio?

Yes, plug any standard 3.5 mm headphones into the headphone jack. The built-in speaker will mute automatically when headphones are connected.

What should I do if the radio does not power on?

First, check if batteries are inserted with correct polarity (+) and (-) and that they are fresh. If using an AC adapter, verify it is plugged in and working. If still no power, try resetting by removing batteries for 30 seconds.

USER MANUAL BT20BK BLAUPUNKT

Bluetooth speaker

Bluetooth speaker

Bluetooth/FM/MP3 speaker

Bluetooth/FM/MP3 speaker

Bluetooth speaker

IMPORTANT NOTES

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble-free performance and listening pleasure.

• This safety and operating instruction should be retained for future reference. • The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

Do not install the product in the following areas: - Places exposed to direct sunlight or close to radiators. - On top of other stereo equipment that radiate too much heat. - Blocking ventilation or in a dusty area. - Areas where there is constant vibration. - Humid or moist places.

• Do not place near candles or other naked flames. • Operate the product only as instructed in this manual. • Before turning on the power for the first time, make sure the power adaptor is properly connected.

- Plug in the USB stick directly or use a USB extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
6. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
7. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
9. Place your clock radio on a stable surface, away from sources of direct sunlight or excessive heat or moisture.
10. Protect your furniture when placing your units on a natural wood and lacquered finish by using a cloth or protective material between it and the furniture.
11. Clean your unit with a soft cloth moistened only with mild soap and water. Stronger agents such as Benzine, thinner or similar materials can damage the surface of the unit. Make sure the unit is unplugged before cleaning.

12. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like. 2). The batteries should be drawn to the environmental aspects of battery disposal.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
2. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
3. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
4. Do not place this unit close to a strong magnetic field.
5. Do not place the unit on an amplifier or receiver.
6. Do not place this unit in a damp area as the moisture will affect the life of electric components.
7. If the clock is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
8. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

CE

This product complies with the radio interference requirements of the European community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

FEATURES

Thanks for your purchase of our product. Please read through this manual before making connections and operating this product. Retain this manual

for future reference.

• Bluetooth playback
• USB playback
• FM radio
• AUX input
• Power bank • Power supply: DC 5V

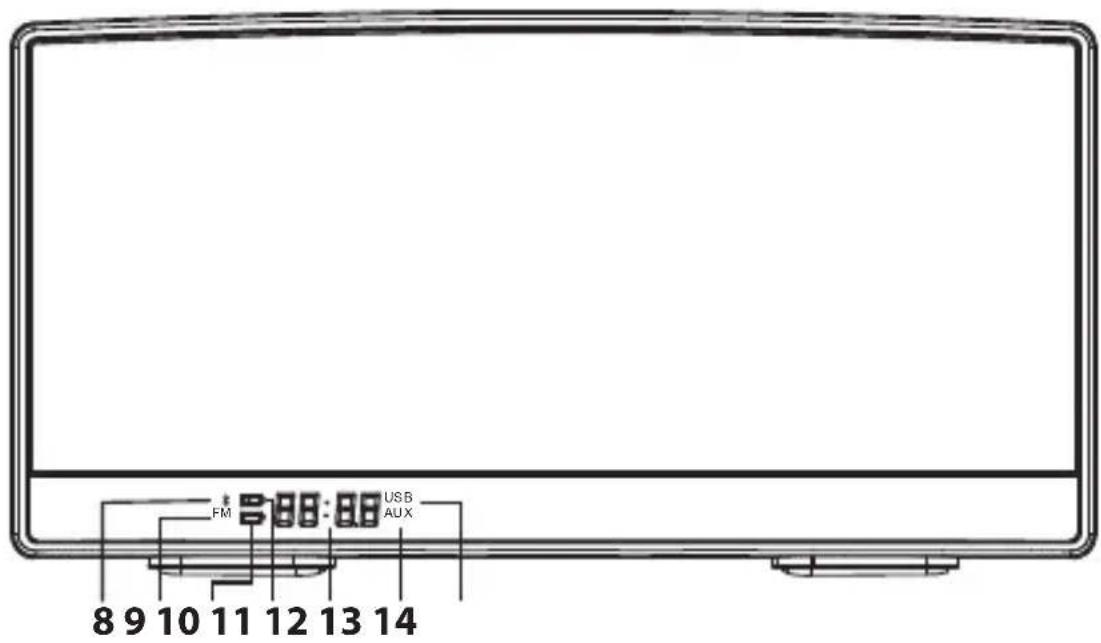

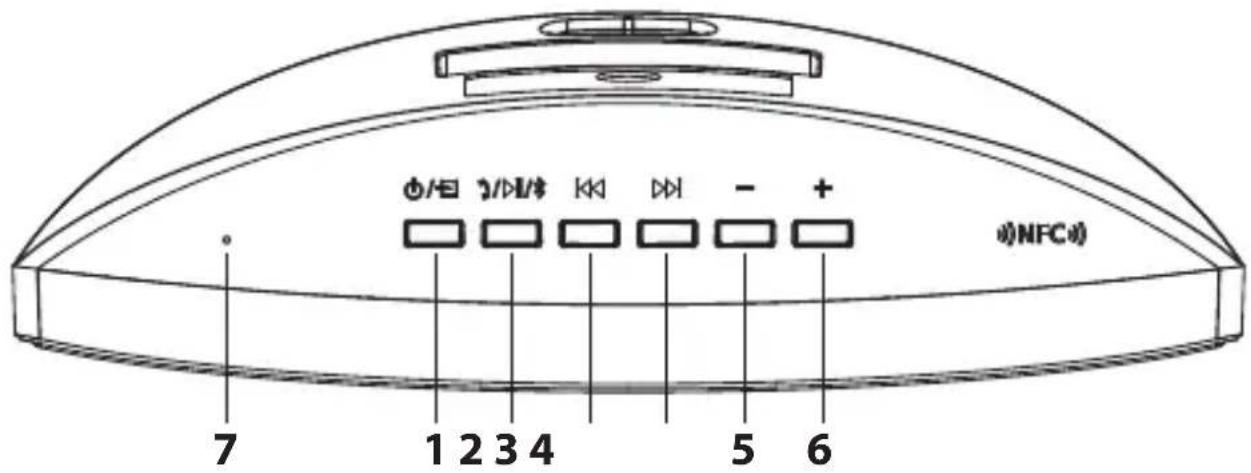

PANEL

1. ⏻/≡

• Press and hold (about 2 seconds) the button for power on and power off.
• Press to change source between Bluetooth, USB, FM radio and AUX.

2. 2/▶//*

• Press to pause in Bluetooth and USB source.
• Press this button to answer the phone call in hands free when there is a phone call in.
• Press and hold (about 2 seconds) the button to start autoscan and save FM radio station. (The unit can save up to 40 FM stations)
• Press and hold (about 5 seconds) the button to disconnect the Bluetooth connections, the speaker will turn to searching other matching Bluetooth device when you hear beep sounds.

3. PREVIOUS

• When the player is in working mode, press to return to the previous track in Bluetooth and USB source.
• Press to return to the previous channel in FM radio.
• Press and hold the button for fast backward playback in USB.
• Press and hold the button for manual search to previous frequency in FM radio.

4. NEXT

• When the player is in working mode, press to skip to the next track in Bluetooth and USB source.
• Press to skip to the next channel in FM radio.
• Press and hold the button for fast forward playback in USB.
• Press and hold the button for manual search to frequency in FM radio.

5. VOLUME-

- When the player is in working mode, press to turn down the volume.

6. VOLUME+

- When the player is in working mode, press to turn up the volume.

7. MICROPHONE

8. BLUETOOTH mode

9. FM RADIO mode

10. Full battery symbol

- During charging mode, this symbol will flicker; and will be stable if the charging is full.

11. Low battery symbol

• The symbol will light up when the battery is low power.

12. DISPLAY

• Display frequency information in FM and track in USB.

13. AUX mode

14. USB mode

SOCKET

1. AUX input
2. USB port
3. DC 5V in

CHARGING

• The unit has a built-in lithium battery. Please use the DC/AC adapter or USB terminal to charge the battery whether the unit is powered on or off. It is recommended to power off the speaker for battery charging.
• In low battery status, the speaker will adjust the volume automatically. The unit will switch off automatically if it is not charged in low battery status.
• During charging mode, the battery symbol will flicker; and will be stable when the charging is full.

Notes:

The battery lifetime will last longer if you follow the simple guidelines below for charging and storing.

a. For the first charge, charge it for at least 10 hours. The battery will provide the best performance after fully charging and discharging 3 times. It is better to charge the unit after it is completely discharged, otherwise it may impact the battery's lifetime. b. Recharge and store the unit within the temperature range of 5°C to 35°C (40°F to 95°F). c. Do not charge for longer than 24 hours. Excessive charging or discharging may shorten the battery's life. d. During charging, you can play music at the same time. e. Please do not use it under high humidity and temperature environments for a long time. f. Please turn off the speaker if it is not used for a long time. g. Please use the supplied adapter and cable for charging.

Important:

Due to prolonged charging and discharging, the unit's battery life will be affected and playback time will also be shortened. We cannot guarantee consistent playback throughout, and this is not included in our warranty and service.

BLUETOOTH

• Press the power ⏻/∃ button to switch into Bluetooth mode, then using your Bluetooth device to search the Bluetooth signal of unit. Select "BLAUPUNKT BT10 / BT20" in searched ready Bluetooth manual list of your device.
• The Bluetooth indicator will keep flickering before connected, and will freeze up after connected successfully. Then you can select music and synchronize play songs on your Bluetooth device.
• Press and hold (about 5 seconds) /▶///* to disconnect the Bluetooth connections, the speaker will turn to searching other matching Bluetooth device when you hear beep sounds.
• Press 2/▶//* to answer the phone call in hands free when there is a phone call in.
• Press 2/▶‖/※ to pause or playback music.
• Press ◀ to return to the previous track.
• Press ➕ to skip to the next track.

Important note: On hands free mode, please keep the spoken to the

microphone hole on the top panel as close as you can (fewer 10 cm is the best). Because there will impact the sound quality and volume for another people's reception.

USB

• Press ⏻/≡ to switch source to USB. Plug in USB device to play back music on rear panel.
• Press ◀ to return to the previous track.
• Press and hold (about 2 seconds) ◀ for fast backward playback.
• Press ▶▶ to skip to the next track.
• Press and hold (about 2 seconds) ▶ for fast forward playback. Please make sure your USB device is FAT16 or FAT32 file system, and your music file is MP3 format.

Important notes: The max supported USB device is 32GB. An extended USB cable for playing connection is not recommended, because that will impact the audio signal input.

POWER BANK

The unit can provide power bank charging function on power on status when you connect with USB power with other device. The charge out power spec is 5V/500MA. The unit can support most of smart phone.

FM RADIO

• Press ⏻/≡ to switch source to FM radio.
• The player has an antenna inside. For better signal receiving, suggest input AUX cable before autoscan.
• Press and hold (about 2 seconds) J / ▶ // / ※ to start autoscan. After autoscan, it will store all channels automatically.
• Press ◀ to return to the previous channels.
• Press and hold (about 2 seconds) ◀◀ to scan previous frequencies. After scanning, it will store channels automatically.
• Press ▶▶ to skip to the next channels.
• Press and hold (about 2 seconds) ▶ to scan next frequencies. After scanning, it will store channels automatically.

AUX

- Press ⏻/∃ to switch source to AUX. You can input the stereo audio signal from extra devices such as mobile phone, tablet, computer, MP3

player to the AUX of this player.

- When the player connects the AUX input terminal, ◀◀ and ▶▶ buttons are only controlled by the extra devices.

NFC

If your device is NFC enabled, hold it near this player (less than 4cm is best); then the device will inform you to connect to this player.

SPECIFICATIONS

BT 10

Output power: 2.5 Watt x 2

Bluetooth version: 3.0, up to 10 meters for music wireless playback.

USB version: 2.0

Built-in lithium battery: 3.7V/1300mA

Unit size: 190mm(W) x 96mm(H) x 60mm(D)

Power adaptor spec: 5V, 1A.

Charging time from empty battery: 3 hours

Playback time at max volume based on fully charged: 3.3 hours

BT 20

Output power: 5 Watt x 2

Bluetooth version: 3.0, up to 10 meters for music wireless playback.

USB version: 2.0

Built-in lithium battery: 7.4V/1800mA

Unit size: 253mm(W) x 127.6mm(H) x 69mm(D)

Power adaptor spec.: 5V, 1A.

Charging time from empty battery: 4 hours

Playback time at max volume based on fully charged battery: 3 hours

WHAT'S INCLUDED

• Speaker unit x 1 pc; • DC/AC power adaptor x 1 pc; • USB charge cable x 1 pc; • AUX IN audio cable x 1 pc; • Instruction manual x 1 pc;

IMPORTANT INFORMATION

1. AUX input
2. USB port
3. DC 5V input

CHARGING

Bluetooth version: 3.0, up to 10 meters for wireless music playback.

USB version: 2.0

1. AUX input
2. USB port
3. DC 5V input

CHARGING
