AC4014 - Air purifier PHILIPS - Free user manual and instructions

Product type	Air Purifier
Brand	Philips
Model	AC4014
Dimensions (H x W x D)	48.5 x 27.0 x 19.5 cm
Weight	5.2 kg
Power consumption	30 W
Airflow (CADR)	200 m³/h
Recommended room size	Up to 20 m²
Filter type	HEPA + Pre-filter
Noise level	35 - 55 dB
Control type	Manual buttons
Fan speeds	3 speeds
Timer	1 - 8 hours
Operating temperature	5 - 40 °C
Safety features	Filter replacement indicator, automatic shut-off
Maintenance	Clean pre-filter monthly; replace HEPA filter every 12-18 months
Spare parts	Replacement filter (AC4014 filter)
Color	White

Frequently Asked Questions - AC4014 PHILIPS

How often should I replace the HEPA filter?

Replace the HEPA filter every 12 to 18 months depending on usage and air quality. The filter replacement indicator will alert you when it's time.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. It must be replaced. Only the pre-filter can be cleaned with a vacuum or water.

What is the largest room size the AC4014 can handle?

The Philips AC4014 is suitable for rooms up to 20 m² (215 sq ft) for optimal performance.

How do I clean the pre-filter?

Clean the pre-filter every month using a vacuum cleaner or by rinsing it under running water. Let it dry completely before reinstalling.

Does the AC4014 have a night mode?

Yes, it includes a sleep mode that operates at a very low noise level and dims the indicators for undisturbed rest.

What does the filter replacement indicator mean?

The indicator lights up or flashes when the HEPA filter needs to be replaced. It is based on usage time, not air quality.

Is the AC4014 effective for allergy sufferers?

Yes, it captures 99.97% of airborne particles including dust, pollen, pet dander, and mold spores, benefiting allergy sufferers.

Can I run the air purifier continuously?

Yes, it is designed for continuous operation. You can leave it on 24/7; turn off when not needed to save energy.

How do I reset the filter timer after replacement?

After replacing the filter, press and hold the reset button (usually found in the filter compartment or on the control panel) for 3 seconds until the indicator turns off.

Where can I buy replacement filters?

Replacement filters are available from authorized Philips dealers, online retailers, or directly from Philips' website using the filter part number for AC4014.

USER MANUAL AC4014 PHILIPS

Always there to help you

Register your product and get support at www.philips.com/welcome

AC4012

AC4014

White Philips air purifier device with a circular lens and brand logo (no visible text beyond branding)

EN User manual 3

Understand the air quality light 9

Understand the healthy air protect alert 9

Switch on 9

Set the sensitivity of the air quality sensor 10

5 Clean your air purifier 13

Clean the air purifier 13

Clean the air quality sensor 13

6 Clean the pre-filter 14

7 Replace the filters 16

Replace the activated carbon filter and the HEPA filter 16

8 Reset the filter lifetime counter 18

9 Troubleshooting 19

10 Guarantee and service 20

Order parts or accessories 20

11 Notices 20

Electromagnetic fields (EMF) 20

Compliance with EMF 20

Recycling 20

1 Important

Safety

Read this user manual carefully before you use the appliance, and save it for future reference.

Danger

• Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
• Do not clean the appliance with water, any other liquid, or a (flammable) detergent to avoid electric shock and/or a fire hazard.

Warning

• Check if the voltage indicated on the bottom or indicated at the rear of the appliance corresponds to the local power voltage before you connect the appliance.
• If the power cord is damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.
• Do not use the appliance if the plug, the power cord, or the appliance itself is damaged.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children without supervision.
• Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.

Caution

• This appliance is not a substitute for proper ventilation, regular vacuum cleaning, or use of an extractor hood or fan while cooking.
• If the power socket used to power the appliance has poor connections, the plug of the appliance becomes hot. Make sure that you plug the appliance into a properly connected power socket.
  • Always place and use the appliance on a dry, stable, level, and horizontal surface.
• Leave at least 20cm free space behind and on both sides of the appliance and leave at least 30cm free space above the appliance.
• Do not place anything on top of the appliance and do not sit on the appliance.
• Do not place the appliance directly below an air conditioner to prevent condensation from dripping onto the appliance.
• Make sure all filters are properly installed before you switch on the appliance.
• Only use the original Philips filters specially intended for this appliance. Do not use any other filters.
• Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.
  • Always lift or move the appliance by the handle at the back of the appliance.
• Do not insert your fingers or objects into the air outlet.
• Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
• Do not use the appliance near gas appliances, heating devices or fireplaces.
  • Always unplug the appliance after use and before you clean it.
• Do not use the appliance in a room with major temperature changes, as this may cause condensation inside the appliance.

• To prevent interference, place the appliance at least 2m away from electrical appliances that use airborne radio waves such as TVs, radios, and radio-controlled clocks.

• The appliance is only intended for household use under normal operating conditions.

• Do not use the appliance in wet surroundings or in surroundings with high ambient temperatures, such as the bathroom, toilet, or kitchen.
• The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used a safety device in case of accidents with combustion processes and hazardous chemicals.

2 Your air purifier

Congratulations on your purchase, and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Read this user manual carefully before you install and use the unit. Save it for future reference.

What's in the box

Check and identify the contents of your package:

AC4012

Filter 3 Activated carbon filter AC4123

Filter 4 HEPA filter AC4124

AC4014

Filter 3 Activated carbon filter AC4143

Filter 4 HEPA filter AC4144

User manual

Warranty

3 Get started

Install filters

The air purifier comes with all filters fitted inside, but you have to remove the packaging of the filters before you can use it. Remove all filters, unpack them, and place them back into the air purifier as described below.

Tip

- When you remove or insert filters, place the purifier against a wall for more stability.

Note

• Insert the filters in the correct position.
• Make sure you place the filters in the order of HEPA filter, activated carbon filter, and finally the pre-filter.
• Make sure that the side with the tag is pointing towards you.

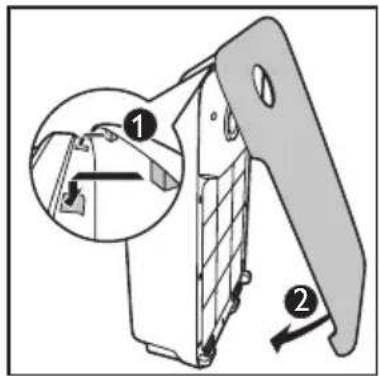

1 Place your fingers in the recesses of the side panels and gently pull the top part of the front panel towards you.
2 Gently pull the bottom of the panel out (1), then lift the top part of the front panel towards you (2).

3 Remove all the filters from the purifier.

Diagram of a mechanical device with a fan or vent, showing internal components and an arrow indicating direction (no text or symbols present)

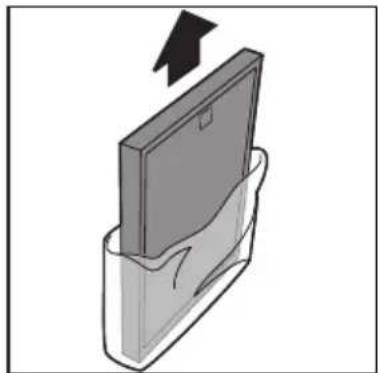

4 Remove all packaging material from the filters.

Illustration of a device with an arrow indicating upward motion (no text or symbols)

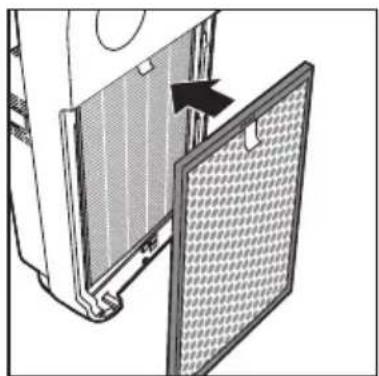

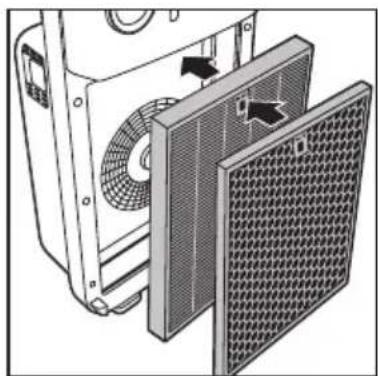

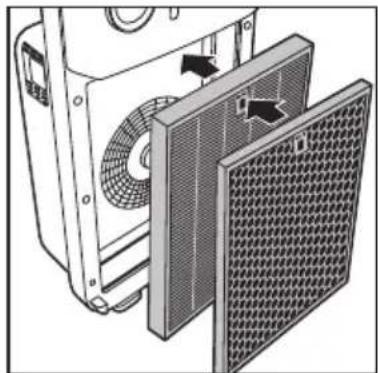

5 Put the filters back into the purifier.

Diagram of a server rack with fan and ventilation grilles, showing internal components (no text or symbols)

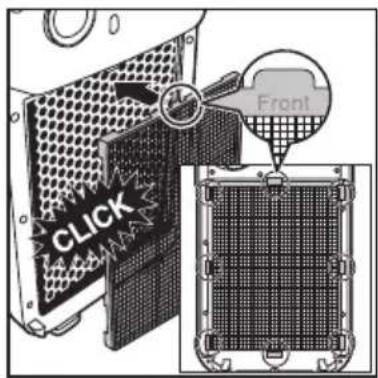

6 Place the pre-filer in the purifier.

Note

• Make sure that the side with the two projections is pointing towards you, and that all hooks of the pre-filter are properly attached to the purifier.

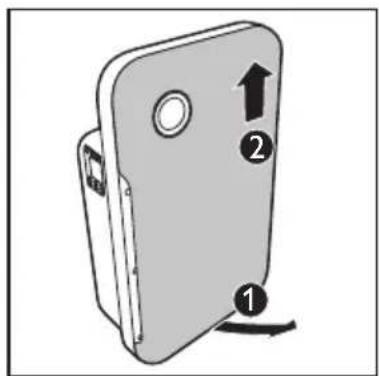

7 To reattach the front panel, insert the top hooks into the top of the purifier first (1). Then, push the panel against the body of the purifier (2).

4 Use the air purifier

Understand the air quality light

Color of the air quality light ring	Air quality level
Blue Good
Purple Fair
Red Bad

The air quality light automatically goes on when the purifier is switched on.

Note

- The built-in air quality sensor measures the air quality and automatically selects the appropriate color of the air quality light. When the air is clean, the color of the air quality light is in blue. When the air quality deteriorates, the color of the air quality light changes to purple or red.

Understand the healthy air protect alert

The filter replacement light (○ indicates the filters have to be replaced.

Healthy air protect alert Follow this

Filter replacement light is on continuously. This lasts approximately for 2 weeks. On the last day of 2 weeks, the purifier beeps every 30 minutes to inform you that the filters need to be replaced.

Replace the activated carbon filter and the HEPA filter.

Switch on

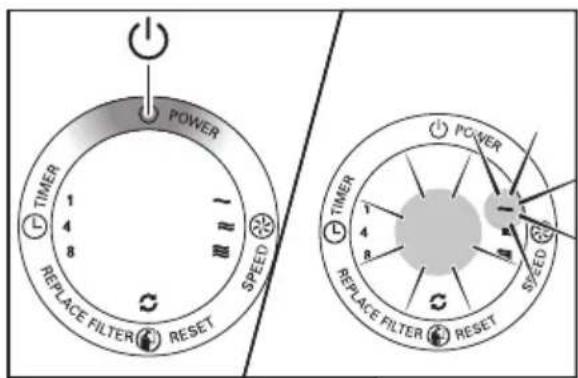

1 Plug the air purifier into the power supply.

→All lights go on twice and you hear a beep. Then, the lights go out again.

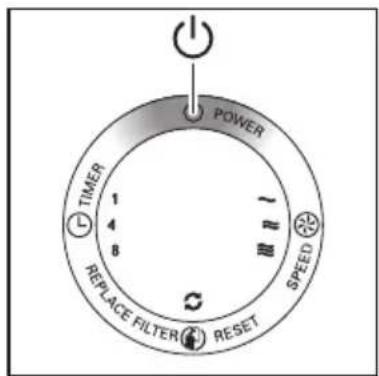

AC4012 Control Panel AC4014 Control Panel

2 Press the ⏻ button to switch on the purifier.

→The air quality light shows the current air quality.
→The fan speed \~ light goes on.

3 Press the ⏻ button to switch off the purifier.

Set the sensitivity of the air quality sensor

People with certain health problems (for example: allergies or asthma) have a greater need for healthy air. For this reason, the purifier allows you to adjust the sensitivity of the air quality sensor. If you set it to higher sensitivity level, the purifier starts cleaning the air at lower pollution level. There are 3 sensitivity levels:

• standard
• sensitive
• extra sensitive
  The pollution sensor is set to standard sensitivity. You can adjust the sensitivity of the air quality sensor in the following way.

Note

- When it is set to a higher sensitivity, the purifier starts cleaning the air at lower pollution levels to make the air even cleaner. Plug the purifier before adjusting the sensitivity of the air quality sensor.

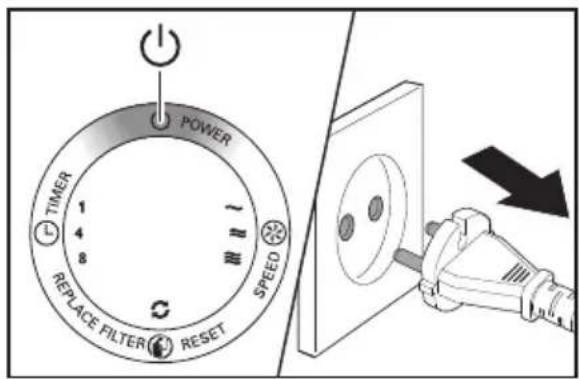

1 Press the ⏻ button and simultaneously put the power plug in the power socket.

The purifier beeps twice and one of the ⑤ lights (1,4 or 8) goes on to show the current sensitivity level of the air quality sensor.

Timer light Sensitivity level
1	Extra sensitive
4	Sensitive
8	Standard

2 Press the ⏻ button to adjust the sensitivity level of the air quality sensor.

One of the lights (1 4 or 8) goes on to show the preferred sensitivity level of the air quality sensor.

3 Press the ⏻ button to switch off the purifier.

Note

- When you change the sensitivity, the purifier automatically starts operating at the set sensitivity level whenever you switch on the purifier.

You can select the desired fan speed.

Note

- When you select a fan speed, you can also use the timer function (see "Set the timer"). In this case, one of the lights (AC4012: and) and the light (1.4 or 8) are on.

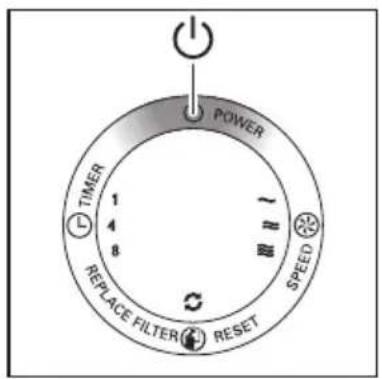

1 Press the ⏻ button to switch on the purifier.

2 Press the button once or more times to select the desired fan speed.

For AC4012 -, or ; and

For AC4014 \~ , or . ≈

Tip

- If the air quality light is in blue color, this means the air quality is good, and you can select a lower fan speed.

Sleep mode

In sleep mode, the air filter operates very quietly while all lights are dimmed for your undisturbed sleep. (AC4012 only)

1 Press the ⏻ button to switch on the purifier.

2 Press the button to select sleep mode. →The light goes on.

To change to another fan speed, press the button.

Set the timer

With the timer function, you can let the purifier operate for a set number of hours. When the set time has elapsed, the purifier automatically switches off.

You can use the timer function in the following situations:

Situations You will see
Choose a fan speed (see ‘Change the fan speed’).	One of the lights (AC4012 - , or AC4014 - , or and one of the lights ( 1, 4, or 8) are on.
The purifier is in sleep mode (see ‘Sleep mode’).	The light and one of the lights ( 1, 4 or 8) are on but dimmed.

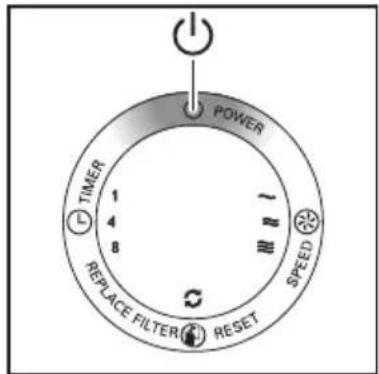

1 Press the ⏻ button to switch on the purifier.

2 Press the ⏻ button to activate the timer. →The lighter (1,4 or 8) goes on.

3 Press the Ⓛ button repeatedly to choose the number of hours you want the purifier to operate. The corresponding Ⓛ light (1, 4, or 8) goes on.

To deactivate the timer function, press the button repeatedly until the light (1, 4 or 8) is out.

5 Clean your air purifier

Note

• Always unplug the purifier before you clean it.
- Never immerse the purifier in water or any other liquid.
- Never use abrasive, aggressive, or flammable cleaning agents such as bleach or alcohol to clean any part of the purifier.
- Only the pre-filter is washable. Other air purifier filters are NOT washable nor vacuum cleanable.

Clean the air purifier

Regularly clean the inside and outside of the purifier body to prevent dust from collecting.

1 Wipe away dust with a soft dry cloth from the body of the purifier.
2 Clean the air inlet and the air outlet with a soft dry cloth.

Clean the air quality sensor

Clean the air quality sensor every 2 months for optimal functioning of the purifier. Clean it more frequently if you use the purifier in a dusty environment.

Note

- When the humidity level in the room is very high, it is possible that condensation develops on the air quality sensor. As a result, the air quality light may indicate that the air quality is bad even though it is good. In this case you have to clean the air quality sensor or use one of the manual speed settings.

1 Clean the air quality sensor inlet and the air quality sensor outlet with a soft brush.

Illustration of a hand holding a tool interacting with a device panel (no text or symbols visible)

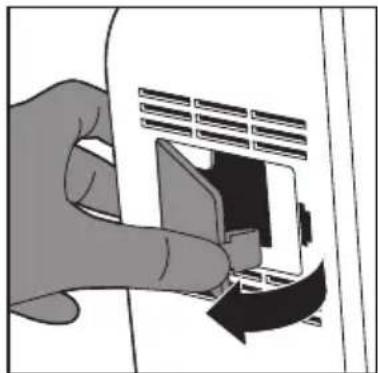

2 Remove the air quality sensor cover.

Hand inserting a card into a banknote (no text or symbols visible)

3 Clean the air quality sensor, the dust inlet and the dust outlet with a lightly moistened cotton swab.

Pure electrical circuit lines without any symbols

4 Dry the air quality sensor, the dust inlet and the dust outlet with a dry cotton swab.
5 Reattach the air quality sensor cover.

6 Clean the prefilter

Note

• The pre-filter is washable and vacuum cleanable.
- Clean the pre-filter for every two weeks to ensure optimal functioning of the purifier.

1 Switch off the purifier and unplug it.

2 Place your fingers in the recess of the side panels and gently pull the bottom part of the front panel towards you (1). Then lift the hooks at the top of the panel out of the top of the purifier (2).

3 To remove the pre-filter, grab the two projections and pull the filter towards you.

Diagram of a heat exchanger or radiator component with directional arrows indicating flow or movement (no text or symbols present)

4 Use a vacuum cleaner to clean the pre-filter or wash it under a running tap. If the pre-filter is very dirty, use a soft brush to brush away the dust.

Diagram showing a tool interacting with a grid-patterned surface, with an arrow indicating direction (no text or symbols present)

5 Air dry the pre-filter.

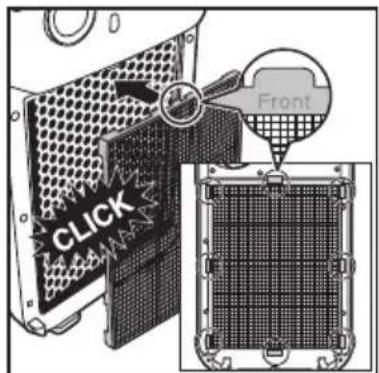

6 Put the pre-filter back into the purifier. Attach all hooks properly to the purifier.

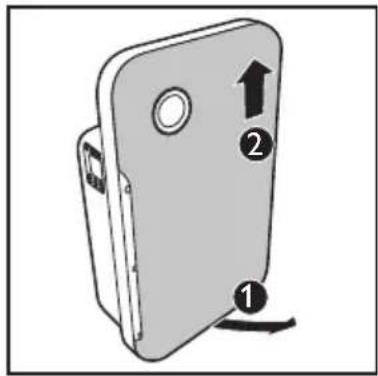

7 To reattach the front panel, insert the top hooks into the top of the purifier first (1). Then, push the panel against the body of the purifier (2).

Note

• Alternatively, you can clean the pre-filter by removing the dust with a vacuum cleaner.

- Make sure that the pre-filter is completely dry. If it is still wet, bacteria may multiply in it and shorten the lifetime of the pre-filter.

• Make sure that the side with the two projections is pointing towards you, and that all hooks of the pre-filter are properly attached to the purifier.

7 Replace the filters

The filter replacement light (○ indicates the filters have to be replaced.

Note

• If you remove the front panel for filter changing while the purifier is switched on, all lights on the control panel will be off.
• Once the front panel is placed back to the purifier, all lights flash twice. Then, the purifier is off. Press the ⏻ button to switch on the purifier again.

Replace the activated carbon filter and the HEPA filter

Note

- The activated carbon filter and the HEPA filter are not washable nor vacuum cleanable.

Replace both the activated carbon filter and HEPA filter when the ⚙ light goes on. This will last for approximately 2 weeks.

On the last day of the 2 weeks, the purifier beeps every 30 minutes to inform you that the filter needs to be replaced.

Tip

- When you remove or insert filters, place the purifier against a wall for more stability.

Note

• Insert the filters in the correct position.
• Make sure you place the filters in the order of HEPA filter, activated carbon filter, and finally the pre-filter.
  • Make sure that the side with the tag is pointing towards you.

1 Switch off the purifier and unplug it.

2 Place your fingers in the recesses of the side panels and gently pull the bottom part of the front panel towards you. Lift the panel out of the hooks at the top of the purifier.

3 Remove the filters using the tag on the filter. Take the filters by both sides and gently deposit them into the house hold trash bin.

Technical illustration of a server rack with ventilation grilles and heat sinks (no text or symbols)

Note

- Do not touch the pleated filter surface, or smell the filter as it has collected pollutants from the air. - Wash your hands after disposing of the used filters.

4 Remove all packaging material from the new filters.

Illustration of a device with a black arrow pointing upward, no text or symbols present

5 Place the new HEPA filter in the purifier first.

Diagram of a refrigerator with a fan inside and a door open, showing airflow direction (no text or symbols)

6 Then, place the new activated carbon filter in the purifier.

Diagram of a door panel with a mesh cover and an arrow indicating direction (no text or symbols)

7 Place the pre-filer in the purifier.

Note

• Make sure that the side with the two projections is pointing towards you, and that all hooks of the pre-filter are properly attached to the purifier.

8 To reattach the front panel, insert the top hooks into the top of the purifier first (1). Then, push the panel against the body of the purifier (2).

9 Reset the activated carbon filter and the HEPA filter lifetime (see 'Reset the filter lifetime counter').

8 Reset the filter lifetime counter

When you replace the filters, it is important that you also reset the filter lifetime counter afterwards. This allows the purifier to be in sync with the filter lifetime.

After you have replaced the filters, reset the filter time:

1 Switch off the purifier and unplug it.

2 Replace the air purifier filters (see 'Replace the filters').

3 Put the plug in the power socket and switch on the purifier again.

4 Press and hold the button for 2 seconds.

Note

- Reset the purifier when it is plugged in and switched on.

- Only replace the filters when you see the light goes on.

9 Troubleshooting

This chapter summarizes the most common problems you could encounter with the purifier. If you are unable to solve the problem with the information below, contact the Consumer Care Center in your country.

Problem Possible solution
The light has been on continuously.	The filter is full. Replace the filter and reset the purifier.
No air comes out of the air outlet.	The purifier is not connected to the power supply. Plug the purifier into the power supply and switch on.
The fan speed does not change when the sleep mode is activated.	In sleep mode, the fan speed is set to a very low level. If you want to change the fan speed, press the button one or more times to set the desired fan speed.
The airflow that comes out of the air outlet is significantly weaker than before.	The pre-filter is dirty. Clean the pre-filter (see 'Clean the prefilter').You have not removed all packaging material from the filters. Make sure that you have removed all packaging material.
The air quality does not improve, even though the purifier has been operating for a long time.	One of the filters has not been placed in the purifier. Make sure that all filters are properly installed in the following order, starting with the innermost filter: 1) HEPA filter, 2) activated carbon filter, and 3) pre-filter.The air quality sensor is wet. The humidity level in your room is high and causes condensation. Make sure that the air quality sensor is clean and dry (see 'Clean the air quality sensor').
The color of the air quality light always stays the same.	The air quality sensor is dirty. Clean the air quality sensor (see 'Clean the air quality sensor').There is not enough ventilation in the room. Open a window, to improve the air circulation.
I need cleaner air because I have an allergy.	You can change the air quality sensor sensitivity (see 'Set the sensitivity of the air quality sensor') to make the purifier clean the air even better.
The purifier is extra loud.	Please check if you have removed all the packaging material from the filters.If the appliance is still too loud, you can change the fan speed to a lower fan speed level.
The purifier still indicates that I need to replace a filter, but I already did.	Perhaps you did not press the button properly. Plug in the purifier, press the button and press and hold the button for 2 seconds.

10 Guarantee and service

If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Center in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Order parts or accessories

If you have to replace a part or want to purchase an additional part, go to your Philips dealer or visit www.philips.com/support. If you have problems obtaining the parts, please contact the Philips Consumer Care Center in your country (you find its phone number in the worldwide guarantee leaflet).

11 Notices

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Compliance with EMF

Koninklijke Philips N.V. manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.

One of Philips' leading Business Principles is to take all necessary health and safety measures

for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Recycling

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

Daftar Isi

1 Penting 22

Pengaman 22

Technical line drawing of a mechanical or electrical component with a meshed panel and mounting bracket (no text or symbols)

Illustration of a device with an arrow indicating upward motion, no text or symbols present

Diagram of a server rack with fan and ventilation grilles, showing internal components and directional arrows (no text or symbols)

Catatan

Illustration of a hand inserting a component into a device (no text or symbols visible)

Hand inserting a card into a banknote (no text or symbols visible)

Pure electrical circuit lines without any symbols

Diagram of a heat exchanger or radiator component with directional arrows indicating flow or movement (no text or symbols present)

Diagram showing a tool interacting with a grid-patterned surface, with an arrow indicating direction (no text or symbols present)

Catatan

Technical illustration of a server rack with ventilation grilles and heat sinks (no text or symbols)

Catatan

Illustration of a device with an arrow indicating upward motion, no text or symbols present

Diagram of a refrigerator with a fan inside and an open door, showing airflow direction (no text or symbols)

Diagram of a door panel with a mesh fan and directional arrow indicating movement (no text or symbols)

Catatan

Technical illustration of a mechanical or electrical component with a fan-like structure and directional arrow (no text or symbols)

Illustration of a device with an arrow indicating upward motion, no text or symbols present

Diagram of a server rack with fan and ventilation grilles, showing mechanical components without any text or symbols.

หมายเหตุ

Illustration of a hand holding a device with a brush, showing internal components and wiring (no text or symbols)

Hand inserting a card into a banknote (no text or symbols visible)

Pure electrical circuit lines without any symbols

Technical line drawing of a heat exchanger or radiator component with no visible text or symbols

Diagram of a robotic arm gripping a mesh grid on a tray, with an arrow indicating movement (no text or symbols present)

三

หมายเหตุ

Technical illustration of a server rack with ventilation grilles and heat sinks (no text or symbols)

หมายเหตุ

Illustration of a device with a black arrow pointing upward, no text or symbols present

Diagram of an air conditioner unit with fan and panel, showing internal structure without any text or symbols

Diagram of a server rack with a mesh fan removed, showing a black arrow pointing to the component (no text or symbols present)

หมายเหตุ

用戶手冊

保用證

3 開始使用

安裝過濾網

3 從本淨化器移除所有過濾網。

Diagram of a mechanical device with a fan and heat sink, showing no text or symbols

4 除下所有過濾網的包裝。

Illustration of a device with an arrow indicating upward motion (no text or symbols)

5 將過濾網裝回空氣淨化器。

Diagram of a server rack with fan and ventilation grilles, showing internal components (no text or symbols)

6 將預過濾網裝上本淨化器。

提示

4 使用空氣淨化器

認識空氣質素燈

Illustration of a hand holding a device with a brush, showing internal components and wiring (no text or symbols)

2 移除空氣質量感測器護蓋。

Hand inserting a card into a device with a scroll arrow (no text or symbols visible)

Pure electrical circuit lines without any symbols

Diagram of a device with a grid panel and directional arrow indicating movement (no text or symbols)

Diagram showing a mop handle pressing down on a grid-patterned surface with two arrows indicating direction (no text or symbols)

5 晾乾預過濾網。

提示

Diagram of a computer tower with ventilation grilles and heat sinks (no text or symbols)

提示

Illustration of a device with an arrow indicating upward motion, no text or symbols present

Diagram of a refrigerator with fan and door panel, showing airflow direction (no text or symbols)

6 然後，將新活性碳濾網裝上淨化器。

Diagram of a door panel with a mesh grille and an arrow indicating direction (no text or symbols)

7 將預過濾網裝上淨化器。

提示

Specifications are subject to change without notice

All rights reserved.

424121077371
