GDS 150 L - Grinder GUDE - Free user manual and instructions

Product Type	Electric Garden Shredder
Brand	Güde
Model	GDS 150 L
Power	1500 W
Supply Voltage	230 V / 50 Hz
Max. Cutting Capacity	45 mm diameter
Cutting System	Cutting roller (slow and powerful)
Collection Bin Volume	50 L
Weight	18 kg
Dimensions (L x W x H)	60 x 35 x 85 cm
Sound Level	92 dB(A)
Protection	Safety switch with overload protection
Chassis Material	Robust steel
Transport Wheels	Yes, 2 wheels
Cleaning	Clean after each use with a brush and damp cloth
Maintenance	Sharpening of cutting roller recommended every season
Spare Parts Available	Yes, on Güde website and authorized dealers
Repairability	Repairability index of 8/10
Warranty	2 years

Frequently Asked Questions - GDS 150 L GUDE

Can you shred damp branches?

It is recommended to shred slightly damp branches but not too wet to avoid clogging. Freshly cut branches are ideal.

How to clean the shredder after use?

Unplug the device, remove residues with a stiff brush, then wipe with a damp cloth. Do not use harsh products or pressurized water.

What is the maximum branch capacity?

The GDS 150 L accepts branches with a maximum diameter of 45 mm. Beyond that, the motor may stall or be damaged.

How to sharpen the cutting roller?

Sharpening must be done by a professional or with a special kit. Follow the instructions in the manual to disassemble the roller and sharpen it with a fine file.

The shredder is very noisy, is that normal?

Yes, the sound level reaches about 92 dB(A). Always wear hearing protection when using it.

How to avoid jams?

Insert branches one by one pushing them gently. Avoid forked or too woody branches. If a jam occurs, use the reverse function (if available) or clear manually after unplugging.

Can I process green waste like leaves?

Yes, but it is advisable to mix them with branches for better efficiency. Alone, leaves can clump and slow down shredding.

Where to find spare parts?

Spare parts are available on the official Güde website and at authorized dealers. Always use original parts for safety.

How to start the shredder safely?

Make sure the switch is in position 0 before plugging in. Press the safety button then turn the selector to I. Wear gloves and safety glasses.

What to do if the motor does not start?

First check that the device is powered and that the circuit breaker has not tripped. If the motor is overloaded, wait 10 minutes for it to cool down then reset the safety.

USER MANUAL GDS 150 L GUDE

Three blue industrial cutting machines with black and white components, no visible text or symbols on the machines themselves.

GDS 125 A

55110

GDS 125

55114

GDS 150

55119

GDS 175

55115

GDS 200

55116

Two identical blue industrial cutting machines labeled GDS 175 and GDS 200, with no visible text or symbols on the machines themselves.

®

ENGLISH Please read the instructions carefully before starting the machine.

Product assembly diagram showing exploded view of components A, B, and C with a blue electric motor (no text or symbols)

DE	montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

1

7-10

DE	Abrichten	SI	Ravnjanje
GB	Levelling	HR	Ravnanje
FR	Dégauchissage	BG	Сравнение
IT	Diamantatura	RO	Comparație
NL	Dressen	BA	Ravnanje
CZ	Srovnávání
SK	Zrovnávanie
HU	Összehasonlítás

2

11

DE	Schleifscheibenwechsel	SI	Kolo spremembe
GB	change grinding wheel	HR	Kotač promjena
FR	Changement de roue	BG	Wheel promjena
IT	Ruota cambiamento	RO	Roata schimbare
NL	Wheel verandering	BA	Kotač promjena
CZ	Kola změna
SK	Kolesá zmena
HU	Kerék változás

3

12

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Pábota
IT	Esercizio	RO	Functionare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

4

13

DE	Transport / Lagerung	SI	Transport / Shranjevanje
GB	Transport / storage	HR	Prijevoz / Uskladištenje
FR	Transport / Stockage	BG	Транспортиране / Съхранение
IT	Trasporto / Stoccaggio	RO	Transport / Depozitare
NL	Transport / Bewaring	BA	Prevoz / Uskladištenje
CZ	Přeprava / Uložení
SK	Transport / Uloženie
HU	Szállítás / Tárolás

5

14

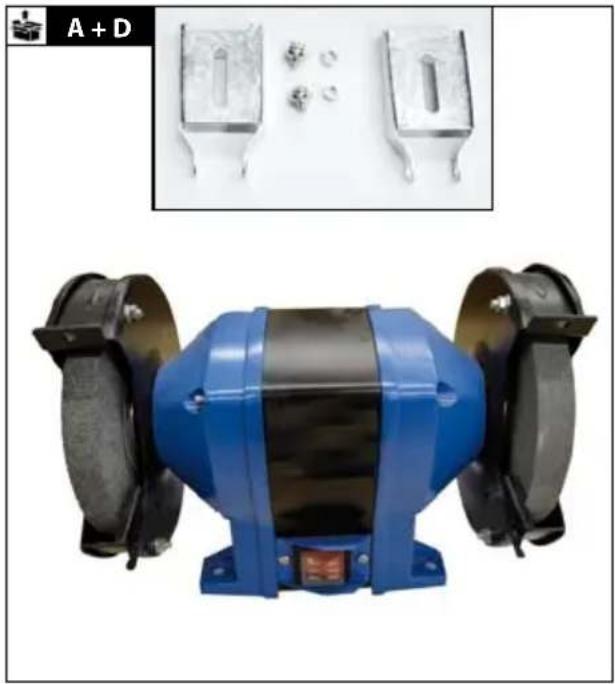

GERÄTEBESCHREIBUNG | POwER TOOL DESCRIPTION | DESCRIPTION DE LA MACHINE | DESCRIZIONE DELL'ELETTROUTENSILE | bESCHRIJVING VAN HET APPARAAT | POPIS PRÍSTROjE | POPIS PRÍSTROjA | A KéSzÜLéK LEiRáSA | OPIS NAPRAVE | OzNAKA UREđAjA ОПисаНиЕ На УрЕДа | DESCRIERE UTILAj | OzNAKA APARATA

DE	montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

Three icons: a cardboard box with an upward arrow, a blue circular icon with an 'O' and plug symbol, and a black wrench and screwdriver (no text or labels)

Blue and black industrial machine with dual wheels, shown alongside a metallic bracket assembly labeled A + D (no text or symbols on the main subject)

Exploded view of a blue electric motor with attached components and tool icons (no text or symbols)

Blue industrial machine with two side motors and a green checkmark above it (no text or symbols on the machine itself)

1	DE montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

Three icons: a cardboard box with an upward arrow, a blue circular icon with an orange plug and screwdriver, and a black wrench (no text or symbols)

Blue industrial machine with dual levers and mounting base, shown alongside a schematic diagram labeled '3 + B' (no text or symbols on the device itself)

Close-up of a mechanical device with arrows indicating motion or movement, no visible text or symbols

Blue industrial machine with two wheels and a green checkmark above it (no text or symbols on the machine itself)

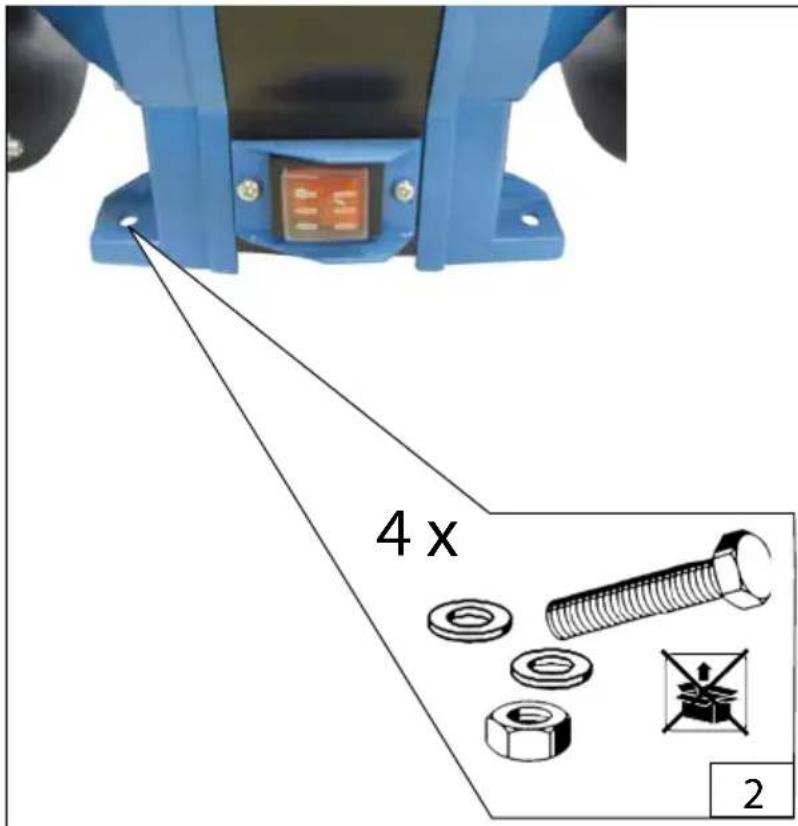

DE Montage SI Montaža
GB Assembly HR Montaža
FR Montage BG Монтаж
IT Montaggio RO Montaj
NL Montage BA Montaža
CZ Montáž
SK Montáž
HU Szerelés

Two black screwdrivers with different end caps (no text or symbols)

Blue industrial machine with dual wheels and a close-up of its components (no visible text or symbols)

Product photo of a blue industrial machine with attached components and parts, no visible text or symbols

Blue and black industrial machine with a green checkmark overlay (no text or symbols on the machine itself)

1	DE	montage	SI	Montaža
	GB	Assembly	HR	Montaža
	FR	Montage	BG	Монтаж
	IT	Montaggio	RO	Montaj
	NL	Montage	BA	Montaža
	CZ	Montáž
	SK	Montáž
	HU	Szerelés

Two black screwdrivers with different end caps (no text or symbols)


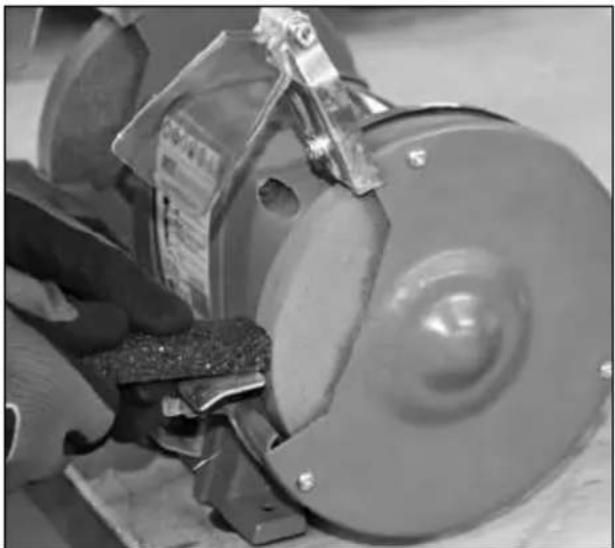

DE Abrichten

SI Ravnjanje

GB Levelling

HR Ravnanje

FR Dégauchissage

BG Сравнение

IT Diamantatura

RO Comparatie

NL Dressen

BA Ravnanje

cz Srovnávání

SK Zrovnávanie

HU Összehasonlítás

TIPP

Art.-Nr. 55537

Close-up of three gray rectangular objects with a black cross symbol in the corner (no text or labels)

Close-up of a hand using a power tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of a mechanical component with a dark circular feature and blue cylindrical body (no visible text or symbols)

Close-up of a blue mechanical component with a gray circular base and a cylindrical shaft (no text or symbols visible)

Green checkmark symbol on white background (no text or symbols)

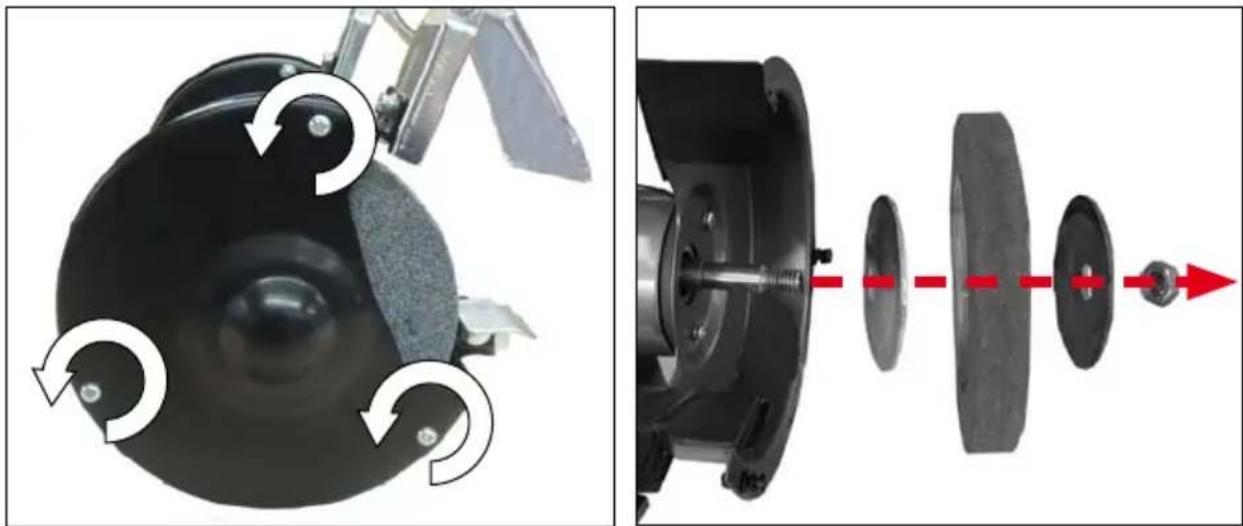

3	DE	Schleifscheibenwechsel	SI	Kolo spremembe
	GB	change grinding wheel	HR	Kotač promjena
	FR	Changement de roue	BG	Wheel промяна
	IT	Ruota cambiamento	RO	Roata schimbare
	NL	Wheel verandering	BA	Kotač promjena
	CZ	Kola změna
	SK	Kolesá zmena
	HU	Kerék változás

Five safety symbols and warning icons: a blue circular icon with a power button, four black wrenches, an exclamation mark, a gray circle with crossed lines, and one cross symbol (no text or labels)

Mechanical assembly diagram showing a motor and gear assembly with rotational arrows (no text or symbols)

Mechanical assembly diagram showing a disassembly of a mechanical component into a motor, with no visible text or symbols.

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

SI Delovanje

HR Rad

BG работа

RO Functionare

BA Rad

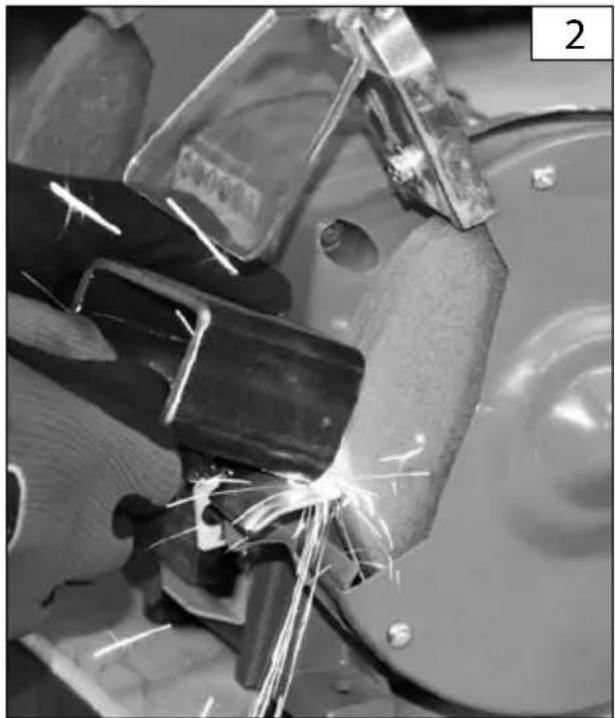

1 | START

Mechanical setup with blue and black components, labeled 'I', and a tool icon (no readable text or symbols)

Close-up of a welding process with sparks flying, no visible text or symbols

3 | S TO P

Industrial machine with blue and black components, no visible text or symbols

5

GB Transport / storage

FR Transport / Stockage

NL Transport / Bewaring

Technische Daten

Wear safety shoes with steel reinforcement!

Duplex grinding machine GDS 125 A

Art. No 55110

Service connection 230 V\~50 Hz

Max. Power ......120 W (P1/S2/30 min.)

Idle speed 2950 min ^-1

Grinding wheel dimensions ....125x16 mm

Engine shaft diameter 12,7 mm

Weight 4,1 kg

Noise and Vibration Information

Sound pressure level L_pA^1),2) .....76dB (A)

Guaranteed sound power level L_WA²⁾ .....86 dB (A)

Duplex grinding machine GDS 125

Art. No 55114

Service connection 230 V\~50 Hz

Max. Power ....150 W (P1/S2/30 min.)

Idle speed 2950 min ^-1

Grinding wheel dimensions ....125x16 mm

Engine shaft diameter 12,7 mm

Weight 4,5 kg

Noise and Vibration Information

Sound pressure level L_pA^1),2) .....76dB (A)

Guaranteed sound power level L_WA²⁾ .....86 dB (A)

Duplex grinding machine GDS 150

Art. No 55119

Service connection 230 V\~50 Hz

Max. Power 250 W (P1/S2/30 min.)

Idle speed 2950 min ^-1

Grinding wheel dimensions ....150x20 mm

Engine shaft diameter 12,7 mm

Weight 6,6 kg

Noise and Vibration Information

Sound pressure level L_pA^1),2) .....76dB (A)

Guaranteed sound power level L_WA²⁾ .....86 dB (A)

Duplex grinding machineGDS 175

Art. No 55115

Alimentation 230 V\~50 Hz

Max. Power ....300 W (P1/S2/30 min.)

Idle speed 2950 min ^-1

Grinding wheel dimensions ....175x25 mm

Engine shaft diameter ....16 mm

Weight 8,9 kg

Noise and Vibration Information

Sound pressure level L_pA^1),2) .....86 dB (A)

Guaranteed sound power level L_WA²⁾ .....96 dB (A)

Duplex grinding machineGDS 200

Art. No 55116

Service connection ....230 V\~50 Hz

Max. Power ....350 W (P1/S2/30 min.)

Idle speed 2950 min ^-1

Grinding wheel dimensions ....200x25 mm

Engine shaft diameter ....16 mm

Weight 10,4 kg

Noise and Vibration Information

Sound pressure level L_pA^1),2) .....86 dB (A)

Guaranteed sound power level L_WA²⁾ .....96 dB (A)

Read and understand the operating instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

Double grinding machines for removing frays, grinding and sharpening of steel and steel alloy workpiecesDo not use this product in any other way as stated for normal use. Respecting technical data and safety precautions.Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

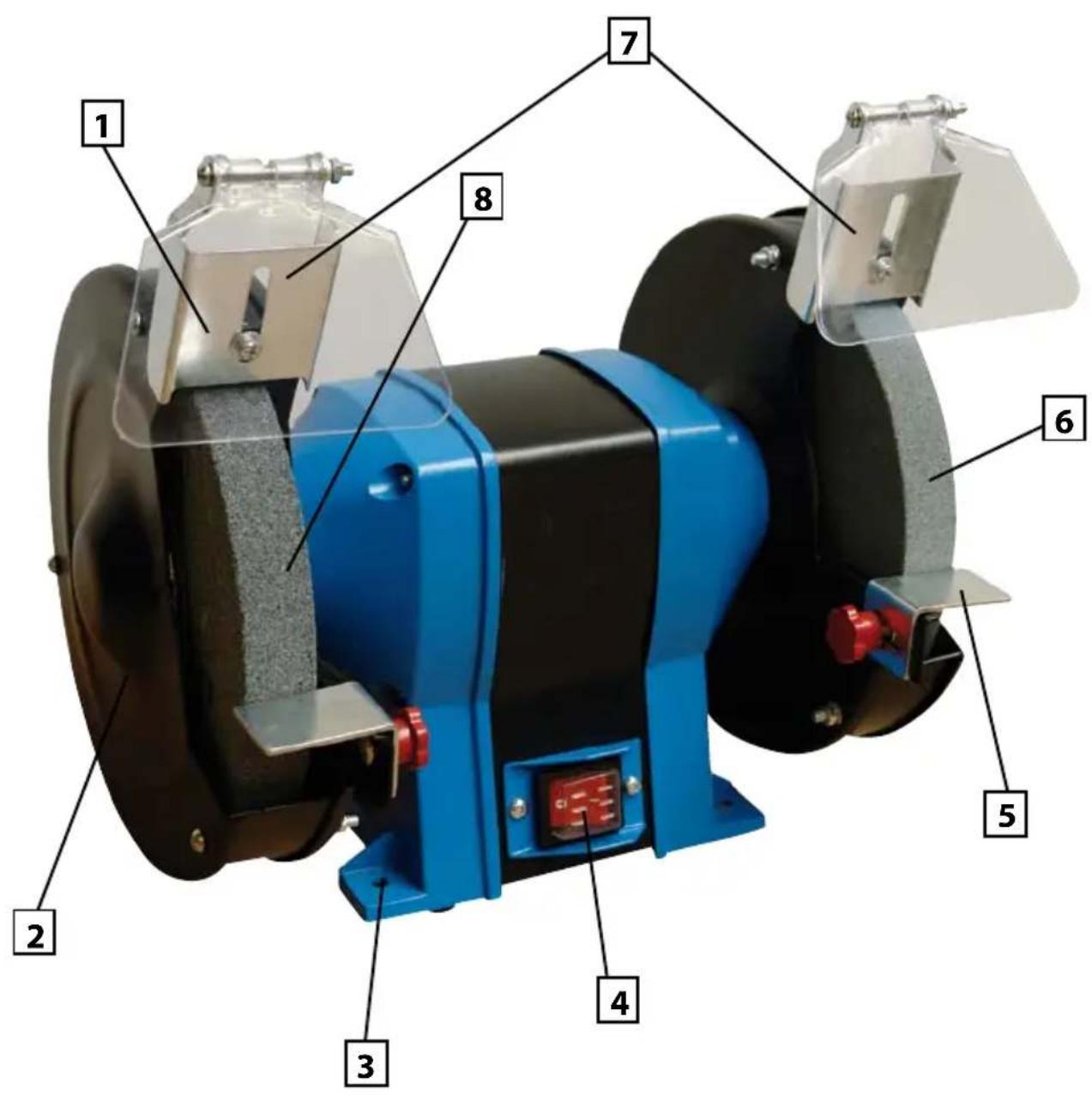

Power tool description

1. Grinding wheel with magnifier
2. Abrasive wheel cover
3. Work table installation opening
4. O OFF switch
5. Workpiece support
6. abrasive wheel K36
7. Protection against sparks
8. abrasive wheel K60

Residual risks

Danger of injury!

Never put your hands to the abrasive wheel area. Risk of injury for fingers and hands due to rotating abrasive wheels in case of unprofessional guiding or supporting of the workpiece being ground.

In spite of compliance with all relevant design regulations, dangers may still present themselves when the machine is operated, e.g.

• work piece parts being thrown off,
• parts of damaged tools being thrown off,
• noise emissions,
• dust emissions.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Symbols

Warning/caution!

Read the Operating Instructions!

Before carrying out any work on the machine, disconnect the plug from the socket.

Wear eye protective goggles! Wear ear protectors!

Wear a respirator!

Wear protective gloves!

Protect against humidity Never expose tool to rain.

Forbidden operation for persons with chainlet

Do not operate the power tool when wearing a tie

Forbidden operation for persons with long hair.

Not permitted for wet grinding

Protect against humidity

Protect against frost

Keep children and bystanders away while operating a power tool.

Warning against dangerous electric voltage

Keep bystanders in safe distance from the appliance (at least 5m)

Warning against thrown-off items

Warning against risk of drawing-in

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (cordepower tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (groundepower tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock..
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCprotected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety instructions Duplex grinding machine

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

The machine must be plugged to 230 V with 16 A fuse.

Wear ear protectors. Exposure to noise can cause hearing loss.

Wear protective glasses

WARNING The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.

The power tool must stand or be fixed to a horizontal and level surface (e.g. work table)

Switch the machine off and unplug it when unattended.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.
The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.
⚠ The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Any defect on the power tool, including on the protective equipment or abrasive wheel must be reported to a safety engineer immediately after it is identified.

Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised Service Agents.

Make sure the abrasive wheel is fitted properly before pressing the O Off button.

To make sure the work is safe, use equipment such as power tool supports, magnifying glass, workpiece holder, etc.

Removing sawdust and chippings from the machine when running is strictly prohibited.

Do not use blunt, damaged or distorted circular saw blades.

Choose the abrasive wheel suitable for the given workpiece.

Abrasive wheels not corresponding to the characteristics given in these Operating Instructions may not be used.

The maximum revolutions given on the abrasive wheel must be respected.

Familiarise with the safety procedures for cleaning, maintenance and regular removal of sawdust and dust to reduce the risk of fire.

Make sure the flange used is suitable for the given purpose of use, as specified by the manufacturer.

The power tool must immediately be switched off if it gets blocked. Unplug the power tool and remove the stuck workpiece.

At frequent intervals, check the adjustment of the protection against sparks and set the abrasive wheel wear properly. Keep the distance between the protection against sparks and the abrasive wheel small if possible (max. 2 mm).

At regular intervals, check the workpiece support adjustment and set the abrasive wheel wear properly.

Do not grind with a cold abrasive wheel. Let the abrasive wheel run idle for one minute before starting your work.

Do not grind on the side surfaces of the wheel. Grind on the front side only.

Do not apply the coolant directly on the abrasive

wheel. The coolant may affect the adhesion of the abrasive wheel and cause its failure.

Abrasive wheel to be levelled on the front side only.

High temperatures are present when grinding. Do not touch the workpiece before it has sufficiently cooled down.

IMPORTANT NOTICE

The engine is automatically switched off when overloaded. The engine can be switched on again after it has cooled down (various times).

Hold the workpieces firmly using the holder (e.g. by pliers to prevent injuries.

Maintenance

Before carrying out any work on the machine, disconnect the plug from the socket.

WARNING The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

At all times, keep the machine, ventilation slots, in particular, clean. The sawdust ejection and/or dust ex-hauster should be cleaned at regular intervals. Never spray water on the machine!

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Apply environment-friendly oil to all moving parts. If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions?

We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference

Serial No.

Art. No

Year of production

⚠️ DÔLEŽITÉ UPOZORNENIE

Pri preťažení sa motor automaticky vypne. Po chladnutí (nie vždy rovnako dlhom) je možné motor opät zapnút.

Obrobky držte pevne pomocou držiaka (napr. kliešte), aby sa zabránilo úrazom.

Údrzba

EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
