Product Type	Compact Refrigerator-Freezer
Brand	Kalorik
Model	MCL 36711
Dimensions (H x W x D)	85 x 55 x 60 cm
Net Weight	25 kg
Power Supply	230 V ~ 50 Hz
Energy Consumption	Class E
Refrigerator Capacity	90 L
Freezer Capacity	15 L
Noise Level	42 dB(A)
Thermostat Type	Mechanical, 7 positions
Interior Lighting	LED
Reversible Door	Yes
Shelves	3 glass shelves
Door Bins	2 door bins
Vegetable Crisper	1 crisper
Freezer Compartment	1 ice tray
Defrost	Manual (refrigerator) / manual (freezer)
Refrigerant	R600a (isobutane)
Climate Class	N-ST (16°C to 38°C)
Maintenance	Clean the seals and interior with a damp cloth
Spare Parts	Contact Kalorik after-sales service
General Information	Household use only

Frequently Asked Questions - MCL 36711 KALORIK

How to adjust the temperature of my Kalorik MCL 36711 refrigerator?

Use the thermostat inside the refrigerator. Numbers 1 to 7 indicate increasing cold: 1 for a mild temperature (about 8°C) and 7 for the coldest (about 1°C). The recommended setting is 3 or 4.

How to clean the interior of the refrigerator?

Unplug the appliance and empty it. Clean with a soft cloth soaked in warm water and baking soda or mild soap. Rinse and dry. Do not use abrasive products.

Why is my refrigerator making noise?

A humming or dripping sound is normal (compressor and refrigerant). If the noise is loud or irregular, check that the appliance is level and not touching furniture. Leave at least 10 cm of space at the back.

How to reverse the door opening direction?

Unscrew the upper and lower hinges, remove the door and reverse it. Replace the hinges on the other side. Refer to the diagram in the manual for precise steps. A Phillips screwdriver is required.

How to defrost the freezer?

Unplug the appliance and remove food. Leave the freezer door open to let the ice melt. Place towels to absorb water. Do not use a knife or sharp object to scrape off ice.

What is the power consumption of the refrigerator?

This model is rated energy class E. Annual consumption is about 200 kWh, varying depending on usage and ambient temperature.

Can I place the refrigerator in an unheated garage?

Yes, if the ambient temperature remains between 16°C and 38°C. Below 16°C, the refrigerator may not work properly. Avoid temperatures below 10°C.

What to do if the refrigerator stops cooling?

Check that the appliance is plugged in and the thermostat is not set to 0. Make sure the door closes properly and the seals are clean. If the problem persists, contact Kalorik after-sales service.

Which foods should not be stored in this refrigerator?

Avoid putting carbonated beverages in the freezer (risk of explosion). Leafy vegetables should be in the vegetable crisper. Do not store chemical or flammable products.

Where to find spare parts for this model?

Contact Kalorik consumer service by phone or through their website. Have the model number MCL 36711 and purchase date ready. Common parts like shelves are available.

USER MANUAL MCL 36711 KALORIK

Can cooler and dispenser

12V DC - 50W (4.15A)

EN OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

When using your appliance, basic safety precautions should always be followed, including the following.

WARNING: To reduce the risk of fire, electric shock or personal

injury:

1. Read all instructions prior to using

2. Check that your mains voltage corresponds to that stated on the appliance.

3. Do not use outdoors and do not charge the unit outdoors.

4. Do not allow to be used as a toy. Close attention is necessary when used by or near children.

5. Use only as described in this manual. Use only manufacturer's recommended attachments.

6. Do not use with damaged adapter, cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to the service center.

7. Do not abuse the cord. Never carry the adapter by the cord or yank to disconnect from an outlet; instead grasp the adapter and pull to disconnect.

8. Keep cord away from heated surfaces. Do not pull cord around sharp edges or corners. Do not close door on the charger cord.

9. Do not handle plug or appliance with wet hands.

10. Unplug the charger from the outlet before any routine cleaning or maintenance.

11. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.

12. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

13. Position the appliance on a table or flat surface, in order to avoid its fall. Ensure that there is at least a 5 inches clearance at the sides.

14. Do not place any other object on top of the appliance.

15. Close the cooler door immediately after putting in any items so the inside temperature will not rise dramatically.

16. Should you notice any kind of damage on the appliance, please unplug it immediately and contact Customer Service.

17. All repairs should be made by the qualified service recommended by Kalorik.

18. Avoid direct sunshine and high room temperatures.

19. Do not put this item on an unstable area where it may fall. Its weight is heavy enough that in event it does fall it can cause physical damage.

20. Make sure not to overload power outlets by plugging in to many devices in one socket.

21. Unplug unit when not in use for a long period of time.

22. Do not use this item near water where it can be exposed to getting wet.

23. Do NOT immerse the appliance, its cord or its adapter, in water, or any other liquid.

SAVE THESE INSTRUCTIONS HOUSEHOLD USE ONLY

POLARIZED PLUG INSTRUCTIONS

The adapter of this appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into the polarized outlet only one way. If the plug does not properly fit into the outlet at first, reverse it. If it still does not fit, contact a competent qualified electrician. Do not attempt to modify the plug in any way.

IMPORTANT NOTE

This drink dispenser, like other small refrigerating devices, cools based on the ambient temperature of the room. It is not designed to be used outside, in the heat, as it will not cool the cans inside.

It works best when used indoors in a cool room, to provide you cold drinks every time. This cooler should cool the cans at approximately a temperature of 30F/16C below the room temperature.

Please allow sufficient time (4 hours minimum) for the cans to cool inside the machine, or use cans pre-cooled in a normal refrigerator, that the cooler will maintain at an ideal temperature.

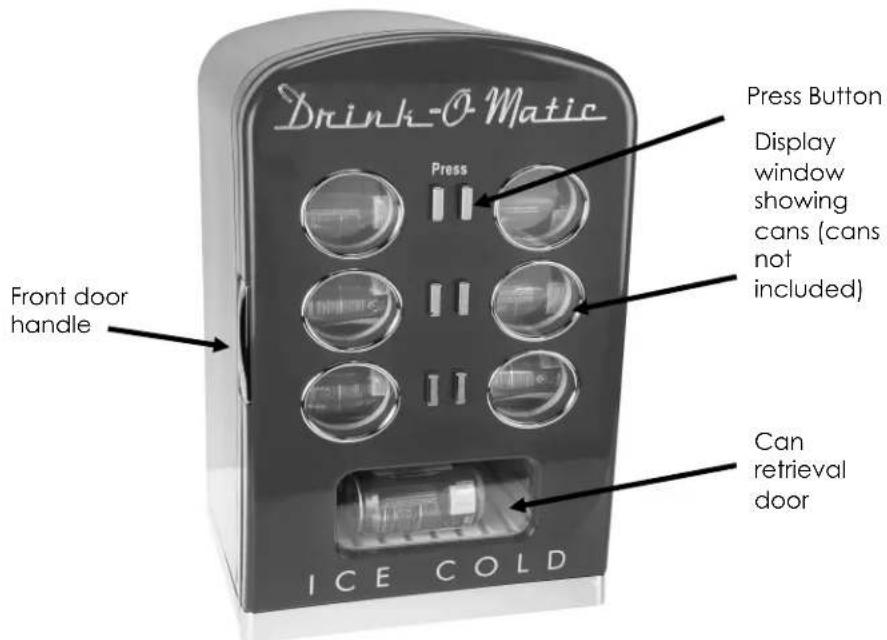

PARTS

INSTALLATION

Position the appliance and allow it to stand for two or three hours before turning it on for the first time, in order to allow the system to settle. Do NOT position near to any heat source e.g. cooker, boiler or direct sunlight etc.

A clearance of 5 inches must be left between the sides of the appliance and any adjacent cabinets or walls to allow for adequate air circulation. The appliance is not designed for recessed installation, meaning it should NOT be built-in.

Install on a good firm level surface and any unevenness of the surface should be corrected prior to installation.

VENTILATION

Please make sure this item is well ventilated and that the slots and openings are not blocked to keep it from overheating.

CLEANING

Make sure to remove the machine from the wall plug before cleaning and do not use abrasive cleaners. We suggest using a damp cloth.

PLACEMENT

Do not put this item on an unstable area where it may fall. Its weight is heavy enough that in event it does fall it can cause physical damage.

CONDENSATION WATER REMOVAL

In all cooling appliances, condensation of water is a perfectly normal process. Air humidity becomes water in reaction with the colder temperature.

As a consequence, you may notice a pool of water at the bottom of the appliance.

If this is the case, please slide out the bottom tray and dispose of the water regularly.

SERVICING

See a professional appliance technician if this item does not function properly, or contact the Kalorik Customer Service for help. Never remove the back panel, nor operate the item immersed in any type of liquid.

MAKING YOUR DRINK DISPENSER WORK

1. Open the front door of the unit and place up to 12 cans inside.
2. Plug the cord of the adapter at the back of the appliance and then put the electric plug into the wall.
3. Turn power switch to "On" or "Cool"
4. Allow time for the drink to cool. This dispenser will cool drinks based on the ambient temperature of the room (approximately 30F / 15C less than ambient temperature)
5. There are 6 loading zones, each containing 2 cans of 12 Oz.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity. Print only what is inside the frame.

1. Press the one of the 6 buttons where you see at least one can available and quickly release it. The can will dispense out. Lift the bottom door and a cold soda can will be there waiting for you to enjoy.

Note: when using the press buttons in the upper position, please take care to open your can cautiously as the gas in the drinks might be disturbed by the higher fall and the can might spurt some liquids out, if opened suddenly. Alternatively, please wait some time before opening the cans that have been released from the 2 upper storage cavities.

WARRANTY

We suggest that you complete and return the enclosed Product Registration Card promptly to facilitate verification of the date of original purchase. However, return of the Product Registration Card is not a condition of these warranties. You can also fill this warranty card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. for 1 year from the date of purchase against defects in material and workmanship. This warranty is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.

During this period, the KALORIK product that, upon inspection by KALORIK, is proved defective, will be repaired or replaced, at Kalorik's option, without charge to the customer. If a replacement product is sent, it will carry the remaining warranty of the original product.

This warranty does not apply to any defect arising from a buyer's or user's misuse of the product, negligence, failure to follow KALORIK instructions noted in the user's manual, use on current or voltage other than that stamped on the product, wear and tear, alteration or repair not authorized by KALORIK, or use for commercial purposes. There is no warranty for glass parts, glass containers, filter basket, blades and agitators, and accessories in general. There is also no warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty lasts or do not allow the exclusion of incidental or consequential damages, so the above limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If the appliance should become defective within the warranty period and more than 30 days after date of purchase, do not return the appliance to the store: often, our Consumer Service Representatives can help solve the problem without having the product serviced. If servicing is needed, a Representative can confirm whether the product is under warranty and direct you to the nearest service location.

If this is the case, bring the product, or send it, postage prepaid by the user (all Kalorik customers are responsible for the initial shipment back to the warranty center), along with proof of purchase and indicating a return authorization number given by our Consumer Service Representatives, to the authorized KALORIK Service Center (please visit our website at www.KALORIK.com or call our Customer Service Department for the address of our authorized KALORIK Service Center).

If you send the product, please include a letter explaining the nature of the claimed defect.

If you have additional questions, please call our Consumer Service Department (please see below for complete contact information), Monday through Friday from 9:00am - 6:00pm (EST). Please note hours are subject to change.

If you would like to write, please send your letter to:

KALORIK Consumer Service Department

Team International Group of America Inc.

1400 N.W 159th Street, Suite 102

Miami Gardens, FL 33169 USA

Or call:

Toll Free: +1 888-521-TEAM / +1 888-KALORIK

Only letters can be accepted at this address above. Shipments and packages that do not have a return authorization number will be refused.

SP MANUAL DE INSTRUCCIONES

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity. Print only what is inside the frame.

Close-up of a transparent cylindrical object with internal markings, partially enclosed by circular components (no readable text or symbols)

Recibir lata

GARANTÍA

Team International Group of America Inc. 1400 N.W 159th Street, Suite 102 Miami Gardens, FL 33169 USA

O llame gratuitamente (U.S.A.) al +1 888-521-TEAM / +1 888-KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity. Print only what is inside the frame.

Close-up of a cylindrical object with a label 'ICE COLD' visible, no other text or symbols present.

Récupérez

Team International Group of America Inc.

1400 N.W 159th Street, Suite 102

Miami Gardens, FL 33169 USA

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity. Print only what is inside the frame.

Fax [phone]

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity. Print only what is inside the frame.

I/B Version

111026
