Product type	Built-in combined refrigerator
Brand	MIELE
Model	KF 1901 VI
Dimensions (H × W × D)	177 × 80 × 55 cm
Weight	70 kg
Power supply	220-240 V, 50 Hz
Energy class	A+
Annual energy consumption	290 kWh
Total capacity	300 L
Refrigerator capacity	200 L
Freezer capacity	100 L
Temperature levels	5 (refrigerator), 4 (freezer)
Main functions	SuperCool, SuperFrost, Dynamic Cooling, PerfectFresh
Maintenance and cleaning	Automatic defrost, interior cleaning with soft cloth
Safety	Door alarm, child safety, automatic shutdown in case of overheating
Spare parts and repairability	Miele after-sales service, parts available for 10 years
General information	Side-by-side installation possible, juxtaposition kit provided

Frequently Asked Questions - KF 1901 VI MIELE

How to install the appliance side by side with another refrigerator?

Use the provided juxtaposition kit. Follow the steps: attach the half-hinges, install the heating plate to avoid condensation, then connect the appliances. Consult the manual for details.Important: two people are needed.

What is the ideal temperature for the refrigerator?

Set by default to 4 °C. You can adjust it from 2 °C to 8 °C via the control panel.Keep perishable foods below 4 °C.

How to activate the SuperCool function?

Press the SuperCool button. The refrigerator cools quickly to cool large quantities of food. The function stops automatically after about 6 hours.Ideal after grocery shopping.

How to clean the interior of the appliance?

Unplug the appliance. Remove shelves and drawers. Clean with a soft cloth soaked in soapy water. Rinse and dry. Do not use abrasive products.

What to do in case of door alarm?

The audible alarm sounds if the door remains open for more than one minute. Close the door to stop it. Check that nothing prevents closure.

How to save energy with this refrigerator?

Place the appliance away from a heat source, let food cool before storing, and do not open the door unnecessarily. Use SuperCool and SuperFrost functions sparingly.

Can the freezer be used without side-by-side installation?

Yes, the freezer is an integral part of the combined appliance. It operates independently.Note: the freezing capacity is 10 kg per 24h.

How to adjust the freezer temperature?

Use the control panel. The adjustment range is -15 °C to -24 °C. The default value is -18 °C.Keep frozen foods at -18 °C.

What to do in case of power failure?

Keep the doors closed. The food stays cold for several hours. If the power failure lasts more than 12 hours, check the quality of the food. Do not refreeze thawed food.

The appliance makes noise, is that normal?

Yes, operating noises are normal: compressor hum, refrigerant circulation. If noise becomes loud, check that it is level and that nothing is vibrating.

USER MANUAL KF 1901 VI MIELE

To prevent misuse read these instructions before installation or use.

Side-by-side 3
. without partition. 3
with partition 4

Required accessories and tools 4

Tools 4
Other. 4

Prepare the appliances 5

Installing the heating mat. 5

Connect the appliances. 7

fr 9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 Vi, K 19x1 Vi
• F 14x1 Vi, F 18x1 Vi, F 19x1 Vi
• KF 18x1 Vi, KF 19x1 Vi
• KWT 16x1 Vi

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

Side-by-side

... without partition

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

... with partition

The minimum thickness of the partition is 58 (16 mm).

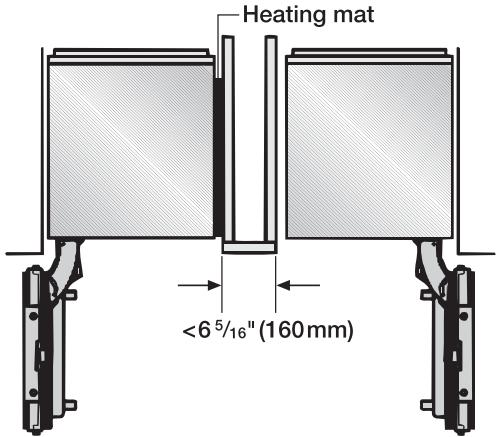

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

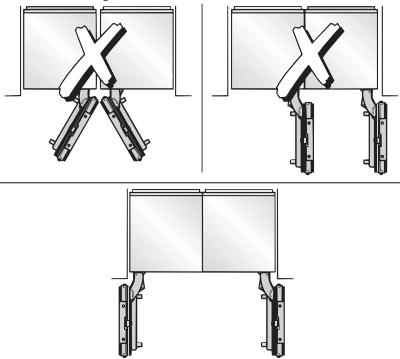

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

• Place the appliances next to each other in the intended configuration.

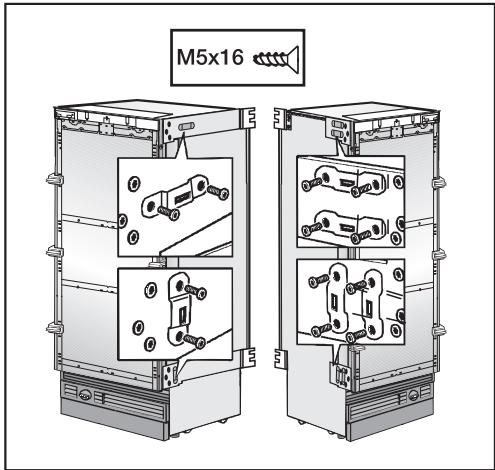

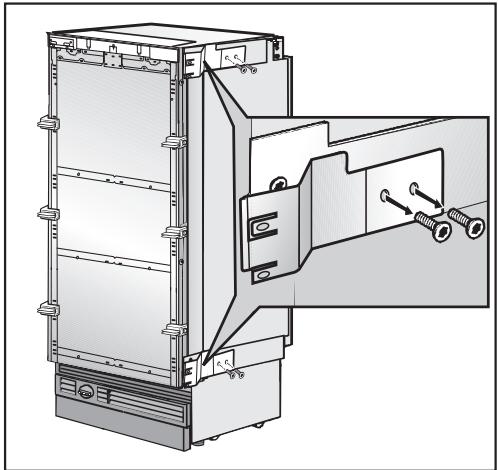

On the handle side of the housing, remove the side attachment plates.

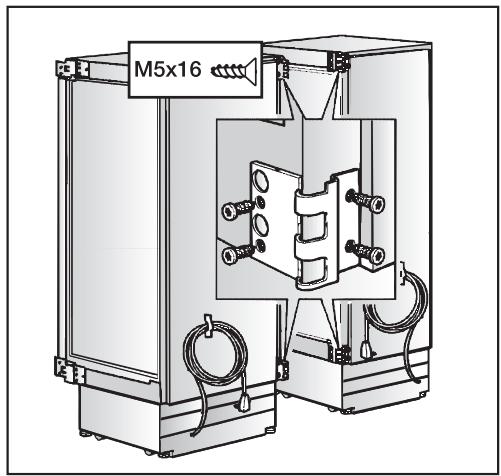

Take the hinge halves from the side-by-side kit and screw them to both appliances.

• Screw the side plates to both appliances. Check the position of both appliances!

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

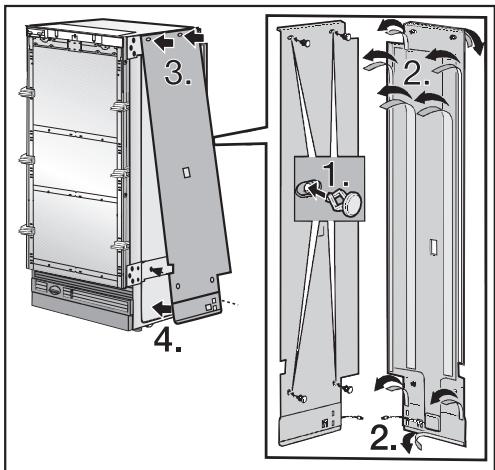

Insert pins through the prepared holes ①.

Pull the protective strip off of the adhesive tape ②.
Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ③.
Press on the heating mat from top to bottom, and insert the lower pins into the holes ④.

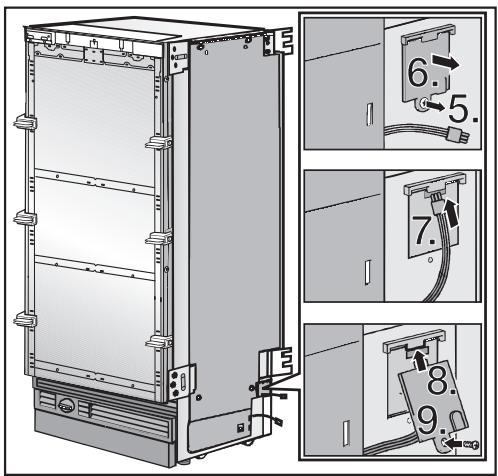

Loosen the screws from the connection box ⑤.
Open the connection box 6
- Attach the cable ⑦.
Close the connection box lid 8.
- Secure the connection box screws ⑨

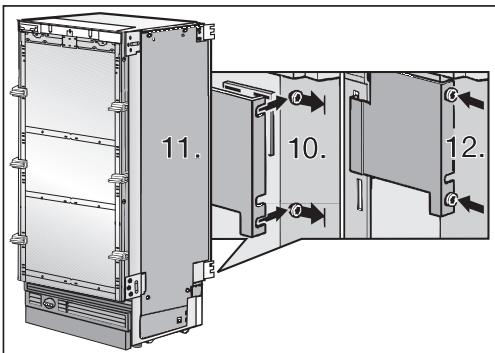

• Loosen the screws on the rear side of the appliance ⑩ . Do not unscrew completely.
• Hang the cable cover by its hinge on the heating mat and, from below, push into the screws (11).
  Tighten the screws 12.

Connect the appliances

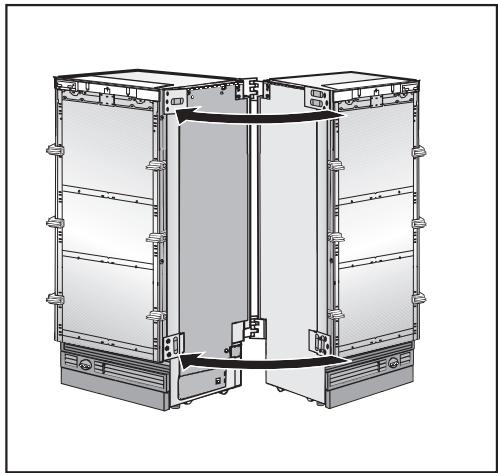

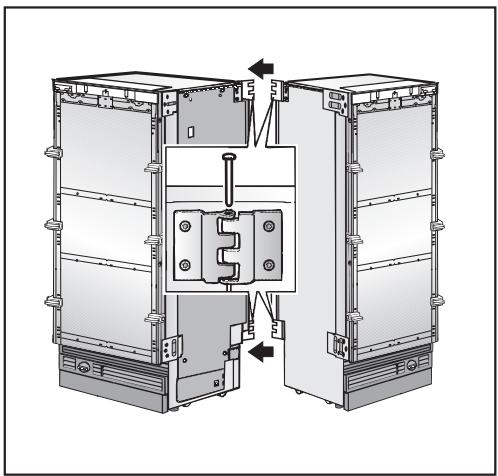

Push the appliances together until the hinge halves interlock.

Insert the pins into the hinges.

Push the appliances together at the front as far as possible.

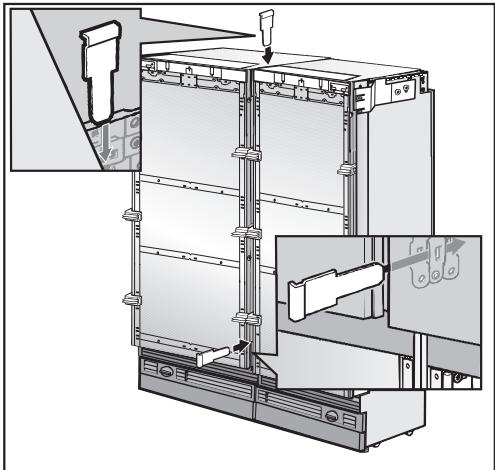

Once the appliances have been pushed together, insert the metal bracket into the upper and lower plates. Use a tool to push the bracket in all the way.

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

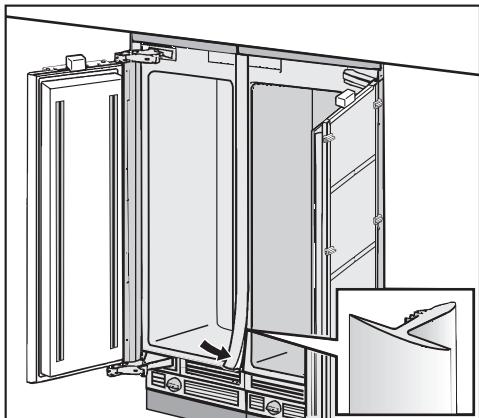

Insert the cover strip into the seam between the appliances.
