KF 1811 SF - Combined refrigerator MIELE - Free user manual and instructions

Product type	Combined fridge-freezer
Brand	MIELE
Model	KF 1811 SF
Dimensions (H x W x D)	201.0 x 60.0 x 66.6 cm
Net weight	82 kg
Total net capacity	351 L
Fridge capacity	251 L
Freezer capacity	100 L
Energy class	A++
Annual consumption	234 kWh
Power supply	220-240 V, 50 Hz
Main functions	Ventilated cooling, electronic control, door alarm, LED lighting
Maintenance and cleaning	Regular cleaning with a soft cloth and soapy water
Safety	Child lock, open door signal, anti-tip safety
Spare parts and repairability	Parts available from Miele; repairability index 8.5/10
General information	User manual available online; manufacturer warranty 2 years

Frequently Asked Questions - KF 1811 SF MIELE

How to install my Miele KF 1811 SF refrigerator?

Installation must be carried out by two people. Follow the instructions in the manual, especially for leveling and electrical connection. Ensure ventilation clearances are respected.

What is the ideal temperature for the refrigerator and freezer?

The recommended temperature is 4°C for the fridge and -18°C for the freezer. Use the control panel to adjust them.

What to do if my appliance is making noise?

Slight noise is normal (compressor, fan). If the noise is excessive, check that it is level and that nothing is touching the back. Contact customer service if necessary.

How to clean the interior of the refrigerator?

Unplug the appliance, remove the shelves and clean with a soft cloth and soapy water. Rinse and dry. Do not use abrasive products.

How to activate the child lock?

Press the temperature adjustment buttons of the fridge and freezer simultaneously for 5 seconds. A lock symbol appears on the display.

What does the audible alarm mean?

The alarm sounds if the door is left open too long or if the internal temperature is too high. Check the door closure and temperature.

How to change the refrigerator bulb?

The KF 1811 SF model is equipped with LED lighting that cannot be changed by the user. Contact customer service in case of failure.

Can my appliance be installed side by side with another?

Yes, thanks to the side-by-side kit sold separately. Follow the instructions in the manual for installing the heating plate and fixing.

How to get spare parts?

Spare parts are available from Miele customer service. Visit miele.fr or call after-sales service.

What to do if the appliance no longer cools?

Check the power supply and thermostat setting. If the problem persists, contact Miele customer service. Do not attempt to repair yourself.

USER MANUAL KF 1811 SF MIELE

Line drawing of a two-decker refrigerator with doors and front panel (no text or symbols)

To prevent misuse read these instructions before installation or use.

... without partition. 3

... with partition.... 4

Required accessories and tools 4

Tools 4

Other....4

Prepare the appliances 5

Installing the heating mat....6

Connect the appliances. 7

fr 9

Avant de commencer l'installation....9

Côte à côte 9

... sans cloison 9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 SF, K 19x1 SF
• F 14x1 SF, F 18x1 SF, F 19x1 SF
• KF 18x1 SF, KF 19x1 SF
• KWT 16x1 SF

For side-by-side installation of appliances with a stainless-steel front, you also need a Top-frame.

Contact Miele to obtain a top-frame in the required width. The width of the Top-frame corresponds to the total width of your side-by-side combination.

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward.

Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

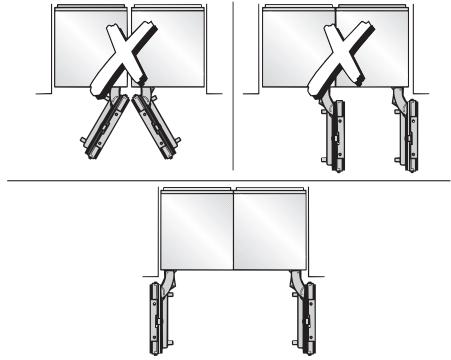

Side-by-side

... without partition

Three-panel diagram showing mechanical components with cross symbols, no text or labels present

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

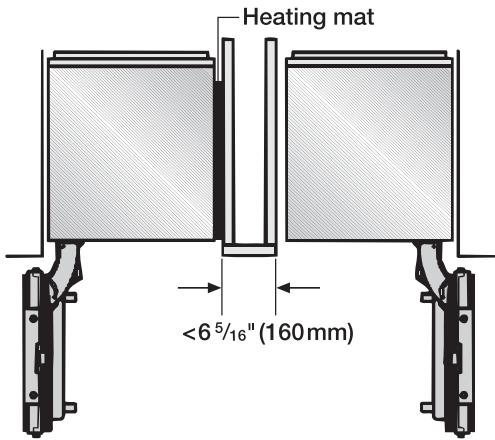

... with partition

The minimum thickness of the partition is 58 " (16 mm).

If there is a partition with a thickness from 5/8'' (16 mm) to 6^5/_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

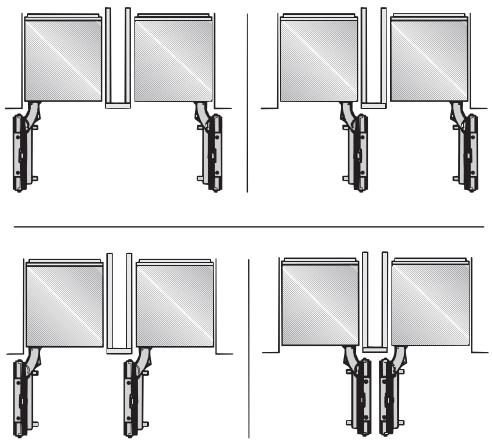

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

To connect a side-by-side combination, you will need a Top-frame, which can be obtained from Miele.

Tools

Other

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench
• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

■ Place the appliances next to each other in the intended configuration.

Remove the mounting frames located on the top and inside (handle side) of each appliance.

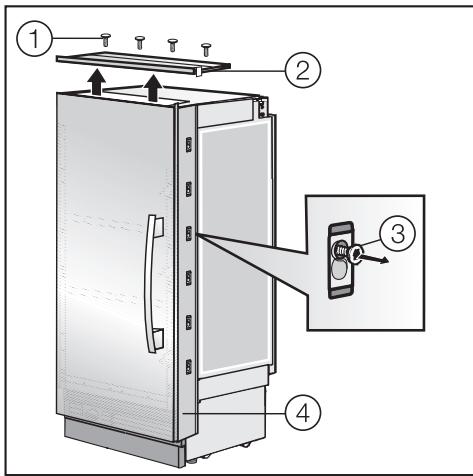

■ On each appliance, remove the screws ① from the upper mounting frame ② and pull the frame up and off.
■ Loosen the screws ③ a few turns on the side mounting frame ④ of each appliance.
■ Slide each side mounting frame ④ slightly upward and then outward to unhinge.
■ Screw the screws ③ all the way in again or remove them completely.

■ Take the hinge halves ⑤ from the side-by-side kit and screw them to both appliances.

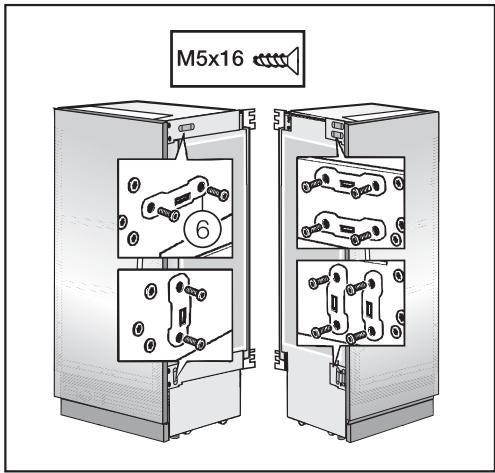

■ Screw the side plates ⑥ to both appliances. Check the position of both appliances!

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

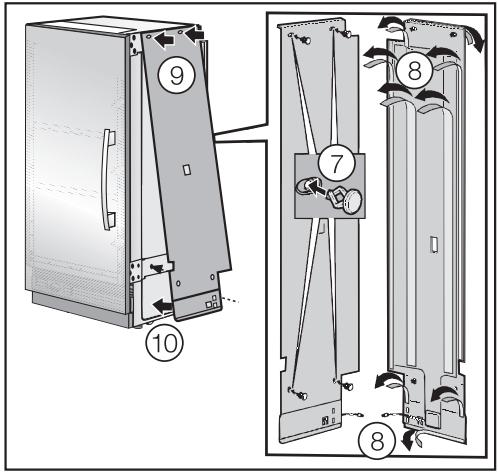

■ Insert pins through the prepared holes ⑦.
■ Pull the protective strip off of the adhesive tape ⑧.
■ Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ⑨.
■ Adhere the heating mat from top to bottom, and insert the lower pins into the holes ⑩.

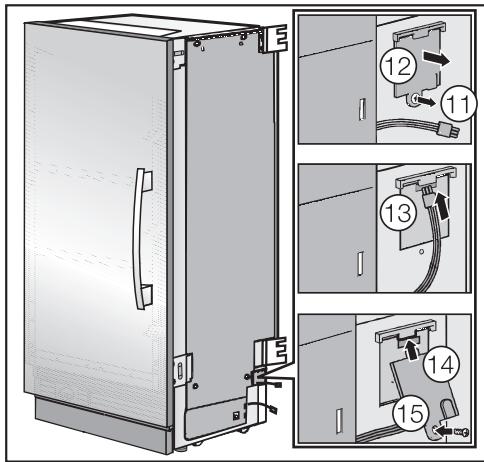

■ Loosen the screws from the connection box ⑪.
■ Open the connection box ⑫.
■ Attach the cable ⑬.
■ Close the connection box lid ⑭.
- Secure the connection box screws ⑮.

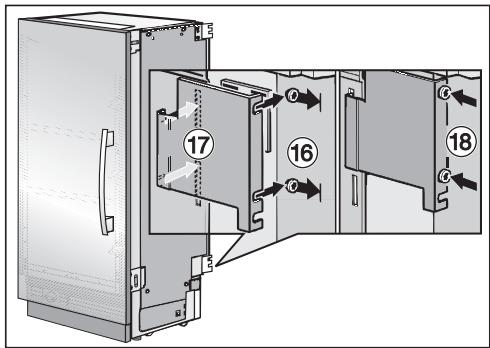

■ Loosen the screws on the rear side of the appliance ⑯. Do not unscrew completely.
■ Hang the cable cover by its hinge on the heating mat and, from below, push into the screws ⑰.
■ Tighten the screws ⑱.

Connect the appliances

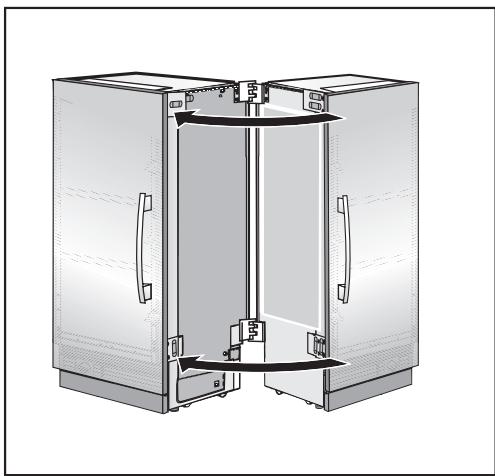

■ Push the appliances together until the hinge halves interlock.

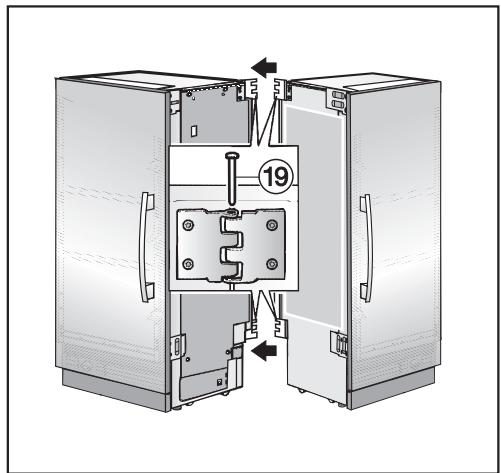

■ Insert the pins ⑲ into the hinges.

Technical line drawing of a cabinet interior with internal components and mounting brackets (no text or symbols)

■ Push the appliances together as far as possible.

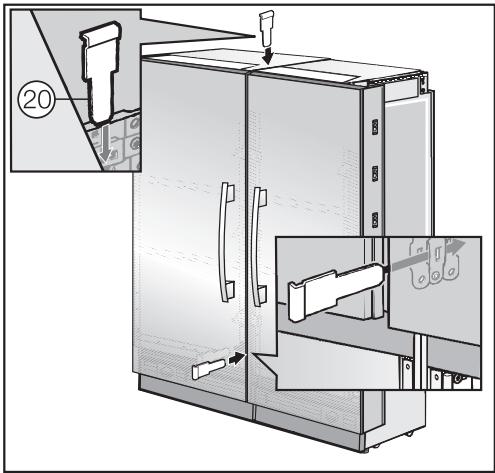

■ Once the appliances have been pushed together, insert the metal bracket ⑳ into the upper and lower plates. Use a tool to push the bracket in all the way.

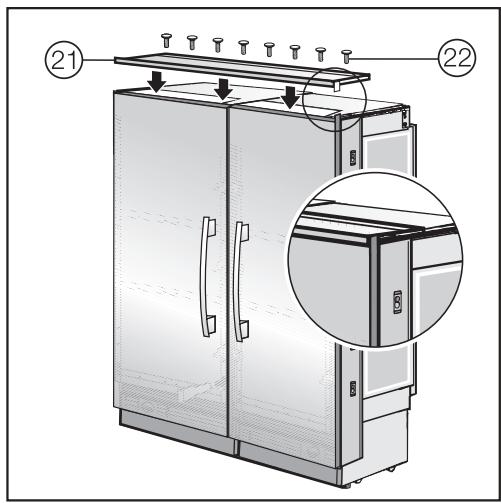

■ Place the Top-frame ② on the side-by-side combination, hook it into the keyholes, and fasten it to the appliances with the screws ② .

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

The remaining frames and screws are no longer needed for the side-by-side combination.

Technical line drawing of an open refrigerator with doors and ventilation slots (no text or symbols)

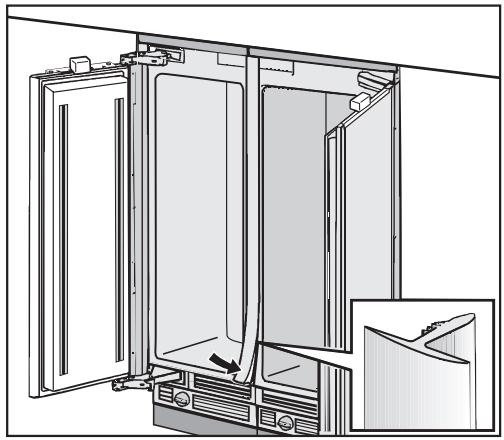

■ Insert the cover strip into the seam between the appliances.
