USER MANUAL K 1911 SF MIELE

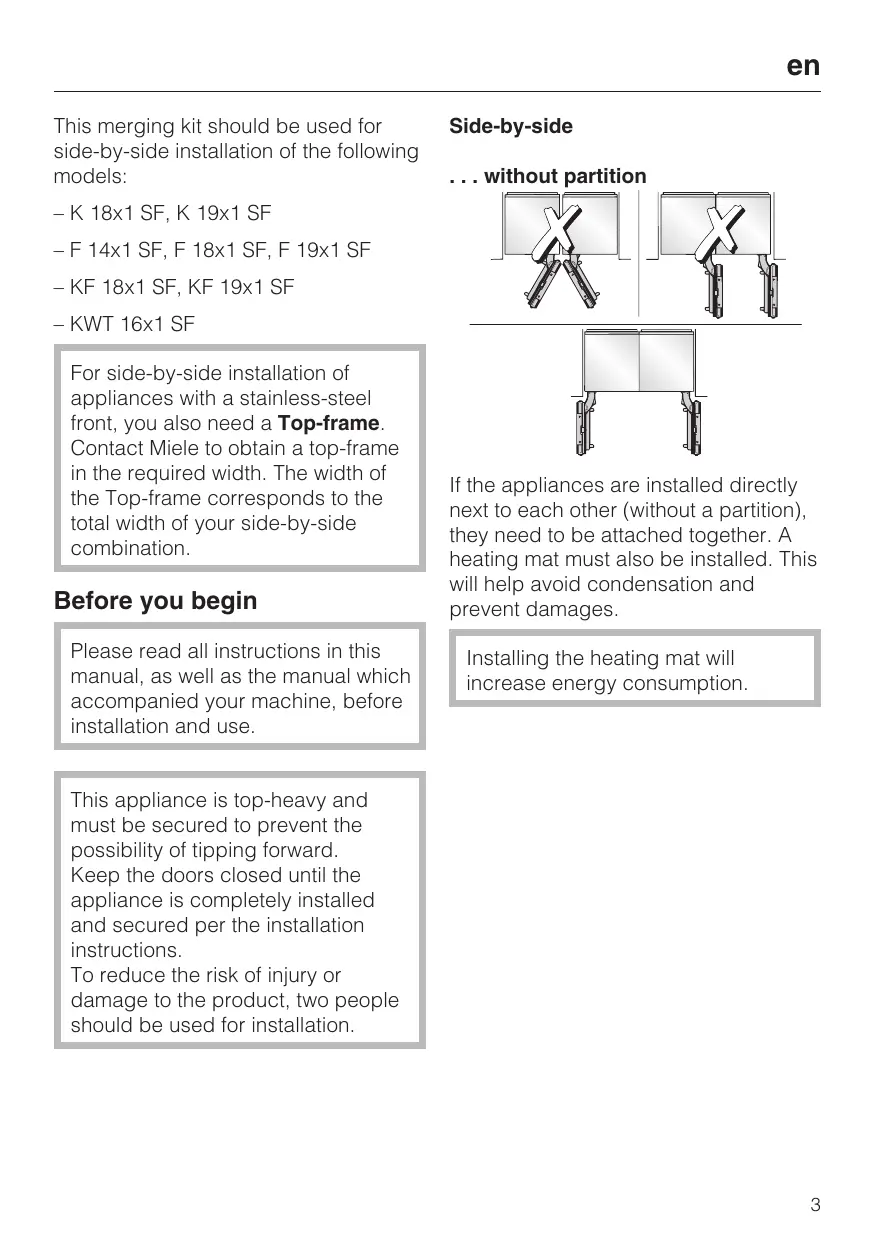

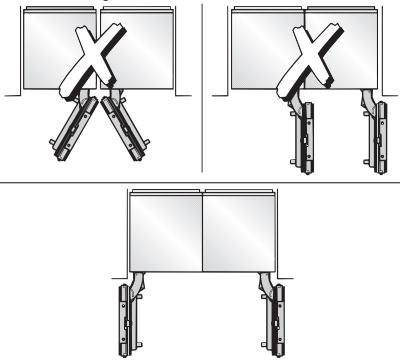

This merging kit should be used for side-by-side installation of the following models: Side-by-side . . . without partition – K 18x1 SF, K 19x1 SF – F 14x1 SF, F 18x1 SF, F 19x1 SF – KF 18x1 SF, KF 19x1 SF – KWT 16x1 SF For side-by-side installation of appliances with a stainless-steel front, you also need a Top-frame. Contact Miele to obtain a top-frame in the required width. The width of the Top-frame corresponds to the total width of your side-by-side combination. Before you begin Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use. If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages. Installing the heating mat will increase energy consumption. This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions. To reduce the risk of injury or damage to the product, two people should be used for installation.

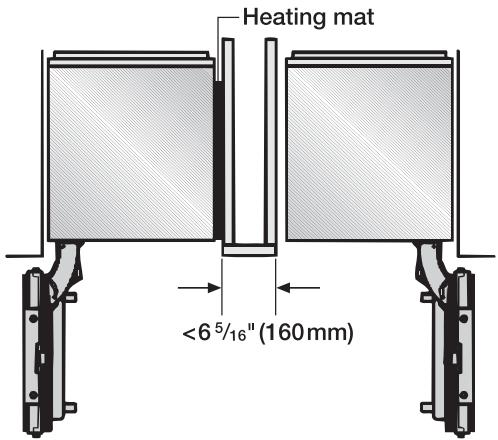

. . . with partition The minimum thickness of the partition is 5/8" (16 mm). If there is a partition with a thickness from 5/8" (16 mm) to 6 5/16" (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included. When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time. Required accessories and tools In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages. Installing the heating mat will increase energy consumption. To connect a side-by-side combination, you will need a Top-frame, which can be obtained from Miele. Tools – T 20 Torx screwdriver – T 20 Torx bit + magnetic holder – Adjustable wrench Other – Various bit sizes, suitable for material – Piece of thin material (for example, linoleum) to protect the floor from damage – Adhesive tape

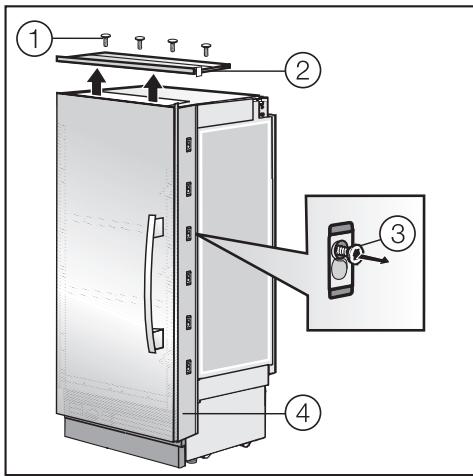

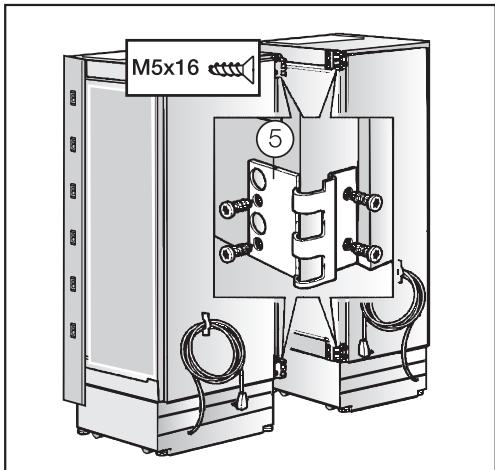

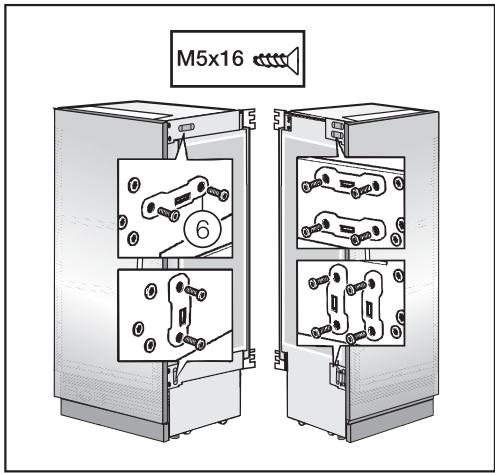

Prepare the appliances ^ Place the appliances next to each other in the intended configuration. Remove the mounting frames located on the top and inside (handle side) of each appliance. ^ Take the hinge halves e from the side-by-side kit and screw them to both appliances. ^ On each appliance, remove the screws a from the upper mounting frame b and pull the frame up and off. ^ Loosen the screws c a few turns on the side mounting frame d of each appliance. ^ Slide each side mounting frame d slightly upward and then outward to unhinge. ^ Screw the screws c all the way in again or remove them completely. ^ Screw the side plates f to both appliances. Check the position of both appliances!

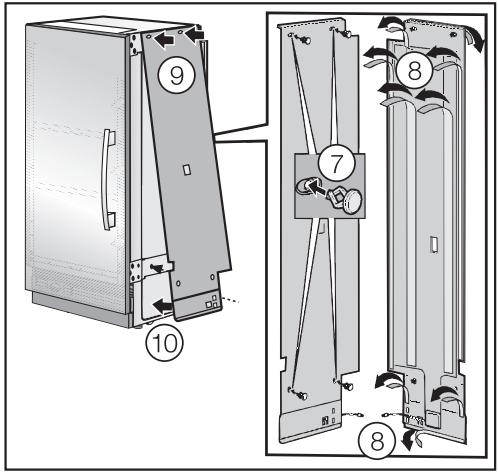

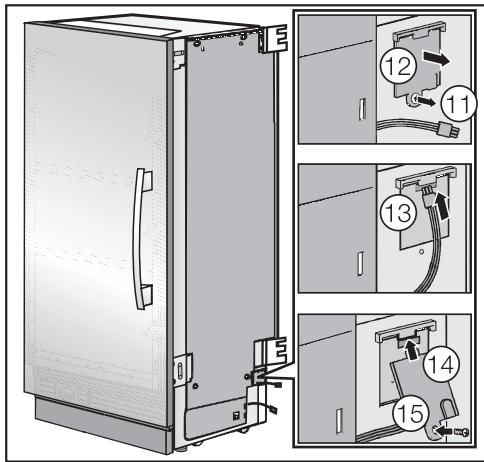

Installing the heating mat The heating mat has to be secured on the right side of the left-standing appliance. ^ Loosen the screws from the connection box k. ^ Open the connection box l. ^ Attach the cable m. ^ Insert pins through the prepared holes g. ^ Pull the protective strip off of the adhesive tape h. ^ Secure the connection box screws

^ Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance i. ^ Adhere the heating mat from top to bottom, and insert the lower pins into the holes j.

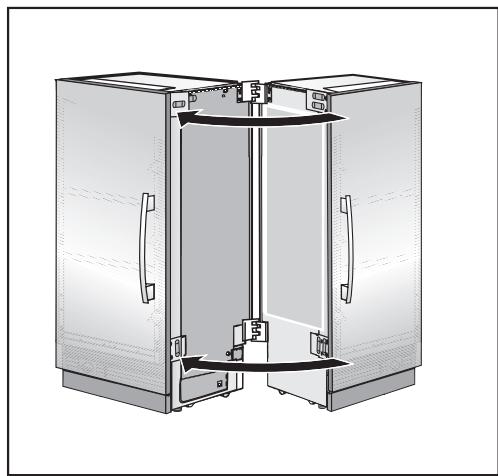

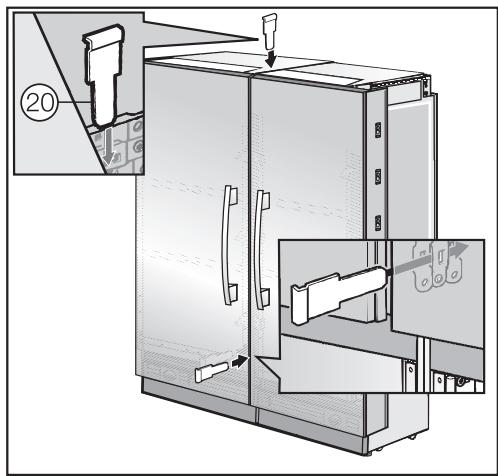

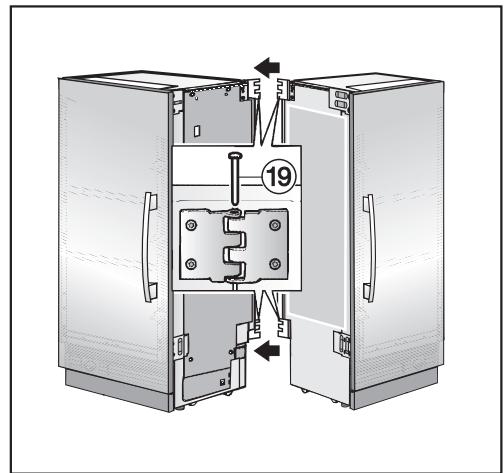

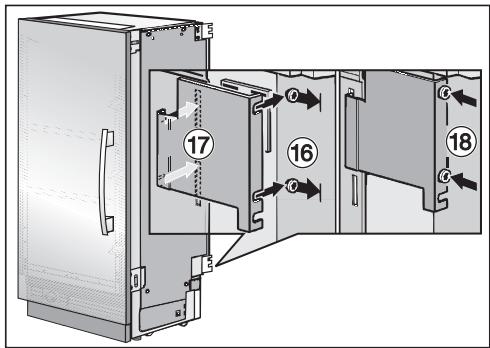

^ Loosen the screws on the rear side of the appliance p. Do not unscrew completely. ^ Hang the cable cover by its hinge on the heating mat and, from below, push into the screws q. ^ Push the appliances together as far as possible. Connect the appliances ^ Push the appliances together until the hinge halves interlock. ^ Once the appliances have been pushed together, insert the metal bracket t into the upper and lower plates. Use a tool to push the bracket in all the way. ^ Insert the pins s into the hinges.

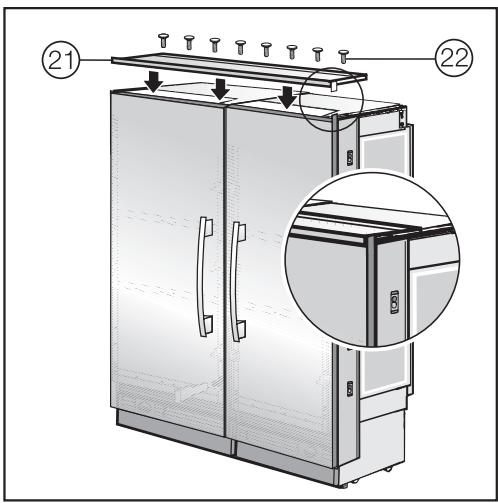

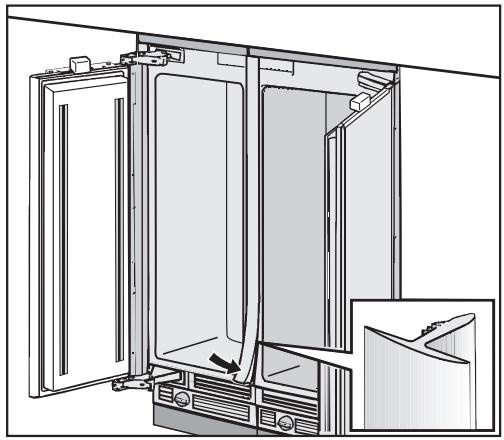

^ Insert the cover strip into the seam between the appliances. ^ Place the Top-frame u on the side-by-side combination, hook it into the keyholes, and fasten it to the appliances with the screws v. Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance. The remaining frames and screws are no longer needed for the side-by-side combination.
