Product type	Electric drill
Brand	Ferm
Model	HDM1027S
Power supply	Mains (cable)
Nominal power	650 W
Variable speed	Yes
Chuck	Keyless, 13 mm capacity
Max. drilling steel	13 mm
Max. drilling wood	25 mm
Hammer function	Yes
Forward/reverse switch	Yes
Torque setting	Yes (20 positions)
Weight	1.8 kg
Dimensions (L x W x H)	280 x 200 x 80 mm
Maintenance and cleaning	Clean with a damp cloth; lubricate bearings periodically
Safety	Double insulation, lockable safety switch
Spare parts available	Carbon brushes, chuck, drill stand
Repairability	Repairability index available online

Frequently Asked Questions - HDM1027S Ferm

How to change the chuck of a Ferm HDM1027S drill?

To change the chuck, use a hex key to loosen the retaining screw inside the chuck. Then unscrew the chuck counterclockwise. Install the new chuck and tighten the screw.

What is the power of the Ferm HDM1027S drill?

The Ferm HDM1027S drill has a nominal power of 650 W, making it suitable for drilling in wood, metal, and light concrete.

Does the Ferm HDM1027S drill have a hammer function?

Yes, this drill is equipped with a hammer function activated by a selector, ideal for drilling in masonry.

What type of chuck does the Ferm HDM1027S use?

It is equipped with a keyless chuck with a capacity of 13 mm, allowing quick bit changes without tools.

How to maintain the Ferm HDM1027S drill?

Regularly clean the exterior with a damp cloth. Check and lubricate the bearings with a drop of oil. Replace the carbon brushes when worn to maintain performance.

What is the maximum drilling diameter in steel?

The maximum drilling diameter in steel is 13 mm with the Ferm HDM1027S drill.

Does the drill have a variable speed control?

Yes, it has an electronic variable speed control that allows adjusting the speed according to the material and bit used.

How to reverse the direction of rotation?

Use the forward/reverse switch located above the trigger to switch from forward rotation (drilling) to reverse rotation (screwing).

Where to buy spare parts for the Ferm HDM1027S?

Spare parts such as carbon brushes, the chuck, or the stand are available on the official Ferm website or from authorized dealers.

What is the importance of the repairability index?

The repairability index rates the ease of repair of the device. For the Ferm HDM1027S, it is available online and encourages sustainable use by facilitating part replacement.

USER MANUAL HDM1027S Ferm

HDM1026S / HDM1027S

EN Original instructions 4
DE Übersetzung der Originalbetriebsanleitung 9
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 14
FR Traduction de la notice originale 19
ES Traducción del manual original 24
PT Tradução do manual original 29
IT Traduzione delle istruzioni originali 34
SV Översättning av bruksanvisning i original 39
FI Alkuperäisten ohjeiden käännös 43
NO Oversatt fra orginal veiledning 47
DA Oversættelse af den originale brugsanvisning 52

4 HU Eredeti használati utasítás fordítása 57
9 CS Překlad původního návodu k používání 61
4 SK Prevod izvirnih navodil 66
PL Tłumaczenie instrukcji oryginalnej 71
LT Originalios instrukcijos vertimas 76
LV Instrukciju tulkojums no originālvalodas 81
RO Traducere a instructiunilor originale 86
RU Перевод исходных инструкций 91
EL Μετάφραση του πρωτοτύπου των οδηγιών χρήσης 96
AR قَيْلِصَأَلَا تَامِيْلِعَتُلَا قَمْجِرِك 101
TR Orijinal talimatların çevirisi 105

www.jux.com ID 100000000

Fig. C

Close-up of a car dashboard with three curved arrows indicating rotational or directional movement, no visible text or symbols.

Close-up of a car dashboard dial with a play button and control buttons (no text or symbols visible)

Close-up of a car dashboard dial with no visible text or symbols on the dial, showing a circular knob and control buttons (no readable text or symbols)

Close-up of a car dashboard dial with no visible text or symbols on the dial, showing control knob and buttons (no readable text or symbols)

Close-up of a car dashboard dial with a play button and control buttons (no text or symbols visible)

Fig. D

Rotary Hammer drill 600W / 950W HDM1026S / HDM1027S

Thank you for buying this FERM product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1.SAFETYWARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and

the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Always wear eye protection!

Wear hearing protection.

Wear safety gloves.

Do not dispose of the product in unsuitable containers.

Variable electronic speed

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for rotary hammers

a) Wear ear protectors. Exposure to noise can cause hearing loss.
b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.

Class II machine - Double insulation - You don't need any earthed plug.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Replacement of power cords or plugs

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Mains plug replacement (UK only)

If the moulded 3-pin plug attached to the unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS1363/13A fused plug and that the following wiring instructions are followed. The wires in the mains cable are coloured in accordance with the following code:

• blueneutral
  •brownlive

As the colours of the wires in the mains cable of the unit may not correspond to the coloured markings identifying the terminals in the plug, proceed as follows:

• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

Use of extension leads

Only ever use approved extension leads that are suitable for the power rating of the machine. The minimum core thickness is 1.5 mm^2 . Whenever using a reel extension lead, always fully unroll the lead.

Immediately switch off the machine when:

• Excessive sparking of the carbon brushes.
• Interruption of the mains plug, mains lead or mains lead damage.
• Defectswitch.
• Smoke or stench of scorched isolation.

2. MACHINE INFORMATION

Intended use

This rotary hammer is intended for drilling holes in masonry such as brick, concrete and similar material. Furthermore, the machine can be used as a demolition hammer in combination with the SDS cold chisels provided. The machine is on no account intended for other purposes.

Not suitable for construction site usage

Technical specifications HDM1026S HDM1027S

Mains voltage 230-240 V ~ 230-240 V ~
Mains frequency 50 Hz 50 Hz
Power input 600 W	950 W
No-load speed	0-1100 /min 0-960 /min
Impact rate	0-5800 /min 0-4550 /min
Max. Drill diameter
-Concrete	∅ 20 mm	∅ 26 mm
-Steel	∅ 13 mm	∅ 13 mm
-Wood	∅ 30 mm	∅ 30 mm
Weight	2.8kg 3.4kg
Sound pressure (LPA)	91.18dB(A)K=3 dB(A)	90.8dB(A)K=3 dB(A)
Acoustic power (LWA)	102.18dB(A)K=3 dB(A)	101.8dB(A)K=3 dB(A))
Vibration
hammer drilling concrete ahHD	13.719m/s2K=1.5m/s2	12.133m/s2K=1.5m/s2
Chiseling ah,Cheq	10.174m/s2K=1.5m/s2	13.087m/s2K=1.5m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN60745. It may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2-3

Fig. A

1. Left/right rotation switch
2. On/Off switch
3. Speed adjustment wheel
4. Lock-on button
5. Function selection switch
6. Side handle
7. Locking sleeve
8. Depth stop ruler

3. OPERATING

Hammer drills require very little operator pressure. Excessive pressure on the tool can lead to unnecessary overheating of the motor, and burning of the driven tool. It also may happen the drill bit deforms and cannot be removed from the machine again.

Side handle

Fig. A

The side handle (6) can be rotated 360^ around the drill head, enabling safe and comfortable operation for both left and right-handed users.

• Loosen the handgrip by turning it anticlockwise.
• Rotate the handgrip to the desired position.
• Retighten the handgrip in the new position by turning it clockwise.

Exchanging and removing drill bits

Fig. A - B

Before exchanging bits, first remove the power plug from the wall socket.

Inspect bits regularly during use. Blunt bits should be re-sharpened or replaced.

• Lightly oil the bit shaft before inserting it into the chuck.
• Slide the locking sleeve (7) to the rear and insert the bit into the chuck opening. Ensure that the keyway in the bit is seated properly

in the chuck by carefully turning the bit until it clicks into place. After that release the locking sleeve.

- To remove the bit, slide and hold the locking sleeve to the rear.

Setting depth stop

Fig. A

• Loosen the handgrip by turning it anticlockwise.
• Insert the depth stop ruler (8) through the hole in the side handle ring.
• Slide the ruler to the desired depth.
• Retighten the hand grip firmly by turning it clockwise

The On/Off switch

Fig. A

• Switch the machine on by pressing the On/Off switch (2). When releasing the On/Off switch (2) the machine will turn off.
• The rotation-speed can be continuously adjusted by pressing the On/Off switch (2) deeper or less deep.

Lock-on button

Fig. A

• Lock the On/Off switch (2) by pressing the On/Off switch (2) and then pressing the lock-on button (4).
• Release the switch-lock by shortly pressing the On/Off switch (2) again.

Adjusting of the maximum rotation speed

Fig. A

• Switch the machine on by pressing the On/Off switch (2).
• Lock the On/Off switch (2) by pressing the lock-on button (4).
• Adjust the speed by turning the speed adjustment wheel (3) to the desired maximum rotation speed.

Switching the direction of rotation

Fig. A.

• Direction of rotation counter-clockwise: shift left/right switch (1) to “.”
• Direction of rotation clockwise: shift left/right switch (1) to “.”

This function is only available when the machine is set to “drill mode” (As shown in fig. D).

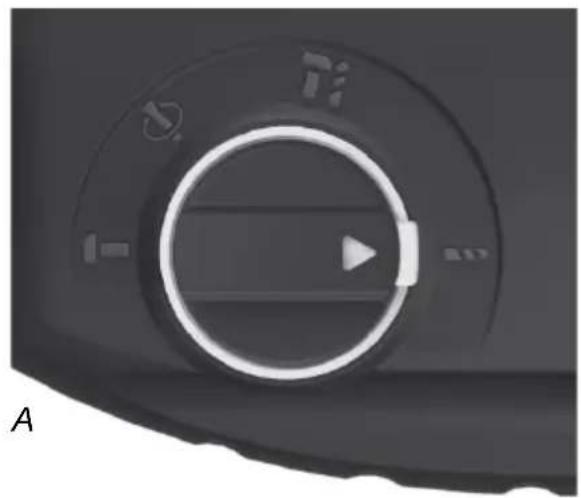

Function selection switch

In order to avoid damage to the machine, adjusting the function selection switch (5) shall only be done when machine is not running. Fig. C

Fig. D

The correct position of the function selection switch (5) for each function is shown in the pictures in fig. D. Always make sure the function switch clicks in the desired position.

A) Drilling (without hammer function): for drilling in several materials.
B) Hammer Drilling (with hammer function): for drilling in masonry such as brick, concrete and similar material.
C) Chisel angle adjustment: for changing the angle of the chisel. When set under right angle switch back to position D. before using the tool.
D) Chipping (chisel function): for chipping and small demolition jobs.

User tips

Always use the machine with the side handle firmly anchored in place - you will not only work with more comfort, you will also work with more precision.

Caution: drills and chisels can get very hot.

Drilling and hammer drilling (function A and B)

• For large holes, for instance in very hard concrete, start using a smaller bit for pilot drilling first, then drill to nominal size.
• Hold the machine firmly with 2 hands. Be aware the drill can jam and because of that machine might suddenly turn (especially when drilling deep holes).
• Do not apply a lot of pressure on the machine, let the machine do the work.

Chipping in concrete and brick (function C & D)

• It's also possible to use the machine for chipping.
• Only change the function when the motor has come to a standstill.
• Do not apply a lot of pressure on the machine, let the machine do the work.

4. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia etc. Chemicals such as these will damage the synthetic components.

Defects

The machine should be regularly inspected for the following possible defects and repaired if necessary.

• Damage to power cord.
• Broken on/off trigger assembly.
• Shortcircuiting.
  • Damaged moving parts.

Faults

Should a fault occur, e.g. after wear of a part, please contact your seller or the service address on the warranty card. Separate you find an exploded view showing the parts that can be ordered.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.

Bohrhammer 600W / 950W HDM1026S / HDM1027S

Spare parts list

HDM1027S -950W
No Description Position
101140 Seal circlet 1
101141 Sleeve 2
101142 Snap ring 3
101143 Holder 4
101144 Spring 5
101167 Function selector set complete 9 to 13, 62, 63
101168 Needle bearing NK2512 21
101169 Hammer set 23 to 42
101170 O-ring 15 x 3 44
101171 Cylinder 45
101172 Aluminum base 48, 58, 59 ,61, 62, 63
101173 Driving set 50 to 56
101174 Needle bearing 0818 57
101175 Sealing rubber	60
101176 Bearing 6092Z	65
101177 Rotor with fan	66
101178 Bearing 6072Z	67
101179 Bearing sleeve	68
101180 Stator	69
101163 Carbon brush	74
101181 Carbon brush holder	75, 76
101182 Switch	77
101183 Capacitor	80
101164 Depth limiter	88
410005 Auxiliary connect ring set HDM	89, 90
410002 Auxiliary handle M8 nut	91, 92

Exploded view HDM1027S 950W

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur en in overeenstem ming is met de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(ES) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento: se encuentra conforme con la Directiva 2011/65/UE del Parlamento Europeo y del Consejo de 8 de junio de 2011 sobre la restricción del uso de determinadas sustancias peligrosas en los equipos eléctricos y electrónicos.
(PT) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem: está em conformidade com a Directiva 2011/65/EU do Parlamento Europeu e com o Conselho de 8 de Junho de 2011 no que respeita à restrição de utilização de determinadas substâncias perigosas existentes em equipamento eléctrico e electrónico.
(IT) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti: è conforme alla Direttiva 2011/65/UE del Parlamento Europeo e del Consiglio dell'8 giugno 2011 sulla limitazione dell'uso di determinate sostanze pericolose nelle apparecchiature elettriche ed elettroniche.
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller och följer följande standarder och bestämmelser: uppfyller direktiv 2011/65/EU från Europeiska parlamentet och EG-rådet från den 8 juni 2011 om begränsningen av användning av farliga substanser i elektrisk och elektronisk utrustning.
(FI) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset: täyttää Euroopan parlamentin ja neuvoston 8. kesäkuuta 51 päävätyn direktiivin 2011/65/EU vaatimukset koskien vaarallisten aineiden käytön rajoitusta sähkö- ja elektronisissa laitteissa.
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler: er i samsvar med EU-direktivet 2011/65/EU fra Europa-parlamentet og Europa-rådet, pr. 8 juni 2011, om begrensning i bruken av visse farlige stoffer i elektrisk og elektronisk utstyr.
(DA) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser: er i overensstemmelse med direktiv 2011/65/EU fra Europa-Parlamentet og Rådet af 8. juni 2011 om begrænsning af anvendelsen af visse farlige stoffer i elektrisk og elektronisk udstyr.
(HU) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előlrásoknak: je v souladu se směrnici 2011/65/EU Evropského parlamentu a Rady EU ze dne 8. června 2011, která se týká omezení použití určitých nebezpečných látek v elektrických a elektronických zařízeních.
(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícímli standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

(SK) Výhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpísmi: Je v súlade s normou 2011/65/EÚ Európske ho parlamentu a Rady z 8. júna 2011 týkájúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronikom vybavení.
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom: je v skladu z direktivo 2011/65/EU Evropskega parlamenta in Sveta z dne 8. junij 2011 o omejevanju uporabe določenih nevarnih snovi v električni in elektronski opremi.
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach: jest zgodny z Dyrektywą 2001/65/UE Parlamentu Europejskiego i Rady z dnia 8 czerwca 2011 r. w sprawie ograniczenia stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym.
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus: atitinka 2011 m. birželio 8 d. Europos Parlamento ir Tarybos direktyvą 2011/65/EB dėl tam tikrų pavojingų medžiagų naudojimo elektros ir elektroninėje įrangje apribojimo.
(LV) Ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(ET) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem stand-artiem un nolikumiem: ir atbilstoša Eiropas Parlamenta un Padomes 2011. gada 8. jūnija Direktīvai 2011/65/ES par dažu bīstamu vielu izmantošanas ierobežošanu elektriskās un elektroniskās iekārtās.
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive: este în conformitate cu Directiva 2011/65/UE a Parlamentului European și a Consiliului din 8 iunie 2011 cu privire la interzicerea utilizării anumitor substanțe periculoase la echipamentele electrice și electronice.
(HR) Izjavljujemo pod vlastitom odgovornošu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama: usklađeno s Direktivom 2011/65/EU europskog parlamenta i vijeća izdanom 8. lipnja 2011. o ograničenju korištenja određenih opasnih tvari u električnoj i elektroničkoj opremi.
(SRL) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama: usaglašen sa direktivom 2011/65/EU Evropskog parlamenta i Saveta od 8.juna.2011. godine za restrikciju upotrebe određenih opasnih materija u električnoj i elektronskoj opremi.
(RU) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам: соответствует требованиям Директивы 2011/65/EU Европейского парламента и совета от 8 июня 2011 г. по ограничению использования определенных опасных веществ в электрическом и электронном оборудовании
(UK) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам: задовольняє вимоги Директиви 2011/65/ЄС Європейського Парламенту та Ради від 8 червня 2011 року на обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні.
(EL) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα: συμμορφώνεται με την Οδηγία 2011/65/ΕΕ του Ευρωπαϊκού Κοινοβουλίου και του Συμβουλίου της 8ης Ιουνίου 2011 για τον περιαρισμό της χρήσης ορισμένων επικίνδυνων ουσιών σε ηλεκτρικό και ηλεκτρονικό εξοπλισμό.
(AR) قيذاتلا شامیچ رشلاو ریمیاعبلا عم قفابوئي چکنجلا انداً اندح و انتتیلوی سم یلید نلیدن
(TR) Tek sorumlusu biz olarak bu ürünün aşağıdaki standart ve yönergelere uygun olduğunu beyan ederiz.

EN 60745-1, EN 60745-2-6, EN 55014-1, EN 55014-2,

EN 61000-3-2, EN 61000-3-3

2006/42/EC, 2006/95/EC, 2004/108/EC, 2011/65/EU, 2012/19/EC

Zwolle, 01-06-2014

W.Dekens

CEO FERM B.V.

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands

Dark, grainy surface with irregular cracks and small dark spots, no visible text or symbols
