XLS2000 - Receiver CROWN - Free user manual and instructions

Product Type	Professional Audio Receiver
Brand	Crown
Model	XLS2000
Dimensions (W x H x D)	48.3 x 8.9 x 31.8 cm (19 inches, 2U)
Weight	Approximately 10.5 kg
Power Supply	230 V AC, 50/60 Hz
Power Consumption	500 W operating
Main Functions	Audio signal reception, amplification, volume control, audio filters
Audio Inputs	XLR, 6.35 mm jack, RCA
Audio Outputs	XLR, 6.35 mm jack, binding posts
Output Power	2 x 500 W at 4 ohms
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	> 100 dB
Maintenance and Cleaning	Unplug the device, clean with a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, do not open the casing, follow the specified voltage instructions.
Spare Parts and Repairability	Contact Crown after-sales service for parts and repairs.
General Information	Complete user manual available online in PDF format.

Frequently Asked Questions - XLS2000 CROWN

How to connect a microphone to the Crown XLS2000 receiver?

Connect the microphone to an XLR or 6.35 mm jack input using a suitable cable. Ensure the input level is not saturated by adjusting the gain.

What is the output power of the XLS2000?

The XLS2000 delivers a power of 2 x 500 W at 4 ohms, making it suitable for medium-power speakers.

Can I use the receiver with an 8 ohm speaker?

Yes, the power will then be reduced to approximately 2 x 300 W. Refer to the manual for exact values.

How to clean the Crown XLS2000 receiver?

Unplug the device, then use a soft dry cloth to dust the casing. Avoid liquids and chemicals.

What to do if the receiver does not turn on?

Check the power cord, wall outlet, and fuse. If the problem persists, contact after-sales service.

Is the XLS2000 compatible with passive speakers?

Yes, it is designed to power passive speakers via binding post or speakon outputs.

How to get the full manual of the Crown XLS2000?

You can download the manual in PDF format from notice-facile.com or from Crown manufacturer.

Is there a standby mode on the receiver?

Yes, the XLS2000 has an automatic standby mode after a period of inactivity, adjustable in settings.

How to reduce background noise?

Check that all cables are properly shielded and that the input gain is not excessive. Also use the low-cut filter if available.

Can I connect the receiver to a computer?

Yes, via an audio output to the computer's input, or via an audio interface with line output.

USER MANUAL XLS2000 CROWN

XLS Series Operation Manual

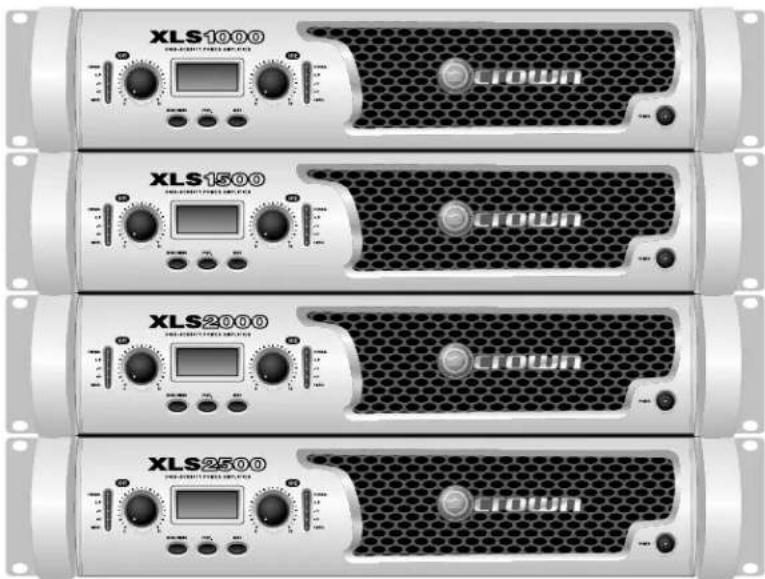

Four-tiered XLS1000, XLS1500, XLS2000, and XLS2500 audio equipment units with hexagonal mesh backouts and control knobs (no visible text or labels on the devices themselves)

XLS 1000

XLS 1500

XLS 2000

XLS 2500

Obtaining Other Language Versions: To obtain information in another language about the use of this product, please contact your local Crown Distributor. If you need assistance locating your local distributor, please contact Crown at 574-294-8000.

This manual does not include all of the details of design, production, or variations of the equipment. Nor does it cover every possible situation which may arise during installation, operation or maintenance.

The information provided in this manual was deemed accurate as of the publication date. However, updates to this information may have occurred. To obtain the latest version of this manual, please visit the Crown website at www.crownaudio.com.

Trademark Notice: Crown, Crown Audio, and Amcron are registered trademarks of Crown International. Other trademarks are the property of their respective owners. Later versions of this manual and additional information about this product may be available at the Crown website at www.crownaudio.com.

Some models may be exported under the name Amcron®

©2010 by Crown Audio®, Inc., 1718 W. Mishawaka Rd., Elkhart, Indiana 46517-9439 U.S.A. Telephone: [phone].

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Use the mains plug to disconnect the apparatus from the mains.

16. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

17. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT.

18. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE.

TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE.

WATCH FOR THESE SYMBOLS:

The lightning bolt triangle is used to alert the user to the risk of electric shock.

The exclamation point triangle is used to alert the user to important operating or maintenance instructions.

IMPORTANT

XLS Series amplifiers require Class 2 output wiring.

MAGNETIC FIELD

CAUTION! Do not locate sensitive high-gain equipment such as preamplifiers or tape decks directly above or below the unit. Because this amplifier has a high power density, it has a strong magnetic field which can induce hum into unshielded devices that are located nearby. The field is strongest just above and below the unit.

If an equipment rack is used, we recommend locating the amplifier(s) in the bottom of the rack and the preamplifier or other sensitive equipment at the top.

FCC COMPLIANCE NOTICE

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY

Issued By: Harman International.

1718 W. Mishawaka Rd.

Elkhart, IN 46517 U.S.A.

FOR COMPLIANCE QUESTIONS ONLY: Sue Whitfield

574-294-8289

[e-mail]

European Representative's Name and Address:

David J. Budge

10 Harvest Close

Yateley

GU46 6YS

United Kingdom

Equipment Type: Power amplifiers

Family Name: XLS Series

Model Names: XLS 1000, XLS 1500, XLS 2000, XLS 2500

EMC Standards:

EN 55103-1:1997 Electromagnetic Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions

EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M

EN 61000-3-2:2005 & Amd 1: 2008 Limits for Harmonic Current Emissions (equipment input current ≤16A per phase)

EN 61000-3-3:1998 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current ≤16A

EN 55022:2006 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class B

EN 55103-2:1997 Electromagnetic Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity

EN 61000-4-2:2001 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge)

EN 61000-4-3:2006 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, Criteria A)

EN 61000-4-4:2007 Electrical Fast Transient/Burst Immunity (Criteria B)

EN 61000-4-5:2006 Surge Immunity (Criteria B)

EN 61000-4-6:2006 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A)

EN 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage Variation

Safety Standard:

IEC 60065: 2001: 7Ed & Amd 1: 2005 Safety Requirements - Audio Video and Similar Electronic Apparatus

I certify that the product identified above conforms to the requirements of the EMC Council Directive 89/336/EEC as amended by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC.

Signed

Andrew Stump

Title: Director of Manufacturing Date of Issue: February 1, 2010

Get Started

Stereo Bypass Mode

This is the default mode the amplifier is set to from the factory. The amplifier is configured for stereo mode with the PureBand™ Crossover System Bypassed.

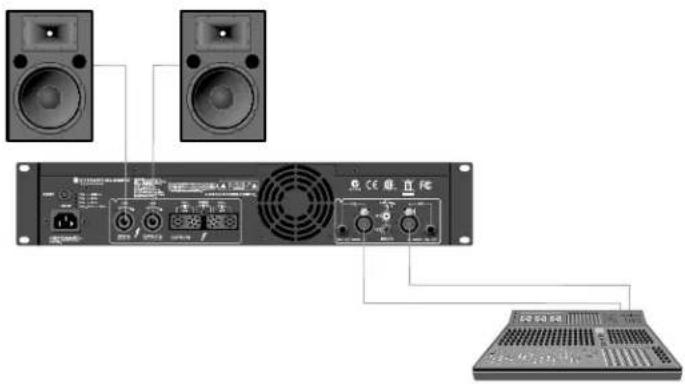

1. Connect Left/Right signal source to Channel 1 and Channel 2 using either the XLR, ¼ Inch, or RCA connectors.
2. Connect a speaker to each channel output using Speakon®, Banana Plugs, or bare wire.

Bridge-Mono Mode

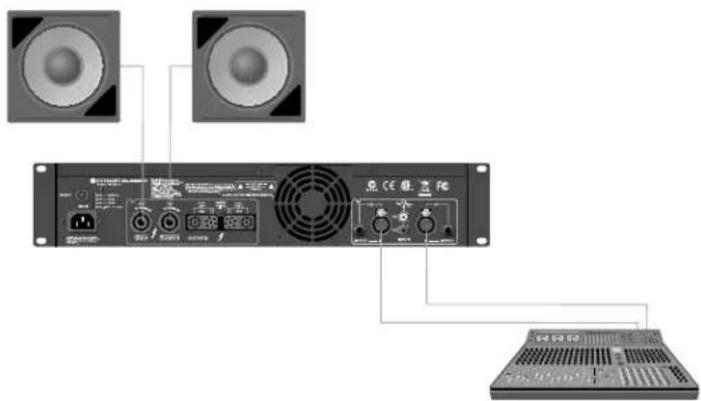

Bridge-Mono Mode delivers the power of both amp channels into a single 8 or 4 ohm load.

Before you get started ensure that you:

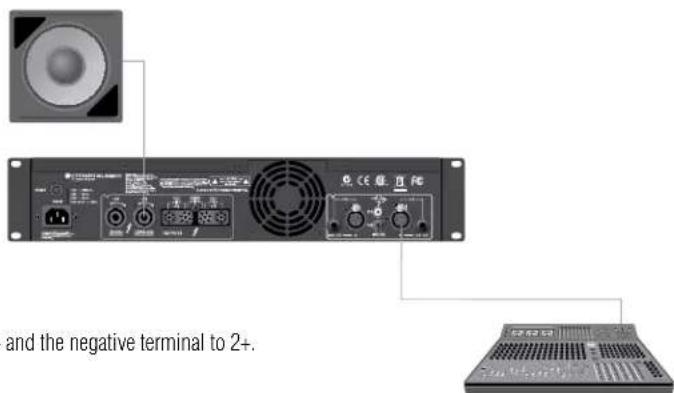

1. Connect signal source to Channel 1 only using either the XLR, 14 Inch, or RCA connectors.
2. Connect the speaker as shown.

a. If using the binding post outputs, connect the positive terminal of the speaker to the positive terminal of Channel 1 and the negative terminal of the speaker to the positive terminal of Channel 2.
b. If using a Speakon ^® connector, connect the positive terminal of the speaker to 1+ and the negative terminal to 2+. Plug the connector into the Channel 1 output only.

Follow these quick steps to configure the amplifier for "Bridge Mode":

1. Hold the "Mode/Menu" button down for 3 sec until the LCD screen displays "Amp Mode "
2. Press the "Mode/Menu" button to begin configuring the Amp Mode.
3. Press the "Next" button until the LCD screen reads "Mode: Bridge".
4. Press the "Mode/Menu" button to confirm your selection.
5. Now press the "Next" button until the LCD screen displays "Bypass". Press the "Mode/Menu" button to confirm your selection. The LCD screen should now read "Bridge Bypass".

Crossover Mode

When using the "Crossover Mode", the amplifier is configured to use a LowPass Filter on Channel 1 and a HighPass Filter on Channel 2.

Before you get started ensure that you:

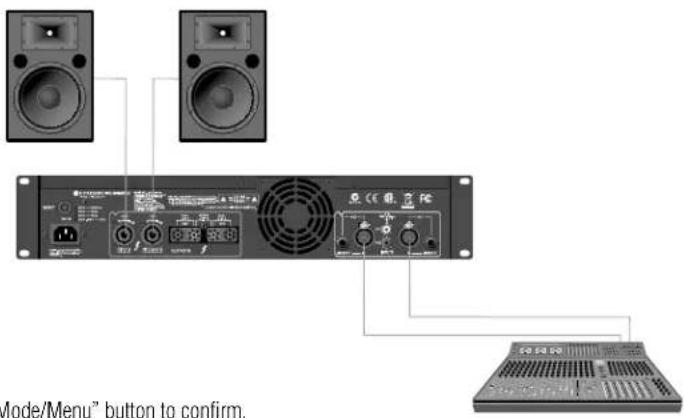

1. Connect signal source to Channel 1 only using either the XLR, 14 Inch, or RCA connectors.
2. Connect a speaker to each channel output using Speakon®, Banana Plugs, or bare wire.

Follow these quick steps to configure the amplifier for "Crossover Mode":

1. Hold the "Mode/Menu" button down for 3 sec until the LCD screen displays "Amp Mode ".
2. Press the "Mode/Menu" button to begin configuring the Amp Mode.
3. Press the "Next" button until the LCD screen displays "Input Y". Now press the "Mode/Menu" button to confirm.
4. Now press the "Next" button until the LCD screen displays "XOVER" and press the "Mode/Menu" button to confirm.
5. Now use the "Previous" or "Next" button to select your desired crossover point.
6. Once you have selected your crossover point, press the "Mode/Menu" button to confirm your selection. The LCD screen should now read "Input Y XOVER".

Get Started

HighPass Mode

When using the "HighPass Mode", the amplifier is configured to use a HighPass Filter on Channel 1 and Channel 2 at the selected frequency.

Before you get started ensure that you:

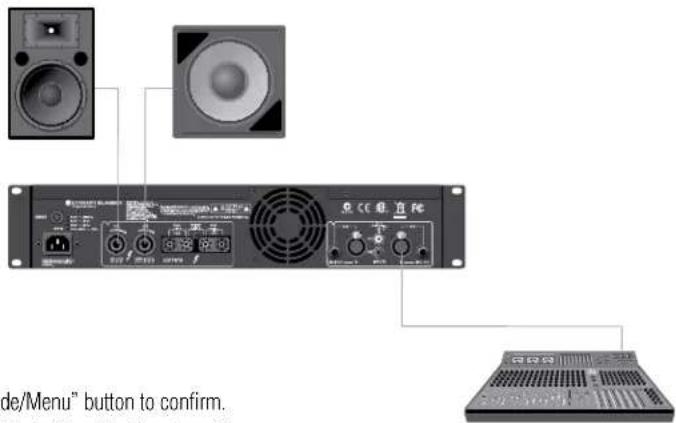

1. Connect Left/Right signal source to Channel 1 and Channel 2 using either the XLR, ¼ Inch, or RCA connectors.
2. Connect a speaker to each channel output using Speakon ^® , Banana Plugs, or bare wire.

Follow these quick steps to configure the amplifier for "HighPass Mode":

1. Hold the "Mode/Menu" button down for 3 sec until the LCD screen displays "Amp Mode .
2. Press the "Mode/Menu" button to begin configuring the Amp Mode.
3. Press the "Next" button until the LCD screen displays "Stereo". Now press the "Mode/Menu" button to confirm.
4. Now press the "Next" button until the LCD screen displays "HighPass" and press the "Mode/Menu" button to confirm.
5. Now use the "Previous" or "Next" button to select your desired crossover point.
6. Once you have selected your crossover point, press the "Mode/Menu" button to confirm your selection. The LCD screen should now read "Stereo HighPass".

LowPass Mode

When using the "LowPass Mode", the amplifier is configured to use a LowPass Filter on Channel 1 and Channel 2 at the selected frequency.

Before you get started ensure that you:

1. Connect Left/Right signal source to Channel 1 and Channel 2 using either the XLR, ¼ Inch, or RCA connectors.
2. Connect a speaker to each channel output using Speakon®, Banana Plugs, or bare wire.

Follow these quick steps to configure the amplifier for "HighPass Mode":

1. Hold the "Mode/Menu" button down for 3 sec until the LCD screen displays "Amp Mode "
2. Press the "Mode/Menu" button to begin configuring the Amp Mode.
3. Press the "Next" button until the LCD screen displays "Stereo". Now press the "Mode/Menu" button to confirm.
4. Now press the "Next" button until the LCD screen displays "LowPass" and press the "Mode/Menu" button to confirm.
5. Now use the "Previous" or "Next" button to select your desired crossover point.
6. Once you have selected your crossover point, press the "Mode/Menu" button to confirm your selection. The LCD screen should now read "Stereo LowPass".

Welcome

Crown's XLS Series amplifiers define the standard for portable PA systems with unmatched performance, technology and affordability that effortlessly deliver the goods night after night. We packed XLS with enormous flexibility, thanks to its integrated Crossover and Peak ^™ Limiters. The XLS weighs under 11 pounds, compared to 40 pounds for its competitors.

Simply put, the XLS is the most powerful, flexible, efficient amp available in its class.

Modern power amplifiers are sophisticated pieces of engineering capable of producing extremely high power levels. They must be treated with respect and correctly installed if they are to provide the many years of reliable service for which they were designed.

In addition, XLS Series amplifiers include a number of features which require some explanation before they can be used to their maximum advantage.

Please take the time to study this manual so that you can obtain the best possible service from your amplifier.

Features

• High performance, lightweight Class-D amplifier powered by DriveCore™ Technology
• Integrated PureBand™ Crossover System ensures seamless transitions from low to high frequency drivers
• Integrated Peak _x^TM Limiters provide maximum output while protecting your speakers
• XLR, 1/4" , RCA inputs ensure compatibility with any source
• 1/4" Inputs can be used as loop-thrus to distribute signal to additional amplifiers
  • Crown No-Fault Fully-Transferable 3-year Warranty completely protects your investment

How to Use This Manual

This manual provides you with the necessary information to safely and correctly setup and operate your amplifier. It does not cover every aspect of installation, setup or operation that might occur under every condition. For additional information, please consult Crown's Amplifier Application Guide (available online at www.crownaudio.com), Crown Technical Support, your system installer or retailer.

We strongly recommend you read all instructions, warnings and cautions contained in this manual. Also, for your protection, please send in your warranty registration card today. And save your bill of sale — it's your official proof of purchase.

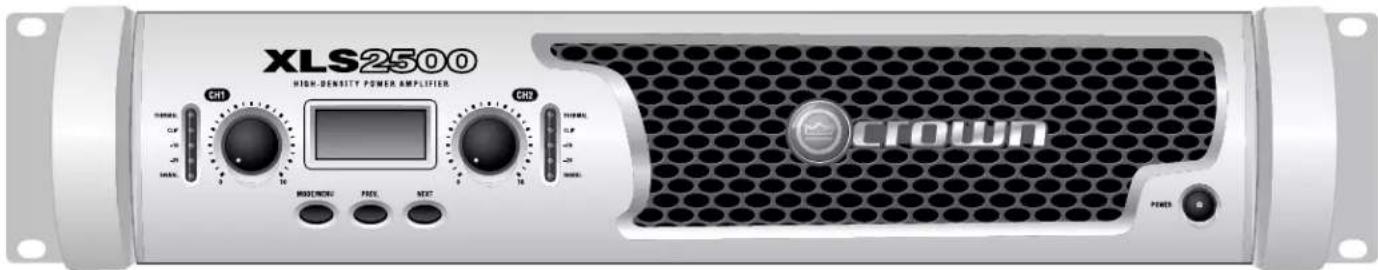

Front Panel Features

Indicators:

Signal Presence Indicator: Two green LED's, one for each channel, illuminate when the channel input signal exceeds -40dBu

-10 Indicator: Green LED flashes when output signal level exceeds -10dB below clip
-20 Indicator: Green LED flashes when output signal level exceeds -20dB below clip

Clip Indicator: Two red LED's, one for each channel, illuminate when the channel's output is being overdriven.

Thermal Indicator: Two red LED's, one for each channel, illuminate when thermal compression begins.

Back Panel Features

Integrated Processing Features

PureBand™ Crossover System:

The PureBand™ Crossover System provides a variable state Linkwitz-Riley 24dB/octave filter allowing you to choose a point between 50Hz and 3kHz on 1/12th octave centers. The following points are available for choice:

50Hz, 53Hz, 56Hz, 59Hz, 63Hz, 66Hz, 70Hz, 74Hz, 79Hz, 83Hz, 88Hz, 94Hz, 99Hz, 105Hz, 111Hz, 118Hz, 125Hz, 132Hz, 140Hz, 149Hz, 157Hz, 167Hz, 177Hz, 187Hz, 198Hz, 210Hz, 223Hz, 236Hz, 250Hz, 265Hz, 281Hz, 297Hz, 315Hz, 334Hz, 354Hz, 375Hz, 397Hz, 420Hz, 472Hz, 500Hz, 530Hz, 561Hz, 595Hz, 630Hz, 667Hz, 707Hz, 749Hz, 794Hz, 841Hz, 891Hz, 944Hz, 1.00kHz, 1.06kHz, 1.12kHz, 1.19kHz, 1.26kHz, 1.33kHz, 1.41kHz, 1.50kHz, 1.59kHz, 1.68kHz, 1.78kHz, 1.89kHz, 2.00kHz, 2.12kHz, 2.24kHz, 2.38kHz, 2.52kHz, 2.67kHz, 2.83kHz, 3.00kHz

Along with your choice in crossover frequency, the PureBand™ Crossover System also provides you with four modes to choose from:

Crossover Mode (CH1=LPF, CH2=HPF): When selected, this mode enables a LowPass Filter on Channel 1 and a HighPass Filter on Channel 2 at the frequency that you have chosen.

Note: This mode will automatically put the input mode into "Input Y".

LowPass Mode (CH1=LPF, CH2 = LPF): When selected, this mode enables a LowPass Filter on both Channel 1 and Channel 2 at the frequency that you have chosen.

HighPass Mode (CH1 = HPF, CH2 = HPF): When selected, this mode enables a HighPass Filter on both Channel 1 and Channel 2 at the frequency that you have chosen.

Bridge Mode (either LPF or HPF): When bridge-mono mode is selected, the crossover system still allows you to select a LowPass or HighPass filter at the frequency that you have chosen.

For instructions on setting up the different crossover system settings, please see the "Get Started" section at the beginning of this manual.

Peak_x^TM Limiters

The Peak _x Clip Limiters provide your amplifier and system with higher performance and better protection. They are specifically tuned to work with this amplifier design and power-supply to achieve higher SPL with less audible artifacts while protecting your loudspeaker investment. The limiters can easily be turned on or off from the front panel.

Note: The Peak _x Limiters are shipped in the "On" configuration from the factory.

Instructions for Engaging/Disengaging the Peak _x^TM Limiters:

1. Hold the "Mode/Menu" button down for 3 sec until the LCD screen displays "Amp Mode "
2. Press the "Next" button – The LCD screen displays "CH1 Clip "
3. Press the "Mode/Menu" button and use the "Next" button to toggle between on/off.
4. Once you have made your selection, press the "Mode/Menu" button to confirm. When you confirm CH1 Clip configuration, you are automatically taken to Ch2 Clip to configure either on or off. Once again, make your selection and press "Mode/Menu" to confirm.

Four-tiered XLS1000, XLS1500, XLS2000, and XLS2500 audio equipment units with CROWN branding (no visible text or symbols on the devices themselves)

XLS 1000

XLS 1500

XLS 2000

XLS 2500

Bridge-Mono-Modus

Herzlich Willkommen

Four-tiered XLS1000, XLS1500, XLS2000, and XLS2500 audio equipment units with 'CROWN' branding, shown without any readable text or symbols.

XLS 1000

XLS 1500

XLS 2000

XLS 2500

Modo Mono-Puente

Bienvenido

Four-tiered XLS1000, XLS1500, XLS2000, and XLS2500 audio equipment units with CROWN branding (no visible text or symbols on the devices themselves)

XLS 1000

XLS 1500

XLS 2000

XLS 2500

Mode Bridge-Mono (Pont - Mono)

Bienvenue

Sensitivity (for full rated power at 8 ohms): 1.4 Vrms.

Frequency Response

(at 1 watt, 20 Hz to 20 kHz): +0 dB, -1 dB.

Signal-to-Noise Ratio

Rated as dBr to full rated 8Ω power output (A-Weighted): XLS 1000 > 97 dB XLS 1500, XLS 2000, XLS 2500 > 103 dB

Total Harmonic Distortion (THD): < 0.5%.

Intermodulation Distortion (IMD): (60 Hz and 7 kHz at 4:1) from full rated output to -30 dB: < 0.3%.

Damping Factor (8 ohm) 10 Hz to 400 Hz: >600.

Crosstalk (below rated 8 ohm power):

At 1kHz: >70dB

At 20kHz: >50dB

Input Impedance (nominal):

20 kilohms balanced, 10 kilohms unbalanced.

Load Impedance:

2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono.

AC Line Voltage and Frequency

Configurations Available (±10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 VAC 50 Hz, 230 VAC 50 Hz, and 240 VAC 50 Hz.

Controls

Level: Two front-panel rotary level controls, one for each channel.

LCD Screen: Back-lit LCD allows for crossover configuration, amp mode configuration and clip compressor configuration.

Menu/Prev/Next: Three buttons located near the LCD screen that are used to configure and access the integrated processing.

Power: Front-panel switch; on when in the IN position. Blue LED will illuminate when on.

Circuit Breaker: Back-panel breaker provides overload protection.

Integrated Processing

PureBand™ Crossover System

Crossover Filter: Linkwitz-Riley 24dB per octave.

Crossover Mode: Crossover (CH1=LPF, CH2=HPF), Low Pass (both channels LPF), High Pass (both channels HPF), Bridge (LPF or HPF)

Peak™ Limiters: Channel independent clip limiter designed to provide maximum output while protecting your loudspeakers.

Indicators

Signal Presence Indicators: Two green LEDs, one for each channel, illuminate when the channel's input signal exceeds -40 dBu.

XLS Specifications

-20 Indicator: Green LED flashes when output signal level exceeds -20 dB below clip.
-10 Indicator: Green LED flashes when output signal exceeds -10 dB below clip.

Clip Indicators: Two red LEDs, one for each channel, illuminate when the channel's output is being overdriven.

Thermal Indicator: Two red LEDs, one for each channel, illuminate when thermal compression begins.

Input/Output

Input Connectors: XLR (one per channel), 14 inch (one per channel), and RCA (one per channel). 14 inch connectors can be used as loop-thrus to distribute signal to additional amplifiers.

Output Connectors: Two 4-Pole Speakon® Output Connectors accept 2-pole or 4-pole Speakon® connectors. The Channel 1 Speakon® connector is wired for both channels so it can be used for bridge-mono wiring or for stereo wiring of two speakers to a single Speakon® connector.

One pair of back-panel binding posts per channel; accepts banana plugs or bare wire. (European models do not accept banana plugs.)

Protection

XLS Series amplifiers provide extensive Protection, including output current limiting, DC protection, circuit breaker, and thermal protection.

Construction

Ventilation: Flow-through ventilation from front to back.

Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation.

Air Volume Requirements (per minute per unit): 80.15 ft ^3 (2.27 m ^3 ).

Dimensions: EIA Standard 19-inch (48.3-cm) rack mount width (EIA RS-310-B), 3.5-inch (8.9-cm) height.

XLS 1000/XLS 1500: 8.12-Inch (20.62cm) depth

XLS 2000/XLS 2500: 10.35-Inch (26.29cm) depth

Weight

Net Weight:

XLS 1000: 8.6 lb (3.9kg)

XLS 1500: 8.6 lb (3.9kg)

XLS 2000: 10.8 lb (4.9kg)

XLS 2500: 10.8 lb (4.9kg)

Shipping Weight:

XLS 1000: 13.6 lb (6.2 kg)

XLS 1500: 13.6 lb (6.2 kg)

Crown amplifiers are quality units that rarely require servicing. Before returning your unit for servicing, please contact Crown Technical Support to verify the need for servicing.

Warranty is only valid within the country in which the product was purchased.

This unit has very sophisticated circuitry which should only be serviced by a fully trained technician. This is one reason why each unit bears the following label:

CAUTION: To prevent electric shock, do not remove covers. No user serviceable parts inside. Refer servicing to a qualified technician.

Complete the Crown Audio Factory Service Information form, in the back of this manual, when returning a Crown product to the factory or authorized service center. The form must be included with your product inside the box or in a packing slip envelope securely attached to the outside of the shipping carton. Do not send this form separately.

Worldwide Service

Service may be obtained from an authorized service center. (Contact your local Crown/Amcron representative or our office for a list of authorized service centers.) To obtain service, simply present the bill of sale as proof of purchase along with the defective unit to an authorized service center. They will handle the necessary paperwork and repair.

Remember to transport your unit in the original factory pack.

US and Canada Service

Service may be obtained in one of two ways: from an authorized service center or from the factory. You may choose either. It is important that you have your copy of the bill of sale as your proof of purchase.

Service at a US or Canada Service Center

This method usually saves the most time and effort. Simply present your bill of sale along with the defective unit to an authorized service center to obtain service. They will handle the necessary paperwork and repair. Remember to transport the unit in the original factory pack. A list of authorized service centers in your area can be obtained from Crown Factory Service, or online from http://www.crownaudio.com/support/servcent.htm.

Factory Service

Crown accepts no responsibility for non-serviceable product that is sent to us for factory repair. It is the owner's responsibility to ensure that their product is serviceable prior to sending it to the factory. Serviceable product list is available at http://crownweb.crownintl.com/crownrma/.

For more information, please contact us direct.

A Service Return Authorization (SRA) is required for product being sent to the factory for repair. An SRA can be completed online at www.crownaudio.com/support/factserv.htm. If you do not have access to the web, please call Crown's Customer Service at 574.294.8200 or 800.342.6939 extension 8205 in North America, Puerto Rico and the Virgin Islands only.

For warranty service, we will pay for ground shipping both ways in the United States. Contact Crown Customer Service to obtain prepaid shipping labels prior to sending the unit. Or, if you prefer, you may prepay the cost of shipping, and Crown will reimburse you. Send copies of the shipping receipts to Crown to receive reimbursement.

Your repaired unit will be returned via UPS ground. Please contact us if other arrangements are required.

Factory Service Shipping Instructions:

1. Service Return Authorization (SRA) is required for product being sent to the factory for service. Please complete the SRA by going to www.crownaudio.com/support/factserv.htm. If you do not have access to our website, call 1.800.342.6939, extension 8205 and we'll create the SRA for you.

2. See packing instructions that follow.

Service

1. Ship product to: CROWN AUDIO FACTORY SERVICE 1718 W MISHAWKA RD. ELKHART, IN 46517

2. Use a bold black marker and write the SRA number on three sides of the box.

3. Record the SRA number for future reference. The SRA number can be used to check the repair status.

Packing Instructions

Important: These instructions must be followed. If they are not followed, Crown Audio, Inc. assumes no responsibility for damaged goods and/or accessories that are sent with your unit.

1. Fill out and include the Crown Audio Factory Service Information sheet in the back of this manual.
2. Do not ship any accessories (manuals, cords, hardware, etc.) with your unit. These items are not needed to service your product. We will not be responsible for these items.
3. When shipping your Crown product, it is important that it has adequate protection. We recommend you use the original pack material when returning the product for repair (Figure 9.1). If you do not have the original box, please call Crown at 800.342.6939 or 574.294.8210 and order new pack material. (Do not ship your unit in a wood or metal cabinet.)
4. If you provide your own shipping pack, the minimum recommended requirements for materials are as follows:
   a. 275 P.S.I. burst test, Double-Wall carton that allows for 2-inch solid Styrofoam on all six sides of unit or 3 inches of plastic bubble wrap on all six sides of unit.
   b. Securely seal the package with an adequate carton sealing tape.
   c. Do not use light boxes or "peanuts". Damage caused by poor packaging will not be covered under warranty.

Enclose the completed Crown Audio Factory Service Information form (or securely attach it to the outside of carton) and re-seal the shipping pack with a sturdy carton sealing tape.

Estimate Approval

Approval of estimate must be given within 30 days after being notified by Crown Audio Inc. Units still in the possession of Crown after 30 days of the estimate will become the property of Crown Audio Inc.

Payment of Non-Warranty Repairs

Payment on out-of-warranty repairs must be received within 30 days of the repair date. Units unclaimed after 30 days become the property of Crown Audio Inc.

If you have any questions, please contact Crown Factory Service.

Crown Factory Service

1718 W. Mishawaka Rd.,

Elkhart, Indiana 46517 U.S.A.

Telephone:

574-294-8200

800-342-6939 (North America, Puerto Rico, and Virgin Islands only)

Facsimile:

574-294-8301 (Technical Support)

574-294-8124 (Factory Service)

Web site:

http://www.crownaudio.com

Warranty — UNITED STATES & CANADA

SUMMARY OF WARRANTY

Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown product, for a period of three (3) years from the date of purchase by the original purchaser (the "warranty period") that the new Crown product is free of defects in materials and workmanship. We further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty.

Warranty is only valid within the country in which the product was purchased.

ITEMS EXCLUDED FROM THIS CROWN WARRANTY

This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the new Crown product if the serial number has been defaced, altered, or removed.

WHAT THE WARRANTOR WILL DO

We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund. We may not elect refund unless you agree, or unless we are unable to provide replacement, and repair is not practical or cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product available to us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase price, not including interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers or at the factory. We will remedy the defect and ship the product from the service center or our factory within a reasonable time after receipt of the defective product at our authorized service center or our factory. All expenses in remedying the defect, including surface shipping costs in the United States, will be borne by us. (You must bear the expense of shipping the product between any foreign country and the port of entry in the United States including the return shipment, and all taxes, duties, and other customs fees for such foreign shipments.)

HOW TO OBTAIN WARRANTY SERVICE

You must notify us of your need for warranty service within the warranty period. All components must be shipped in a factory pack, which, if needed, may be obtained from us free of charge. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by us or our authorized service center. If the repairs made by us or our authorized service center are not satisfactory, notify us or our authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES

YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

WARRANTY ALTERATIONS

No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by the length of time which you are deprived of the use of the new Crown product. Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only the unexpired portion of this Crown Warranty.

DESIGN CHANGES

We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER

THIS CROWN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No action to enforce this Crown Warranty shall be commenced after expiration of the warranty period.

THIS STATEMENT OF WARRANTY SUPERSEDES ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS. 12/09

Warranty — WORLDWIDE EXCEPT USA & CANADA

SUMMARY OF WARRANTY

Crown International, 1718 West Mishawaka Road, Elkhart, Indiana 46517-4095 U.S.A. warrants to you, the ORIGINAL PURCHASER and ANY SUBSEQUENT OWNER of each NEW Crown ^1 product, for a period of three (3) years from the date of purchase by the original purchaser (the "warranty period") that the new Crown product is free of defects in materials and workmanship, and we further warrant the new Crown product regardless of the reason for failure, except as excluded in this Warranty.

Warranty is only valid within the country in which the product was purchased.

^1 Note: If your unit bears the name “Amcron,” please substitute it for the name “Crown” in this warranty.

ITEMS EXCLUDED FROM THIS CROWN WARRANTY

This Crown Warranty is in effect only for failure of a new Crown product which occurred within the Warranty Period. It does not cover any product which has been damaged because of any intentional misuse, accident, negligence, or loss which is covered under any of your insurance contracts. This Crown Warranty also does not extend to the new Crown product if the serial number has been defaced, altered, or removed.

WHAT THE WARRANTOR WILL DO

We will remedy any defect, regardless of the reason for failure (except as excluded), by repair, replacement, or refund. We may not elect refund unless you agree, or unless we are unable to provide replacement, and repair is not practical or cannot be timely made. If a refund is elected, then you must make the defective or malfunctioning product available to us free and clear of all liens or other encumbrances. The refund will be equal to the actual purchase price, not including interest, insurance, closing costs, and other finance charges less a reasonable depreciation on the product from the date of original purchase. Warranty work can only be performed at our authorized service centers. We will remedy the defect and ship the product from the service center within a reasonable time after receipt of the defective product at our authorized service center.

HOW TO OBTAIN WARRANTY SERVICE

You must notify your local Crown importer of your need for warranty service within the warranty period. All components must be shipped in the original box. Corrective action will be taken within a reasonable time of the date of receipt of the defective product by our authorized service center. If the repairs made by our authorized service center are not satisfactory, notify our authorized service center immediately.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES

YOU ARE NOT ENTITLED TO RECOVER FROM US ANY INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE NEW CROWN PRODUCT. THIS INCLUDES ANY DAMAGE TO ANOTHER PRODUCT OR PRODUCTS RESULTING FROM SUCH A DEFECT.

WARRANTY ALTERATIONS

No person has the authority to enlarge, amend, or modify this Crown Warranty. This Crown Warranty is not extended by the length of time which you are deprived of the use of the new Crown product. Repairs and replacement parts provided under the terms of this Crown Warranty shall carry only the unexpired portion of this Crown Warranty.

DESIGN CHANGES

We reserve the right to change the design of any product from time to time without notice and with no obligation to make corresponding changes in products previously manufactured.

LEGAL REMEDIES OF PURCHASER

No action to enforce this Crown Warranty shall be commenced after expiration of the warranty period.

THIS STATEMENT OF WARRANTY SUPERSEDES ANY OTHERS CONTAINED IN THIS MANUAL FOR CROWN PRODUCTS. 12/09

crown®

by HARMAN

PRODUCT REGISTRATION

Crown Audio, Inc.

1718 W. Mishawaka Rd.

Elkhart, IN 46517-9439

Phone: [phone]

Fax: [phone]

www.crownaudio.com

Online registration is also available at http://crownweb.crownintl.com/webregistration.

Warranty is only valid within the country in which the product is purchased.

When this form is used to register your product, it may be mailed or faxed.

Crown Audio, Inc. Fax: [phone]

1718 W Mishawaka Rd

Elkhart IN 46517

Please note that some information is required. Incomplete registrations will not be processed. * Indicates required information.

OWNER'S INFORMATION – PLEASE PRINT

* First name: ____ Middle initial: ____ * Last name: ____

Company:

* Mailing address:

* City: ____ * State: ____ * Zip Code: ____

* Country: ____ E-mail address: ____

* Phone # (include area code): ____ Fax #: ____

PRODUCT INFORMATION

* MODEL * SERIAL # * PURCHASE DATE

e.g. IT8000, CDi1000, PCC16

e.g. 800000000

mo/day/yr

Product purchased from: *(Business/Individual) ____ Country: ____

Comments:

Crown Audio Factory Service Information

Shipping Address: Crown Audio Factory Service, 1718 W. Mishawaka Rd., Elkhart, IN 46517

PLEASE PRINT CLEARLY

SRA #: ____ (If sending product to Crown factory service.)

Model: ____ Serial Number: ____ Purchase Date: ____

PRODUCT RETURN INFORMATION

Individual or Business Name: ____

Phone #: ____ Fax #: ____ E-Mail: ____

Street Address (please, no P.O. Boxes): ____

City: ____ State/Prov: ____ Postal Code: ____ Country: ____

Nature of problem: ____

Other equipment in your system: ____

If warranty is expired, please provide method of payment. Proof of purchase may be required to validate warranty.

PAYMENT OPTIONS

□ I have open account payment terms. Purchase order required. PO#: ____ COD □

☐ Credit Card (Information below is required; however if you do not want to provide this information at this time, we will contact you when your unit is repaired for the information.)

Credit card information:

Type of credit card: □ MasterCard Visa American Express Discover

Type of credit card account: ☐ Personal/Consumer Business/Corporate Card # ____ Exp. date: ____ *Card ID #: ____

*Card ID # is located on the back of the card following the credit card #, in the signature area. On American Express, it may be located on the front of the card. This number is required to process the charge to your account. If you do not want to provide it at this time, we will call you to obtain this number when the repair of your unit is complete.

Name on credit card: ____

Billing address of credit card: ____

Notes

CROWN®

by HARMAN
