Brand	Bosch
Model	DKE995E
Product type	Decorative hood

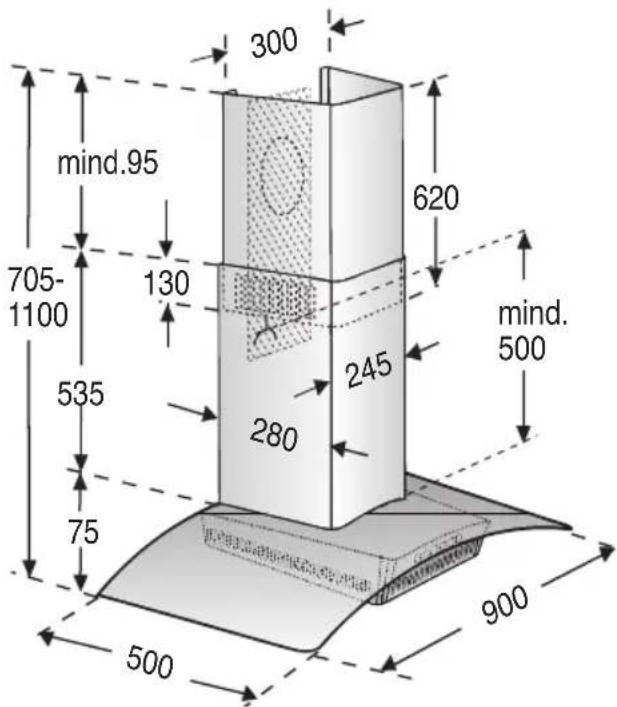

Width	90 cm
Depth	50 cm
Height (min - max)	60 - 110 cm
Net weight	Approximately 18 kg
Power supply	220 - 240 V / 50 Hz
Total power	240 W
Control type	Electronic touch controls
Number of speeds	3 + intensive function
Lighting	2 halogen bulbs (max 40 W each)
Maximum airflow (extraction)	650 m³/h
Maximum noise level	65 dB(A)
Grease filter type	Dishwasher-safe metal filter
Charcoal filter (optional)	Compatible model: Bosch DKF... (refer to the manual)
Operating mode	Extraction or recirculation
Exhaust duct diameter	150 mm
Energy class	A
Repairability index	7.5 / 10
General information	PDF manual downloadable from the manufacturer's website

Frequently Asked Questions - DKE995E BOSCH

How to install the Bosch DKE995E hood?

Installation must be carried out by a qualified professional. Observe the minimum distances from the hob (65 cm for electric cooking, 75 cm for gas cooking). Securely fix the hood to the wall or ceiling according to the plan provided in the manual.

How to clean the grease filters?

The metal filters can be washed in the dishwasher or by hand with a brush and detergent. Allow them to dry completely before reinstalling. It is recommended to clean them every 2 months.

When and how to change the charcoal filter?

The charcoal filter is used in recirculation mode. It must be replaced every 6 to 12 months depending on usage. To change it, unclip the protective panel, remove the old filter and insert the new one (Bosch compatible reference).

How to change the lighting bulb?

First unplug the appliance. Remove the lighting cover (often clipped). Unscrew the defective halogen bulb and replace it with a bulb of the same type (G4, max 40 W). Reclip the cover and plug back in.

The hood is very noisy, is this normal?

The noise level depends on the selected speed. On speed 3 or intensive, the noise can reach 65 dB(A). Check that the filters are not clogged and that the hood is properly installed without vibrations.

How to set the intensive function?

Press the intensive button (often symbolized by an 'I' or alarm). The hood operates at full power for about 10 minutes then automatically returns to the previous speed.

Can I use the hood in recirculation mode without duct?

Yes, the Bosch DKE995E hood can be used in recirculation mode. It requires installing a charcoal filter (not supplied) and a recirculation kit (optional) to redirect the air back into the room.

How to reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the indicator button (usually the 'Speed 1' or 'Stop' button) for 3 seconds until the indicator light goes out.

What to do if the hood does not turn on?

First check the power supply (socket, fuse). Ensure the hood is properly plugged in. If the problem persists, contact Bosch after-sales service.

What accessories are available for this model?

Accessories include: charcoal filter (DKF...), recirculation kit, exhaust duct, blanking plate. Consult the manual or the Bosch website for exact references.

USER MANUAL DKE995E BOSCH

Black-and-white photo of a hand holding a plate of cooked rice with visible vegetable pieces (no text or symbols)

3D rendering of a mechanical component with curved surfaces and a central mesh structure (no visible text or symbols)

en Operating and installation instructions

Household Appliances

de Seite 3-15

en page 16 - 28

fr pages 29 - 41

nl pagina 42 - 54

it pagina 55 - 67

es página 68 - 80

pt página 81 - 93

tr Sayfa 94 - 106

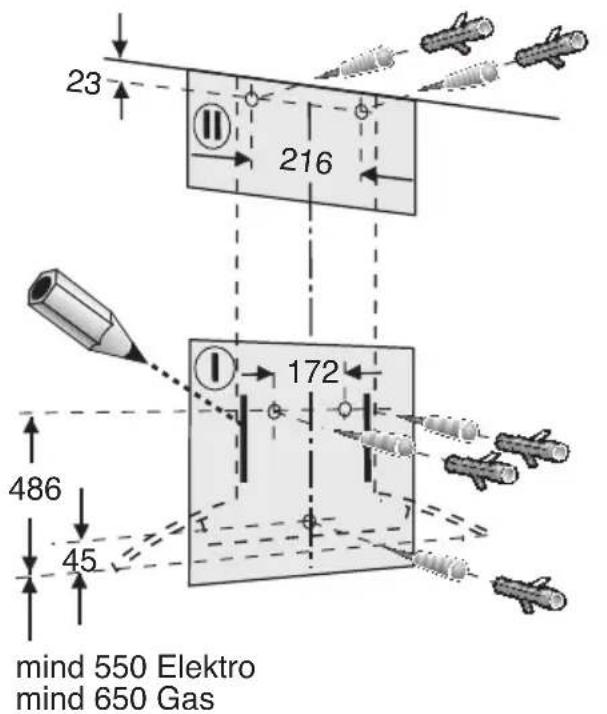

Abb. 1

GAS

GAZ

KAASU

GASS

ELEKTRO

ELECTR.

ELETT.

EL.

Gebrauchsanleitung:

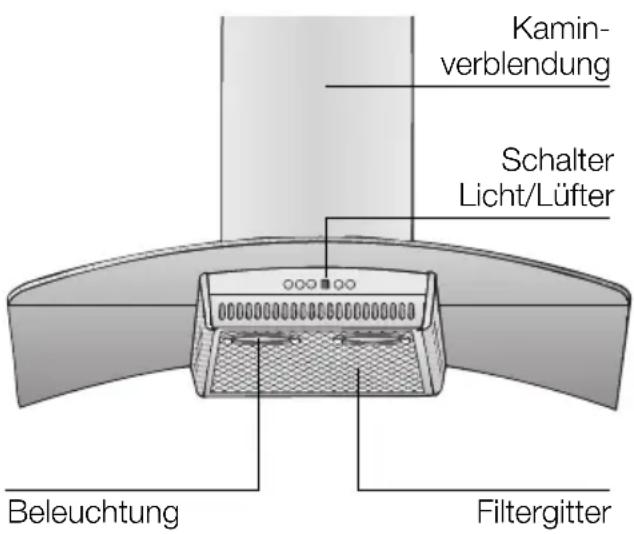

Gerätebeschreibung

Technical illustration of a mechanical component with a hand interacting with it, showing internal structure and mounting holes (no text or symbols)

Diagram of a mechanical component with a hand operating a slot, showing no text or symbols.

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a tool interacting with a circular device, showing a curved arrow pointing to the device (no text or symbols present)

Diagram of airflow or fluid flow through a stepped structure with directional arrows indicating direction (no text or symbols)

3D technical illustration of a mechanical component with a conical top and flange assembly (no text or symbols)

Diagram showing a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Technical illustration of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

Instructions for use:

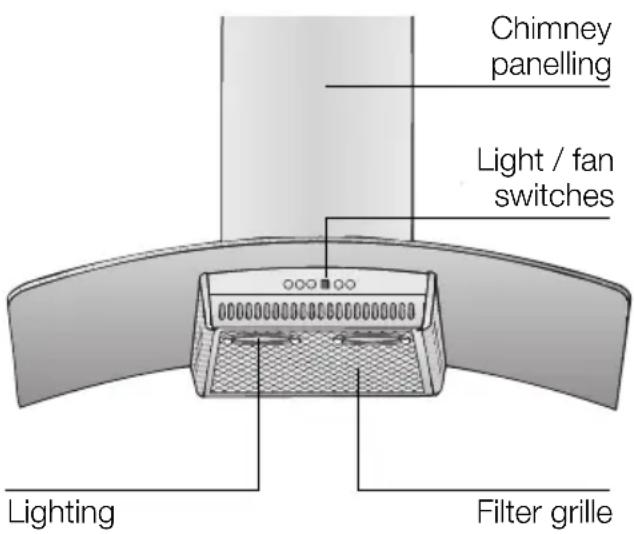

Appliance description

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

⚠️ The complete installation set and replacement filters can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions.

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.
☐ The grease filter absorbs the grease particles in the kitchen vapours.
☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

⚠️ Do not use the appliance if damaged.

⚠ The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

⚠ The appliance may be connected to the mains by a qualified technician only.

⚠ Dispose of packaging materials properly (see Installation instructions).

⚠ This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

⚠️ Never operate the extractor hood without a grease filter.

⚠️ Overheated fat or oil can easily catch fire.

If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

⚠ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

⚠ The hotplates must always be covered with a utensil.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

Fan OFF Reduce fan speed Fan ON and increase speed

Acoustic signal:

☐ When a button is pressed, this is verified by an acoustic signal.

Switching off the acoustic signal:

☐ Simultaneously press buttons 0 and + until a signal is emitted after approx. 3 seconds.

Switching on the acoustic signal:

☐ Repeat the process.

Setting the required fan speed:

☐ Press the + button. The fan speed is increased by one step.
☐ Press the – button. The fan speed is reduced by one step.

☐ Press the 0 button. The displayed ☐ goes out shortly afterwards.

Or:

- Keep pressing the – button until the fan switches off. The displayed ☐ goes out shortly afterwards.

Intensive setting:

Maximum power is obtained at the intensive setting. It is only required for short intervals.

☐ Keep pressing the + button until a P appears in the display.
☐ If the intensive setting is not cancelled by hand, the fan will automatically switch back to step ☑ after 10 minutes.

Fan follow-on:

☐ Press the →button.

The fan continues to run at step 1 for 10 minutes, and at the same time a dot flashes in the display. After this period the fan switches off automatically.

Lighting:

Briefly press the ⚙ button to switch the light on and off.
☐ The light can be switched on at any time, even though the fan is switched off.
□ Adjusting the brightness:
Hold down the ⚙ button until the desired brightness is obtained.

Switching on the light automatically, e.g. via a timer:

☐ Fan and light must be switched off.

Switching on:

Simultaneously press the – and →I buttons.

☐ After approx. 3 seconds the light switches on to acknowledge the setting.

Switching off:

Repeat the process with the light switched on.

☐ After approx. 3 seconds the light switches off to acknowledge the setting.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Saturation indicator:

When the grease filters reach saturation point, an acoustic signal is sounded for 10 seconds after the fan has switched off, and an ≡ appears in the display. The grease filters should be cleaned straight away.

Cleaning the metal grease filters:

☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

☐ When cleaning the filters by hand, soak them in hot soapy water first of all. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

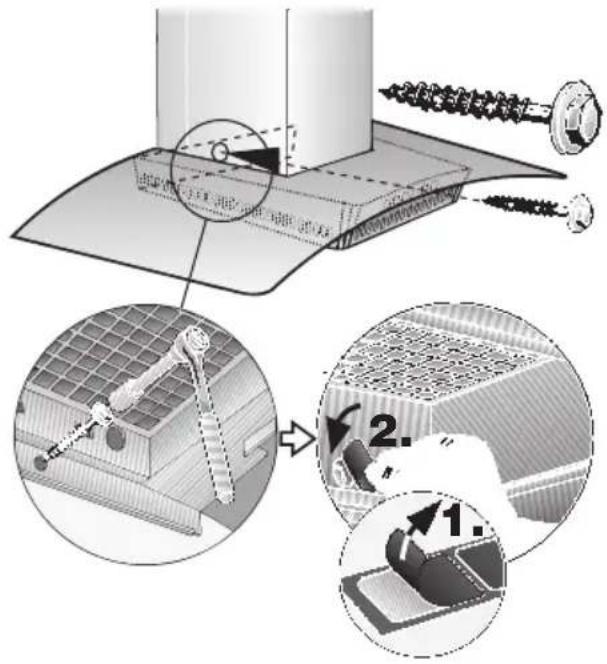

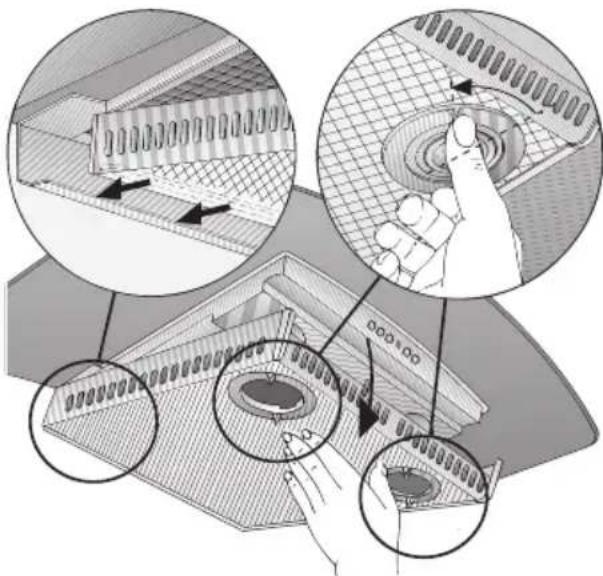

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool.

1. Rotate the two catches on the grease filter and remove the grease filter.

1. Clean the grease filter.

2. Re-insert the clean grease filter.

3. Cancel the in the display.

☐ Press the 0 button.

Filters and maintenance

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

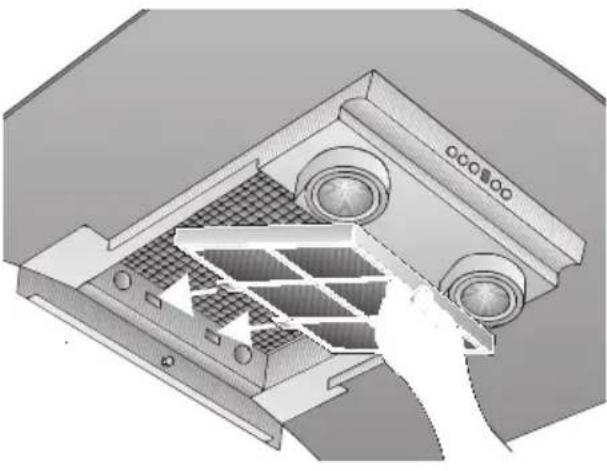

Inserting the filter:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal filters (see "Removing and inserting the metal grease filters").

2. Insert the activated carbon filter.

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

1. Engage the lug at the front.

2. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

3. Cancel the in the display.

☐ Press the 0 button.

Saturation indicator:

When the activated carbon filter reaches saturation point, an acoustic signal is sounded for 10 seconds after the fan has switched off, and a appears in the display. The activated carbon filter should be replaced straight away.

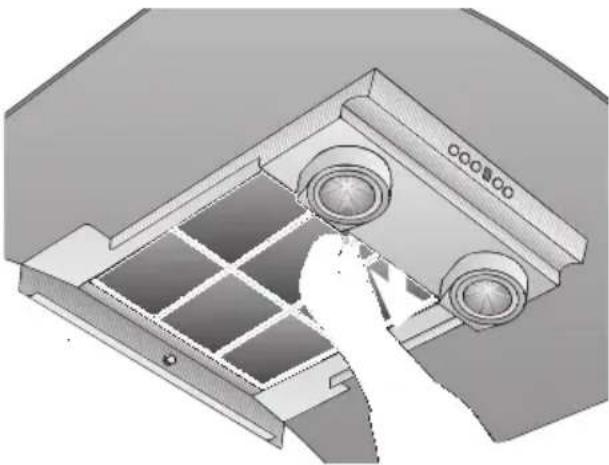

Removing the filter:

Warning: The halogen bulbs must be switched off and cool.

1. Remove the metal filters.
2. Press in the lug at the front and remove the activated carbon filter.

Diagram of a ceiling-mounted air vent with a hand inserting a fan into the panel (no text or symbols)

1. Insert the metal grease filters.

Replacing the activated carbon filter:

☐ A replacement filter can be obtained from any authorized dealer (see optional accessories).

☐ Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Cleaning and care

Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box.

☐ At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible.
☐ Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood.
☐ Do not scrape off any dirt that has dried on but loosen it up with a damp cloth.
☐ Do not use abrasive cleaning agents or sponges that could cause scratches.
☐ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

☐ Use a mild non-abrasive stainless steel cleaner.
☐ Clean the surface in the same direction as it has been ground and polished.

⚠ Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium, painted and plastic surfaces:

☐ Use a soft, non-linting window cloth or micro-fibre cloth.
☐ Do not use dry cloths.
☐ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.
☐ Do not use abrasive agents.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
2. Remove the bulb ring with a screwdriver or similar tool.

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

1. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 cap). Caution: Refer for plug-in lampholder. Take hold of the bulb with a clean cloth.

Illustration of a hand holding a cable with a magnified inset showing a device inside (no text or symbols)

1. Re-insert the bulb ring.
2. Plug the appliance into the mains or switch it on at the fuse box.

Note: If the light does not function, check that the bulbs have been inserted correctly.

Setting the saturation indicator

If it becomes necessary to change the operating mode (exhaust-air/recirculating mode), the saturation indicator for the filters must also be altered (see Installation Instructions).

If you encounter a problem

If an or appears in the display:

☐ See "Filters and maintenance" Section.

If is not possible to operate the extractor hood:

☐ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box.

Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

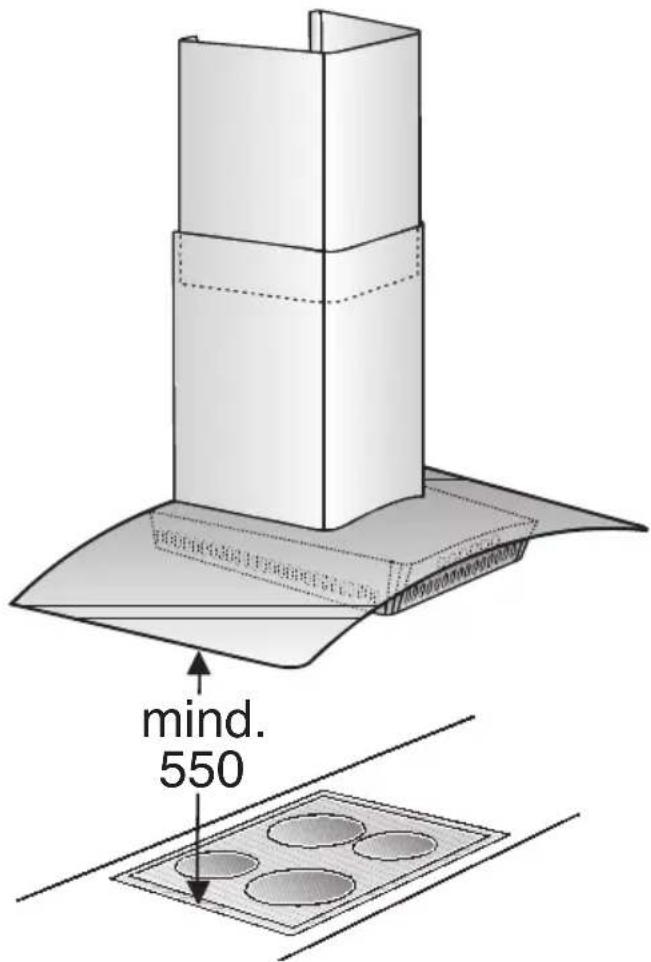

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.

⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Exhaust-air mode

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

☐ Round pipes: We recommend Internal diameter: 150 mm (at least 120 mm).

☐ Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm

∅ 150 mm approx. 177 cm

☐ If pipes have different diameters: Insert sealing strip.

☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Connecting a 150 mm exhaust-air pipe:

☐ Mount the pipe directly onto the air outlet on the hood.

Connecting a 120 mm exhaust-air pipe:

☐ Attach the reducing connector directly to the air pipe.

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

☐ Attach the exhaust-air pipe to the reducing connector.

Circulating-air mode

☐ With activated carbon filter if exhaust-air mode is not possible.

⚠ The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

Diagram of fluid flow through a stepped structure with directional arrows indicating flow direction (no text or labels)

Prior to installation

Preparing the wall

☐ The wall must be flat and perpendicular.
☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight in kg:

Exhaust air Recirculating air
	22,521,5

We reserve the right to construction changes within the context of technical development.

Changing over from exhaust-air to recirculating mode

Changing the electronic control system to recirculating mode:

☐ The standard factory setting is for operation in exhaust-air mode.
☐ To change the mode, the extractor hood must have been connected up and should be switched off.

1. Press and hold the 0 button.
2. While ☐ is displayed, press the ➕ button until ☐ is displayed. When this has taken place, release the buttons.
   ☐ goes out shortly afterwards. The electronic control system will then have been set to recirculating mode.
   ☐ By repeating steps 1 and 2, you can change the electronic control system back to exhaust-air mode (= in display).

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth Blue – Neutral Brown – Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).
2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.
3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template corresponds to the lower edge of the extractor hood (glass screen).

1. Drill 3 x ∅ 8 mm holes for the extractor hood and 2 x ∅ 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

Diagram showing a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Note: Take into account any special accessories that are going to be fitted.

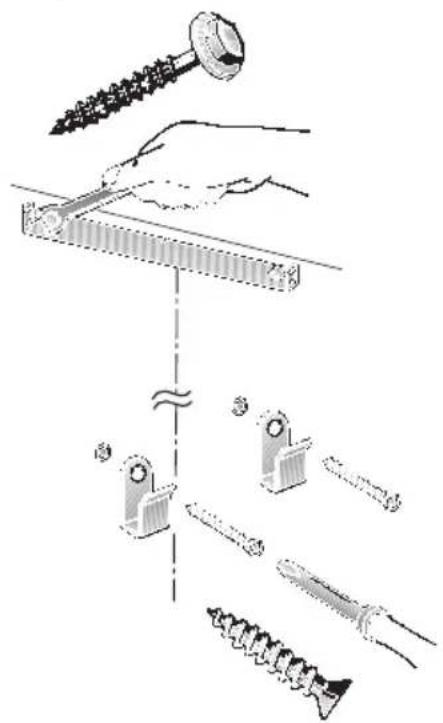

1. Screw on the upper and the two lower fixing brackets.

Illustration of a hand using a screwdriver to install a mechanical component, with no text or symbols present.

1. Attach the extractor hood. Adjust the height and align horizontally with the adjusting screws.

Technical illustration of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

⚠ The glass screen must not touch the wall.

Installation

1. Screw in the lower bolt (hex bolt).

⚠️ If any pressure is exerted on the glass screen when tightening the screws it could lead to glass breakage.

1. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

2. Connect up the air outlet pipe.

3. Connect the hood to the electricity supply.

4. Remove the protective film from the two flue ducts.

⚠ Avoid damage to the sensitive surface.

1. Insert the upper flue duct (slots downwards) into the lower flue duct.

⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

1. Insert the complete flue duct at an angle into the glass shield and swivel backwards.

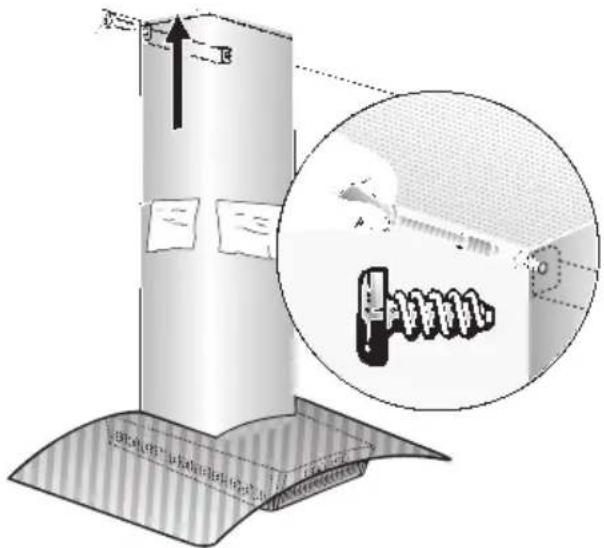

2. Carefully pull the upper flue duct upwards and screw the sides to the fixing bracket with 2 screws.

1. Insert the grease filter (refer to Operating Instructions).

Ventilation intensive:

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

3D diagram of a solar panel installation with two circular components and a hand interacting with the component (no text or symbols)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a screwdriver with a magnified inset showing a small object (no text or symbols)

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Technical illustration of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

Technical illustration of a ceiling-mounted air vent with two circular components and a hand adjusting the panel (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Let op: plugfitting.

Illustration of a hand holding a small object with a curved arrow pointing to a circular component (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols present)

3D technical illustration of a mechanical component with a conical top and flanged base (no text or symbols)

Diagram showing a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Illustration of a hand using a screwdriver to install a mechanical component, with no text or symbols present.

Technical diagram showing mechanical assembly with two views of a component, no visible text or symbols

Technical diagram of a mechanical component with internal grid structure and circular features (no text or symbols)

3D diagram of a mechanical component with a hand operating a slot, showing no text or symbols.

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

1. Sostituire la lampadina alogena (lampadina alogena commerciale, 12 Volt, max. 20 Watt, attacco G4).

Illustration of a hand holding a cable with a magnified inset showing a device inside (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a stepped base (no text or symbols)

Diagram of fluid flow through a constriction with arrows indicating direction (no text or labels)

Prima del montaggio

Diagram showing a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Illustration of a hand using a screwdriver to install a mechanical component, with no text or symbols present.

Technical diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

Technical diagram of a mechanical component with circular components and a hand interacting (no text or symbols)

Illustration of a magnifying glass with a circular lens and handle (no text or symbols)

Illustration of a hand holding a tool with a circular component and an arrow indicating rotation (no text or symbols)

Diagram of fluid flow through a stepped structure with directional arrows indicating flow direction (no text or labels)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram showing a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Technical illustration of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)

Diagram illustrating a mechanical assembly with three views of a component, showing hand positioning and assembly steps (no text or symbols present)

3D diagram of a mechanical component with a hand interacting with a grating, showing no text or symbols.

3D diagram of a ceiling-mounted air vent with a hand adjusting the panel (no text or symbols visible)

1. Recolocar o filtro de gordura.

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

1. Substituir a lâmpada de halogéneo (lâmpada de halogéneo corrente no mercado, 12 Volt, máx. 20 Watt, casquilho G4).

Illustration of a hand holding a tool with a curved arrow pointing to a circular component (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols present)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram showing a hand using a screwdriver to install a mechanical component, with no text or symbols present.

Technical diagram showing mechanical assembly with two views of a component, no visible text or symbols

Technical diagram of a mechanical component with internal grating and mounting holes (no text or symbols)

Diagram of a ceiling-mounted air vent with two circular components and a hand inserting a component (no text or symbols)

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a screwdriver with a circular component and an arrow indicating rotation (no text or symbols)

Diagram of airflow or heat transfer through a vertical structure with arrows indicating direction (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram showing a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Illustration of a hand using a screwdriver to adjust a mechanical part, with no text or symbols present.

Technical illustration of a mechanical assembly with two views showing internal components and directional arrows (no text or symbols)
