APG410 - Pizza oven BESTRON - Free user manual and instructions

Product type	Pizza oven
Brand	Bestron
Model	APG410
Dimensions (W x D x H)	40 x 30 x 20 cm
Net weight	5 kg
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W
Maximum temperature	250 °C
Built-in timer	Yes, up to 60 minutes
Adjustable thermostat	Yes
Number of cooking positions	1
Included accessories	Grill rack, baking tray
Housing material	Stainless steel
Care and cleaning	Clean the exterior with a damp cloth; accessories are dishwasher safe
Safety	Auto shut-off, hot surface indicator
Spare parts and repairability	Grill rack, baking tray, heating element available from Bestron customer service
Warranty	2 years
Country of origin	China
Certifications	CE, RoHS
Manual available in	French, English, German, Spanish, Italian, Dutch

Frequently Asked Questions - APG410 BESTRON

How to turn on the Bestron APG410 pizza oven?

Plug in the appliance, turn the thermostat to the desired temperature and set the timer. The oven heats up automatically.

What is the maximum temperature of the oven?

The maximum temperature is 250 °C, ideal for baking crispy pizzas.

Can the oven be used without the timer?

Yes, you can leave the timer in continuous operation position ('ON') for manual control.

How to clean the Bestron APG410 pizza oven?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. Accessories (grill rack, tray) are dishwasher safe.

Does the oven turn off automatically?

Yes, once the timer runs out, the oven shuts off automatically for safety reasons.

What types of pizzas can be baked?

This oven is suitable for frozen, fresh or homemade pizzas, up to a diameter of 30 cm.

Does the oven need to be preheated?

It is recommended to preheat the oven for about 10 minutes at the desired temperature before placing the pizza inside.

What to do if the oven does not heat up?

Check that the appliance is plugged in and the timer is set. If the problem persists, contact Bestron customer service.

Where can I get spare parts?

Spare parts such as the grill rack, tray or heating element are available through Bestron customer service or authorized dealers.

Can the oven be used outdoors?

No, this oven is intended for household indoor use only. Do not use it outdoors or near water.

USER MANUAL APG410 BESTRON

English Instruction manual Pizza Quartetto

CONDITIONS DE GARANTIE

DÉCLARATION DE CONFORMITÉ CE

Congratulations with your purchase of the Pizza Quartetto.

SAFETY INSTRUCTIONS - GENERAL

- Please read these instructions carefully and retain them for future reference.

• Use this appliance solely in accordance with these instruction

- This appliance can be used by children age above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - ELECTRICITY AND HEAT

Certain parts of the appliance may get hot.
ot touch these parts to prevent burning yourself.

- Check whether the mains voltage is the same as that indicated on the model plate on the appliance before you plug it in.

• Make sure the socket into which you plug the appliance is earthed.

• Always remove the plug from the socket when the appliance is not in use.

- When you remove the plug from the socket, pull by holding the plug, not the cable.

- Check regularly to make sure the cable of the appliance is still intact. Do not use the appliance if the cable is damaged. A damaged cable must be replaced by a qualified electrician.

- Certain parts of the appliance can become hot. Do not touch them, as you may burn yourself.

- The appliance needs space in order for heat to escape, thereby preventing a risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered. Make sure the air vents are not covered or blocked.

• Make sure that the appliance and the cable do not come in contact with sources of heat, such as a hot cooking hob or naked flame.

• Make sure that the appliance, the cable and plug do not come in contact with water.

SAFETY INSTRUCTIONS - DURING USE

• Never use the appliance outdoors.
- Place the appliance on a flat, stable surface where it cannot fall.
- Never allow the cable to hang over the edge of the counter, worktop or table.
• Make sure that your hands are dry before touching the appliance, cable or plug.
- Never use the appliance in damp rooms.
- Do not pick up the appliance if it falls into water. Remove the plug from the socket immediately. No not use the appliance again.
- Clean the appliance thoroughly after use (see Cleaning and maintenance).
- Never immerse the appliance, the plug or the cable in water or other liquid.
- This appliance may not be used through an external timer or by means of a remote control.

TECHNICAL INFORMATION

Type: APG410

Output: 800-900W max

Mains Voltage: 220-240V \~ 50/60Hz

THE ENVIRONMENT

- Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.
• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

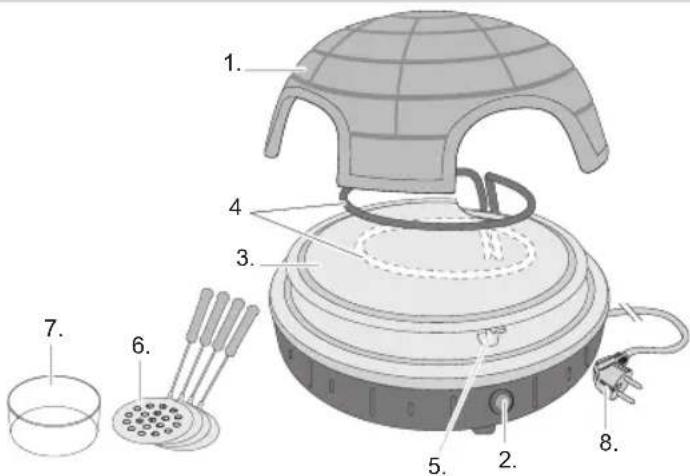

1. Terracotta dome
2. Indicator
3. Baking tray
4. Heating element
5. Braces
6. Pizza spatulas
7. Pizza Dough Cutter
8. Cable and plug

Figure 1

OPERATION - Before first use

1. Place the baking tray on the brackets in the device.
2. Place the terracotta dome on the device.'
3. Connect the power plug to the wall socket and let the pizza oven preheat (approx. 10 to 15 minutes)

In the meantime you can prepare the pizza.

BASIS PIZZA DOUGH

To make a good pizza dough at home use the following recipe:

Ingredients for 500g of dough:

• 300g flour
• 25g yeast
• a pinch of salt
  • 1 glass of lukewarm water

Pour the flour onto the table in a heap, make a hollow in the centre to form the "well" and add a level teaspoonful of cooking salt. Crumble the yeast into a small glass of lukewarm water, pour it into the well a little at a time and start mixing. At the start the dough will be soft and sticky, but it will become stiffer and more elastic as you knead it. Thump the dough hard against the table and press your wrists against it to make it smooth and even. When you have repeated this procedure many times, you will find that the dough comes away from your hands end the table easily; now form a ball. Cut a cross on the top and leave to rise in a warm corner of the table, covered with a clean tea-towel. Leave for about 2 hours, during which time the dough will double in size (this may take much less in hot, humid conditions). At this point, after rising, the dough may be kneaded again for a few minutes and used immediately, or frozen. If you are going to use it at once, before kneading you can add the oil of your choice. This will almost always be extra virgin olive oil, but in some special recipes it may be lard or butter. If you decide to freeze the dough, wrap it up in a freezer film and place it in the freezer. When you decide to use it, thaw it at room temperature and knead it for 5 minutes with a little oil.

OPERATION - preparing pizza

1. Roll the dough with a rolling pin until it's flat.
2. Make a nice round pizza bottom with the dough cutter
3. Place the round pizza crust on a spatula.
4. Cover the pizza base with tomato sauce.
5. Add your favorite ingredients.
6. Sprinkle your creation with grated cheese.

OPERATION - Use pizza oven

1. Place the spatula with your pizza on the hot plate. (Leave the spatula under your pizza)

Depending on your taste, the thickness of the dough and the topping, it may take 5 to 10 minutes before your pizza is ready. In general, your pizza is ready when the cheese is completely melted.

1. Take the spatula with pizza from the appliance when your pizza is ready.

When taking out the pizza, the spatula is very hot. Be sure to hold the spatula only by its handle.

Enjoy your meal

Tip: The terracotta dome holds the heat well and this keeping warm function keeps your pizza at the right temperature.

Tip: During the baking process, you can prepare a new pizza.

CLEANING AND MAINTENANCE

1. Switch off the appliance (control light switches off).
2. Take the plug out of the socket and allow the appliance and pizza stone to cool.
3. Clean the outside of the appliance and accessories with a damp cloth and washing-up liquid. Make sure no moisture gets into the appliance.

- Never clean the stone with oil, water or washing-up liquid, but with a paddle and a dry cloth. - You can burn the stone clean as follow: Place the oven near a open window. Close the oven, turn the select knob (1) to upper and lower heating and the temperature knob (2) to "MAX". Heat the oven then for 60-80 minutes under control. The dirt will be burned away, the oven can be smoke a little bit. Put the oven "OFF" and leave it to cool. Wipe the pizza stone clean. Discoloration of the pizza stone is normal because it is a product of nature.

- Never immerse the appliance, the plug or the cable in water. Never put the appliance in a dishwasher.

- Never use harsh or scouring cleaning agents or sharp objects (such as knives or hard brushes) when cleaning.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.

2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).

3. All claims submitted under warranty must be accompanied by the original bill of sale.

4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.

5. The warranty is issued solely to the first purchaser and cannot be transferred.

6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.

b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.

d. Unauthorized modifications.

e. Repairs carried out by third parties.

f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.

b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.

2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.

3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.

4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW 's-Hertogenbosch

Tel: +31 (0) 73 - 623 11 21

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

• EMC Directive 2004/108/EC
• Low Voltage Directive 2006/95/EC

R. Neyman

Quality control

BESTRON®

APG410

v 260713-08
