DVP2852 - DVD player PHILIPS - Free user manual and instructions

Brand	Philips
Model	DVP2852
Product Type	DVD Player
Dimensions (W x D x H)	360 x 210 x 38 mm
Weight	1.2 kg
Power Supply	AC 100-240 V, 50/60 Hz
Power Consumption	12 W (Standby: < 1 W)
Disc Playback Formats	DVD, DVD+R/RW, DVD-R/RW, CD, CD-R/RW, MP3-CD, WMA, JPEG, DivX
Video Output	HDMI (up to 1080p), Composite Video (CVBS)
Audio Output	Coaxial Digital, Stereo Analog (RCA)
USB Port	Yes (front, for multimedia playback)
Supported Video Formats	MPEG1, MPEG2, DivX, XviD
Supported Audio Formats	MP3, WMA, PCM, AAC
Supported Image Formats	JPEG, BMP, GIF
Region Code	2 (Europe), adjustable
Remote Control	Included (batteries: 2 x AAA)

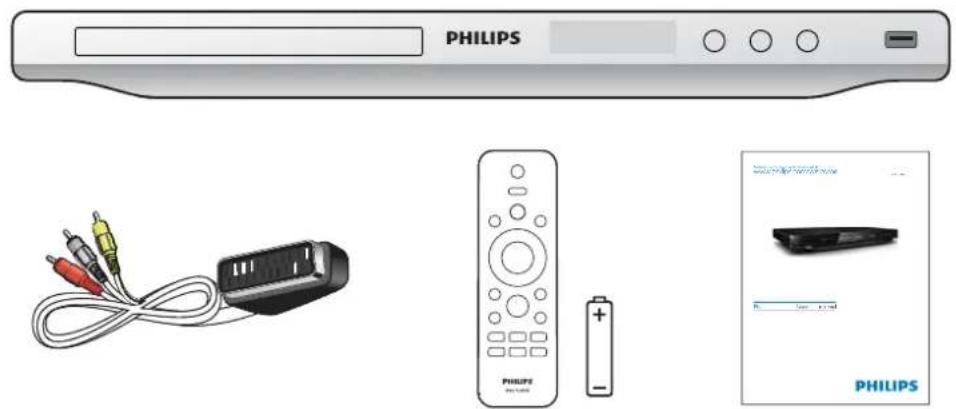

Accessories	Power cord, remote control, user manual, composite AV cable
Cleaning Instructions	Use a soft dry cloth; do not use solvents
Safety Warnings	Keep away from moisture; do not place in enclosed cabinet with poor ventilation
Spare Parts Availability	Remote, power supply, cables available via Philips support
Repair Information	Refer to authorized service centers; do not open the unit

Frequently Asked Questions - DVP2852 PHILIPS

How do I connect the DVD player to my TV?

Use the HDMI cable for best quality. If HDMI is not available, use the included composite (yellow/white) cable. Connect one end to the player's output and the other to the TV input.

Can this DVD player play Blu-ray discs?

No, the DVP2852 is a standard DVD player and cannot play Blu-ray discs. It plays DVDs, CDs, and multimedia files via USB.

What video formats are supported via USB?

Supported formats include MPEG1, MPEG2, DivX, and XviD. For full list, check the manual.

How do I play a DVD from a different region?

The player is region-locked to Region 2 (Europe). To change region, you may need a code from the remote (not recommended as it may limit future disc playback). Some discs are region-free.

My DVD player is not reading discs. What should I do?

First, ensure the disc is clean and not scratched. Try a different disc. If problem persists, clean the lens with a DVD lens cleaner. Avoid using liquids.

Can I connect the player to a home theater system?

Yes, use the coaxial digital audio output to connect to a receiver or amplifier with a coaxial input. Alternatively, use the analog RCA outputs.

How do I reset the player to factory settings?

Unplug the power cord for 30 seconds, then reconnect. This resets the player. For a full reset, press and hold the STOP button on the remote for 5 seconds while the unit is on.

Does this DVD player support subtitles?

Yes, you can enable subtitles from the disc menu or via the remote's SUBTITLE button. Supported formats depend on the disc.

What type of batteries does the remote use?

The remote uses 2 AAA batteries (not included). Open the compartment on the back and insert batteries with correct polarity.

Why is there no sound when playing a DVD?

Check the audio cable connections. Ensure the TV is set to the correct input. If using HDMI, check that the TV audio output is not muted. The player's audio mode may need adjustment (press AUDIO on remote to cycle through available tracks).

USER MANUAL DVP2852 PHILIPS

Black Philips DVD player interface with LCD display and control buttons (no readable text or symbols beyond branding)

EN

User

manual

EN Please refer to the safety information before using this player.

For users in the U.K.: Please follow the instructions below.

Important notes for users in the U.K.

Mains fuse

This information applies only to products with a UK mains plug.

This product is fitted with an approved non-molded plug. If you replace the fuse, use one with:

• the ratings shown on the plug,
• a BS 1362 approval, and
• the ASTA approval mark.

Contact your dealer if you are not sure about what type of fuse to use.

Caution: To conform with the EMC directive (2004/108/EC), do not detach the plug from the power cord.

How to connect a plug

The wires in the power cord are colored as follows: blue = neutral (N), brown = live (L). If the colors do not correspond with the colors on your plug, identify the terminals in your plug as follows:

1 Connect the blue wire to the terminal marked N or colored black.
2 Connect the brown wire to the terminal marked L or colored red.
3 Do not connect either wire to the earth terminal in the plug, marked E (or e) or colored green (or green and yellow).

Before you replace the plug cover, make sure that the cord grip is clamped over the sheath of the cable and not just over the two wires in the cable.

1

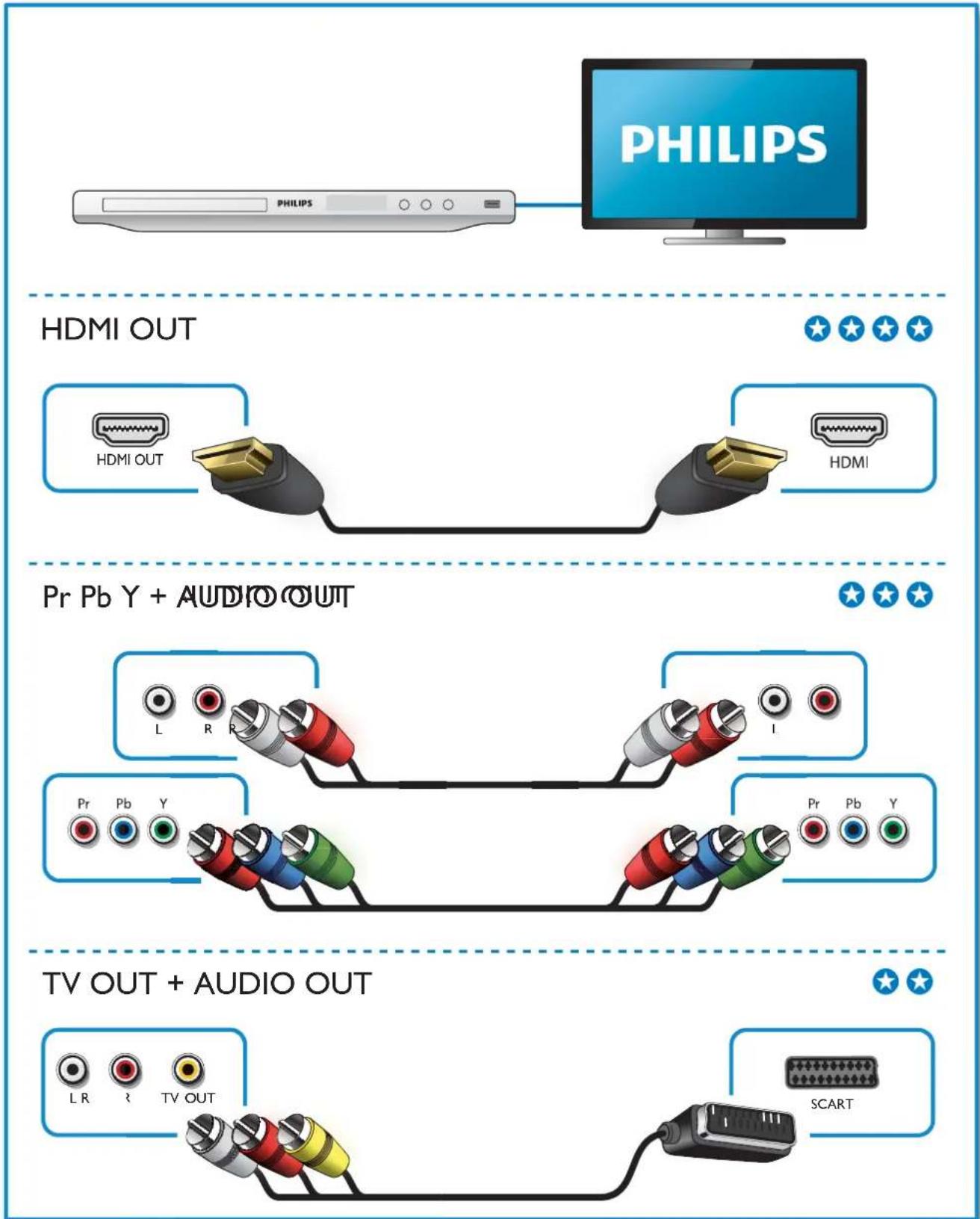


3

4

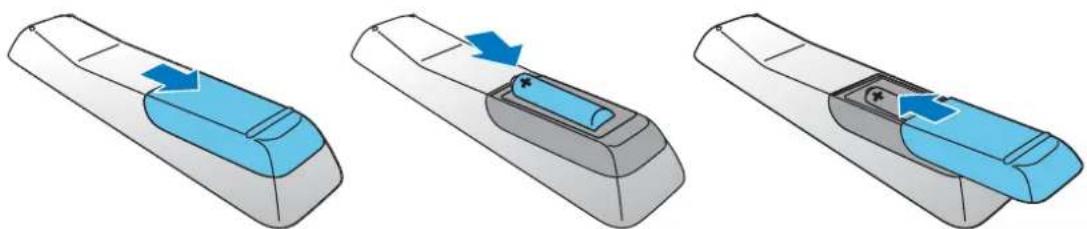

Three-step illustration of a remote control device with blue and gray casing, showing step-by-step change (no text or symbols)

5

6

2

1

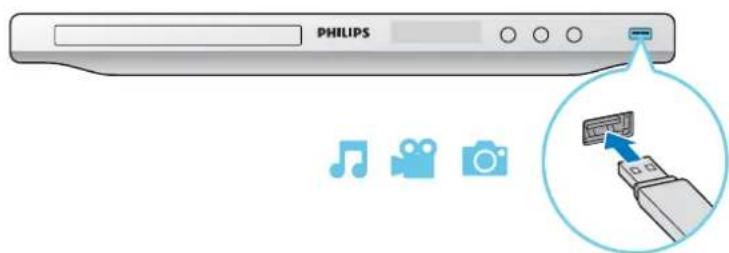

USB

1

Contents

Connect and play 3

Safety....8

Control and play....9

Photo and music slideshow 11

Options 12

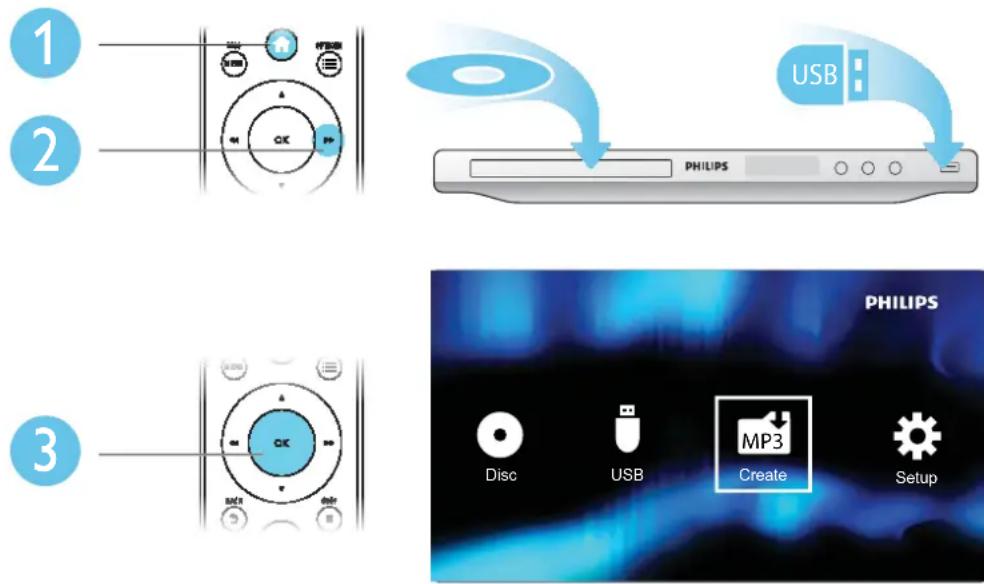

Convert audio CD to MP3 files.... 13

Philips EasyLink.... 14

Setup 15

General setup....16

Video setup....17

Audio setup....18

Preference....19

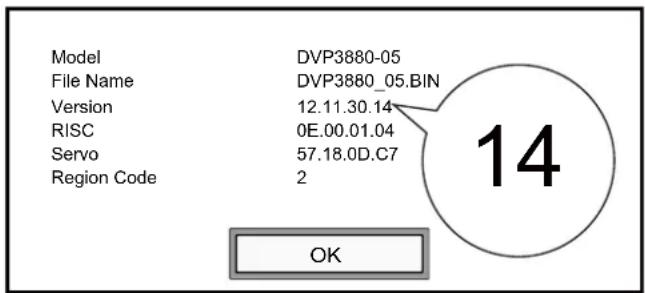

Software update 21

Troubleshooting.... 22

Specifications.... 24

Notice....26

Language code 29

Read and understand all instructions before you use this DVD player. If damage is caused by failure to follow the instructions, the warranty does not apply.

Risk of electric shock or fire!

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use.
• Never place the product and accessories near naked flames or other heat sources, including direct sunlight.

Never insert objects into the ventilation slots or other openings on the product.

- Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Disconnect the product from the power outlet before lightning storms.

When you disconnect the power cord, always pull the plug, never the cable.

Risk of short circuit or fire!

- Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back of the product. Never connect the product to the power outlet if the voltage is different.

Never expose the remote control or batteries to rain, water or excessive heat.

Avoid force coming onto power plugs. Loose power plugs can cause arcing or fire.

Risk of injury or damage to the product!

Visible and invisible laser radiation when open. Avoid exposure to beam.

• Do not touch the disc optical lens inside the disc compartment.
  • Never place the product or any objects on power cords or on other electrical equipment.
• If the product is transported in temperatures below 5^ C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

Risk of overheating!

- Never install this product in a confined space. Always leave a space of at least four inches around the product for ventilation. Make sure that curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Remove the battery if it is exhausted or if the remote control is not to be used for an extended period of time.
  • Batteries contain chemical substances, they should be disposed of properly.

Risk of swallowing batteries!

- The product/remote control may contain a coin type battery, which can be swallowed. Keep the battery out of reach of children at all times!

Note

- When "X" appears, it means that this operation is unavailable for the current media or at the current time.

Media Function Buttons / Actions
	Stop the play	■
	Pause or resume the play	▶II
	Skip to the previous/next title, chapter, track, or file	|<|>
	Select an audio language or audio channel	AUDIO
	Select a subtitle language SUBTITLE
	Return to the home page	↑
	Return to the root menu BACK	←
	Return to the disc menu DISC MENU
	Enable or disable the PBC ( playback control) feature	DISC MENU
	Select a repeat mode	1) Press REPEAT/REPEAT A-B .2) Press ◀◀/▶▶
	Repeat a specific section within a track	1) Press REPEAT/REPEAT A-B twice to select the start point.2) Press REPEAT/REPEAT A-B again to select the end point.• To resume the normal play, press REPEAT/REPEAT A-B.
DVDVIDEO	Skip to a title or chapter	1) Press GOTO.2) Press ▲/▼ to enter the title/chapter number.3) Press OK to confirm.

Media Function Buttons / Actions
		Skip to a track 1) Disable PBC.	2) Press GOTO.3) Press ▲/▼to enter the track number.4) Press OK to confirm.
		Search backward/forward fast	Press ◀◀/▶▶ repeatedly to select a speed.
		Search forward slowly Press repeatedly to select a speed.
		Search backward slowly Press repeatedly to select a speed.
		Zoom in or out Press .	To pan through an enlarged photo, press ▲/▼/ ◀◀ ▶▶
		Rotate a photo	Press ▲/▼/ ◀◀. ▶▶
		Switch between Fun Mode(pictures in color) and Simple Mode (pictures in black and white)	Press DISC MENU during photo slideshow.

Note

• You can only play DivX videos that were rented or purchased with DivX® registration code of this player. (Refer to "Setup" > "General Setup" > [DivX(R) VOD Code])
• Subtitle files with the following filename extensions (.srt, .smi, .sub, .ssa, .ass, .txt) are supported but not displayed in the file list.
• The subtitle filename has to be the same as the filename of the DivX video (the file extension excluded).
• The DivX video file and the subtitle file must be saved under the same directory.

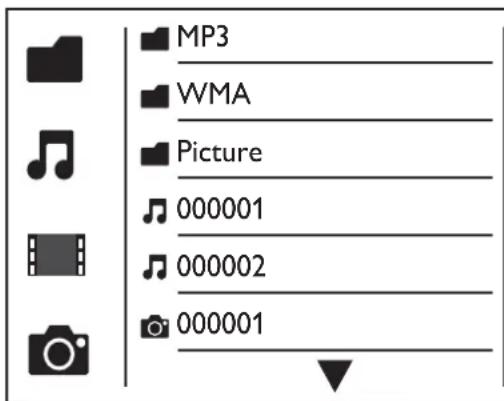

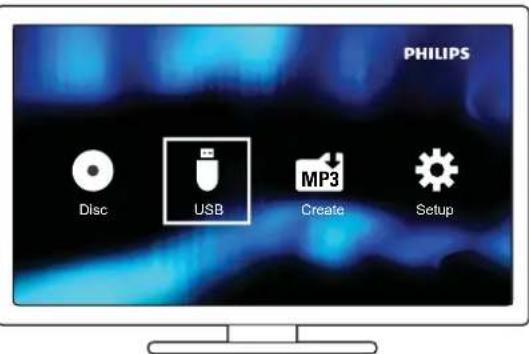

1 Press ▲ / ▼ to select ■, and then press OK. All supported folders and files are listed.

2 Press ▲ / ▼ to select a music file, and then press OK to start playing. If the music file is saved in a folder or sub-folder, access its directory first.

3 Press ▲ / ▼ to select a picture file, and then press OK to start the slideshow. If the picture file is saved in a folder or sub-folder, access its directory first. To stop the slideshow, press ■. To stop the music, press ■ again.

Note

Music and picture files must be stored on the same disc or USB storage device.

• If a large number of files are complied onto one disc or USB storage device, it requires longer time to read and display the content.
• This player can only display digital camera pictures with JPEG-EXIF format, which is widely used in digital cameras. It cannot display Motion JPEG, nor pictures in formats other than JPEG. Sound clips associated with pictures cannot be displayed either.
• If a JPEG picture is not recorded as an "exif" type file, its thumbnail picture is displayed as "blue mountain".

During play, press:OPTIONS to access the following items.

Media Setting item Function
DVDVIDEO	[Info] Display the play information.
	[PBC] Enable or disable PBC.
DVDVIDEO	[Aspect ratio] Select a display ratio of picture on TV.
DVDVIDEO	[Volume] Adjust the volume level.
DVDVIDEO	[Angle] Select an available camera angle.
	[Colour] Select Fun Mode (pictures in color) or Simple Mode (pictures in black and white).
	[Photo preview] Display the thumbnail of photos.

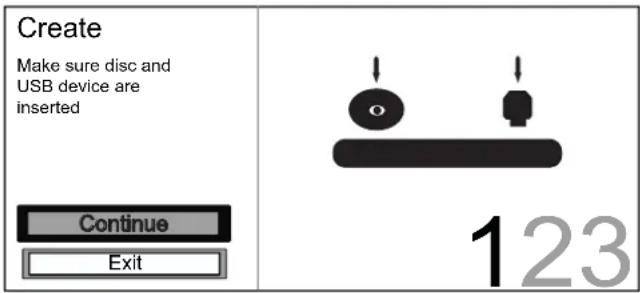

Follow the on-screen instructions to complete the process.

The created MP3 files are saved in a folder named “_PHILIPS”.

Note

DTS CDs and copy-protected CDs cannot be converted.

A write-protected or encrypted USB storage device cannot be used to store MP3 files.

This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics Control) protocol. You can use a single remote control to control EasyLink compliant devices that are connected through HDMI.

Note

Philips does not guarantee 100% interoperability with all HDMI CEC devices.

Make sure that HDMI CEC feature is enabled on the TV and other connected devices (see the user manual of the TV or other devices for details).

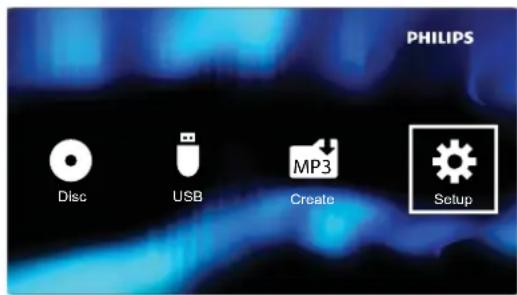

1 Press ↗.
2 Select ⚙, and then press OK.
3 Select [Video] > [HDMI Setup] > [EasyLink Setup].
4 Select [On] under the following options: [EasyLink], [1 Touch Play], and [1 Touch Standby]. EasyLink is enabled.

One Touch Play

When you play a disc, the TV automatically switches to the correct video input channel.

One Touch Standby

When you press and hold Ⓧ (standby) on the remote control of this player, this player and all connected HDMI CEC devices (if they support one-touch standby) switches to standby simultaneously.

General	Disc Lock · Unlock
	OSD Language Auto (ENG)
Video	Sleep Timer · Off
	Auto Standby · On
Audio	DivX(R)VOD Code · Registration
Preference

Press ▲ /▼ to select a menu item or setting option.

- Press OK to access the lower-level menu or confirm the selected setting option.

Press ➕ BACK to return to the upper-level menu.

Note

- When a menu item is grayed out, it means that its setting cannot be changed at the current state.

General setup

General	Disc Lock · Unlock
	OSD Language Auto (ENG)
Video	Sleep Timer · Off
	Auto Standby · On
Audio	DivX(R) VOD Code · Registration
Preference

[Disc Lock] - Restrict the play of a disc (maximum 20 discs can be locked).

• [Lock] - Lock the current disc. To play or unlock this disc, you must enter the password.

• [Unlock] - Play all discs.

[OSD Language] - Select a language for on-screen menu.

[Sleep Timer] - Set a period of time for the player to switch to Eco-power standby mode automatically.

[Auto Standby] - Enable this feature to automatically switch to Eco-power standby mode after 15 minutes of inactivity.

[DivX(R) VOD Code] - Display the DivX® registration code and deregistration code.

Note

• Go to www.divx.com/vod for how to register your player and rent or purchase DivX videos.
• DivX videos rented or purchased by this registration code can be played only on this player.

Play a locked disc

When you load a locked disc, [Please enter password] is displayed, and "0" is displayed as the first digit of the password.

1 Press ▲ / ▼ to set a value (0 to 9) to the first digit.
2 Press ▶▶.
3 Repeat steps 1 and 2 to enter the 6-digit password.
4 Press OK to confirm.

Tip

- Refer to "Setup" > "Preference" > [Password] for how to change the password.

Video setup

General	TV System	·PAL
	Aspect Ratio 4:3 Pan Scan
Video	Progressive	·Off
	Picture Setting	·Standard
Audio	HD JPEG	·On
	HDMI Setup
Preference

[TV System] - Select a TV system that matches your TV. By default, this setting matches common TVs in your country.

[Aspect ratio] - Select a display ratio that matches your TV screen.

[Progressive] - Enable or disable the progressive scan mode on this player.

[Picture Setting] - Select a predefined setting for picture color, or customize the setting.

[HD JPEG] - Enable this feature to view high-definition pictures through HDMI connection.

[HDMI Setup] - Set the options for HDMI connection.

• [Resolution] - Select a resolution for high definition videos.
- [HDMI Deep Color] - Create vivid images with more color details when the video content is recorded in Deep Color and the TV supports this feature.
• [Wide Screen] - Select a display format for wide screen videos.
- [EasyLink Setup] - This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics Control) protocol. You can use a single remote control to control EasyLink compliant devices that are connected through HDMI.
- [EasyLink] - Enable or disable the EasyLink feature.
• [1 Touch Play] - After you enable this feature, the connected HDMI CEC TV automatically switches to the HDMI input channel when you play a disc.
- [1 Touch Standby] - After you enable this feature, you can press and hold ⏻ on the remote control of your player to switch all connected HDMI CEC devices to standby mode simultaneously.

Note

• Refer to "Philips EasyLink" for details.

Audio setup

	General	Analogue Output	• Stereo
		Digital Audio
[C2H4]	Video	HDMI Audio	• On
		Audio Sync
	Audio	Volume
		Sound Mode
	Preference	Night Mode	• Off

[Analogue Output] - Adjust this setting for audio output through AUDIO OUT L/R.

• [Stereo] - Compress multi-channel Dolby digital sound to stereophonic sound.
• [LT/RT] - Compress multi-channel Dolby digital sound to 2-channel surround sound.

[Digital Audio] - Adjust this setting for audio output through COAXIAL/DIGITAL OUT.

• [Digital Output] - Select a type of digital output.

• [Off] - Disable digital output.
• [All] - Support multi-channel audio formats.
• [PCM only] - Downmix to two-channel audio signal.

- [LPCM Output] - Select the LPCM (Linear Pulse Code Modulation) output sampling rate.

Note

• [LPCM Output] setting is changeable only when [Digital Output] is set as [PCM only].
• The higher the sampling rate, the better the sound quality.

[HDMI Audio] - Enable or disable the audio output through HDMI cable.

[Audio Sync] - Set a delay time for audio output when you play a video disc.

[Volume] - Set the default volume level.

[Sound Mode] - Select a preset sound effect.

[Night Mode] - Equalize loud sound and soft sound. Enable this feature to watch DVD movies at a low volume at night.

Note

Applicable to Dolby Digital encoded DVD discs only.

Preference

General	Audio	· English
	Subtitle Off	·
Video	Disc Menu	· English
	Parental Control	· 8 Adult
Audio	PBC	· On
	Password	· Change
Preference	DivX Subtitle	· Standard
	Version Info

[Audio] - Select an audio language.

[Subtitle] - Select a language for subtitle.

[Disc Menu] - Select a language for disc menu.

Note

For some DVDs, the subtitle or audio language can only be changed from the disc menu.

- For a language that is not listed, select [Others]. Check the list of language codes (see "Language Code"), and then enter the respective language code. (Refer to "Setup" > "General setup" > "Play a locked disc" for how to enter the 4-digit code)

[Parental Control] - Select a rating level to restrict the play of discs to children. These discs must be recorded with rating levels.

Note

• To play a DVD disc that has a rating level higher than your setting, enter the password first. (Refer to "Setup" > "General setup" > "Play a locked disc" for details)
  •T[& Adling] levels are country-dependent. To allow all discs to be played, select

- Some discs have ratings printed on but are not recorded with ratings. This function has no effect on such discs.

[PBC] - Enable or disable the PBC ( playback control) feature.

[Password] - Change the password for playing discs that are locked or restricted with rating levels.

Note

If you forget the password, enter "136900" before you set a new password.

Change the password

1 Select [Preference] > [Password] > [Change], and then press OK.
The interface for changing password is displayed.
2 Press OK again.
→ "0" is displayed behind [Old Password] as the first digit of old password.
3 Press ▲ / ▼ to set a value (0-9) to the first digit.
4 Press ▶▶.
5 Repeat steps 3 and 4 to enter the 6-digit old password.
6 Repeat steps 3 and 4 to enter the new password behind [New Password].
7 Repeat steps 3 and 4 to enter the new password behind [Confirm PWD].

[DivX Subtitle] - Select a character set that supports the subtitle of your DivX video.

[Version Info] - Display the information about software version of this player.

[Default] - Reset all settings to factory default, except for the settings for [Disc Lock], [Parental Control], and [Password].

Note

Power supply must not be interrupted during software update.

Check the current software version of this player, and then go to the Philips website for information about software update.

Check the current software version

1 Press ↗.
2 Select ⚙, and then press OK.
3 Select [Preference] > [Version Info], and then press OK.

4 Write down the last two digits "XX" behind [Version] (for example, "14" in the graphic above). The version of current software is VXX.

Perform the update

1 Go to www.philips.com/support.
2 Search for support information with "DVP3880/05" as the keywords.
3 Click the search result to display available support information.
4 Read the Firmware Upgrade Readme File and follow the instructions to complete the software update.

?

Troubleshooting

Warning

Risk of electric shock. Never remove the casing of the player.

To keep the warranty valid, never try to repair the player yourself.

If you have problems using this player, check the following points before you request service. If you still have a problem, register your player and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here:

Model No. ____ Serial No. ____

No picture.

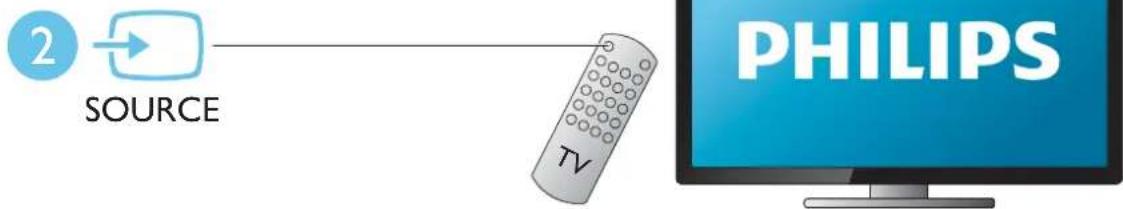

Refer to the TV user manual for how to select the correct video input channel.

- Switch to the default mode if the progressive scan setting or the TV system setting is changed.

No picture on HDMI connection.

- If this player is connected to an unauthorized display device, the audio/video signal cannot be output. If the HDMI cable is faulty, replace it with a new HDMI cable. • If you have changed the setting for HDMI video resolution, switch to its default mode. •

No sound output from the TV.

- Make sure that the audio cables are connected to the audio input sockets that are grouped with the selected video input sockets.

No sound on HDMI connection.

• If the connected device is non-HDCP compliant or only DVI-compatible, no sound can be heard from the HDMI output.
  • Make sure that [HDMI Audio] is set to [On].

No sound during DivX video playback.

• The audio codes are not supported.

Disc or USB storage device cannot be read.

- Make sure that this player supports the disc or USB storage device. (Refer to "Specifications" > " playable media")

• For a recorded disc, make sure that the disc is finalized.

Recorded files (JPEG, MP3, WMA) cannot be played or read.

• Make sure that the file was recorded in the format of UDF, ISO9660, or JOLIET.
• Make sure that the number of files does not exceed the limitation (648 files maximum).
• Make sure that this player supports these files. (Refer to “Specifications” > “ playable media”)

DivX video files cannot be played.

• Make sure that the DivX video file is complete and the file extension is correct.
- DRM-protected video files that are stored on a USB flash drive cannot be played through an analog video connection (for example, composite, component, and scart). Transfer the video content onto a supported disc, or use an HDMI connection to play these files.

DivX subtitles are not displayed correctly.

Make sure that the subtitle filename is the same as the video filename.

• Make sure that the DivX video file and the subtitle file are saved under the same directory.
- Select the character set that supports the subtitle. (Refer to [Preference] > [DivX Subtitle])

EasyLink does not work.

Make sure that EasyLink feature is enabled on the TV.

• Make sure the settings for [EasyLink] are correct.

Note

Specifications are subject to change without notice.

DVD region code Countries

Europe

playable media

- Disc

DVD, DVD-Video, VCD, SVCD, Audio CD•

DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer), CD-R/-RW

(Maximum number of files: 648)

- File

Video: .avi, .divx, .mp4, .xvid•

Audio: .mp3, .wma•

Picture: .jpg, .jpeg•

- USB storage device

Compatibility: Hi-Speed USB (2.0)

Class support: MSC (Mass Storage Class)•

• File system: FAT16, FAT32

• Maximum number of albums/folders: 300

• Maximum number of tracks/titles: 648

Video

• Signal system: PAL, NTSC
• Composite video output: 1 Vp-p (75 Ohm)
• Component video output: 0.7 Vp-p (75 Ohm)
• HDMI output: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Audio

• 2-channel analog output
• AUDIO OUT L&R : 2 Vrms (47k Ohm)

• Digital output: 0.5 Vp-p (75 Ohm)

- Coaxial

- HDMI output

• Sampling frequency:

• MP3: 8 kHz, 11 kHz, 12 kHz, 16 kHz, 22 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz

Constant bit rate:•

MP3: 8 kbps - 320 kbps•

WMA: 64 kbps - 192 kbps•

Main unit

Dimensions (W × H × D): 360 × 42 × 209 (mm) •

Net Weight: 1.26 kg•

Power

Power supply rating: 240 V\~; 50 Hz•

Power consumption: < 10 W•

Power consumption in standby mode: < 0.4 W•

Accessories supplied

Remote control and one battery•

Audio/Video cables•

User Manual•

Laser specification

Type: Semiconductor laser InGaAlP (DVD), AlGaAs (CD)

• Wave length: 658 nm (DVD), 790 nm (CD)
• Output Power: 7.0 mW (DVD), 10.0 mW (VCD/CD)
• Beam divergence: 60 degrees

Compliance

This product complies with the radio interference requirements of the European Community.

This apparatus includes this label:

Copyright

Be responsible Respect copyrights

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

Care of the environment

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Care for your product

Do not insert any objects other than discs into the disc compartment.

Do not insert warped or cracked discs into the disc compartment.

- Remove the discs from the disc compartment if you are not using the product for an extended period of time.

Only use microfiber cloth to clean the product.

Warranty

• Risk of injury, damage to the player or void of warranty! Never attempt to repair the player yourself.
• Use the player and accessories only as intended by the manufacturer. The caution sign printed on the back of the player indicates risk of electric shock.
• Never remove the player cover. Always contact Philips Customer Support for service or repairs. Any operation expressly prohibited in this manual, or any adjustments and assembly procedures • not recommended or authorized in this manual shall void the warranty.

Trademark notice

DIVX

ULTRA

ABOUT DIVX VIDEO: DivX ^® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ^® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ^® device must be registered in order to play DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX ^® , DivX Certified ^® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

DivX Ultra ^® Certified to play DivX ^® video with advanced features and premium content.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

DOLBY.

DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

DVD

VIDEO

'DVD Video' is a trademark of DVD Format/Logo Licensing Corporation.

Language code

Abkhazian 6566

Afar 6565

Afrikaans 6570

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Avestan 6569

Aymara 6589

Azerbaijani 6590

Bahasa Melayu 7783

Bashkir 6665

Belarusian 6669

Bengali 6678

Bihari 6672

Bislama 6673

Bokmål, Norwegian 7866

Bosanski 6683

Brezhoneg 6682

Bulgarian 6671

Burmese 7789

Castellano, Español 6983

Catalán 6765

Chamorro 6772

Chechen 6769

Chewa; Chichewa; Nyanja 7889

中文 9072

Chuang; Zhuang 9065

Church Slavic; Slavonic 6785

Chuvash 6786

Corsican 6779

Česky 6783

Dansk 6865

Deutsch 6869

Dzongkha 6890

English 6978

Esperanto 6979

Estonian 6984

Euskara 6985

Ελληνικά 6976

Faroese 7079

Français 7082

Frysk 7089

Fijian 7074

Gaelic; Scottish Gaelic 7168

Gallegan 7176

Georgian 7565

Gikuyu; Kikuyu 7573

Guarani 7178

Gujarati 7185

Hausa 7265

Herero 7290

Hindi 7273

Hiri Motu 7279

Hrwatski 6779

Ido 7379

Interlingua (International)7365

Interlingue 7365

Inuktitut 7385

Inupiaq	7375
Irish	7165
Íslenska	7383
Italiano	7384
Ivrit	7269
Japanese	7465
Javanese	7486
Kalaallisut	7576
Kannada	7578
Kashmiri	7583
Kazakh	7575
Kernewek	7587
Khmer	7577
Kinyarwanda	8287
Kirghiz	7589
Komi	7586
Korean	7579
Kuanyama; Kwanyama	7574
Kurdish	7585
Lao	7679
Latina	7665
Latvian	7686
Letzeburgesch;	7666
Limburgan; Limburger	7673
Lingala	7678
Lithuanian	7684
Luxembourgish;	7666
Macedonian	7775
Malagasy	7771
Magyar	7285
Malayalam	7776
Maltese	7784
Manx	7186
Maori	7773
Marathi	7782
Marshallese	7772
Moldavian	7779
Mongolian	7778
Nauru	7865
Navaho; Navajo	7886
Ndebele, North	7868
Ndebele, South	7882
Ndonga	7871
Nederlands	7876
Nepali	7869
Norsk	7879
Northern Sami	8369
North Ndebele	7868
Norwegian Nynorsk;	7878
Occitan; Provencal	7967
Old Bulgarian; Old Slavonic	6785
Oriya	7982
Oromo	7977
Ossetian; Ossetic	7983
Pali
Panjabi	8065
Persian	7065
Polski	8076
Português	8084

Pushto	8083
Russian	8285
Quechua	8185
Raeto-Romance	8277
Romanian	8279
Rundi	8278
Samoan	8377
Sango	8371
Sanskrit	8365
Sardinian	8367
Serbian	8382
Shona	8378
Shqip	8381
Sindhi	8368
Sinhalese	8373
Slovensky	8373
Slovenian	8376
Somali	8379
Sotho; Southern	8384
South Ndebele	7882
Sundanese	8385
Suomi	7073
Swahili	8387
Swati	8383
Svenska	8386
Tagalog	8476
Tahitian	8489
Tajik	8471
Tamil	8465
Tatar	8484
Telugu	8469
Thai	8472
Tibetan	6679
Tigrinya	8473
Tonga (Tonga Islands)	8479
Tsonga	8483
Tswana	8478
Türkçe	8482
Turkmen	8475
Twi	8487
Uighur	8571
Ukrainian	8575
Urdu	8582
Uzbek	8590
Vietnamese	8673
Volapuk	8679
Walloon	8765
Welsh	6789
Wolof	8779
Xhosa	8872
Yiddish	8973
Yoruba	8979
Zulu	9085
