Product Type	DVD Player
Brand	Philips
Model	DVP3388K
Dimensions (W x D x H)	360 mm x 220 mm x 40 mm
Weight	1.5 kg
Power Supply	100-240 V, 50/60 Hz
Power Consumption	10 W (standby: <1 W)
Playback Disc Types	DVD, DVD+R/RW, CD, CD-R/RW, DivX, MP3, JPEG
Video Outputs	HDMI, Composite Video, Component Video (Y/Pb/Pr)
Audio Outputs	Digital Coaxial, Analog Stereo (L/R)
USB Port	Yes (front panel)
Progressive Scan	Yes
Video Upscaling	Up to 1080p via HDMI
Supported Audio Formats	MP3, WMA, PCM
Supported Image Formats	JPEG
Remote Control	Included
Safety Class	Class 1 Laser Product
Maintenance	Clean with a soft, dry cloth. Do not use liquids.
Spare Parts	Remote control, power cord, batteries (for remote)
Repairability	Refer to qualified service personnel; no user-serviceable parts inside.

Frequently Asked Questions - DVP3388K PHILIPS

Can I play DivX files on the Philips DVP3388K?

Yes, the DVP3388K supports DivX playback from disc or USB. Ensure the files are encoded correctly.

Does this DVD player have HDMI output?

Yes, it has an HDMI output that supports up to 1080p upscaling for improved picture quality.

Can I connect a USB drive to the DVP3388K?

Yes, there is a USB port on the front panel. It supports playback of MP3, JPEG, and DivX files.

What disc formats are compatible?

It plays DVD, DVD+R/RW, CD, CD-R/RW, and DivX discs.

How do I clean the lens or the player?

Use a soft, dry cloth to clean the exterior. For the lens, use a recommended lens cleaning disc. Do not use liquids.

Why is there no picture on my TV?

Check that the TV is set to the correct input source and that the video cable is securely connected. Also ensure the player is powered on.

Can I play audio CDs on this player?

Yes, the DVP3388K plays standard audio CDs and CD-R/RW discs with MP3 files.

Does the player come with a remote control?

Yes, a remote control is included. Batteries are also supplied (usually AAA).

Is the DVP3388K region-free?

No, it is typically region-coded for North America or specific regions. Check the user manual for region code information.

What should I do if the player does not respond?

Unplug the power cord for 30 seconds, then reconnect. If the issue persists, try resetting to factory defaults via the setup menu.

USER MANUAL DVP3388K PHILIPS

Safety and important notice

Trademark Notice

Your DVD player

Features highlight

Product overview

Connect

Connect video cables

Connect audio cables

Route audio to other devices

Connect USB device

Connect to power outlet

Get started

Prepare the remote control

Find the correct viewing channel

Select menu display language

Turn on Progressive Scan 15

Use Philips EasyLink 16

5 Play 17

Play from disc 17

Play video 18

Play music 22

Play photo 23

Play from USB device 25

6 Advanced features 26

Media copy 26

Create MP3 files 26

7 Adjust sound 28

Karaoke settings 28

Turn off vocal (cancel voice) 28

8 Adjust settings 29

General setup 29

Audio setup 30

Video setup 33

Preferences 36

9 Additional information 38

Update software 38

Care 38

10 Specification 39

11 Troubleshooting 41

12 Glossary 43

1 Important

Safety and important notice

Warning

• Risk of overheating! Never install the DVD player in a confined space. Always leave a space of at least four inches around the DVD player for ventilation. Ensure the curtains or other objects never cover the ventilation slots on the DVD player.
• Never place the DVD player, remote control or batteries near naked flames or other heat sources, including direct sunlight.
• Only use this DVD player indoors. Keep this DVD player away from water, moisture and liquid-filled objects.
• Never place this DVD player on other electrical equipment.
• Keep away from this DVD player during lightning storms.
• Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Visible and invisible laser radiation when open. Avoid exposure to beam.

About Progressive Scan

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the 'standard definition' output. If there are questions regarding our TV set compatibility with this model 525p and 625p DVD player, please contact our customer service center.

Recycle notice

This electronic equipment contains a large number of materials that can be recycled or reused if disassembled by a specialized company. If you are disposing of an old machine, please take it to a recycling center. Please observe the local regulations regarding disposal of packaging materials, exhausted batteries and old equipment.

Copyright notice

Be responsible Respect copyrights

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Trademark Notice

DOLBY

DIGITAL

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround

Manufactured under license under U.S. Patent#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

ULTRA

DivX, DivX Ultra Certified, and associated logos are trademarks of DivX, Inc. and are used under license.

Official DivX® Ultra Certified product.

Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media files and the DivX® Media Format.

Plays DivX® video with menus, subtitles and audio tracks.

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, Inc.

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, and HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

2 Your DVD player

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

This DVD player offers higher picture quality video playback for an amazing viewing experience.

Features highlight

Video upscaling to 1080p

You can now watch DVDs in the highest picture quality available for your HDTV. This DVD player offers full high-definition video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness delivers a more true-to-life picture.

EasyLink

EasyLink uses the HDMI CEC (Consumer Electronics Control) industry standard protocol to share functionality with all HDMI CEC compliant devices over HDMI. It enables the connected devices to control each other with a single remote control.

Note

EasyLink (HDMI CEC) is only applicable with certain criteria. Terms and conditions may vary by product. Consult your product dealer for information.

- Philips does not guarantee 100% interoperability with all HDMI CEC devices.

Screen fit

View the movie in full screen on any TV with this DVD player.

Hi speed USB 2.0 link

Simply plug your USB flash drive into the USB jack to play your MP3/WMA/JPEG/DivX/WMV files and enjoy the music play in superb sound quality.

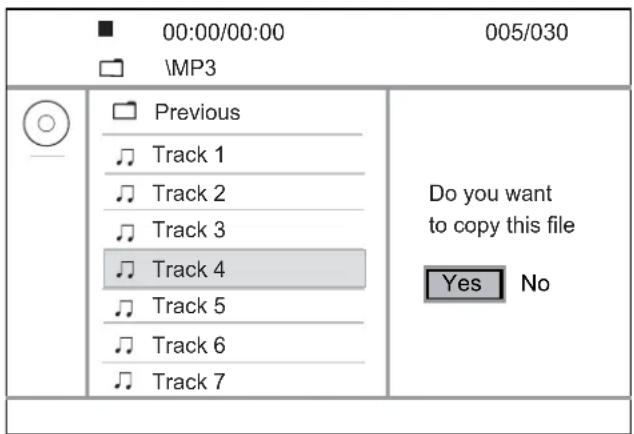

Media copy

You can transfer data files such as MP3, WMA and JPEG from disc to USB flash drive.

Create MP3 files

Convert your favorite audio tracks from an audio CD into MP3 format. The created MP3 files are saved on your USB flash drive.

Karaoke scoring function

Karaoke scoring gives a score for each performance. Have your singing performance scored for even more karaoke fun at home!

Region codes

Your DVD player plays discs with the following region codes.

DVD region code Countries

Asia Pacific, Taiwan, Korea

Australia, New Zealand

Product overview

Main unit

① ⏻ (Standby-on)

Turn on the DVD player or switch to standby mode.

② Disc compartment

③ Display panel

④ ▲ (Open/Close)

Open or close the disc compartment.

⑤ ▶ (Play/Pause)

Start, pause or resume disc play.

⑥ (USB) jack

Connect a USB flash drive.

⑦ MIC

Audio input from a microphone.

Remote control

① ⏻ (Standby-On)

Turn on the DVD player or switch to standby mode.

Press and hold to turn off the DVD player and all HDMI CEC compliant devices.

② ▲ (Open/Close)

Open or close the disc compartment.

③ DISC MENU

Access or exit the disc menu.

• Switch to disc mode.
• For VCD/SVCD, turn PBC (Playback Control) on or off in PBC mode.

④ ▲▼◀▶ (Navigation buttons)

Navigate through the menus.

Search fast-forward (• ▶) or fast-backward (◀). Press repeatedly to change the search speed.

Search slow-forward (• ▲) or slow-backward (▼). Press repeatedly to change the search speed.

⑤ ↩ BACK

Return to the previous display menu.

For DVD, navigate to the title menu.

For VCD version 2.0 or SVCD with • PBC turned on, return to the menu.

⑥ |◀/▶| (Previous/Next)

Skip to the previous or next title, • chapter, or track.

Press and hold for fast-backward or fast-forward search.

⑦ (USB)

Switch to USB mode and display the content.

⑧ Numeric buttons

Select an item to play.

⑨ SUBTITLE

• Select DVD or DivX subtitle language.
• Access the menu to USB copy or USB delete.

⑩ ZOOM

Fit the picture format to the TV screen. Zoom in or out of the picture.

⑪ VOCAL

Change the audio channel of a karaoke disc.

⑫ KARAOKE

Access or exit the karaoke menu.

⑬ AUDIO/CREATE MP3

• Select an audio language/channel.
• Access the menu to create MP3.

⑭ ■ (Stop)

- Stop disc play.

⑮ ▶ II (Play/Pause)

• Start, pause or resume disc play.

⑯ i INFO

• For disc, display the current status or disc information.
• For slideshows, display a thumbnail view of photo files.

⑰ OK

- Confirm an entry or selection.

⑱ SETUP

- Access or exit the setup menu.

3 Connect

Make the following basic connections to use the DVD player.

Basic connections:

Video cables•

Audio cables

Optional connections:

Audio to other devices:

Multi channel receiver

Digital amplifier/receiver

Analog stereo system

Note

Refer to the type plate at the rear or bottom of the product for identification and supply ratings.

Before you make or change any connections, ensure that all the devices are disconnected from the power outlet.

Tip

Different types of connectors may be used to connect this product to your TV, depending on availability and your needs. A comprehensive interactive guide to help you connect your product is available at www.connectivityguide.philips.com.

Connect video cables

Connect this DVD player to the TV to view disc play.

Select the best video connection that the TV can support.

Option 1: Connect to HDMI jack (for a HDMI, DVI or HDCP-compliant TV).

Option 2: Connect to component video jacks (for a standard TV or Progressive Scan TV).

Option 3: Connect to video (CVBS) jack (for a standard TV).

Note

You must connect this DVD player directly to a TV.

Option 1: Connect to HDMI jack

1 Connect a HDMI cable (not supplied) to the HDMI OUT jack on this DVD player and the HDMI input jack on the TV.

Use a HDMI-DVI adaptor in case the TV has only a DVI connection.

Note

If the device supports HDMI CEC, you can control compliant devices with a single remote control (see chapter 'Use Philips EasyLink').

Tip

This type of connections provide best picture quality.

Option 2: Connect to component video jacks

1 Connect the component video cables (not supplied) to the Y Pb Pr jacks on this DVD player and the component video input jacks on the TV.

If a progressive scan TV is used, you may turn on the progressive scan mode (see chapter 'Turn on Progressive Scan' for details).

Tip

The component video input jacks on the TV may be labelled as Y Pb/Cb Pr/Cr or YUV.

- This type of connection provides good picture quality.

Option 3: Connect to video (CVBS) jack

1 Connect a composite video cable (not supplied) to the TV OUT jack on this DVD player and the video input jack on the TV.

Tip

The video input jack on the TV may be labelled as A/V IN, VIDEO IN, COMPOSITE or BASEBAND.

- This type of connection provides standard picture quality.

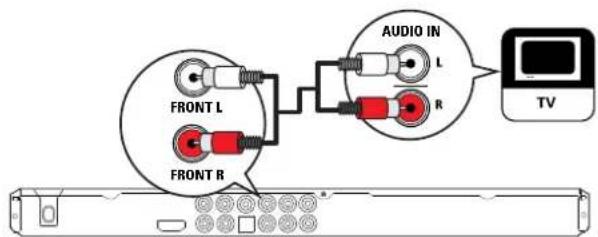

Connect audio cables

Connect the audio from this DVD player to the TV to allow sound output through the TV.

1 Connect the audio cables (not supplied) to the AUDIO OUT FRONT L/R jacks on this DVD player and the audio input jacks on the TV.

Route audio to other devices

Route the sound from this DVD player to other devices to enhance audio play.

Connect to multi channel receiver

1 Connect the audio cables (not supplied) to the AUDIO OUT (FRONT L/R, REAR L/R, CENTER and SUBWOOFER) jacks on this DVD player and the audio input jacks on the device.

Tip

You can optimize the audio output (see chapter 'Adjust settings' - [Audio Setup] > [Analog Output]) for details.

Connect to digital amplifier/receiver

1 Connect a coaxial cable (not supplied) to the COAXIAL jack on this DVD player and the DIGITAL IN (COAXIAL) jack on the device. Or 1 Connect an optical cable (not supplied) to the OPTICAL jack on this DVD player and the DIGITAL IN (OPTICAL) jack on the device.

Tip

You can optimize the audio output (see chapter 'Adjust settings' - [Audio Setup] > [Digital Audio]) for details.

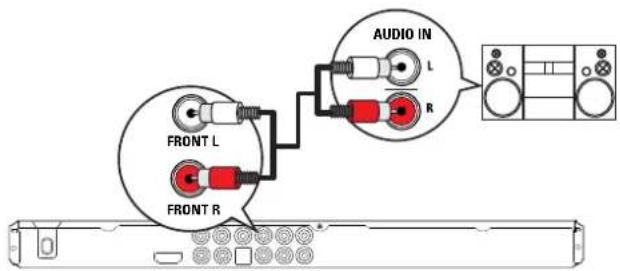

Connect to analog stereo system

1 Connect the audio cables (not supplied) to the AUDIO OUT FRONT L/R jacks on this DVD player and the audio input jacks on the device.

Tip

You can optimize the audio output (see chapter 'Adjust settings' - [Audio Setup] > [Analog Output]) for details.

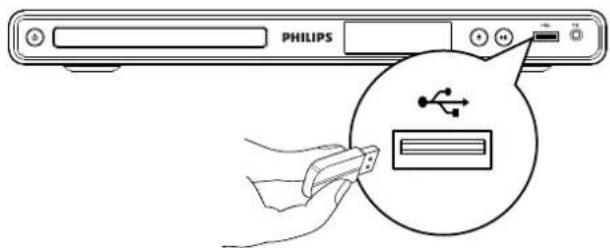

Connect USB device

1 Connect the USB flash drive to the (USB) jack on this DVD player.

Note

This DVD player can only play/view MP3, WMA, DivX, JPEG or WMV files that are stored on such devices.

- Press access the content and play the files.

Connect to power outlet

Warning

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the DVD player.

1 Connect the power cord to the power outlet.

The DVD player is ready to be set up for use.

4 Get started

Prepare the remote control

1 Push to open the battery compartment cover. 2 Insert two R03 or AAA batteries type with correct polarity (+/−) as indicated. 3 Close the battery compartment.

! Caution

Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

• Do not mix batteries (old and new or carbon and alkaline, etc.).
• Batteries contain chemical substances, they should be disposed off properly.

Navigate through the menu

1 Point the remote control directly at the remote sensor on this DVD player and select the desired function.

2 Use the following buttons on the remote control to navigate through the on-screen menus.

Button Action
▲▼	Move up or down.
◀▶	Move left or right.
OK	Confim a selection.
	Enter numbers.

Find the correct viewing channel

1 Press ⏻ to turn on the DVD player. 2 Turn on the TV and switch to the correct video-in channel.

You may go to the lowest channel on the TV, then press the Channel Down button on the TV remote control until you see the Video In channel.

You may press ➕ button repeatedly on the TV remote control.

Usually this channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO, etc.

Tip

See the TV user manual on how to select the correct input on the TV.

If the audio output of this DVD player is routed to other audio device (such as audio system or receiver), turn on the audio device to the appropriate audio input channel. Refer to the device user manual for details.

Select menu display language

Note

You can skip this setting if this DVD player is connected to a HDMI CEC compliant TV. It switches automatically to the same OSD menu language as per your TV setting.

1 Press SETUP.

→ [ General Setup ] menu is displayed.

2 Select [ OSD Language ], then press ▶.

General Setup

Disc Lock

OSD Language

Sleep Timer

Auto Standby

DivX(R) VOD Code

Auto (Eng)

- English

○ 中文（繁體）

○ ไทย

○ 한국어

○ Melayu

The language options are different depending on your country or region. It may not correspond to the illustration shown here.

3 Press ▲▼ to select a language, then press OK.

Tip

- You can set the default language for DVD audio and disc menu, see chapter 'Adjust settings' - [Preferences] for details.

Turn on Progressive Scan

Connect a progressive scan TV with component video jacks (see chapter 'Connect video cables - Option 2: Connect to component video jacks' for details).

1 Turn on the TV to the correct viewing channel for this DVD player.

2 Press SETUP.

3 Press ▼ to select [ Video Setup ].

4 Select [ Progressive ] > [ On ], then press OK.

A warning message is displayed.

Video Setup
TV System	On
TV Display	Off
Progressive
Picture Setting
HD JPEG
HDMI Setup

5 To proceed, select [OK] and press OK.

→ The progressive setup is complete.

Note

If a blank/distorted screen is displayed, wait for 15 seconds for the auto recover.

- If no picture displayed, turn off the progressive scan mode as follows:

1) Press ▲ to open the disc compartment.

2) Press the numeric button '1'.

6 To exit the menu, press SETUP.

7 You can now turn on the progressive scan mode on the TV (see the TV user manual).

Note

The progressive scan setting will not be available when the HDMI video signal is detected.

During play, when progressive scan mode is on for both this DVD player and the TV, a distorted picture may display. Turn off the progressive scan feature on both this DVD player and the TV.

Use Philips EasyLink

The DVD player supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control.

Philips does not guarantee 100% interoperability with all HDMI CEC devices.

1 Turn on the HDMI CEC operations on the TV and other connected devices. See the TV/devices manual for details. 2 You can now enjoy the following Philips EasyLink controls.

One-touch play

When you press the STANDBY button, it turns on the TV and this DVD player, then video disc play starts.

To enable One-touch play, a video disc must be placed in the disc compartment before operation.

One-touch standby

When you press and hold the STANDBY button, all connected HDMI CEC devices switch to standby mode simultaneously.

Tip

The default setting for EasyLink features is on. You can change the default setting, see chapter 'Adjust settings' - [Video Setup] > [HDMI Setup] > [EasyLink Setup] for details.

5 Play

Play from disc

Note

DVDs and DVD players are designed with regional restrictions. Ensure that the DVD video you play is for the same region zone as the player (indicated on its back).

• This DVD player can support play of the following file formats: MP3/WMA/JPEG/DivX/WMV.
• About WMV 9 - this DVD player only supports Main Profile (low level) and Simple Profile. Advanced Profile and DRM-protected video files are not supported.
• To play DVD-R, DVD+R or DVD-RW, the disc must be finalized.

Play a disc

Caution!

Never place any objects other than discs into the disc compartment.

1 Press ▲ to open the disc compartment. 2 Insert a disc with its label facing up. For double-sided disc, load the side to play faces up. 3 Press ▲ to close the disc compartment and start disc play. To view disc play, turn on the TV to the correct viewing channel for this DVD player. 4 To stop disc play, press ■.

Tip

If the password entry menu is displayed, you have to enter the password before it can be played.

• If you pause or stop a disc for about 5 minutes, the screen saver activates. To deactivate the screen saver, press DISC MENU. After you pause or stop a disc, if no buttons are pressed within 15 minutes, this DVD player automatically switches to standby mode.

Play video

Note

For video disc, play always resumes from the point where it was last stopped. To start play from the beginning, press while the message is displayed.

Control a title

1. Play a title. 2. Use the remote control to control the title.

Button Action
▶II	Start, pause or resume disc play.
■	Stop disc play.
▶I	Skip to the next title or chapter.
◀	Skip to the beginning of the current title or chapter.Press twice to jump to the•previous title or chapter.
◀◀, ▶◀	Searches fast-forward (▶◀)or fast-backward (◀◀).Press repeatedly to change•the search speed.
▲, ▼ Searches slow-forward (▲) or slow-backward (▼).Press repeatedly to change•the search speed.For VCD/SVCD, slow-•backward search is not possible.

Change video play

1. Play a title. 2. Use the remote control to change the video play.

Button Action
AUDIO/CREATE MP3	Change audio language.Only applicable to discs • with multiple audio language or channel.
SUBTITLE	Change subtitle language.Only applicable to discs • with multiple subtitle language.
ZOOM(Screen Fit)	Fit the picture format to the TV screen.Press repeatedly until the • image is scaled to fit to the TV screen.
ZOOM	Toggle between screen aspect ratio and different zoom factor.To pan through the zoomed image, press the navigation buttons.
INFO	Display the current status or disc information.You can change the video play options here without interrupting disc play.

Note

- Some operations may not work with some discs. See the information accompanying the disc for details.

Access DVD menu

1. Press DISC MENU to access disc main menu. 2. Select a play option, then press OK.

In some menus, press the numeric buttons to input your selection.

To return to the title menu during play, press BACK.

Access VCD menu

The PBC (Playback Control) for VCD/SVCD is turned on by default in the factory. When you load in a VCD/SVCD, the contents menu is displayed.

1. Press numeric buttons to select a play option, then press OK to start play.

If PBC is off, it skips the menu and starts play from the first track.

During play, you can press • ↩ BACK to return to the menu (if the PBC mode is on).

Tip

The default setting for PBC is on. You can change the • default setting, see chapter 'Adjust settings' - [ Preferences ] > [ PBC ] for details.

Preview disc contents

1 During play, press INFO. → The disc status menu is displayed. 2 Select [Preview], then press ▶.

DVD

Select Digest Type:

Title Digest Chapter Digest Title Interval Chapter Interval

VCD/SVCD

Select Digest Type:

Track Digest Disc Interval Track Interval

3 Select a preview option, then press OK.

A six thumbnails preview screen is displayed.

To go to the next/previous preview • screen, press ◀/▶.

• To start play, press OK at the selected thumbnail picture.

Quick skip play to a specific time

1 During play, press INFO. → The disc status menu is displayed.

2 Select the current elapsed playing time, then press ▶.

[ TT Time ] • (title time)

[CH Time] • (chapter time)

[ Disc Time ] • (disc time)

[ Track Time ] • (track time)

3 Press the numeric buttons to change the time where you want to skip to.

Display play time

1 During play, press INFO. → The disc status menu is displayed.

2 Select [ Time Disp ], then press ▶.

→ The display options are different depending on the disc type.

Option Action
[ Title Elapsed ] / [ Chapter Elapsed ]	Display DVD title or chapter elapsed play time.
[ Title Remain ] / [Chapter Remain ]	Display DVD title or chapter remaining play time
[ Total Elapsed ] / [Single Elapsed ]	Display VCD/SVCD disc or track elapsed play time.
[ Total Remain ] / [Single Remain ]	Display VCD/SVCD disc or track remaining play time.

3 Select an option, then press OK.

View DVD play from different angles

1 During play, press INFO. → The disc status menu is displayed.

2 Select [ Angle ], then press ▶.

3 Press the numeric buttons to change the angle.

Play changes to the selected angle.

Note

Only applicable to discs containing sequences recorded from different camera angles.

Repeat play - video

For DVD/VCD/SVCD

1 During play, press INFO. → The disc status menu is displayed.

2 Select [ Repeat ] in the menu, then press ▶.

3 Press ▲▼ to select a repeat option, then press OK.

Note

- For VCD/SVCD, repeat play is only possible if PBC mode is turned off.

Set repeat play for a specific section

1 During play, press INFO. → The disc status menu is displayed.

2 Select [ Repeat AB ] in the menu, then press OK at the start point.

3 Press OK again to set the end point.

→ Repeat play starts.

4 To cancel repeat play, press OK again.

Note

The marked section for repeat play is only possible within a title or track.

Play DivX® video

DivX video is a digital media format that retains high quality despite a high rate of compression. This DVD player is DivX® Certified so that you can enjoy DivX video.

1 Insert a disc or USB that contains the DivX videos. For USB, press ⬇. → A contents menu is displayed.

2 Select a title to play, then press OK.

3 Use the remote control to control the title.

Button Action
SUBTITLE	Change subtitle language.
AUDIO/CREATE MP3	Change audio language/channel.
■	Stop disc play.For DivX, the contents • menu is displayed.For DivX Ultra video, • press this button again to display the contents menu.
i INFO	Display title elapsed play • time or title remaining play time.Display DivX Ultra video • information.

Note

• You can only play DivX videos that were rented or purchased with the DivX registration code of this DVD player (see chapter 'Adjust settings' - [General Setup] > [DivX(R) VOD Code] for details).
• If the subtitle does not appear correctly, change the subtitle language (see chapter 'Adjust settings' - [ Preferences ] > [ DivX Subtitle ] for details).

Play music

Note

For some commercial audio discs, play may resume from the point where it was last stopped. To start play from the first track, press ◀.

Control a track

1 Play a track. 2 Use the remote control to control the track.

Button Action
▶II	Start, pause or resume disc play.
■	Stop disc play.
▶I	Skip to the next track.
|◀	Skip to the beginning of the current track. Press twice to jump to the previous track.
1 2 34 5 67 8 90	Select an item to play.
◀◀, ▶▶ Searches fast-forward (▶▶)or fast-backward (◀◀).Press repeatedly to change •the search speed.

Quick skip play

1 During play, press INFO until one of the following options is selected.

Display Action
[ Disc Go To ]	Skip play to a specifi c time within the disc.
[ Track Go To ]	Skip play to a specifi c time within a track
[ Select Track ]	Skip play to a specifi c track number.

2 Press the numeric buttons to change the time/number where you want to skip to.

Repeat play - audio

For audio CD

1 During play, press INFO repeatedly until [Off] is selected. 2 Press ◀▶ to select a repeat option.

For MP3/WMA files

1 During play, press INFO to select a repeat option.

Play MP3/WMA music

MP3/WMA is a type of highly compressed audio file (files with .mp3, .wma extensions).

1 Insert a disc or USB that contains the MP3/WMA music.

For USB, press

A contents menu is displayed.

→ Play starts.

2 Select a track to play if play does not start automatically.

To select another track/folder, press ▲▼, then press OK.

3 To return to the main menu, press ▲ until the root menu is selected, then press OK.

3 To return to the main menu, press ▲ until the root menu is selected, then press OK.

For CDs recorded in multiple sessions, only the first session is played.

For CDs recorded in multiple sessions, only the first session is played.

• This DVD player does not support MP3PRO audio format.
• If any special characters are present in the MP3 track name (ID3) or album name, it may not display correctly on the screen because these characters are not supported.
• Some WMA is protected by Digital Rights Management (DRM), it cannot be played on this DVD player.
• Folders/files that exceed the supported limit of this DVD player are not displayed or played.

You can display the data disc contents without folders, see chapter 'Adjust settings' - [ Preferences ]

You can display the data disc contents without folders, see chapter 'Adjust settings' - [ Preferences ]

[Mp3/Jpeg Nav] for details.

Play photo

Play photos as slideshow

This DVD player can play JPEG photos (files with .jpeg or .jpg extensions).

1 Insert a disc or USB that contains the JPEG photos.

For USB, press

For a Kodak disc, the slideshow begins automatically. For a JPEG disc, the photo menu is displayed.

2 Select the folder/album you want to play.

To preview the photos in the folder/album, press ⓘ INFO.

To go to previous or next screen display, press ◀/▶.

• To select a photo, press the navigation buttons. To display the selected photo only, press OK.

3 Press OK to start slideshow play.

To return to the menu, press ↩ BACK.

Note

You may require longer time to display the disc content on the TV due to the large number of songs/photos compiled onto one disc.

• If the JPEG photo is not recorded with an 'exif' type file, the actual thumbnail picture is not shown on the display. It is replaced by a 'blue mountain' thumbnail picture.
• This DVD player can only display digital camera pictures according to the JPEG-EXIF format, typically used by almost all digital cameras. It cannot display Motion JPEG and pictures in formats other than JPEG, or sound clips associated with pictures.
• Folders/files that exceed the supported limit of this DVD player are not displayed or played.

Control photo play

1 Play photo slideshow. 2 Use the remote control to control the photo.

Button Action
◀	Rotate the photo anti-clockwise.
▶	Rotate the photo clockwise.
▲	Flip the photo vertically.
▼	Flip the photo horizontally.
ZOOM	Zoom in/ out.Play pause in zoom mode.•
■	Stop disc play.

Play musical slideshow

Play MP3/WMA music files and JPEG photo files simultaneously to create a musical slideshow. The MP3/WMA and JPEG files must be stored on the same disc.

1 Play MP3/WMA music. 2 Navigate to the photo folder/album and press OK to start slideshow play.

→ Slideshow begins and continues till the end of the photo folder or album. Audio continues to play till the end of the disc.

To return to the menu, press • ↩ BACK.

3 To stop slideshow play, press ■. 4 To stop music play, press ■ again.

Play from USB device

This DVD player plays/views MP3, WMA, DivX, JPEG or WMV files that are stored on a USB device.

1 Connect a USB flash drive to the (USB) jack on this DVD player. 2 Press → A contents menu is displayed. → Play starts. 3 Select a file to play if play does not start automatically.

For more information, see chapters • 'Play music, Play photo, Play video' for details.

4 To stop play, press ■ or remove the USB device.

To switch to disc mode, press DISC MENU.

Tip

If the device does not fit into the USB socket, connect it using a USB extension cable.

Digital cameras that require additional program installation when connected to a PC are not supported.

6 Advanced features

Media copy

You can transfer data files such as MP3, WMA, or JPEG from disc to the USB device.

1 Insert a disc containing the MP3/WMA/JPEG files. 2 Press ■ to stop disc play. 3 Connect the USB flash drive to the (USB) jack on this DVD player. 4 Select the file to copy, then press SUBTITLE.

5 Select [Yes] in the menu to start copying, then press OK.

Once complete, a new folder is created automatically in the USB device to store all the new data files.

6 To stop copy progress, press ■, then press OK.

Note

While copying, never press any buttons.

Copy-protected media cannot be copied.

Create MP3 files

You can convert audio CDs into MP3 audio files with this DVD player. The created MP3 audio files are saved in the USB device.

1 Insert an audio CD. 2 Connect the USB flash drive to the (USB) jack on this DVD player. 3 During disc play, press AUDIO/CREATE MP3. 4 Select [Yes] in the menu and press OK.

Create MP3
OPTIONS		TRACK
Speed	Normal	○ Track01	04:14
Bitrate	128kbps	○ Track02	04:17
CRT ID3	Yes	○ Track03	03:58
Device	USB 1	○ Track04	04:51
Summary		○ Track05	03:53
Press [OK] button to change speed.		○ Track06	04:09
		○ Track07	04:38
Start Exit		Select all	Deselect all

5 Select the conversion options in the [OPTIONS] panel and press OK.

Option Description
[ Speed ]	Select the write-to-fi le speed.If • [ Normal ] speed is selected, music play can be heard while creating the MP3 fi le.
[ Bitrate ]	Select the quality level.Higher bitrate for better sound quality and bigger fi le size.Default setting is • [ 128 kbps ].
[ CRT ID3 ]	Copy track information into the MP3 fi le.Default setting is • [ Yes ].
[ Device ]	The created MP3 fi les can only be saved in USB device.

6 Press ▶ to access the [TRACK] panel.

7 Select the audio track, then press OK. To select another track, repeat step 7. To select all tracks, select [Select all] in the menu and press OK. To deselect all tracks, select [Deselect all] in the menu and press OK.

8 Select [Start] in the menu to start the conversion, then press OK. → Once complete, a new folder is created automatically in the USB device to store all the new MP3 files. • To exit the menu, select [Exit] and press OK.

Note

• While converting, never press any buttons. • DTS CDs and copy-protected CDs cannot be converted. • Write-protected or password-protected USB devices cannot be used to store MP3 files.

[Deselect]

7 Adjust sound

Karaoke settings

1 Turn on the TV to the correct viewing channel for this DVD player. 2 Connect a microphone (not supplied) to the MIC jack on this DVD player. 3 Press KARAOKE repeatedly to access various setting options.

[MIC]: Press ◀▶ to turn on or off microphone output.

[Vol]: Press ◀▶ to set the microphone volume level.

[Echo]: Press ◀▶ to set the echo level.

[Key]: Press ◀▶ to set the pitch level that matches your voice.

[ Karaoke Scoring ]: Select a karaoke rating score level.

[Off] – no score rating display. [Basic] – basic rating. [Intermediate] – intermediate rating. [Advance] – advance rating.

Note

A karaoke score is displayed at the end of the song. Press OK to exit and resume karaoke session.

• Karaoke score function is only available for DVD and VCD discs.
• Set the microphone volume to the minimum level before connecting the microphone to prevent howling.

Turn off vocal (cancel voice)

1 Press VOCAL repeatedly to toggle through various audio modes or turn off the vocal.

Note

You cannot cancel the voice output from MP3 discs.

8 Adjust settings

This section describes the various setting options of this DVD player.

Symbol Option
	[ General Setup ]
	[ Audio Setup ]
	[ Video Setup ]
	[ Preferences ]

Note

If the setup option is greyed out, it means the setting cannot be changed at the current state.

General setup

1 Press SETUP.

→ [ General Setup ] menu is displayed.

2 Press ▶.

3 Select an option, then press OK.

General Setup
Disc Lock
OSD Language
Sleep Timer
Auto Standby
DivX(R) VOD Code

4 Select a setting, then press OK.

To return to the previous menu, press •

To exit the menu, press • SETUP.

Note

See the explanations of the above options in the following pages.

[Disc Lock]

Set play restriction for a specific discs. Before you start, place the disc in the disc compartment (maximum 20 discs can be locked).

[Lock] • - restrict access to the current disc. The next time you want to play this disc or unlock it, you need to enter the password.

[Unlock]• – play all discs.

Tip

- You can set or change the password by going to [Preferences] > [Password].

[ OSD Language ]

Select the default on-screen menu language.

[ Sleep Timer ]

Switch to standby automatically after the preset time.

• [Off] – disable sleep mode.

- [15 Mins], [30 Mins], [45 Mins], [60 Mins] – select the countdown time before the DVD player switches to standby.

[ Auto Standby ]

Turn off or on automatic standby switching mode. It is an energy saving feature.

[ On ] – switch to standby after 15 minutes of inactivity (for example, in pause or stop mode).

[Off] – disable auto standby mode.

[ DivX(R) VOD Code ]

Display the DivX® registration code.

Tip

Enter this DVD player's DivX registration code when you rent or purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered.

Audio setup

1 Press SETUP. → [ General Setup ] menu is displayed. 2 Press ▼ to select [ Audio Setup ], then press ▶. 3 Select an option, then press OK.

Audio Setup
Analog Output
Digital Audio
HDMI Audio
Audio Sync
Volume
Sound Mode
Speaker Setup
CD Upsampling

4 Select a setting, then press OK.

To return to the previous menu, press •

To exit the menu, press • SETUP.

Note

See the explanations of the above options in the following pages.

[Analog Output]

Select the analog audio setting based on the audio device that is connected through the analog audio jack.

[ Stereo ]• – for stereo output.

[ LT/RT ]• – for surround sound output through two speakers.

[ Multi Channel ]• – for multi channel output.

[ Digital Audio ]

Select the setting based on the digital amplifier/receiver that is connected through the digital jack.

[ Digital Output ]• – select the type of digital output.

Option Description

[ Off ] Disable digital output.

[ All ] The device supports multi-channel audio formats.

[ PCM Only ] The device is not capable of decoding multi-channel audio. Audio is downmixed to two-channel sound: see [ LPCM Output ] setting.

[ LPCM Output ]

(Linear Pulse Code Modulation) output sampling rate.

Option	Description
[ 48kHz ]	For discs recorded at sampling rate of 48 kHz.
[ 96kHz ]	For discs recorded at the sampling rate of 96 kHz.

Note

• [Digital Audio] setting is only available if the [HDMI Audio] is set to [Off].
• [LPCM Output] setting is only available if the [Digital Output] is set to [PCM only].
• The higher the sampling rate, the better the sound quality.

[ HDMI Audio ]

Select the audio output setting when you connect this DVD player and the TV with a HDMI cable.

• [On] – audio output through the TV. - [Off] – disable audio output from the TV.

[ Audio Sync ]

Set the default delay time for audio output when you play a video disc.

1. Press OK.
2. Press ◀▶ to set the delay time.
3. Press OK to confirm and exit.

[ Volume ]

Set the default volume level when you play a disc.

1. Press OK.
2. Press ◀▶ to set the volume.
3. Press OK to confirm and exit.

- select the LPCM

[ Sound Mode ]

Select a preset sound effect to enhance the audio output.

[3D]• – select a virtual surround sound effect that is produced from the left and right audio channels.

[ Movie Mode ]• – select a sound effect for movies.

[ Music Mode ]• – select a sound effect for music.

[ Speaker Setup ]

When you connect a speaker system, you can optimize surround output for the connected speakers.

[ Front Speaker ]•

Option Description

[ Large ] Produce low frequency signal below 120 Hz.

[ Small ] Cannot produce low frequency signal below 120 Hz.

[ Center Speaker ] / [ Rear Speakers ]•

Option Description

[ Large ] Produce low frequency signal below 120 Hz.

[ Small ] Cannot produce low frequency signal below 120 Hz.

[ Off ] No speaker is connected.

[ Subwoofer ] •

Option Description

[On] A subwoofer is connected.

[Off] No subwoofer is connected.

- [Speakers Volume] – Set the volume level of each speaker to get the ideal audio balance.

1. Press OK.
2. Select a speaker, then press ◀▶ to adjust the volume.
3. Press OK to confirm and exit.

- [Speakers Delay] – Set the delay time for the center, subwoofer and rear speakers if they are placed closer to the listening position, so that the sound output from all speakers reach the listening position at the same time.

1. Press OK.
2. Select a speaker, then press ◀▶ to set the delay time.
3. Press OK to confirm and exit.

Note

- [Speaker Setup] setting is only available if you have set the [Analog Output] setting to [Multi Channel].

[ CD Upsampling ]

For better sound quality in stereo mode, convert the music CD to a higher sampling rate.

[Off] – turn off CD-upsampling.

[88.2kHz] – convert to twice the original sampling rate.

[176.4kHz] – convert to four times the original sampling rate.

[ Night Mode ]

You can play DVDs with Dolby Digital mode at a low volume, without disturbing others. High volume output is decreased and low volume output is increased to an audible level.

[On] – turn on night mode.

[Off] – enjoy surround sound with its full dynamic range.

Video setup

1 Press SETUP. → [ General Setup ] menu is displayed. 2 Press ▼ to select [ Video Setup ], then press ▶. 3 Select an option, then press OK.

Video Setup
TV System
TV Display
Progressive
Picture Setting
HD JPEG
HDMI Setup

4 Select a setting, then press OK.

To return to the previous menu, press •

To exit the menu, press • SETUP.

Note

See the explanations of the above options in the following pages.

[ TV System ]

If the video does not appear correctly, change the setting. By default, this setting matches the most common setting for TVs in your country.

[ PAL ]• – for PAL-system TV.

[ Multi ]• – for TV that is compatible with both PAL and NTSC.

[NTSC]• – for NTSC-system TV.

[ TV Display ]

Select the screen format according to how you want the picture to appear on the TV.

4:3 Pan Scan (PS)

4:3 Letter Box (LB)

16:9 (Wide Screen)

[4:3 Pan Scan] – for standard TV, a full-height screen display with the sides trimmed.

[4:3 Letter Box] – for standard TV, a 'wide-screen' display with black bars on the top and bottom.

[16:9] – for wide-screen TV (frame ratio 16:9).

[Progressive]

If a progressive scan TV is not connected through HDMI cable, turn on progressive scan mode.

[On] – turn on progressive scan mode.

[Off] – disable progressive scan mode.

Tip

- There is more detailed description available. See chapter 'Get Started - Turn on Progressive Scan' for details.

[ Picture Setting ]

Select a predefined set of picture color settings or customize the personal setting.

• [Standard] – original color setting.

• [Bright] – vibrant color setting.

• [Soft] – warm color setting.

- [Personal] – customize the color setting. Set the level of brightness, contrast, sharpness and color saturation, then press OK.

[ HD JPEG ]

Enjoy untouched and uncompressed JPEG pictures at their original resolution when you connect this DVD video player and the TV with a HDMI cable.

• [On] – display high definition picture.

• [Off] – display standard picture.

Note

- This DVD video player supports the resolution display of 720p and above.

[ HDMI Setup ]

When you connect this DVD player and the TV with a HDMI cable, select the best HDMI setup that the TV can support.

- [Resolution] – select a video resolution that is compatible with the TV display capability.

Option	Description
[ Auto ]	It detect and select the best supported video resolution automatically.
[ 480i ], [ 480p ], [ 576i ], [ 576p ], [ 720p ], [ 1080i ], [ 1080p ]	Select a video resolution that best supported by the TV. See the TVs manual for details.

Note

If the setting is not compatible with the TV, a blank screen appears. Wait for 15 seconds for auto recover or switch to its default mode as follows:

1) Press ▲ to open the disc compartment. 2) Press numeric button '1'.

[ Wide Screen Format ] • – define the wide screen format for disc play.

Option Description

[ Superwide ]	Center position of the screen is stretched less than the side. This setting is only applicable if the video resolution is set to 720p or 1080i/p.
[ 4:3 Pillar Box ]	No stretching of the picture. Black bars are displayed on both sides of the screen. This setting is only applicable if the video resolution is set to 720p or 1080i/p.
[ Off ]	Picture will be displayed according to the format of the disc.

Note

This setting is only available if you have set the [TV Display] setting to [16:9].

[EasyLink Setup] – if this DVD player is connected to HDMI CEC compliant TV/devices, all connected devices can respond to the following commands simultaneously:

Option Description

[ EasyLink ] Turn off or turn on all EasyLink features. • To disable this feature, select [ Off ].
[ One Touch Play]	When you press the STANDBY button, it turns on the TV and this DVD player, then video disc play starts (if a video disc is found in the disc compartment). • To disable this feature, select [ Off ].
[ One Touch Standby ]	When you press and hold the STANDBY button, all connected HDMI CEC devices switch to standby mode simultaneously. • To disable this feature, select [ Off ].

Note

Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. - You must turn on the HDMI CEC operations on the TV/devices before you can enjoy the EasyLink controls. See the TVs/devices manual for details.

Preferences

1 Press SETUP. → [General Setup] menu is displayed. 2 Press ▼ to select [Preferences], then press ▶. 3 Select an option, then press OK.

Preferences

Audio
Subtitle
Disc Menu
Parental Control
PBC
Mp3/Jpeg Nav
Password
DivX Subtitle

4 Select a setting, then press OK.

To return to the previous menu, press •

To exit the menu, press • SETUP.

Note

• Stop disc play before you can access [Preferences].
• See the explanations of the above options in the following pages.

[ Audio ]

Select the default audio language for DVDs.

[ Subtitle ]

Select the default subtitle language for DVDs.

[ Disc Menu ]

Select the menu language for DVDs.

Note

If the language you have set is not available on the disc, the disc uses its own default language.

• For some DVDs, the subtitle/audio language can only change from the disc menu.
• To select the languages that are not listed in the menu, select [Others]. Then check the Language Code list at the back of this user manual and enter the respective language code.

[ Parental Control ]

Restrict access to DVDs that are unsuitable for children. These types of DVDs must be recorded with ratings.

Press 1.

OK.

Select a rating level, then press 2.

Press the 3.

numeric

the password.

button:

Note

• Rated DVDs above the level you set in [Parental Control] require a password to be played.
• The ratings are country-dependent. To allow all discs to play, select '8'.
• Some DVDs have ratings printed on them but are not recorded with ratings. This function has no effect on such DVDs.

Tip

- You can set or change the password, go to [Preferences] > [Password].

[PBC]

For VCDs/SVCDs recorded with PBC (playback control), you can access the disc content through an interactive menu.

[ On ]• – an index menu is displayed when you load a disc for play.

[Off]• – skip the menu and start play from the first track.

[ Mp3/Jpeg Nav ]

Select to display the folders or display all the files.

[View Files] – display all the files.

[View Folders] – display the folders of MP3/WMA files.

[Password]

Follow the instructions on the TV to set or change the password for locked discs and play restricted DVDs.

Press the 1.

numeric

'136900' or the last set password at [

Old Password] field.

Enter the new password at 2.

Password] field.

Enter the new password again at 3.

[Confirm PWD] field.

1. Press OK to exit the menu.

Note

If you forget the password, enter '136900' before you set a new password.

[ DivX Subtitle ]

Select a character set that supports the DivX subtitle.

[Standard]

Albanian, Danish, Dutch,

English, Finnish, French,

Gaelic, German, Italian,

Kurdish (Latin), Norwegian,

Portuguese, Spanish,

Swedish, Turkish

[ Hebrew ]

Hebrew

(except for

Taiwan)

Note

- Ensure that the subtitle file has the exact same file name as the movie file. If for example the file name of the movie is 'Movie.avi', then you will need to name the text file 'Movie.sub' or 'Movie.srt'.

[Version Info]

Display the software version of this DVD player.

This information is required when you want to find out if a newest software version is available at the Philips website that you may download and install on this DVD player.

[Default]

Reset all the settings of this DVD player to factory default, except for [Disc Lock],

[ Parental Control ] and [ Password ]

buttons to erretings.

[

New

9 Additional information

Update software

To check for updates, compare the current software version of this DVD player with the latest software version (if available) at the Philips website.

Caution

Power supply must not be interrupted during • software upgrade.

1 Press SETUP.

Preferences
Disc Menu
Parental Control
PBC
Mp3/Jpeg Nav
Password
DivX Subtitle
Version Info
Default

2 Select [ Preferences ] > [ Version Info ], then press OK. 3 Write down the file name, then press SETUP to exit the menu.

4 Visit www.philips.com/support to check for the latest software version, using the file name for this DVD player. 5 Refer to the upgrade instructions for more information.

Note

Disconnect the power cord for a few seconds and connect again to reboot the system.

Care

Caution

Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

Clean discs

Wipe the disc with a microfibre cleaning cloth from the center to the edge in a straight line movement.

10 Specification

Note

Specification and design are subject to change without notice.

Accessories supplied

Quick Start Guide

Remote control and batteries

Audio/video cables

Power cable (except for Taiwan)

Playback media

DVD-Video, Video CD/SVCD, Audio CD, CD-R/

CD-RW, DVD+R/+RW, DVD-R/-RW, DivX-CD,

Picture CD, MP3-CD, WMA-CD, WMV-CD, USB

flash drive

USB

Compatibility: Hi-Speed USB (2.0)

Class support: UMS (USB Mass Storage Class)

TV standard

Number of lines:

625 (PAL/50Hz); 525 (NTSC/60Hz)

Playback: Multi-standard (PAL/NTSC)

Video performance

• Video DAC: 12 bits, 108 MHz

• Y Pb Pr: 0.7 Vpp ~ 75 ohm

• Video output: 1 Vpp ~ 75 ohm

Video format

• Digital compression:

- MPEG 2: DVD/SVCD

- MPEG 1: VCD/DivX

• Horizontal resolution:

• DVD: 720/1920 pixels (50 Hz); 720/1920 pixels (60 Hz)

• VCD: 352 pixels (50 Hz); 352 pixels (60 Hz)

• Vertical resolution:

• DVD: 576/1080 lines (50 Hz); 480/1080 lines (60 Hz)

• VCD: 288 lines (50 Hz); 240 lines (60 Hz)

Audio performance

• DA converter: 24 bits, 192 kHz

• Frequency response:

• DVD: 4 Hz - 22 kHz (48 kHz); 4 Hz - 44 kHz (96 kHz) • SVCD: 4 Hz - 20 kHz (44.1 kHz); 4 Hz - 22 kHz (48 kHz) • CD/VCD: 4 Hz - 20 kHz (44.1 kHz)

• Signal-Noise (1 kHz): > 90 dB (A-weighted) • Dynamic range (1 kHz): > 80 dB (A-weighted) • Crosstalk (1 kHz): > 70 dB • Distortion/noise (1 kHz): > 65 dB • MPEG MP3: MPEG Audio L3

Audio format

- Digital:

• MPEG/AC-3/PCM: Compressed digital (16, 20, 24 bits fs, 44.1, 48, 96 kHz)
• MP3 (ISO 9660): 96, 112, 128, 256 kbps & variable bit rate fs, 32, 44.1, 48 kHz

- Analog sound stereo

- Dolby surround compatible downmix from Dolby Digital multi-channel sound

Connections

• Y Pb Pr output: Cinch 3x • Video output: Cinch (yellow) • Audio output (Front L+R): Cinch (white/red) - Digital output:

• 1 coaxial: IEC60958 for CDDA/LPCM; IEC61937 for MPEG 1/2, Dolby Digital • 1 optical

• HDMI output • 5.1 channel analog output

• Audio Front L+R: Cinch (white/red) • Audio Rear L+R: Cinch (white/red) • Audio Center: Cinch (blue) • Audio Subwoofer: Cinch (black)

Main unit

Dimensions (w x h x d): 360 x 37 x 209 (mm)

Net Weight: approximately 1.3 kg

Power

Power supply rating: 110 V - 240V; 50/60 Hz

Power consumption: < 12 W

Power consumption in standby mode: < 0.3 W

Laser Specification

Type: Semiconductor laser InGaAlP (DVD), AlGaAs (CD)

Wave length: 658 nm (DVD), 790 nm (CD)

Output Power: 7.0 mW (DVD), 10.0 mW (VCD/CD)

Beam divergence: 60 degrees

11 Troubleshooting

Warning

Risk of electric shock. Never remove the casing of this unit.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this DVD player, check the following points before requesting service. If the problem remains unsolved, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your DVD player. The model number and serial number are on the back or bottom of your DVD player. Write the numbers here:

Model No. ____

Serial No. ____

Main unit

The buttons on this DVD player do not work.

Disconnect this DVD player from the power outlet for a few minutes, then connect again.


No picture.

See TV manual for correct video input channel selection. Change the TV channel until you see the DVD screen.

If this happens when you turn on the progressive scan setting or change the TV system setting, you have to switch to its default mode:

Press 1. ▲ to open the disc compartment.

Press the 2. numeric button '1' (for progressive scan) or the numeric button '3' (for TV System).

No picture on HDMI connection.

Check if the HDMI cable is faulty. Replace it with a new HDMI cable.

If this happens when you change the HDMI video resolution, you have to switch to its default mode:

Press 1. ▲ to open the disc compartment

Press 2. numeric button '1'.

Sound

No sound.

Ensure that the audio cables are connected and the connected device is turned on to the correct input source.

No sound on HDMI connection.

You may not hear any sound from the HDMI output if the connected device is non-HDCP compliant or only DVI-compatible.

- Ensure that the [ HDMI Audio ] setting is turned on.

No sound during DivX movies play.

- The audio codec may not be supported by this DVD player.

Play

DivX video files cannot be played.

Ensure that the DivX video file is complete. Ensure that the file name extension is correct.

The aspect ratio of the screen is not aligned with the TV display setting.

The aspect ratio is fixed on the DVD.

DivX subtitles are not displayed correctly.

Ensure that the subtitle file name is the same as the movie file name. Select the correct character set.

Press 1. SETUP.

Select 2. [Preferences] > [DivX

Subtitle] in the menu.

Select the character set that supports 3. the subtitle.

The contents of the USB flash drive cannot be read.

The USB flash drive format is not

compatible with this DVD player.

Drive is formatted with a different file system which is not supported by this DVD player (e.g. NTFS).

12 Glossary

A

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-definition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

D

DivX®

The DivX code is a patent-pending, MPEG-4 based video compression technology, developed by DivX Networks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.

H

HDMI

High-Definition Multimedia Interface (HDMI) is a high-speed digital interface that can transmit uncompressed high definition video and digital multichannel audio. It delivers high quality picture and sound quality, completely free from noise. HDMI is fully backward-compatible with DVI.

As required by the HDMI standard, connecting to HDMI or DVI products without HDCP (High-bandwidth Digital Content Protection) will result in no Video or Audio output.

J

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognised by their file extension 'JPG or JPEG'.

M

MP3

A file format with a sound data compression system. 'MP3' is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer3. By using the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD. Files are recognised by their file extension '.MP3'.

O

One-touch play

When you connect the DVD player to devices that support one-touch play, you can control the DVD player and the devices with one remote control. For example, when you press Play on the DVD remote control, the TV automatically switches to the correct channel to show the DVD content.

One-touch standby

When you connect the DVD player to devices that support standby, you can use DVD player remote control to put the DVD player and all connected HDMI devices in standby mode. You can perform one-touch standby using the remote control from any of the connected HDMI devices.

P

PBC

Playback Control. A system of navigating a Video CD/Super VCD through on-screen menus recorded onto the disc. You can enjoy interactive play and searching.

Progressive Scan

The progressive scan displays twice the number of frames per second than ordinary TV system. It offers higher picture resolution and quality.

W

WMA

Windows Media™ Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 9 or Windows Media Player for Windows XP. Files are recognised by their file extension 'WMA'.

WMV

A video file or stream in Windows Media format. It is a compression format of motion picture based on MPEG-4 developed by Microsoft.

Language Code

Abkhazian 6566

Afar 6565

Afrikaans 6570

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Avestan 6569

Aymara 6589

Azerhaijani 6590

Bahasa Melayu 7783

Bashkir 6665

Belarusian 6669

Bengali 6678

Bihari 6672

Bislama 6673

Bokmål, Norwegian 7866

Bosanski 6683

Brezhoneg 6682

Bulgarian 6671

Burmese 7789

Castellano, Español 6983

Catalán 6765

Chamorro 6772

Chechen 6769

Chewa; Chichewa; Nyanja 7889

中文 9072

Chuang; Zhuang 9065

Church Slavic; Slavonic 6785

Chuvash 6786

Corsican 6779

Česky 6783

Dansk 6865

Deutsch 6869

Dzongkha 6890

English 6978

Esperanto 6979

Estonian 6984

Euskara 6985

Ελληνικά 6976

Faroese 7079

Français 7082

Frysk 7089

Fijian 7074

Gaelic; Scottish Gaelic 7168

Gallegan 7176

Georgian 7565

Gikuyu; Kikuyu 7573

Guarani 7178

Gujarati 7185

Hausa 7265

Herero 7290

Hindi 7273

Hiri Motu 7279

Hrwatski 6779

Ido 7379

Interlingua (International)7365

Interlingue 7365

Inuktitut 7385

Inupiaq	7375
Irish	7165
Íslenska	7383
Italiano	7384
Ivrit	7269
Japanese	7465
Javanese	7486
Kalaallisut	7576
Kannada	7578
Kashmiri	7583
Kazakh	7575
Kernewek	7587
Khmer	7577
Kinyarwanda	8287
Kirghiz	7589
Komi	7586
Korean	7579
Kuanyama; Kwanyama	7574
Kurdish	7585
Lao	7679
Latina	7665
Latvian	7686
Letzeburgesch;	7666
Limburgan; Limburger	7673
Lingala	7678
Lithuanian	7684
Luxembourgish;	7666
Macedonian	7775
Malagasy	7771
Magyar	7285
Malayalam	7776
Maltese	7784
Manx	7186
Maori	7773
Marathi	7782
Marshallese	7772
Moldavian	7779
Mongolian	7778
Nauru	7865
Navaho; Navajo	7886
Ndebele, North	7868
Ndebele, South	7882
Ndonga	7871
Nederlands	7876
Nepali	7869
Norsk	7879
Northern Sami	8369
North Ndebele	7868
Norwegian Nynorsk;	7878
Occitan; Provencal	7967
Old Bulgarian; Old Slavonic	6785
Oriya	7982
Oromo	7977
Ossetian; Ossetic	7983
Pali
Panjabi	8065
Persian	7065
Polski	8076
Português	8084

Pushto	8083
Russian	8285
Quechua	8185
Raeto-Romance	8277
Romanian	8279
Rundi	8278
Samoan	8377
Sango	8371
Sanskrit	8365
Sardinian	8367
Serbian	8382
Shona	8378
Shqip	8381
Sindhi	8368
Sinhalese	8373
Slovensky	8373
Slovenian	8376
Somali	8379
Sotho; Southern	8384
South Ndebele	7882
Sundanese	8385
Suomi	7073
Swahili	8387
Swati	8383
Svenska	8386
Tagalog	8476
Tahitian	8489
Tajik	8471
Tamil	8465
Tatar	8484
Telugu	8469
Thai	8472
Tibetan	6679
Tigrinya	8473
Tonga (Tonga Islands)	8479
Tsonga	8483
Tswana	8478
Türkçe	8482
Turkmen	8475
Twi	8487
Uighur	8571
Ukrainian	8575
Urdu	8582
Uzbek	8590
Vietnamese	8673
Volapuk	8679
Walloon	8765
Welsh	6789
Wolof	8779
Xhosa	8872
Yiddish	8973
Yoruba	8979
Zulu	9085

PHILIPS CONSUMER ELECTRONICS

WARRANTY POLICY FOR AUSTRALIA

Effective 1st October 2007

Philips provides the following Consumer Electronics products with a 1 Year Manufacturers Warranty:-

Colour Televisions, Projection TV, Plasma & LCD TV, DVD Players, DVD Recorders, DVD Recorders with Hard Disk, Personal Video Recorders, Audio Systems, Wireless Audio Systems, Home Theatre systems, Digital Set Top Box, Digital Photo Display, MP3 players & Portable Audio products.

Additionally, all Philips LCD televisions with a built-in digital tuner sold after 1st October 2007, are supported by a 3 Year Manufacturers Warranty.

The benefits given to the purchaser by this warranty are in addition to all other rights and remedies, which the purchaser has in respect of the product under the Trade Practices Act or other Commonwealth or State Law.

The conditions contained in this warranty replace and override the provision of the Philips World-Wide Guarantee for products purchased in Australia and used in Australia.

Please record the following information for your records and keep in a safe place. It is essential that you retain your original purchase receipt to make a warranty claim.

Model number : ....

Serial number : ....

Date of purchase : ....

Retailer : ....

If you require assistance with the operation of the product, its features or specifications, you may call the Philips Technology Care Centre on 1300 363 391 where support is provided by our trained call centre staff.

If the product fails within the warranty period then the following will apply.

Free Repair Service – at an Authorised Service Centre

For the products listed below, please contact one of our Authorised Service Centres on 1300 361 392. Colour Television, Plasma or LCD Television, LCD Television, Projection Television, DVDR/VCR Combo, DVD Recorder with Hard Drive, Personal Video Recorder, LCD Projector, Wireless Audio System, Audio System, Home Theatre System, Digital Set-Top-Box or a Portable DVD player with an LCD screen for which you paid more than $250.

Version 1.2: 1

1st October 2007

Free Replacement – at your Retailer

For Digital Photo Frames or any product with a purchase price of less than $250, please return the faulty product to the place of purchase. The retailer will arrange a replacement product for you.

If your Philips product develops a fault outside of the warranty period, please contact a Philips Authorised Service Centre on 1300 361 392 to discuss your repair options.

Conditions of Repair Warranty

a. All claims for warranty service should be made to your nearest Philips Authorised Service Centre or the Philips Technology Care Centre. Proof of the original date of purchase must be provided.

b. This warranty extends only to defects in material or workmanship occurring under normal use of the product when operated in accordance with the instructions.

c. Philips may, at its discretion choose to replace rather than repair any product covered by this Warranty.

d. If a replacement product is supplied under the repair policy, it is warranted for the remainder of the warranty period, from the original date of purchase.

e. Home service is provided only within the normal service area of the nearest Philips Authorised Service Centre. Home Service will be provided for television only with a screen size of 29 inch or above (product includes CRT, LCD TV, Projection TV, and Plasma TV). For televisions with screen sizes of less than 29 inch and all other products with a repair warranty, please take these products to the nearest Authorised Service Centre.

f. This Manufacturers Warranty is limited to 3 months for products used in commercial applications.

g. Product accessories are covered by the same warranty period. If an accessory is faulty, please contact the Philips Technology Care Centre for a replacement.

h. This Manufacturer's Warranty is neither transferable nor valid in countries other than Australia.

i. The warranty period is valid from the original date of purchase of the product.

This Warranty does not cover:-

a. Mileage or travel is not covered outside the Philips Authorised Service Centres' normal service area.

b. Service costs arising from failure to correctly adjust the controls of the product or to observe the instructions, or inspections that reveal that the product is in normal working order.

c. Product failures caused by misuse, neglect, accidental breakage, transit damage, amateur repairs or modification by unauthorised persons, external fires, lightning strikes, floods, vermin infestation or liquid spillage.

d. Cleaning of video or audio heads.

e. Reception problems.

f. Replacement of worn or used batteries or other consumables.

g. Second hand products.

h. Refurbished products which are covered by a 6 month manufacturer's warranty.

Thank you for purchasing this quality Philips product.

Philips New Zealand Ltd guarantees this product against defective components and faulty workmanship for a period of 12 months. Any defect in materials or workmanship occurring within 12 months from the date of purchase subject to the following conditions will be rectified free of charge by the retailer from whom this product was purchased.

Conditions

1. The product must have been purchased in New Zealand. As proof of purchase, retain the original sales docket indicating the date of purchase.
2. The guarantee applies only to faults caused by defective components, or faulty workmanship on the part of the manufacturer.
3. The guarantee does not cover failures caused by misuse, neglect, normal wear and tear, accidental breakage, use on the incorrect voltage, use contrary to operating instructions, or unauthorised modification to the product or repair by an unauthorised technician.
4. Reasonable evidence (in the form of a sales docket) must be supplied to indicate that the product was purchased no more than 12 months prior to the date of your claim.
5. In the event of a failure, Philips shall be under no liability for any injury, or any loss or damage caused to property or products other than the product under guarantee.

This guarantee does not prejudice your rights under common law and statute, and is in addition to the normal responsibilities of the retailer and Philips.

How to claim

Should your Philips product fail within the guarantee period, please return it to the retailer from whom it was purchased. In most cases the retailer will be able to satisfactorily repair or replace the product.

However, should the retailer not be able to conclude the matter satisfactorily, or if you have other difficulties claiming under this guarantee, please contact

The Guarantee Controller Philips New Zealand Ltd.

P.O. Box 41.021

Auckland

(09) 84 94 160

fax [phone]
