Product Type	Digital Bathroom Scale
Brand	OBH Nordica
Model	Light Line
Dimensions	30 x 30 x 2.5 cm (11.8 x 11.8 x 1 in)
Weight	1.2 kg (2.6 lbs)
Maximum Capacity	180 kg / 396 lb / 28 st
Division	0.1 kg / 0.2 lb
Display	LCD with large digits
Power Supply	2 x CR2032 lithium batteries (included)
Auto-off	After 10 seconds of inactivity
Low Battery Indicator	Yes
Platform Material	Tempered glass with anti-slip strips
Units	kg / lb / st (selectable via button)
Tare Function	Not available
Memory	None (basic model)
Overload Indication	Yes
Cleaning	Wipe with a damp cloth; do not immerse
Safety	Use on hard, flat surface; avoid shock
Warranty	2 years (consumer use)

Frequently Asked Questions - Ligth Line OBH NORDICA

How do I set up the OBH Nordica Light Line scale?

Insert the two CR2032 batteries (included) into the compartment on the back. Place the scale on a hard, flat surface. Press the scale to turn it on; it will auto-calibrate. Step on gently for accurate reading.

What is the maximum weight capacity?

The scale can weigh up to 180 kg / 396 lb / 28 st. Exceeding this may damage the scale and cause inaccurate readings.

How do I change the unit from kg to lb or st?

On the bottom of the scale, there is a unit switch. Slide it to choose between kg, lb, or st. Make sure the scale is off before switching.

Why does the display show 'Lo' or the battery symbol?

The batteries are low. Replace both CR2032 batteries with new ones. Use lithium batteries for best performance.

How do I clean the scale properly?

Wipe the glass platform with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water. Dry thoroughly before use.

Why is my weight reading different each time?

For consistent results, weigh yourself at the same time of day, on the same hard surface, and in similar clothing. The scale is accurate to 0.1 kg; slight variations can occur due to body fluid changes.

Can I use the scale on carpet?

For accurate readings, place the scale on a hard, flat surface like tile or hardwood. Carpet can cause instability and incorrect measurements.

What should I do if the scale shows 'Err' or 'Overload'?

'Err' may indicate a sensor issue; try resetting by removing batteries for 10 seconds. 'Overload' means you exceeded the maximum capacity.

How should I store the scale when not in use?

Store the scale in a dry, cool place away from direct sunlight. Avoid placing heavy objects on top of the scale.

Does the scale have a warranty?

Yes, OBH Nordica provides a 2-year warranty for consumer use against manufacturing defects. Keep your proof of purchase.

USER MANUAL Ligth Line OBH NORDICA

Digital kitchen stainless steel digital counter with LCD display and metal frame (no visible text or symbols)

light line // electronic glass scale //

Nice design //

Easy to read LCD display //

Capacity 150 kgs //

Automatic switch off after use //

Woman sitting on a large round exercise ball, wearing athletic wear (no text or symbols visible)

Type

Diagram of a mechanical device with a circular housing and a rectangular component, no visible text or symbols

Billede A

Diagram of a cylindrical device with a battery and internal components, mounted on a base plate (no text or symbols)

Billede B

Simple line drawing of a circular device with a plus sign and connected tubing, mounted on a base (no text or symbols)

Billede C

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf. 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6251

Technical diagram of a mechanical assembly with a circular component and a lid, showing internal components (no text or symbols)

Bild A

Diagram of a cylindrical device mounted on a base with wires and a battery (no text or symbols)

Bild B

Simple line drawing of a circular object with a plus sign and a rectangular base, no text or symbols present.

Bild C

Rengöring

OBH Nordica Sweden AB

Box 58

163 91 Spånga

Tfn 08-445 79 00

www.obhnordica.se

Tekniska data

OBH Nordica 6251

Apparaten ska kasseras som elektronikavfall

Tips ved veiing

Technical diagram of a mechanical assembly with a circular component and a lid, no visible text or symbols

Bilde A

3D diagram of a cylindrical device with a base and top plate, no visible text or symbols

Bilde B

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Bilde C

OBH Nordica Norway AS

Postboks 5443, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6251

Apparatet skal avleveres som elektronisk avfall.

Min 10 kg / maks 150 kg med 100 g intervall.

VAROITUS! Liukas mä

Punnituksesta

Technical diagram of a mechanical assembly with a circular component and a base plate (no text or symbols)

Kuva A

Diagram of a cylindrical device with a battery and screw, mounted on a base plate (no text or symbols)

Kuva B

Simple line drawing of a circular object mounted on a base with a battery and a plus sign, no text or symbols present.

Kuva C

Puhdistus

Before you use the scale for the first time you should read the instructions carefully and save them for future use.

Since the scale is electronic you should be aware that the function can be affected by changes in temperature or if you move the scale. The function can also be affected by other electronic appliances as cell phones, heating coils, microwaves etc. Place the scale in a room with normal temperature and let it acclimatize for 24 hours before you use it for the first time.

Before the first use or if the scale has been moved always do this procedure, otherwise it may lead to wrongfull weighing. Start to reset the scale by tapping in the middle of the scale, the display flicker 4 lines for about 3 seconds, after that it shows "0.0", let it automatically turn off.

The tolerance of the scale is 1%, it means that if you weigh 70 kg it may vary between 69,3 and 70,7 kg. The scale has an interval of 100 g, so if you weigh 70,75 the display will show either 70,7 or 70,8 kg (with 1% tolerance).

Helpful hints

To ensure reliable readings, always stand completely still on the scale, otherwise the result may be misleading. Clothing or just eaten meals can have effect on the readings. If you want to monitor your weight during a long period of time you should consider weighing your self approximately the same time of the day each time, preferable without clothes and without moving the scales in between.

Use

1. Place the scale on an even flat surface and reset it as described before. Activate the scale by lightly tapping the centre of the scale. When the display shows "0.0" it is ready to be used.
2. Step on the scale, place your feet at the same position each time and divide the weight between both legs and between toe and heel. Remember to stand completely still. The display fl inker“---” for 3 seconds and your measurement will appear on the display.
3. When you have stepped off the scale your weight can be seen for a few seconds and after that the display will show "0.0". The display will automatically shut off after 5 seconds which prolongs the lifetime of the battery.

If you overload the scale (max 150 kg) the display will show "Err".

Important!

To achieve a correct result you ought to follow these guidelines:

• Place the scale on an even, fl at and dry surface.
• Place the feet on the same place on the scale every time.
• Divide your weight evenly between toe and heel.
• Stand still.

If the scale is overloaded the display will show "Err".

Battery

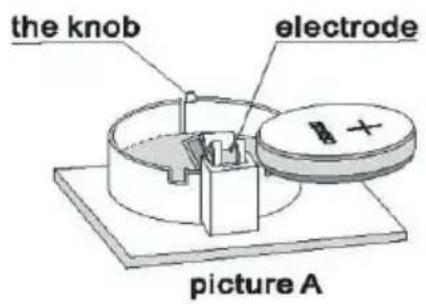

When the batteries need to be changed, the display will show “Lo”. Remove the battery compartment lid, remove the old battery by pull outwards the little black knob which is on the side of the battery slot and coax out the battery (pic A). Place a new lithium battery type CR2032 by putting one edge under the electrode, then press down the other edge inside the slot from the knob side (pic B and C), then put the battery compartment lid back on.

Diagram of a cylindrical device mounted on a base plate, labeled 'picture B' (no other text or symbols)

Diagram of a cylindrical device with a base and a switch, labeled 'picture C' below (no text or symbols on the diagram itself)

Cleaning

1. Read the instruction manual carefully before use, and save it for future use.
2. The appliance must not be immersed into water or other liquids. Should it get wet, it must be wiped off immediately, as liquids contain minerals which may result in rust in the electronic parts or which may totally destroy the electronic parts.
3. If the appliance gets dirty, the dirt can be wiped off with a slightly humid cloth, and then wiped with a dry cloth.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. The appliance must not be used if it has been dropped on the floor, or if it is clear that the appliance is damaged. In such cases the appliance should be handed in for repair at the distributor where it was bought.
7. Use only new batteries of the correct size. Used batteries should always be removed, as they may leak chemicals which may damage the circuitry of the appliance.
8. The appliance is for domestic use only.
9. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Environmental considerations and disposal of batteries

When substituting batteries it is essential to take the environment into consideration. Used batteries must never be disposed of with domestic garbage. Batteries marked with the symbol indicating separate waste collection must be returned to one of the authorized collection points. Batteries must be removed from the appliance before it is disposed of. Also take care that the batteries are not expired or become worn-out since there may then be a risk that the batteries will leak acid. Check the validity date printed on the batteries.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Claim according to valid law. Machine stamped receipt shall be enclosed if you wish to make a complaint. The appliance shall be returned to the store where it's purchased.

OBH Nordica Sweden AB

Box 58

163 91 Spånga

Tfn 08-445 79 00

www.obhnordica.se

Technical data

OBH Nordica 6251

Must be discarded as electronic waste

Min 10 kg, max 150 kg with 100 g interval.

Tolerance ± 1%

LCD display.

3V lithium battery type CR2032

Auto shut off after 10 seconds.

With reservation for running changes.
