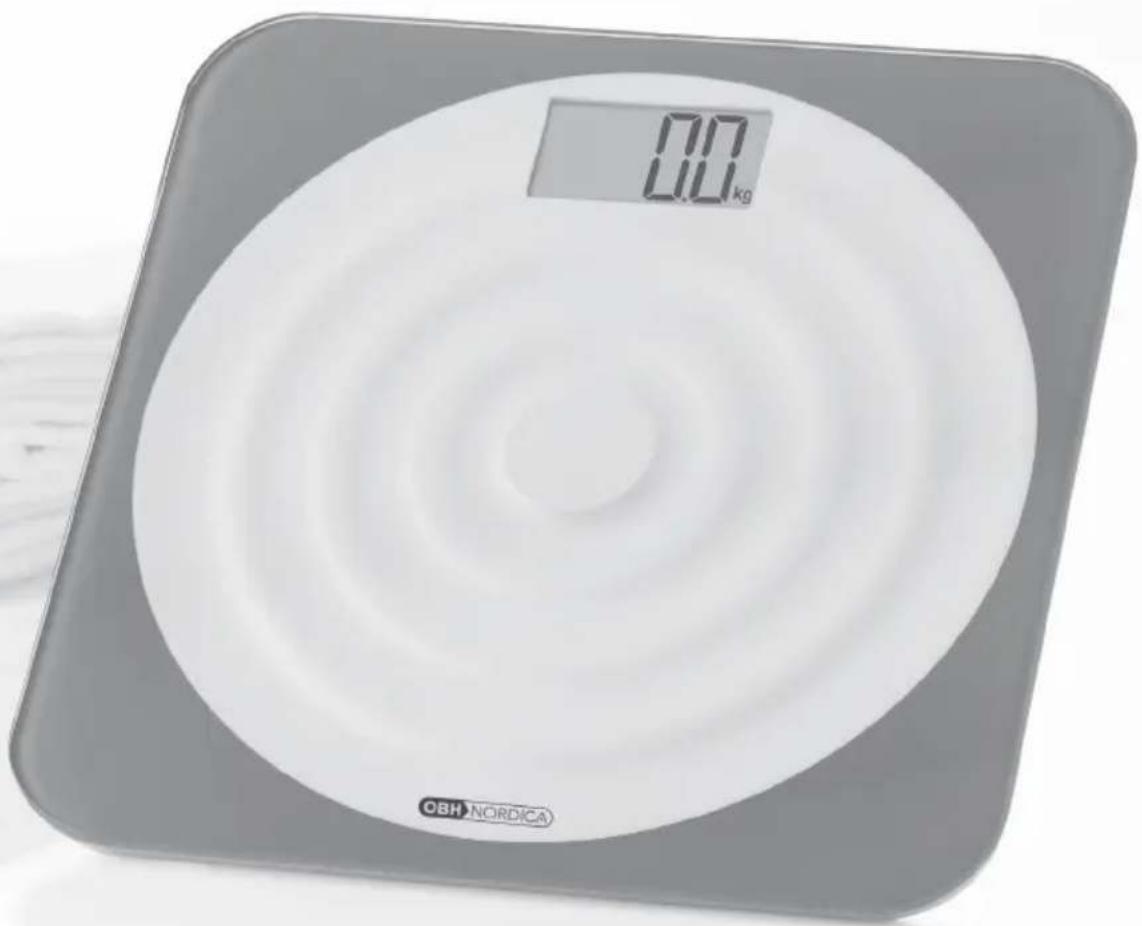

Personal - Scale OBH NORDICA - Free user manual and instructions

Product Type	Personal Scale
Brand	OBH Nordica
Model	Personal (6264, 6265, 6266)
Category	Bathroom Scale
Display	LCD with backlight
Material	6mm safety glass
Dimensions (Height)	24 mm (slim design)
Maximum Weight	150 kg
Minimum Weight	5 kg
Increments	100 g
Accuracy	±1%
Repeat Accuracy	±0.3 kg
Power Supply	2 x CR2032 batteries (included)
Auto-Off	After approximately 10 seconds
Special Functions	Instant ON, low battery indicator, overload indicator (----)
Units	kg, st/lb, lb (selectable)
Cleaning	Wipe with slightly damp cloth, then dry
Safety	Do not immerse in water; use only new batteries; for domestic use only
Warranty	According to current law; cash receipt required
Disposal	As electronic waste (separate collection)

Frequently Asked Questions - Personal OBH NORDICA

How do I activate the scale for the first time?

Remove the plastic slip from the battery compartment underneath the scale to activate the batteries. Then select the weight unit (kg, st/lb, or lb) by pressing the round button marked (kg/st/lb) underneath the scale until the display shows the desired unit. The scale is now activated and set.

Why does my scale show an inaccurate weight?

The scale must be reset before first use or after moving it. Place it on a firm, flat surface, let it turn off automatically, then step on. Also, stand still during weighing as even slight movements can cause deviations. The scale has a tolerance of ±1% (e.g., 70 kg may display between 69.3 and 70.7 kg).

What does 'Lo' on the display mean?

'Lo' indicates low battery. Replace the batteries with 2 new CR2032 batteries. Open the battery compartment lid, remove old batteries with a paper clip, insert new ones with the negative (-) side facing down, and close the lid.

What is the maximum weight the scale can measure?

The maximum weight is 150 kg. If exceeded, '----' will appear on the display.

Can I use the scale on carpet?

For accurate results, place the scale on a plain, firm surface. Carpeted or uneven floors may affect accuracy.

How do I clean the scale?

Wipe the scale with a slightly damp cloth and then dry it with a dry cloth. Do not immerse the scale in water or any liquid.

Why does the scale show different weights each time I weigh myself?

Factors such as clothes, shoes, recent meals, and body movement during weighing can cause variations. Weigh yourself under similar conditions (e.g., same time of day, without clothes) for consistent tracking. Also ensure the scale is on a flat surface and reset if moved.

How do I change the weight unit?

Press the round button underneath the scale marked (kg/st/lb) repeatedly until the display shows your preferred unit: kg, st/lb (stones and pounds), or lb (pounds).

What should I do if the scale displays '----'?

'----' means the scale is overloaded. Step off immediately to avoid damage. The maximum capacity is 150 kg.

How do I dispose of the scale and batteries?

Do not dispose of batteries with household waste. Return used batteries to an authorized collection point. The scale itself must be disposed of as electronic waste at a municipal collection point.

USER MANUAL Personal OBH NORDICA

Slim design (height: 24mm)

6mm safety glass

LCD with backlight

Instant ON function

Max 150 kg, 100 g increments

Low battery and overload indicator

OBH Nordica Denmark A/S

Ole Lippmanns Vej 1

2630 Taastrup

Tlf.: 43 350 350

www.obhnordica.dk

Tekniske data

OBH Nordica 6264, 6265, 6266

2 stk. CR2032

OBH Nordica Norway AS

Postboks 5334, Majorstuen

0304 Oslo

Tlf: 22 96 39 30

www.obhnordica.no

Tekniske data

OBH Nordica 6264, 6265, 6266

2 stk CR2032 batterier

1. Read the instruction manual carefully before use, and save it for future use.
2. The appliance must not be immersed into water or other liquids. Should it get wet, it must be wiped off immediately, as liquids contain minerals which may result in rust in the electronic parts or which may totally destroy the electronic parts.
3. If the appliance gets dirty, the dirt can be wiped off with a slightly humid cloth, and then wiped with a dry cloth.
4. This appliance can be used by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety and they understand the hazards involved.
5. Children should be supervised to ensure that they do not play with the appliance. Children are not always able to understand potential risks. Teach children a responsible handling of electrical appliances.
6. The appliance must not be used if it has been dropped on the floor, or if it is clear that the appliance is damaged. In such cases the appliance should be handed in for repair at the distributor where it was bought.
7. Use only new batteries of the correct size. Used batteries should always be removed, as they may leak chemicals which may damage the circuitry of the appliance.

8. The appliance is for domestic use only.

9. If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.

Before use

Before the personal scale is taken into use for the first time, please read this instruction manual thoroughly and keep it for future use.

Please note that all electronic equipment are sensitive, including electronic scales. This means that various conditions may influence weighing, e.g. temperature swings and moving the around. Inaccuracies may occur if the scale is cold. The scale consequently functions most accurately at normal room temperature. It is important that the scale is allowed to 'acclimatize' for 24 hours before it is used for the first time. Electronic noise from other units such as mobile phones, small transmitters, and certain microwave ovens may influence weighing.

Important

Remove the plastic slip from the battery compartment underneath the scale to activate the batteries. Set the scale for kg, stones, (st/lb) or British pounds (lb) by pressing the round button located underneath the scale marked (kg/st/lb) until the display shows requested unit. The scale is now activated and set.

The scale must be reset before it is used for the first time, or if it has been moved. If the scale is not reset according to the instructions above, weighing errors will almost definitely occur.

The scale has a maximum tolerance of approximately 1%, i.e. if a person weighs 70 kg the displayed weight may fall between 60.3 and 70.7. E.g. if you weigh 70.75 kg, the scale will read either 70.7 or 70.8 kg (with 1% tolerance).

Tips before weighing

It is important to stand completely still during weighing as even the slightest body movements may cause considerable deviations from the actual weight. Also keep in mind that the scale is influenced by the clothes you wear, if you wear shoes, if you have just finished a meal, etc.

If you wish to keep an eye on your weight over a longer period of time, weighing should be performed under comparable conditions every day, preferably without clothes and without moving the scale around between weighings.

How to use the scale - important

1. Place the scale on a plain, firm surface.
2. Reset the scale if this has not already been done. See above instructions.
3. Let the scale switch off automatically (the display turns off).
4. Step onto the scale (stand with your feet in the same place each time). Your weight should be equally distributed between both feet and with equal weight on the heel and the front of the foot. Remember to stand completely still! The weight can now be read from the display.
5. The scale always switches off automatically approximately 10 seconds after weighing, ensuring a long battery lifetime.

If the scale is overloaded (150 kg maximum), "----" will appear in the display.

Battery

When batteries needs to be replaced "Lo" will appear in the display. Open and remove the battery compartment lid underneath the scale and remove the old batteries with a paper clip or similar. Put the new batteries in place (2 pcs CR2032) under the plastic pins in each compartment (- should be placed facing downwards). Put the lid back in place.

Environmental considerations and disposal of batteries

When disposing of batteries it is essential to take the environment into consideration. Used batteries must never be disposed of with domestic garbage. Used batteries must be returned to one of the authorized collection points. Batteries must be removed from the appliance before it is disposed of. Also take care that the batteries are not expired or become worn-out since there may then be a risk that the batteries will leak acid. Check the validity date printed on the batteries.

Disposal of the appliance

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Warranty

Claims according to current law. Cash receipt with purchase date shall be enclosed with any claims. When raising a claim the appliance must be returned to the store of purchase.

OBH Nordica Sweden AB

Box 58

163 91 Spånga

Phone: [phone]

www.obhnordica.se

Technical data

OBH Nordica 6264, 6265, 6266

2 CR2023

Min. 5 kg, max. 150 kg with 100 g interval.

Accuracy: ±1%

Repeat accuracy: +/- 0.3 kg

Automatic switch-off after 10 seconds

The unit must be disposed of as electronic waste

CE

With reservation for ongoing changes and improvements
