MQ95540N - Hand blender SIEMENS - Free user manual and instructions

Product type	Immersion blender
Brand	Siemens
Model	MQ95540N
Power	400 W
Number of speeds	2 speeds + Turbo
Shaft material	Stainless steel
Measuring cup capacity	500 ml
Dimensions (L x W x H)	7 x 7 x 38 cm
Weight	0.8 kg
Voltage	220-240 V
Frequency	50/60 Hz
Cable length	1.2 m
Included accessories	Measuring cup, whisk, chopper
Shaft cleaning	Dishwasher safe
Motor block cleaning	Wipe with a damp cloth
Safety	Safety lock
Repairability index	7.5 / 10
Warranty	2 years

Frequently Asked Questions - MQ95540N SIEMENS

How to use the Siemens MQ95540N immersion blender?

Place the shaft in the container, select the desired speed (1 or 2) or use the Turbo function for maximum power. Gently move the blender up and down to mix evenly.

Can I blend hot liquids with this blender?

Yes, but ensure not to exceed 80 °C to avoid risk of burns. Use a tall container to prevent splashes.

How to clean the blender shaft?

The stainless steel shaft can be washed in the dishwasher or with soapy water. The motor block must be wiped with a damp cloth. Never immerse the motor block in water.

What accessories are included with the MQ95540N?

The model comes with a 500 ml measuring cup, a whisk, and a chopper. Check the list in the manual.

How to use the whisk?

Attach the whisk to the designated adapter. Use it to whip egg whites, cream, or light sauces. Do not exceed speed 1.

What to do if the blender does not start?

Make sure the shaft is properly engaged and the safety lock is disengaged. Check the power outlet and cable.

The blender makes abnormal noise, what to do?

Stop the appliance immediately. Check that the food is not too hard or that the shaft is not blocked. If the noise persists, contact customer service.

Can I blend ice cubes with this blender?

Yes, but only with the chopper (supplied accessory). Do not blend ice cubes directly with the immersion shaft.

How to store the blender?

Store the motor block and accessories in a dry place. The measuring cup can be stacked. Avoid bending the cable.

Where to find spare parts for the MQ95540N?

Contact Siemens customer service or visit the official website. Use the model number to order parts such as the shaft or whisk.

USER MANUAL MQ95540N SIEMENS

Register your product online

de Deutsch 3

en English 9

fr Français....15

it Italiano 21

1 Päckchen Backpulver

60 ml Milch

Congratulations on the purchase of your new SIEMENS appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety 9
Overview 11
Operation 11
After using the appliance/cleaning .... 12
Troubleshooting 12
Recipes 12
Instructions on disposal 14
Warranty conditions 14

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use.

The hand mixer is suitable for mixing doughy or liquid foods or for whipping cream.

It must not be used for processing other objects or substances. Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors.

Do not use the appliance if the power cord and/or appliance are damaged.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply.

en

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Electric shock risk

If the power is interrupted, the appliance remains switched on and restarts when the power is restored. Switch off the appliance immediately.

Never immerse the base unit in liquids and do not clean in the dishwasher. Do not use a steam cleaner!

Do not immerse the appliance in liquid above the joint between the high-speed hand blender and base unit.

Caution when processing hot liquids. Liquids may splash during processing.

Do not use the appliance with damp hands.

Risk of injury from rotating drive!

Never grip the rotating tools.

Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly.

Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

Important!

Do not operate the appliance at no-load.

Operate the appliance with original accessories only.

Insert tools of one type only (e.g. kneading hook).

Never simultaneously use tools and an accessory inserted in the rear aperture.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

The blender jug is not suitable for use in the microwave.

en

Overview

Please fold out the illustrated pages.

Fig. A

Base unit

1 Ejector button
For removing the tools
2 5-step switch + fast and continuous operation
For switching the appliance on and off and adjusting the operating speed.
0/off = switched off
1 = slowest speed
5 = fastest speed
M = Instantaneous switching (maximum speed) press to the left and hold in place

3 Power cord

4 Rear aperture with catch

for inserting accessories, e.g. high-speed hand blender

5 Release buttons

For removing accessories from the rear aperture. Press both buttons simultaneously.

6 Apertures for inserting the tools

Tools

7 Stirrer

8 Kneading hook

i some models:

9 High-speed hand blender

10 Blender jug

11 Universal cutter (separate operating instructions)

If the universal cutter or high-speed hand blender is not included in the product package, these can be ordered from customer service.

Operation

Base unit with tools

An especially good result is achieved if the tools are used for the following applications: Stirrers for ...

... sauces, beaten egg white, mashed potatoes, crème fraîche, mayonnaise, cream and light dough, e.g. cake mixture.

Stirrers are not suitable for processing heavy dough.

Kneading hook for ...

... stiff mixtures such as short pastry, yeast dough and potato dough as well as for mixing heavy mincemeat dough, pasta or bread dough.

The maximum processing quantity is 500 g of flour and ingredients.

Important information

When the rear aperture is open, the appliance can be operated using instantaneous switching only. Selector switch 1–5 will not function. Open and close the catch on the rear aperture only when the switch is in the 0/off position.

Risk of injury from rotating drive!

Never grip the rotating tools.

Do not attach or remove tools until the appliance is at a standstill – when switched off, the appliance continues running briefly.

Protect long hair or loose items of clothing to prevent them from becoming caught in the rotating tools.

● Before using the appliance for the first time, clean base unit and tools.

Fig. B

• Completely unwind the power cord.
• Place the required tool on the base unit and depress until it locks into position. Note the shape of the plastic parts to prevent mixing them up (see Fig. B-1)!
• Insert the mains plug.
• Place the food in a suitable receptacle.
• Insert tools into the receptacle and switch on the appliance at the required setting.
  Settings 1, 2: for working in and mixing in. Settings 3, 4, 5: for kneading and beating.
• After working, set the switch to 0/off and release and remove the tools with the ejector button.

Attention:

The ejector button cannot be actuated unless the switch is in the 0/off position.

Note:

Always switch off the base unit before taking it out of the blended food.

en

i some models:

High-speed hand blender

For blending mayonnaises, sauces, soups, mixed drinks, baby food and for crushing ice and cutting cooked fruit and vegetables.

i Important information

When the rear aperture is open, the appliance can be operated using instantaneous switching only. Selector switch 1–5 will not function. Open and close the catch on the rear aperture only when the switch is in the 0/off position.

Fig. C

• Push up the catch on the rear aperture until it locks into position.
• Insert the high-speed hand blender and lock into position.
• Put ingredients into the blender jug.
• Move the switch to the left to instantaneous switching and hold in place.
• After working, remove the high-speed hand blender by simultaneously pressing both release buttons.
• Close the catch on the rear aperture.

Note:

To prevent the food from splashing, first immerse the high-speed hand blender into the food, then switch on the appliance.

After using the appliance/cleaning

i Important information

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional.

Warning!

Never immerse the base unit in water and do not clean in the dishwasher.

Do not use a steam cleaner!

• Remove mains plug.
• Wipe the base unit with a damp cloth and then wipe dry.
• Clean the tools and high-speed hand blender in the dishwasher or with a brush under running water.

Note: If processing e.g. red cabbage, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

- The power cord can be wound up to facilitate storage of the appliance (Fig. D).

Note:

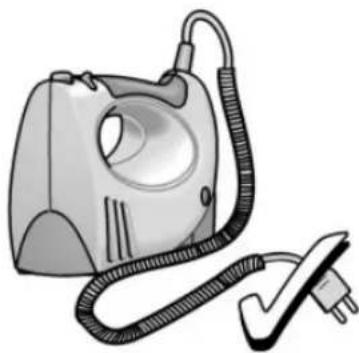

Appliances with spiral cable (Fig. E): Never wind the cable around the appliance!

Troubleshooting

Switch cannot be moved to settings 1 to 5.

Remedial action:

When the rear aperture is open, selector switch 1–5 will not function. The catch must be completely closed.

Recipes

Whipped cream

100 g–500 g

- Whip cream with the stirrer for 12 to 5 minutes at setting 5 (depending on the quantity and properties of the cream).

Egg white

1 to 5 egg whites

- Using the stirrer, beat egg whites for 2 to 5 minutes at setting 5.

Sponge mixture

Basic recipe

2 eggs

2–3 tbs. hot water

100 g sugar

1 packet of vanilla sugar

70 g flour

70 g cornflour

Baking powder if required

• Beat the ingredients (except flour and cornflour) with the stirrer for approx. 3–4 minutes at setting 5 until frothy.
• Switch appliance to setting 1, mix sifted flour and cornflour by the spoonful within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

en

Cake mixture

Basic recipe

2 eggs

125 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from

12 lemon

125 g butter or margarine

(room temperature)

250 g flour

1 packet of baking powder

60 ml of milk

- Mix all ingredients with the stirrer for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Short pastry

Basic recipe

125 g butter (room temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Base for fruit flan

Basic recipe

2 eggs

125 g sugar

125 g ground hazelnuts

50 g breadcrumbs

- Beat eggs and sugar for 3 to 4 minutes at setting 5 until frothy.

- Switch appliance to setting 1, add hazelnuts and breadcrumbs and process for 12 minute with the stirrer.

Maximum quantity: 2 x basic recipe

Plaited bun

Basic recipe

250 g flour

1 packet of dry yeast

110 ml warm milk

1 egg

1 pinch of salt

40 g sugar

30 g melted and cooled fat

Graded rind of half a lemon

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Pizza dough

Basic recipe

250 g flour

1 packet of dry yeast

1 tsp. sugar

1 pinch of salt

3 tbs. oil

125 ml warm water

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 5.

Maximum quantity: 2 x basic recipe

Bread dough

Basic recipe

500 g flour

14 g sugar

14 g margarine

7 g salt

1 packet of dry yeast

250 ml water

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 5.

en

Instructions on disposal

This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment – WEEE.

The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to alterations.

fr

Pure geometric crosshair symbol with concentric circles and radial patterns (no text or labels)

www.siemens-home.com/tr

www.siemens-yetkiliservisi.com

Bandrol ve Seri No. :

kk

(waste electrical and electronic equipment - WEEE)

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr: "Ferit Xhajklo" Ish Markata

Pallati i ri perball Prokuroris se Tirana

Tel.: [phone], 131

Fax: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.siemens-home.bg

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.

Fl Suomi, Finland

BSH Kodinkoneet Oy

Itälahdenkatu 18 A

PL 123

00201 Helsinki

Tel.:[phone]

Fax: [phone]

mailto:Siemens-Service-FI@

bshg.com

www.siemens-home.fi

To arrange an engineer visit, to

order spare parts and accessories

or for product advice please visit:

www.siemens-home.co.uk

or call

Tel.:[phone]*

*Calls are charged at the basic rate, please check with your telephone service provider

for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:siemens.hk.service@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:.[phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.siemens-home.com/hr

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.siemens-home.com/ie

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Tel.: [phone]

www.siemens-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.:[phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.:[phone]

mailto:[e-mail]

LB Lebanon, لبنان

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.:[phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

www.siemens-home.com/lu

LV Latvija, Latvia

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.:[phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. „Rialto-Studio“

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

MK Macedonia, Makedonia

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederland, Netherlands

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

www.siemens-home.com/pt

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti,

nr. 19-21, sect.1

13682 Bucuresti

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/ro

RU Russia, Россия

www.siemens-home.com/sk

TR Türkiye, Turke y

BSH Ev Aletleri Sanayi

ve Ticaret A.S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.:[phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/tr

US United States of America

BSH Home Appliances Corporation

1901 Main Street, Suite 600

Irvine, CA, 92614

Tel.: [phone] toll-free

Fax: [phone]

mailto:siemens-usa-questions@

bshg.com

www.siemens-home.com

XK Kosovo

NTP GAMA

Rruga Mag Prishtine-Ferizaj

70000 Ferizaj

Tel.: [phone]

mailto:a_service@

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.siemens-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

Illustration of a kitchen mixer with a stand and handle, no text or symbols present

Mechanical assembly diagram showing pipe connections and alignment arrows (no text or symbols)

Illustration of a hand mixer blending liquid into a bowl (no text or symbols)

5

Close-up of a mechanical component with two inserted pins and a numbered label (7) pointing to it, no readable text or symbols present.

C

D

Illustration of a vacuum cleaner with coiled cable (no text or symbols)

E

Illustration of a vacuum cleaner with a warning symbol (no text or labels)

Illustration of a vacuum cleaner with attached power plug (no text or symbols)
