MQ66120 - Hand blender SIEMENS - Free user manual and instructions

Brand	Siemens
Model	MQ66120
Product type	Immersion blender
Power supply	220-240 V, 50-60 Hz
Power	Not specified (estimate 600 W)
Speeds	Continuously adjustable from ● to 12 + turbo speed
Material of blending foot	Plastic or metal depending on model
Material of base unit	Plastic
Capacity of mixing bowl	Not specified (estimate 600 ml)
Cable length	Approximately 1.5 m
Weight	Not specified (estimate 1 kg)
Functions	Blend, emulsify, puree, grind (with accessory), whisk (depending on model)
Included accessories	Blending foot, mixing bowl, lid; whisk and puree accessory depending on model
Universal grinder	Optional (ref. 657248)
Max food temperature	80 °C
Overload protection	Yes (automatic stop and flashing)
Cleaning of mixing bowl	Dishwasher-safe
Cleaning of blending foot	Dishwasher-safe or brush under running water
Cleaning of base unit	Damp cloth
Warranty	According to distributor conditions

Frequently Asked Questions - MQ66120 SIEMENS

How to turn off the immersion blender?

To turn off the blender, release the engagement button (a or b). The appliance stops immediately. Always unplug after use before disassembling or cleaning.

Can I use the immersion blender in hot liquids?

Yes, but wait until food cools below 80 °C before immersing the blending foot. Remove the pot from the heat before use to avoid splashing.

How to clean the blending foot?

The blending foot can be cleaned in the dishwasher or with a brush under running water. Let it dry vertically, blade facing up, so water runs off. Never clean blades with bare hands.

What to do if the appliance turns off during use?

This activates the overload protection. Turn off the appliance, unplug it, and let it cool for about 1 hour before restarting. If the problem persists, contact customer service.

Can I wash the base unit in the dishwasher?

No, never immerse the base unit in water and do not wash it in the dishwasher. Simply wipe it with a damp cloth and dry it.

How to use the turbo speed?

The turbo speed (button 4b) is designed for intensive tasks like grinding with the universal grinder. Keep the button pressed during use; the appliance runs at maximum speed as long as you press.

Which accessories are supplied with the MQ66120?

Depending on the model, included accessories are: blending foot, mixing bowl with lid, and possibly a whisk and a puree accessory. The universal grinder is optional (ref. 657248).

How to disassemble the blending foot?

After unplugging the appliance, simultaneously press the release buttons (5) on the base unit and pull the blending foot downwards.

Can I use the universal grinder to chop onions?

Yes, the universal grinder is ideal for chopping raw foods like onions, garlic, or herbs. Use the turbo speed for best results. It is not included as standard but can be ordered.

What is the mayonnaise recipe with this appliance?

Place 1 egg, 1 tbsp mustard, 1 tbsp lemon juice or vinegar, 200-250 ml oil, salt, and pepper in the bowl. Place the blender at the bottom, turn on turbo speed until emulsified, then slowly raise and lower until consistency.

USER MANUAL MQ66120 SIEMENS

siemens-home.bsh-group.com/welcome

Register your product online

A

Line drawing of a whisk with a cylindrical head and spout, labeled with number 10 (no text or symbols on the diagram itself)

B

MQ66020
MQ66120
MQ66155
MQ67110										X
MQ67170

de Deutsch 3
en English 8
fr Français 12
it Italiano 17
nl Nederlands ....22
da Dansk 27
no Nørk 31
sv Svenska 35
fi Suami 39
el Ελληνικά 43
tr Türkçe 49
kk Казакша 56
ru Русский 61
ar عربي 71

Congratulations on the purchase of your new SIEMENS appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety	8
Overview	9
Operation	10
Cleaning	10
Troubleshooting (MQ67...)	9
Recipes and tips	11
Disposal	11
Guarantee	11

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use.

The appliance is only suitable for cutting or mixing food. It must not be used for processing other objects or substances.

Please keep the Operating instructions in a safe place. If passing on the appliance to a third party, always include the Operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Electric shock risk

Do not use the hand blender with damp hands and do not operate it at no load.

Do not immerse the appliance in liquid above the blender foot-base unit connection point.

Never immerse the base unit in liquids and do not clean in the dishwasher.

Caution when processing hot liquids. Liquids may splash during processing.

Never place blender foot on hot surfaces or use in very hot food. Leave hot food to cool down to at least 80 °C before processing with the blender!

Operate the hand blender with original accessories only.

Do not attach or remove tools until the appliance is at a standstill.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

Risk of injury from sharp blades/rotating drive!

Never grip the blade in the blender foot.

Never clean the blades with bare hands. Use a brush.

These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages (Fig. C).

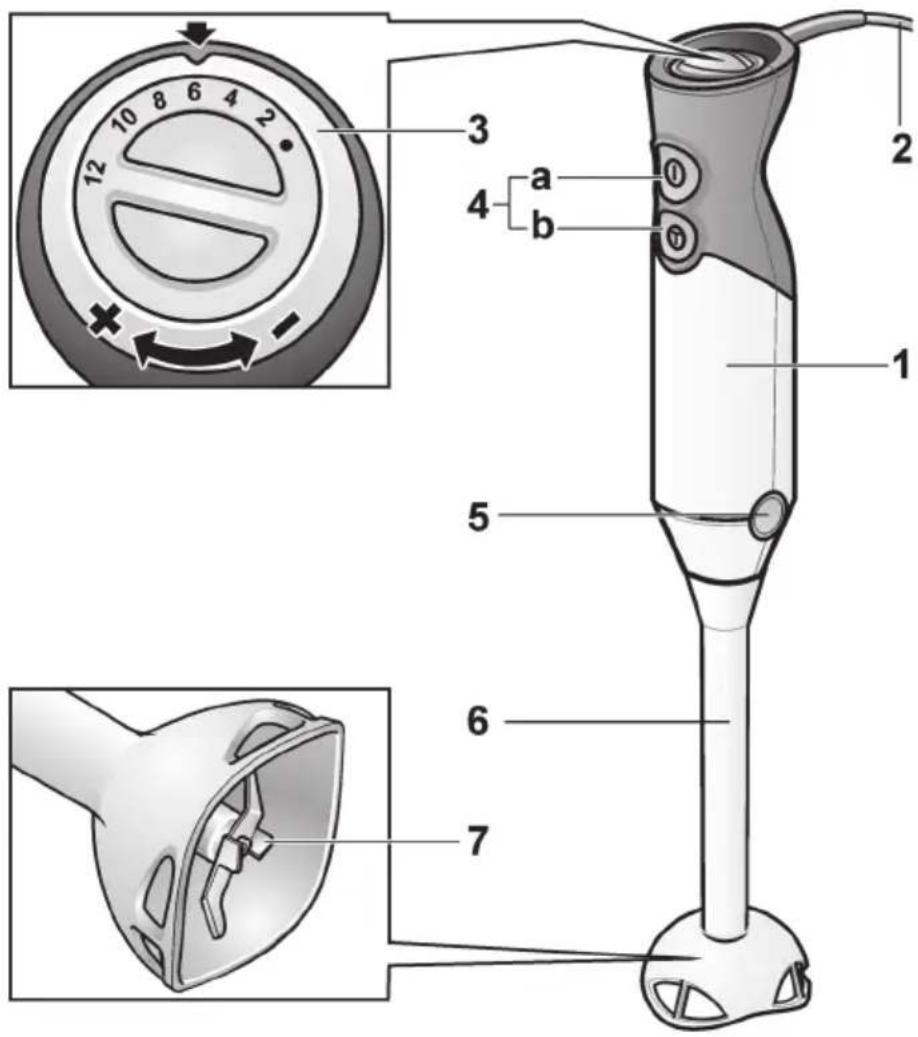

Overview

Fig. A

1 Base unit

2 Power cord

3 Speed control

Operating speed can be adjusted steplessly between the lowest (●) and highest (12) speed (only in conjunction with button 4a).

4 ON button

a Controllable speed (with speed control 3)

b Turbo speed

The hand blender remains switched on as long as the On button (a or b) is pressed.

The turbo speed is used for the universal cutter (if included in delivery).

5 Release buttons

To remove the blender foot, simultaneously press both release buttons.

6 Blender foot

Plastic or metal (depending on model). Attach the blender foot and lock into position.

7 Blender blade

8 Blender jug

Using the blender jug will prevent the ingredients from splashing.

For some models:

9 Lid for blender jug

Place the lid on the blender jug to keep in the processed ingredients.

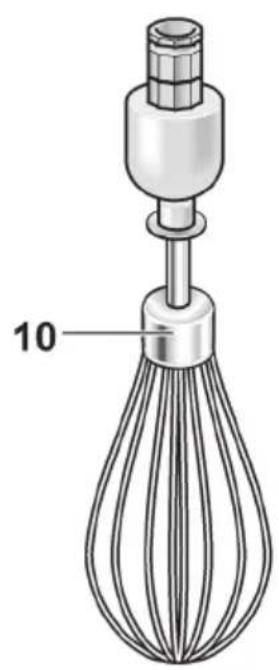

10 Whisk with gear

11 Masher attachment with gear

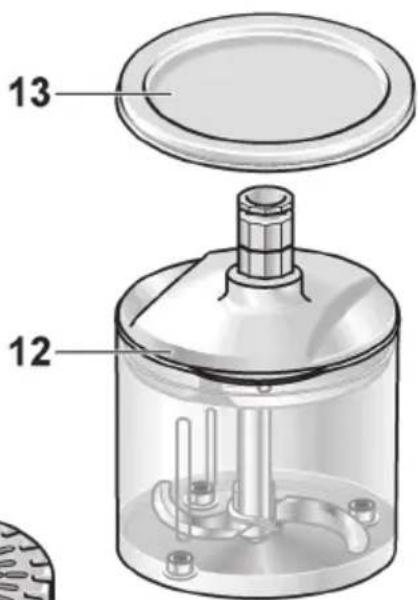

12 Universal cutter

13 Lid for universal cutter

Place the lid on the universal cutter to keep in the processed ingredients.

If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 657248).

With the universal cutter use the appliance at full power to prepare honey spread (according to the recipe). You can find the recipe in the instructions for use of the universal cutter.

Operation

The appliance is suitable for blending mayonnaise, sauces, mixed drinks, baby food, cooked fruit and vegetables.

For puréeing soups.

Use the universal cutter for cutting/chopping raw food (onions, garlic, herbs)!

It is recommended to use the supplied blender jug. However, other suitable receptacles can also be used.

Attention!

The bottom of the receptacle which you use must not have any bumps or recesses.

- Before using the appliance for the first time, clean all parts of it.

Fig. B

• Completely unwind the power cord.
• Place the blender foot on the base unit and lock into position.
• Insert the mains plug.
• Place food in the blender jug or another tall receptacle.

i The appliance works better if there is some liquid in the ingredients.

- Set the required speed with the speed control (Fig. B-5).

It is recommended to use a low speed setting for liquids, hot food and for mixing (e.g. muesli in yoghurt). The high speed settings are recommended for the processing of more solid foods.

● Firmly hold the hand blender and jug.

- Switch on the hand blender by pressing the required On button.

When switching on the hand blender, hold it at a slight angle to prevent it from "sticking" to the bottom of the blender jug. The hand blender remains switched on as long as the On button is pressed.

To prevent the ingredients from splashing, do not press the On button until the blender foot has been immersed in the ingredients. Always switch off the hand blender before taking it out of the processed food.

- Release the On button after processing.

After using the appliance:

• Remove mains plug.
• Press the release buttons and remove the blender foot from the base unit.

Cleaning

Attention!

Never immerse the base unit in liquids and do not clean in the dishwasher.

Do not use a steam cleaner!

Surfaces may be damaged. Do NOT use abrasive cleaning agents.

If processing e.g. red cabbage and carrots, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

• Pull out the mains plug!
• Wipe the base unit with a damp cloth and then wipe dry.
• The blender jug can be cleaned in the dishwasher.
• Clean the blender foot in the dishwasher or with a brush under running water.
• Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out.

Note:

Appliances with spiral cable:

Never wind the cable around the appliance!

Troubleshooting (MQ67...)

Fault Remedial action

The appliance switches off while it is being used or the speed indicator (if fitted) starts flashing.

The overload protection feature has been activated.● Switch off the appliance and pull out the mains plug.● Leave the appliance to cool down for approx. 1 hour in order to deactivate the overload protection device.● Switch on the appliance again.

If the fault cannot be eliminated, please contact customer service.

Recipes and tips Mayonnaise

1 egg (egg yolk and egg white)

1 tbs. mustard

1 tbs. lemon juice or vinegar

200–250 ml oil

Salt, pepper to taste

Ingredients must be at the same temperature!

• Put the ingredients in the jug.
• Place hand blender at the bottom of the jug and switch on (turbo speed) until the mixture emulsifies.
• Slowly raise the switched on blender as far as the upper edge of the mixture and lower again until the mayonnaise is ready.

Tip: According to this recipe you can also make mayonnaise with egg yolk only.

However, use only half the amount of oil.

Vegetable soup

300 g potatoes

200 g carrots

1 small stick of celery

2 tomatoes

1 onion

50 g butter

2 | water

Salt, pepper to taste

• Skin and seed the tomatoes.
• Chop up cleaned and washed vegetables and sauté in the hot butter.
• Add water and salt.
• Leave to cook for a good 20–25 min.
  ● Take the pan off the cooker.
  ● Purée the soup in the pan with the blender.
• Season with salt and pepper.

Crêpes dough

250 ml milk

1 egg

100 g flour

25 g melted cooled butter

- Put all ingredients in the jug in the indicated sequence and blend to a smooth dough.

Blended milk drinks

1 glass of milk

6 large strawberries

or

10 raspberries or

1 banana (sliced)

• Put the ingredients in the jug and blend.
• Add sugar to taste.

Tip:

For a milk shake add a scoop of ice cream or use very cold milk.

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EC on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

www.siemens-home.bsh-group.com/tr www.yetkiliservis.siemens-home.bsh-group.com

(waste electrical and electronic equipment – WEEE)

www.siemens-home.bsh-group.de

www.siemens-home.bsh-group.com/me

* Sun-Thu 8am to 5 pm (exclude public holidays)

AM Armenia

ZIG ZAG LLC

Charenci str. 25

Yerevan 375025

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.zigzag.am

www.siemens-home.bsh-group.at

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/au

* Mon-Fri 24 hours

AZ Azärbaycan Respublikası, Azerbaijan

Baku Service Company MMC

Azadliq Pr. 116

Baku

Tel.: [phone]

mailto:[e-mail]

www.ser-cen.az

Yurd Service MMC

50, Bakikhanov Str.

Baku, AZ1007

Tel.: [phone]

mailto:[e-mail]

www.yurd.az

www.siemens-home.bsh-group.com/be

Sheikh Salman Highway,

Tubli-701; Bahrain

Manama

Tel.: [phone]*

mailto:[e-mail]

* Sun-Thu 8am to 6pm (exclude public holidays)

www.siemens-home.bsh-group.com/ch

CN China,

BSH Home Appliances Service Jiangsu Co. Ltd.

19F, Jinling Asia Pacific Tower,

No.2 Hanzhong Road,

Gulou District,

210005 Nanjing, Jiangsu Province

Service Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.cn

*phone rate depends on the network used

CY Cyprus, Kúnpoc

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:EGO-CYCustomerService@

bshg.com

CYN Turkish Rep. Of North Cyprus

Argas Limited Company

37 Osman Paşa Cad. K. Çiltlik

Lefkoşa

Tel.: [phone]

mailto:[e-mail]

Semson Ticaret Sti. Ltd.

Bedrettin Demirel Cad. no 17

Girne

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.es

FI Suomi, Finland

siemens-home.bsh-group.com

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.siemens-home.bsh-group.com/uk Or call

Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GE Georgia,

Elit Service Ltd. Vake-Saburtalo district, Intersection of Al. Kazbegi ave. and Kavtaradze Str. 0186

Kavtaradze str. 1

Tbilisi

Tel.: [phone]

mailto:[e-mail]

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service 17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

www.siemens-home.bsh-group.com/gr

HK Hong Kong,

BSH Home Appliances Limited

香港新界荃灣青山公路388號中染大廈23樓07室 Unit 07, 23/F, CDW Building, 388 Castle Peak Road

Tsuen Wan, New Territories, Hong Kong

Tel.: [phone] (HK)

Fax: [phone]

Toll free 0800 030 (Macao)

mailto:[e-mail]

www.siemens-home.bsh-group.com.hk

IE Republic of Ireland

BSH Home Appliances Ltd. M50 Business Park, Ballymount Road Upper, Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.siemens-home.bsh-group.com/ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/il

IN India, Bhārat,भारत

BSH Household Appliances Mfg. Pvt. Ltd. Arena House,

Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

* Mon-Sat 8am to 8pm (exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

www.siemens-home.bsh-group.com/lu

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

www.siemens-home.bsh-group.nl

NO Norge, Norway

www.siemens-home.bsh-group.com/no

PL Polska, Poland

www.siemens-home.bsh-group.pl

PT Portugal

BSHP Electrodomésticos,

www.siemens-home.bsh-group.com/pt

RO România, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti, nr. 19-21, sect.1

13682 Bucuresti

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ro

RU Russia, Россия

www.siemens-home.bsh-group.ru

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.siemens-home.bsh-group.com/se

SK Slovensko, Slovakia

www.siemens-home.bsh-group.com/sk/

Yakkacinarskaya street No: 144/4

Dushanbe

Tel.: [phone]

mailto:[e-mail]

www.volna.tj

TM Türkmenistan, Turkmenistan

Bayram Anna Yuryewna

Stariya marka, Atabeyeva str.

Spectrum mağaza

Ashgabat

Tel.: [phone]

mailto:[e-mail]

TR Türkiye, Turkey

www.siemens-home.bsh-group.com/tr

www.siemens-home.bsh-group.com/ua

96 Fifteenth Road, Randjespark

1685 Midrand - Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

www.siemens-home.bsh-group.com
