Product Type	Light Therapy Device
Brand	Philips
Model	goLITE BLU HF3320
Dimensions	17 x 14 x 7 cm (6.7 x 5.5 x 2.8 in)
Weight	0.68 kg (1.5 lb)
Power Supply	AC adapter (100-240 V, 50/60 Hz)
Light Source	Blue-enriched white light (LED)
Light Intensity	10,000 lux at 50 cm (20 in)
Timer Settings	15, 30, 45, 60 minutes
Usage	For seasonal affective disorder (SAD), mood enhancement, energy boost
Position	Place at 30-50 cm (12-20 in) from eyes, angled slightly
Recommended Session	20-30 minutes per day, preferably in the morning
Cleaning	Wipe with a soft, dry cloth. Do not use liquids.
Storage	Store in a cool, dry place away from direct sunlight
Safety Certifications	CE, ETL, FCC compliant
Warranty	2 years limited
Repair & Spare Parts	Contact Philips; no user-serviceable parts inside

Frequently Asked Questions - goLITE BLU HF3320 PHILIPS

How do I use the Philips goLITE BLU HF3320?

Place the device at a distance of 30-50 cm (12-20 inches) from your eyes, angled slightly to avoid glare. Set the timer to 15-30 minutes and use it in the morning for best results. Do not stare directly at the light.

When is the best time to use light therapy?

Typically morning use is recommended, within an hour of waking up, to help regulate your circadian rhythm. Consult your doctor for personalized timing.

Can I replace the light bulb or LED?

No, the goLITE BLU uses non-replaceable LEDs. The device is designed to last for years. If it stops working, contact Philips for support.

How do I clean the device?

Unplug the device and wipe the surface with a soft, dry cloth. Do not use any liquids or cleaning agents as they may damage the electronics.

Are there any side effects?

Some users may experience headaches, eye strain, or nausea initially. Reduce usage time and distance if symptoms occur. Consult a doctor if persistent.

Is it safe to use while sleeping?

No, light therapy is intended for wakefulness. Using it close to bedtime may disrupt sleep. Use in the morning or early afternoon.

Does it provide UV light?

No, the goLITE BLU emits blue-enriched white light with minimal UV. It is safe for normal use, but people with photosensitive conditions should consult a doctor.

How long does the LED last?

The LEDs are rated for over 10,000 hours of use. With daily 30-minute sessions, this equates to many years of lifespan.

Can I use it for skin conditions?

This device is designed for light therapy for mood and energy, not for skin conditions. It is not a medical device for treating skin issues.

What should I do if the device doesn't turn on?

Check the power connection and ensure the adapter is securely plugged in. Try a different outlet. If it still doesn't work, contact Philips customer support.

USER MANUAL goLITE BLU HF3320 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

HF3320

ENGLISH 6

DANSK 21

DEUTSCH 35

SUOMI 52

FRANÇAIS 66

NEDERLANDS 84

NORSK 100

SVENSKA 115

Introduction

Congratulations on your purchase and welcome to Philips!

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Intended use

The goLITE BLU energy light is intended to make people feel more energetic, to adjust circadian rhythms and to provide mood relief from the winter blues. The medical intended use of the goLITE BLUE energy light is to treat winter depression (seasonal affective disorder). This treatment should only take place in consultation with a specialist.

Light, health and circadian rhythms

The human body uses light cues, such as those provided by the sun, to time certain internal functions. Properly timed rhythms regulate mood, sleep, energy, appetite and digestion. These daily internal cycles, called circadian rhythms, sometimes fall out of sync, resulting in a dysregulated body clock. Unfortunately, modern living has dramatically altered nature's cues.

A modern day no longer starts at the crack of dawn and ends at 8:00 p.m. Workdays are getting longer and many people face shift-work schedules. Additionally, the advent of electric lighting allows social gatherings and personal activities to extend well into the night. These factors have diminished the body's natural ability to regulate the body clock.

Rapid travelling across time zones is another source of disharmony between the internal clock and the external time, which is referred to as jet lag. Proper timing of bright light exposure allows quick adjustment to the new time zone.

Besides regulating the body clock, light has direct alerting and energising effects and improves our performance. Bright light therapy is also successfully used for mood relief, especially for seasonal mood swings. In countries with long winters, many people experience loss of energy and low spirits due to lack of light. These symptoms are referred to as the winter blues. They typically start in autumn and may last for several weeks. Exposure to bright light sources can help alleviate these symptoms and restore the summer mood and summer energy level.

Research shows that a special photo receptor in our eyes is responsible for regulating our energy and sleep/wake cycles. This receptor responds to the

blue light of the summer sky. We do not get as much of this light in the autumn and winter, and indoor light does not emit enough of this essential colour. The goLITE BLU energy light helps to shift circadian rhythms back to their normal pattern by delivering the wavelength, colour and intensity of light that our body responds most efficiently to. The goLITE BLU energy light naturally improves your mood and energy levels by a relatively low light intensity compared to traditional white light therapy devices.

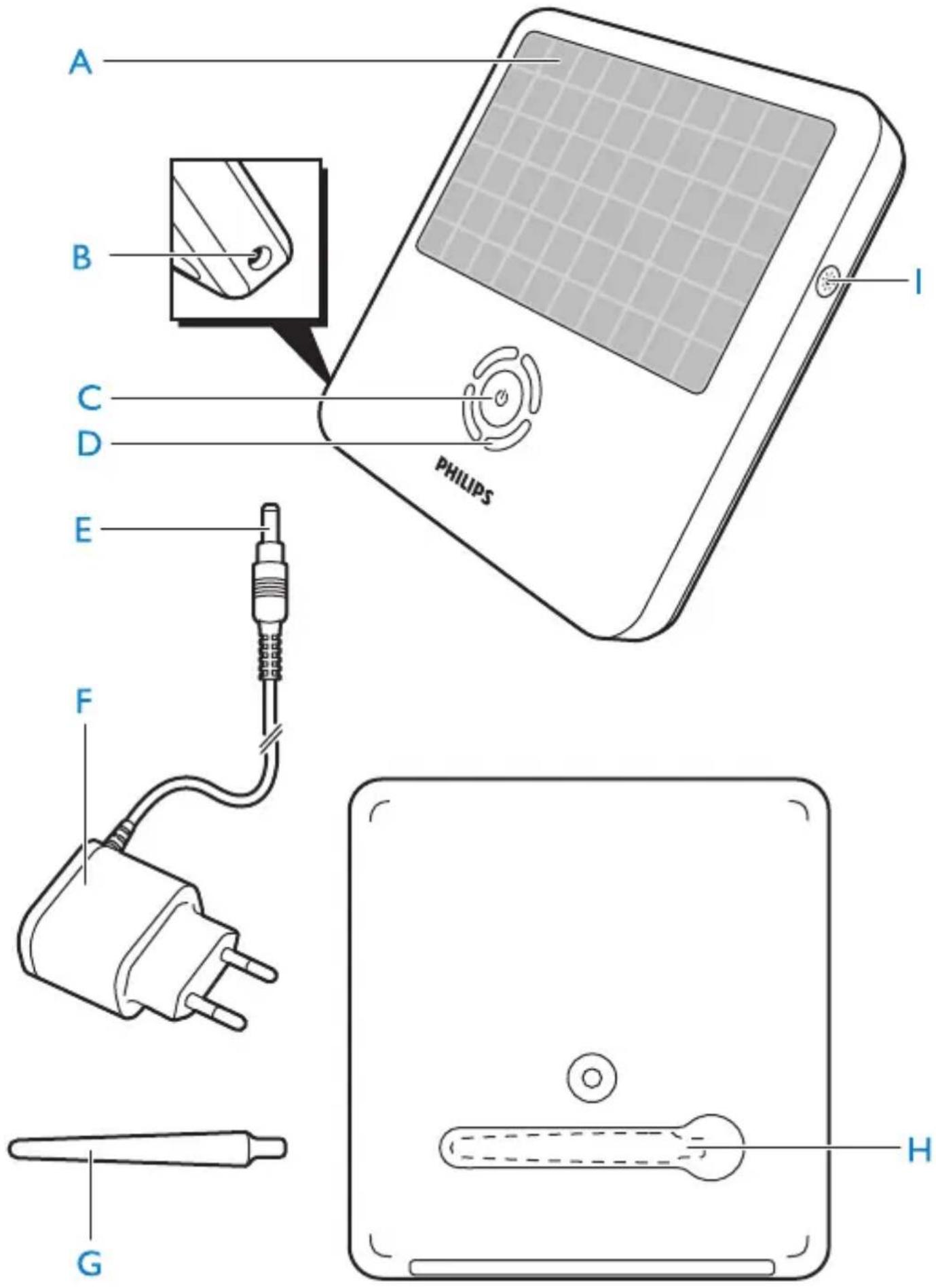

General description (Fig. 1)

A LED panel
B Socket for appliance plug
C On/off and timer button
D Timer indicator (15, 30, 45 and 60 min.)
E Appliance plug
F Adapter
G Stand
H Stand storage cavity
Light intensity button

Important

• Read this user manual carefully before you use the appliance and save it for future reference.
• The adapter is double insulated according to Class II (Fig. 2).

Danger

- Keep the adapter dry.

Warning

• Never use the adapter if it is damaged in any way. Always have the adapter replaced with one of the original type in order to avoid a hazard.
• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

ENGLISH8

• Children should be supervised to ensure that they do not play with the appliance.
• Keep the appliance away from water. Do not place or store it over or near water contained in a bathtub, washbasin, sink etc. Do not immerse it in water or any other liquid. This might impair the safety of the appliance.
• Use the goLITE BLU energy light in vertical position with the stand in place. Do not use it in horizontal position without the stand, as this might cause the appliance to overheat.
• Do not use the appliance in a room that is not illuminated by any other lamp, as this may cause eyestrain. Use the light of this appliance as an addition to the normal light (sunlight, electric light) in your home.
• Do not look straight into the light too long, as this may be uncomfortable for your eyes.
• Do not use the goLITE BLU energy light where its light may compromise your or other people's ability to perform tasks for which proper sight is essential, such as air traffic control.
• Do not sit closer to the appliance than recommended to obtain a higher light intensity. Increased light intensity does not improve the result and may increase the risk of headache or eyestrain.
• Do not use the appliance adjacent to or on top of other equipment, nor put any equipment on top of the appliance. However, if this is unavoidable, observe the appliance to make sure that it operates normally.
• Do not position the goLITE BLU energy light in a place where it is difficult to remove the adapter from the wall socket.
• No modification of the goLITE BLU energy light is allowed.
• The appliance is not suitable for use in the presence of flammable anaesthetic mixtures with air, oxygen or nitrous oxide.
• Always consult your doctor before you start using the goLITE BLU energy light if:

1 you suffer or have suffered from depression;
2 you have bipolar disorder;
3 you are hypersensitive to light (e.g. due to diabetes or epilepsy);
4 you have an eye complaint or have had eye surgery;
5 you are on photo-sensitising medications (e.g. certain antidepressants, psychotropic drugs or malaria tablets).

- This appliance does not have an on/off switch. To fully disconnect the appliance from the mains, remove the adapter from the wall socket.

Caution

• Use the appliance at a temperature between 0° C and 35° C.
• Only use the HQ8505 adapter supplied. If you use a different adapter than the adapter specified and provided by Philips, this may result in increased electromagnetic emission or decreased immunity of the goLITE BLU energy light.
• Do not use the appliance outdoors or near heated surfaces or heat sources (Fig. 3).
• Stop using the appliance if it is damaged in any way. If repair is needed, consult chapter 'Guarantee and service' for information.
• Do not place heavy objects on the appliance, the adapter or the cord.
• Do not pull at the cord when you remove the adapter from the wall socket. Always grasp the adapter.

Safety and compliance

• This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• This appliance meets the requirements of Medical Device Directive MDD 93/42/EEC and 2007/47/EC for medical appliances.

General

The adapter is equipped with an automatic voltage selector and is suitable for mains voltages ranging from 100 to 240 volts.

- This is not a general illumination product.

Symbol key

The following symbols may appear on the appliance:

Symbol Description
	Consult the user manual supplied
	DC Power
	DC Jack Polarity
	Serial Number
HF3320 Model Number
	European Declaration of Conformity
	Compliant with the Waste Electrical and Electronic Equipment/Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment (WEEE) recycling directives.
	Philips Shield
	Manufactured for: Philips Consumer Lifestyle B.V, Tussendiepen 4, 9206 AD Drachten, The Netherlands. Fax: [phone]
	Date Code

HF3320 Model Number

Preparing for use

When to use the goLITE BLU energy light

Knowing what time to use the goLITE BLU energy light can mean the difference between feeling better in just a few days instead of weeks, or perhaps not responding at all. Follow these guidelines to understand how light affects your body clock and when to use the goLITE BLU energy light for the best results.

Duration and intensity

Most people get beneficial results from 15 to 30 minutes of usage each day. You can start using the goLITE BLU energy light at medium intensity and increase the light intensity if you feel no response after a week.

Sleep and energy

Using the goLITE BLU energy light at any time of day directly affects your alertness. You can use the goLITE BLU energy light as light therapy for the winter blues throughout the day. The best time to use it is in the morning. Do not use the goLITE BLU energy light late in the evening. If you use it within 2 hours of going to bed, it could disrupt your sleep.

• If you find it difficult to get up each day without an alarm clock or if you often sleep in, you need morning light. Use the goLITE BLU energy light within the first hour or two after waking up.
• If you find it difficult to stay awake in the late evening and wake up too early in the morning, you need evening light. Use the goLITE BLU energy light before you start to feel drowsy.
• If mornings or evenings do not seem to be the problem, but you feel generally tired during the day, then the time at which you use the goLITE BLU energy light is not as important. You can use the goLITE BLU energy light in the morning or around midday. For example, when you wake up in the morning, use it for fifteen to thirty minutes and then again at midday or in the evening for approximately the same amount of time. Place the goLITE BLU energy light further away from you during the evening treatment. This keeps your body clock from confusing the stronger morning signal with evening time. Do not use the goLITE BLU energy light within two hours of your desired bedtime. Blue light can suppress the nighttime hormones for a while, and you may not be able to fall asleep.

ENGLISH12

Winter depression

If your seasonal mood swings are more severe and you are suffering from depression, you should consult a specialist and only use light therapy in consultation with this specialist. Your specialist may prescribe 45 minutes of treatment per day at level 1 or 2 over several weeks. Section ‘Sleep and energy’ above contains some general guidelines for the timing of light expose, but this timing should also be determined in consultation with your specialist.

Jet lag

Rapidly travelling across several time zones creates disharmony between your internal body clock and the new external time. This not only causes sleeping problems, but influences your mood and energy level as well. If you stay for more than a few days, you may also want to shift your body clock to the new time zone. This will help you sleep better and be more alert and energetic when you need to. Because special blue light is effective for shifting circadian rhythms, your goLITE BLU energy light can quickly adjust your rhythm to the new time zone. One of the best strategies to combat jet lag is to shift your body clock a day or two before you leave.

Travelling east: When you travel east, start using the goLITE BLU energy light in the morning two to three days before you leave. The number of time zones you travel corresponds to the hours your body clock has to shift. If you are only travelling a few time zones, one day's preparation is sufficient. Add a day of light therapy for each additional 2 time zones. For example, for a trip from the US to Europe, use the following schedule: On the first day, wake up an hour early and use the goLITE BLU energy light for 30–45 minutes. On the next day or days, you should wake up a couple of hours earlier and repeat this process. You should advance your bedtime accordingly. Once you arrive at your destination, avoid light before 10 a.m. local time (wear sunglasses) and use the goLITE BLU energy light in the midmorning to fully adjust to the local time. When returning, use your goLITE BLU energy light in the late evening for a couple of nights before the return flight. On the last night of the trip, try to stay up and use your goLITE BLU energy light as late as reasonably possible past midnight. On the day of the flight, avoid any bright light until after 2:00 p.m. (see below under 'Travelling west')

Travelling west: Since most people's body clocks adjust more easily to later time zones, you should not have to use the goLITE BLU energy light when you travel 3 time zones or less. You should only need to use your goLITE BLU energy light for one day before travelling 4 time zones, and add an additional preparation day for each 3 time zones. You should not have to use the goLITE BLU energy light for more than 3 days, even on the longer westbound trips. For example, when travelling from London to Los Angeles, use your goLITE BLU energy light for 30–40 minutes in the late evening (and again a couple of hours later, if you can) each night, starting 2-3 days before you leave. Use the goLITE BLU energy light 2-3 hours later each successive night. When you arrive at your destination, try to stay awake until bedtime and avoid bright evening light (wear sunglasses) for the first few days. Before you travel home, avoid any bright afternoon and evening light and use your goLITE BLU energy light in the morning for a few days (see above under ‘Travelling east’).

For more instructions on how to avoid jet lag, visit www.philips.com/golite.

Installation

1 Remove the stand from the stand storage cavity (Fig. 4).
2 Insert the bevelled end of the stand into the hole on the back of the appliance. Magnets hold the stand in place (Fig. 5).
3 Insert the appliance plug into socket on the appliance (1) and put the adapter in the wall socket (2) (Fig. 6).
4 Place the goLITE BLU energy light approximately 50-75cm from your eyes in such a way that the light bathes your face from the side (Fig. 7).
- You can read, eat, work at the computer, watch TV or exercise while you use your goLITE BLU energy light.
- For the best results, place the goLITE BLU energy light at the same level as your midriff (stomach area), e.g. place it on the table at which you are sitting.

Note: Do not stare into the light of the LED panel. It is sufficient that the blue light reaches your eyes indirectly from the side.

- Use your goLITE BLU energy light in a well-lit room to minimise eye strain.

Demo mode

The demo mode is used to demonstrate the goLITE BLU energy light in shops. When the appliance is switched on in demo mode, customers of the shop can:

• adjust the light intensity
• switch the appliance on and off
• set the treatment time

If the appliance is not operated for 3 minutes, it reverts to its demo mode default settings.

To activate the demo mode:

1 Insert the appliance plug into socket on the appliance (1) and put the adapter in the wall socket (2) (Fig. 6).
2 Simultaneously press and hold the on/off button and the light intensity button for 3 seconds (Fig. 8).

The appliance switches on and the segments of the timer indicator go on and off in a rotating pattern.

The LED panel goes on at the low light intensity level.

Note: The appliance remains switched on in demo mode for 10 hours or until it you deactivate the demo mode or unplug the appliance.

To deactivate the demo mode, simultaneously press and hold the on/off button and the light intensity button for 3 seconds again.

Using the appliance

1 Insert the appliance plug into socket on the appliance (1) and put the adapter in the wall socket (2) (Fig. 6).
2 Press the on/off button briefly to switch on the appliance (Fig. 9).

The first segment of the timer indicator goes on and flashes for 3 seconds (Fig. 10).

Note: The timer is automatically set to 15 minutes.

When the timer indicator stops flashing, the LED panel goes on and the timer starts counting down the set time (Fig. 11).

Note: The LED panel only goes on after the timer indicator stops flashing. This prevents the light from shining into your eyes while you are setting the timer.

When the set time has elapsed, the timer automatically switches off the appliance.
3 If you want to switch off the appliance before the set time has elapsed, press the on/off button for 2 seconds.

Note: You can also switch off the appliance by pressing the on/off button briefly a few times.

4 Remove the adapter from the wall socket.

Setting the timer

1 Press the on/off button to switch on the appliance.
2 Press the on/off button one or more times to select the preferred time (15, 30, 45 or 60 minutes) (Fig. 12).

The corresponding segment or segments of the timer indicator flash for 3 seconds.

Note: If you want to set the timer to 0 minutes, press the on/off button until all segments of the timer indicator are out

When the timer indicator stops flashing, the LED panel goes on and the timer starts counting down the set time.
If you have set more than 15 minutes, one of the segments goes out every time another 15 minutes have passed.

Setting the light intensity

1 Press the on/off button to switch on the appliance.
2 Press the light intensity button repeatedly to select the preferred light intensity (low, medium or high) (Fig. 13).

Cleaning

Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

1 Clean the appliance with a dry cloth.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 14).

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Frequently asked questions

This chapter lists the questions most frequently asked about the appliance. If you cannot find the answer to your question, contact the Consumer Care Centre in your country.

Question Answer

Do I have to take off my glasses when I use the goLITE BLU energy light?

No, you can use the goLITE BLU energy light with your glasses on. Do not wear tinted glasses or sunglasses when you use the goLITE BLU energy light, as these glasses reduce its effectiveness.

Question Answer
Does the appliance have any side effects?	The goLITE BLU energy light is safe if used according to the instructions. Temporary headaches or nausea have been reported. These effects are usually solved by sitting further away from the appliance.
Can I get sunburn from using the goLITE BLU energy light?	No, the technology used in the goLITE BLU energy light eliminates all UV light.
I have heard that light can be dangerous. Can the goLITE BLU energy light damage my eyes?	The goLITE BLU energy light emits safe levels of blue light, according to current standards. However, if you suffer from an eye disease or have a history of eye disease in your family, consult your ophthalmologist before you use the goLITE BLU energy light. If you have a temporary eye problem, wait until it is resolved before you use the goLITE BLU energy light.
	The goLITE BLU energy light is safe if used according to the instructions. The appliance is free from any ultraviolet light risk to the eye and it produces a safe, diffused field of light. The appliance has been tested for ocular safety.
	As with any bright light source, do not look into the light too long. The beneficial reaction happens when the photoreceptors in the eye are stimulated. Since these photoreceptors lie in the periphery of the eye, you get a better result if you place the goLITE BLU energy light at a slight angle to your face.
Should I use the goLITE BLU energy light every day?	You can use the goLITE BLU energy light daily, especially during the winter months. Many people find that they do not need the light in summer. Others use it year-round because they spend most of their time indoors and do not get the right kind of light signals to regulate their circadian rhythm properly.
Can the light cause harm to children or pets?	No. The light is safe to be used around children and pets. However, do not let children play with the appliance.
Can I use the goLITE BLU energy light more than once a day?	For most people, it is sufficient to use the goLITE BLU energy light once a day. Keep in mind that you may have trouble falling asleep if you use the goLITE BLU energy light too late in the evening.
How long do the LEDs last?	If you use the appliance 30 minutes a day throughout the year, the LEDs have a lifetime of over 50 years.
What if one or more LEDs stop working prematurely?	In the unlikely event that one or two LEDs fail prematurely, you can continue to use your goLITE BLU energy light normally because its effectiveness is not affected. However, if several LEDs stop functioning, have the goLITE BLU energy light repaired to ensure that you get the right amount of light. See chapter ‘Guarantee and service’.
What is the demo mode?	This mode is used to demonstrate the goLITE BLU energy light in shops. To switch off this mode, simultaneously press and hold the on/off button and light intensity button for 3 seconds or unplug the appliance.

Specifications

Model HF3320

Electrical

Rated input voltage adapter (VAC) 100-240

Output voltage adapter (VDC) 15

Rated frequency adapter (Hz) 50/60

Total power consumption during use 9 (W)

Output power adapter (W) 5.4

Standby power adapter (W) 0.15

IEC 60601-1 classification

• Insulation class II
• Ingress of water IPX4
• Mode of operation Continuous

Operating conditions

Temperature from 0° C to +35° C

Relative humidity from 15% to 90% (no condensation)

Storage conditions

Temperature from -20°C to +50°C

Relative humidity from 15% to 90% (no condensation)

Physical characteristics

Dimensions 14 × 14 × 2.5cm

Weight 0.27kg

Peak wavelength 468nm +/- 8nm

Typical illuminance (100% intensity) 205 lux +/- 12% at 50cm

Circuit diagrams, component part lists and other technical descriptions are available on request.

As user of this appliance, you should take measures to prevent the occurrence of electromagnetic interference or other types of interference between this appliance and other appliances.

Introduktion

Classification IEC 60601-1

IEC 60601-1-classificering
