Product type	Combined refrigerator-freezer
Brand	Sharp
Model	SJ-PT590RS
Total net capacity	Approximately 590 liters
Dimensions (H x W x D)	175 x 90 x 72 cm
Net weight	85 kg
Power supply	220-240 V, 50 Hz
Energy class	A+
Annual consumption	approximately 320 kWh
Cooling technology	Ventilated (No Frost)
Water dispenser	Built-in (optional)
Interior lighting	LED
Door alarm	Yes
Refrigerant gas type	R600a
Noise level	42 dB
Maintenance and cleaning	Automatic defrost; clean with soft cloth and mild detergent
Safety	Child lock, emergency stop, surge protection
Spare parts	Available from Sharp customer service
Repairability	Repairability index of 7.5/10
General information	User manual downloadable as PDF from notice-facile.com

Frequently Asked Questions - SJ-PT590RS SHARP

How to adjust the refrigerator temperature?

Use the touch control panel to adjust the temperature between 0°C and 8°C. An ideal temperature is between 3°C and 5°C.

What to do if the refrigerator does not cool enough?

Check that the ambient temperature does not exceed 43°C, that the air inlets are not blocked, and that the condenser is clean. If the problem persists, contact after-sales service.

How to install the water dispenser?

Connect the water supply hose to the back of the appliance. Make sure the water pressure is between 1 and 6 bars. Consult the manual for detailed steps.

What is the freezer capacity?

The freezer offers approximately 180 liters of net capacity, sufficient for a family of 4.

How to defrost the freezer?

This model is equipped with a No Frost system that prevents frost. No manual defrosting is necessary.

How to clean the inside of the refrigerator?

Unplug the appliance, remove the shelves and wash them with warm water and mild detergent. Wipe the walls with a damp cloth. Restart after drying.

What does the audible alarm mean?

The alarm triggers if the door remains open for more than 2 minutes or if the internal temperature exceeds the normal range. Close the door or reduce the thermal load.

Can I reverse the door opening direction?

Yes, the doors are reversible. Refer to the manual for instructions on changing the direction. It is recommended to call a professional.

Where to find spare parts?

Contact Sharp customer service or visit the official website. You can also check authorized dealers.

How to download the user manual?

Go to notice-facile.com, search for model SJ-PT590RS and download the 118-page PDF for free.

USER MANUAL SJ-PT590RS SHARP

Plasmacluster is a trademark of SHARP Corporation

SJ-PT690R

SJ-PT520R SJ-PT640R

SJ-PT590R SJ-PT690R

REFRIGERATOR-FREEZER

- Household use only • Free standing type

FRIGORIFICO-CONGELADOR

E MANUAL DE MANEJO 8

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

WARNING

■This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion. - The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system. - Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.) - Do not use electric appliances inside the refrigerator. - Use only the specified lamp for the refrigerator compartment. - Do not block the openings on the circumference of the refrigerator. - If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing. - This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases. ■Highly volatile and flammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator. ■Dust deposited on the power plug may cause fire. Wipe it off carefully. ■Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury. ■Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

CAUTION

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury. Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite. Do not use an extension cord or adapter plug. Do not place bottled and canned drinks in the freezer as they may crack when frozen. Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire. Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire. Should the flexible supply cord be damaged, it must be replaced by a service agent approved by SHARP as a special cord is required. In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet. Do not place objects containing liquid or unsteady objects on top of refrigerator. This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

INSTALLATION

WARNING

Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.

1. Keep adequate ventilation space around the refrigerator.

• The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption.
• It is possible to use the refrigerator with a less amount of power consumption by keeping greater space.
• If using the refrigerator in the space below the dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure.

2. Using the two front adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor. 3. Remove the 2 screws of the cabinet lower part, and use these to fit the foot covers. (supplied inside the refrigerator compartment)

NOTE

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide suitable stand.

When transporting

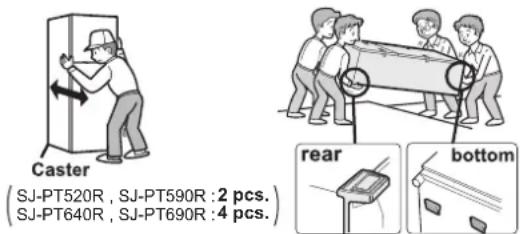

• Using the casters, it is possible to move back and forth.
• Carry the refrigerator by holding the handles located on the rear and bottom.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

INDICATOR OF TEMPERATURE

This refrigerator is provided with a indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

Coldest zone

The symbol indicates the coldest zone in the refrigerator compartment. (The door pocket positioned at the same height isn't the coldest zone.)

Symbol

Checking the temperature in the coldest zone

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control. To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

BLUE Correct setting

WHITE Temperature too high, adjust the refrigerator temp. control.

NOTE

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the temperature indicator to turn WHITE.

DESCRIPTION

• 2 star section ☐ for storing frozen food only.
• Freezer LED light
• Freezer shelf
• Movable shelf

You can make two levels, enabling you to store food separately. If used upside down, you can keep foods neatly within this shelf.

1. Ice cube maker

1) Do not overfill the ice cube trays; otherwise the ice cubes will be joined together when frozen. 2) When the ice cubes are made, turn the lever clockwise to empty the ice into the ice cube box.

NOTE: To prevent damage to the ice cube box, do not make ice in the ice cube box or pour oil into it.

Ice cube box

1. Ice cube box
2. Control panel
3. Fresh case & door
4. Refrigerator LED light
5. Refrigerator shelf
6. Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

1. Half shelf (1 pair)

The position of the shelf can be arranged according to the size of the foods to be stored.

1. Fruit and vegetable shelf
2. Fruit and vegetable crisper

(SJ-PT520R, SJ-PT590R: 1 pc. SJ-PT640R, SJ-PT690R: 2 pcs.)

1. Divider

(Only for SJ-PT520R, SJ-PT590R)

1. Adjustable feet & covers (2 pcs.)
2. Magnetic door seals (2 pcs.)
3. Flexible pocket

Tall food items (e.g. pizza box) can be stored by lifting the partition from the bottom of the pocket.

1. Door pockets (2 pcs.)
2. Refrigerator pocket & cover
3. Egg holders (2 pcs.)
4. Utility pockets

SJ-PT520R small medium medium medium

SJ-PT640R

SJ-PT590R

SJ-PT690R large small medium medium

NOTE (Only for SJ-PT690R)

Do not replace the right utility pocket with that of the left, and vice versa.

1. Bottle pocket
2. Bottle stoppers / Tube stands (2 pcs.)

Prevents bottles, etc. from falling. Stick-type food products can also be stored inside.

Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required.

Reversible door

It is possible to change the door to left side opening. To modify the door a REFRIGERATOR HINGE KIT (for left side opening) will be required, SJ-L55CRD. For details of the kit and the modification work, please contact the service agent approved by SHARP.

CAUTION SHARP recommends that all modification work will be carried out by a competent person.

Control panel

1. Display for temperature setting

The preset temperature of compartment selected is displayed. It is not an actual temperature in the compartment.

2. Display for compartment selected

3. Select button

The compartment selected can be changed by pressing the select button.

4. ▼ button

Use to select temperature.

5. ◆ button

Finalizes the temperature setting.

6. Plasmacluster button and display

Press to start / cancel the plasmacluster operation.

NOTE

• The display for temperature setting and selected compartment will turn off when there is no operation for 1 minute. (When either of buttons is pressed, it lights again.) • The plasmacluster display stays alight.

Plasmacluster

The plasmacluster automatically starts operating when the refrigerator is powered on.

To cancel operation

Press the "button (The light turns off).

To start operation

Press the "button again.

Notes about PLASMACLUSTER operation

The ionizer inside your refrigerator releases clusters of ions, which are collective masses of positive and negative ions, into the freezer and refrigerator compartments. These ion clusters inactivate airborne mold fungus.

- There may be a slight odors in the refrigerator. This is the smell of ozone generated by the ionizer. The amount of ozone is minimal, and quickly decomposes in the refrigerator.

Controlling temperature

The refrigerator controls its temperature automatically. However, if needed, adjust the temperature as follows.

Refrigerator compartment

Adjustable between 0°C and 6°C in steps of 1°C.

1 Press the select button.

2 Press the ▲ button and set the temperature.

[▲ increase, ▼ decrease]

3 Press the "button.

Freezer compartment

Adjustable between -13°C and -21°C in steps of 1°C.

1 Press the select button.

2 Press the ▲ button and set the temperature.

[▲ increase, ▼ decrease]

3 Press the "button.

Door Alarm

When the refrigerator or freezer door is left open, the door alarm will sound.

The door alarm will sound 1 minute after opening the door and again after 1 minute (once in each case). If the door is left open for approx. 3 minutes, the alarm will sound continuously.

To cancel alarm signal

Press the select button continuously for 3 seconds or more while holding down the button.

It is the same method also when restarting the alarm signal.

GB

STORING FOOD

Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products, ensure that the food is the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the fruit and vegetable crisper.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg holder.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place them to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently. - Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage. - Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator. - Keep the door securely closed.

Do not place food directly in front of the cold air outlet. This may lead to the food freezing.

For best freezing

• Quality of foods should be fresh. - Freeze small quantities of food at a time to freeze them quickly. - Food should be properly stored or covered and the air should be removed to seal tightly. • Evenly place the food in the freezer. - Label bags or containers to keep an inventory of freezing food.

CARE AND CLEANING

WARNING

■Unplug the refrigerator first to prevent electric shock. ■Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

1 Remove the shelves and pockets from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry. (Only fruit and vegetable shelf is not removable.) 2 Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water. 3 Wipe the exterior with a soft cloth each time it is soiled. 4 Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water. 5 Wipe the control panel with the dry cloth.

NOTE

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).
• If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.
• The glass shelves weigh approximately 3 kg each. Hold firmly when removing from the cabinet or carrying.
• When dropped the juice and the like near the control panel, wipe off directly. It becomes cause of failure of the control panel.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

WHAT TO DO BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

Problem Solution
The outside of a cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts--- Sound becomes quieter after a while.Loud noise produced once a day by the compressor--- Operating sound produced immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzing sound)--- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, squeaking sound--- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.When the door is frequently opened and closed.When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	Is the refrigerator operated for a long time with refrigerator temp. control set at 0°C?Is the refrigerator operated for a long time with freezer temp. control set at -21°C?Low ambient temperature may cause placed foods to freeze even if refrigerator temp. control is set to 6°C.
It smells in the compartment.	Wrapping is required for the foods with strong smell.Deodorizing unit cannot remove all of smell.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Information on Disposal for Users (private households)

Attention:

Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

(SJ-PT520R, SJ-PT590R: 1 pcs. SJ-PT640R, SJ-PT690R: 2 pcs.)

1. Separator plate

SJ-PT690R large medium

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

SJ-PT520R, SJ-PT590R: 2 pieces SJ-PT640R, SJ-PT690R: 4 pieces

(SJ-PT520R, SJ-PT590R: 1 piece) SJ-PT640R, SJ-PT690R: 2 pieces)

(Only for models SJ-PT520R, SJ-PT590R)

2 Press the ▲ key to set the temperature.

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 2 pieces) SJ-PT640R, SJ-PT690R: 4 pieces)

(SJ-PT520R, SJ-PT590R: 1 piece SJ-PT640R, SJ-PT690R: 2 pieces)

INLET

OUTLET

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

1. Separator plate

(SJ-PT520R, SJ-PT590R: 2 pcs. SJ-PT640R, SJ-PT690R: 4 pcs.)

(SJ-PT520R, SJ-PT590R: 1 pc.) (SJ-PT640R, SJ-PT690R: 2 pcs.)

SJ-PT520R SJ-PT590R

1. Separator plate

(Model for SJ-PT520R, SJ-PT590R)

Caution:

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 2 pcs. SJ-PT640R, SJ-PT690R: 4 pcs.)

(SJ-PT520R, SJ-PT590R: 1 pc.) SJ-PT640R, SJ-PT690R: 2 pcs.)

14. Separating shelf

(Only models SJ-PT520R, SJ-PT590R)

Freezer compartment

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 2 pcs. SJ-PT640R, SJ-PT690R: 4 pcs.)

1. Fruit and vegetable shelf
2. Fruit and vegetable drawer

(SJ-PT520R, SJ-PT590R: 1 pc. SJ-PT640R, SJ-PT690R: 2 pcs.)

1. Divider plate

SJ-PT520R small medium medium medium

SJ-PT640R

SJ-PT590R

SJ-PT690R large medium medium

Freezer compartment

Note:

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

1. Separating plate

(Only for models SJ-PT520R, SJ-PT590R)

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 1 pc) (SJ-PT640R, SJ-PT690R: 2 pcs)

1. Separating plate

(Only SJ-PT520R, SJ-PT590R)

NOTE (Only SJ-PT690R)

Caution:

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

Caster (SJ-PT520R, SJ-PT590R: 2 pcs SJ-PT640R, SJ-PT690R: 4 pcs)

Before using the refrigerator

(SJ-PT520R, SJ-PT590R: 1 pc SJ-PT640R, SJ-PT690R: 2 pcs)

1. Separating plate

Door alarm

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 2 pcs SJ-PT640R, SJ-PT690R: 4 pcs

(SJ-PT520R, SJ-PT590R: 1 pc) (SJ-PT640R, SJ-PT690R: 2 pcs)

1. Separating plate

(Only for SJ-PT520R, SJ-PT590R)

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

SJ-PT520R, SJ-PT590R: 2 pcs SJ-PT640R, SJ-PT690R: 4 pcs

(SJ-PT520R, SJ-PT590R: 1 pc) (SJ-PT640R, SJ-PT690R: 2 pcs)

1. Separating plate

(Only SJ-PT520R, SJ-PT590R)

1. Adjustable feet with covers (2 pcs)
2. Magnetic door seals (2 pcs)
3. Flexible compartment

- A slight aroma may be noticeable in the refrigerator. This is the scent of ozone produced by the ionizer. The amount of ozone in the refrigerator is minimal and it quickly decomposes.

Temperature regulation

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

1. Ice maker

(SJ-PT520R, SJ-PT590R: 1 pc. SJ-PT640R, SJ-PT690R: 2 pcs.)

1. Divider wall

(Only SJ-PT520R, SJ-PT590R)

NOTE (Only SJ-PT690R)

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 2 pcs.) SJ-PT640R, SJ-PT690R: 4 pcs.)

1. Fruit and vegetable shelf
2. Fruit and vegetable compartment

(SJ-PT520R, SJ-PT590R: 1 pc.) (SJ-PT640R, SJ-PT690R: 2 pcs.)

1. Divider

(Only SJ-PT520R, SJ-PT590R)

2 Press the ▲ button and set the temperature.

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

(SJ-PT520R, SJ-PT590R: 1 pc) (SJ-PT640R, SJ-PT690R: 2 pcs)

14. Partition

(Only for models SJ-PT520R, SJ-PT590R)

Adjustable feet and covers (2 pcs.)

Ionizer "Plasmacluster"

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230mm	1400mm
b	1400mm	1500mm

1. Fruit and vegetable shelf
2. Fruit and vegetable drawer

(SJ-PT520R, SJ-PT590R: 1 pc.) (SJ-PT640R, SJ-PT690R: 2 pcs.)

SJ-PT520R SJ-PT590R

1. Divider

(Only for SJ-PT520R, SJ-PT590R)

1. Adjustable feet and covers (2 pcs.)
2. Magnetic door gaskets (2 pcs.)
3. Flexible drawer

Tall food items (e.g., pizza box) can be stored by lifting the partition from the bottom of the drawer.

1. Door shelves (2 pcs.)
2. Cooling drawer and cover
3. Egg holders (2 pcs.)
4. Useful drawers

SJ-PT520R small medium medium medium

SJ-PT640R

SJ-PT590R

SJ-PT690R large small medium medium

NOTE (Only for SJ-PT690R)

Do not swap the right useful drawer with the left one, and vice versa.

1. Bottle drawer
2. Bottle limiter / Tube holders (2 pcs.)

Caution:

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230MM	1400MM
b	1400MM	1500MM

(SJ-PT520R, SJ-PT590R: 1 pc. SJ-PT640R, SJ-PT690R: 2 pcs.)

14. Divider

Caution:

Your appliance

marked with this

symbol. This

SYMBOL

indicates

electrical and

electronic

equipment that is not

	SJ-PT520RSJ-PT590R	SJ-PT640RSJ-PT690R
a	1230 MM	1400 MM
b	1400 MM	1500 MM

SJ-PT520R, SJ-PT590R: 2 pcs. SJ-PT640R, SJ-PT690R: 4 pcs.

(SJ-PT520R, SJ-PT590R: 1 pc. SJ-PT640R, SJ-PT690R: 2 pcs.)

1. Separator

(Only for SJ-PT520R, SJ-PT590R)

Caution:

Federal Republic of Germany

Printed in Thailand
