Product type	Manual reel mower (cylinder)
Brand	Güde
Model	415 Eco Wheeler
Cutting width	41.5 cm
Adjustable cutting height	Yes (multiple positions, typically 12 to 40 mm)
Blade type	Helical steel blade
Grass catcher	Included, capacity about 30 L
Chassis material	Painted steel
Handle	Ergonomic folding handle for storage
Wheels	Robust plastic wheels, diameter 18 cm
Dimensions (L x W x H)	Approximately 100 x 48 x 95 cm (assembled)
Weight	11.5 kg
Power source	None (manual, motorless)
Recommended mowing area	Up to 300 m²
Cutting type	Clean cut by shearing (fixed blade + rotating blade)
Noise level	Very quiet (< 70 dB(A))
Maintenance	Clean after each use, annual blade sharpening
Spare parts available	Replacement blades, springs, wheels, handle
Repairability	High repairability index (simple design, standard parts)
Safety	Blade brake (instant stop when releasing handle), hand protection
Warranty	2 years (parts and labor)
Box contents	Lawn mower, grass catcher, user manual

Frequently Asked Questions - 415 Eco Wheeler GUDE

How to assemble the 415 Eco Wheeler mower?

Follow the steps in the manual: attach the handle using the provided screws, clip on the grass catcher, and adjust the desired cutting height. No additional tools are required.

How to adjust the cutting height?

Use the adjustment lever located on the side of the chassis. It typically offers 4 to 6 positions for a cutting height of 12 to 40 mm.

Should I lubricate the blades?

Yes, apply a light film of motor oil or multi-purpose lubricant to the blades and bearings after each cleaning to prevent rust and ensure smooth operation.

How to sharpen the blades?

Remove the helical blade by unscrewing the fixing screws. Use a fine sharpening stone or a flat file to sharpen the edges. Reinstall the blade, making sure it is correctly positioned.

The mower does not cut well, what to do?

First check the cutting height: if it is too high, the grass is folded. Then ensure the blades are sharp and the bed knife (fixed blade) is not damaged. Also clean the grass accumulated under the deck.

Can the mower be used on wet grass?

It is not recommended to mow wet grass as it can clog the blades and cause jams. Additionally, wet grass clumps together and gives a less clean result.

How to clean the mower?

Use a stiff brush and a gentle water spray to remove grass under the deck. Wipe with a dry cloth. Do not use a pressure washer as it could damage the bearings.

Where to find spare parts?

Spare parts are available on the official Güde website or from authorized dealers. You can order blades, springs, wheels, and handles.

What is the maximum recommended area?

The 415 Eco Wheeler mower is ideal for lawns up to 300 m². For larger areas, prefer a motorized model.

How to store the mower in winter?

Clean it thoroughly, lubricate the blades and wheels, then store it in a dry, frost-free place. Fold the handle to save space.

USER MANUAL 415 Eco Wheeler GUDE

Exterior view of a modern lawn mower with visible brand logo and model number 415 (no text on the motor itself)

ECO Wheeler 415

95380

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY \_\_\_\_ 22

Français CARACTÉRISTIQUES TECHNIQUES | UTILISATION CONFORME À LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE \_\_\_\_ 27

Three mechanical components: a bolt, a curved bracket, and a black handle (no text or symbols visible)

DE Montage SI Montaža

GB Assembly HR Montaža

FR Montage BG Монтаж

IT Montaggio RO Montaj

NL Montage BA Montaža

CZ Montáž

SK Montáž

HU Szerelés

1

2-3

Illustration of a grassing machine with wheels and a box, showing a 3D view of its open lid (no text or symbols)

Diagram of a lawn mower with motion arrows indicating rotational motion (no text or symbols)

DE montage

SI Montaža

GB Assembly

HR Montaža

FR Montage

BG Монтаж

IT Montaggio

RO Montaj

NL Montage

BA Montaža

CZ Montáž

SK Montáž

HU Szerelés

1

Black-and-white photo of a lawn mower with visible engine and control panel, no text or symbols present.

DE Ölstand kontrollieren

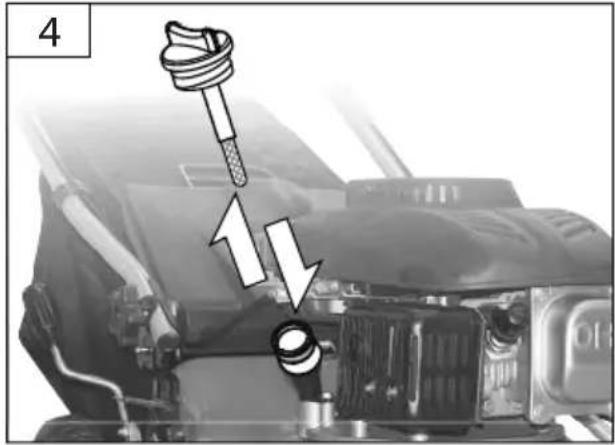

GB Oil level inspection

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Simple line drawing of a lawn mower with a checkmark indicating right angle (no text or symbols)

DE Ölstand kontrollieren

GB Oil level inspection

Line drawing of a hand holding a small object with a pipette inserted (no text or symbols)

4

5

6

7

8

2	DE	Tanken	SI	Dolivanje goriva
	GB	Fuel tank fi lling	HR	Dopunjavanje goriva
	FR	Ravitaillement	BG	Зареждане
	IT	Rabbocco	RO	Alimentarea cu combustibil
	NL	Tanken	BA	Dopunjavanje goriva
	CZ	Tankování
	SK	Tankovanie
	HU	Tankolás

Mechanical component with lock and curved arrow indicating rotation (no text or symbols)

GB Cutting height setting

Close-up of a car's wheel assembly with labeled parts (+ and -), no readable text or symbols beyond directional arrows

2

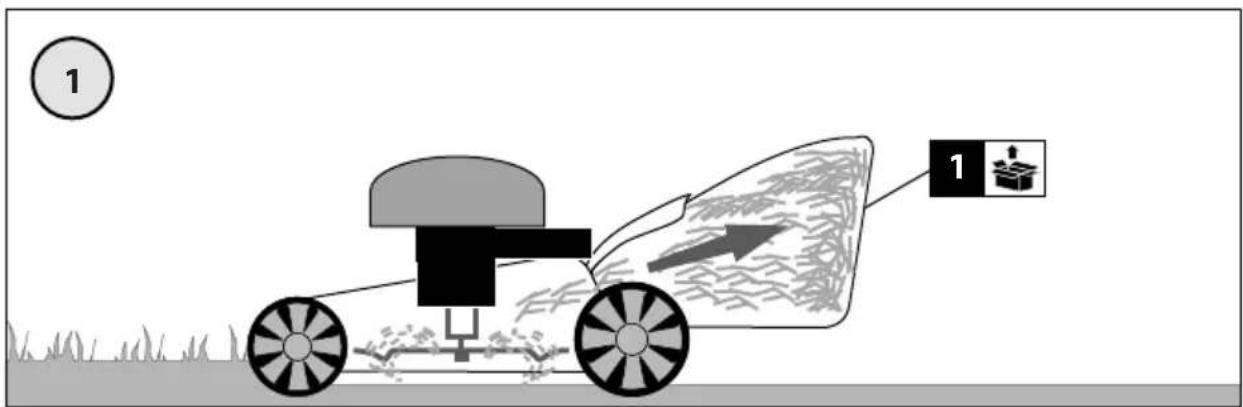

DE Mähen - SammelnGB mow - collectFR tondre - collecterIT falciare - raccogliereNL maaien - verzamelenCZ sekat - sbíratSK kosit' - zbiera'tHU szénaboglya - gyújt

SI kosite - zbiratiHR kositi - prikupitiBG koся - събиране наRO cosi - colectaBA kositi - prikupiti

Close-up of a mechanical component with a wrench and screwdriver, showing a close-up view of a tool interacting with a small object (no text or symbols visible)

Lhouette of a lawn mower with attached cover and blade, no visible text or symbols

Three-panel image showing a vehicle's wheel cover, blade, and meshing process (no text or symbols)

DE mähen

SI kosite

GB mow

HR kositi

FR tondre

BG KOся

IT falciare

RO cosi

NL maaien

BA kositi

CZ sekat

SK kosit

HU szénaboglya

2

STOP

2

Diagram of a car with motion lines indicating speed or airflow (no text or symbols)

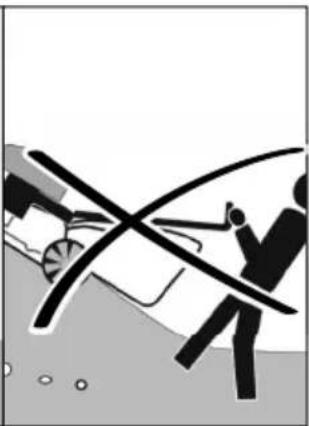

DE mähanweisungen

GB Cutting instructions

FR Consignes de tonte

Illustration of a lawn mower with motion arrows and pictograms of two people using a tool (no text or symbols)

Illustration of a person crossing a road with a construction vehicle and warning sign (no text or symbols)

Silhouette of a person pushing a cart with a curved ramp, no text or symbols present

Silhouette of a person using a power tool to cut a machine, with a warning sign and hazard symbol (no text or labels)

DE Betrieb - START

GB Operation - START

Close-up of a mechanical device with visible components and a label 'OHV' on the housing (no readable text beyond label)

Diagram of a medical or surgical tool with a curved tool and arrow indicating direction (no text or symbols)

	DE	Reinigung / Wartung	SI	Čiščenje / Vzdrževanje
	GB	Cleaning / Maintenance	HR	Čiščenje / Održavanje
	FR	Nettoyage / Entretien	BG	Чистене / Поддръжка
	IT	Pulizia / Manutenzione	RO	Curățare / Întreținere
	NL	Schoonmaken / Onderhoud	BA	Čiščenje / Održavanje
	CZ	Čištění / Údržba
	SK	Čistenie / Údrzba
	HU	Tisztítás / Karbantartás

Black fabric bag with a pile of dried herbs or tea leaves emerging from its side, against a white background (no text or symbols)

DE Zündkerze

GB Spark plug

Two mechanical components: a brush and a spark plug, shown side by side with no visible text or symbols.

5

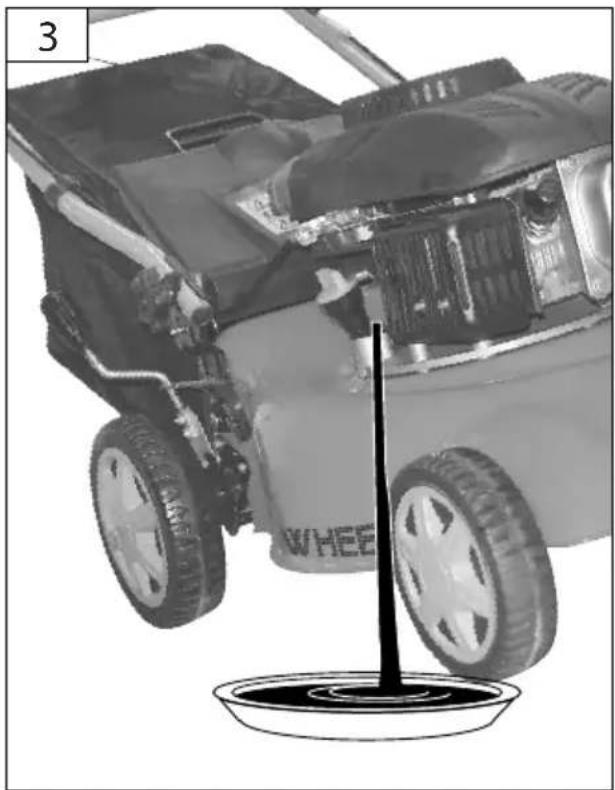

DE ÖlwechselGB Oil changeFR Remplacement d'huileIT Cambio dell'olioNL OlieverversingCZ Výměna olejeSK Výmena olejaHU Olajcsere

SI Menjava oljaHR Zamjena uljaBG Смяна на маслотоRO Ínlocuirea uleiuluiBA Zamjena ulja

Close-up of a lawn mower with visible mechanical components and no text or symbols

Close-up of a mechanical component with a hexagonal nut and directional arrows indicating motion (no text or symbols)

Close-up of a small lawn mower with visible tire, base, and wheel (no text or symbols)

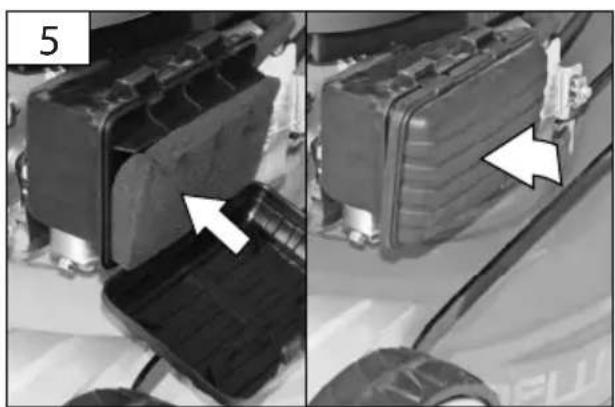

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfi Iter

CZ Vzduchový fi ltr

Close-up of a lawn mower with visible engine compartment and wheels (no text or symbols)

Close-up of a car's engine compartment showing internal components and a white arrow pointing to a specific component (no text or symbols visible)

Close-up of a car's internal battery pack assembly with a white arrow pointing to the component (no visible text or symbols)

Illustration of a hand pouring water from a rock toward a sun, with no text or symbols present.

Close-up of two mechanical components with arrows pointing to a component, no visible text or symbols

5	DE	Bowdenzüge	SI	Vžigalna vrvica
	GB	Bowden cables	HR	Startno uže
	FR	Câbles Bowden	BG	бовденови въженца
	IT	Funicelle Bowden	RO	Cabluri Bowden
	NL	Bowdentrekken	BA	Startno uže
	CZ	bovdenová lanka
	SK	bovdenové lanká
	HU	bowden kábel

DE	Der Motor startet nicht	CZ	Motor nestartuje	BG	Мотора не стартира
GB	The motor does not start	SK	Motor neštartuje	RO	Motorul nu pornešte
FR	Le moteur ne démarre pas	HU	A motor nem startol	BA	Motor se ne pali
IT	Motore non parte	SI	Motor ne vžge
NL	De motor start niet	HR	Motor se ne pali

DE	Automatischer Vorschub funktioniert nicht	NL	Automatische aandrijving werkt niet	SI	Avtomatsko vozite ne deluje
GB	Automatic feed is not working	CZ	Automatický posuv nepracuje	HR	Automatsko voziti ne radi
FR	Alimentation automatique ne fonctionne pas	SK	Automatický posuv nepracuje	BG	Автоматично карам не работи
IT	Alimentazione automatica non funziona	HU	Automatikus takarmány nem működik	RO	Furaje automată nu este de lucru
				BA	Automatsko voziti ne radi

Technische Daten

Fuel ....Unleaded petrol/E10

weight 26 kg

Dimensions 1510 x 500 x 1000 mm

Noise and Vibration Information

Sound pressure level L 1)....83,8 dB (A)

Sound power level L 96 dB (A)

Wear ear protectors!

Vibration emission value a²⁾ 4,8 m/s

¹⁾ Uncertainty K=2,5 dB (A), ²⁾ Uncertainty K=1,5 m/s ²

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

delivered items

1 Collection bag

2 Spark plug wrench

3 Bowden clamps

4 Accessory

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20^irc in private gardens around the house and in garden colonies. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a fi rst-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a fi rst-aid kit. It is essential to replace any used material in the fi rst-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions

Wear ear protectors!

Wear eye protective goggles!

Caution - hot surface!

Danger of burns!

Warning against bounced subjects

Keep distance of persons!

Observe to keep out of dangerous zone

Switch the engine off and remove the

socket plug before any work on the engine.

Keep a sufficient distance from the cutting

knife when operating the appliance.

Caution, risk of drawing-in!

Risk of explosion

Refuel the engine only when switched off.

Risk of poisoning!

Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Always keep children and unauthorised persons out of reach of the appliance.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

Wear safety cut through resistant shoes with safety sole and steel toe!

Warning against hot surfaces!

Warning against dangerous voltage!

Any damaged or disposed devices must be delivered to appropriate collection centres.

Batteries, oil, and similar substances must not enter the environment.

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

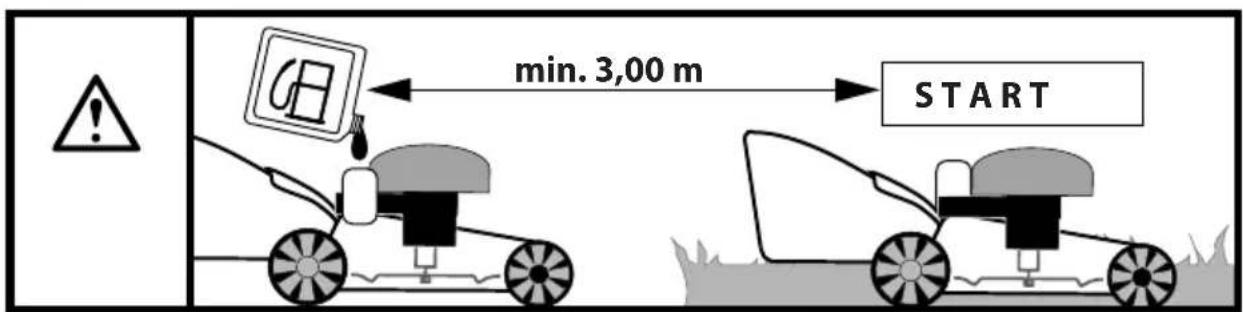

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

Check all screw and plug-in connections and tective equipment if fi rm and tightened perly and whether all moving parts are ning smooth whenever the appliance is to be into operation.

The protective equipment on the appliance is tly prohibited to be disassembled, changed, and in conflict with the designation and it is hibited to attach any protective equipment of er manufacturers.

The appliance must not be used if damaged safety equipment is defective. Replace any n-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
Spark plug	Inspection Clean					√
	Change						√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Causes	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Primary pump has not been used Use the primary pump
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather

3 Cleme cablu bowden

4 Accesorile

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none exist in the GT. Hence, the result is inconsistent with the Ground Truth.

Prilikom rada uvek nosite sigurnosnu zaštitnu obuću otpornu na presecanje, sa rapavom potplatom i čeličnim frontalnim delom (špicom)!

EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
