BUB182Z - Blower MAKITA - Free user manual and instructions

Product type	Cordless blower
Brand	Makita
Model	BUB182Z
Rated voltage	18 V
Battery type	Lithium-ion LXT
Variable air speed	Yes
Maximum air volume	3.9 m³/min
Weight (without battery)	1.6 kg
Overall length	840 mm
Sound level (LpA)	75 dB(A)
Trigger lock function	Yes
Power supply	18 V battery (sold separately)
Maintenance and cleaning	Clean the air vents with a soft brush
Safety	Wear safety goggles and gloves
Spare parts and repairability	Available from authorized dealers
General information	Manual available for free download

Frequently Asked Questions - BUB182Z MAKITA

How to adjust the blower's air speed?

The speed is continuously adjustable via the trigger. Press more or less to increase or decrease the air flow.

Which battery to use with the BUB182Z?

Use a Makita 18 V LXT battery from the BL18xx series. The BUB182Z model is sold without battery or charger.

What is the battery runtime?

The runtime depends on the battery capacity and the mode used. With a 5 Ah battery, expect about 20 minutes of continuous use.

How to clean the blower after use?

Remove the battery, then clean the air vents and the tube with a soft brush. Do not use water or solvents.

Is the blower noisy?

The noise level is about 75 dB(A). Wear hearing protection during prolonged use.

Can I use the blower in rainy weather?

No, the BUB182Z is not designed for use in rain or wet conditions. Risk of electric shock.

How to activate the trigger lock?

Press the lock button located above the handle, then press the trigger. Release the trigger to stop.

Where to find spare parts for the BUB182Z?

Spare parts are available from authorized Makita dealers or online. Check the manual for part numbers.

What to do if the blower does not start?

Check that the battery is fully inserted and charged. If the problem persists, contact an authorized Makita service center.

How to download the manual for the BUB182Z?

Go to the site notice-facile.com, search for 'BUB182Z Makita' and download the PDF for free.

USER MANUAL BUB182Z MAKITA

GB Cordless Blower Instruction manual

Line drawing of a mechanical device resembling a Twakira horn or pump, with no visible text or symbols.

1

2

3

4

Simple line drawing of two hands holding a rectangular object with a label '11' (no text or symbols on the object itself)

5

Line drawing of a hand holding a cylindrical tool with a pointed tip, no text or symbols present

6

ENGLISH

Explanation of general view

1. Red part	5. Air volume adjusting dial	9. Dust bag
2. Button	6. Switch trigger	10. Suction inlet
3. Battery cartridge	7. Nozzle	11. Fastener
4. Pointers	8. Blower outlet

SPECIFICATIONS

Model BUB142 BUB182
Capacities	Air pressure (water column) 0 - 550 mm
	Air volume	0 - 2.6 m3/min
No load speed (min-1)		0 - 18,000
Overall length		509 mm
Net weight		1.7 kg	1.8 kg
Rated voltage		D.C. 14.4 V	D.C. 18 V

Intended use BNE018-1

The tool is intended for blowing dust.

ADDITIONAL SAFETY RULES FOR TOOL GEB032-1

1. Be aware that tool is always in an operating condition, because it does not have to be plugged into an electrical outlet.
2. Always use protective goggles, a cap and mask when using the blower.
3. Never point the nozzle at anyone in the vicinity when using the blower.
4. Always use the dust bag when collecting dust, chips and the like.
5. Do not collect still smoldering cigarette ashes, freshly cut metals shavings, screws, nails and the like.
6. Never block suction inlet and/or blower outlet. Increased motor revolution may cause dangerous fan breakage.

SAVE THESE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS

ENC007-2

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown.
6. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F).
7. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.

SAVE THESE INSTRUCTIONS

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged.
   Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10°C - 40°C (50°F - 104°F). Let a hot battery cartridge cool down before charging it.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

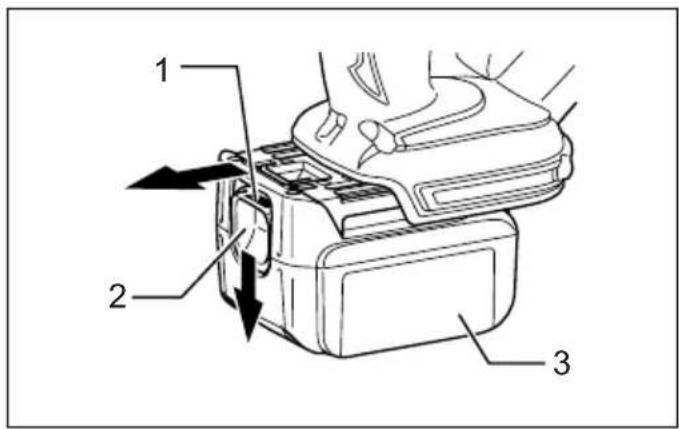

Installing or removing battery cartridge (Fig. 1)

- Always switch off the tool before insertion or removal of the battery cartridge.

• To remove the battery cartridge, withdraw it from the tool while pressing the buttons on both sides of the cartridge.
• To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
• Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Switch action

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop. (Fig. 2)

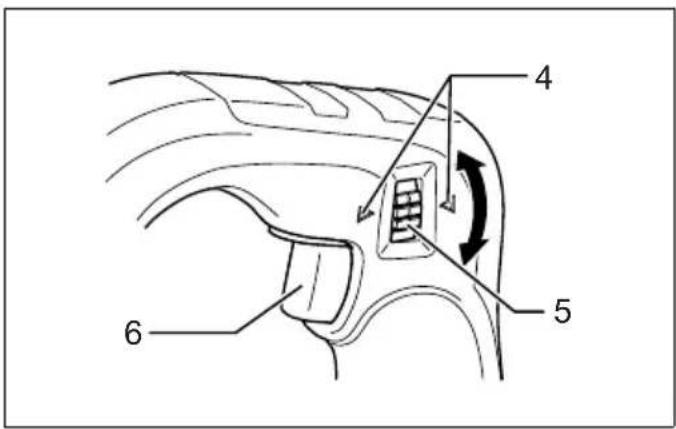

Air volume adjusting dial

Air volume can be adjusted to any of three settings by turning the adjusting dial with the switch trigger fully depressed. Refer to the table below for the relationship between the number on the dial and the air volume.

Number on the dial Air volume
3 High
2 Medium
1 Low

CAUTION:

• Use the adjusting dial only after the switch trigger returns to the "OFF" position. Turning the dial before the trigger returns may damage the tool.
• If the tool is operated continuously until the battery cartridge has discharged, rest the tool for at least 15 minutes before proceeding with a fresh battery.

ASSEMBLY

Blowing

For dust blowing, attach nozzle to blower outlet, turning clockwise to lock it in place. (Fig. 3)

Dust suction (Fig. 4)

For dust suction, fit nozzle onto suction inlet and dust bag onto blower outlet.

After the bag fills with dust, empty the contents of the dust bag into a dust bin by releasing the fastener. (Fig. 5)

CAUTION:

- Empty the dust bag before it becomes too full, or the suction force weakens.

MAINTENANCE

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

Cleaning

From time to time, wipe off the outside of the tool using a cloth dampened in soapy water. Never use gasoline, thinner or the like, or discoloration and/or cracks can take place. (Fig. 6)

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Nozzle
• Dust bag
• Corner nozzle
• Straight pipe
• Flexible hose
• Joint
• Various type of Makita genuine batteries and chargers

Model BUB142

Noise

ENG102-1

The typical A-weighted noise level determined according to EN60745-1:

Sound pressure level (L_pA) : 86 dB (A)

Sound power level (LWA): 97 dB (A)

Uncertainty (K): 3 dB (A)

Wear ear protection

Vibration

ENG226-1

The vibration total value (tri-axial vector sum) determined according to EN60745-1:

Work mode: operation without load

Vibration emission (a_h) : 2.5m / s² or less

Model BUB182

Noise

ENG101-1

The typical A-weighted noise level determined according to EN60745-1:

Sound pressure level (L_pA) : 83 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 85 dB (A).

Wear ear protection

Vibration

ENG226-1

The vibration total value (tri-axial vector sum) determined according to EN60745-1:

Work mode: operation without load

Vibration emission (a_h) : 2.5m / s² or less

EC-DECLARATION OF CONFORMITY

Model; BUB142, BUB182

ENH101-8

We declare under our sole responsibility that this product is in compliance with the following standards of standardized documents;

EN60745, EN55014, EN61000 in accordance with

Council Directives, 2004/108/EC, 98/37/EC.

CE 2008

Tomoyasu Kato

Director

Responsible Manufacturer:

Makita Corporation

3-11-8, Sumiyoshi-cho, Anjo, Aichi, JAPAN

Authorized Representative in Europe:

Makita International Europe Ltd.

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

FRANÇAIS

Descriptif

Fabricant responsible :

Makita Corporation

3-11-8, Sumiyoshi-cho, Anjo, Aichi, JAPON

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ANGLETERRE

DEUTSCH

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

ITALIANO

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, INGHILTERRA

NEDERLANDS

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGELAND

ESPAÑOL

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, REINO UNIDO

PORTUGUÊS

Descrição geral

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, INGLATERRA

DANSK

Michigan Drive, Tongwell, Milton Keynes,

8JD, ENGLAND

SVENSKA

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

NORSK

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

SUOMI

Yleiskuvaus

Äänenpainetaso (L _pA ): 86 dB (A)

Äänenpaineen taso (L _wA ): 97 dB (A)

Epävarmuus (K): 3 dB (A)

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

ΕΛΛΗΝΙΚΑ

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND

TÜRKÇE

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, İNGİLTERE

POLSKI

WYPOSAŻENIE DODATKOWE

UWAGA:

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ANGLIA

РУССКИЙ

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND (ВЕЛИКОБРИТАНИЯ)

PORTUGUÊS

Explicação geral

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, INGLATERRA

LATVIEŠU

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15 8JD, ENGLAND

EESTI

Üldvaate selgitus

SALVESTAGE NEED JUHISED

Tolmu imemine (Joon. 4)

Helisurve tase (LpA): 86 dB (A)

Helisurve tase ( L_wA ): 97 dB (A)

Helisurve tase (LpA): 83 dB (A)

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

LIETUVIŲ KALBA

Bendrasis aprašymas

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ANGLIJA

中文

总图说明

Michigan Drive, Tongwell, Milton Keynes, Bucks MK15

8JD, ENGLAND

Makita Corporation

Anjo, Aichi, Japan

BUB142_0806
