Product type	Cyclone bagless vacuum cleaner
Brand	Princess
Model	332835 Red Panda Cyclone Cleaner
Dimensions (L x W x H)	Approx. 25 x 25 x 35 cm
Weight	Approx. 3.5 kg
Power supply	Mains 220-240 V ~ 50 Hz
Rated power	1200 W
Tank capacity	1.5 L
Filtration type	Cyclone + washable HEPA filter
Action radius	Approx. 8 m
Sound level	Approx. 78 dB(A)
Main functions	Cyclone technology, powerful suction, washable filter
Included accessories	Long nozzle, upholstery brush, crevice tool
Maintenance and cleaning	Empty the tank after each use; wash the filter every month
Safety	Automatic shut-off in case of overheating
Spare parts and repairability	Replacement filter available; repair by authorized center
General information	Domestic use; 2-year warranty

Frequently Asked Questions - 332835 Red Panda Cyclone Cleaner PRINCESS

How do I empty the vacuum cleaner's tank?

Turn off the appliance and unplug it. Press the tank release button, remove it and empty its contents into a trash bin. Put it back until it clicks into place.

How often should the filter be washed?

Wash the HEPA filter every month or as soon as it is visibly dirty. Rinse it with cold water and let it dry completely for 24 hours before reinstalling it.

What should I do if the vacuum cleaner loses suction power?

Check if the tank is full or if the filter is clogged. Clean the filter and empty the tank. Also check if the hose or brush is blocked.

The vacuum cleaner stops suddenly, what should I do?

This may be due to overheating. Turn off the appliance, unplug it and let it cool down for 30 minutes. If the problem persists, contact customer service.

Can I use the vacuum cleaner with a wet filter?

No, the filter must be completely dry before reinstalling. A wet filter can damage the motor and reduce suction efficiency.

How do I replace the HEPA filter?

Turn off and unplug the vacuum cleaner. Open the filter compartment, remove the old filter and insert a new compatible filter. Refer to the manual for the exact model.

The vacuum cleaner makes an abnormal noise, what should I do?

Check if an object is stuck in the brush or hose. Remove any blockage. If the noise persists, stop the appliance and contact an authorized repairer.

What accessories are included with this vacuum cleaner?

The vacuum cleaner comes with a long crevice tool, an upholstery brush, and a crevice tool. Check the manual for the full list.

Can I use the vacuum cleaner on hard floors and carpets?

Yes, the vacuum cleaner is suitable for all types of floors. Use the main brush for carpets and rugs, and adjust the height if necessary.

Where can I find spare parts for this vacuum cleaner?

Replacement filters and other accessories are available on the Princess website or from authorized dealers. Use the reference 332835 to identify compatible parts.

USER MANUAL 332835 Red Panda Cyclone Cleaner PRINCESS

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

• Gebruiksaanwijzing • User's instructions • Mode d'emploi
• Bedienungsanleitung • Instrucciones de uso • Istruzioni per l'uso
• Bruksanvisning • Brugsanvisning • Bruksanvisning • Käyttöohje
• Instruções de uso • Οδηγίες χρήσης المستخدم دليل

Nederlands 1

English 7

Français 13

Deutsch 19

Español 25

Italiano 31

Svenska 38

Dansk 43

Norsk 49

Suomi 55

Português 61

Ελληνικά 67

المملكةDistanced 73

1

2

3

Diagram of an electric vacuum cleaner connected to a wire, showing internal components and cable connection (no text or symbols)

Algemeen

This powerful, compact vacuum cleaner is equipped with a complete range of useful accessories, so that you can thoroughly clean your house. This vacuum cleaner has a removable, easy-to-empty dust collector, so you no longer need to use a dust bag!

The vacuum cleaner is available in two different models:

• Red Panda Cyclo Cleaner (article number 332835). This model comes with a combi nozzle, a crevice tool and a small nozzle.
• Black Rhino Cyclo Cleaner (article number 332836). This model comes with a combi nozzle, a crevice tool, a small nozzle and a parquet brush.

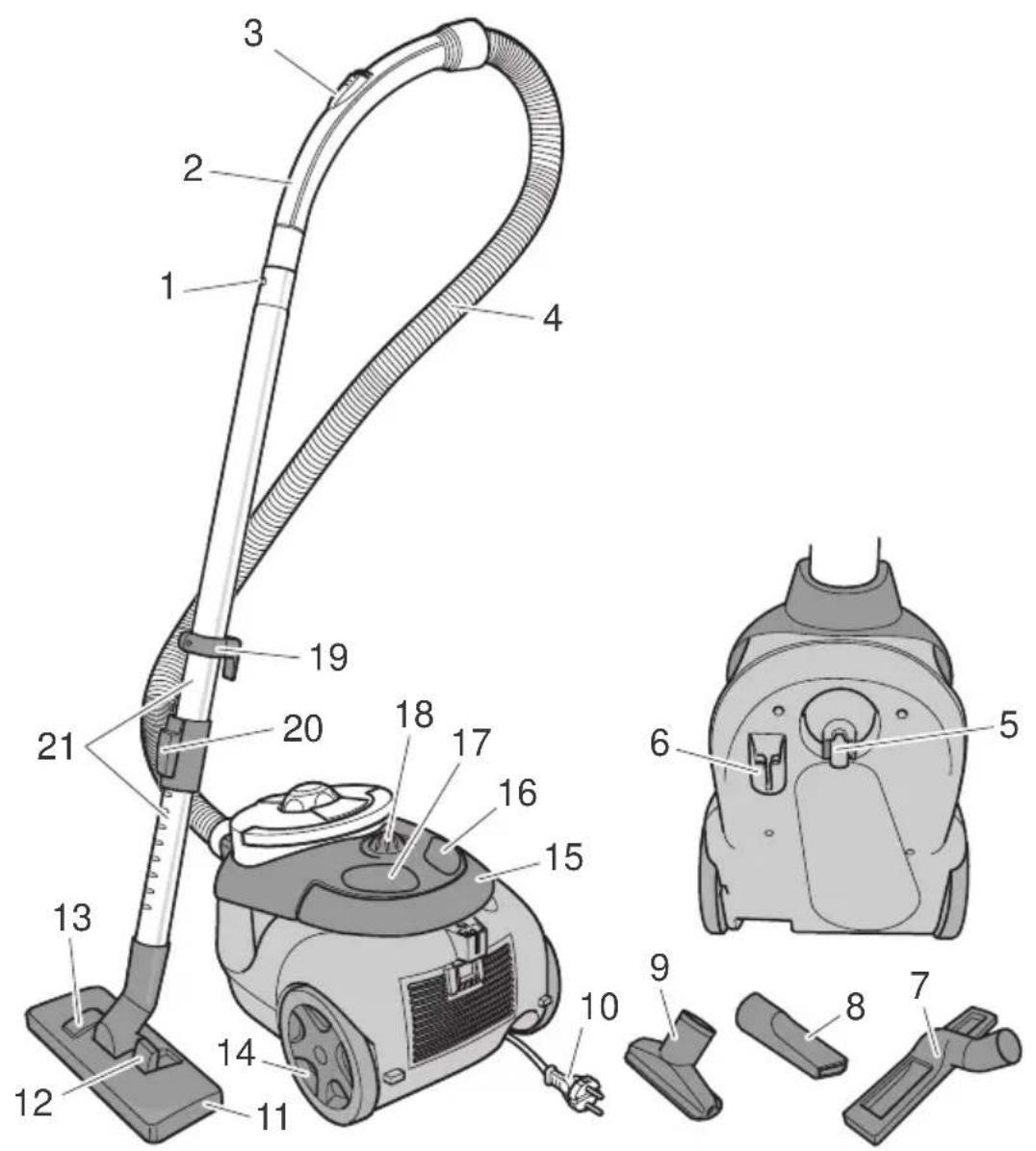

Operation and controls

See figures 1, 2, 8, 9 and 10.

The appliance includes the following components:

1 V a c uum cleaner hose handle locking button
2 V a c uum cleaner hose handle
3 Air supply control slide
4 V a c uum cleaner hose
5 Front castor
6 Slot for the telescopic tube
7 Parquet brush
8 C r e vice tool
9 Small nozzle
10 Power cord with plug
11 Combi nozzle
12 Switch for the combi nozzle with a brush

13 Switch for the combi nozzle without a brush
14 Rear castor
15 Vacuum cleaner handle
16 Cord rewind button
17 On/Off switch
18 Button for adjusting the suction force
19 Telescopic tube holder
20 Telescopic tube locking button
21 Telescopic tube
22 Vacuum cleaner hose attachment piece
23 Vacuum cleaner hose connection
24 "Dust collector full" indicator
25 Dust collector
26 Dust collector base
27 Dust collector base unlocking button
28 Dust collector cover
29 Dust collector handle/unlocking device
30 Filter housing
31 HEPA filter
32 Outlet filter grille
33 Outlet filter holder
34 Outlet filter

Before using for the first time

• Read and follow these instructions. Keep this instruction manual in a safe place.
• Make sure the mains voltage is the same as the voltage on the appliance's type plate.

1 Remove all the packaging materials and stickers from the appliance.

2 Attach the vacuum cleaner hose to the appliance as follows (see figure 2). Slide the hose attachment piece into the connection on the appliance. The lips on the attachment piece must fit into the grooves in the connection. Secure the attachment piece by rotating it clockwise.
3 Attach the vacuum cleaner hose handle to the telescopic tube as follows (see figure 3). Press the locking button on the handle and slide the end of the handle into the end of the telescopic tube. Make sure the locking button clicks into the opening in the tube. You

can remove the tube from the handle by pressing the locking button and pulling the handle out of the tube.

Use

Always make sure all the filters and the dust collector are correctly fitted before using the appliance. Damaged or incorrectly fitted filters may cause damage to the appliance.

Preparations

1 Adjust the telescopic tube to the required length (see figure 4). Push the locking button in the direction indicated by the arrow on the button. Keep the locking button pressed and extend or retract the telescopic tube. Release the locking button to lock the telescopic tube to the desired length.
2 Fit the combi nozzle or one of the other accessories to the end of the tube. You can also fit the combi nozzle or one of the other accessories directly to the end of vacuum cleaner hose handle. The combi nozzle has two settings: with a brush for vacuuming hard floors (parquet, tiles, linoleum, etc.) and without a brush for vacuuming soft floors (carpet, etc.). Press the button on the combi nozzle to either vacuum with a brush (mm) or without a brush ( ) (see figure 5).

Vacuuming

1 The power cord has a yellow mark and a red mark on it (see figure 6). Extend the power cord beyond the yellow mark. The red mark indicates the end of the power cord. Never extend the cord beyond the red mark. This could damage the power cord.
2 Insert the plug into a plug socket and press the On/Off switch. Press the On/Off switch again to turn the appliance off.
3 Use the handle on the vacuum cleaner hose to move the appliance back and forth whilst vacuuming. You can lift the

appliance using the vacuum cleaner's handle.

Note! Never lift the vacuum cleaner using the dust collector's handle!

4 The suction force can be adjusted whilst vacuuming using the button that adjusts the suction force. The suction force can also be temporarily reduced by opening the air supply control slide on the vacuum cleaner hose handle.
5 Press the On/Off button to turn the appliance off.

Accessories

Besides the combi nozzle for cleaning large surfaces, there are also two (Red Panda Cyclone Cleaner) or three (Black Rhino Cyclone Cleaner) accessories for cleaning smaller and special surfaces:

• A crevice tool, to clean radiators, window frames, crevices, small openings, etc.
• A small nozzle, to clean delicate or irregular surfaces, furniture, Venetian blinds, etc.
• A parquet brush, to clean parquet floors (only available with the Black Rhino Cyclone).

Storing the appliance

1 Remove the plug from the plug socket.
2 Lightly hold the end of the power cord. Press the cord rewind button and allow the cord to gently slide through your fingers back into the appliance. Note! You must guide the cord whilst it is rewinding. If you do not do so, the cord may become tangled or the plug may strike the back of the appliance. This can damage the appliance or the power cord.

3 Stand the vacuum cleaner upright. Fully retract the telescopic tube. A slot for the telescopic tube is located at the bottom of the vacuum cleaner, next to the front castor. Slide the holder on the telescopic tube into the slot (see figure 7). This avoids the need to dismantle the vacuum cleaner after use; you can store the assembled appliance and

retrieve it again quickly when you need it.

Maintenance and cleaning

• Clean the appliance thoroughly after use.
• Make sure the plug has been removed from the plug socket before cleaning the appliance.
• Make sure no moisture comes into contact with the appliance's electrical parts.
• Never immerse the appliance, the power cord or the plug in water or other liquids.
• Never use aggressive or scouring cleaning products or sharp objects (such as a knife or a hard brush) to clean the appliance.

Cleaning the appliance

1 Remove the plug from the plug socket.
2 Clean the exterior of all the components with a damp cloth. Only use cleaning products that are suitable for plastic.
3 Dry the appliance and the accessories thoroughly before storing them.
4 Over the course of time, dust and dirt can accumulate around the wheel axles, thereby preventing the wheels from turning easily. They should, therefore, be kept clean.

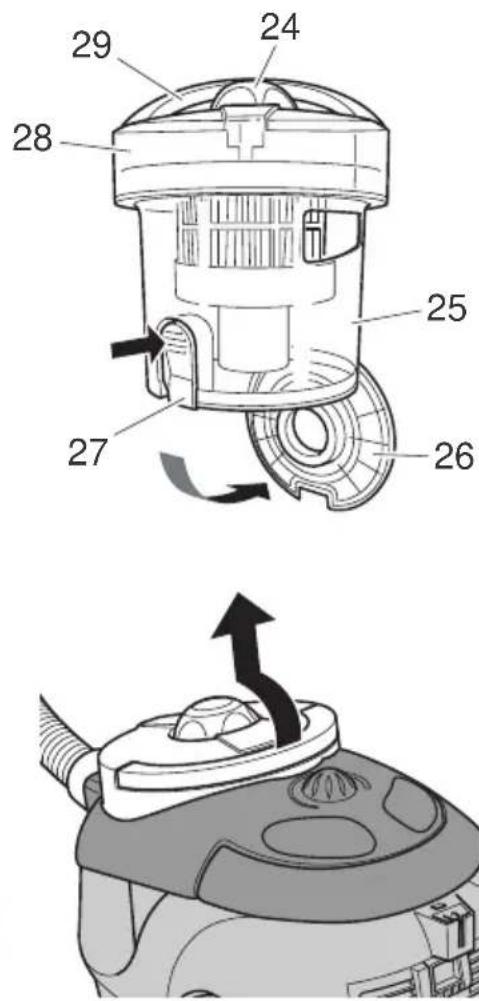

Emptying the dust collector

See figure 8.

The "Dust collector full" indicator indicates when the dust collector must be emptied.

1 Remove the plug from the plug socket.
2 Remove the dust collector by lifting the dust collector's handle and taking out the dust collector.
3 Hold the dust collector above a rubbish bin and press the dust collector base unlocking button.
4 Make sure the dust collector is completely empty. If necessary, shake the dust collector to remove all the waste.
5 Close the base of the dust collector by clicking it into place.
6 Place the dust collector back into the appliance. Push the handle of the dust collector's cover down as far as possible. This will lock the dust collector in the appliance.

Replacing the HEPA filter

See figure 9.

Regularly check whether the HEPA filter is blocked. If this is the case, clean the filter or replace it with a new filter.

1 Remove the plug from the plug socket.
2 Remove the dust collector by lifting the dust collector's handle and taking out the dust collector.
3 Remove the waste from the dust collector as described in 'Emptying the dust collector'.
4 Remove the cover from the dust collector (see figure 9A). Hold the cover in one hand and use your other hand to unscrew the dust collector by rotating it clockwise. The arrow on the cover will now be aligned with the arrow with the picture 🔒 on the dust collector. Remove the cover from the dust collector.
5 Remove the filter tube and the filter from the dust collector's cover (see figure 9B). Hold the cover in one hand

and the end of the filter in your other hand. Unscrew the filter tube and the filter by rotating it anticlockwise. The arrow on the bottom of the cover will now be aligned with the arrow with the picture 🔍 on the filter tube. Remove the cover from the filter tube.

6 Remove the filter tube from the dust filter (see figure 9C). Hold the filter tube in one hand and hold the end of the filter in the other hand. Unscrew the filter tube by rotating it anticlockwise. The arrow on the filter will now be aligned with the arrow with the picture on the filter tube.

7 Clean the filter or replace it with a new filter. The filter can be cleaned in a dishwasher. Allow the filter to dry thoroughly before placing it back in the appliance.
8 Put the filter, the filter tube and the dust collector back together.
9 Place the cover back on the dust collector.
10 Place the dust collector back in the appliance and lower the dust collector handle as far as possible. This will lock the dust collector in the appliance.

Replacing the outlet filter

See figure 10.

Replace the outlet filter when it becomes blocked. You cannot wash or rinse this filter.

1 Remove the plug from the plug socket.
2 Remove the grille at the back by pushing the unlocking button downwards and tilting the grille.
3 Remove the holder and the outlet filter from the appliance.
4 Remove the outlet filter from the holder and fit a new filter. The soft side of the filter must face the holder and the rough side must face the inside.
5 Place the holder and the new filter in the appliance.

6 Place the grille back in the appliance and click it into place.

Safety

General information

• Read and follow these instructions. Keep this instruction manual in a safe place.
• Only use this appliance in accordance with these instructions.
• Only use this appliance for domestic purposes.
• The use of this appliance by children or persons with a physical, sensory, mental or motor disability or with a lack of the necessary knowledge and experience may cause a hazard. Persons responsible for the safety of such people must give explicit instructions or supervise the use of the appliance.
• Keep the appliance out of the reach of children and persons who may not be able to operate it safely.
  • Repairs may only be carried out by a qualified service technician. Never try to repair the appliance yourself.
• Only use accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating a hazard for the user.

Heat and electricity

• Before use, verify that the mains voltage is the same as that indicated on the appliance's type plate.
  • Always remove the plug from the plug socket when the appliance is not going to be used for a long period of time.
• Always remove the plug from the plug socket by pulling the plug, not the power cord.
• Never pull the power cord to move the appliance.
• Do not use the appliance if the power cord or the appliance is damaged. Have a damaged power cord replaced by a qualified electrician.
• Make sure the appliance, the power cord and the plug do not come into contact with heat sources, such as a hot hob or a naked flame.
• Make sure the appliance, the power cord and the plug do not come into contact with water or chemicals.
• Do not touch the appliance if it has fallen into water. Remove the plug from the plug socket immediately. Do not use the appliance again..
• Make sure the air vents are not covered or blocked.

During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
• Make sure your hands are dry before you touch the appliance, the power cord or the plug.

• Switch off the appliance and/or remove the plug from the plug socket in the event of a malfunction during use, before cleaning the appliance and before storing it after use.

• The power cord has a yellow mark and a red mark. Extend the power cord beyond the yellow mark.
  The red mark indicates the end of the power cord. Never pull out the power cord beyond the red mark. This could damage the power cord.

• Guide the power cord whilst it is being rewound, otherwise the cord could become tangled or the plug could strike the back of the appliance. This may damage the appliance or the power cord.
• Never use the appliance to vacuum smouldering or burning objects, pieces of broken glass or other sharp objects, pieces of plaster, cement, stone, soot and similar objects, or liquids and damp waste. These objects could cause serious damage to the appliance and the filter system and make the appliance unsafe to use.
• Do not use the vacuum cleaner to vacuum wet rugs or carpets.
• Never insert objects into the outlet openings.
• Make sure the suction and outlet openings are clear and the filters are not blocked. Blockages will cause the appliance to overheat. Switch off the vacuum cleaner if it overheats! Once you have rectified the problem, wait 20 to 30 minutes to allow the vacuum cleaner to cool down. The vacuum cleaner will then be ready for use again.
• Keep the nozzle, the end of the telescopic tube and the end of the vacuum cleaner hose away from your body when the vacuum cleaner is turned on. This could cause an injury, for example, to the eyes or ears.
• Never roll the appliance over the power cord.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: ON NO ACCOUNT SHOULD EITHER THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE EARTH TERMINAL

With this appliance, if a 13A plug is used a 13A fuse should be fitted. If any other type of plug is used, a 15A fuse must be fitted either in the plug or at the distribution board.

The environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, then ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it should be disposed of in a

responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with normal household waste, but hand it over to a recycling collection point. Contact your local authority for information about available disposal and collection systems in your area.
