USER MANUAL PT-EP05L OLYMPUS

©2011 OLYMPUS IMAGING CORP. Printed in China

4 PT-EPOSL_06L.EN.Book Page 1 Friday, July 15, 2011 10:30 AM

Æ Thank you for buying the Underwater Case PT-EPOSL/06L (hereinafter Case).

= Please read this instruction manual carefully and use the product safely and correctly. Please keep this instruction manual for reference after reading it.

M Wrong usage may cause damage to the camera inside the Case due to water leakage, and repair may not be possible.

= Before use, perform an advance check as described in this manual

© Unauthorized copying of this manual in part or in full, except for private use, is prohibited. Unauthorized reproduction is strictiy prohibited.

OLYMPUS IMAGING CORP. shall not be responsible in any way for lost profits or any claims by third parties in case of any damage occurring from improper use of this product.

Please read the following items before use

© This Case is a precision device designed for use at a water depth within 45 m. Please handle it with sufficient care.

e Please use the Case correctly after sufficient understanding of the contents of this manual in regard to handling of the Case, checks before use, maintenance, and storage after use.

OLYMPUS IMAGING CORP. shall not be responsible for accidents involving immersion of a digital camera in water. In addition, expenses incurred for damage of intemal materials or loss of recorded contents due to water entering the camera will not be compensated.

« OLYMPUS IMAGING CORP. shall not pay any compensation for accidents (injuries or material damage) at the time of use.

This instruction manual uses various pictographs for correct use of the product and to prevent danger to

the user and other person, as well as property damage. These pictographs and their meanings are shown below.

This shows the content regarding assumption of possibility of human death or severe injury in case of handling with disregard of this indication:

Z\ WARNING This shows the contents regarding assumption of possibility of injury or damage to property in case of handling with disregard of this indication.

æ 4 PT-EPOSL_06L_EN.Book Page 2 Friday, July 15, 2011 10:30 AM For customers in Europe

The "CE" mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. CE-mark products are for sale in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

Eor customers in USA FCC Notice

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

Eor customers in CANADA This Class B digital apparatus complies with Canadian ICES-003

a A WARNING & ® Keep this product out of the reach of babies, infants, and children. There is the possibility of occurrence of the following types of accidents. + Injury by dropping onto the body from heights. + Injury from parts of the body getting caught in parts which open and close. + Swallowing of small parts, O-ring, silicone grease and silica gel. Please consult a physician immediately if any parts have been swallowed. Do not store this product with batteries for light or a digital camera still containing batteries loaded in it. Storage with batteries inserted may lead to battery leakage and fire hazard. 3) Ifleakage of water should occur with a camera installed in this product, quickly remove the batteries from the camera or the Case. There is the possibility of ignition and explosion from generation of hydrogen gas. @ This product is made of resin. There is the possibility that injuries may be caused when it becomes broken due to strong impact with a rock or other hard objects. Please handle it with sufficient care. Do not look directly at the light when it is on. A\ CAUTION (D Do not disassemble or modify this product. This may cause water leakage or defect. In case of the loss of image data caused by disassembly, repair or modification etc. by any party other than those appointed by OLYMPUS IMAGING CORP. we shall bear no responsibility for damage. @ Use or storage of the product at the following locations may cause defective operation, defects, damage, fire, internal fogging, or water leakage. This should be avoided. + Locations reaching high temperatures such as those under direct sunlight, in an automobile, etc. + Locations close to fire + À water depth in excess of 45 m + Locations subject to vibrations EN2 &

WP PT-EPOSL_06L_ENOI.fm Page 3 Thursday, July 21, 2011 11:18 AM EN 3

+ Locations with high temperature and humidity or with extreme temperature changes + Locations with volatile substances

@® Opening and closing at locations with much sand, dust, or dirt may impair the waterproof characteristic and cause water leakage. This should be avoided

@ This product is not a case to soften impacts to the camera inside the product. When this product with a digital camera inside is subjected to impacts or heavy objects are placed onto it, the digital camera may be damaged. Please handle it with suficient care.

® Do not use the following chemicals for cleaning, corrosion prevention, prevention of fogging, repair or other purposes. When these are used for the Case directiy or indirectly (with the chemicals in vaporized state), they may cause cracking under high pressure or other problems.

Chemicals which cannot be

Do not clean the Case with alcohol, gasoline, thinner or other volatile organic solvents or with chemical detergents etc. Pure water or lukewarm water is sufficient for cleaning.

Volatile organic solvents, chemical detergents

Do notuse anticorrosion agents. Pure water is sufficient when washing

Anticorrosion agent the metal parts as stainless steel and brass are used.

Commercial defogging Do not use commercial defogging agents. Always use the specified agents desiccant silica gel.

Grease other than specified | Use only the specified silicone grease for the O-ring, as otherwise the silicone grease O-ring surface may deteriorate and water leakage may occur.

Do not use adhesive for repairs or other purposes. When repair is Adhesive required, please contact a dealer or a service station of OLYMPUS IMAGING CORP.

© Jumping into the water with the Case in your hand, throwing the Case from a boat or ship into the e water, and other rough handling may cause water leakage. Please handle with sufficient care, when handing it over from hand to hand etc.

@ There is the light circuitry inside, so do not let the inside of the Case getting wet.

® Ifthe Case interior or the camera should become wet because of water leakage, etc. immediately wipe off all moisture and contact your local service station or dealer.

© Be careful not to apply excessive force to the zoom dial, accessory mount or tripod seat.

© Remove the O-ring when traveling by air. Otherwise air pressure may make it impossible to open the

f) For safe use of the digital camera in this product, please read the “Instruction Manual” for the digital

€) When sealing this product, take sufficient care that no foreign matter gets caught at the O-ring and the contact surface. lt is caused for water leakage.

“3 The lens port cannot be removed.

43) Do not use as an underwater torch for diving.

SA POSL.06L_EN.Book Page 4 Friday, July 15, 2011 10:30 AM Battery handling precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burs.

© Never heat or incinerate batteries. © Never contact terminals (+) and (-) with metal. © Do not use solder, transform, modify or dismantle the batteries.

À WARNING Keep batteries dry at all times. Do not touch the batteries with wet hands.

Use only batteries recommended for use with this product.

Never mix batteries (old and new batteries, charged and uncharged batteries, batteries of different manufacture or capacity, etc.)

If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using it. It may cause a fire or an electrical shock. Please contact your local service station or dealer.

© Always remove batteries if they are not used for a long period.

l 4 PT-EPOSL_06L_EN.Book Page 5 Friday, July 15, 2011 10:30 AM

Introduction . Please read the following items before use . For safe use … Battery handling precautions….

1.Preparations Check the contents of the packag, Names of the parts.

Using the accesories . Installing and removing of the LCD hood. Mounting and removing the body cap. Installing the diffuser .

2.Advance check of the Case. Advance check before use.

3.Loading the digital camera Check the digital camera. Open the Case Attach the flash to the camera and raise the light emitting part . Insert the batteries for the light. Load the digital camera … Make sure the camera is loaded properly. Seal the Case. Attach the diffuser … Check the operation of the loaded camera Water leakage test …

4.Connecting the underwater flash | En Connecting the underwater optical fiber cable .

g the underweater conversion lens …

6.Taking pictures under water. Select the shooting mode: Underwater shooting modes.

7.Handling after shooting . Wipe off any waterdrop … Unload the digital camera and batteries . Wash the Case with pure water …. Dry the Case

8.Maintaining the waterproof function. Remove the O-ring. Remove any sand, dirt, etc.

a & l 7 PTEPOSL_06L_EN.Book Page 6 Friday, July 15, 2011 10:30 AM ||

Install the O-ring … Applying grease to the O-ring Replace consumable products

9.Appendix Specifications … eu Supplied accessories for PT-EPOSL/06L Optional accessories

4 PT-EPOSL_06L_EN.Book Page 7 Friday, July 15, 2011 10:30 AM

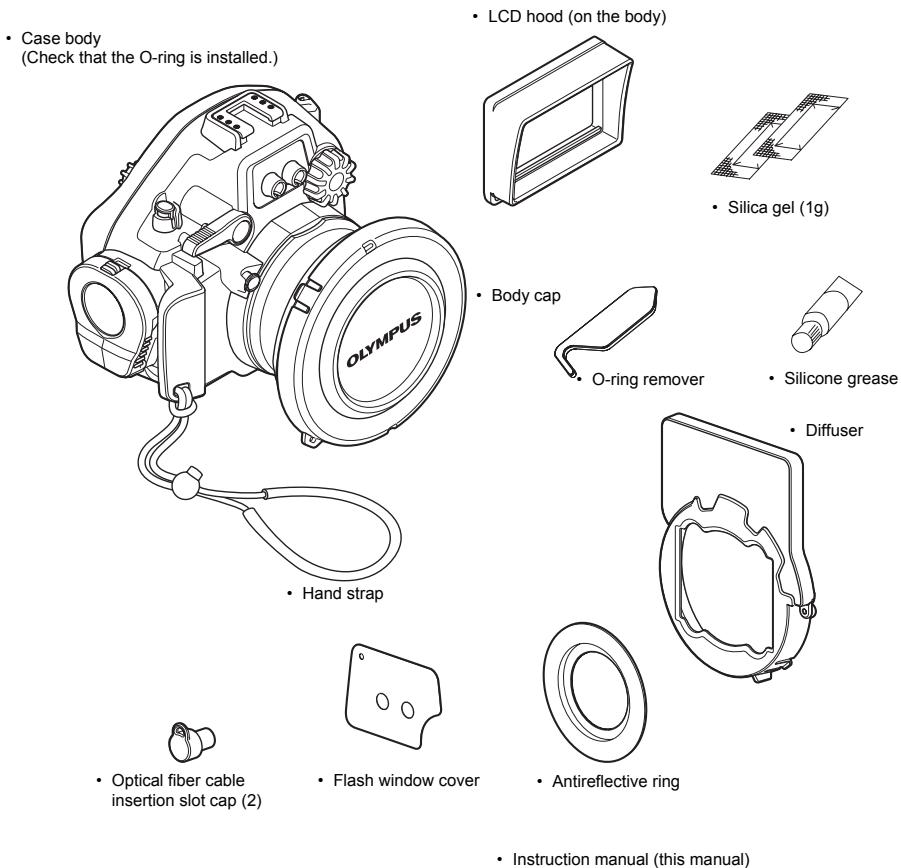

Check the contents of the package

Check that all accessories are in the box. Contact your dealer if accessories are missing or damaged.

+ LCD hood (on the body) + Case body {Check that Ihe O-ring is installed.)

O-ring remover + Silicone grease

+ Optical fiber cable + Flash window cover + Antireflective ring insertion slot cap (2)

+ Instruction manual (this manual)

+ After purchase, be sure to do maintenance even in brand-new condition. Neglecting the maintenance may. become the cause of water leakage For how lo maintenance {he case, refer to P.23

+ The zoom gear PPZR-EPO2 (sold separately) is required to use the zoom. For details, refer to P.12.

4 PT-EPOSL_06L_EN.Book Page 8 Friday, July 15, 2011 10:30 AM

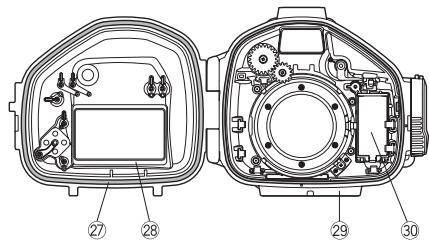

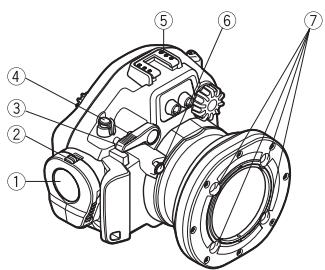

Y7 Names of the parts PT-EPOSL pppep Ps 7 7 ) Open/close dial 63) E9/Fn button (PT-EPO5L) … *2 [si] button/Cross-cursor Slide lock 4 @ button (PT-EPOSL) button 4 (PT-EPOSL) *(@) Shutter lever 45) @ (REC) button & LCD monitor window *& ON/OFF button 45) INFO (Info display) button 2? LCD hood Accessory mount *® FA (Exposure correction) 4 4 button/Q button/Cross- @ Light ON/OFF button button/Cross-cursor button cursor button D A {PT-EPO6L) 8) Optical fiber cable insertion“) £ button/Cross-cursor @ [ei] button/Æ=3 button/ slots button à (PT-EPO5L) Cross-cursor button 4 Zoom dial “ OK button (PT-EPO6L) en | “40 O7] (Play) button *@ Eh) button/Cross-cursor 2 O-ring (Erase) button button W & LCD inner hood ) Mode dial knob *@) MENU button @) Tripod seat @ Battery box Note: Case operation parts marked by * corresponds to the operation parts of the digital camera. When the operation parts of the Case are operated, the corresponding functions of the digital camera will operate. For details of the functions, refer to the instruction manual for the digital camera. À ENS

4 PT-EPOSL_06L_EN.Book Page 9 Friday, July 15, 2011 10:30 AM

Using the accesories

Installing and removing of the LCD hood

Installation Fitthe LCD hood as shown in the figure into the rails above and below the LCD monitor window one after the other.

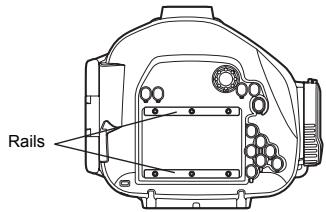

Removal Remove the LCD hood from the rails above and below the LCD monitor window one after the other by widening the LCD hood.

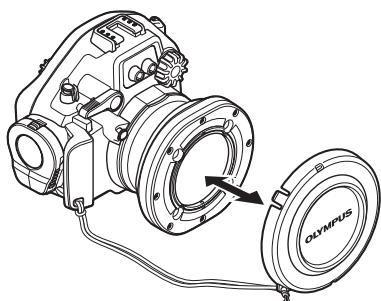

PS Ÿ & Installation > Mounting and removing the body cap Install to fit the concave and convex parts of the body cap and lens port. Be sure to remove the body cap before shooting. EN9 PS NA SA

l 4 PT-EPOSL_06L_EN.Book Page 10 Friday, July 15, 2011 10:30 AM

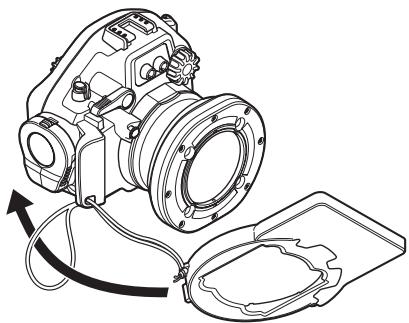

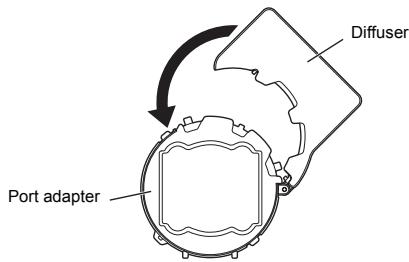

Installing the diffuser ® Attach the diffuser to the port adapter.

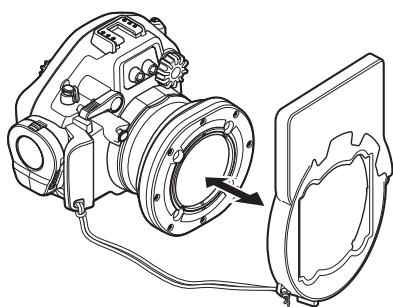

® Install the diffuser on the Case.

An WP PT-EPOSL_06L_EN.Book Page 11 Friday, July 15,2011 10:30 AM

2. Advance check of the Case

Advance check before use

This Case has been the subject of thorough quality control for the parts during the manufacturing process and thorough function inspections during the assembly. In addition, a water pressure test is performed with a water pressure tester for all products to confirm that the performance conforms to the specifications.

However, depending on the carrying, storage conditions and the maintenance status, etc. the waterproof function may be damaged.

Before using, always perform the following advance checks.

Advance check @ Before loading the digital camera in the Case, immerse the empty Case to confirm that there is no water leakage. When it is difficult, water leakage can be checked by referring ‘Water leakage test” (P. 17). @) Main causes of water leakage are as follows. + Forgetting to install the O-ring + Part of an O-ring or an entire O-ring is outside the specified groove. + O-ring damage, cracks, deterioration or deformation + Sand, fibers, hair or other foreign matter sticking to the O-ring, the O-ring groove or the O-ring contact surface + Damage to an O-ring groove or O-ring contact surface. + Attached strap or silica gel getting caught when closing the Case. Perform the test after the above causes have been eliminated.

A\ CAUTION: Ifthe advance test should show water leakage with normal handling, stop using the Case and contact your dealer or an Olympus service station.

WP PT-EPOSL_06L_EN.Book Page 12 Friday, July 15,2011 10:30 AM An SA

3. Loading the digital camera

Check the digital camera

Check the digital camera before loading it in the Case. 1. Battery confirmation Itis impossible to change the batteries when using the Case. Make sure that you have sufficient

remaining battery capacity before use.

2. Check the remaining number of pictures Check that the image storage medium has enough room for the number of pictures you want to take.

3. Remove the strap, lens cap and filter from the digital camera. If the digital camera is loaded without removing the strap, lens cap and the Case cannot be sealed properly and water leakage may be caused

4. When using PT-EPO5L, insert the back monitor of the camera.

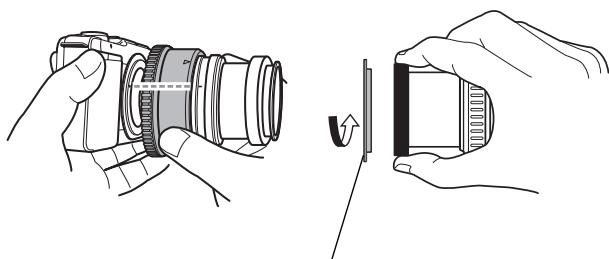

5. Attach the zoom gear (optional) and the antireflective ring.

Antireflective ring [en |

Zoom gear Antireflective ring

a & l 7 PTEPOSL_06L_EN.Book Page 13 Friday, July 15,201 10:30 AM ||

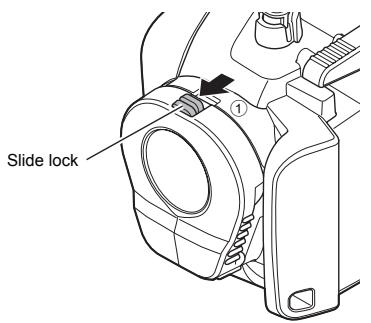

® Slide and hold the slide lock towards the arrow direction (D) and turn the open/close dial clockwise @).

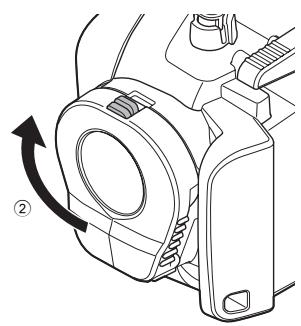

(2) Open the rear lid of the Case gently.

A\ CAUTION: Do not apply too much force while tuming the open/close dial. Doing so may damage the dial.

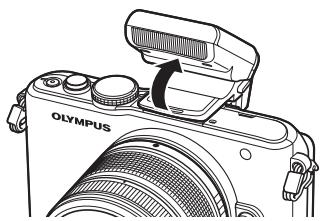

Attach the flash to the camera and raise the light emitting part

SA L Attach the flash supplied with the camera. Make sure to raise the light emitting part.

a & l WP PT-EPOSL_06L_EN.Book Page 14 Friday, July 15,2011 10:30 AM NS 4

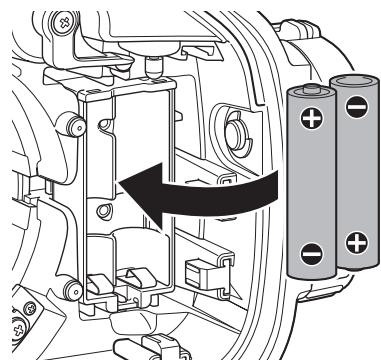

Insert the batteries for the light

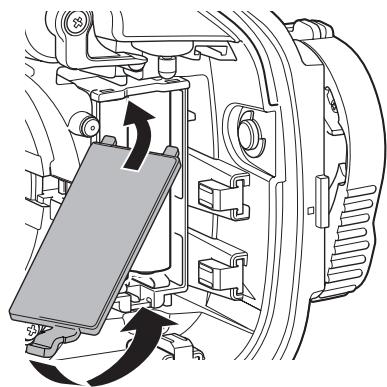

Open the battery lid.

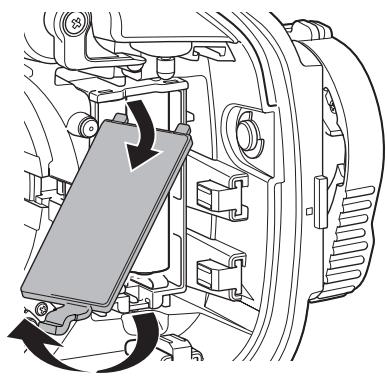

Close the battery lid. [en |

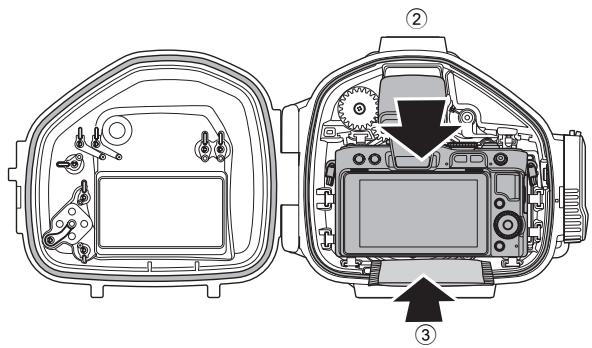

æ 4 PT-EPOSL_06L_EN.Book Page 15 Friday, July 15, 2011 10:30 AM Load the digital camera

Confirm that the digital camera is OFF. Gentiy load the digital camera into the Case.

@ Insert a silica gel bag (19) between the bottom of the digital camera and the Case. The silica gel bag provided for prevention of fogging.

+ Ifthe silica gel bag is caught when the Case is sealed, water leakage will occur.

+ Once silica gel has been used, the moisture absorption performance will be impaired. Always replace the silica gel when the Case is opened and closed

+ Clean the surface of the dials of the Case and the camera. The dials may slip if there is grease or foreign matter on them. S 4

SA Make sure the camera is loaded properly

Check the following points before sealing the Case.

+ Is the digital camera loaded properiy? | En + Is silica gel inserted all the way at the specified location? + Is the O-ring attached properly to the opening on the Case? + Is there any dirt or foreign matter on the O-ring or the O-ring contact surface on the front lid?

+ Is the waterproof function maintenance performed? (For details of the maintenance, refer to “Maintaining the waterproof function” (P. 23) of this manual.)

SA POSL.06L._EN.Book Page 16 Friday, July 15,201 10:30 AM Seal the Case

Close the Case gently while aligning the mounting projection ofthe rear lid and groove ofthe open/close dial

2) Tum the open/close dial counter clockwise. + The Case is sealed.

A\ CAUTION: : Ifthe open/close dial is not fully turned, the Case wil not be sealed. This will cause water leakage.

+ Close the rear lid of the Case so that the lens cap or LCD hood strap is not caught. it is caught, water leakage may be caused.

Attach the diffuser Sa

+ Do not cap to optical fiber cable insertion slot.

Check the operation of the loaded camera

After sealing the Case, check that the camera operations normally + Push the ON/OFF button on the Case and confirm that the camera turns ON/OFF. en | + Tum the mode dial knob on the Case and confirm that the camera mode switches properly

+ Press the shutter lever on the Case and confirm that the camera shutter releases

+ Operate the zoom dial on the Case and confirm that the camera's lens is controlled.

+ Operate other control buttons on the Case and confirm that the camera functions properly as intended.

+ Push the ONJOFF button of the light and confirm that the light turns ON/OFF.

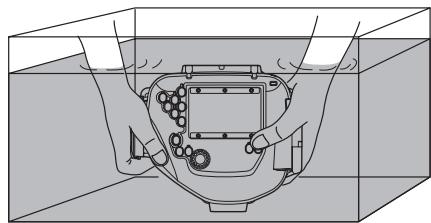

4 PT-EPOSL_06L_EN.Book Page 17 Friday, July 15, 2011 10:30 AM Water leakage test

The final test after loading the camera is explained below. Always perform this test. It can be performed easily in a water tank or a bathtub. The required time is about five minutes. Confim the operation of the different buttons. + Atfirst, immerse the Case for only three seconds and check that no water drop etc. to inside of the Case. + Next, immerse the Case for 30 seconds and check that no water drop etc. to inside of the Case. + Then, immerse the Case for three minutes, operate all buttons and levers, and check the following - check that no water has accumulated inside of the Case. - check that the Case is not fogged - check that no water has entered inside of the Case. + Ifinside of the Case is fogged or there is a water drop, do the maintenance of the O-ring and perform the water leakage test again.

4 PT-EPOSL_06L_ENO2.fm Page 18 Wednesday, July 20, 2011 12:27 PM

4. Connecting the underwater flash

Connecting the underwater optical fiber cable

To connect the UFL-2 underwater flash (optional) to the Case using an underwater optical fiber cable (optional: PTCB-E02), follow the procedures below.

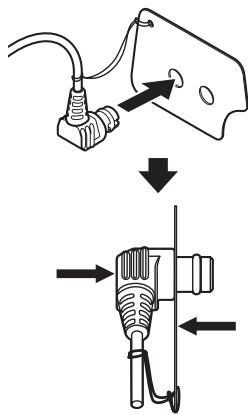

Connecting the underwater optical fiber cable

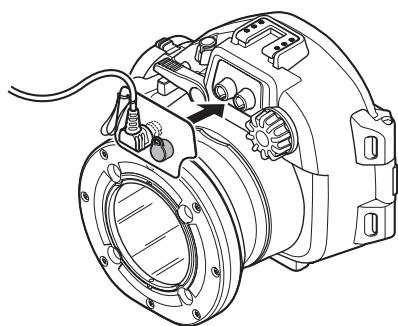

@ Put the undenwater optical fiber cable plug into the optical fiber cable insertion slot. Insert fimly until it stops next to the flash window cover.

@) Putthe cap to the optical fiber cable insertion slot when not in use.

Setting of the digital camera Set the RC mode of the camera to ON so that the camera's built-in flash is activated.

In case of UFL-2, turn the RC mode to ON. For details, refer to the instruction manual of UFL-2.

In case of UFL-1, plug the optical fiber cable in the same way. Turn the RC mode of the camera to OFF.

a & l 7 PTEPOSL_06L_EN.Book Page 19 Friday, July 15,201 10:30 AM ||

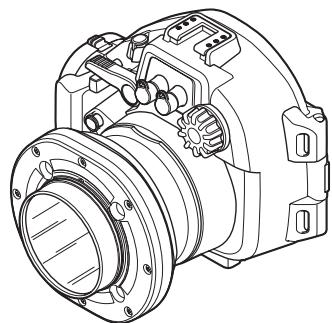

ng the underweater conversion lens

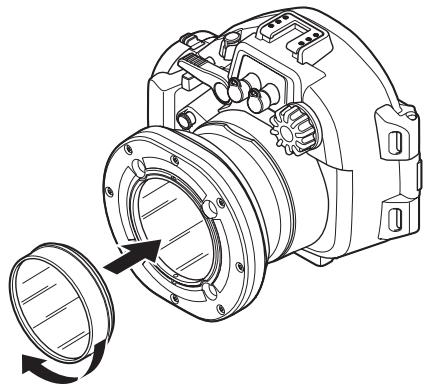

Attaching the conversion lens.

The underwater macro conversion lens PTMC-01 (optional) and underwater wide conversion lens PTWC-01 (optional) are supported.

Ps 7 7 en Vignetting in the four comners may occur when using the underwater wide conversion lens (PTWC-01) on land. Also, the camera built-in flash cannot be used with the undenwater wide conversion lens. EN 19

An WP PT-EPOSL_06L_EN.Book Page 20 Friday, July 15, 2011 10:30 AM

6. Taking pictures under water

Select the shooting modes

For E-PL3 Assign the underwater mode to an Fn button to easily switch to that mode.

Select [BS/EZ] in [Button Function] in [G]] of [GA] in [MENU], then press the OK button * [EM menu display] of [FA] in [MENU] must be set to ON.

In case of E-PM1, assign to the @(REC) button or Cross-cursor button Y.

+ Press the Fn button to switch between Underwater Wide-Angle and Underwater Macro modes.

+ Tum the mode dial knob or hold down the Fn button to exit the undenwater mode. Press the Fn button again to return to the underwater mode

+ However, in SCN, AUTO and movie modes, pressing the Fn button will not set the camera in underwater mode.

For details, refer to the instruction manual of the digital camera.

Underwater shooting modes

= Underwater Wide-Angle Suitable for shooting a scene that extends across a wide range such as a school of fish swimming PS through the water. Background blues are vividly reproduced.

= 5 Underwater Macro Suitable for close-up shooting of small fish and other underwater creatures. Natural colors of the undenwater are accurately reproduced.

4 PT-EPOSL_06L_EN.Book Page 21 Friday, July 15,201 10:30 AM _4

7. Handling after shooting

Wipe off any waterdrop

After underwater shooting, remove any water drop from the case. Use pressurized air or a soft, lint-free cloth to carefully wipe away any moisture from the hinge between the front and rear lids, the shutter lever and the open/close dial.

À CAUTION: Water left between the front and rear lids can get inside the Case once it is opened. Please dry these areas carefully.

Unload the digital camera and batteries

Open the Case carefully and remove the digital camera and light batteries.

+ When opening the Case, make sure no water from outside (e.g. drops from your hair or the diving suit) gets: inside the Case and/or on the camera.

+ Before opening he case, ensure that your hands or gloves are completely clean (free of sand, loose fibers, etc.).

+ Never open the Case in areas where water could splash or spray or where sand or dust could be blown in the air. When this cannot be avoided, for example if the battery or memory card needs to be changed, the Case and camera should be protected from the wind or spray with a plastic sheet or similar object. 7

+ Never touch the digital camera and/or battery when your hands are wet with sea water.

Wash the Case with pure water

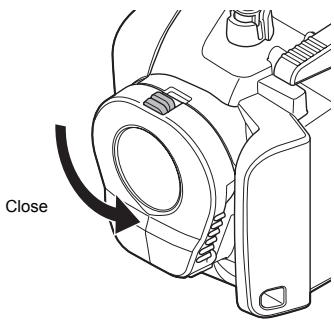

After use, seal the Case again after taking out the camera and wash it sufficientiy in pure water as soon

as possible. After use in sea water, it is effective to immerse it for a fixed time (30 minutes to 1 hour) in pure water to

+ Water leakage may occur when a high water pressure is applied partially. Before washing the Case with water, remove the digital camera from it.

+ Operate the shutter lever and each buttons ofthis product in pure water to remove salt adhering to the shaft. Do not disassemble for cleaning.

+ Letting salt dry on the Case may impair the function. Always wash off any salt after use.

æ 4 PT-EPOSL_06L._EN.Book Page 22 Friday, July 15,201 10:30 AM _4

After washing with pure water, use a lint-free soft cloth without any salt on it to wipe off any water drop and dry the Case completely at a well ventilated location in the shade.

Do not use hot air from a hair drier or the like for drying and do not expose the Case to direct sunlight, as this may accelerate deterioration and deformation of the Case and deterioration of the O-ring, leading to leakage of water.

When wiping the Case, take care not to cause scratches.

An WP PT-EPOSL_06L_EN.Book Page 23 Friday, July 15,2011 10:30 AM

8. Maintaining the waterproof function

The O-ring is a consumable product. Before each use, perform proper maintenance. Always be sure to perform the O-ring maintenance operation as described below. Neglecting this maintenance may become the cause of water leakage.

Perform at the location without sand or dust, after washing and drying your hands.

Open the Case and remove the O-ring

© Insert the O-ring remover into the gap between the O-ring and O-ring groove wall.

@ Bring the tip of the inserted O-ring remover below the O-ring. (Be careful not to damage the groove with the tip of the O-ring remover.)

® Lift the O-ring, pinch it with your fingertips and pull it out of the Case.

Remove any sand, dirt, etc.

After visually checking that dirt has been removed from the O-ring, check for attached sand and other foreign matter, as well as for damage and cracks by squeezing the entire circumference of the O-ring

lightiy with your fingertips. FN Remove atiached foreign matter from the O-ring groove with a clean cloth or a cotton swab. Also remove any sand or dirt attached to any part of the Case that comes into contact with the O-ring.

+ When a sharp object is used to remove the O-ring or to clean the inside of the O-ring groove, the Case and the O-ring may be damaged and water Isakage may be caused.

+ When the O-ring is checked with the fingertips, take care not to stretch the O-ring.

+ Never use alcohol, thinner, benzene or similar solvents or chemicals detergents to clean the O-ring. When such CRUE are used, it is likely that the O-ring will be damaged or that its deterioration will be accelerate:

Confirm that no foreign matter is attached, apply a thin coat of the accessory grease to the O-ring, and fitthe O-ring into the groove. At this time, confirm that the O-ring does not stick out from the groove. When sealing this product, make sure that no hairs, fibers, sand particles or other foreign matter stick not only to the O-ring, but also to the contact surface (front cover). Even a single hair or a single grain of sand may cause water leakage. Please check with special care.

4 PT-EPOSL_06L_EN.Book Page 24 Friday, July 15, 2011 10:30 AM Applying grease to the O-ring

RER | like sure that your fingers andthe O-ingare

Apply only Olympus free of dirt, and squeeze about 5 mm of grease exclusive grease to O-ring. onto a finger. (5 mm is the most appropriate amount.)

Spread the grease onto the PE | Spread ne grease onto the entire

entre cireuriference of the circumference of the O-ring using 3 fingers.

O-ring { Be careful not to use excessive force as this - \ may stretch the O-ring.

After spreading the grease, check visually and 3) Check that the O-ring is free by touch that the O-ring is not scratched and of scratches or unevenness. that its surface is flat. Fit is damaged in any way, replace it with a brand-new O-ring.

+ AWays perform maintenance of the waterproof function even when the Case has been opened every shooting. Neglecting this maintenance may become lhe cause of water leakage.

+ When the Case is not to be used for a long time, remove the O-ring from the groove to prevent deformation of the O-ring, apply a thin coat of silicone grease, and store ii a clean plastic bag or the like.

SA L Examples of foreign matter sticking to the O-ring

% D Hair Fibers Grains of sand

Replace consumable products

+ The O-ring is a consumable product. Independent of the number of times the Case is used, itis recommended that the O-ring should be replaced by a new piece at least once a year.

+ Deterioration of the O-ring is accelerated by the usage conditions and the storage conditions. Replace the O-ring even before a year has passed if it shows signs of damage, cracking or loss of elasticity.

+ Use genuine Olympus silicone grease, silica gel and O-ring. + Do not ty to replace the O-ring by yoursel.

+ We recommend to perform the check periodically.

25 Friday, July 15, 2011 10:30 AM A 7

Underwater case PT-EPOSL PT-EPO6L Supported camera E-PL3 E-PM1 Pressure resistance Depth of down to 45 m (147 feet)

Main materials Main body: Polycarbonate O-ring: Silicone rubber

Light batteries 2 AAA batteries (Alkaline / NiMH) Lighting time Approx. 4 hours in continuous use (when using alkaline batteries)

Dimensions Width 175 mm x height 149 mm x | With 175 mm x height 149 mm * depth 156 mm depth 152 mm

Weight Approx. 1,110 g (camera and accessories not included)

Weight under water Approx. -30 g (in he freshwater)

(including camera, lens, zoom gear, antirefletive ring, batteries and media card)

*_We reserve the right lo change the external appearance and the specifications without notice.

Supplied accessories for PT-EPO5L/06L O-ring: POL-EPO3 £ Silicone grease: PSOLG-2 È

Silica gel: SILCA-5S LCD hood: PFUD-EP05

Diffuser: PTDP-EPOS Antireflective ring: POSR-EP05

Flash window cover: PFC-EPOS O-ring remover: PTAC-05

Optional accessories

Silicone grease: PSOLG-3

Underwater optical fiber cable: PTCB-E02 Bracket: PTBK-E01, PTBK-E02

Short arm: PTSA-02/PTSA-03

Undenwater flash: UFL-2, UFL-1

Undenwater macro conversion lens: PTMC-01 Undenwater wide conversion lens: PTWC-01 Zoom gear: PPZR-EPO2

* When use combining PTBK-E01 and the Case, the dedicated washers are necessary in the screw part. If you have PTBK-E01 to which dedicated washers are not bundied, please contact to customer support center.

Supplied accessories can be purchased. Products of other model types than those describing above cannot be used.

A NA CIE POSL.06L_EN.Book Page 26 Friday, July 15, 2011 10:30 AM OLYMPUS

http/Awww.olympus.com/

OLYMPUS IMAGING CORP. Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

24/7 online automated help: http:/www.olympusamerica.com/support

Our phone customer support is available from 8 am to 10 pm

{Monday to Friday) ET E-Mait distec@olympus.com Olympus software updates can be obtained at: http:/mww.olympusamerica.com/digital

OLYMPUS EUROPA HOLDING GMBH Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany Tel: +49 40-23 77 3-0 / Fax: +49 40-23 07 61 Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany Letters: Postfach 10 49 08, 20034 Hamburg, Germany.

European Technical Customer Support: Please visit our homepage http:lwww.olympus-europa.com or call our TOLL FREE NUMBER : 00800 - 67 10 83 00 for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom + Please note some (mobile) phone services providers do not permit access or request an additional prefix to +800 numbers.

For all European Countries not listed and in case that you can't get connected to the above mentioned number, please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 4899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)
