Product Type	Car Audio Installation Kit
Compatible Vehicles	Select Honda and Acura models (1998-2008)
Material	High-grade ABS plastic and metal brackets
Includes	Double DIN radio housing, mounting brackets, trim ring, wiring harness adapter, antenna adapter, screws
Radio Size Supported	Double DIN (approx. 4" x 7")
Color	Black, textured finish
Dimensions (Housing)	2.0" x 7.0" (51mm x 178mm)
Weight	1.2 lbs (0.54 kg)
Installation Difficulty	Moderate, requires basic tools
Warranty	1 year limited
Maintenance	Wipe with damp cloth; avoid harsh chemicals
Safety	Disconnect vehicle battery before installation; follow wiring diagram
Spare Parts Availability	Contact Metra customer service for replacement parts
Additional Features	Factory fit; no cutting required; includes ISO harness
Certification	Meets ISO 10487 standards

Frequently Asked Questions - 95-8912HG Metra

What vehicles are compatible with the Metra 95-8912HG?

The Metra 95-8912HG is designed for select Honda and Acura vehicles from 1998 to 2008. Check Metra's website or your vehicle's radio size for confirmation.

Does this kit support a single DIN radio?

No, the kit is specifically for double DIN radios (approx. 4 inches tall). For single DIN, look for a different kit or use an adapter pocket.

What tools are needed for installation?

You will need a panel removal tool, a Phillips screwdriver, a socket set (usually 10mm), and wire strippers/crimpers. A multimeter is recommended for testing connections.

Does the kit include a wiring harness adapter?

Yes, it includes a wiring harness adapter that connects your vehicle's factory wiring to the aftermarket radio, usually color-coded for easy matching.

Is the mounting solid and secure?

Yes, the kit uses metal brackets and sturdy ABS plastic to ensure a secure fit with no rattling or movement.

Can I install this kit without cutting the dashboard?

Yes, it is a factory-fit kit designed to install without cutting or modifying the dashboard. It uses existing screw points.

Does this kit include an antenna adapter?

Yes, it includes an antenna adapter to connect your vehicle's antenna to an aftermarket radio, ensuring good radio reception.

What if my vehicle has factory amplified sound?

The kit does not include a line output converter. You may need one separately if your vehicle has a factory amplifier.

How do I clean the kit once installed?

Use a damp microfiber cloth to clean the trim pieces. Avoid abrasive or solvent-based cleaners.

Are there any safety precautions I should follow?

Always disconnect the vehicle battery before starting installation to avoid short circuits or airbag deployment. Follow the wiring diagram provided.

USER MANUAL 95-8912HG Metra

Interior view of a car dashboard with a digital tablet and control panel (no visible text or symbols)

Subaru BRZ 2016-Up

Visit NetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications

KIT FEATURES

• ISO DDIN radio provision
- Painted high gloss black to match the factory finish

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Panel clips (4)

A

Line drawing of a rectangular frame with a small protrusion at the top (no text or symbols)

•

Technical line drawing of two mechanical bracket components (no text or symbols)

•

TABLE OF CONTENTS

Dash Disassembly 2

Kit Assembly 3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1761

Antenna Adapter: 40-LX11

Steering wheel control interface: ASWC-1

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver
• 10mm socket wrench

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

DASH DISASSEMBLY

1. Unclip and remove the radio trim panel. (Figure A)

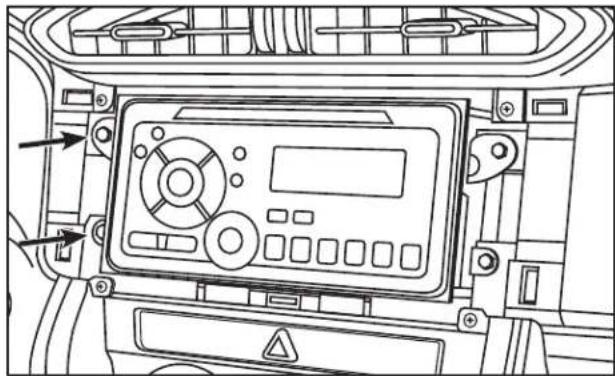

2. Remove (4) 10mm screws securing the radio. Slide the radio out, then unplug and remove. (Figure B)

Continue to Kit Assembly

Interior view of a car dashboard with steering wheel and air vent (no text or symbols visible)

(Figure A) (Figure B)

Technical line drawing of a vehicle dashboard with control panel and buttons (no text or symbols)

KIT ASSEMBLY

ISO DDIN radio provision

1. Attach the (4) panel clips provided to the radio trim panel (Figure A)
2. Secure the radio brackets to the radio using screws supplied with the radio. (Figure B)
3. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or AXXESS. Test the radio for proper operation
4. Slide the radio into the dash, then secure using the factory screws. Clip the radio trim panel over the completed assembly to complete the installation.

Technical line drawing of a rectangular device with mounting holes and dashed alignment lines (no text or symbols)

(Figure A) (Figure B)

Technical line drawing of an electronic device casing with internal components and mounting holes (no text or symbols)

Having difficulties? We're here to help.

our Tech Support line at:

386-257-1187

mail at:

[e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by supplying in the most recognized and supported

mobile electronics school in our industry.

Log onto www.installennstitute.com or call

800-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians

Interior view of a car dashboard with a digital tablet and navigation controls (no readable text or symbols)

Three black plastic enclosures: front panel, side view with mounting bracket, and side cover with mounting bracket (no text or symbols visible)

HARDWARE INCLUDED

Five identical line drawings of a mechanical clamp or bracket component, shown in a row (no text or symbols)

Subaru BRZ 2016-Up

Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle specific applications.

ISO DDIN radio provision

Painted high gloss black to match the factory finish

KIT COMPONENTS

• Radio trim panel
• Radio brackets
• Panel clips (4)

WIRING & ANTENNA CONNECTIONS

(sold separately)

• Wiring Harness: 70-1761
- Antenna Adapter: 40-LX11
• Steering wheel control interface: ASWC-1

SALES 386-257-2956
